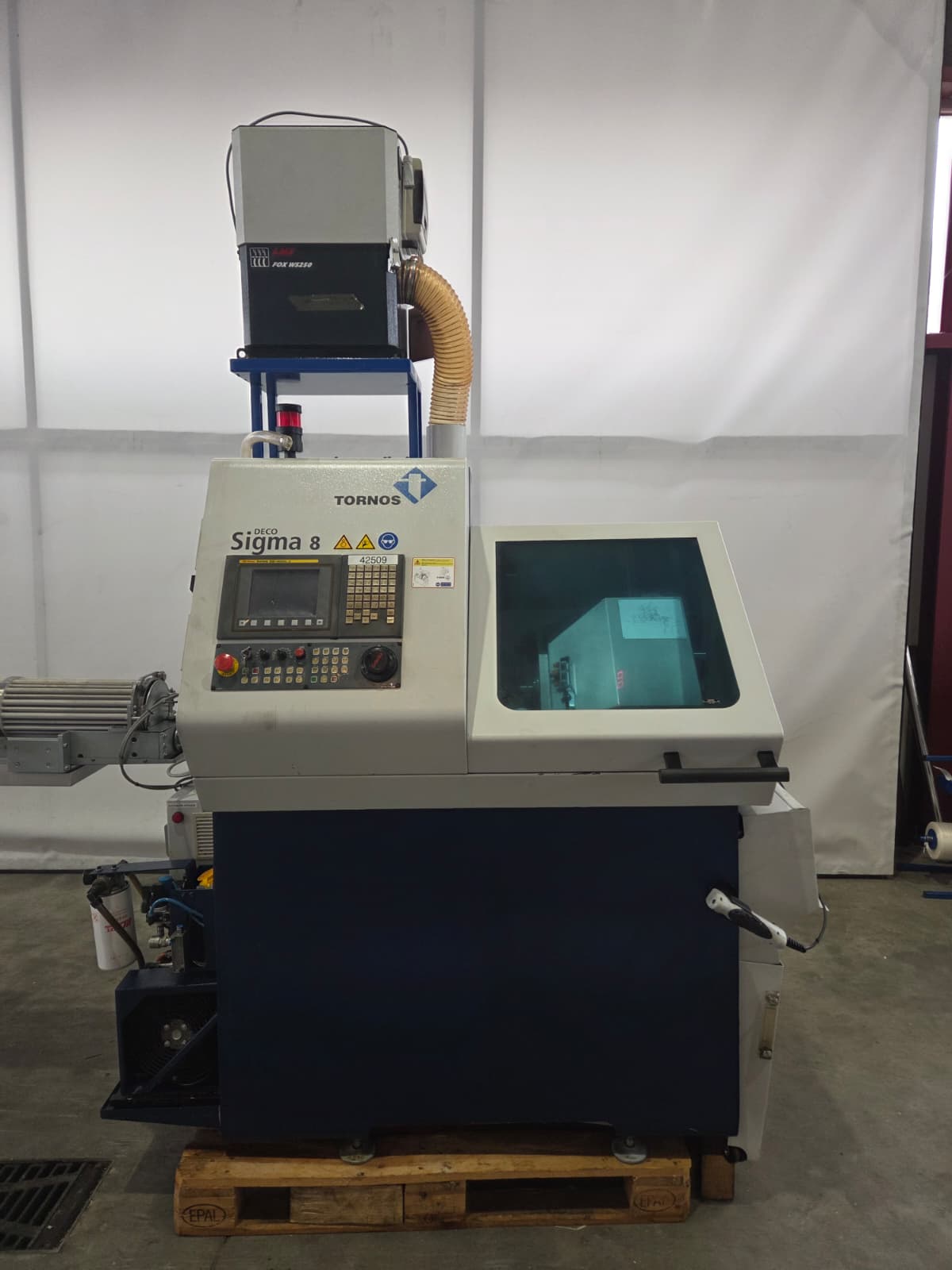

TORNOS Sigma 8 is a CNC automatic lathe / CNC Swiss-type lathe engineered for precision, high accuracy and reliable performance. Number of axis total: 5, a five-axis configuration enabling complex multi-axis machining and synchronized movements. Main technical specification provided: Number of axes total = 5. Achieves tight tolerances and is suited to sectors such as automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
| Number of axis total | 7 |
| Workpiece length max. | 20 mm |
| Max. bar diameter | 8 mm |
| Inner taper type | F13 |
| Spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| Back spindle: | |
| speeds: | |
| up to | 12000 t/min |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 40 m/min |
| Rapid traverse Z | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Power of back spindle | 2.2 / 3.7 kW |
| Total power required | 8 kVA |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1670 mm |
| Width | 870 mm |
| Height | 1650 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTON 112 |
| Coolant system | |
| Oil mist extractor | |
| Status light |
