MONNIER + ZAHNER MZ 130 is a Worm gear cutting machine designed for high precision, excellent accuracy and reliable performance. Capacities: workpiece diameter 2–55 mm; module max. 1.5/2.0 mm; workpiece length max. 300 mm; max. cutting length 230 mm; cutter diameter 16–40 / 53–100 mm; max. cutter travel 60 mm; swivel head +/-45°; axes X70 Y30 Z250 mm. Key specs: milling spindle speed max. 8000 t/min; workpiece spindle speed 950 t/min; collet attachment 25 W; voltage 50 Hz 3x400 V; machine weight ≈3500 kg; overall L2200 x W1800 x H1850 mm. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Work-piece diameter | 2 - 55 mm |
| Collet attachment | 25 W |
| Module max. | 1.5 mm |
| Max. module in steel | |
| Workpiece length max. | 330 mm |
| Longueur maxi. de taillage | 230 mm |
| Swivelling range of the working head | +/- 45 ° |
| Working way: | |
| X axis | 70 mm |
| Y axis | 30 mm |
| Z axis | 250 mm |
| Cutter diameter | 16 - 40 / 53 - 100 mm |
| Max. milling cutter displac. | 60 mm |
| Milling spindle speeds max. | 8000 t/min |
| Feeds: | |
| Work piece spindle speed | 950 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Drive milling spindle | 1.5 kW |
| Total power required | 5 kVA |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1750 mm |
| Height | 1850 mm |
| Various accessories: | |
| Automatic loader | |
| Pick-up device | |
| Deburring device | |

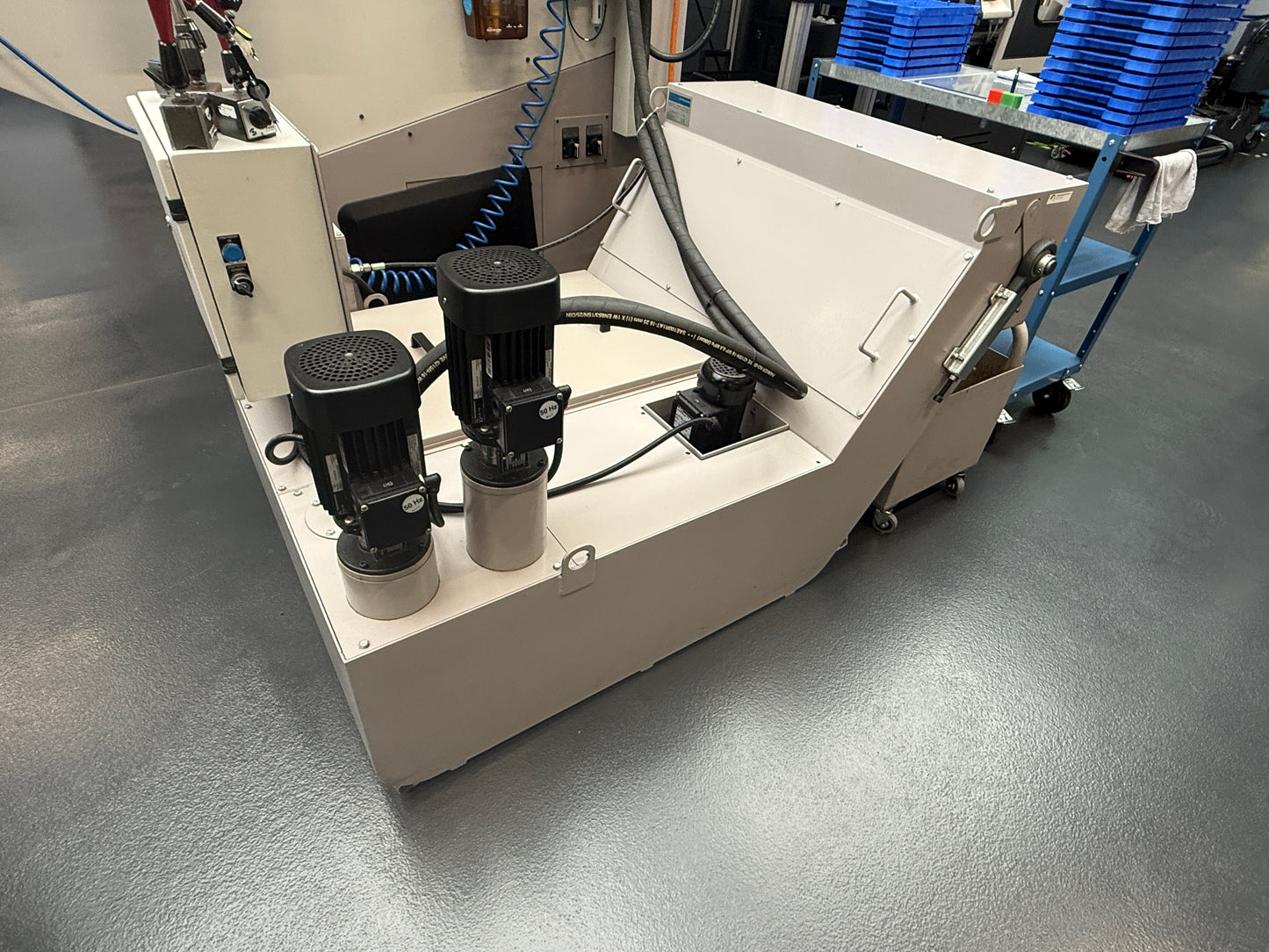

| Coolant system |
