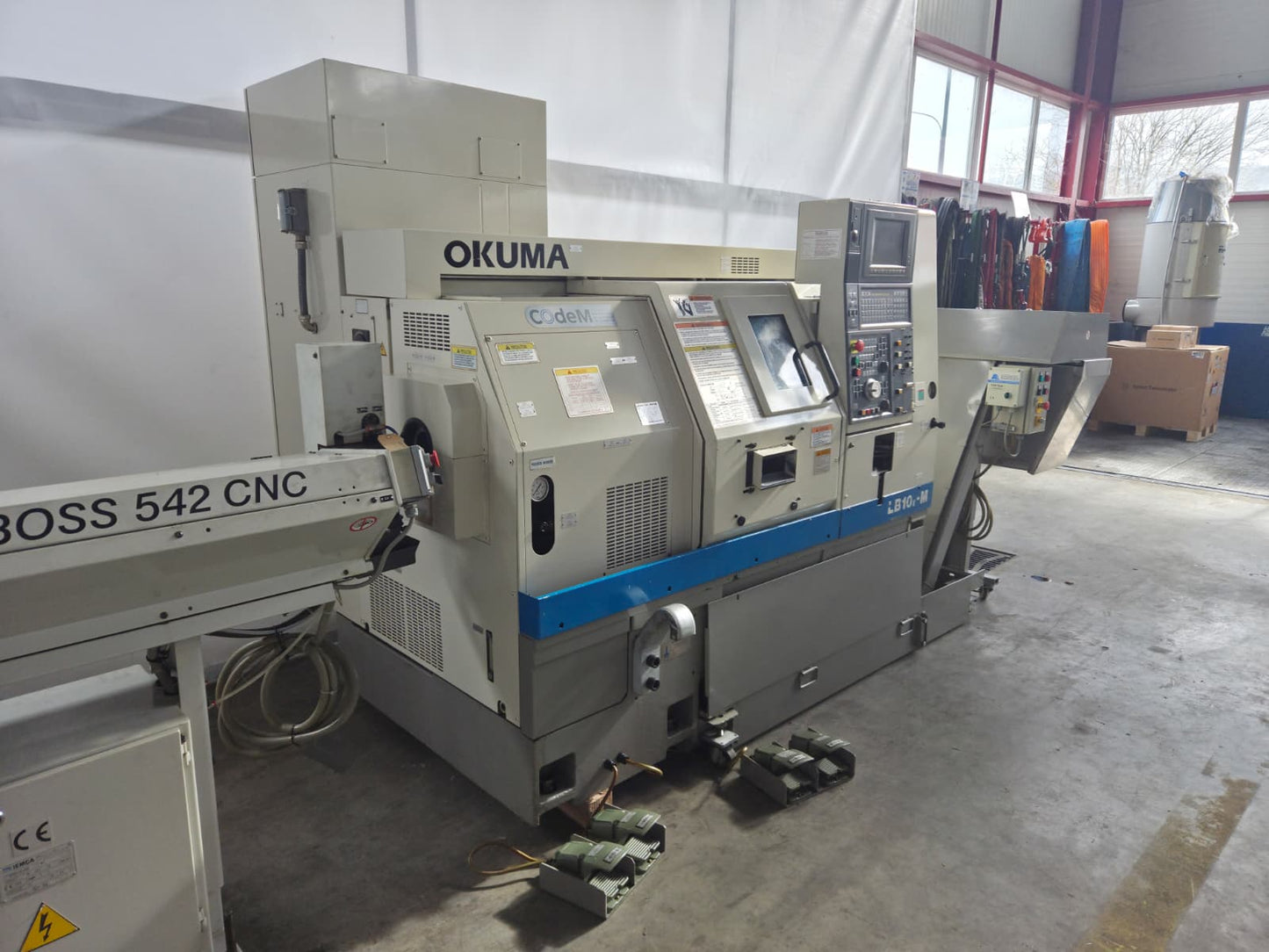

OKUMA LB 10 II M
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
OKUMA LB 10 II M is a CNC turning lathe engineered for precision, high accuracy and reliability. Working capacities: swing over cross‑slide 340 mm, swing over bed 480 mm, max turning diameter 170 mm, spindle hole 51 mm, max turning length 300 mm, bar passage 42 mm; travels Z 350 mm, X 150 mm. Main specs: spindle speeds 50–6000 t/min, rapid traverse Z 20 m/min X 15 m/min, C‑axis resolution 0.01°, voltage 3x 400 V 50 Hz, weight ~3400 kg, dimensions 2000×1640×1780 mm. Accessories: lamp, coolant system, bar feeder, chip conveyor. Enables tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine building
| Swing over cross-slide | 340 mm |
| Swing over bed | 480 mm |
| Max. turning diameter | 170 mm |
| Spindle hole | 51 mm |
| Maximum turning length | 300 mm |
| Bar passage | 42 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 350 mm |
| Transversal strocke (X axis) | 150 mm |
| Rapid traverse Z | 20 m/min |
| Rapid traverse X | 15 m/min |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 12 |
| C axis (spindle,resolution) | 0.01 ° |
| Spindle speeds: | |
| from | 50 t/min |
| up to | 6000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 3400 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1640 mm |
| Height | 1780 mm |
| Various accessories: | |
| Lamp | |
| Coolant system | |
| Bar feeder | |
| Chip conveyor |
