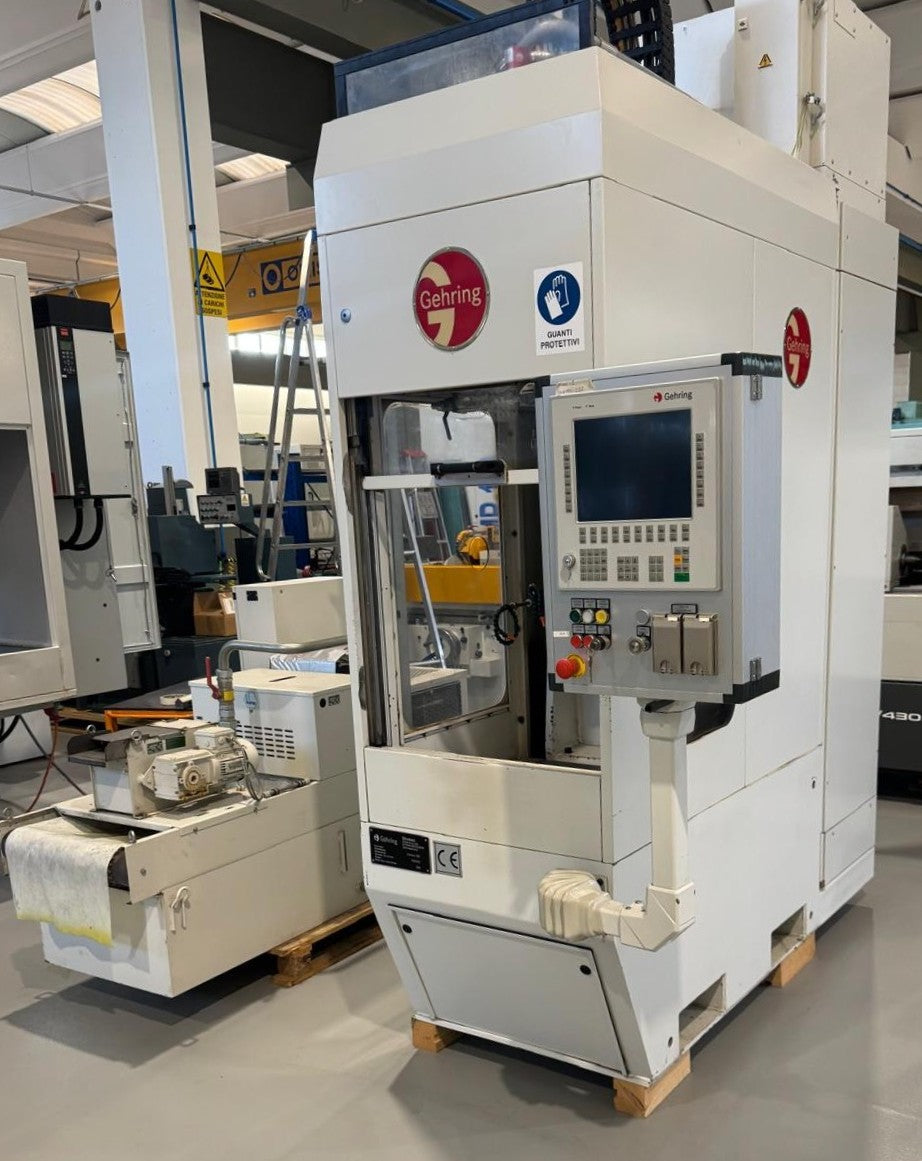

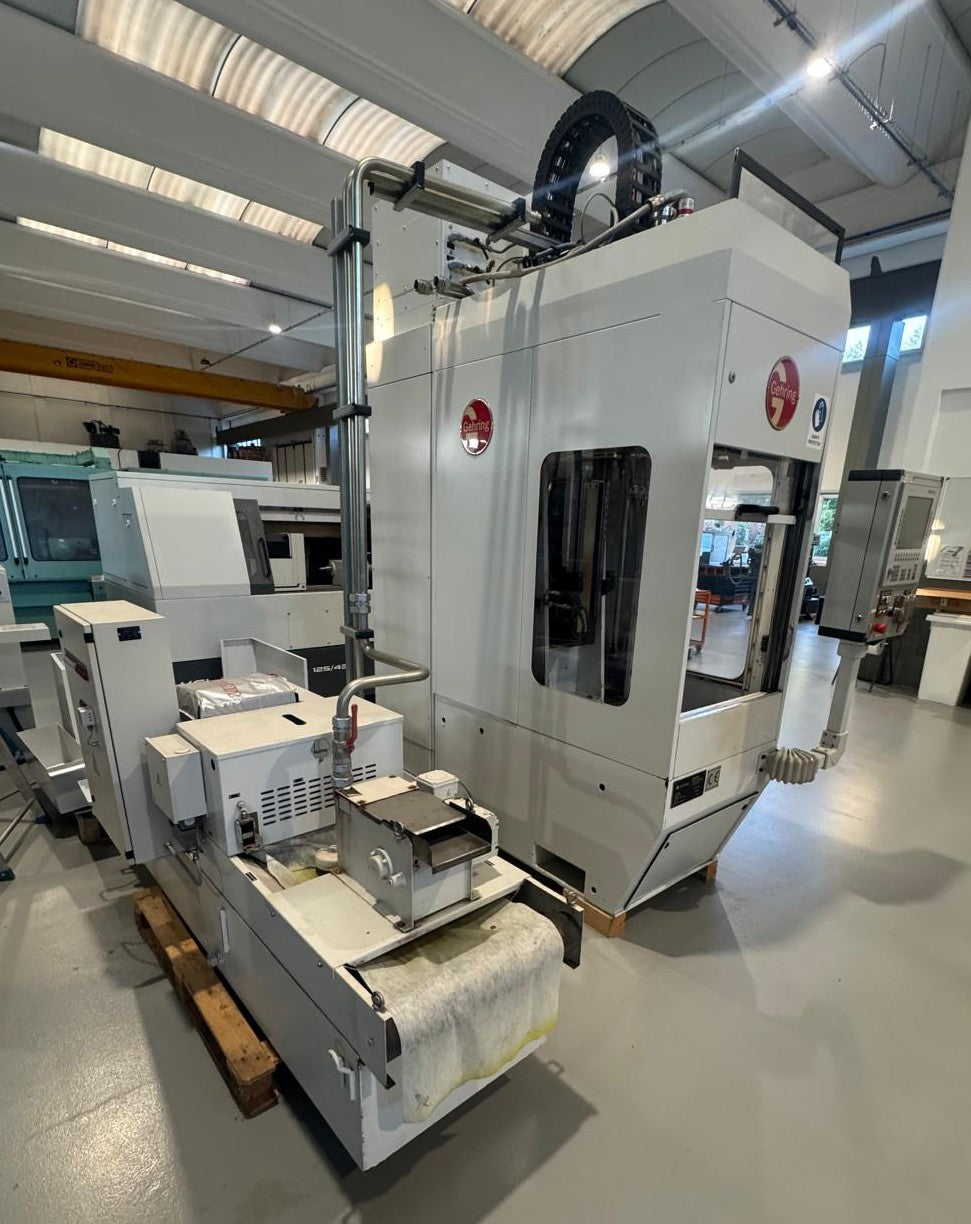

GEHRING Lifehone 600
Type: Lifehone 600
Manufacturer: GEHRING
Group: Honing machine
Subgroup: CNC vertical honing machine
Year: 2008
Stock: 023316
GEHRING Lifehone 600 is a CNC vertical honing machine, engineered for precision, high accuracy and reliability. Capacities: min diameter 3 mm, max 90 mm, max honing length 600 mm; total stroke 600 mm. Technical specs: spindle speeds up to 4500 t/min; stroke/feed speed up to 60 m/min; voltage 3x 400 V 50 Hz; machine weight about 2500 kg; overall dimensions L2600×W2800×H3100 mm. Equipment: coolant system and paper filtration system. Achieves tight tolerances; typical applications include automotive, aerospace, machine tools, medical and watchmaking.
| Min. diameter | 3 mm |
| Max. diameter | 90 mm |
| Max. honing length | 600 mm |
| Spindle speeds: | |
| up to | 4500 t/min |
| Total stroke | 600 mm |
| Stroke speed: | |
| up to | c/min |
| up to | 60 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 2800 mm |
| Height | 3100 mm |
| Various accessories: | |
| Coolant system | |

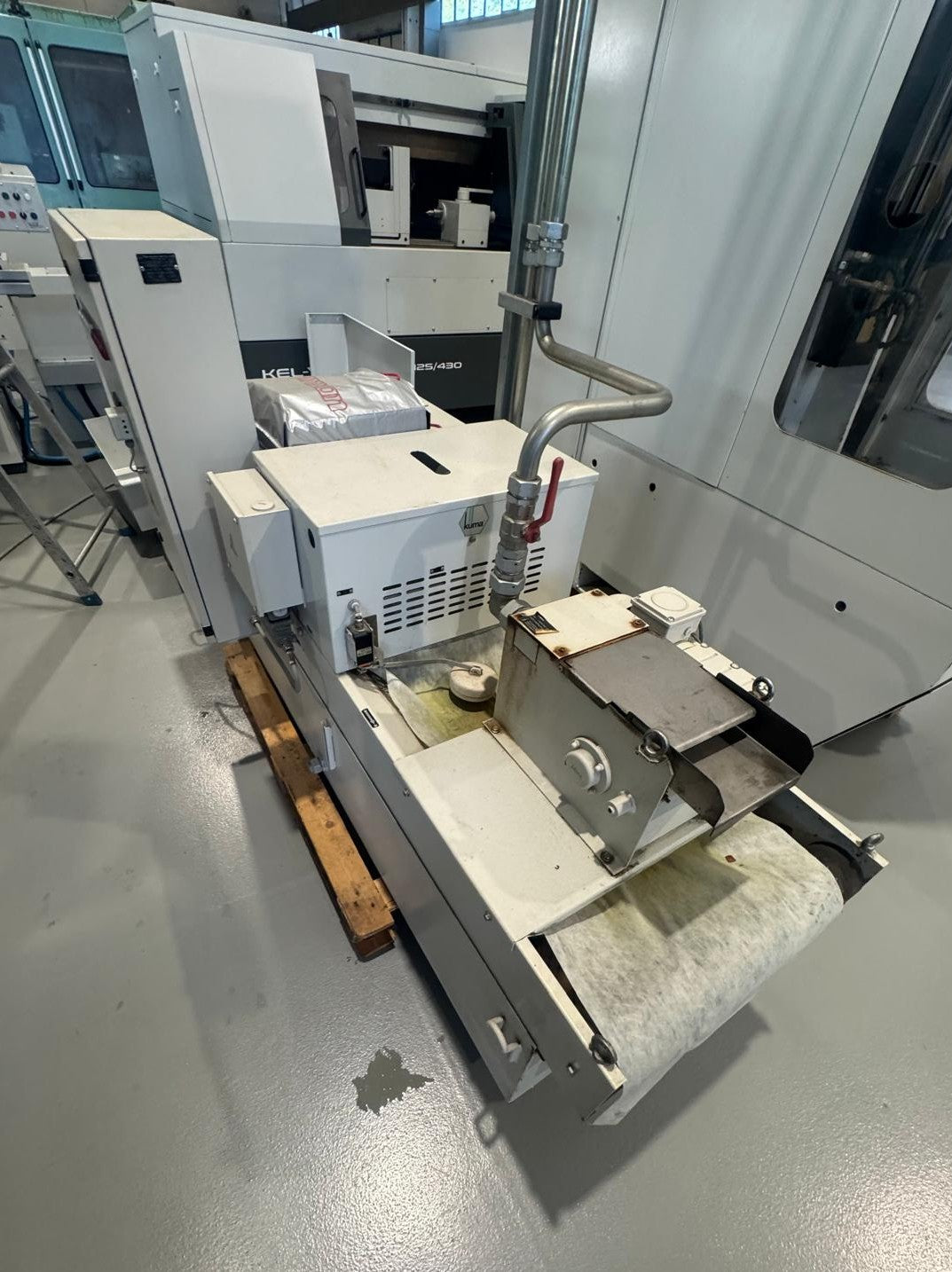

| Paper filtration system |
