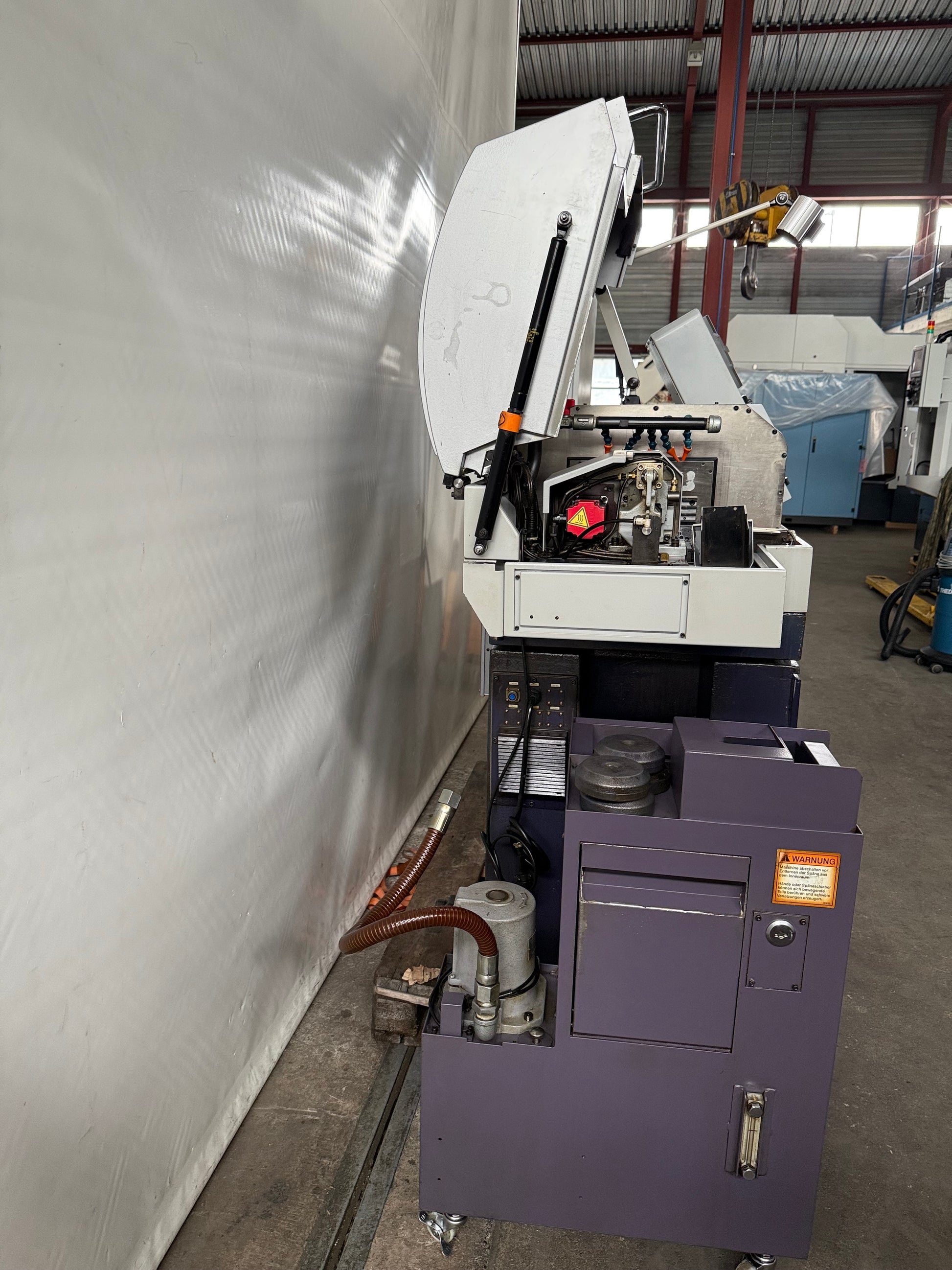

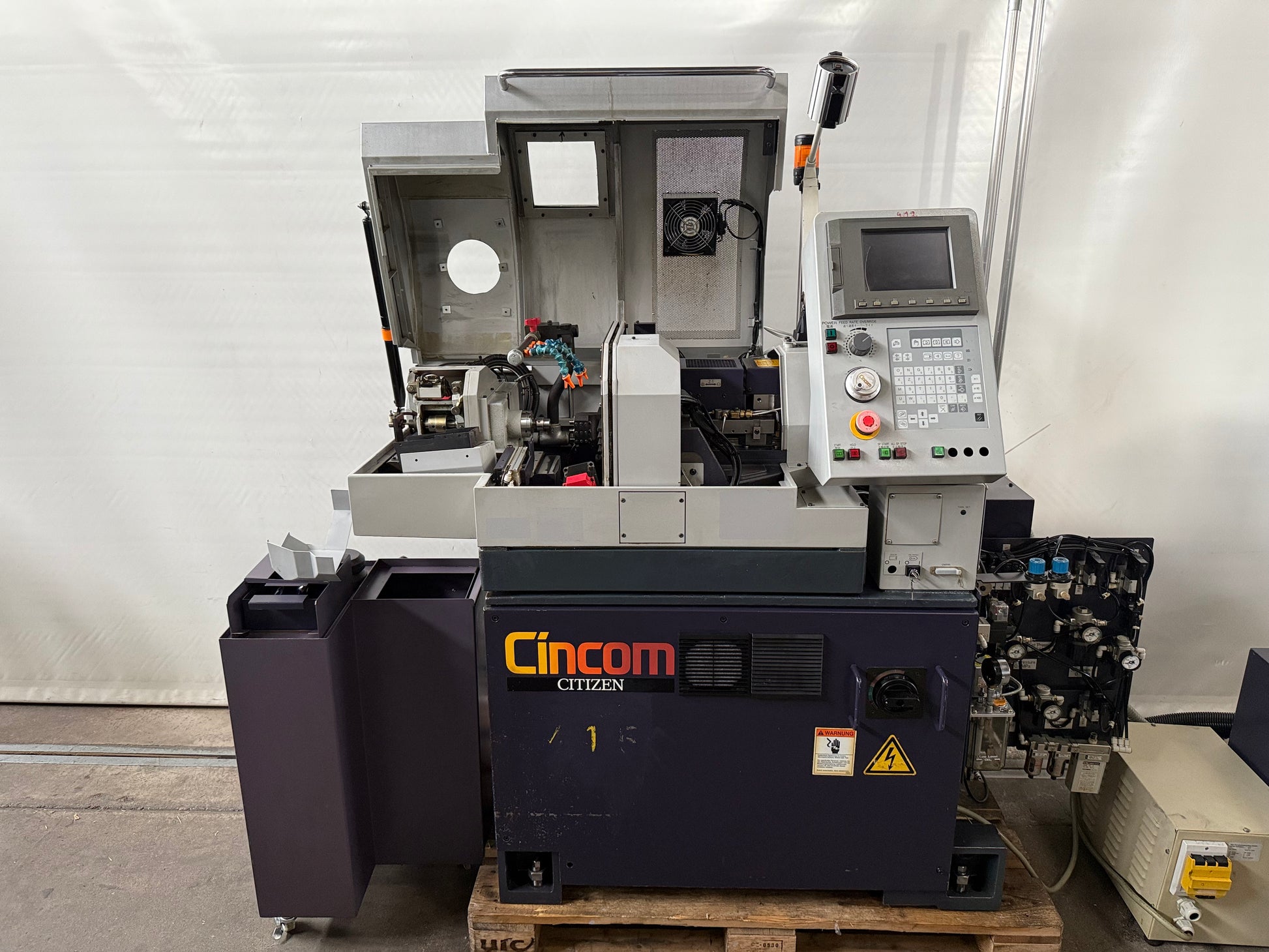

CITIZEN CINCOM R 04 VI
Type: R 04 VI
Manufacturer: CITIZEN CINCOM
Group: CNC automatic lathe

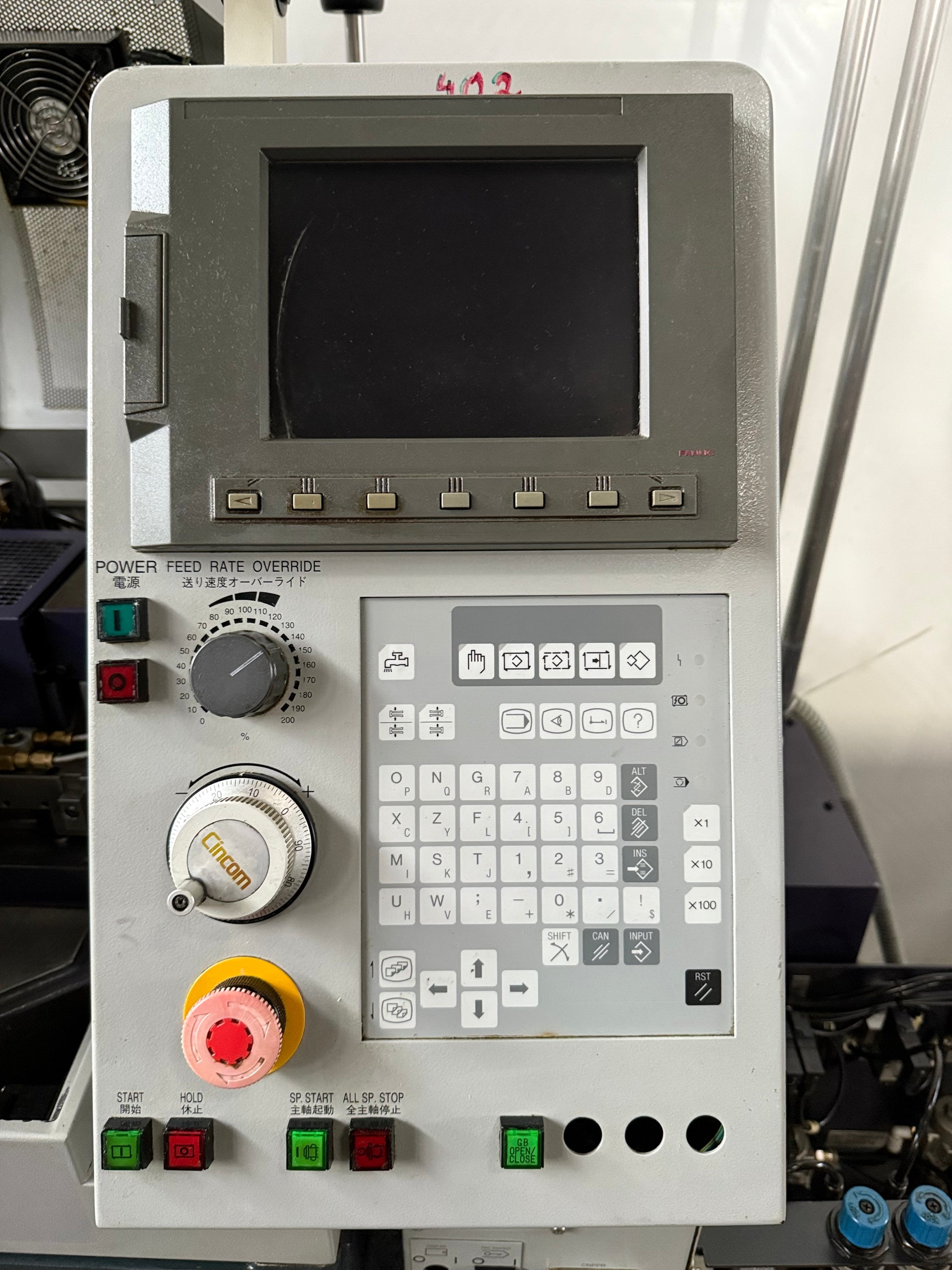

Control: Citizen Cincom
Year: 2004
Stock: 023308
CITIZEN CINCOM R 04 VI is a CNC automatic lathe / Swiss-type lathe designed for high precision, accuracy and reliability. It features 6 axes and 2 spindles, max. turning diameter 4 mm, max. turning length 40 mm, internal spindle diameter 9 mm, max. threading diameter 3 M. Main specs: up to 20000 t/min, spindle power 0.5/0.75 kW; tool-holder count 3 with 15 stations; turning tools 5, drilling tools 4, transverse tools 2; tool shank 8 mm; counter-operation 4 tools. Voltage 50 Hz 3x400 V; machine weight ≈850 kg; dimensions L1485×W560×H1410 mm. Accessories: LNS TRYTON 107 Hybrid bar feeder, parts catcher, coolant system, lamp. Ensures tight tolerances; suited to watchmaking, medical, automotive, aerospace and precision components.
| Number of axis total | 6 |
| Number of spindles | 2 |
| Max. turning diameter | 4 mm |
| Maximum turning length | 40 mm |
| Max. threading diameter | 3 M |
| Internal spindle diameter | 9 mm |
| number (steps) | |
| stepless | |
| up to | 20000 t/min |
| Spindle power | 0.5 / 0.75 kW |
| Back spindle: | |
| speeds: | |
| up to | 20000 t/min |

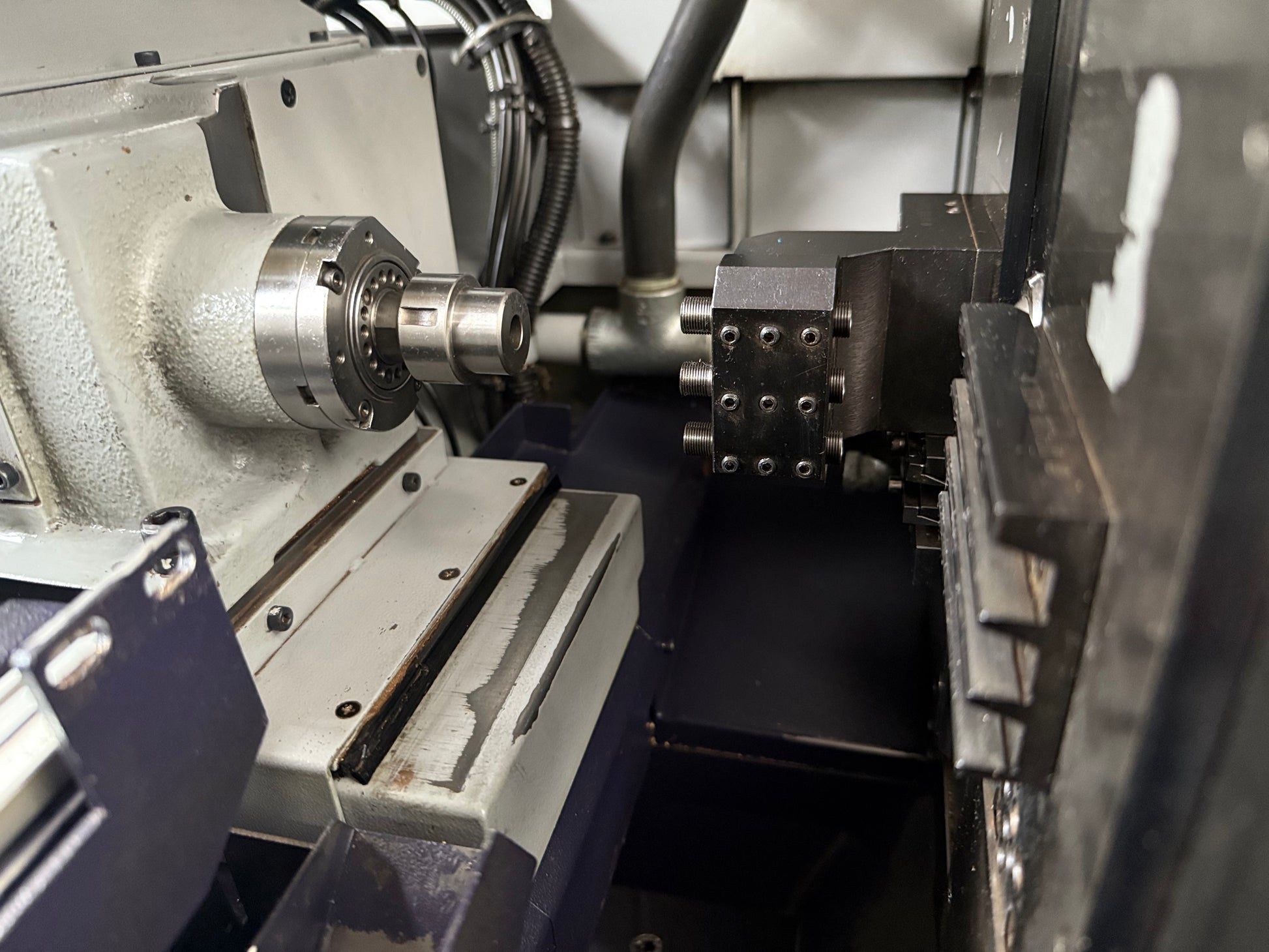

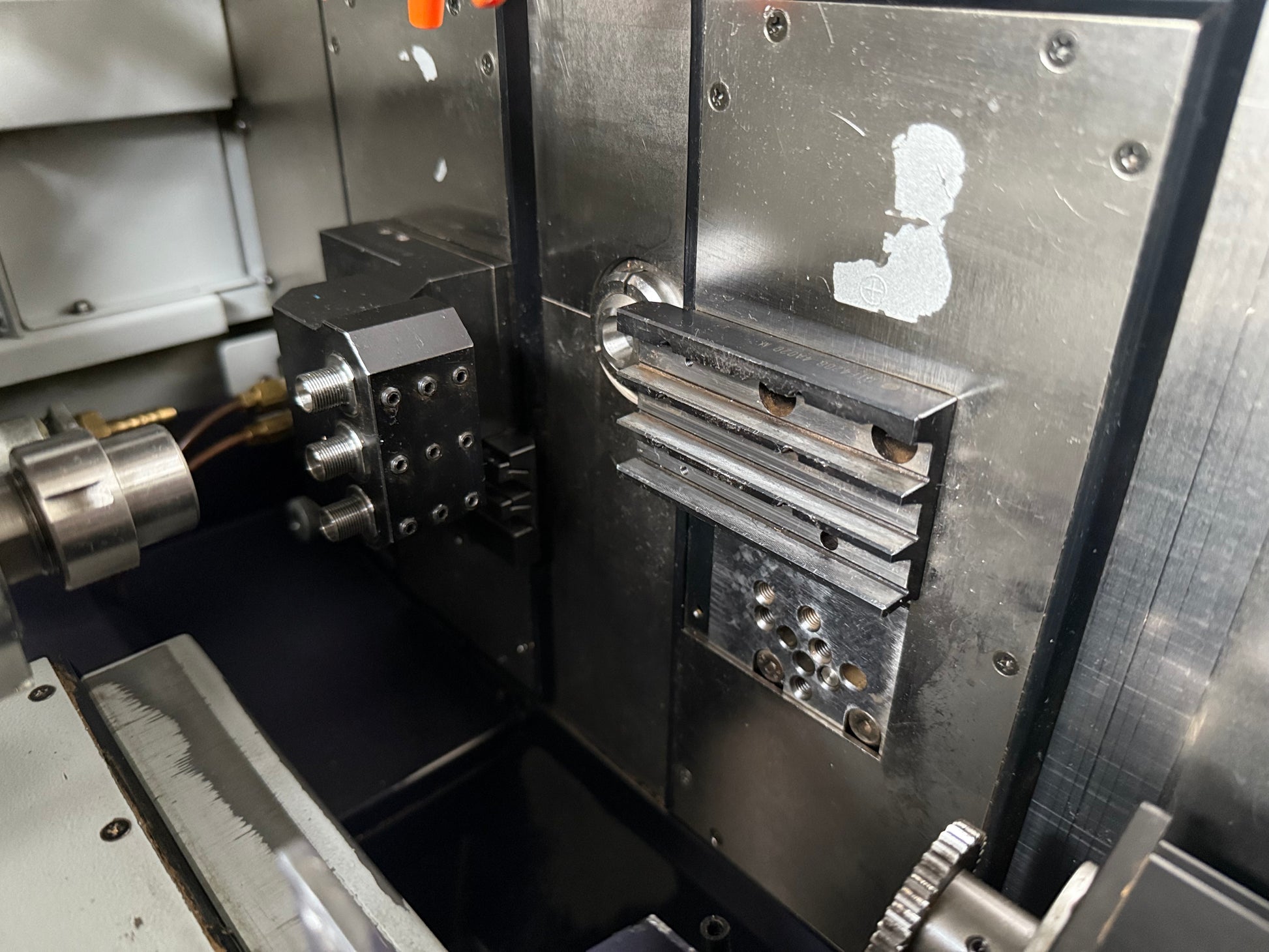

| Tool-holder: | |
| numbers | 3 |
| Number of stations | 15 |
| Turning tools | 5 pce |
| Drilling tools | 4 pce |
| Transverse processing tools | 2 pce |
| Tool shank cross section | 8 mm |
| Counter-operation: | |
| number of tools | 4 |
| Voltage 50 Hz 3x | 400 Volt |
| Power of back spindle | 0.5 / 0.75 kW |
| Machine's weight about | 850 kg |
| Overall dimensions machine: | |
| Length | 1485 mm |
| Width | 560 mm |
| Height | 1410 mm |
| Various accessories: | |

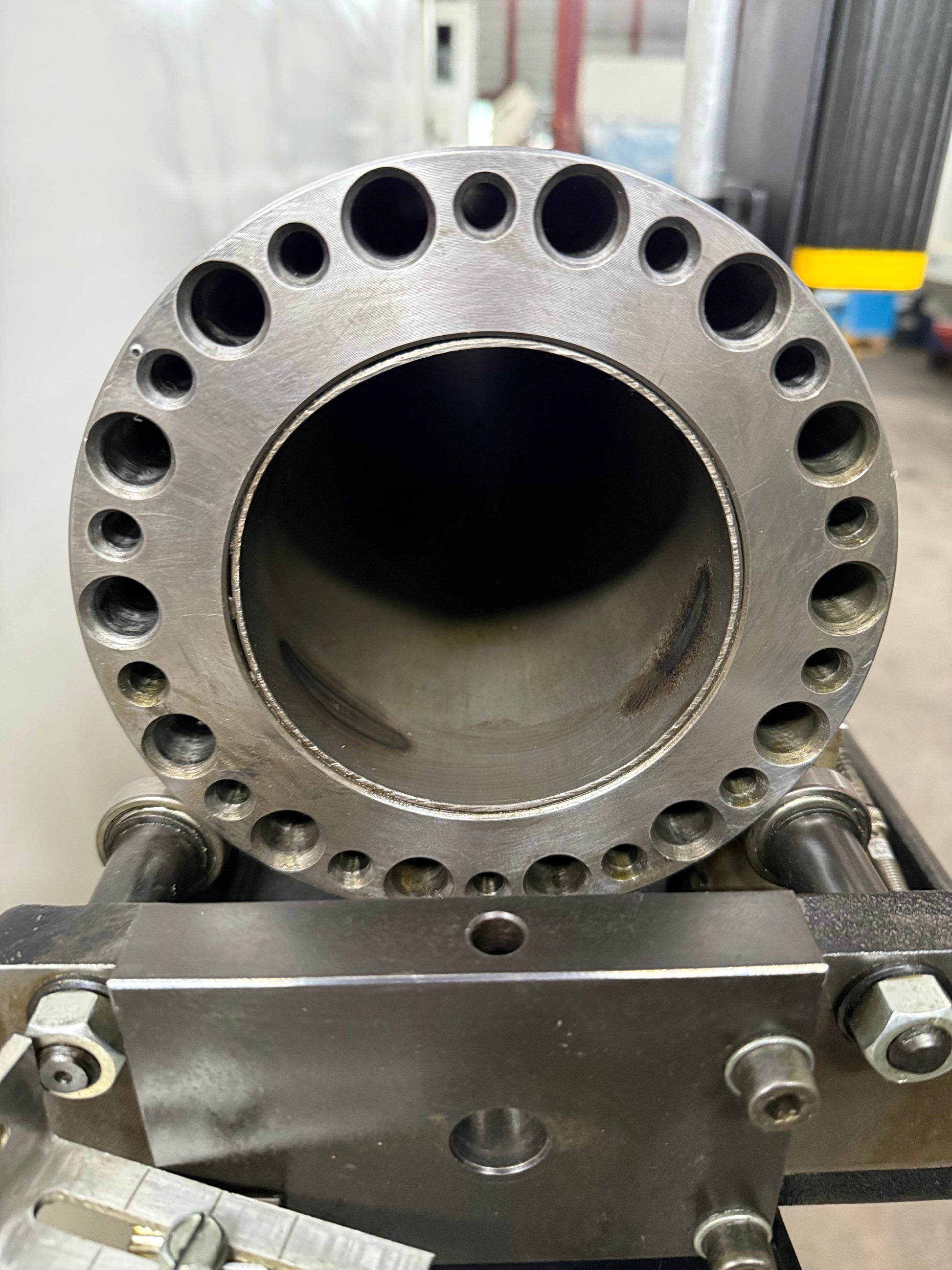

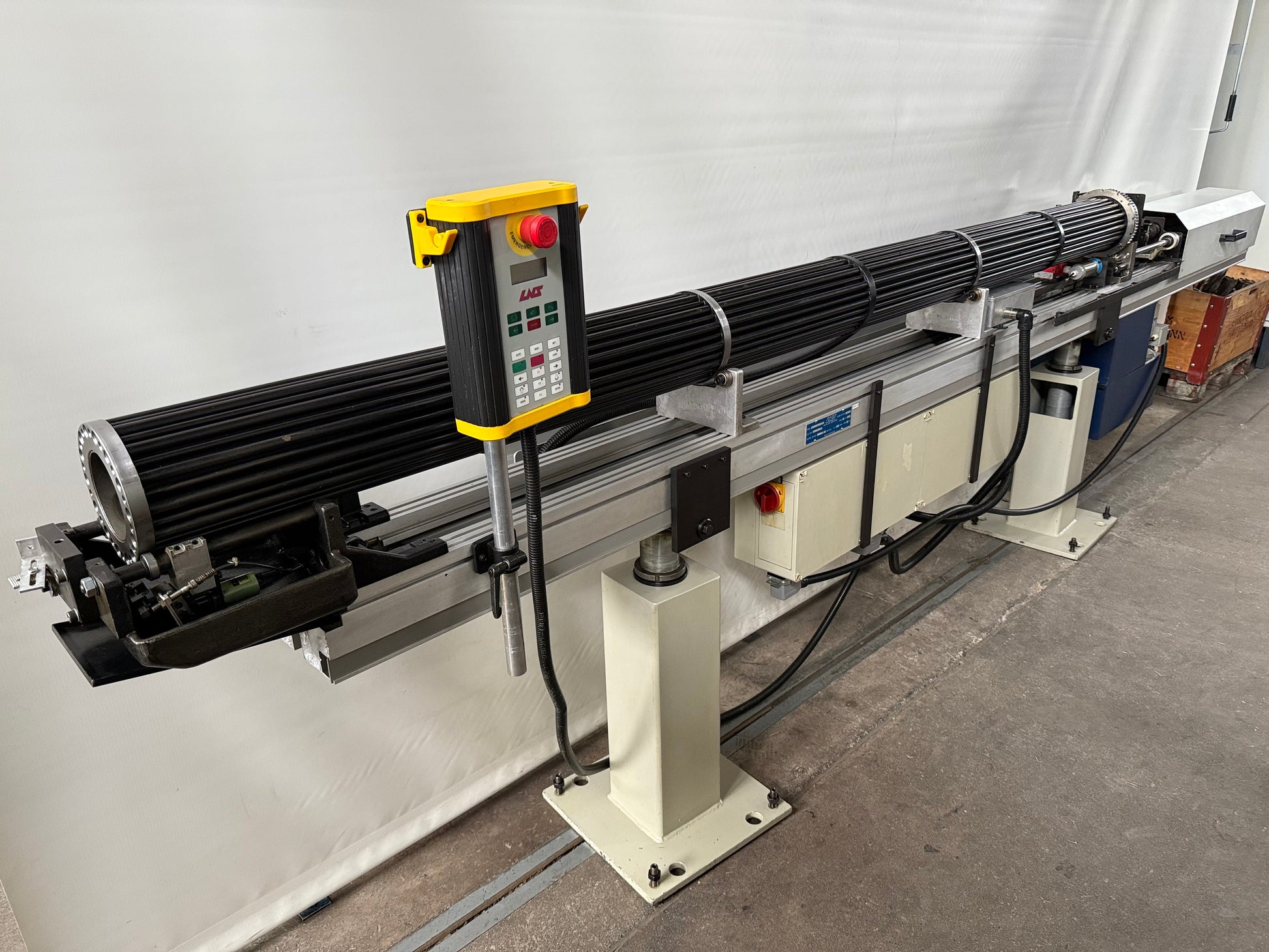

| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTON 107 Hybrid |
| Parts catcher | |

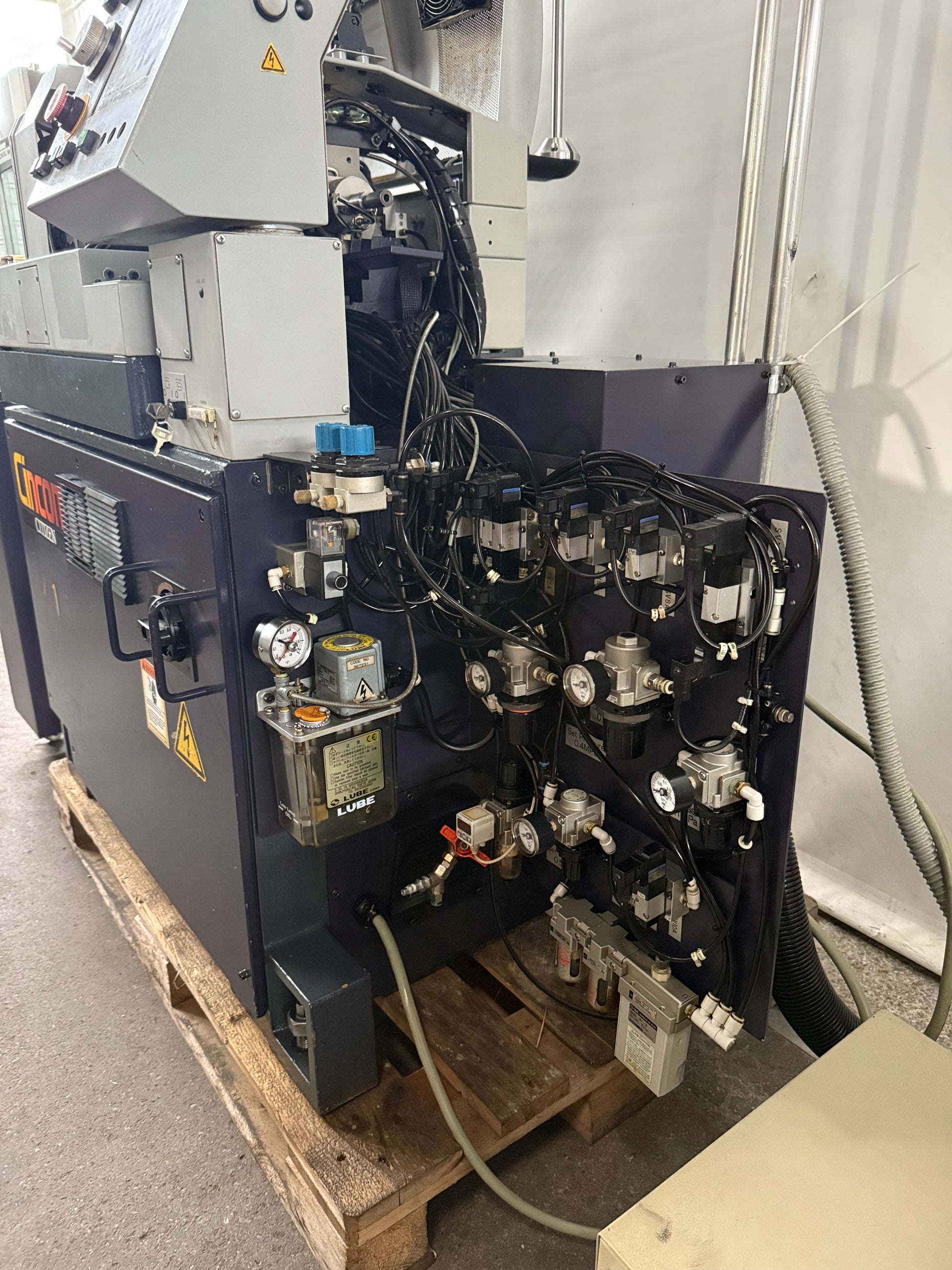

| Coolant system | |
| Lamp |
