023302 - TORNOS MULTIDECO 20/6b
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TORNOS MULTIDECO 20/6b is a CNC Multi-spindle turning lathe engineered for high-precision machining with excellent accuracy and reliability. Key capacities: 17 axes total, 6 cross slides, 5 plain turning slides, longitudinal carriage way 160 mm, 6 spindles + 1 back spindle, round bar capacity Ø 5–20 mm, max workpiece length 100 mm, production rate 45 pcs/min. Technical specs: stepless spindle speeds up to 5000 rpm, spindle power 15 kW, total installed power 43 kVA, supply 3x 400 V 50 Hz, machine weight ≈8500 kg, dimensions L3500×W1600×H1950 mm. Equipment: ROBOBAR bar feeder type MSF 522/6, coolant system, chip conveyor, pick-up spindle, spindle stop device, lamp and status light. Delivers tight tolerances; suitable for automotive, watchmaking, toolmaking, aerospace and medical industries.

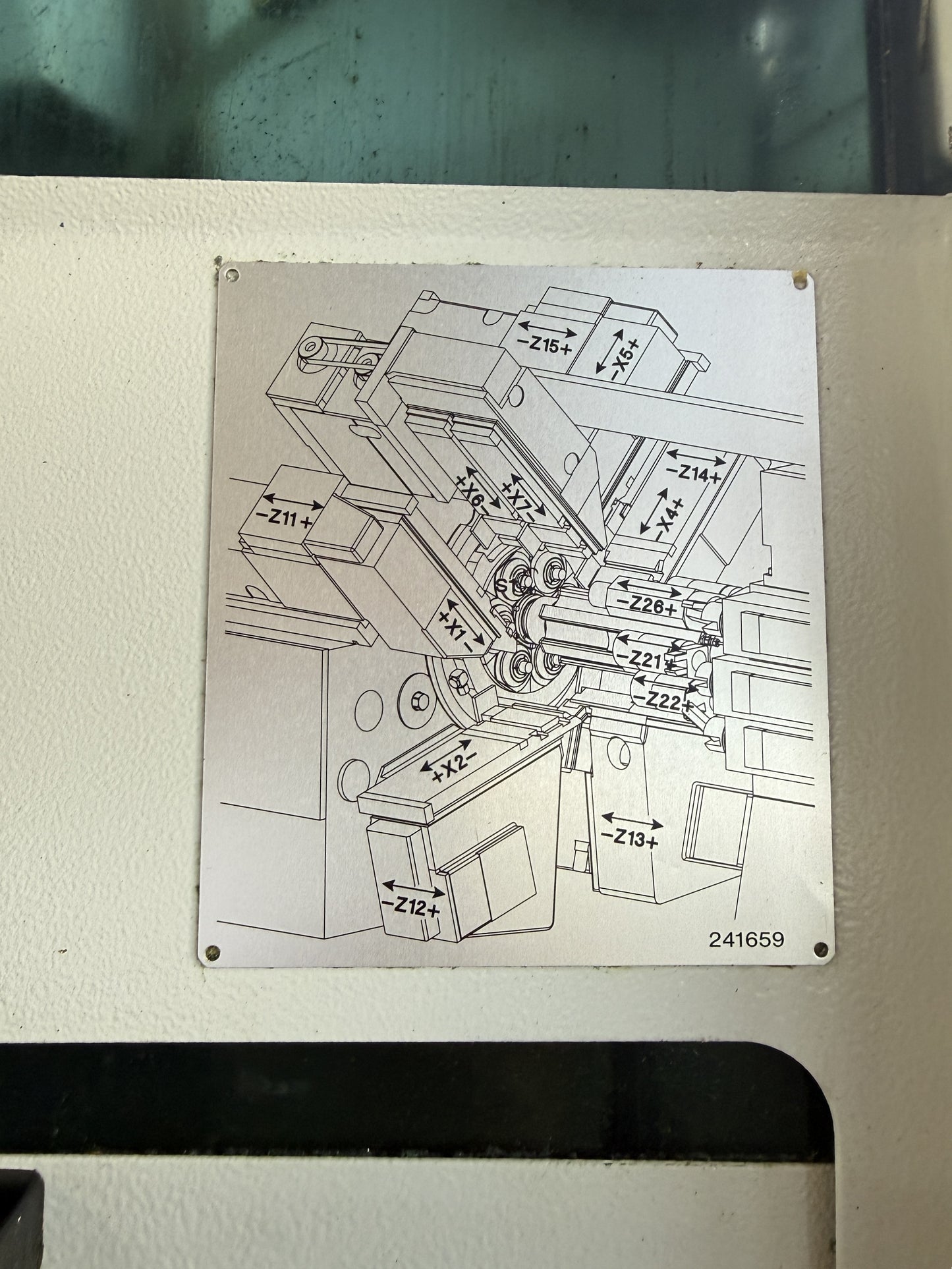

| Number of axis total | 17 |
| Number of cross slides | 6 |
| Plain turning slide number | 5 |
| Longitudinal carriage way | 160 mm |
| Number of spindles | 6 |
| Number back spindle | 1 |
| Capacity round bar | 5 - 20 mm |
| Workpiece length max. | 100 mm |
| Spindle speeds: | |
| stepless | |
| up to | 5000 t/min |
| Production capacity | 45 pce/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 15 kW |
| Total power required | 43 kVA |
| Machine's weight about | 8500 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 1600 mm |
| Height | 1950 mm |
| Various accessories: | |
| Bar feeder | ROBOBAR |
| Type | MSF 522/6 |
| Coolant system | |
| Chip conveyor | |
| Pick-up spindle_x000D_ | |
| Spindle stop device | ° |
| Lamp | |
| Status light |
