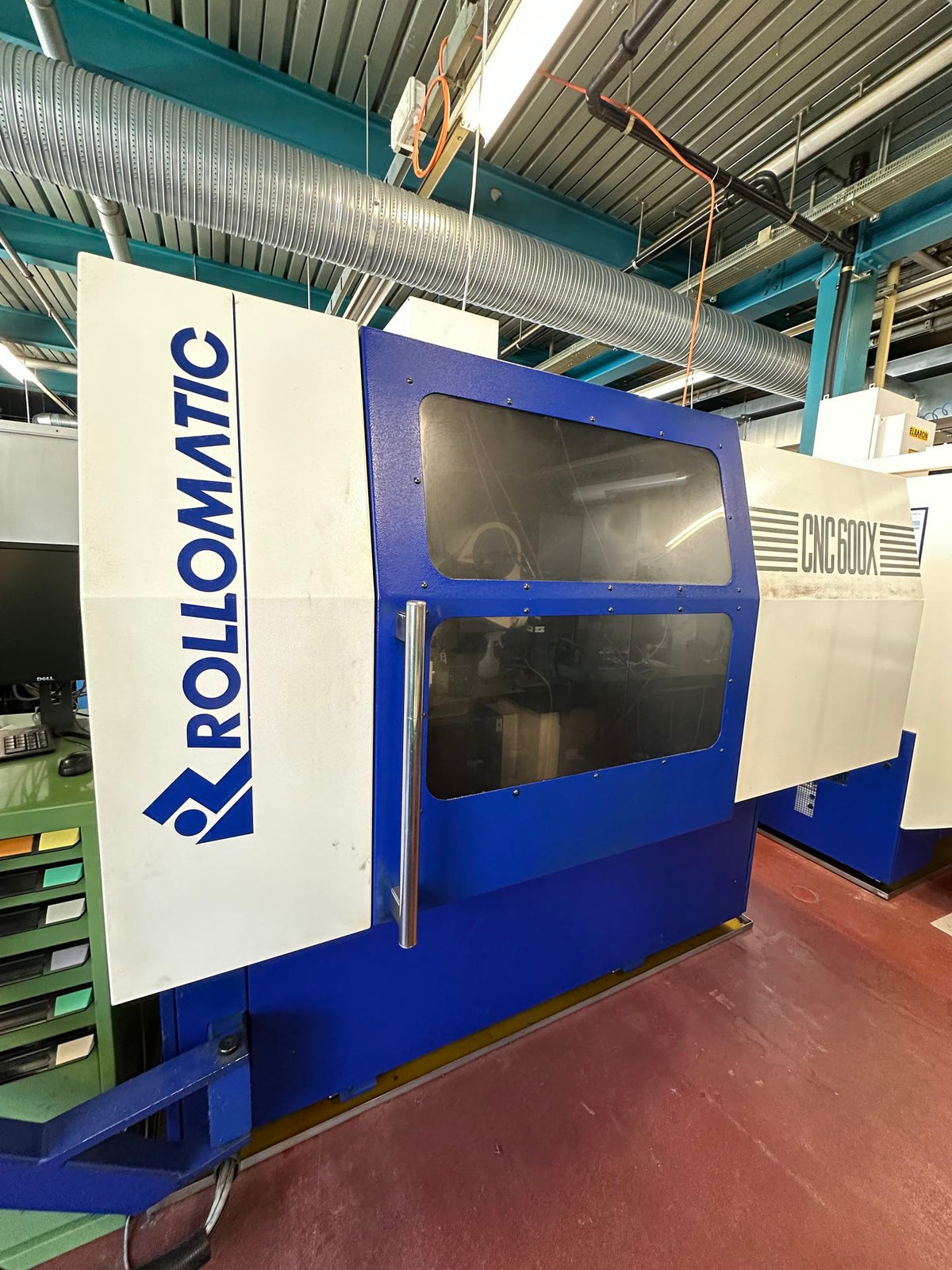

ROLLOMATIC CNC 600 X is a Tool and cutter grinder CNC engineered for precision, high accuracy and reliability. Capacities: max grinding length 150 mm, diameter 0.1–12.7 mm, max wheel 150 mm; spindle taper W20; W/U axes 600 mm; travel cross 230, longitudinal 180, vertical 150 mm; A -15/+90°, B -130/+45°. Specs: spindle 2,000–7,200 rpm (stepless), spindle motor 14.5 kW, 3x380 V 50 Hz; dimensions 2060×2032×1880 mm; weight ≈3500 kg. Achieves tight tolerances; applications: automotive, watchmaking, tooling, aerospace, medical.
| Max. grinding length | 150 mm |
| grinding diameter | 0.1 - 12.7 mm |
| Max. grinding wheel diamter | 150 mm |
| Taper in spindle | W20 |
| Axial motion: | |
| Crosswise | 230 mm |
| Longitudinal | 180 mm |
| Vertical | 150 mm |
| Resolution | ° |
| A axis | -15 / +90 ° |
| B axis swivelling range | -130 / +45 ° |
| C axis (spindle,resolution) | ° |
| W axis | 600 mm |
| U axis | 600 mm |
| Grinding spindle speeds: | |
| stepless | |
| from | 2000 t/min |
| up to | 7200 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 14.5 kW |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 2060 mm |
| Width | 2032 mm |
| Height | 1880 mm |
| Coolant system | |
| Adjustable projector |
