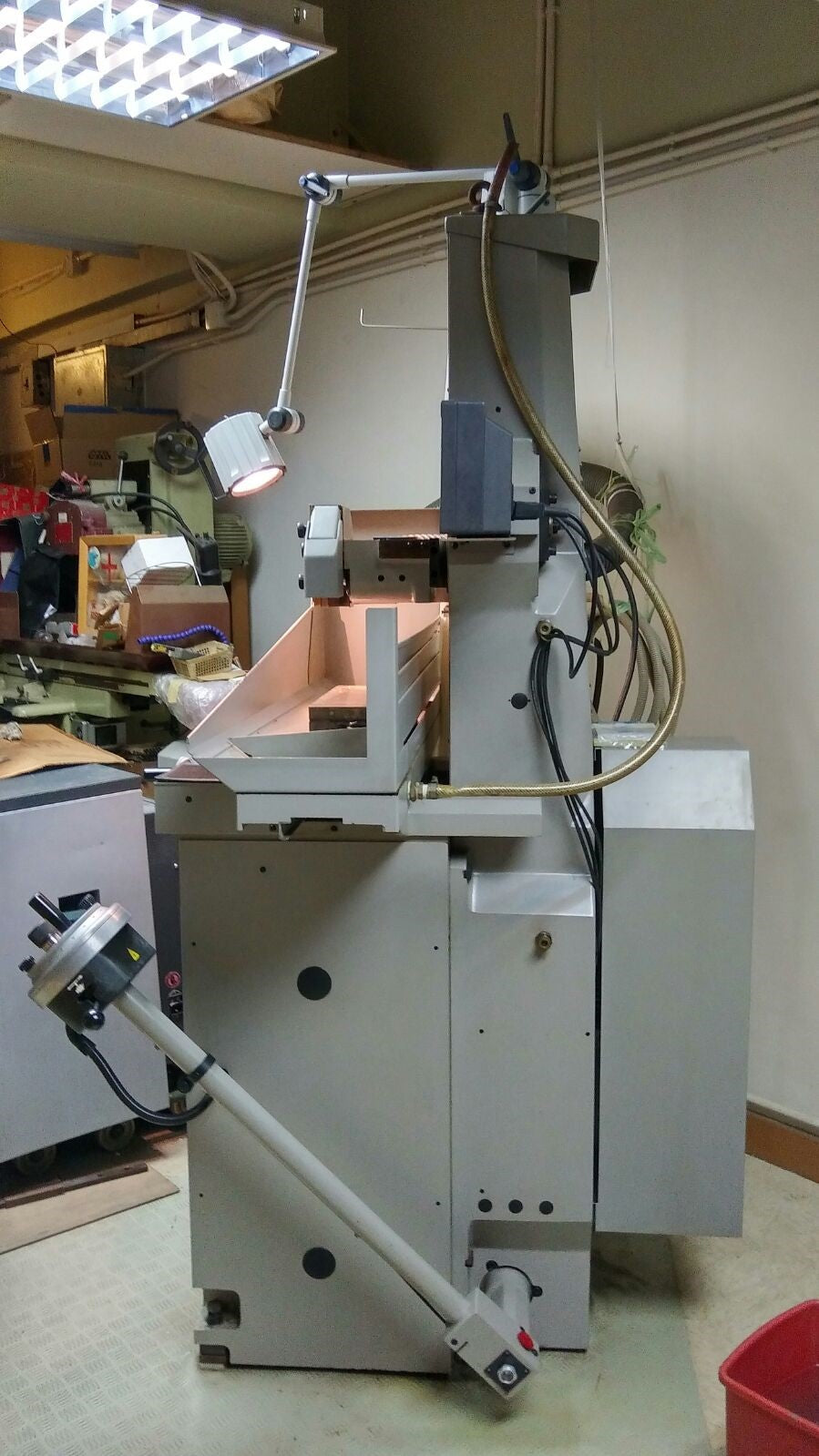

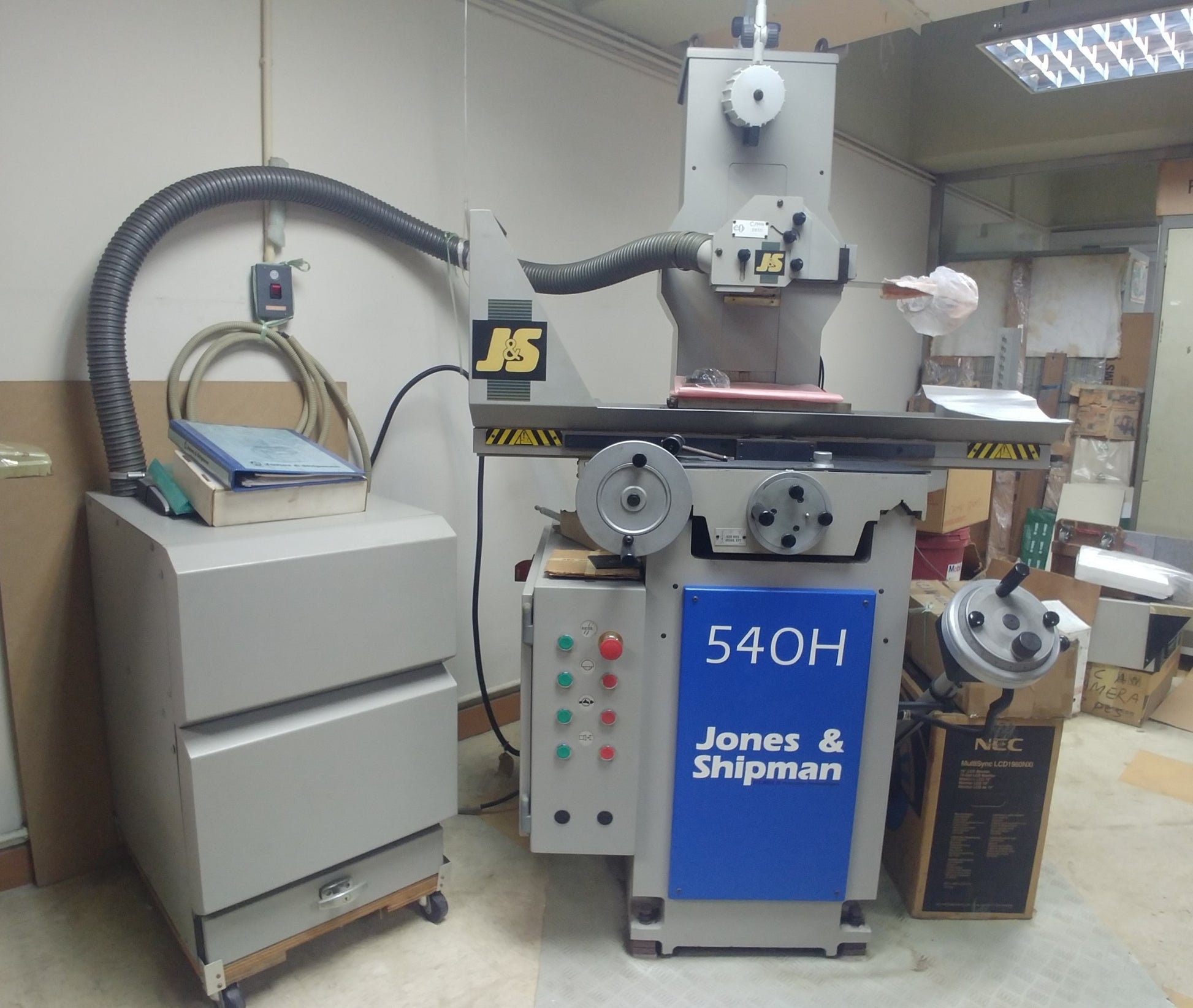

JONES SHIPMAN 540H is a Surface grinder engineered for precision, high accuracy and reliability. Working capacities: table 457×152 mm; longitudinal travel (X) 480 mm; cross travel (z) 280 mm; transversal travel (y) 171 mm; vertical travel 405 mm. Key specs: rotation speed 3000 t/min; grinding spindle motor 1.5 kW; machine weight approx. 1016 kg; overall dimensions L1168×W597×H1651 mm. Designed to achieve tight tolerances and suited for automotive, watchmaking, machine tool building, aerospace and medical applications

Technical specifications are subject to change without notice
