TECHNICA ZSM 5100
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

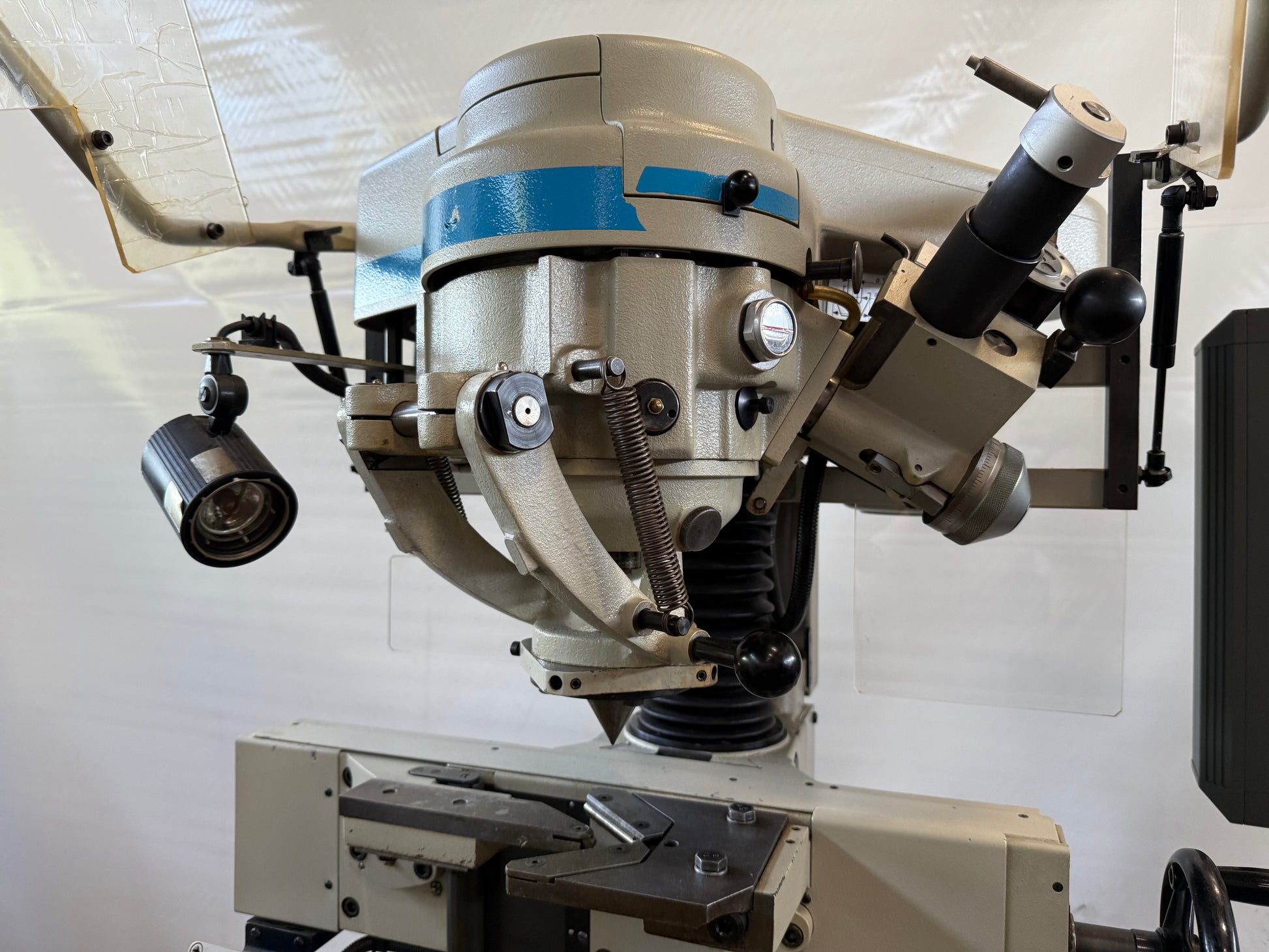

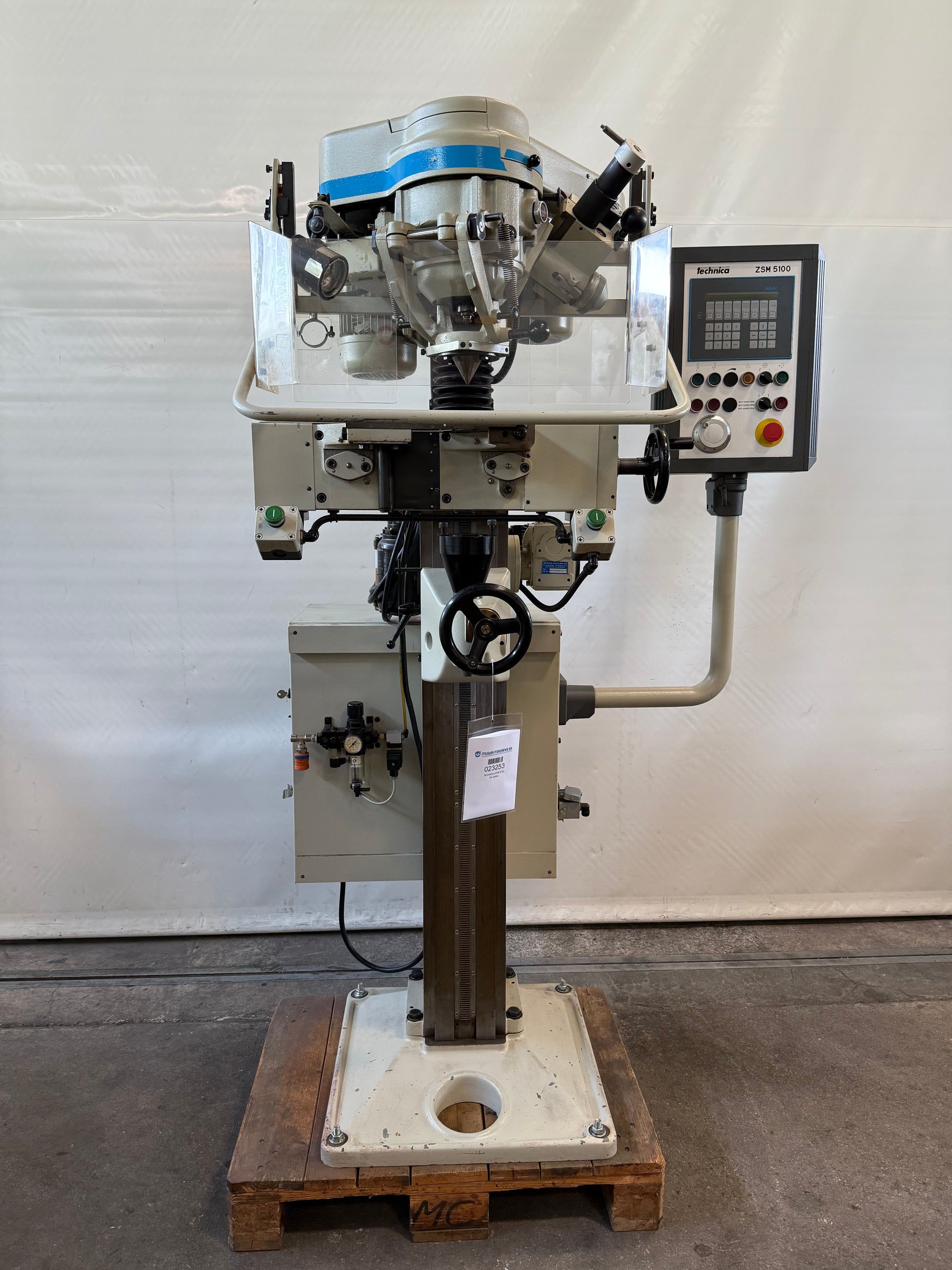

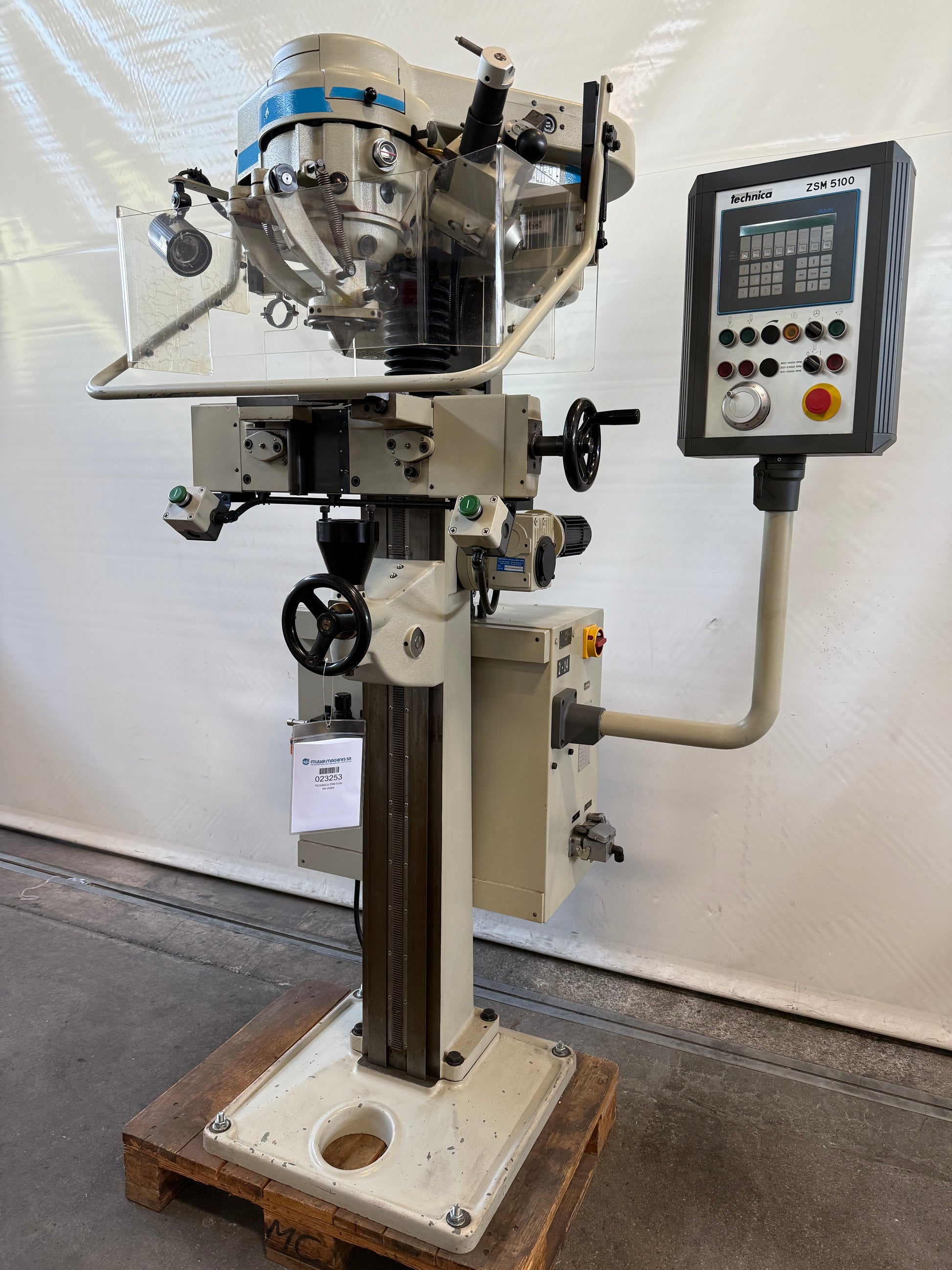

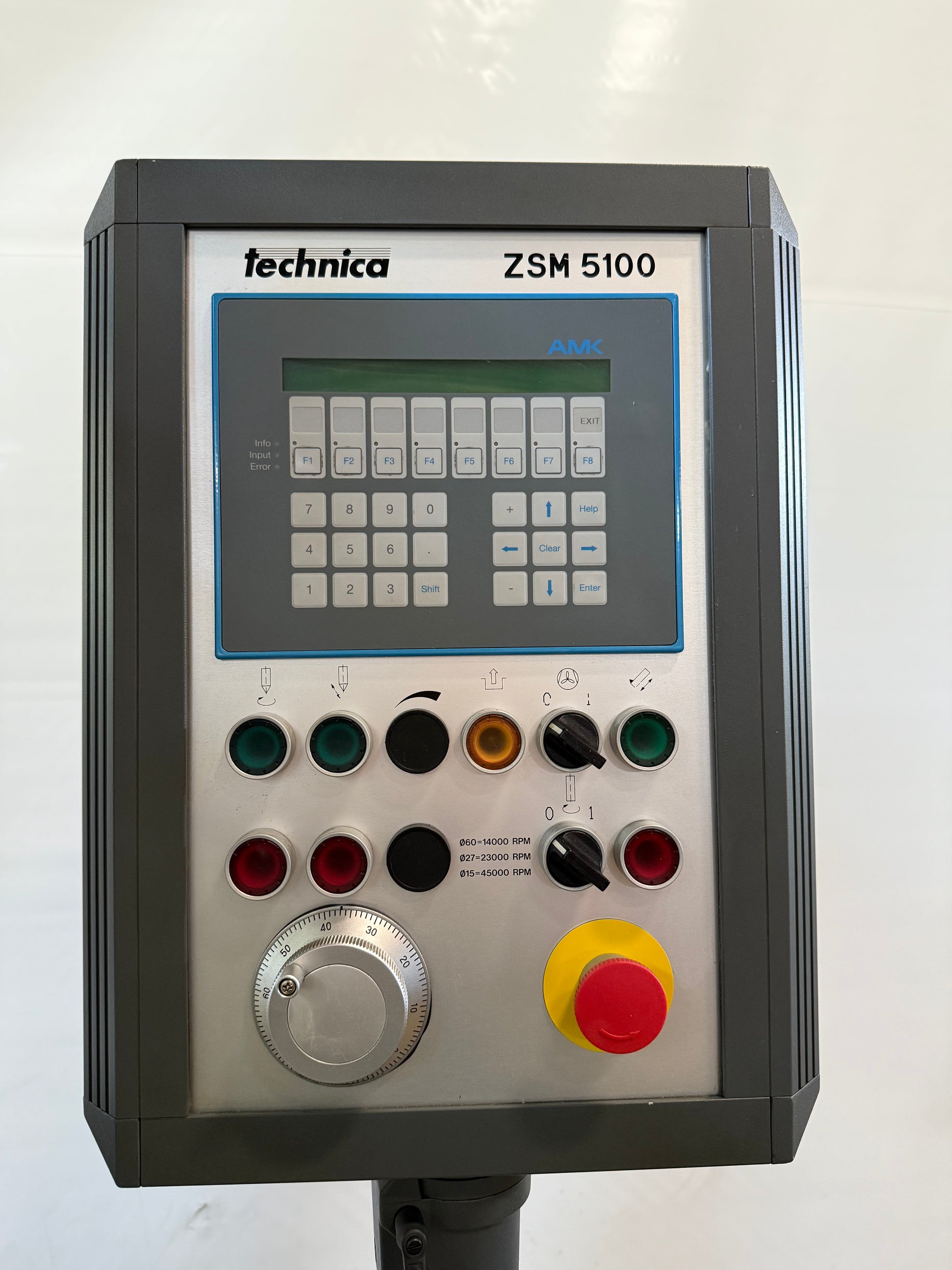

TECHNICA ZSM 5100 is a Centre grinder designed for high precision, accuracy and reliability in centre grinding. Handles workpieces Ø 8–125 mm, lengths 50–1090 mm, table load max 120 kg; centre hole angle 60°; taper Ø 1–60 mm. Grinding spindle Ø 32 mm; wheel speeds Ø15: 45,000 t/min, Ø27: 22,500 t/min, Ø48: 13,000 t/min; spindle power 0.25 kW; max. grinding head traverse 160 mm; voltage 400 V; machine weight ~590 kg; dimensions L1120×W1070×H1950 mm. Accessories: increase/reise 470 mm, dust extraction, machine lamp, security-protection panel. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
| Min. work-piece diameter | 8 mm |
| Max. work piece diameter | 125 mm |
| Workpiece length min. | 50 mm |
| Workpiece length max. | 1090 mm |
| Table load max. | 120 kg |
| Angle of the centre hole | 60 ° |
| Taper in centre hole min. | 1 mm |
| max | 60 mm |
| Grinding spindle diameter | 32 mm |
| Grinding spindle speeds with: | |
| abrasive wheel 15 mm | 45000 t/min |
| abrasive wheel 27 mm | 22500 t/min |
| abrasive wheel 48 mm | 13000 t/min |
| Motor capacity: | |
| grinding spindle | 0.25 kW |
| planetary stroke | kW |
| Max. grinding head traverse | 160 mm |
| Voltage | 400 Volt |
| Machine's weight about | 590 kg |
| Overall dimensions machine: | |
| Length | 1120 mm |
| Width | 1070 mm |
| Height | 1950 mm |
| Various accessories: | |
| Aumentare | 470 mm |
| Dust extraction | |
| Machine lamp | |

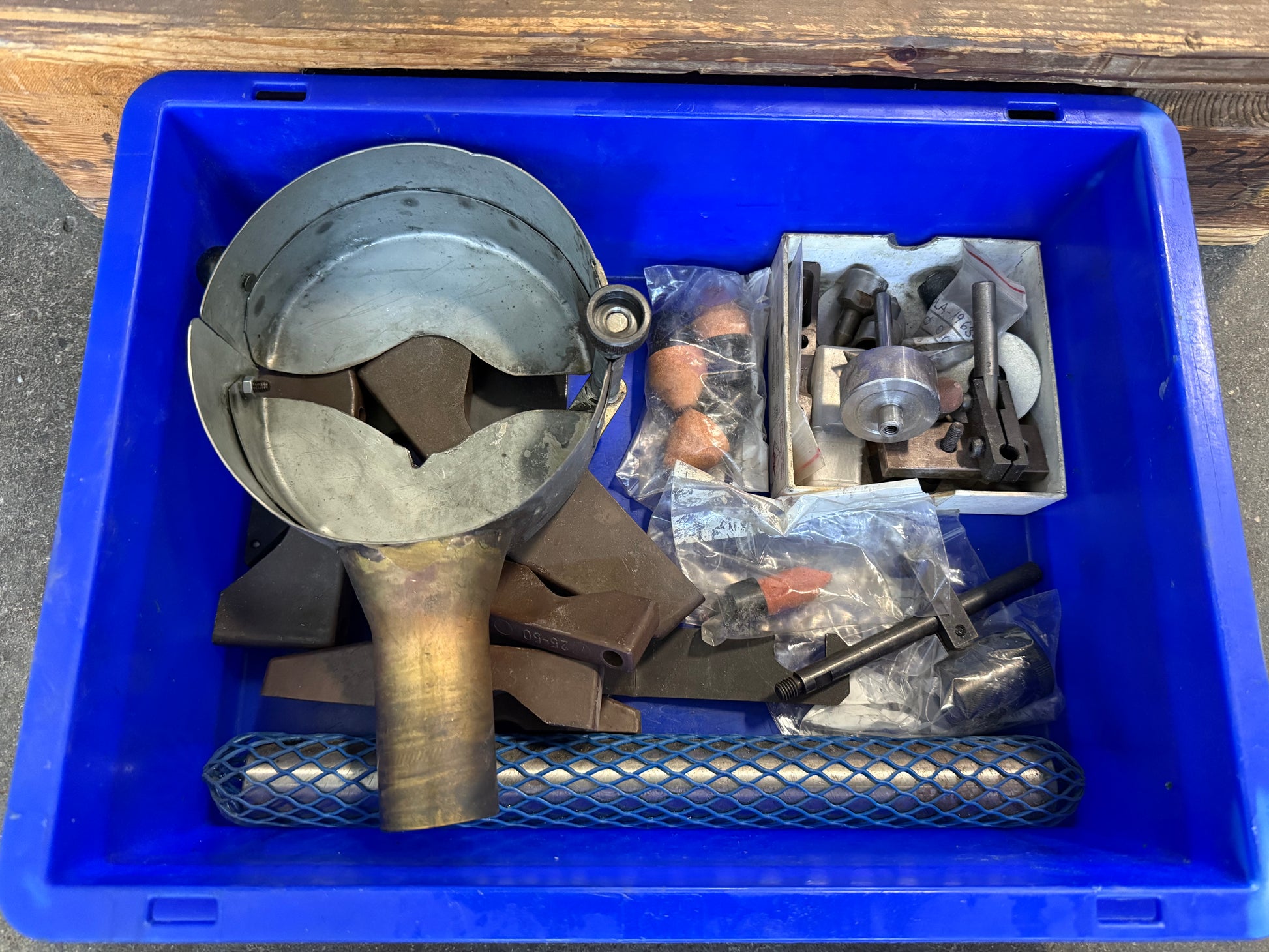

| Security-protection panel |
