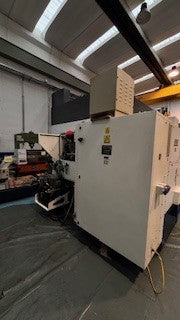

HARDINGE QUEST 10/65 SP
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
HARDINGE QUEST 65 SP is a CNC turning lathe engineered for high precision, accuracy and reliability. Swing over bed 519 mm; spindle hole 74.5 mm; bar passage 65 mm; max turning length 609.6 mm; max turning diameter 228.6 mm. Travels Z 609.6 mm, X 86.2 mm; rapid traverse Z 38 m/min, X 28 m/min; turret 12 positions. Spindle speeds 60–6000 t/min; spindle power 26 kW, torque 290 Nm; back spindle bore 42 mm, 7.5 kW, 47 Nm. Supply 50 Hz 3x 230 V; weight ≈5552 kg; dimensions L3844.3 x W943.1 x H905 mm. Accessories: 3-jaw chuck, coolant system, chip conveyor. Delivers tight tolerances; ideal for automotive, aerospace, medical, watchmaking and machine-tool sectors.
Technical specifications are subject to change without notice
| Distance between centres | 700 mm |
| Swing over cross-slide | 220 mm |
| Swing over bed | 350 mm |
| Maximum turning length | 500 mm |
| Max. turning diameter | 600 mm |
| Bar passage | 65 mm |
| Longitudinal travel (Z-axis) | 770 mm |
| Transversal strocke (X axis) | 310 mm |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 12 |
| Spindle speeds | 8000 t/min |
| Spindle nose: VDI | 30 |
| Main spindle: | |
| Taper in spindle: | A2-6 |
| C axis | |
| Spindle speeds: | |
| up to | 3500 t/min |
| Spindle power | 22 kW |
| Tailstock: | |
| Morse taper | 4 CM |
| Spindle stroke | 500 mm |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 3800 mm |
| Width | 2000 mm |
| Height | 1900 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 250 mm |
| Coolant system | |
| Parts catcher | |
| Chip conveyor | |
| Set of toolholders |
