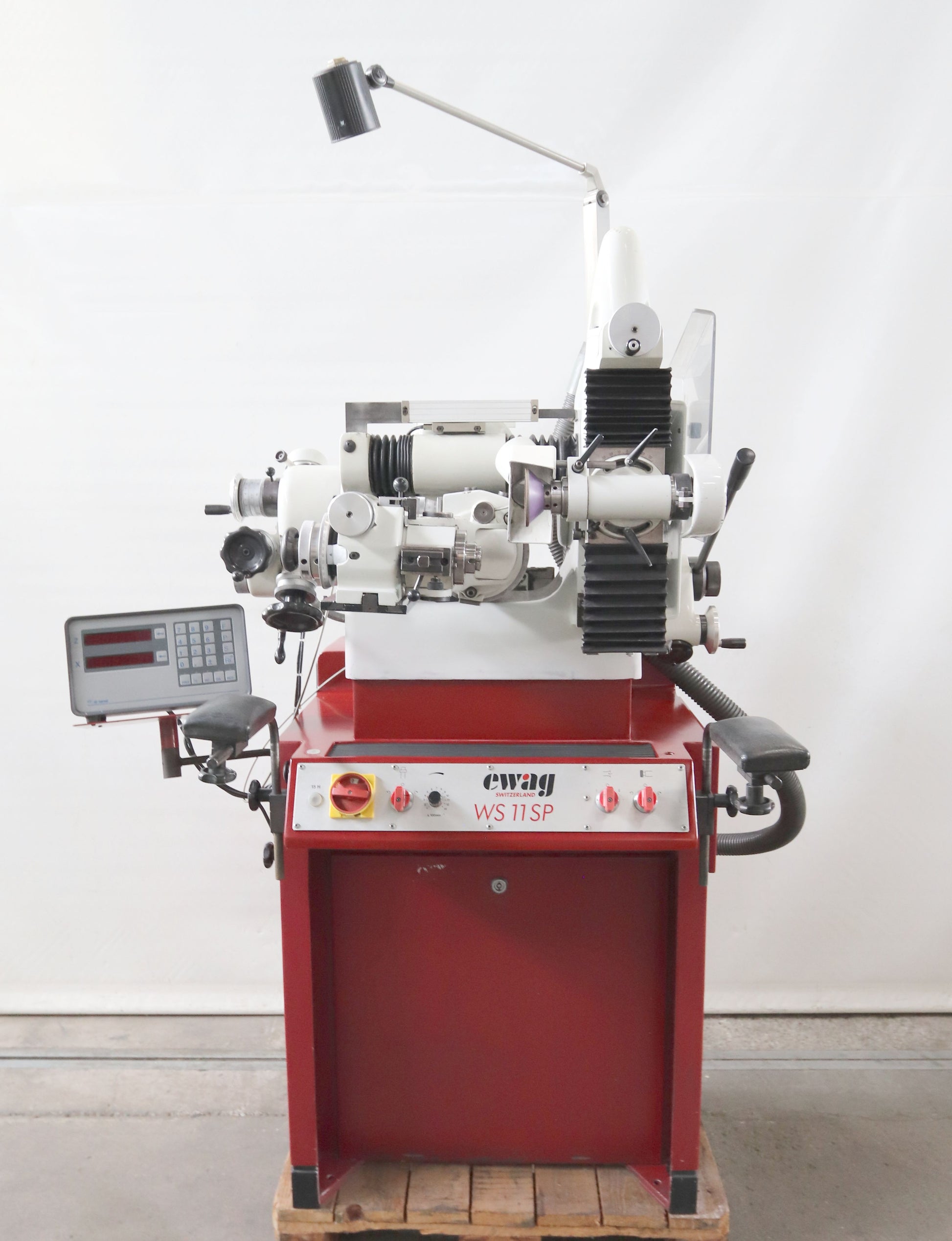

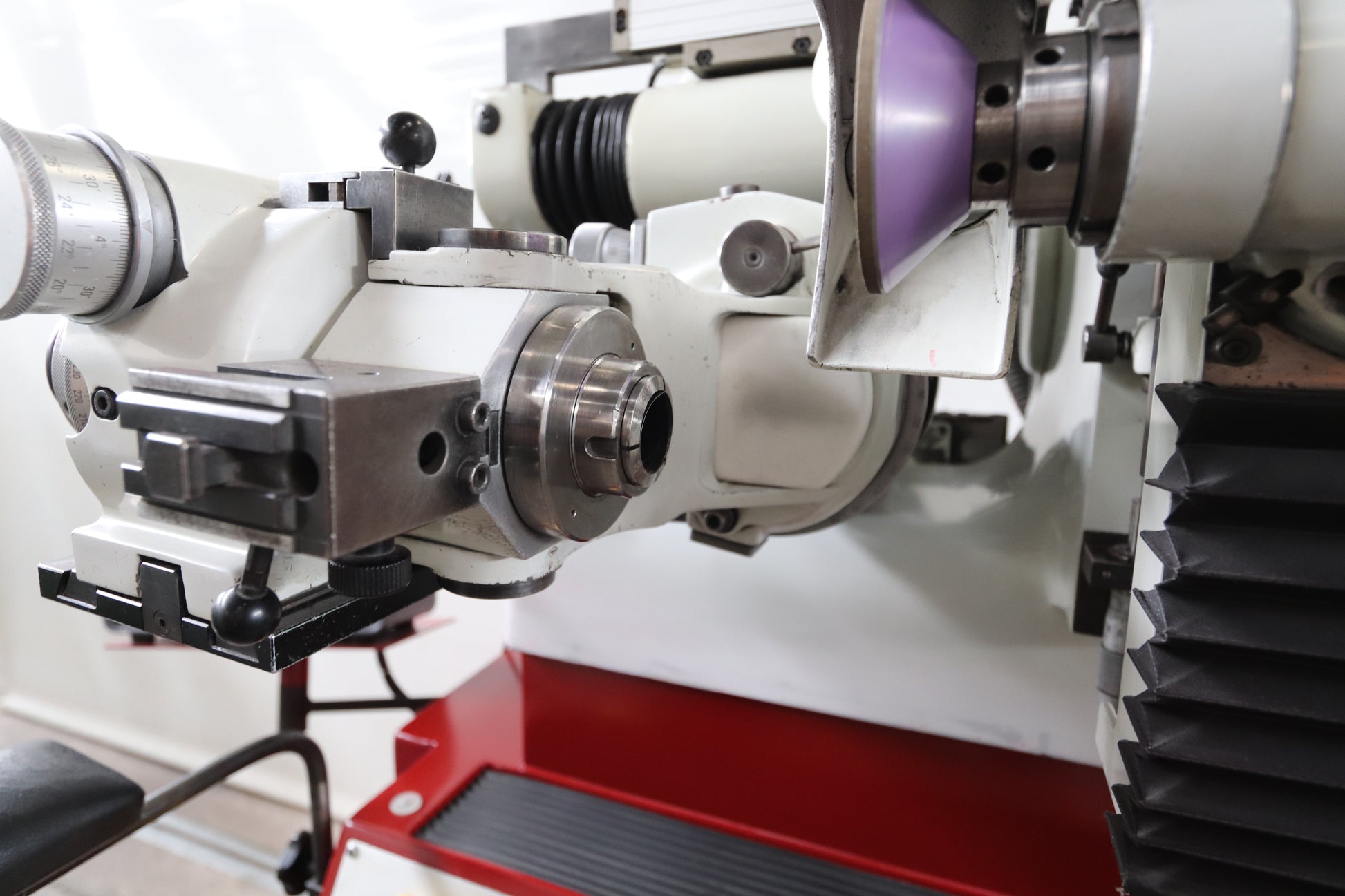

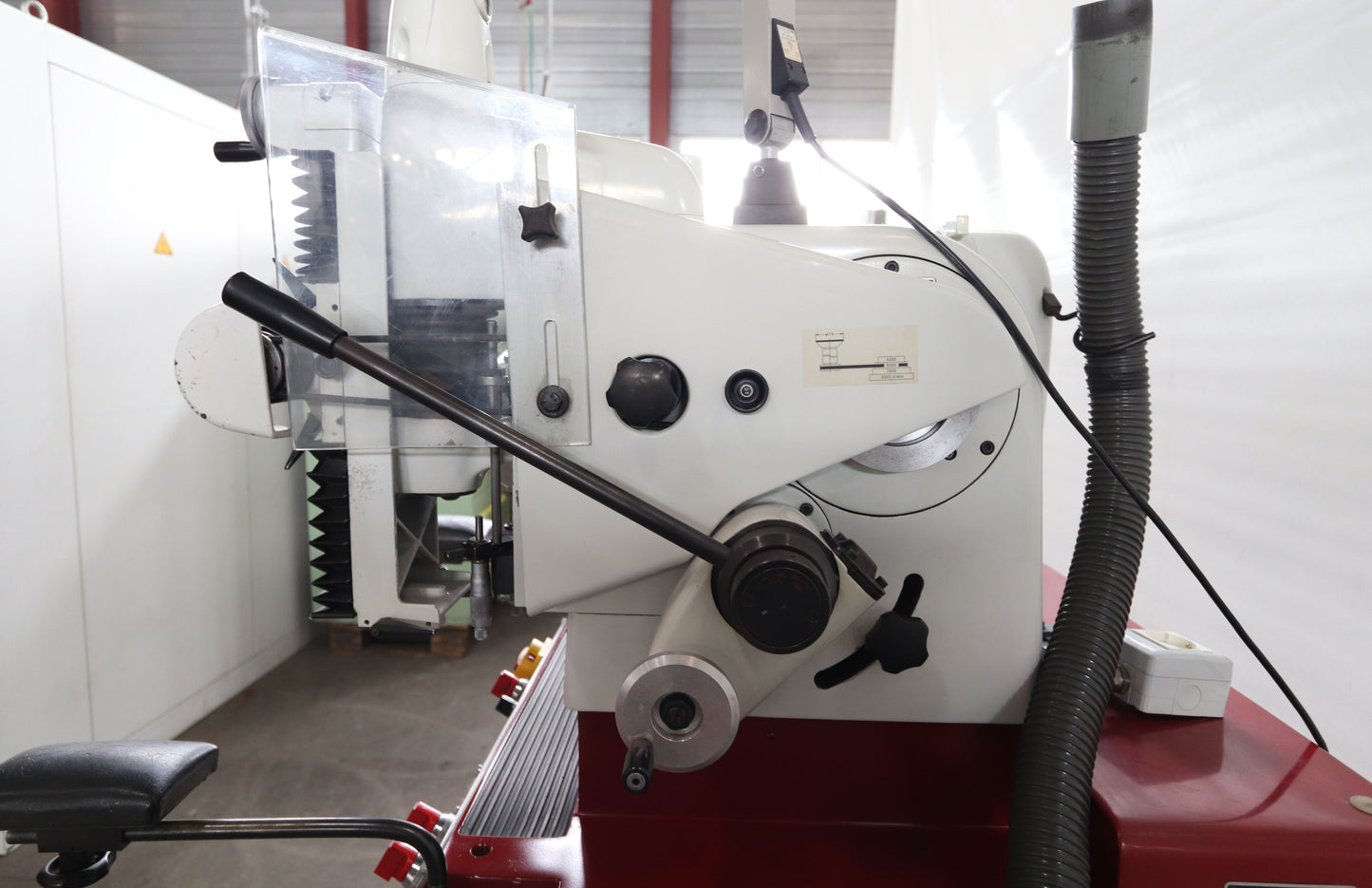

EWAG WS 11 SP is a Tool and cutter grinder, built for precision, high accuracy and reliability. Capacities: X/Y/Z travel 100 mm, grinding-wheel Ø75 mm, workpiece spindle 100–1300 t/min, vertical grinding-head travel 100 mm, head slewing 165°, grinding spindle speeds 2500–7100 t/min. Specs: 50 Hz 3×380 V, total power 2 kVA, weight ~400 kg, dimensions L850×W850×H1580 mm; collet attachment 25 W. Accessories: 2‑axis digital readout, tool cabinet, set of collets and flanges, dust extraction, set of grinding wheels, lamp, spiral‑flute grinding attachment, additional spindles, forward feed unit, Z‑feed unit, universal vice 9K‑20. Achieves tight tolerances; suitable for automotive, watchmaking, toolmaking, aerospace and medical sectors.
| X axis | 100 mm |
| Y axis | 100 mm |
| Z axis | 100 mm |
| Grinding-wheel diameter | 75 mm |
| Work piece spindle speed | 100 - 1300 t/min |
| Vertical adjustment of grinding head | 100 mm |
| Collet attachment | 25 W |
| Slewing range of grinding head: | |
| horizontal | 165 ° |
| Grinding spindle speeds: | |
| from | 2500 t/min |
| up to | 7100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Workpiece spindle motor | kW |
| Total power required | 2 kVA |
| Machine's weight about | 400 kg |
| Overall dimensions machine: | |
| Length | 850 mm |
| Width | 850 mm |
| Height | 1580 mm |
| Various accessories: | |

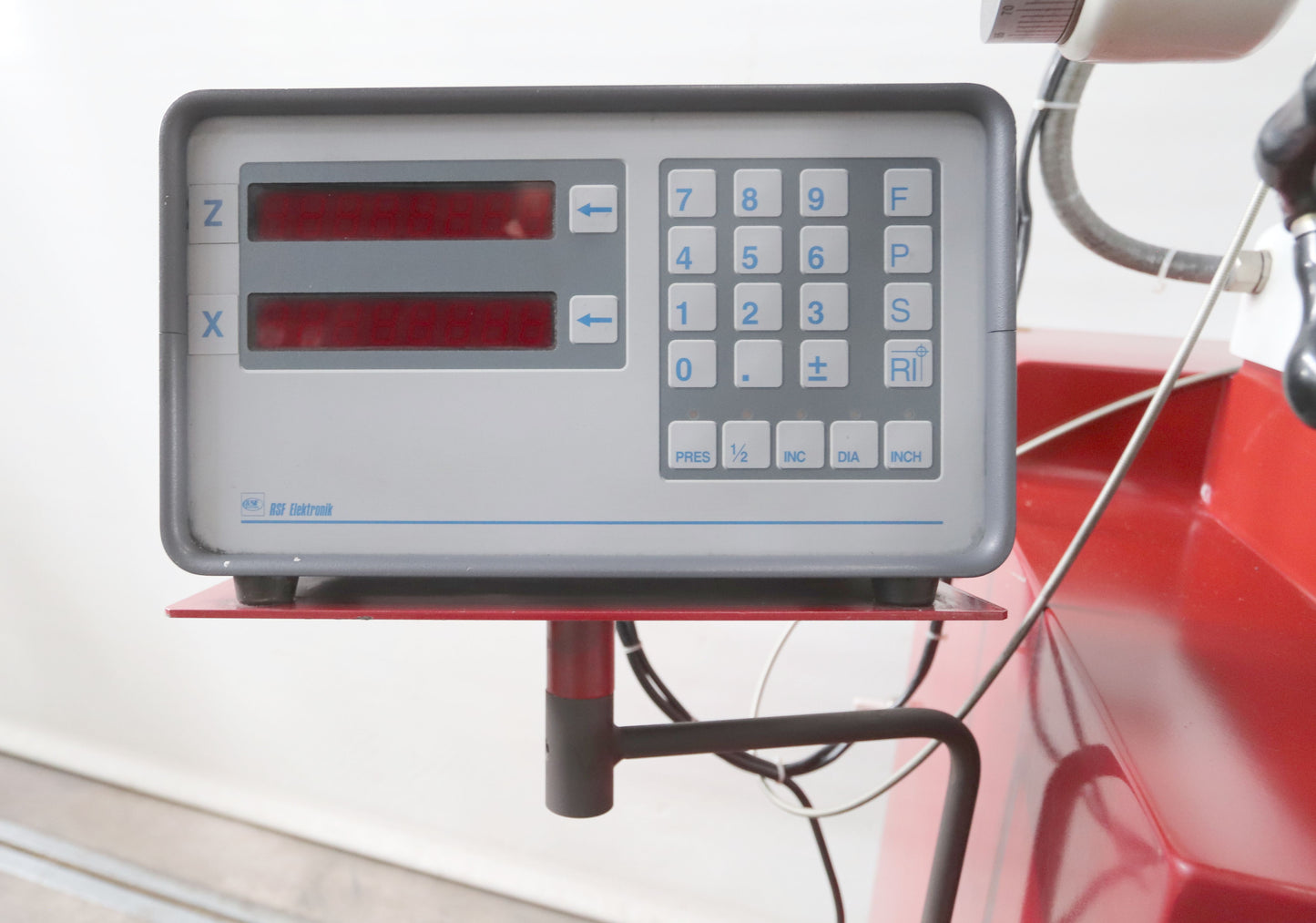

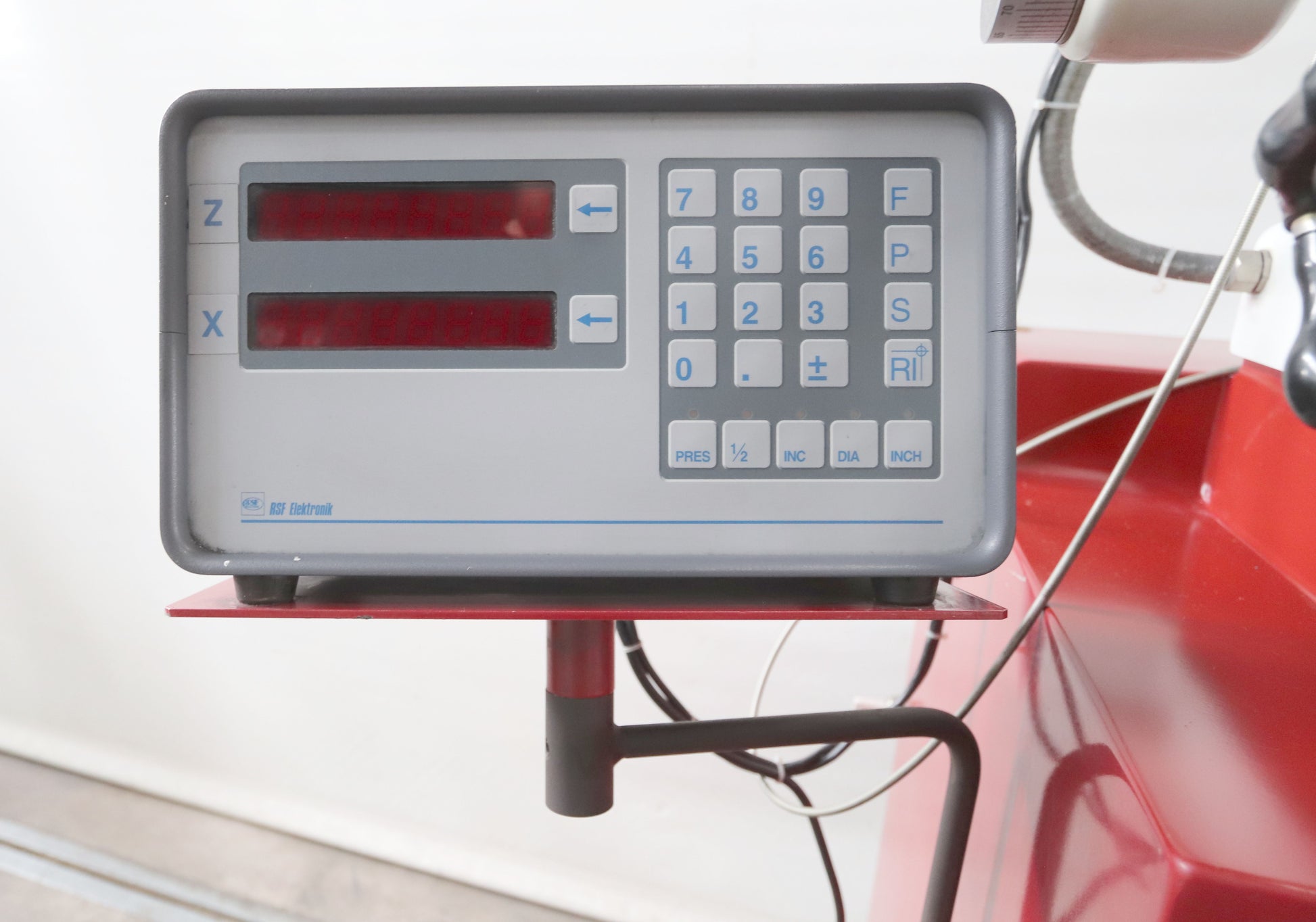

| Digital readout number of axis: | 2 |

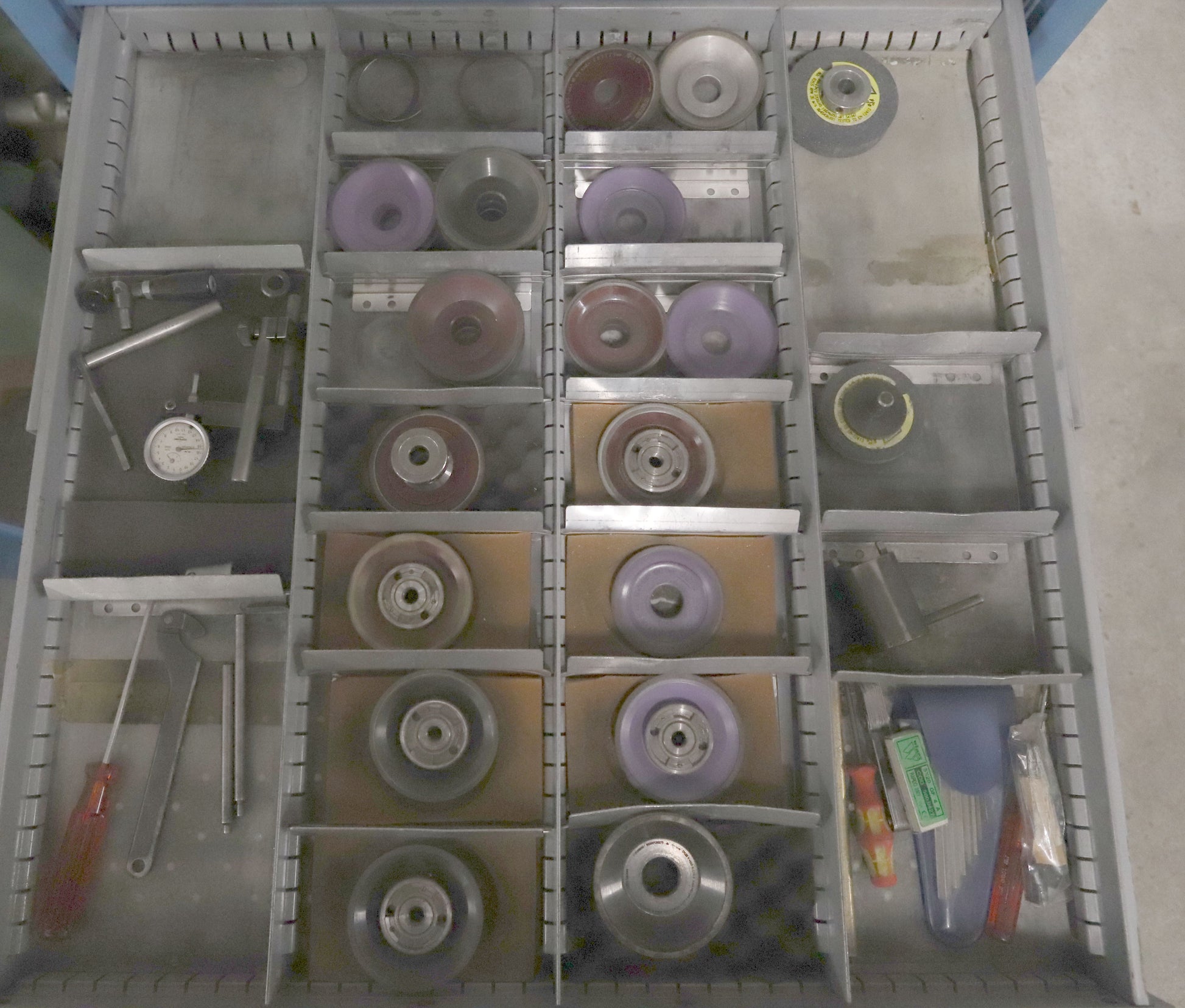

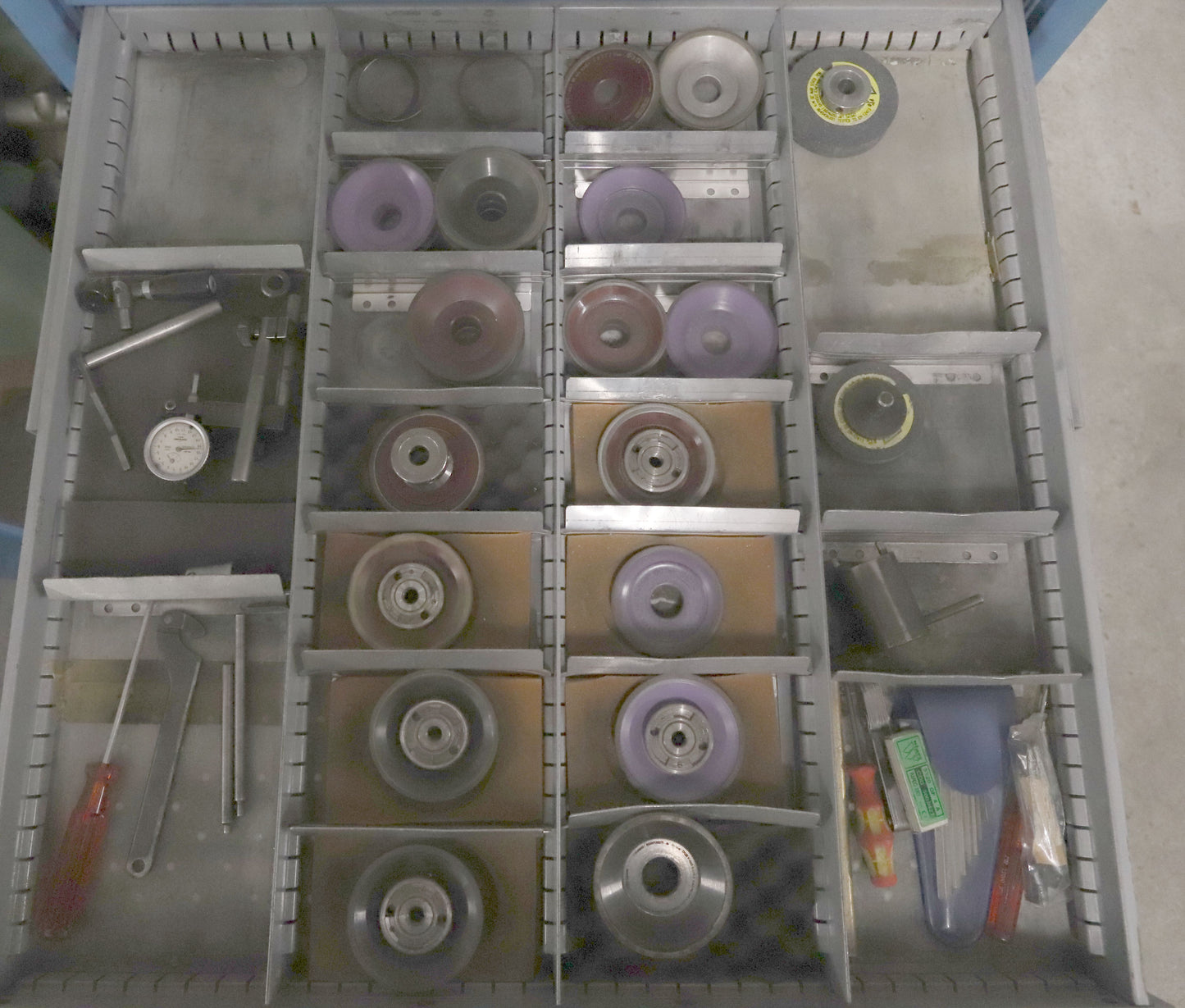

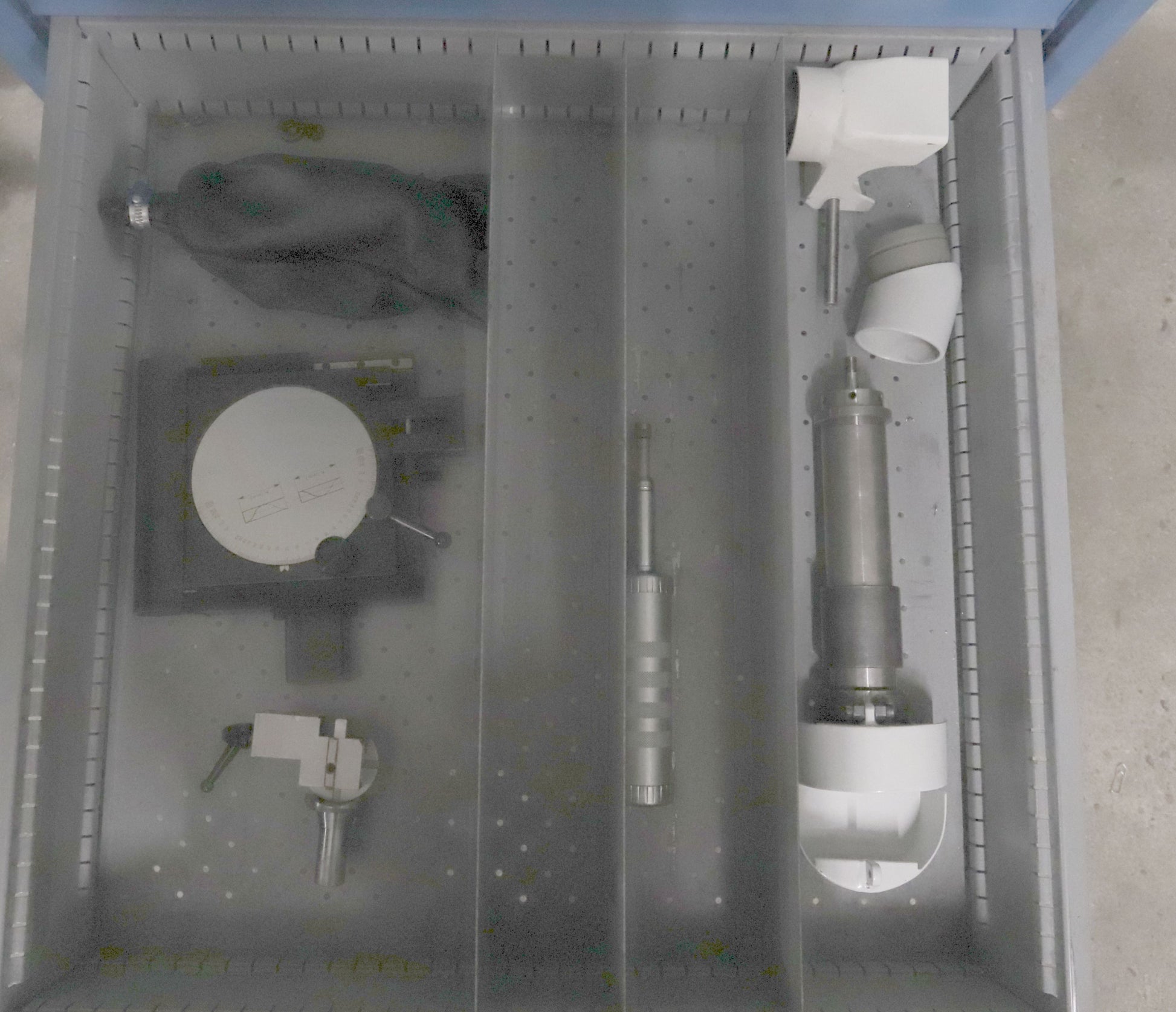

| Tool cabinet | |

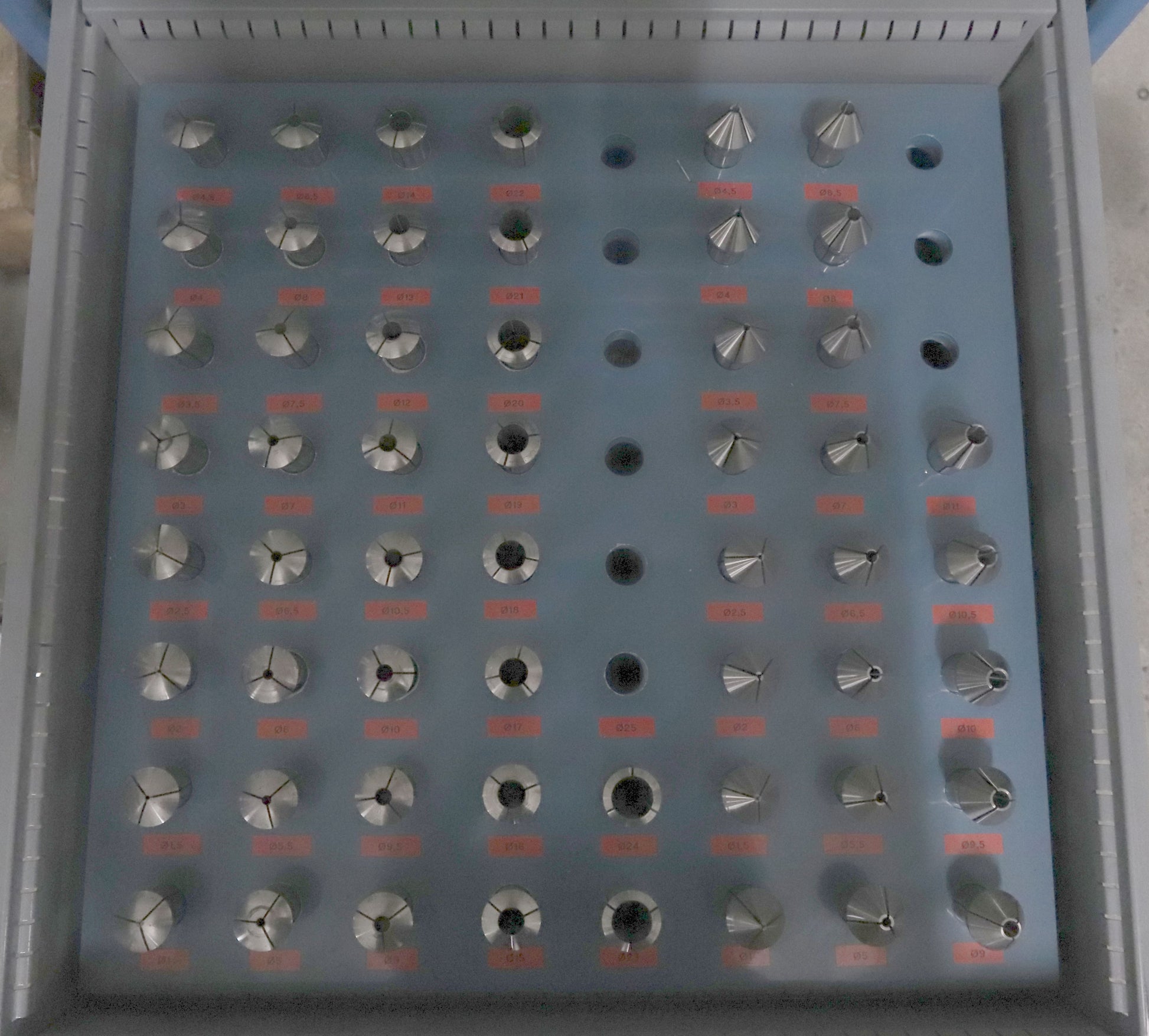

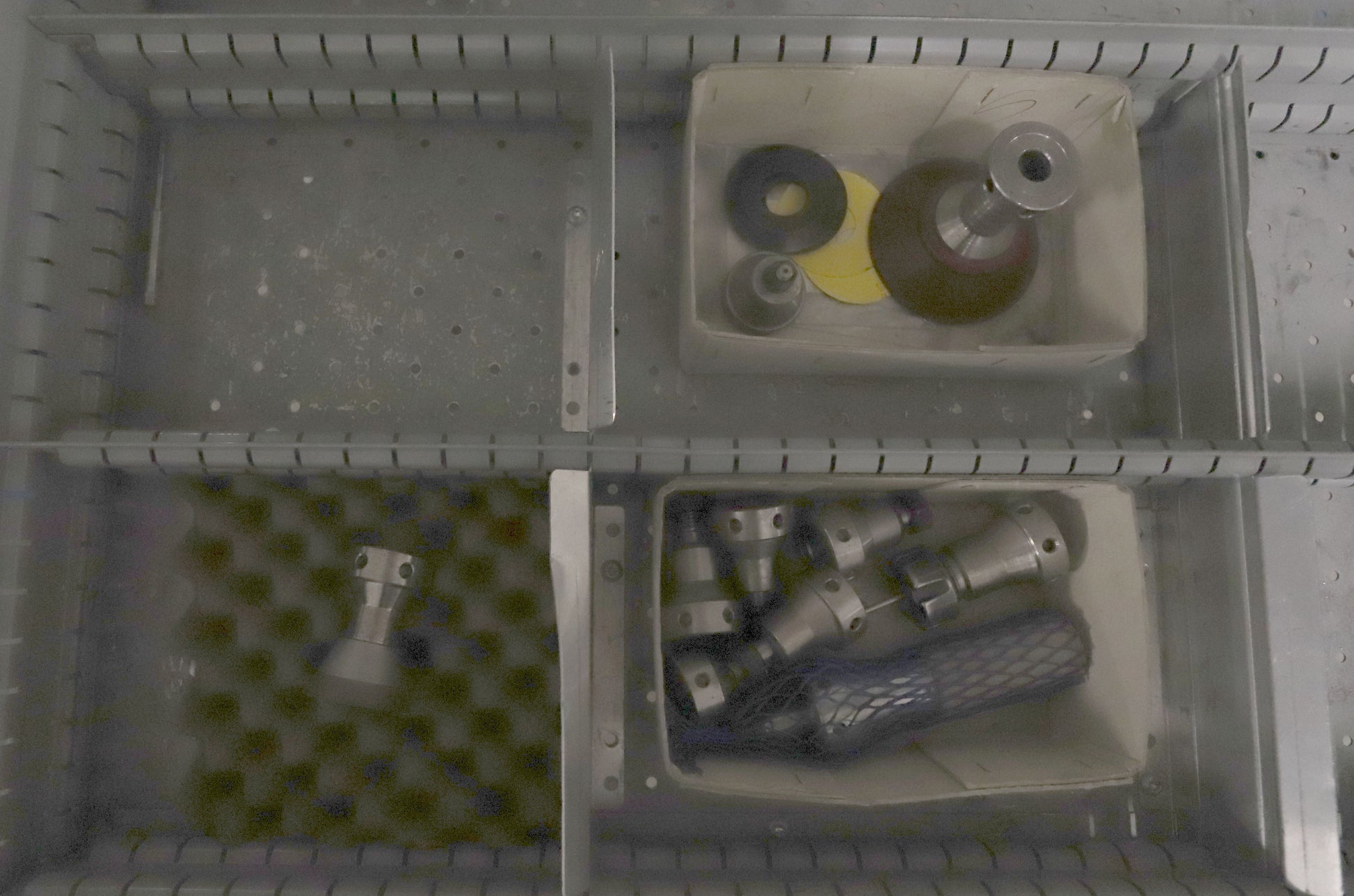

| Set of collets | |
| Set of flanges | |
| Dust extraction | |

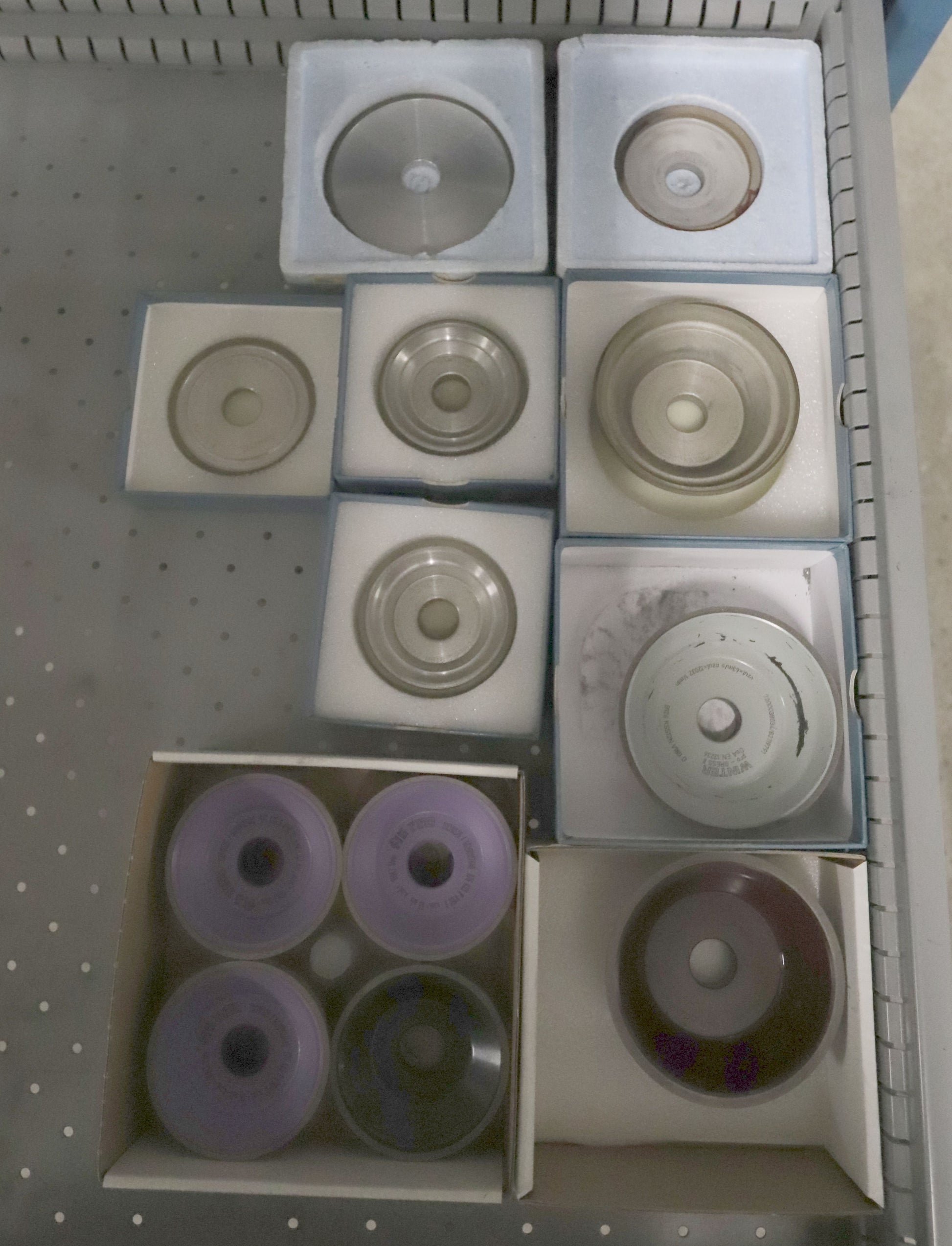

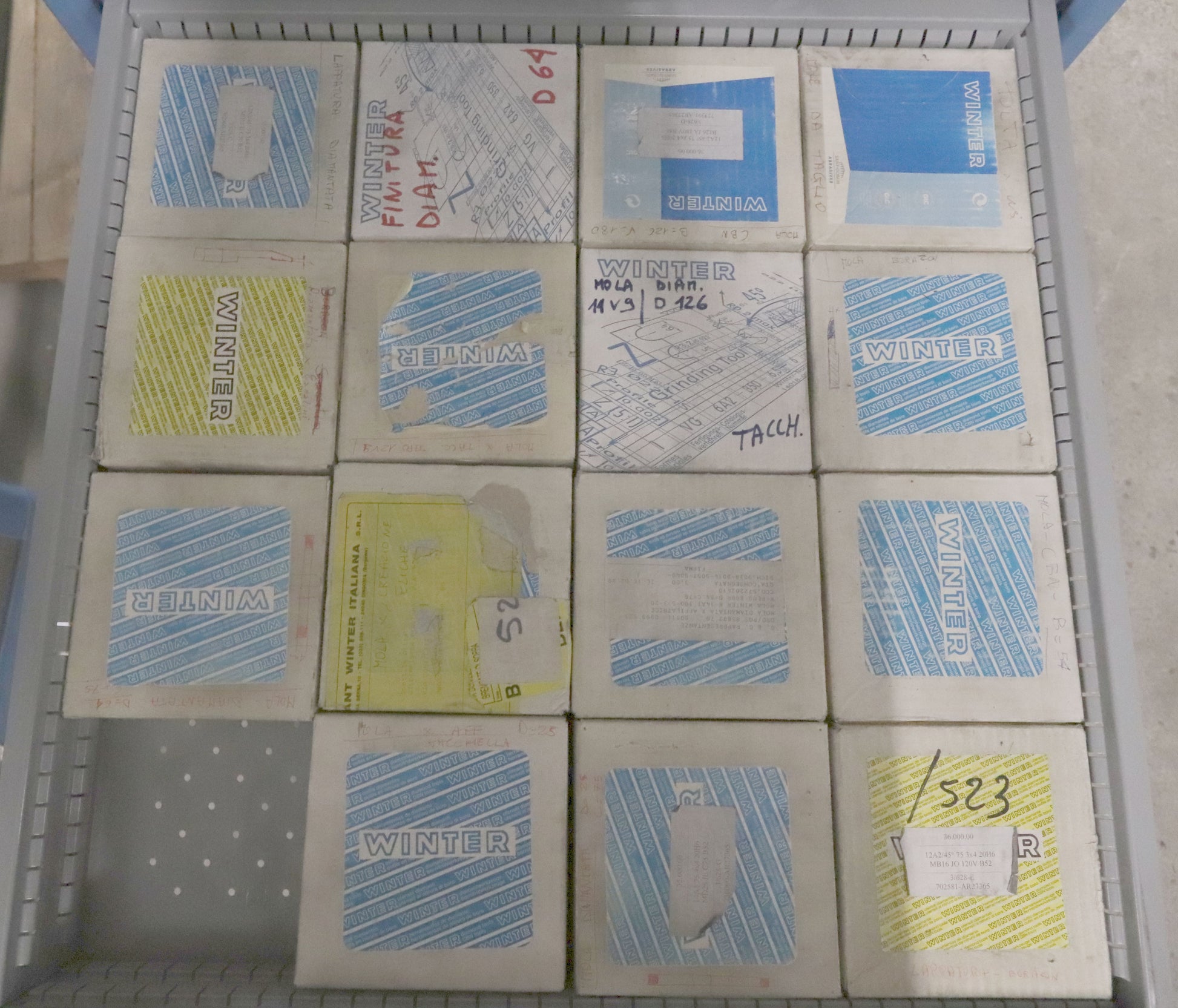

| Set of grinding wheels | |
| Lamp | |
| Spiral flute grinding attachment | |
| Additional spindle | |
| Forward feed unit 3 H | |
| Universal Vice 9K-20 | |
| Feed unit (Z-axis) |
