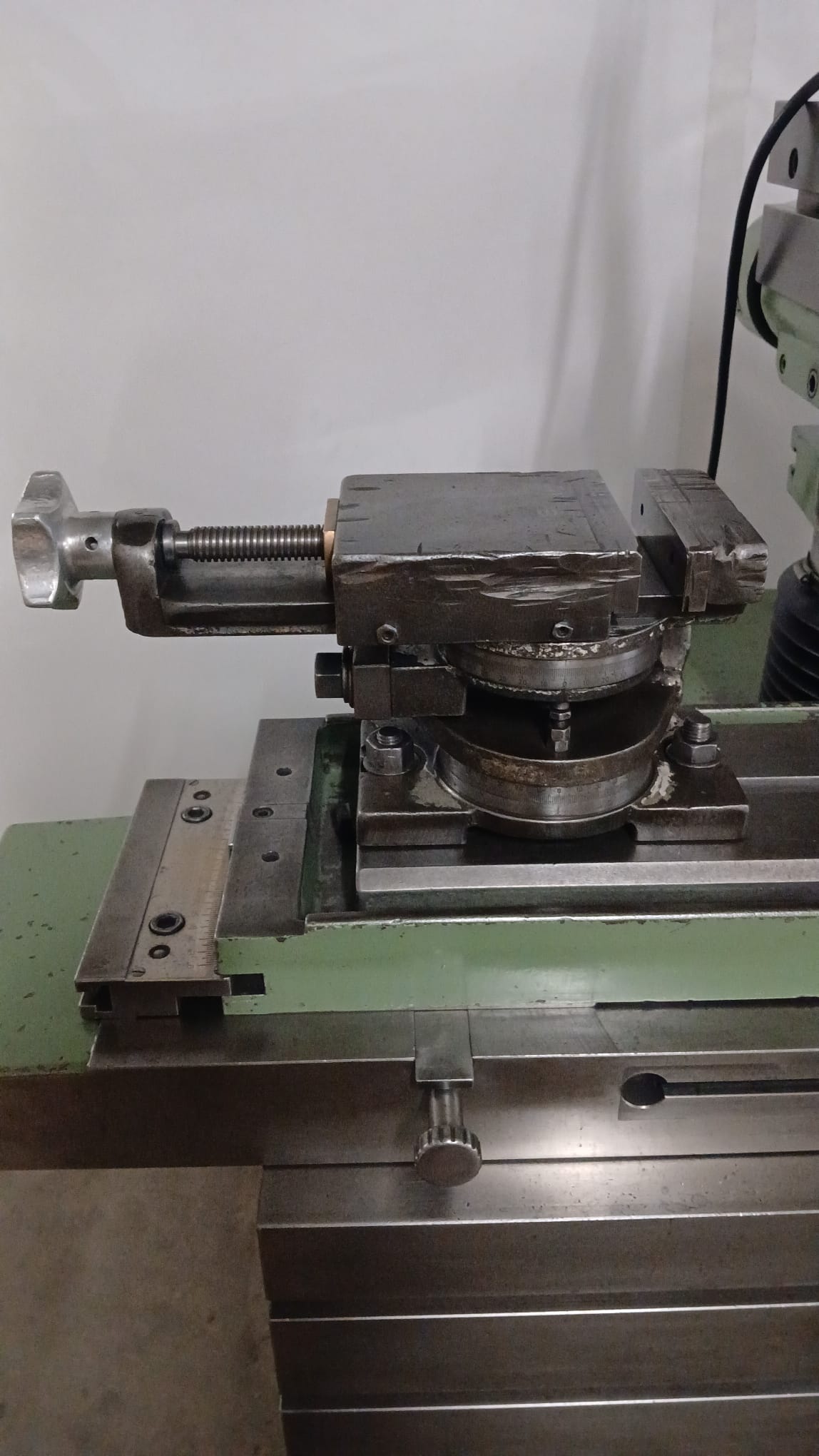

TACCHELLA 4 M is a Tool and cutter grinder engineered for high precision, exceptional accuracy and dependable performance. Working capacities: centre height 125 mm, distance between centres 550 mm, max. grinding diameter 250 mm, max. wheel diameter 200 mm; table 900×130 mm; longitudinal way 400 mm, transversal way 200 mm. Main technical specs: grinding spindle speeds 2200–6400 t/min; voltage 50 Hz 3x380 V; machine weight approx. 1050 kg; overall dimensions L1400×W1300×H1700 mm. Accessories: set of grinding wheels included. Achieves tight tolerances; typical applications in automotive, watchmaking, machine tools, aerospace and medical industries
Technical specifications are subject to change without notice
| Centre height | 125 mm |
| Distance between centres | 550 mm |
| Table length | 900 mm |
| Table width | 130 mm |
| Max. grinding diameter | 250 mm |
| Max. grinding wheel diamter | 200 mm |
| Longitudinal way of table | 400 mm |
| Transversal way of grinding head | 200 mm |
| Grinding spindle speeds: | |
| from | 2200 t/min |
| up to | 6400 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1050 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1300 mm |
| Height | 1700 mm |
| Various accessories: | |
| Set of grinding wheels |
