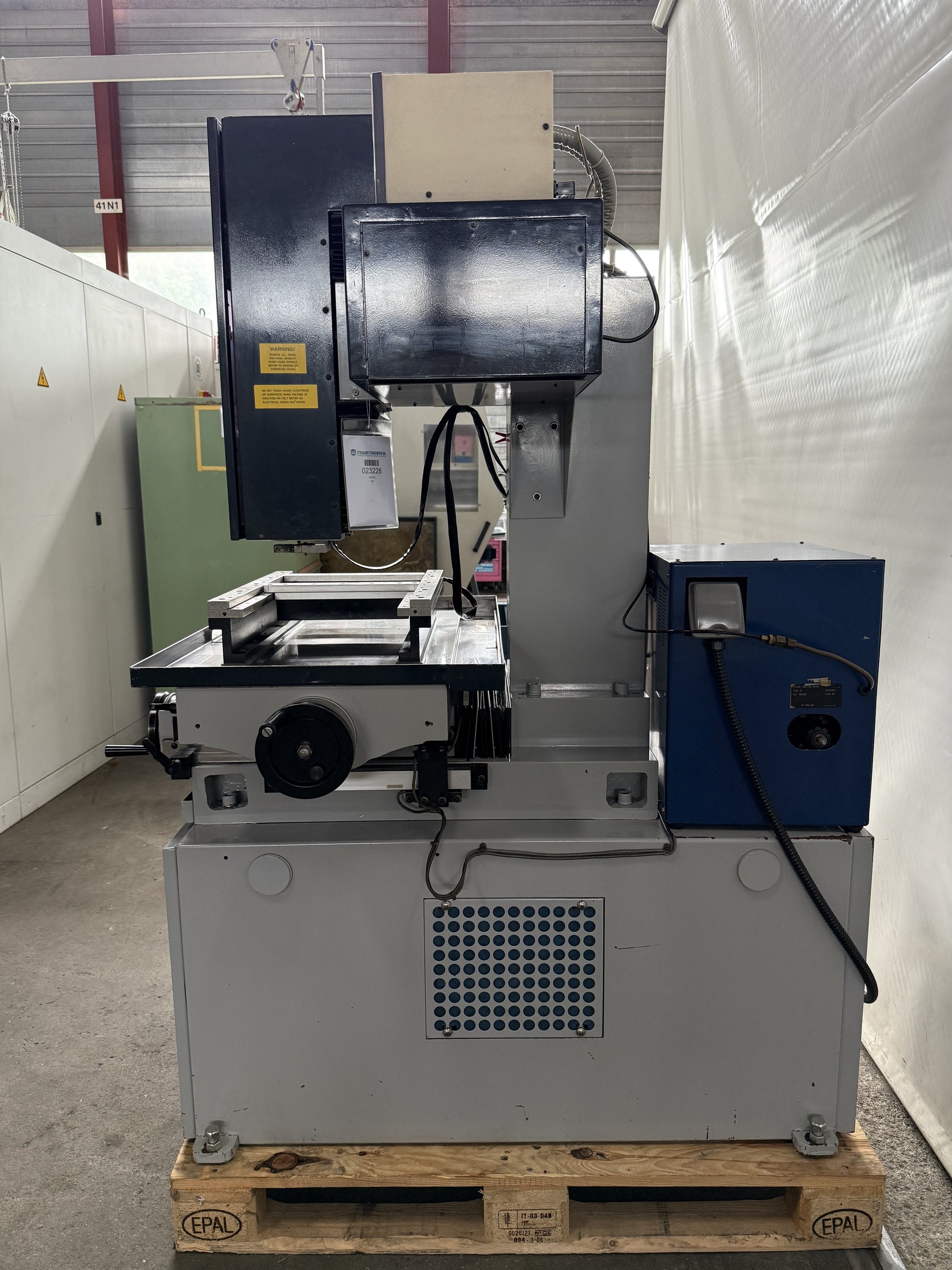

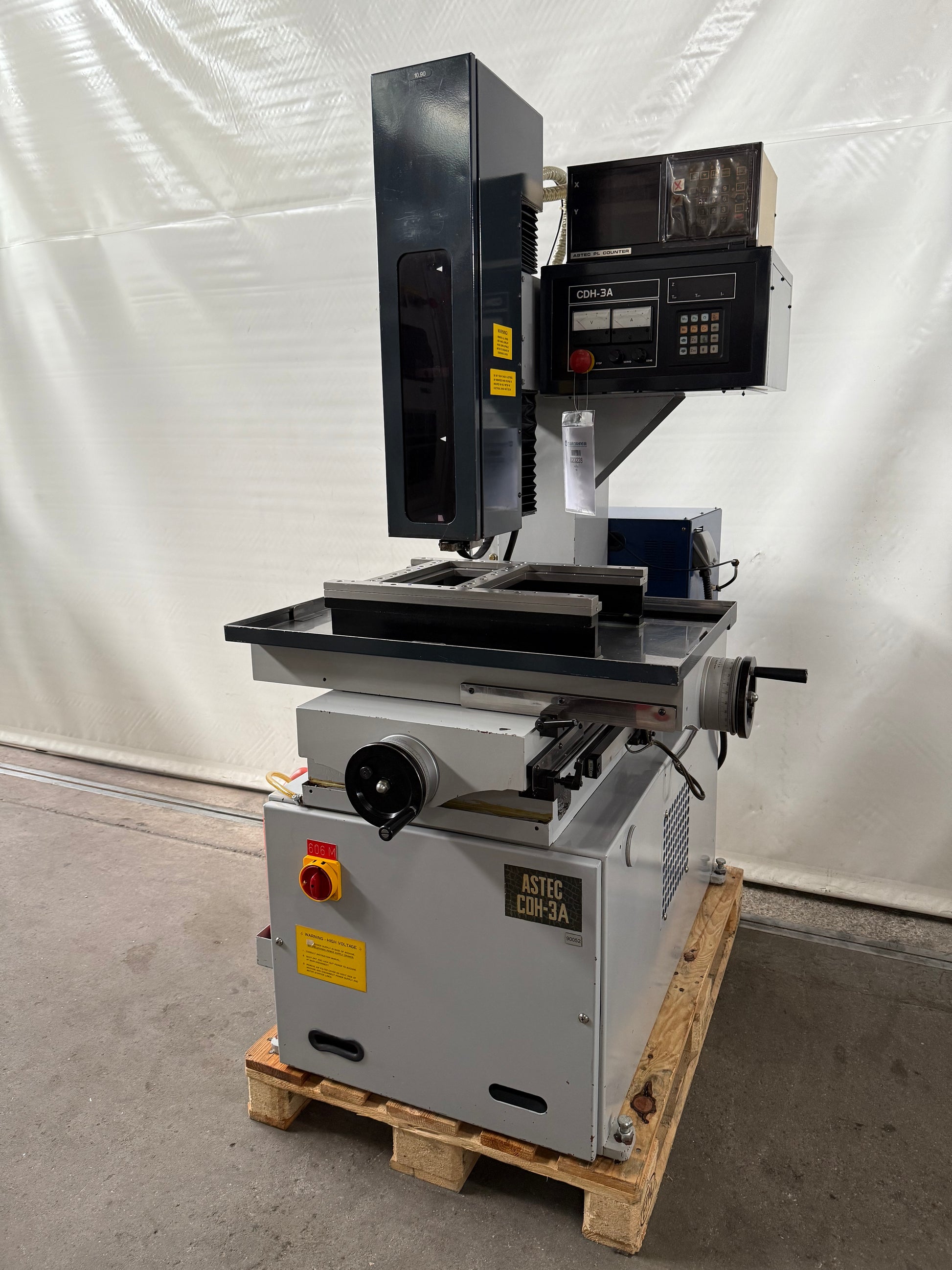

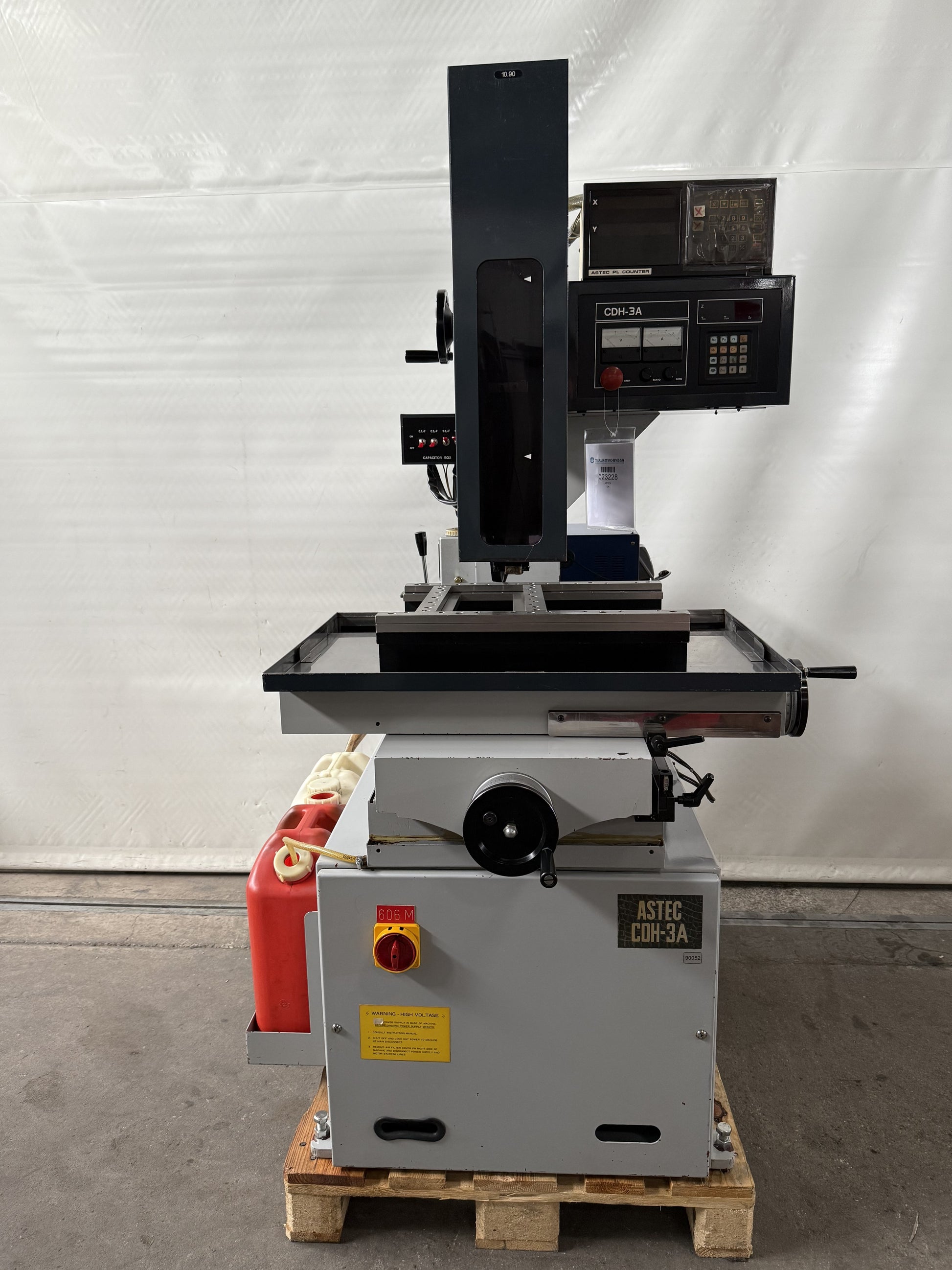

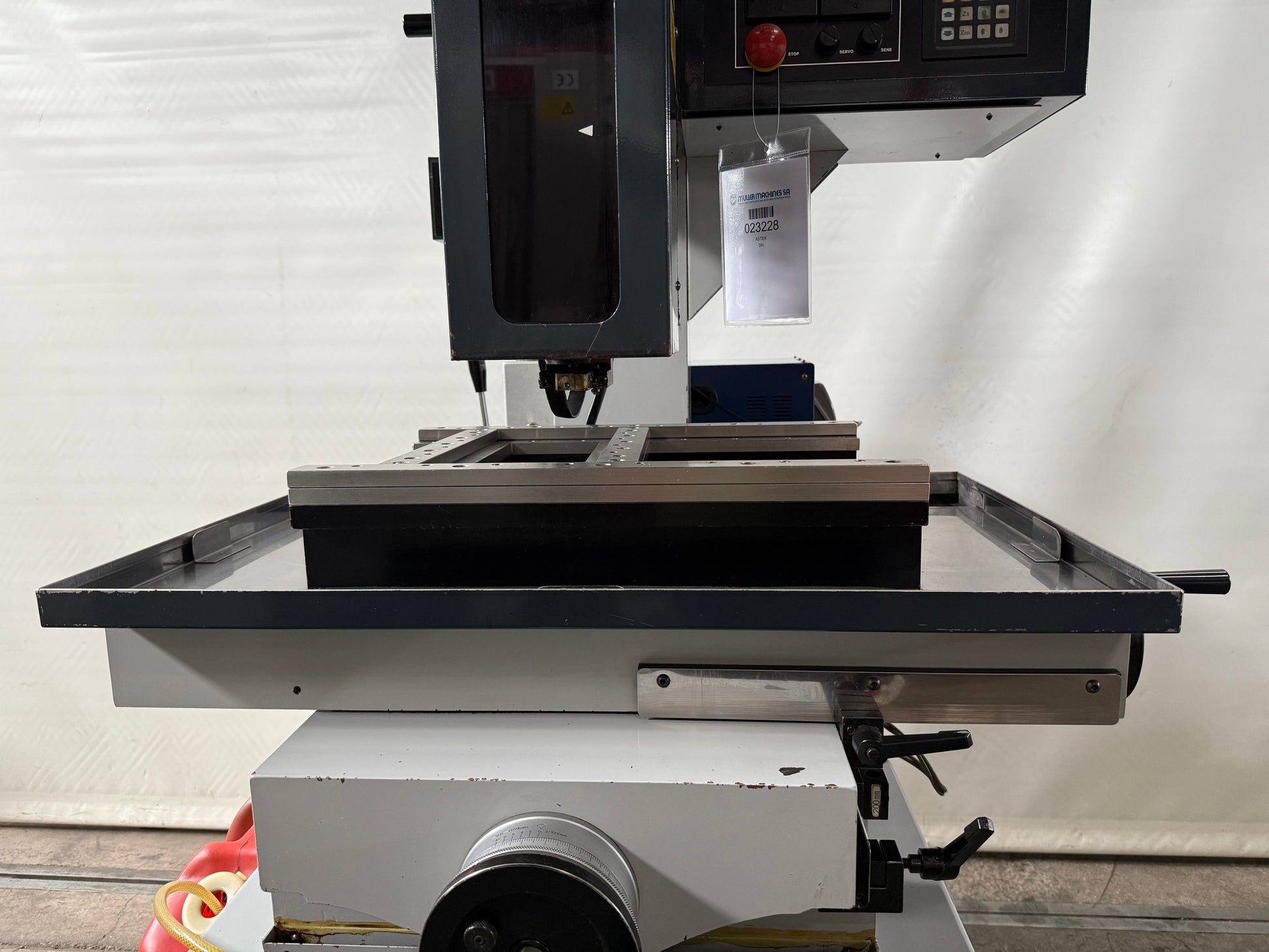

ASTEC CDH-3 A is a start hole eroding machine offering high precision, accuracy and reliable performance. Capacities: 3 axes; table 500×360 mm, max load 300 kg; travels X300 Y200 Z200 mm; max distance table–sleeve 220 mm; vessel 820×550 mm; electrode Ø0.2–3.0 mm. Specs: generator 40 A; total power 4.5 kVA; supply 50 Hz 3x 200–440 V; weight ≈900 kg; dims 1200×1600×2000 mm; dielectric tank 20 l. Suited to tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 3 |
| Table length | 500 mm |
| Table width | 360 mm |
| Table load max. | 300 kg |
| Longitudinal traverse (X-axis) | 300 mm |
| Cross traverse (Y-axis) | 200 mm |
| Height adjustment (Z-axis) | 200 mm |
| Max. distance from the table and sleeve | 220 mm |
| Working vessel:length inside | 820 mm |
| Width | 550 mm |
| Electrode diameter | 0.2 - 3.0 mm |
| Dielectric aggregate: | |
| Contents | 20 l |
| Generator: | |
| Power | 40 A |
| Total power required | 4.5 kVA |
| Voltage 50 Hz 3x | 200 - 440 Volt |
| Machine's weight about | 900 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1600 mm |
| Height | 2000 mm |
