MAKINO A 77-A 188
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

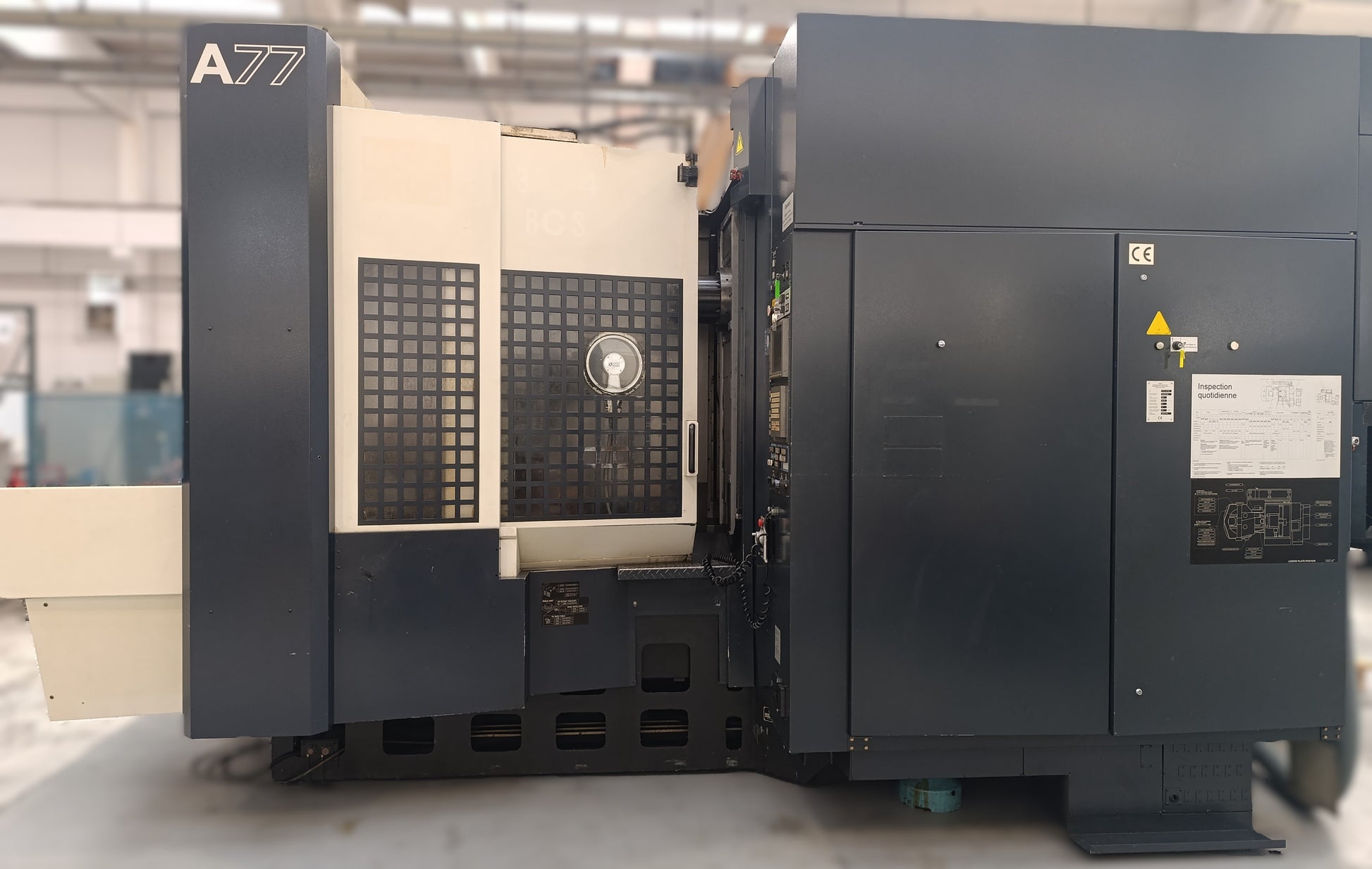

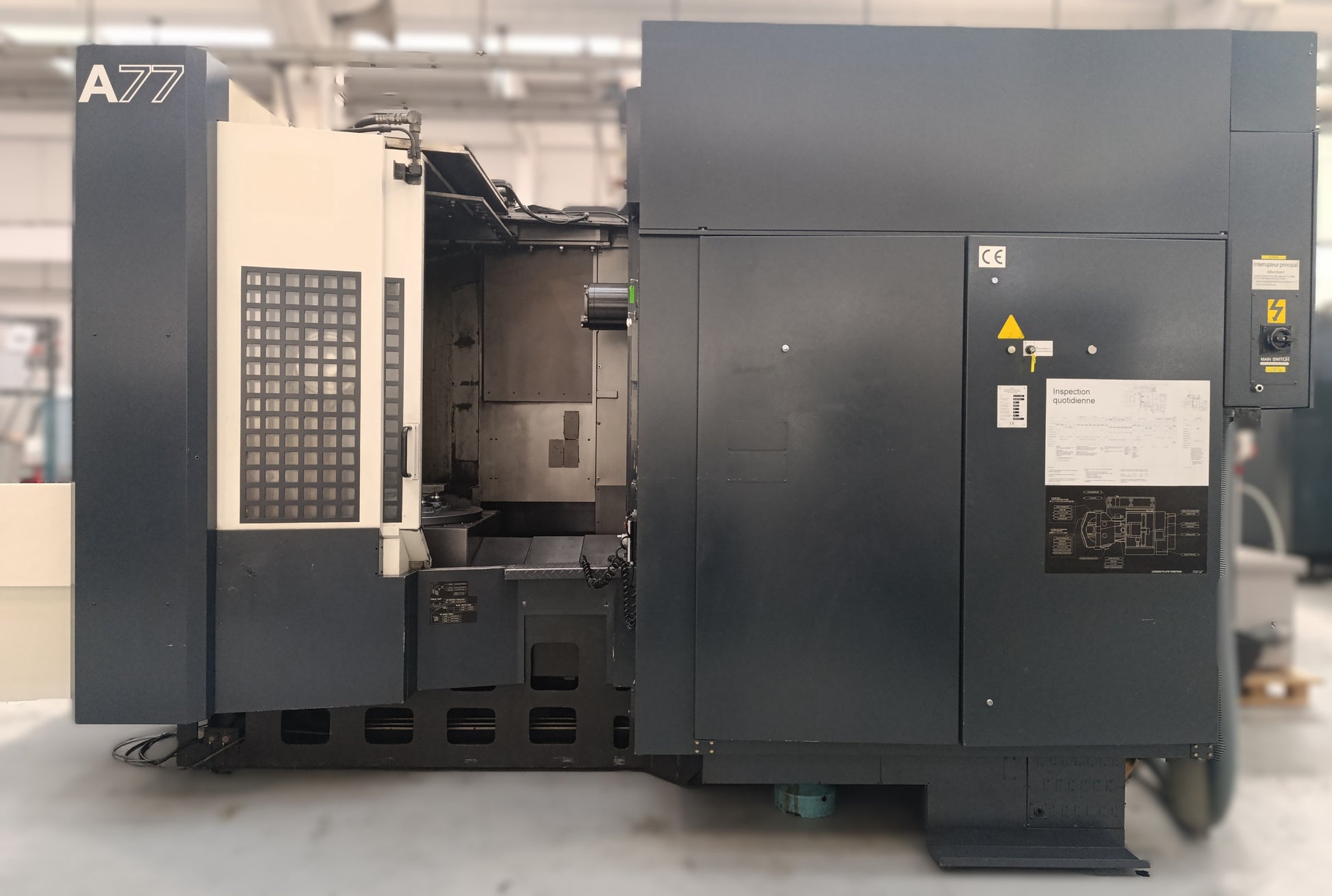

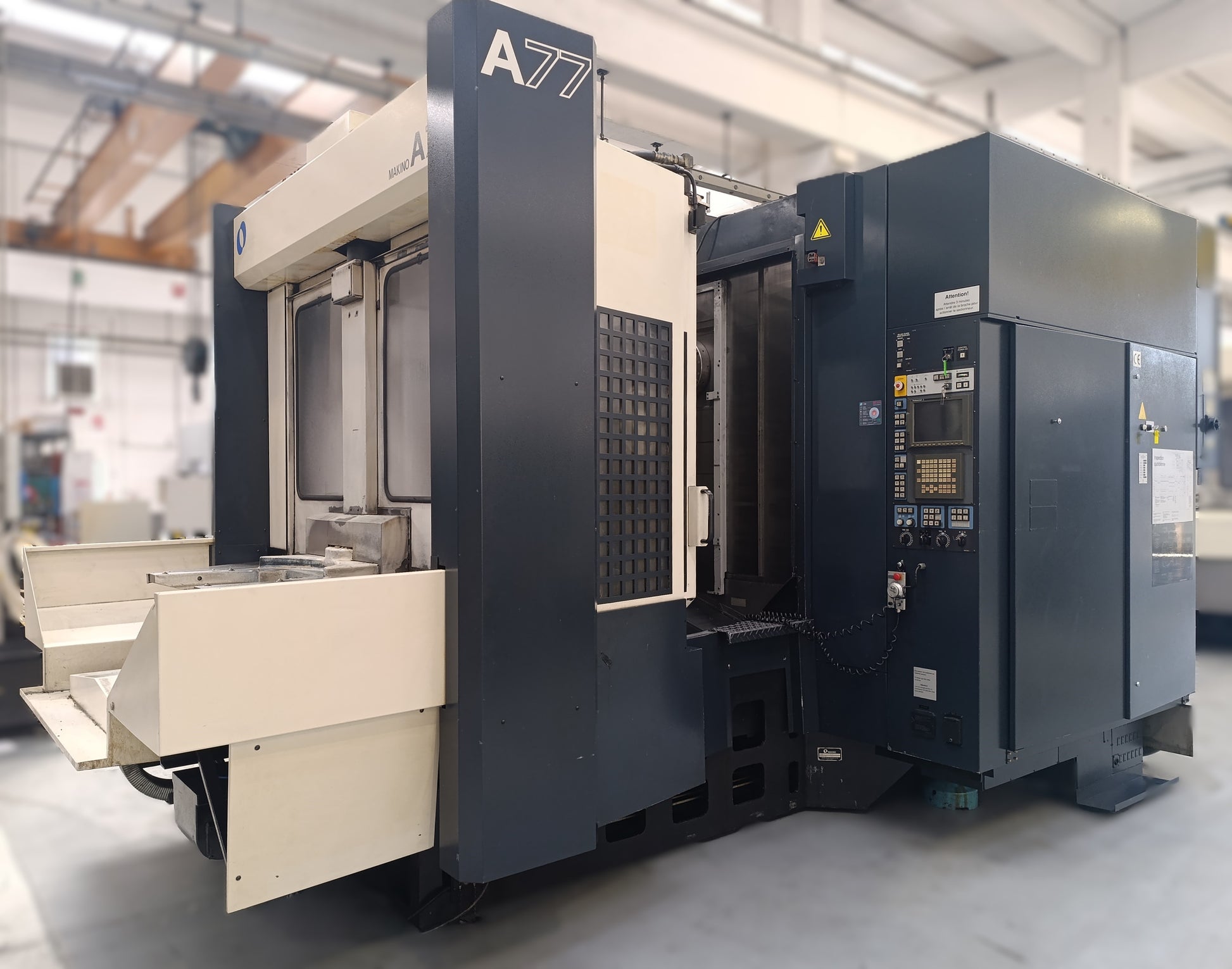

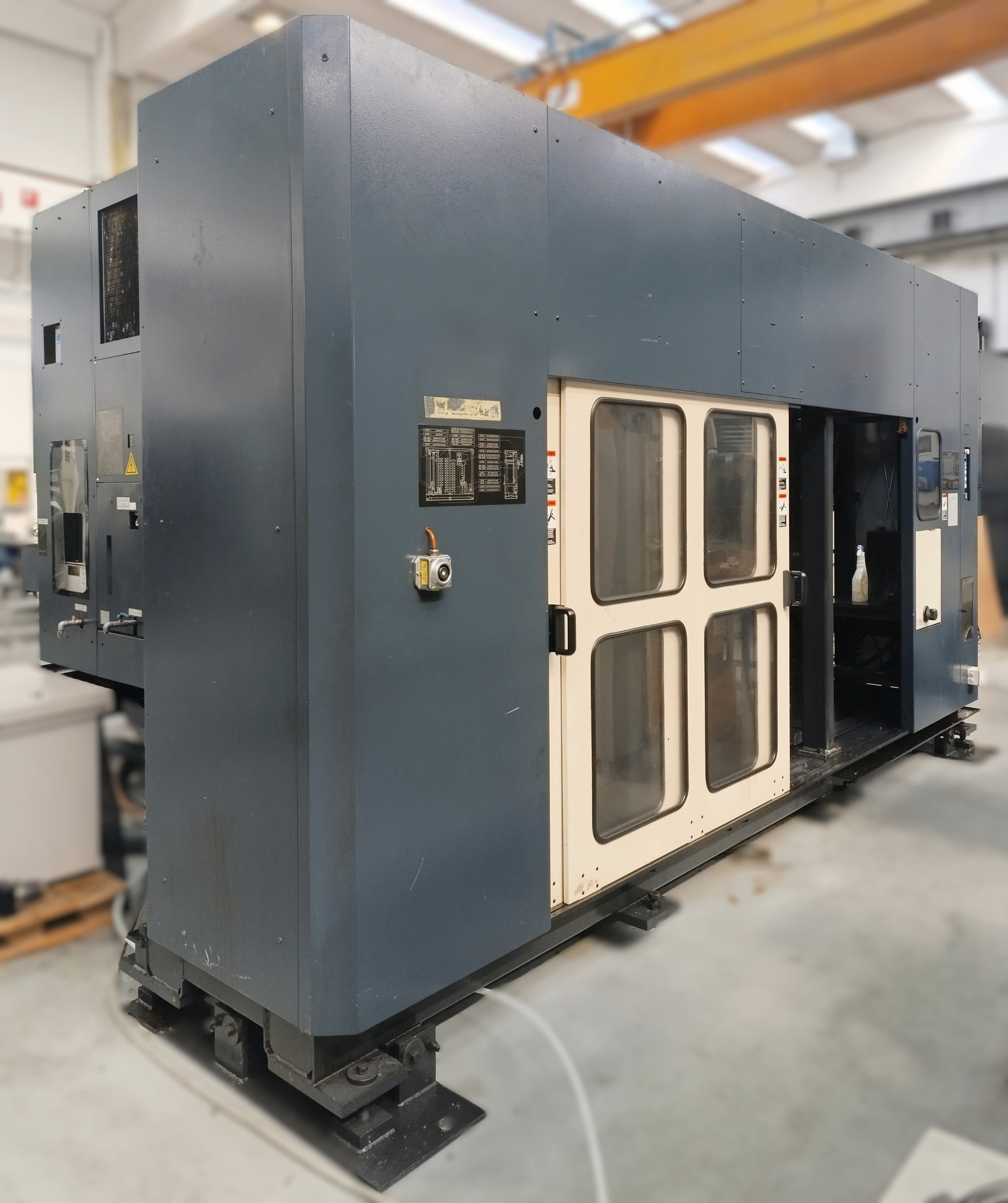

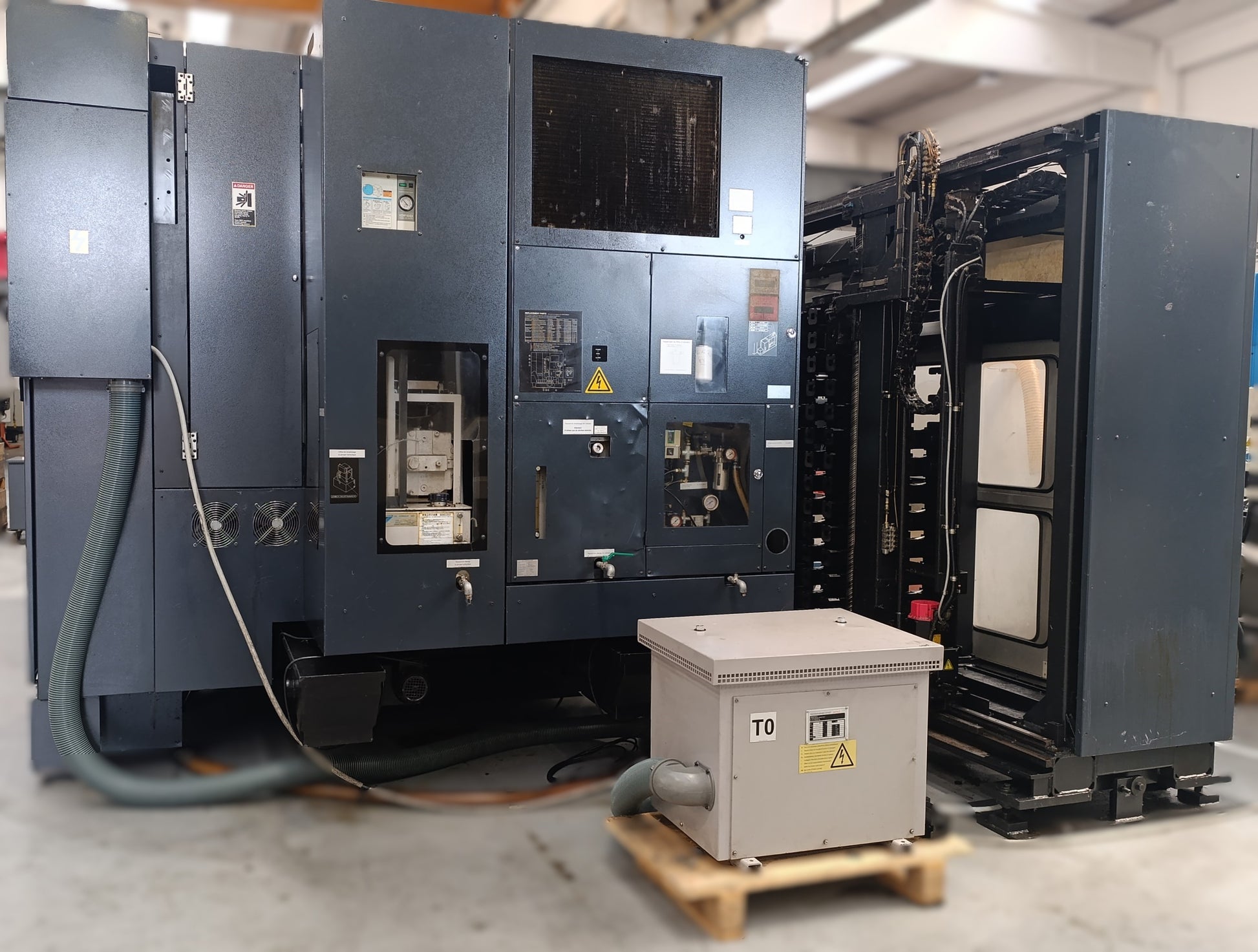

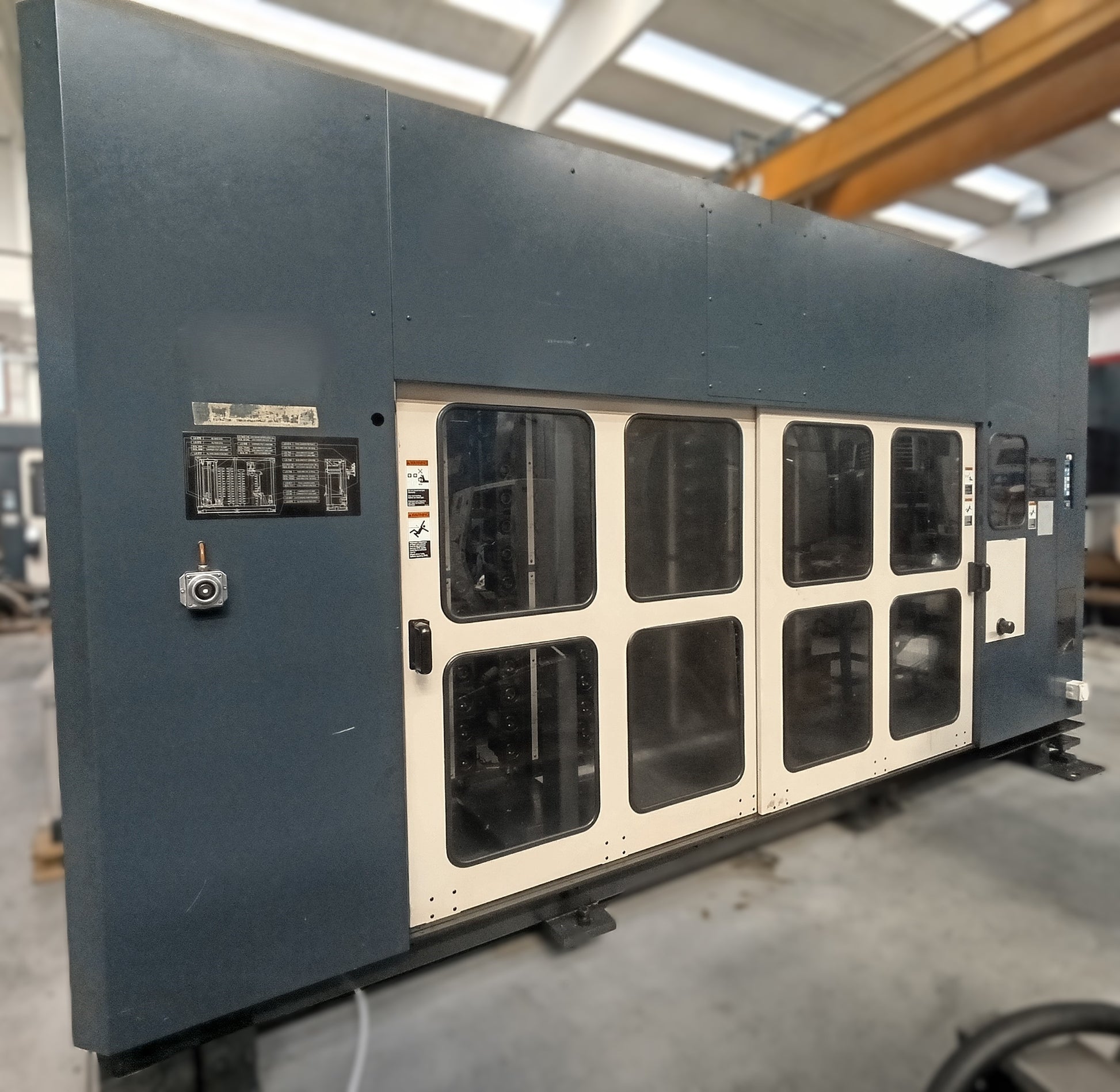

MAKINO A 77-A 188 is a Horizontal machining center designed for precision, high accuracy and reliability. Two tables 630×630 mm; travels X800 Y750 Z770 mm; spindle interface HSK‑A100. Spindle 20–10,000 t/min, spindle motor 30 kW; 50 Hz 3×400 V. Weight ≈18,000 kg; dims 6430×3650×3000 mm; space req. 40/24 m2. Accessories: set of toolholders. Engineered for tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools
| Number of tables | 2 |
| Table length | 630 mm |
| Table width | 630 mm |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 750 mm |
| Vertical travel (z axis) | 770 mm |

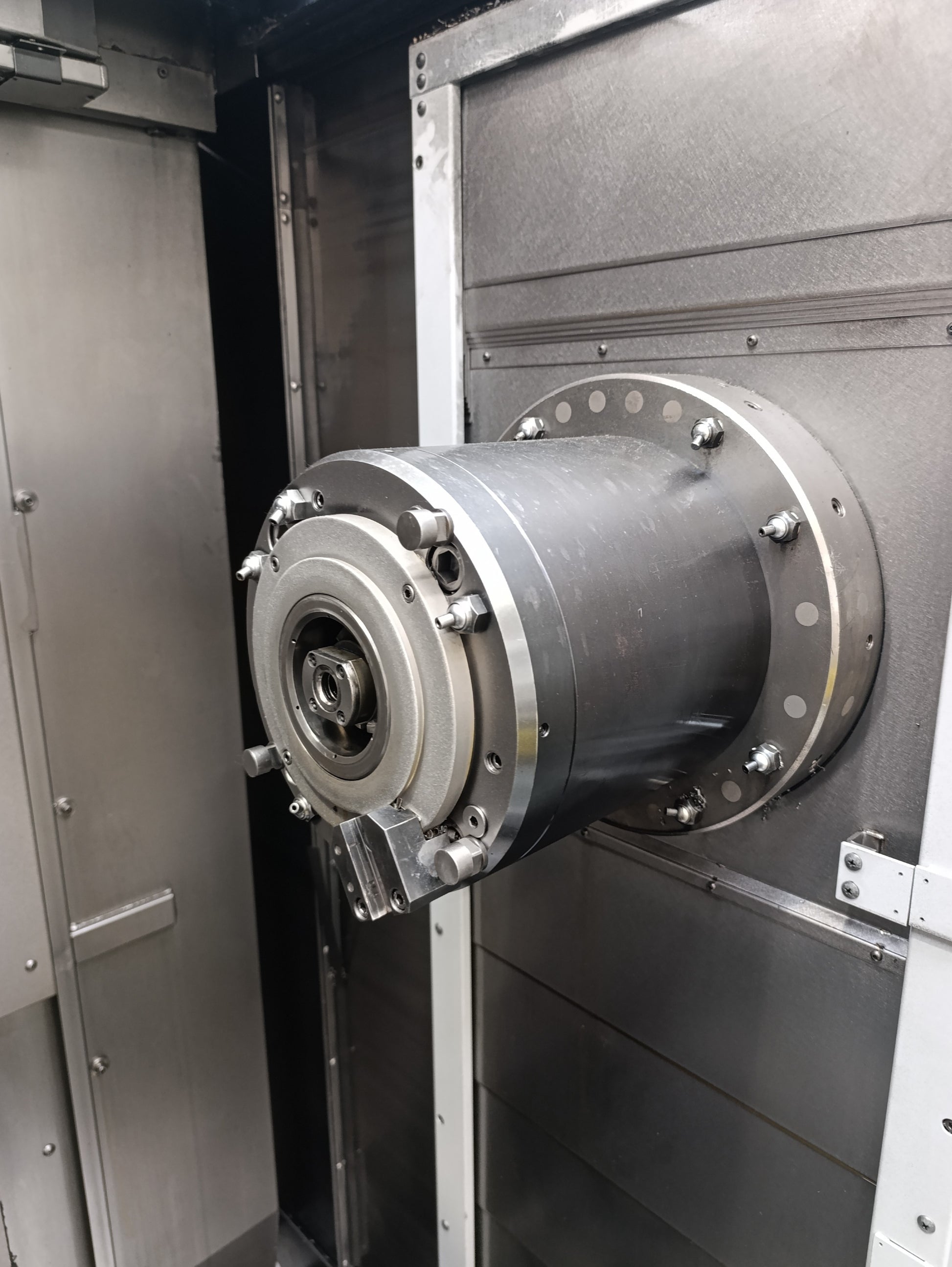

| Spindle nose: HSK-A | 100 |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 30 kW |
| Machine's weight about | 18000 kg |
| Overall dimensions machine: | |
| Length | 6430 mm |
| Width | 3650 mm |
| Height | 3000 mm |
| Space requirement env. | 40 / 24 m2 |

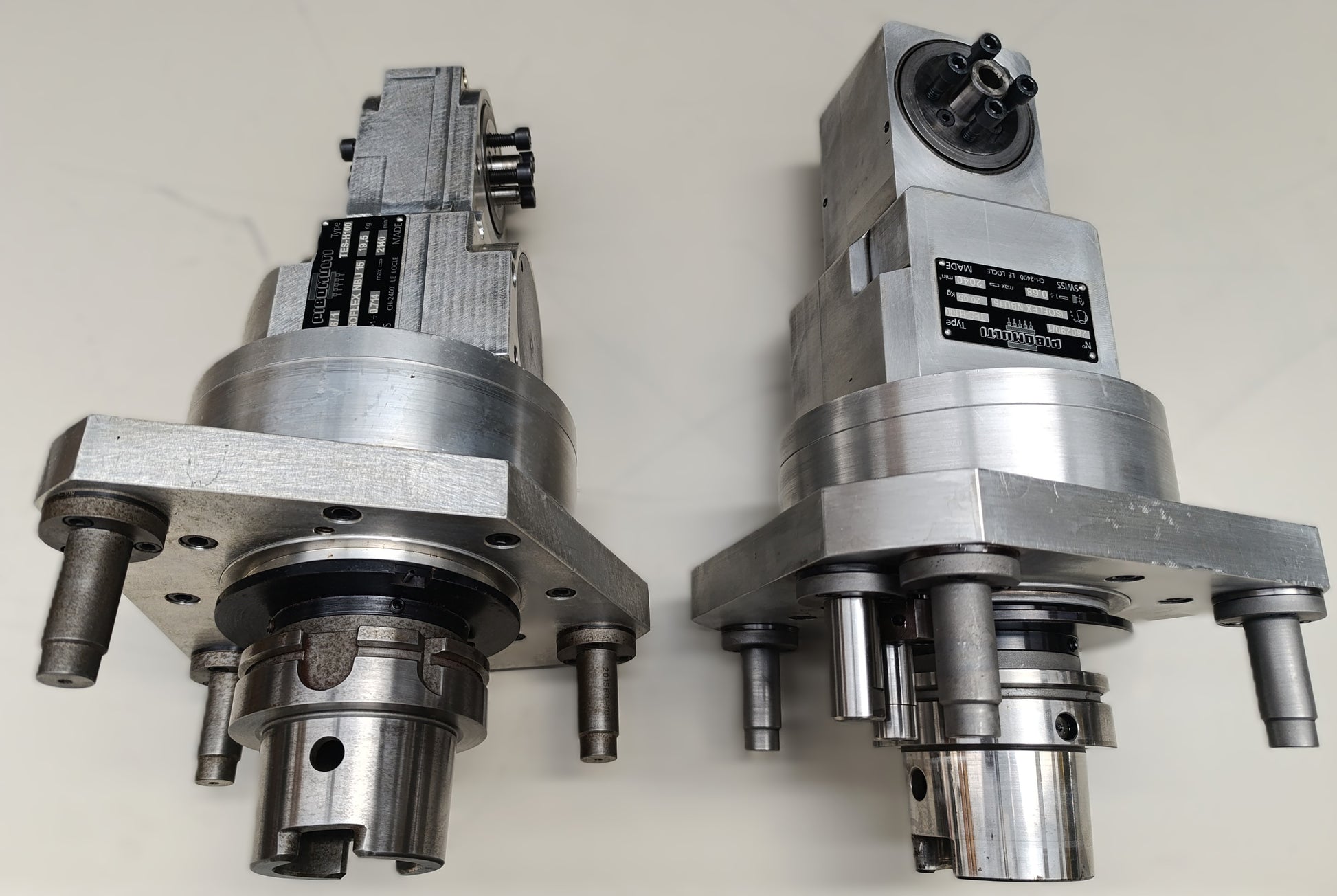

| Various accessories: | |

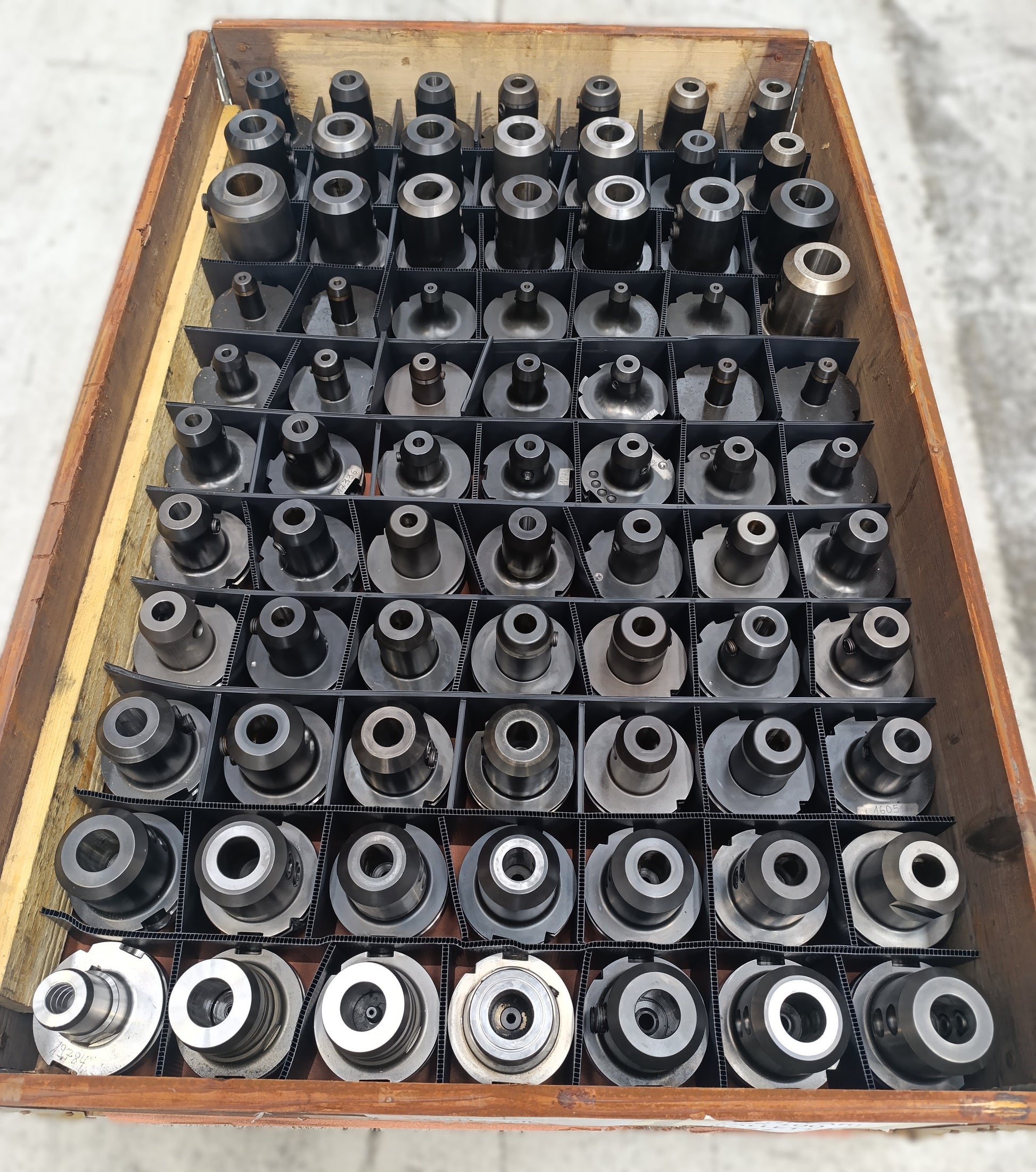

| Set of toolholders |
