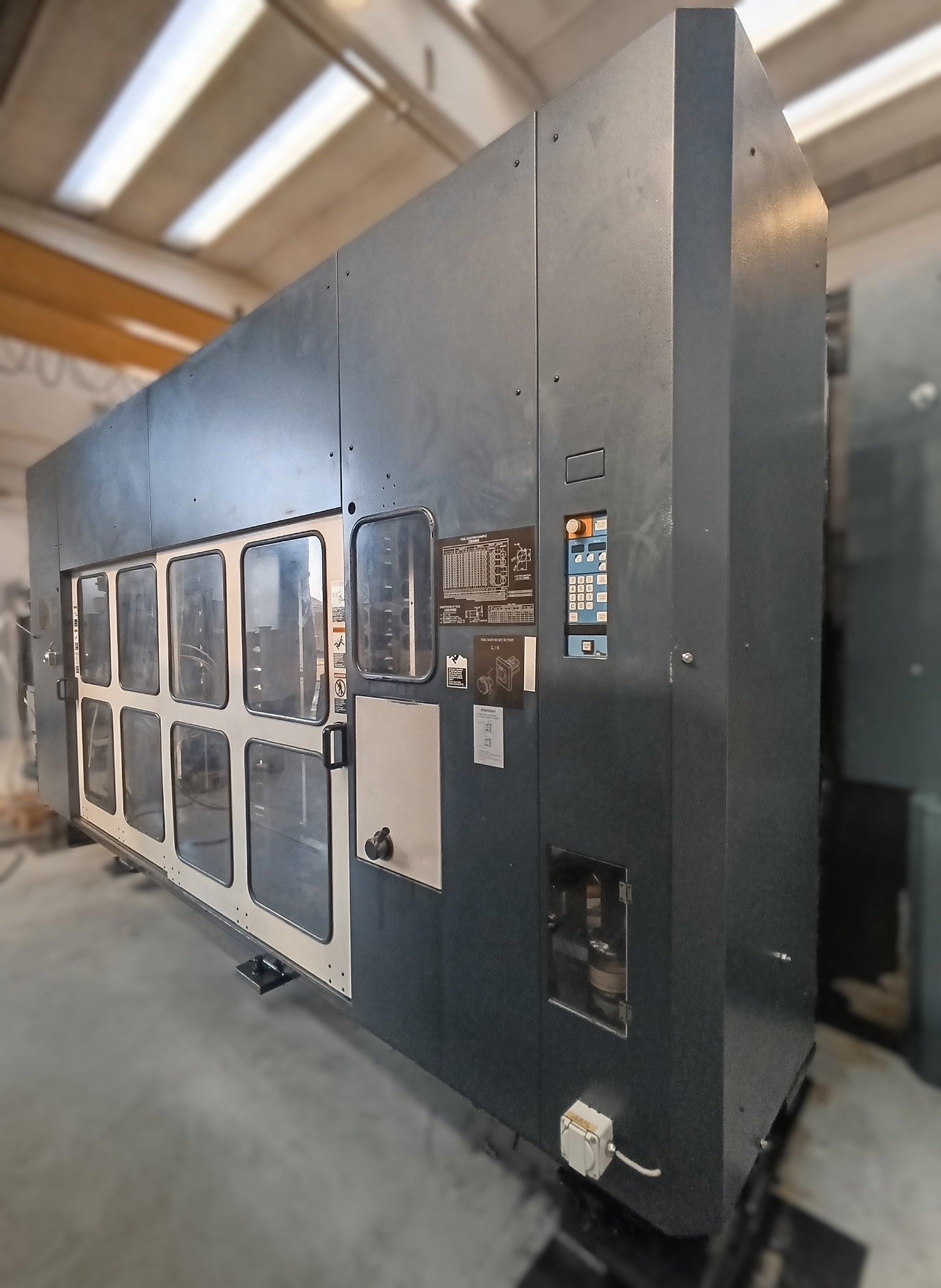

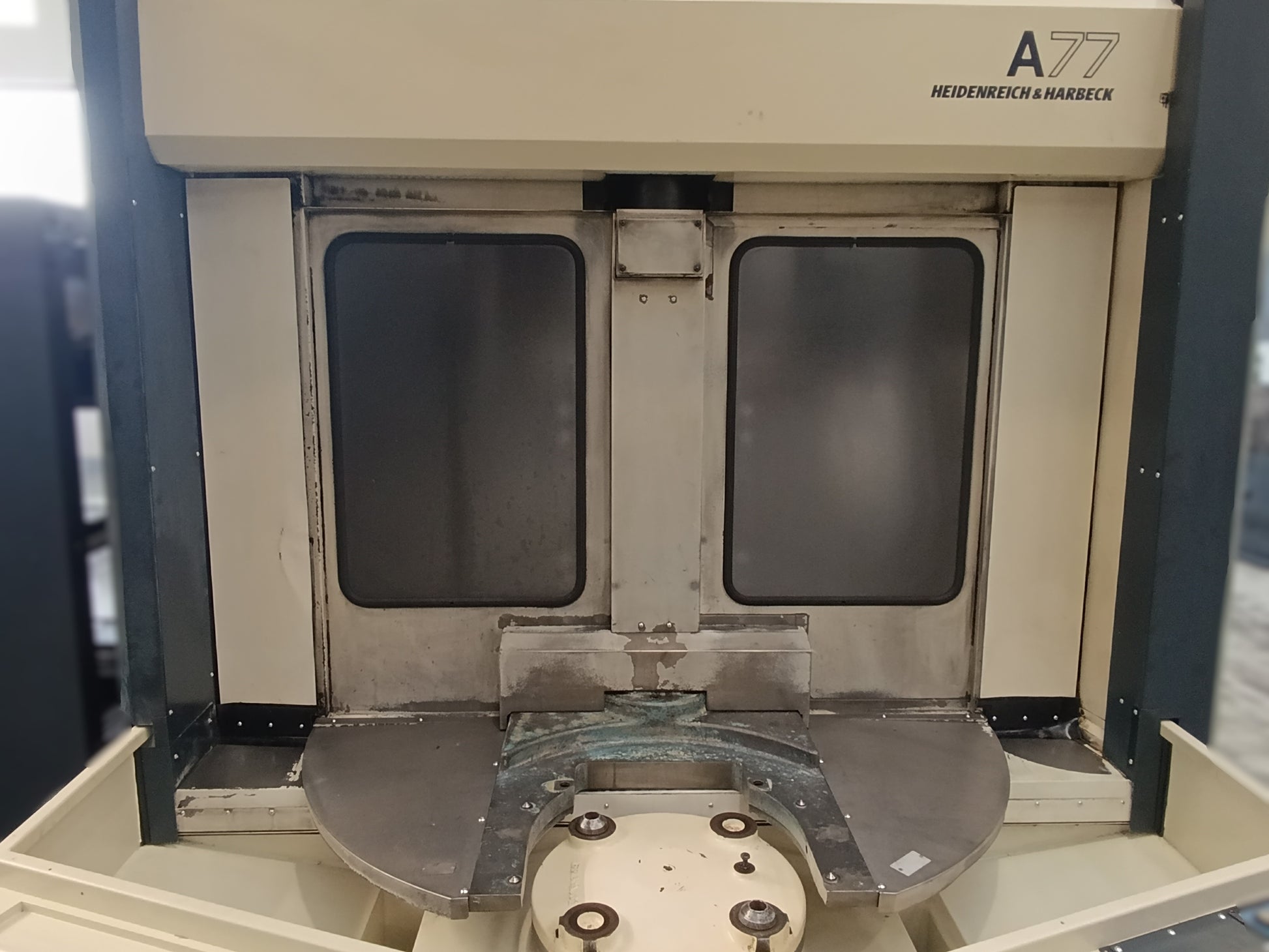

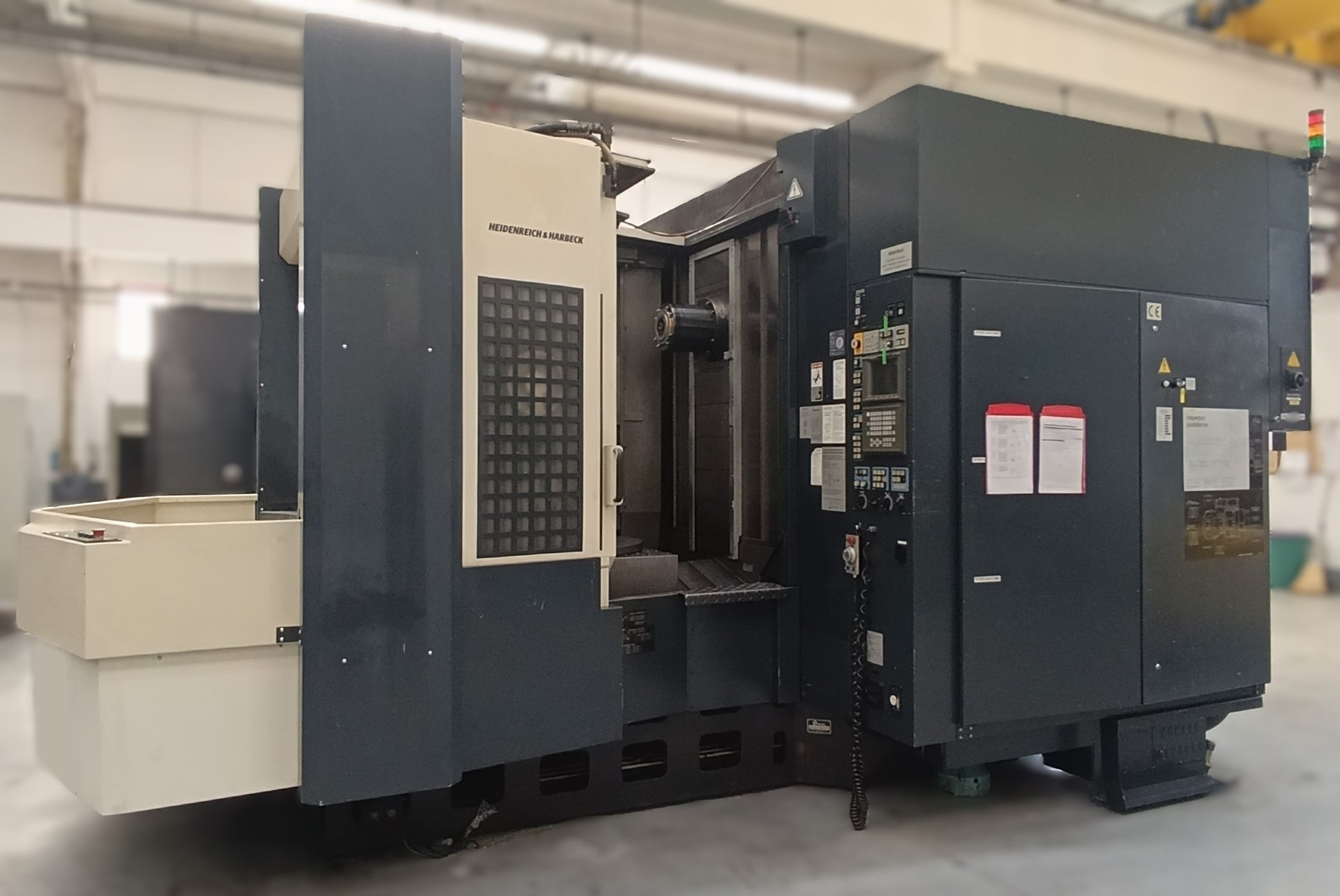

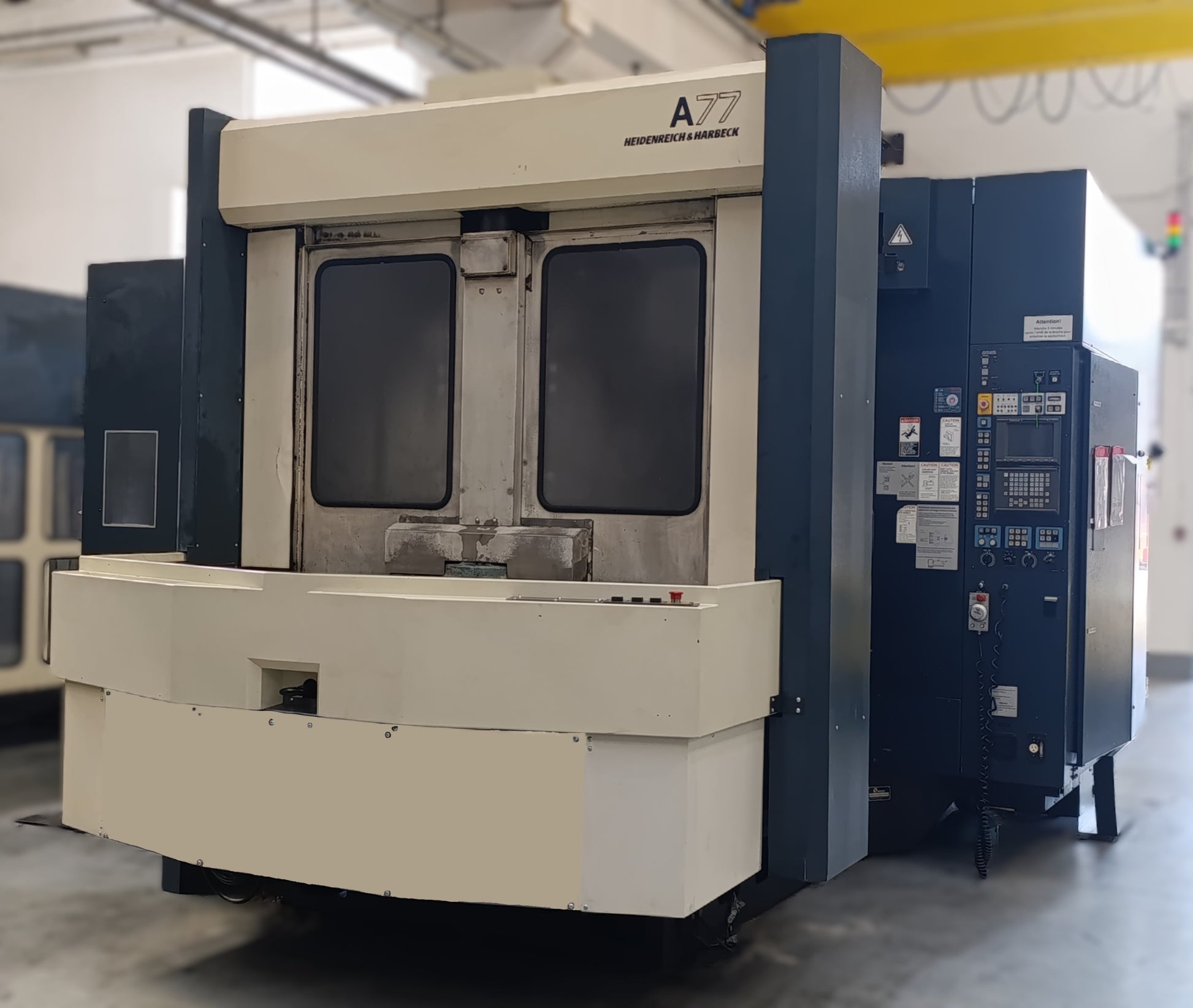

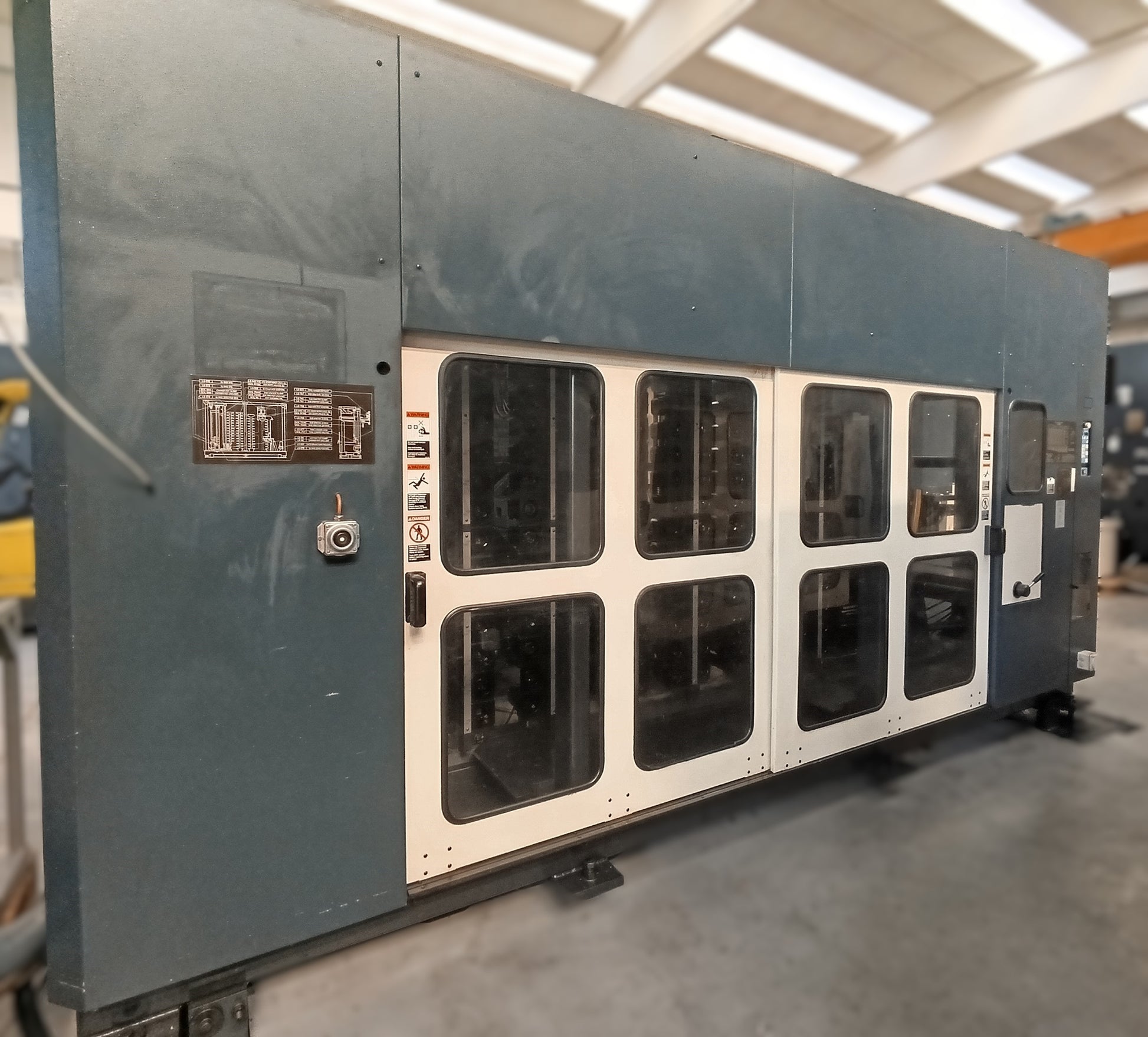

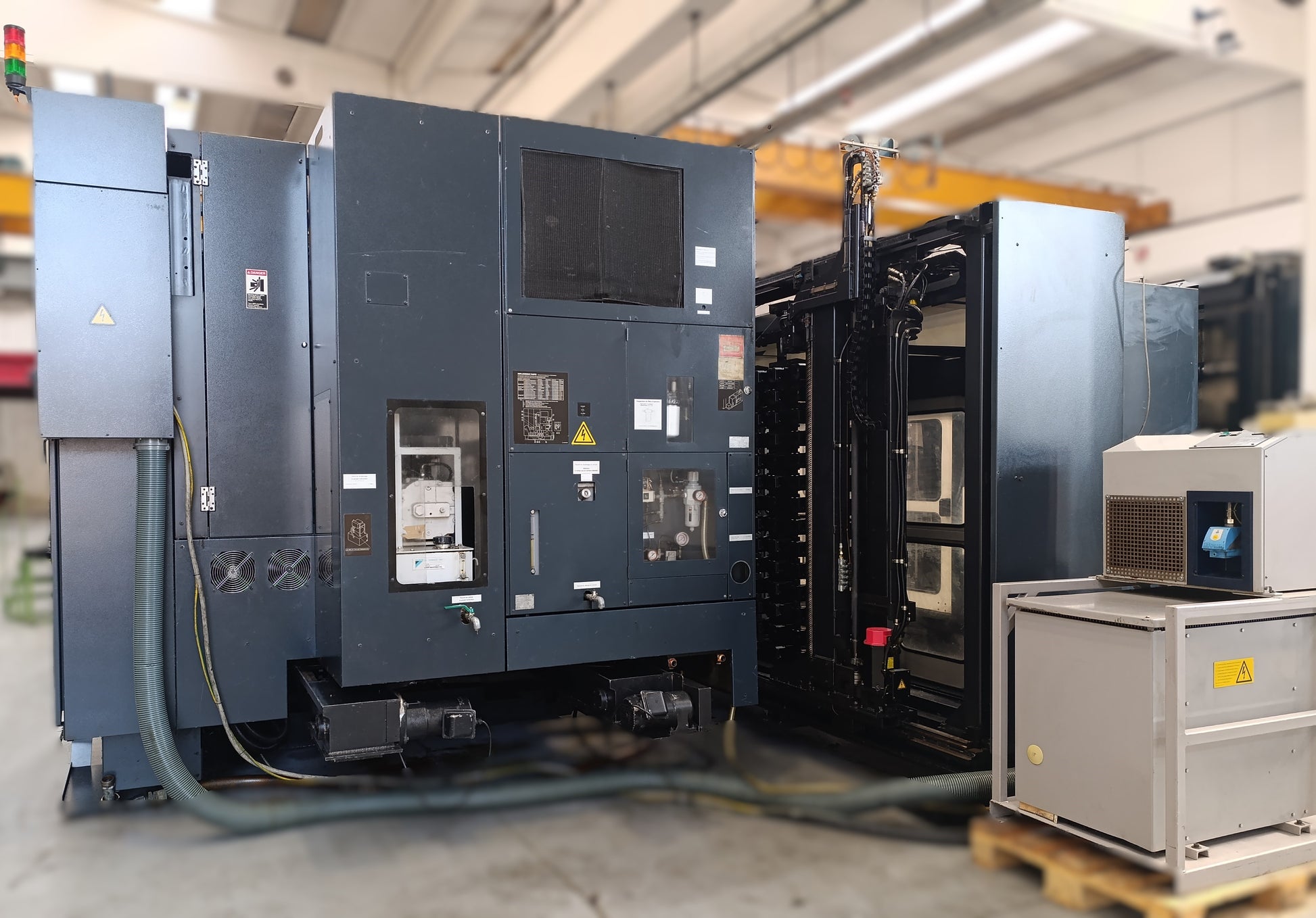

MAKINO A 77-A 188
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

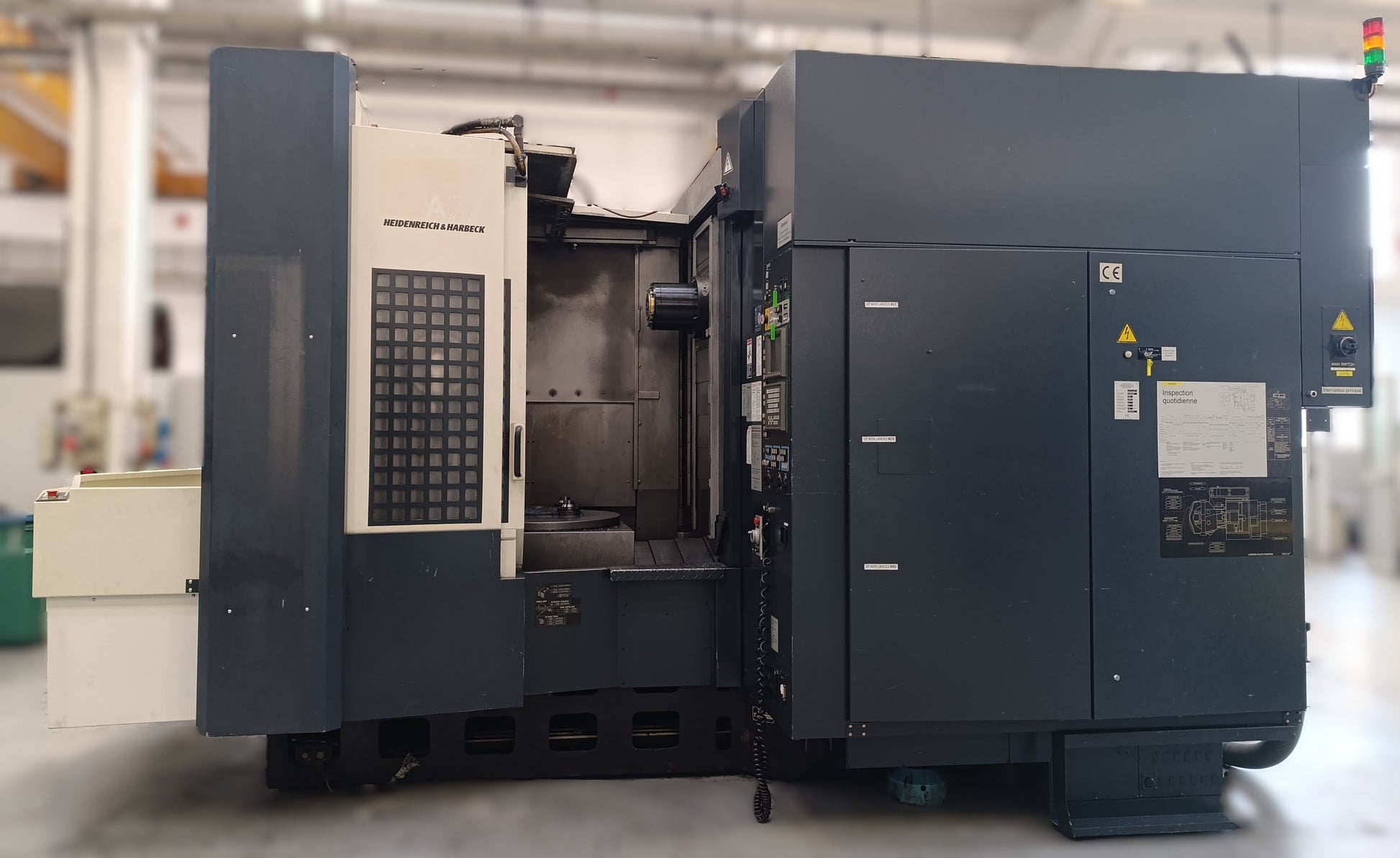

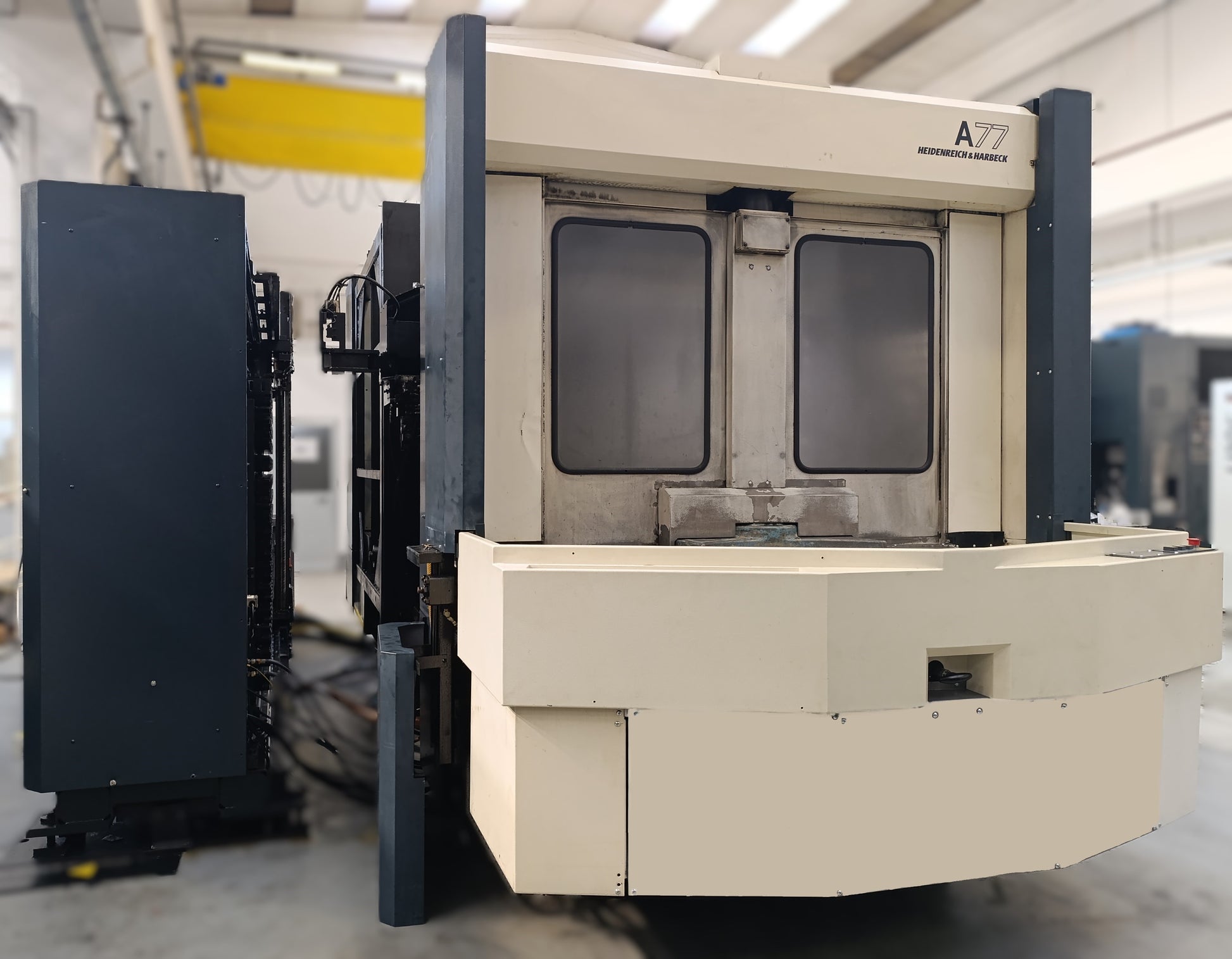

MAKINO A 77-A 188 is a Machining center offering high precision, excellent accuracy and proven reliability. Working capacities: 2 tables (630x630 mm), travels X 800 mm, Y 750 mm, Z 770 mm. Main specs: spindle nose HSK-A 100; spindle speed 20–10,000 t/min; spindle motor 30 kW; voltage 50 Hz 3x 400 V; weight ~18,000 kg; footprint L6430 x W3650 x H3000 mm; space req. ~40/24 m2. Accessories: set of toolholders. Delivers tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine tool sectors
| Number of tables | 2 |
| Table length | 630 mm |
| Table width | 630 mm |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 750 mm |
| Vertical travel (z axis) | 770 mm |
| Spindle nose: HSK-A | 100 |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 10000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 30 kW |
| Machine's weight about | 18000 kg |
| Overall dimensions machine: | |
| Length | 6430 mm |
| Width | 3650 mm |
| Height | 3000 mm |
| Space requirement env. | 40 / 24 m2 |

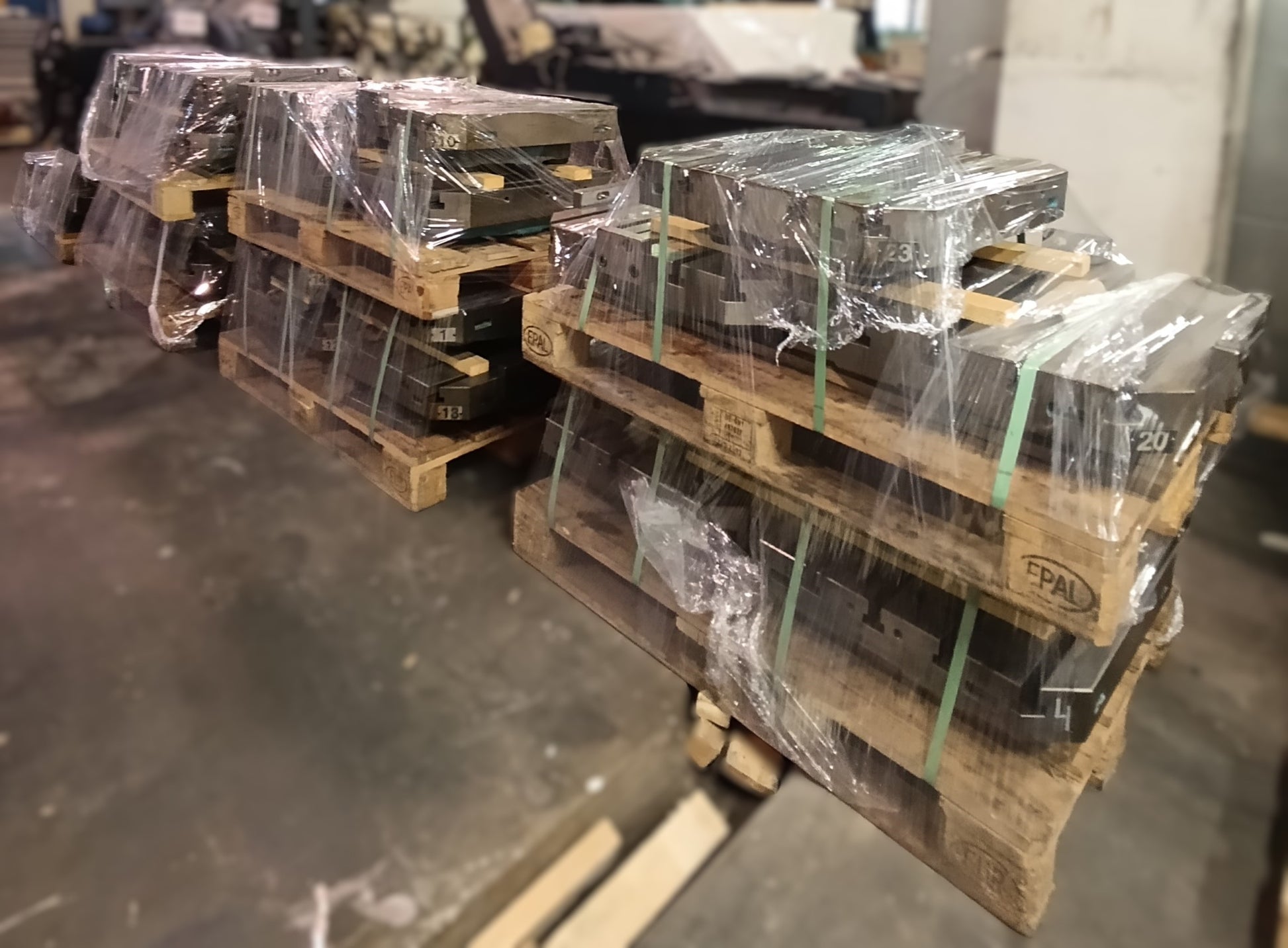

| Various accessories: | |

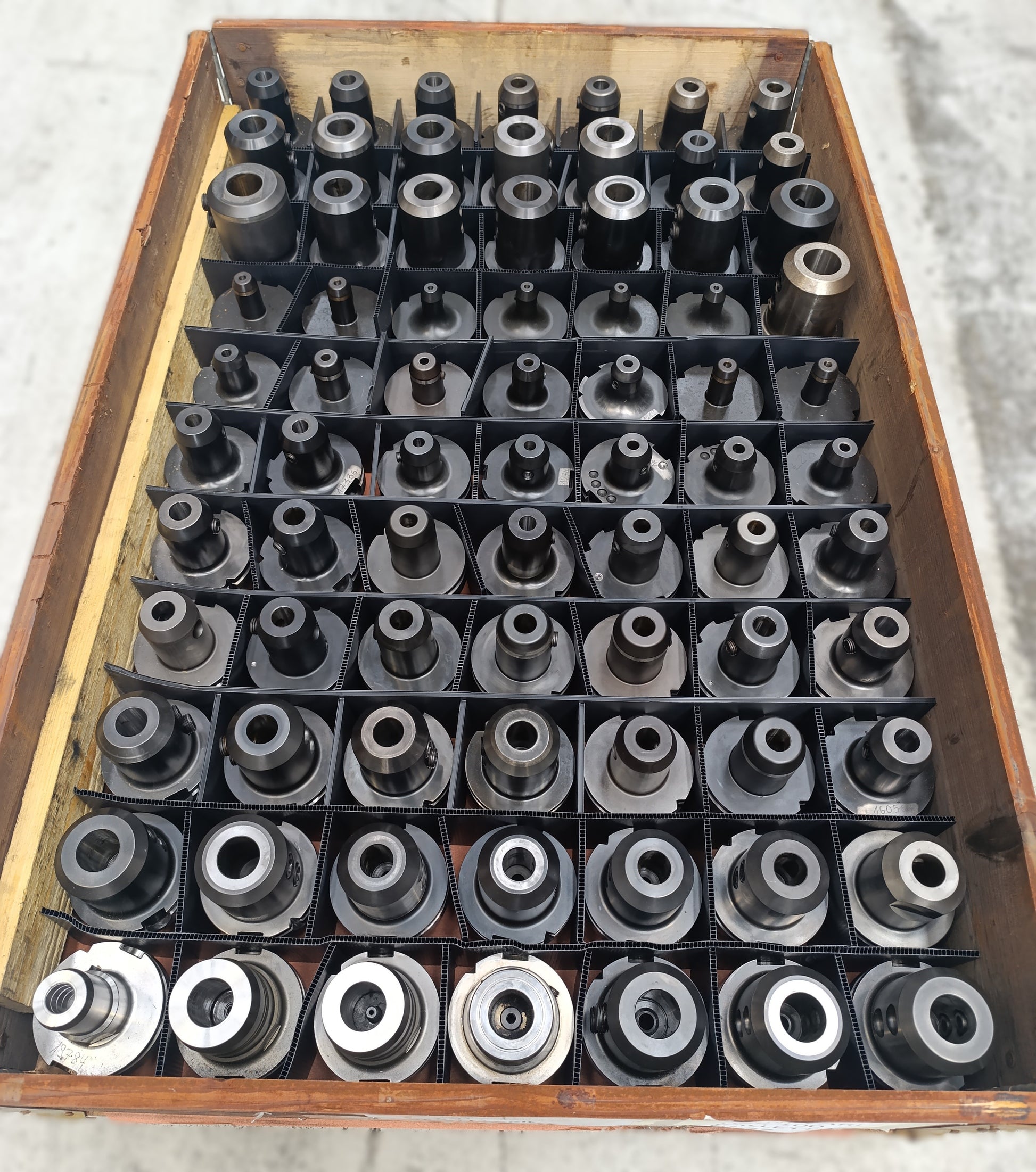

| Set of toolholders |
