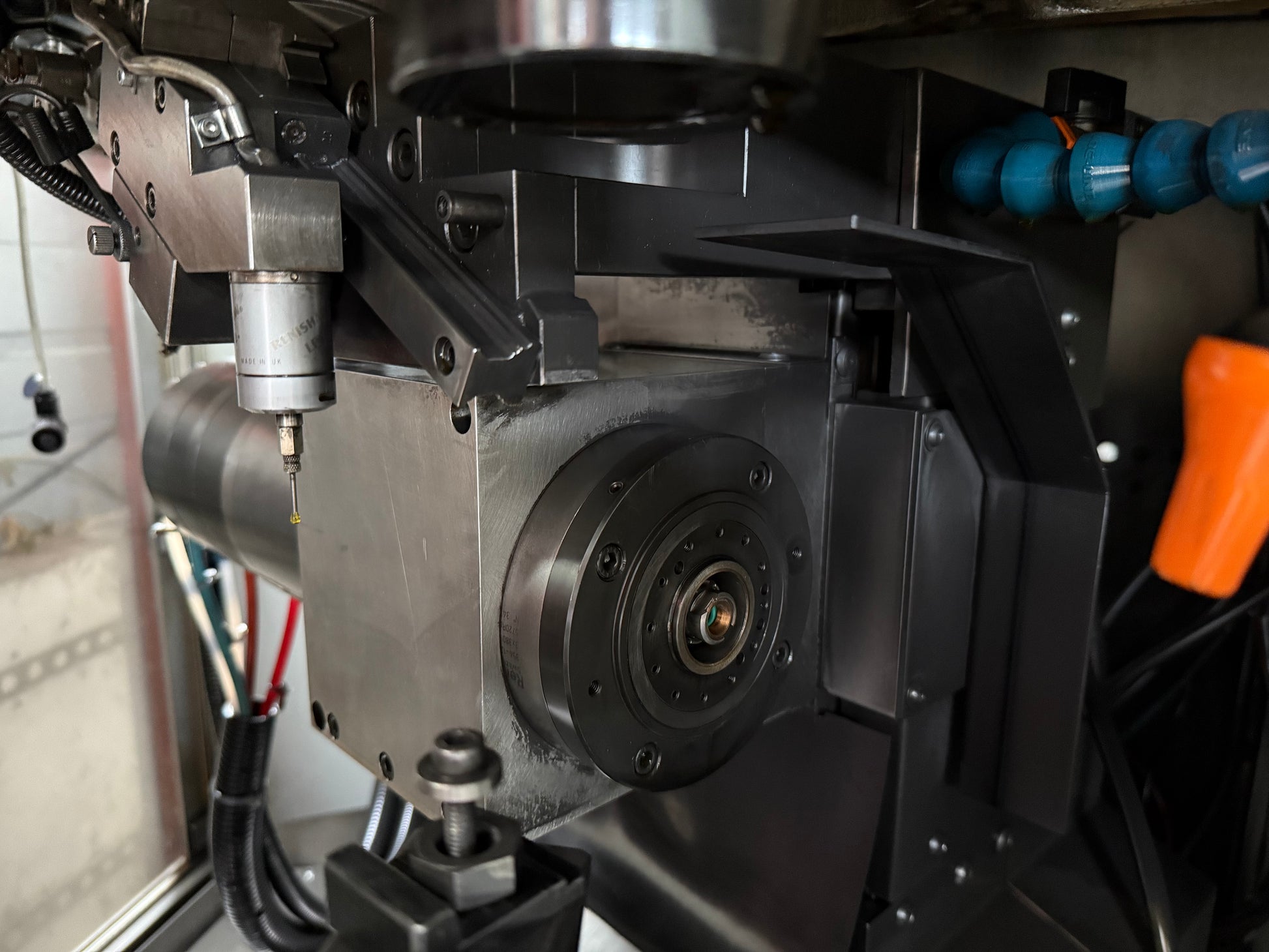

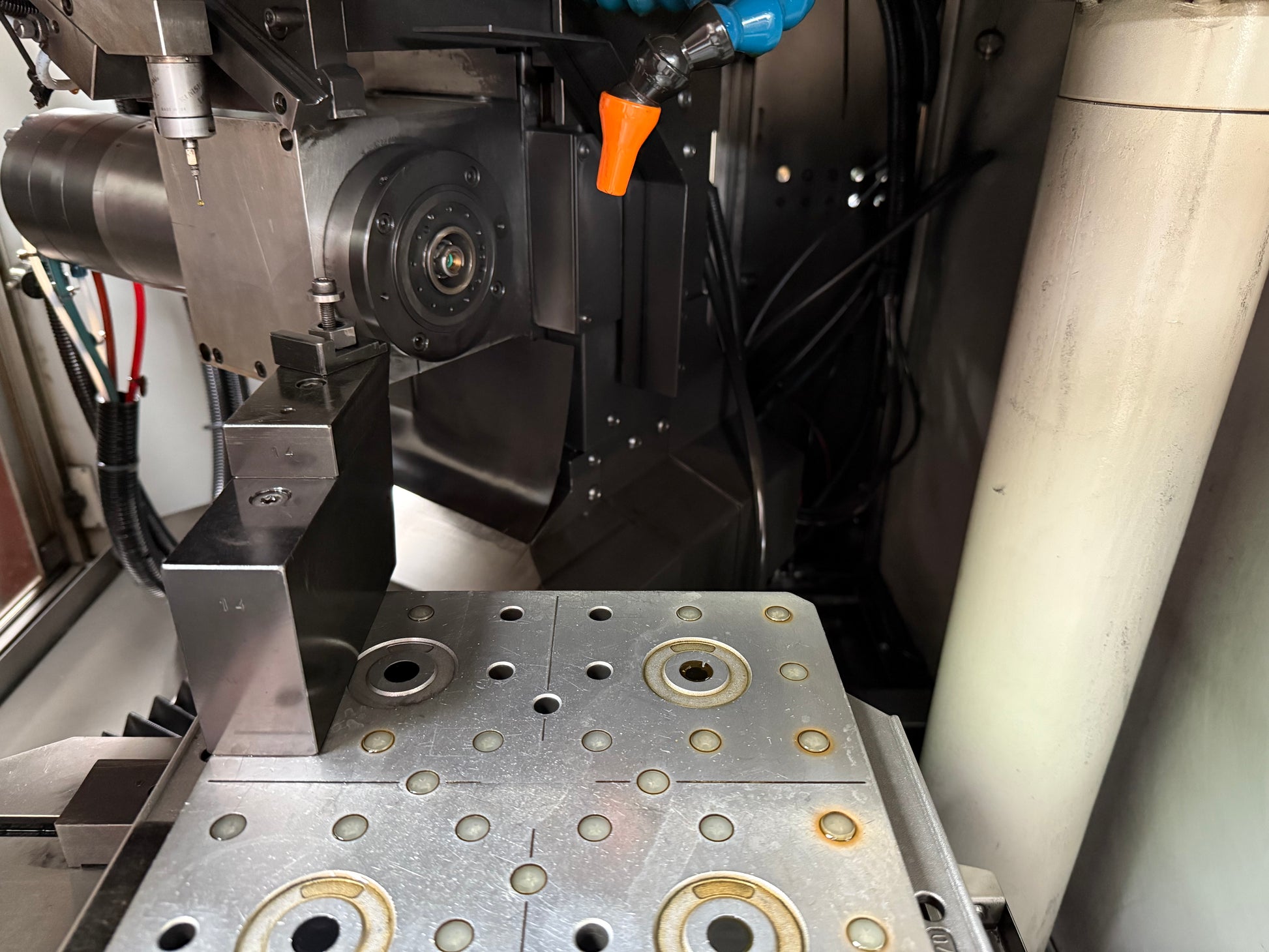

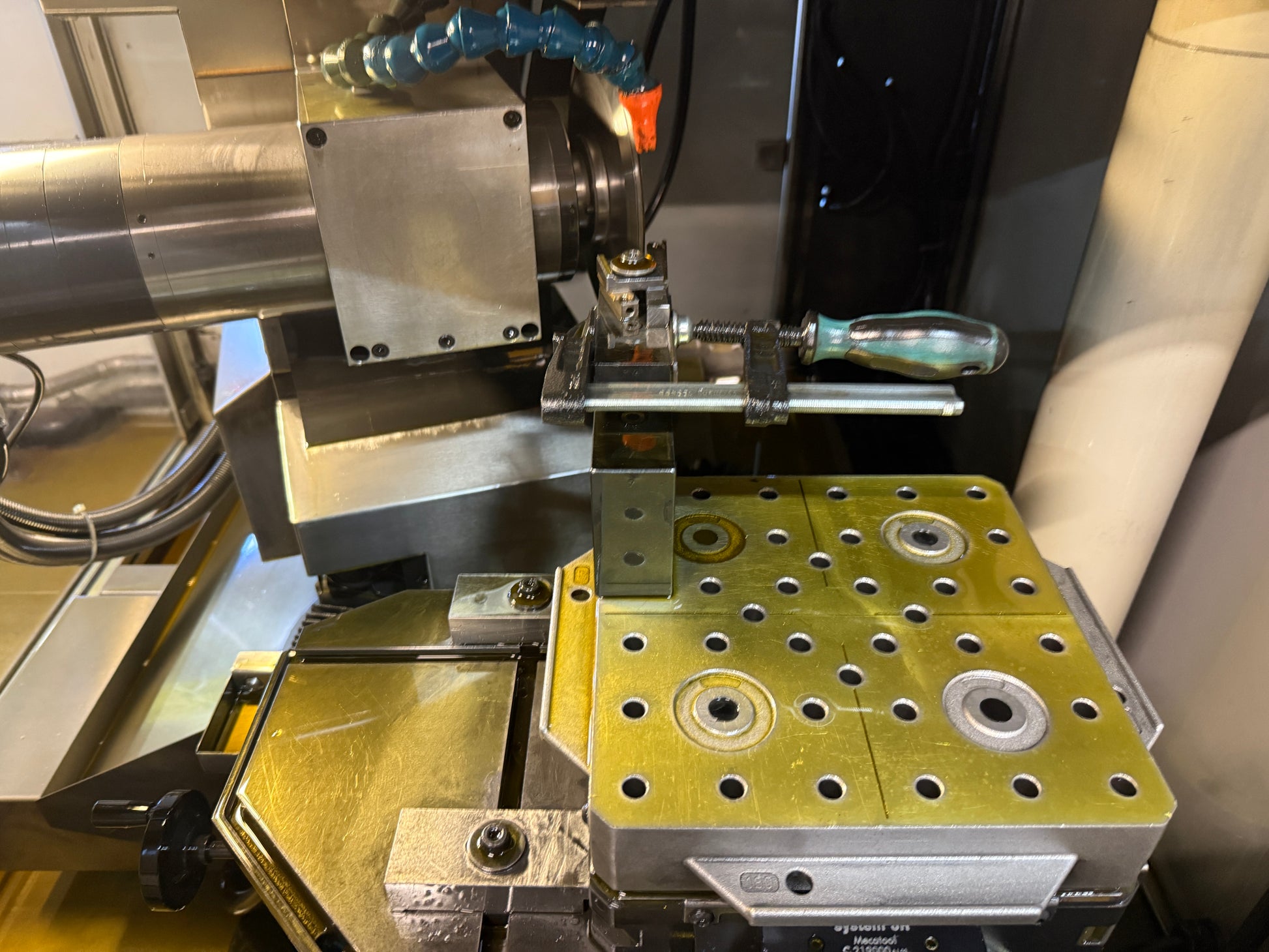

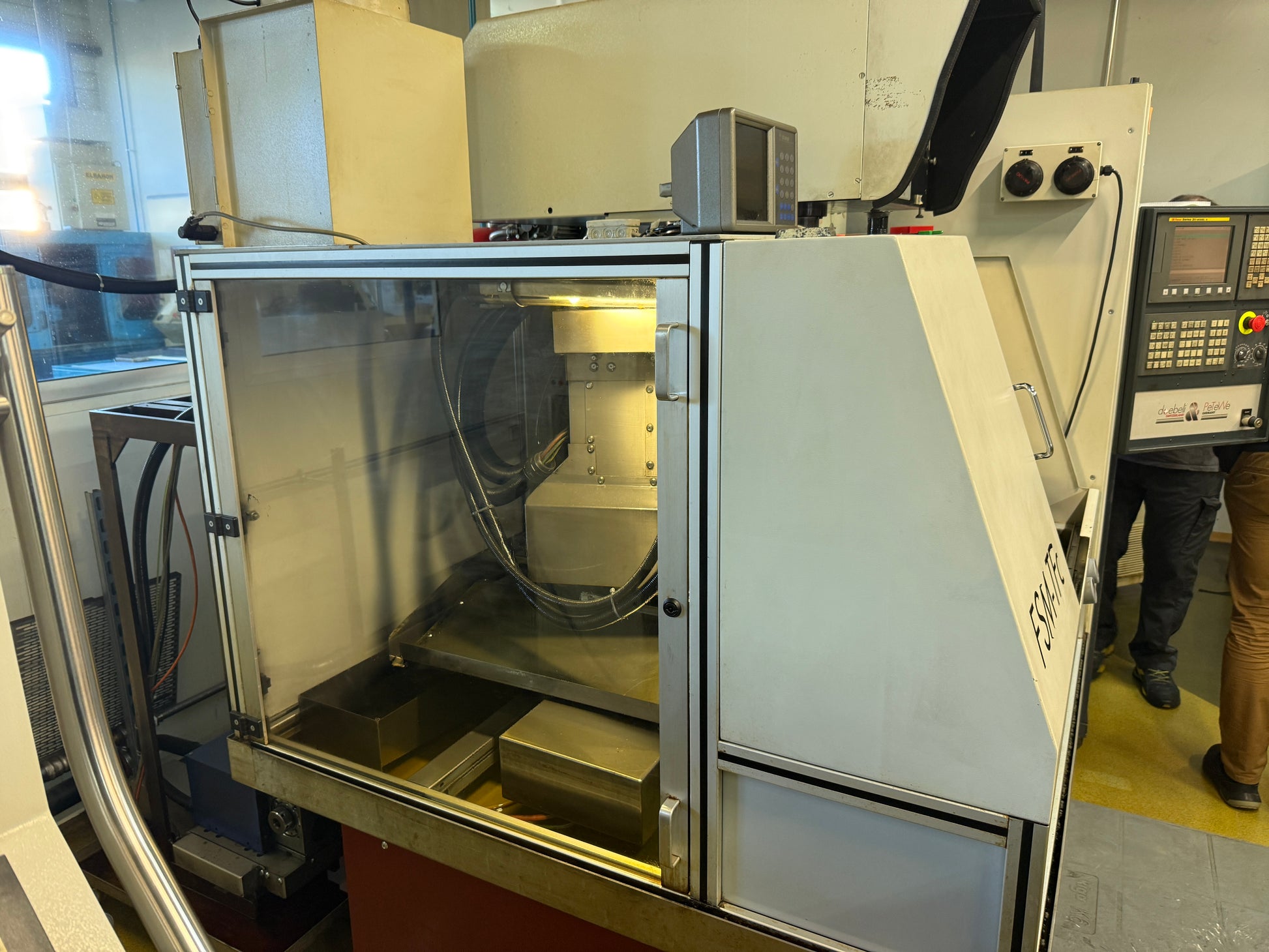

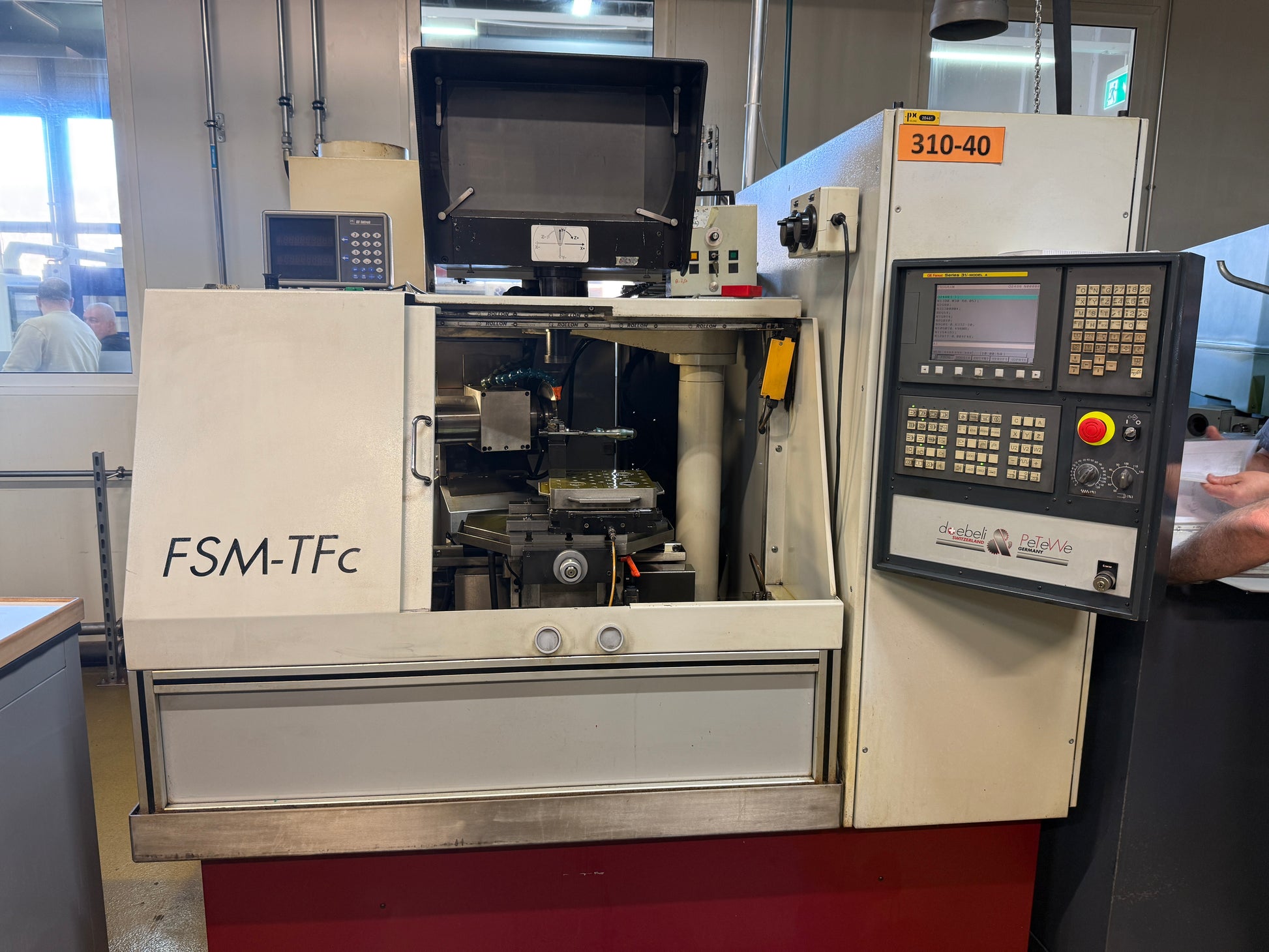

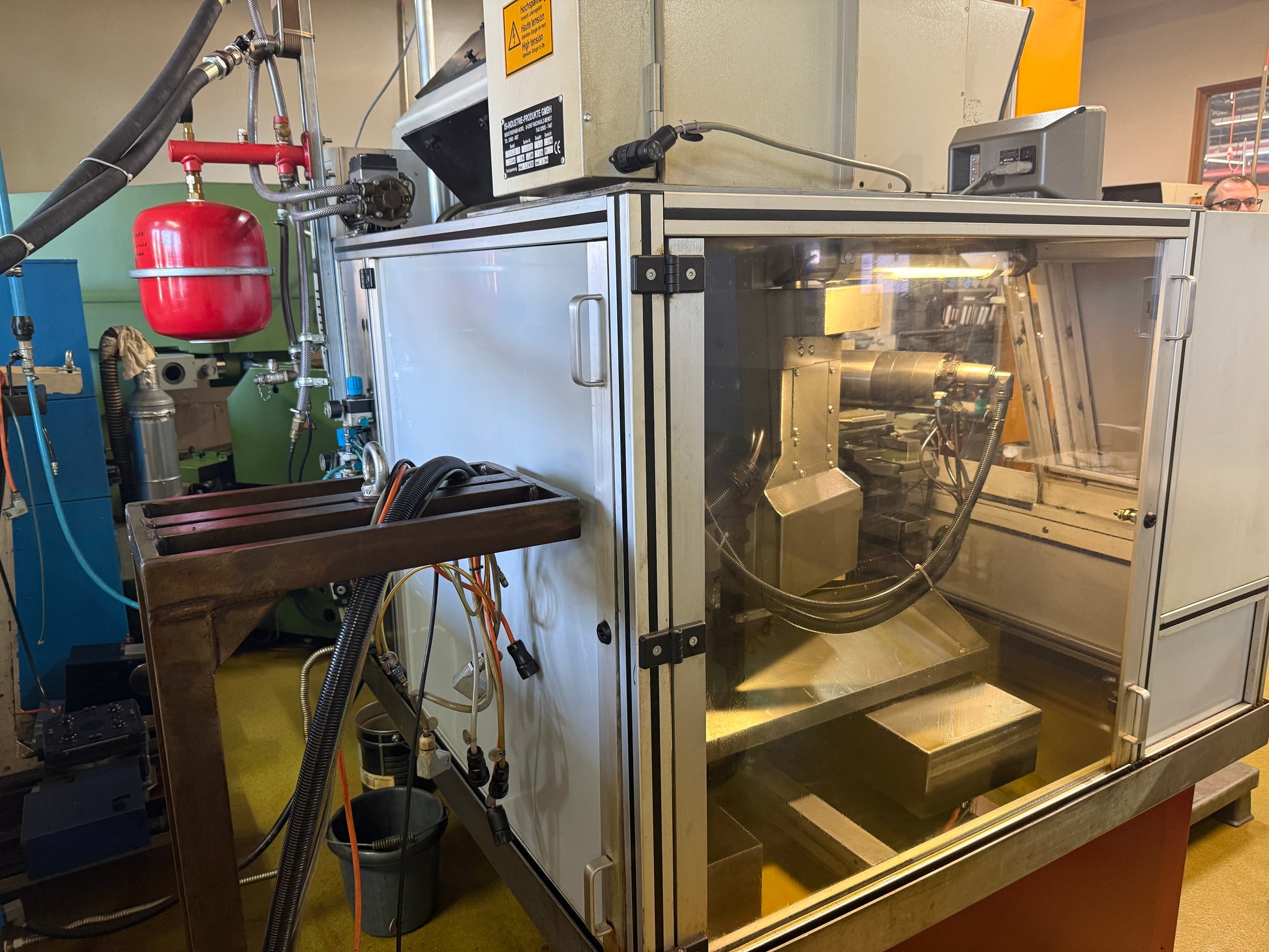

DOEBELI PETEWE FSM TFc is a CNC tool and cutter grinder delivering high precision, excellent accuracy and reliable performance. Working capacities: 4 axes; table 500×290 mm; X 120 mm, Y 50 mm; resolution 0.0001 mm; max. grinding diameter 200 mm; max. grinding wheel Ø250 mm, bore 46 mm; grinding head ±30°; spindle nose HSK 40. Technical specs: grinding spindle stepless from 1500 to 6000 t/min; spindle motor 2.5 kW; voltage 50 Hz 3x 400 V; weight ≈2500 kg; overall dims 1800×1700×1900 mm. Accessories: coolant system 80 l, redressing device, profile projector, cold light, central lubrication. Engineered for tight tolerances; ideal for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 4 |
| Table length | 500 mm |
| Table width | 290 mm |
| X axis | 120 mm |
| Y axis | 50 mm |
| Resolution | 0.0001 mm |
| Max. grinding diameter | 200 mm |
| Max. grinding wheel diamter | 250 mm |
| Drilling cap. of grind.wheel | 46 mm |
| Grinding head | + / -30 ° |
| Spindle nose: HSK | 40 |
| Grinding spindle speeds: | |
| stepless | |
| from | 1500 t/min |
| up to | 6000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 2.5 kW |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1700 mm |
| Height | 1900 mm |
| Various accessories: | |
| Coolant system | 80 l |
| Redressing device | |

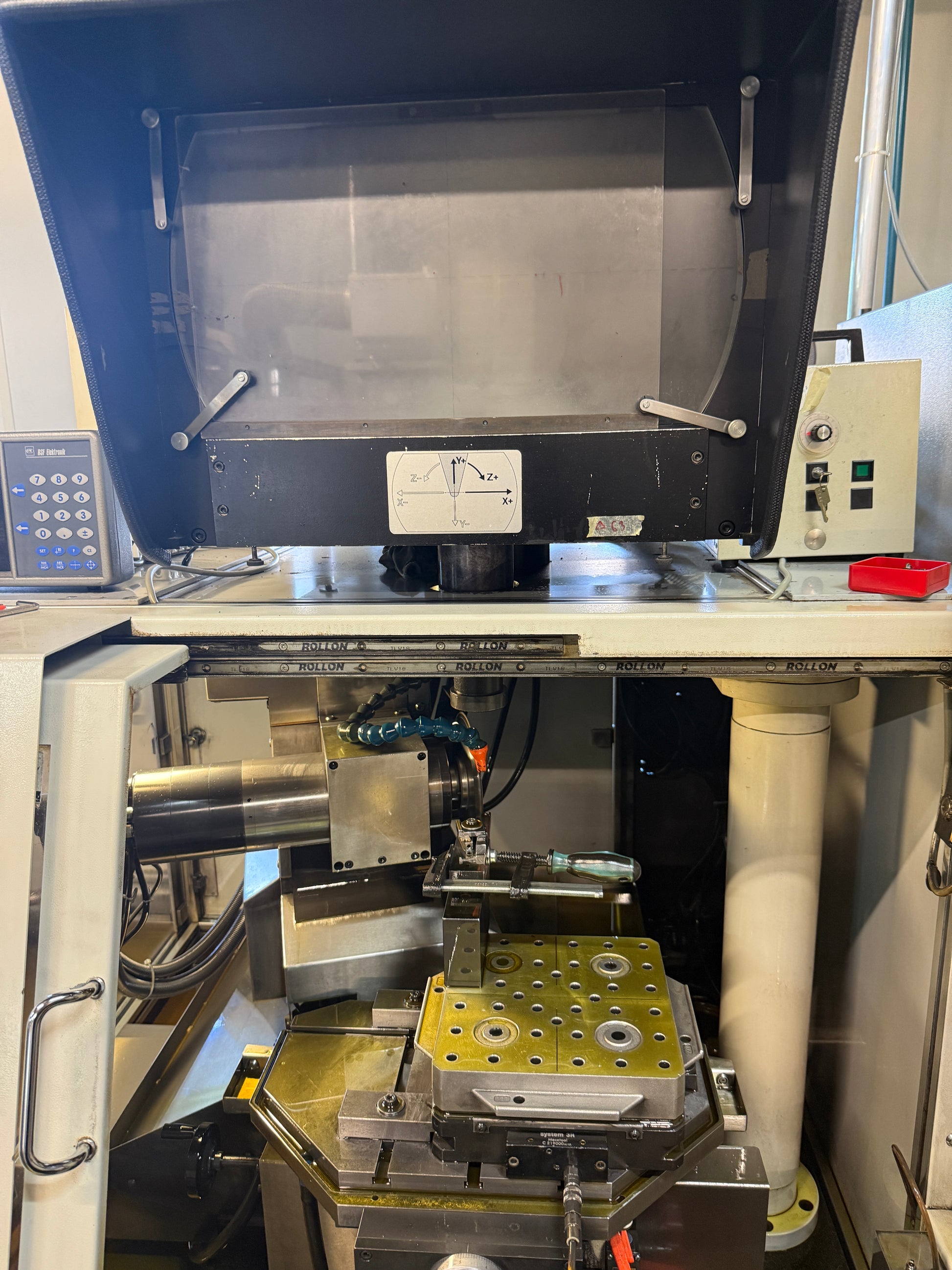

| Profil projector | |
| Cold light | |
| Central lubrification |
