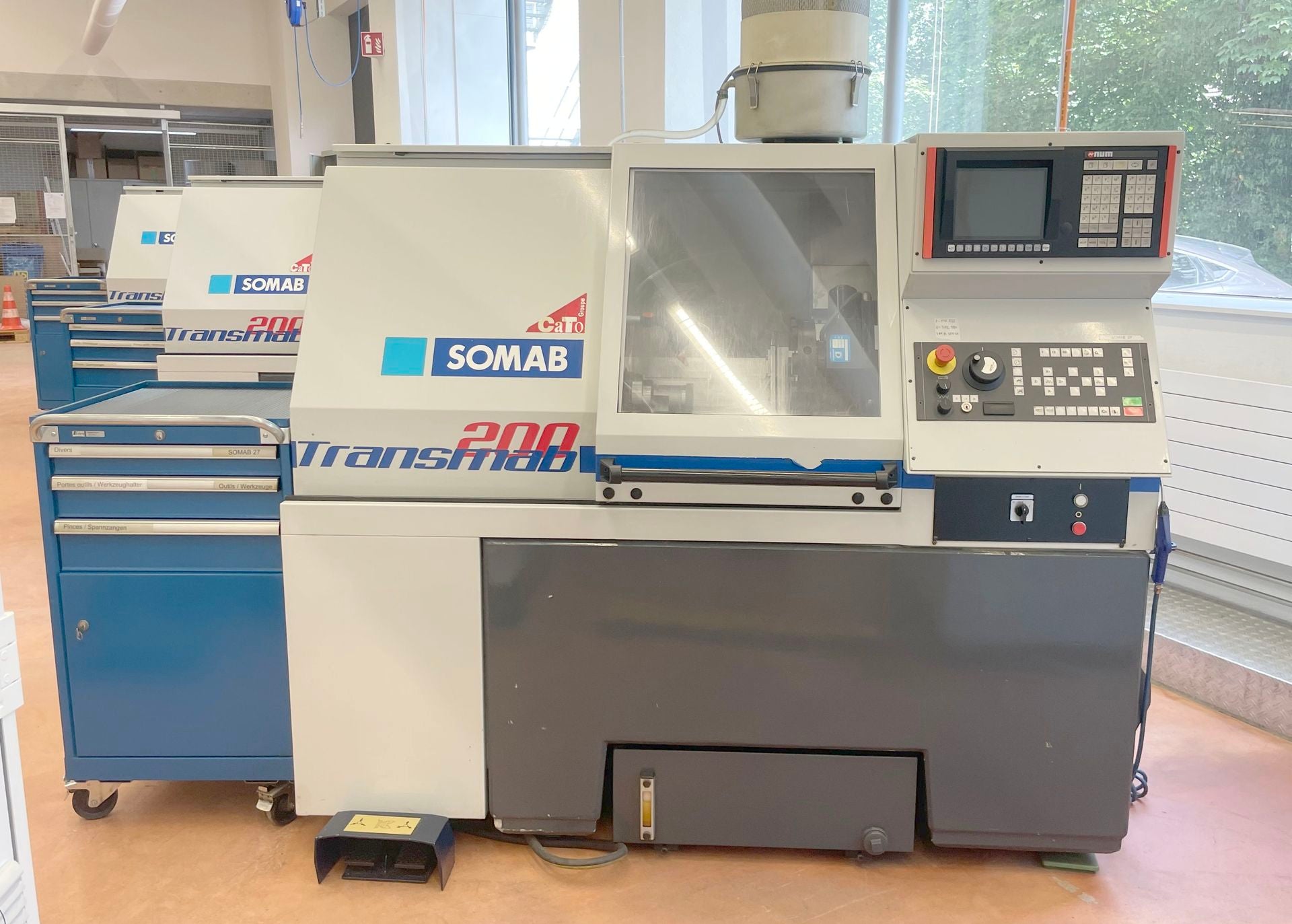

SOMAB TRANSMAB 200
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Swing over bed | 260 mm |
| Taper in spindle | A2 4" |
| Spindle hole | 35 mm |

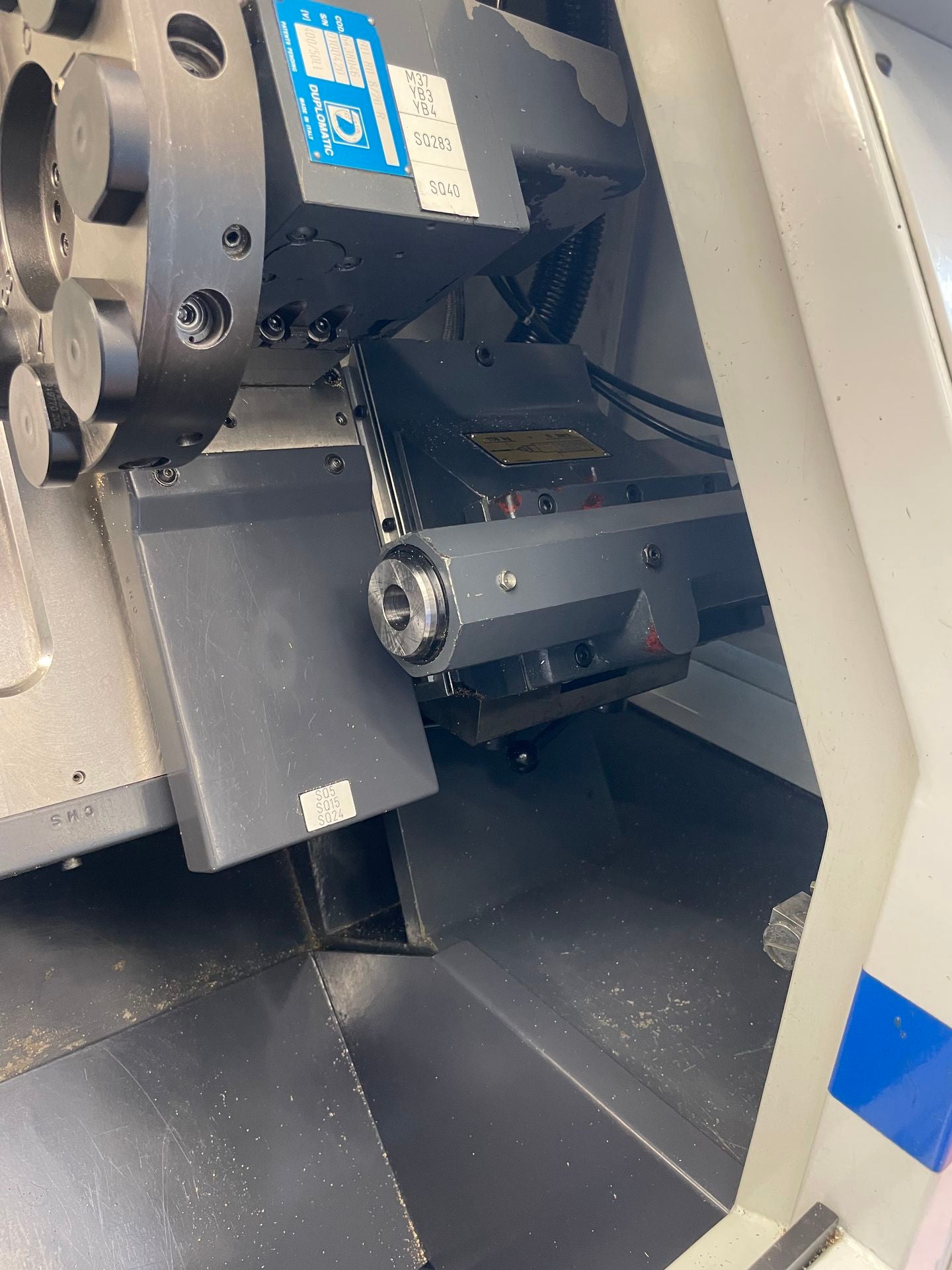

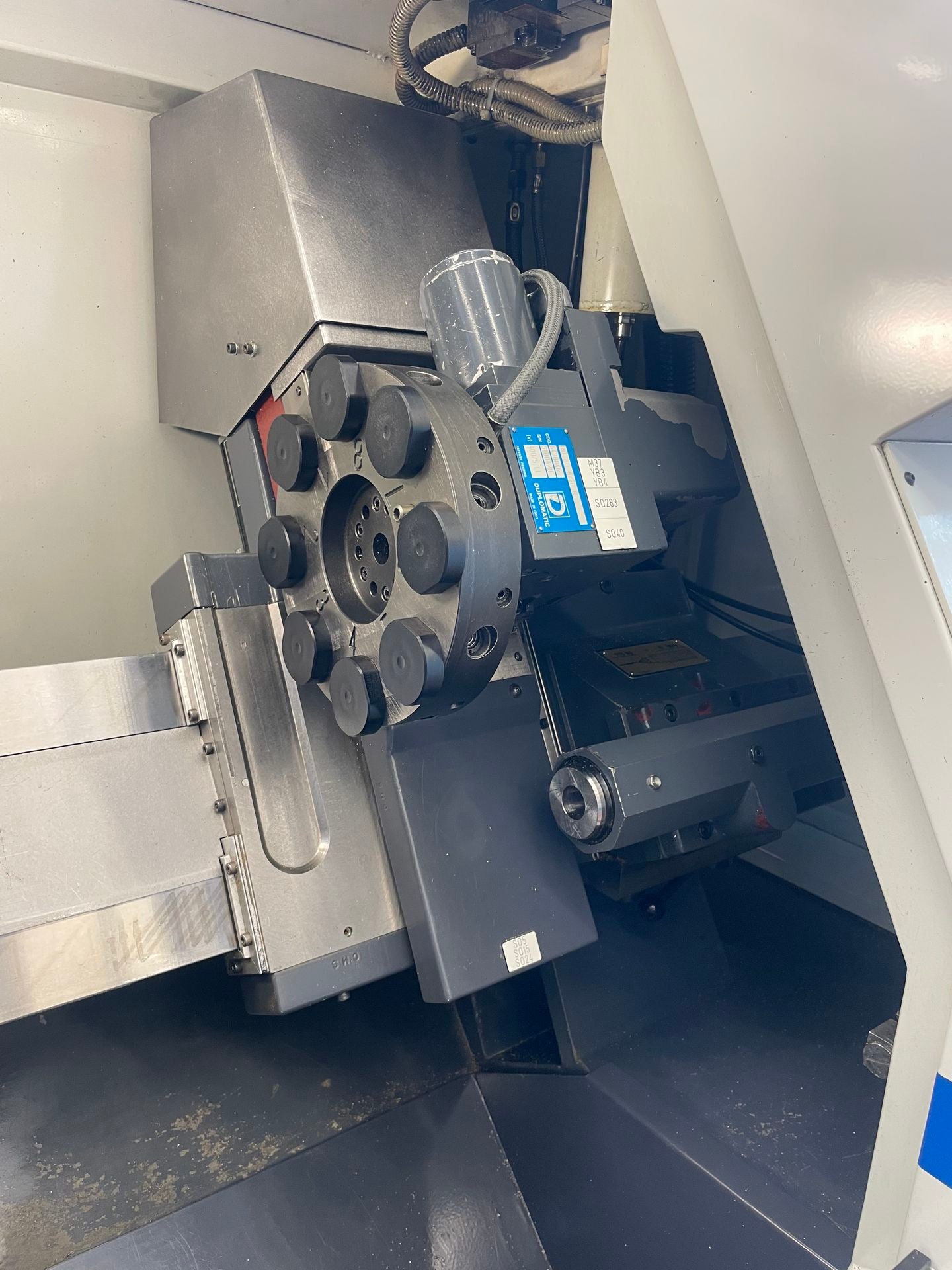

| Turret carriage: | DUPLOMATIC |
| Travels: | |
| Longitudinal travel (Z-axis) | 300 mm |
| Transversal strocke (X axis) | 125 mm |
| Turret slide: | |
| Number of positions | 8 |
| Fixed tools turret | 8 |
| Tool shank cross section | 16 mm |
| Spindle nose: | |
| Inner cone diameter | 20 mm |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 5000 t/min |
| Tailstock: | |
| Morse taper | 3 CM |
| Spindle stroke | 80 mm |
| Spindle diameter | 52 mm |
| Pressure | kN |
| Pressure | 1200 N |
| Inner taper type | F38 |
| Spindle motor | 4 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1400 mm |
| Height | 1980 mm |
| Various accessories: | |
| Collet device | |

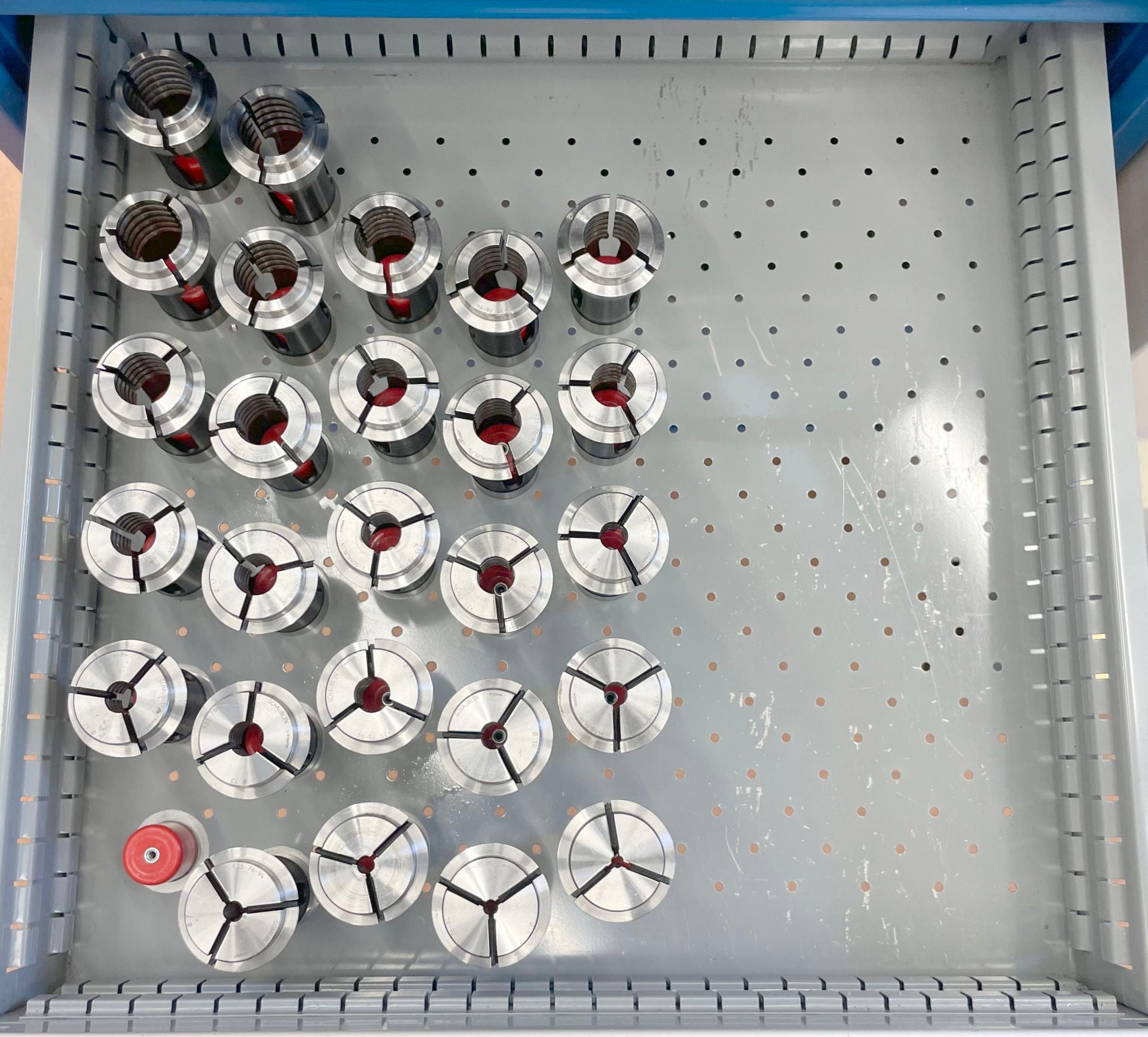

| Set of collets | |
| Lamp | |
| Tailstock | |
| Tool cabinet | |
| Interface serial port RS 232 | |
| Foot pedal | |

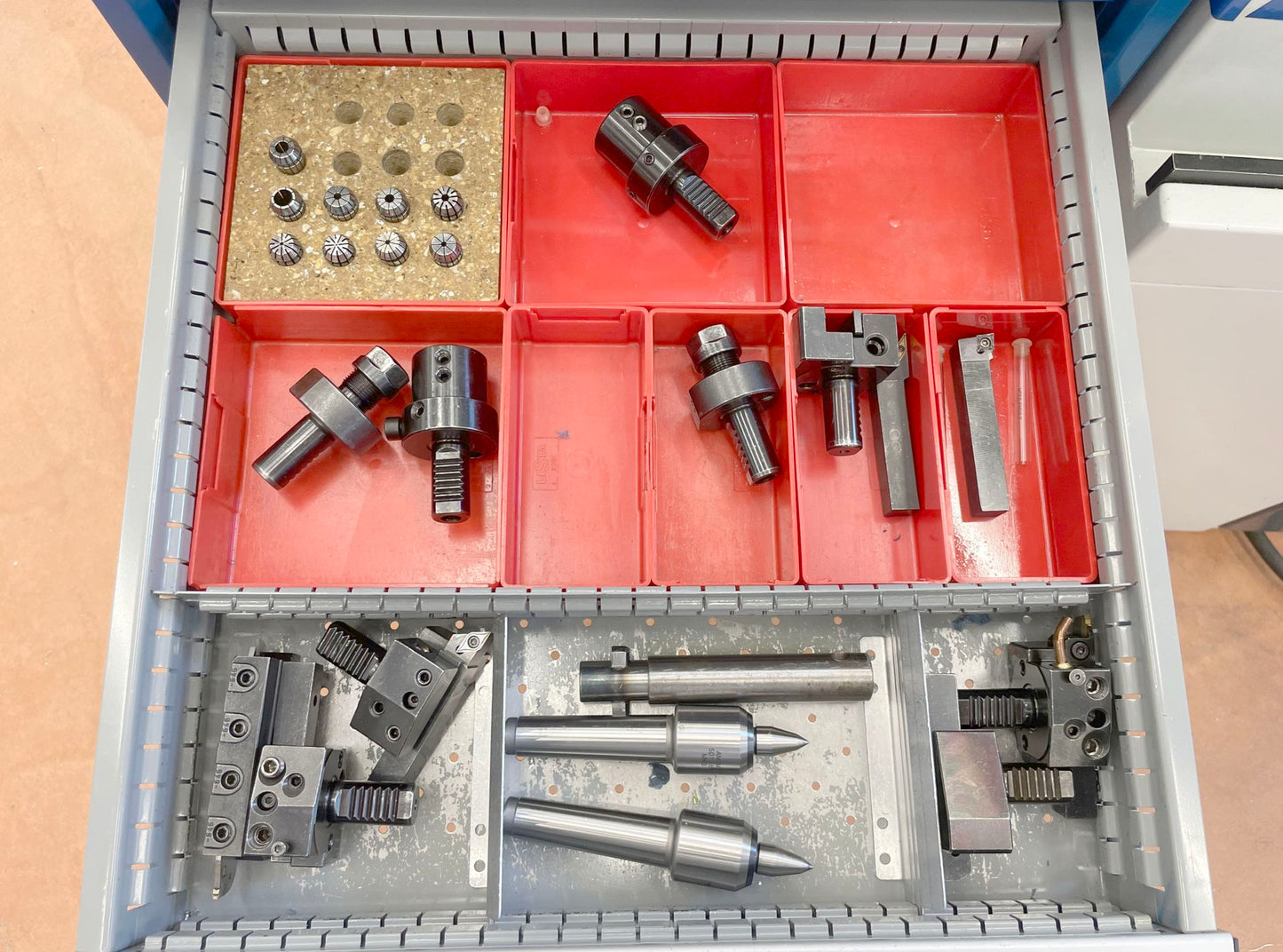

| Set of toolholders |
SOMAB TRANSMAB 200 is a CNC turning lathe with slant bed, built for precision machining with high accuracy and reliability. Capacities: swing over bed 260 mm, spindle hole 35 mm; travels Z 300 mm, X 125 mm; DUPLOMATIC turret 8 pos., fixed tools for 16 mm shanks. Specs: stepless 200–5000 rpm, spindle motor 4 kW, taper A2 4", inner cone 20 mm; tailstock Morse 3, spindle stroke 80 mm, diameter 52 mm; 3×400 V 50 Hz; weight ~2500 kg; L1900×W1400×H1980 mm. Accessories: collet set F38, lamp, tailstock, tool cabinet, RS232, foot pedal, toolholders. Enables tight tolerances for automotive, aerospace, medical, watchmaking and machine‑tool sectors.
Technical specifications are subject to change without notice
