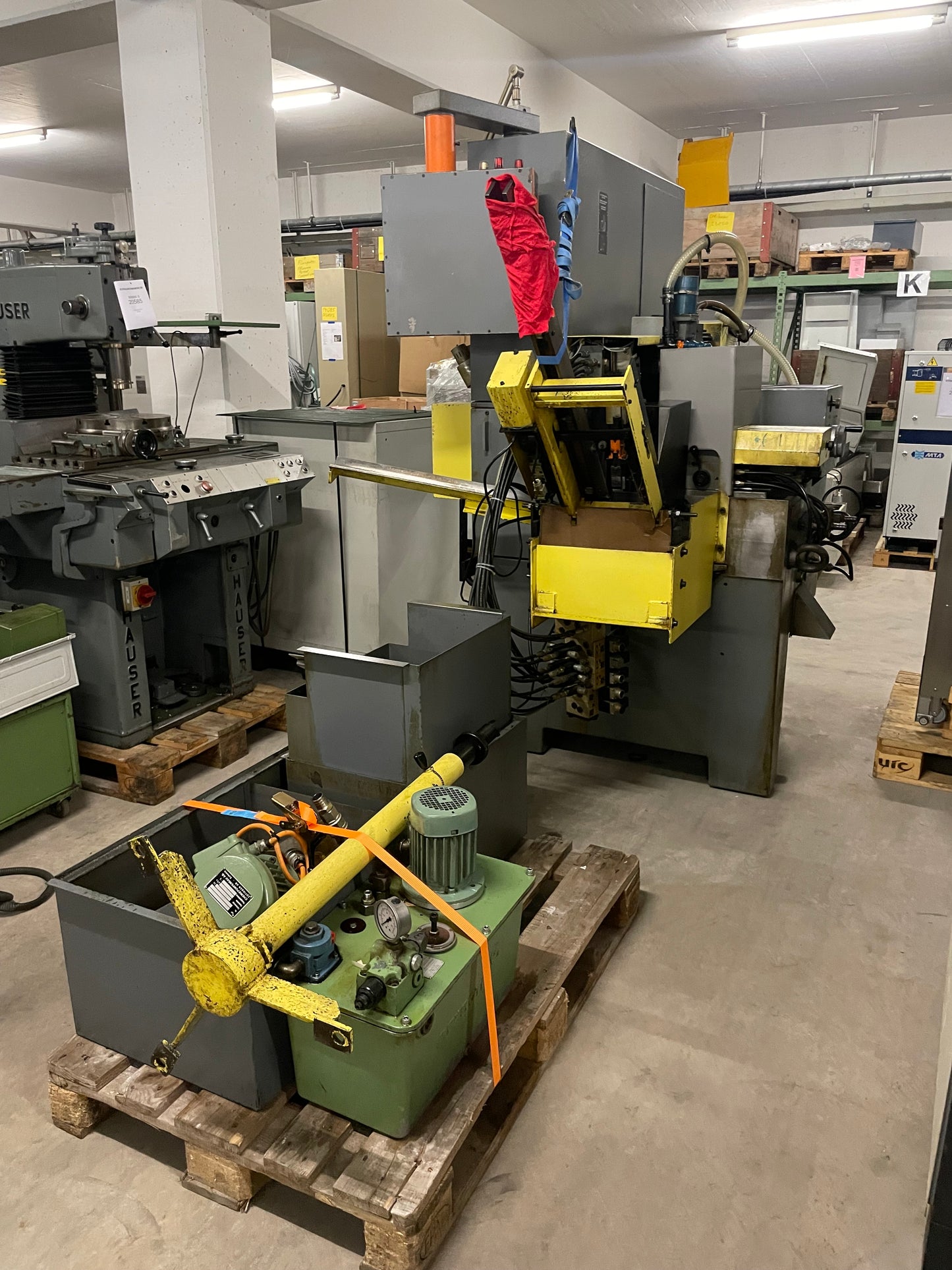

MIKRON A 33/0 is a Hobbing machine engineered for high precision, excellent accuracy and industrial reliability. Work capacities: max diameter 80 mm; max module 2; workpiece length 2–200 mm; teeth 3–1200; spiral lead angle left/right 45°. Main specifications: hob Ø max 50 mm, max hob displacement 25 mm; hob speeds 17 steps from 212 to 2000 t/min; feeds axial 0.05–2 mm/tooth, radial 0.2–200 mm/tooth; supply 3x380 V 50 Hz; milling spindle drive 4 kW; machine weight ≈1800 kg; dimensions L1780×W1540×H2000 mm. Achieves tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
| Work capacity:max. diameter | 80 mm |
| Module max. | mm |
| Max. module | 2 |
| Workpiece length max. | 200 mm |
| Workpiece length min. | 2 mm |
| Pitch min. | 3 |
| Pitch max. | 1200 |
| Spiral lead angle: | |
| left | 45 ° |
| richt | 45 ° |
| Gear hob: | |
| max. diameter | 50 mm |
| Max. milling cutter displac. | 25 mm |
| Milling cutter speeds: | |
| number (steps) | 17 |
| from | 212 t/min |
| up to | 2000 t/min |
| Feeds: | |
| axial from | 0.05 mm/t |
| up to | 2 mm/t |
| radial from | 0.2 mm/t |
| radial from | mm/min |
| up to | 200 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Drive milling spindle | 4 kW |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 1780 mm |
| Width | 1540 mm |
| Height | 2000 mm |
| Appropriarted for the toothing: | |
| (poss. with special equipement) | |
| Roues à dentures droites | |
| Pignons | |
| Roues à vis sans fin | |
| Fabrication de filetages: | |
| Tangent gear cutting | |
| Inclined gear cutting |
