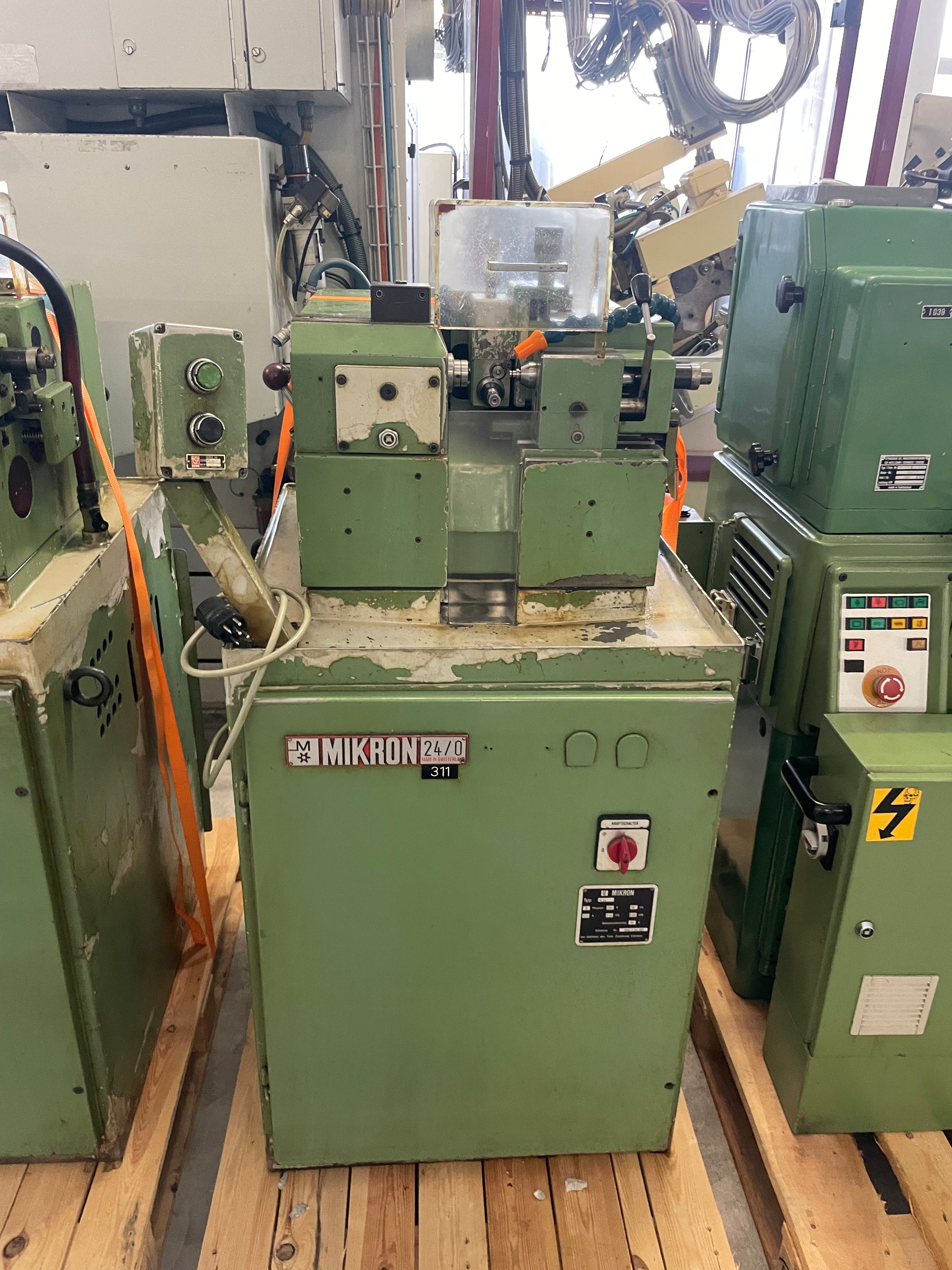

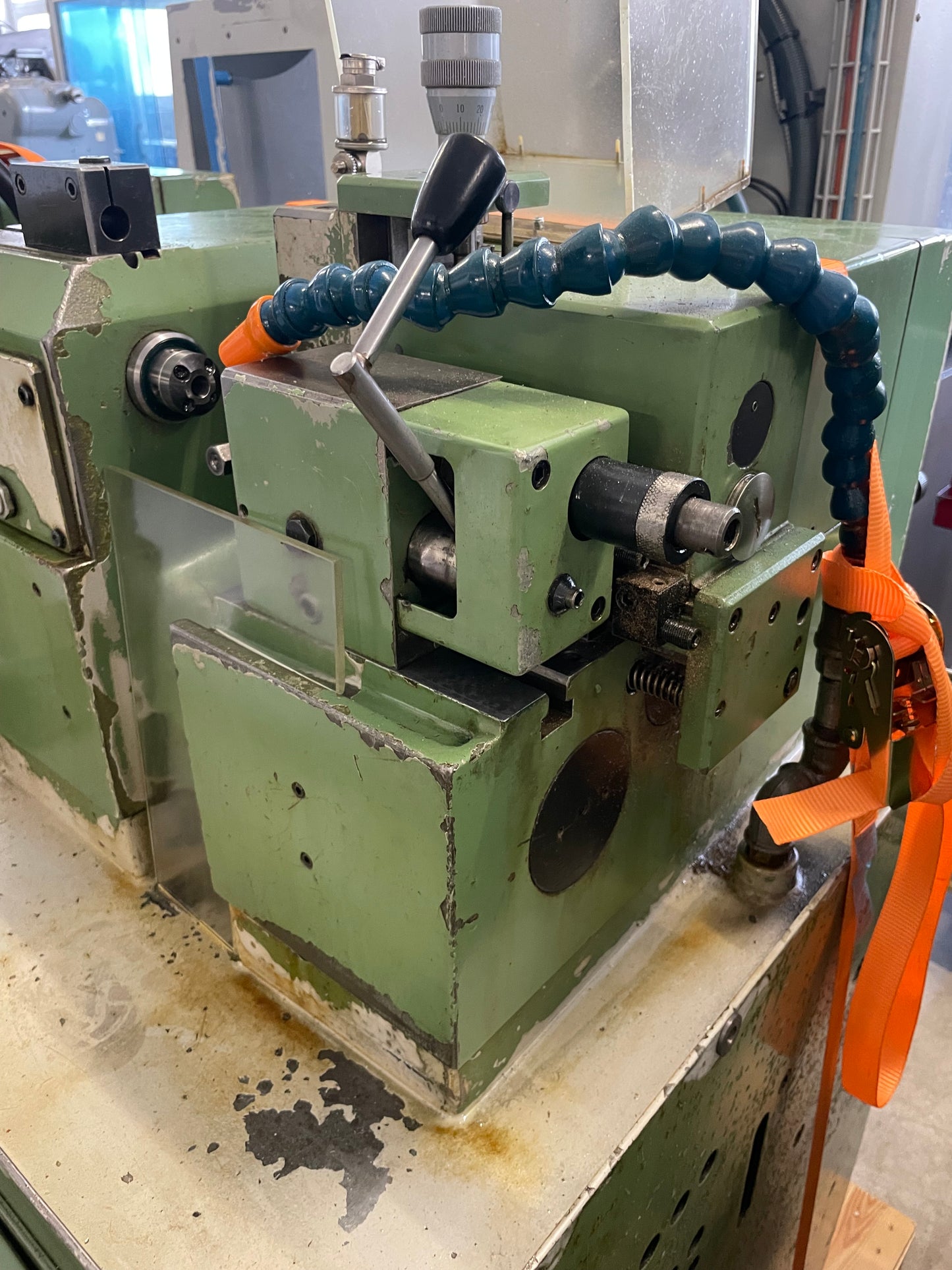

023185 - MIKRON A 24
Manufacturer: MIKRON
Subgroup: Hobbing machine
Type: A 24
Stock: 023185
Download technical sheet (PDF)

Work capacity:max. diameter 40 mm
Max. milling length 45 mm
Max. module in steel 1
Workpiece length max. 75 mm
max. gear wheel width 20 mm
Pitch min. 5
   max. 399
Milling cutter speeds:
   from 320 t/min
   up to 3200 t/min
Feeds:
   from 0.05 mm/min
   up to 0.65 mm/min
Voltage 50 Hz 3x 380 Volt
Power 0.75 CV
Machine's weight about 460 kg
Overall dimensions machine:
   Length 800 mm
   Width 600 mm
   Height 1400 mm
