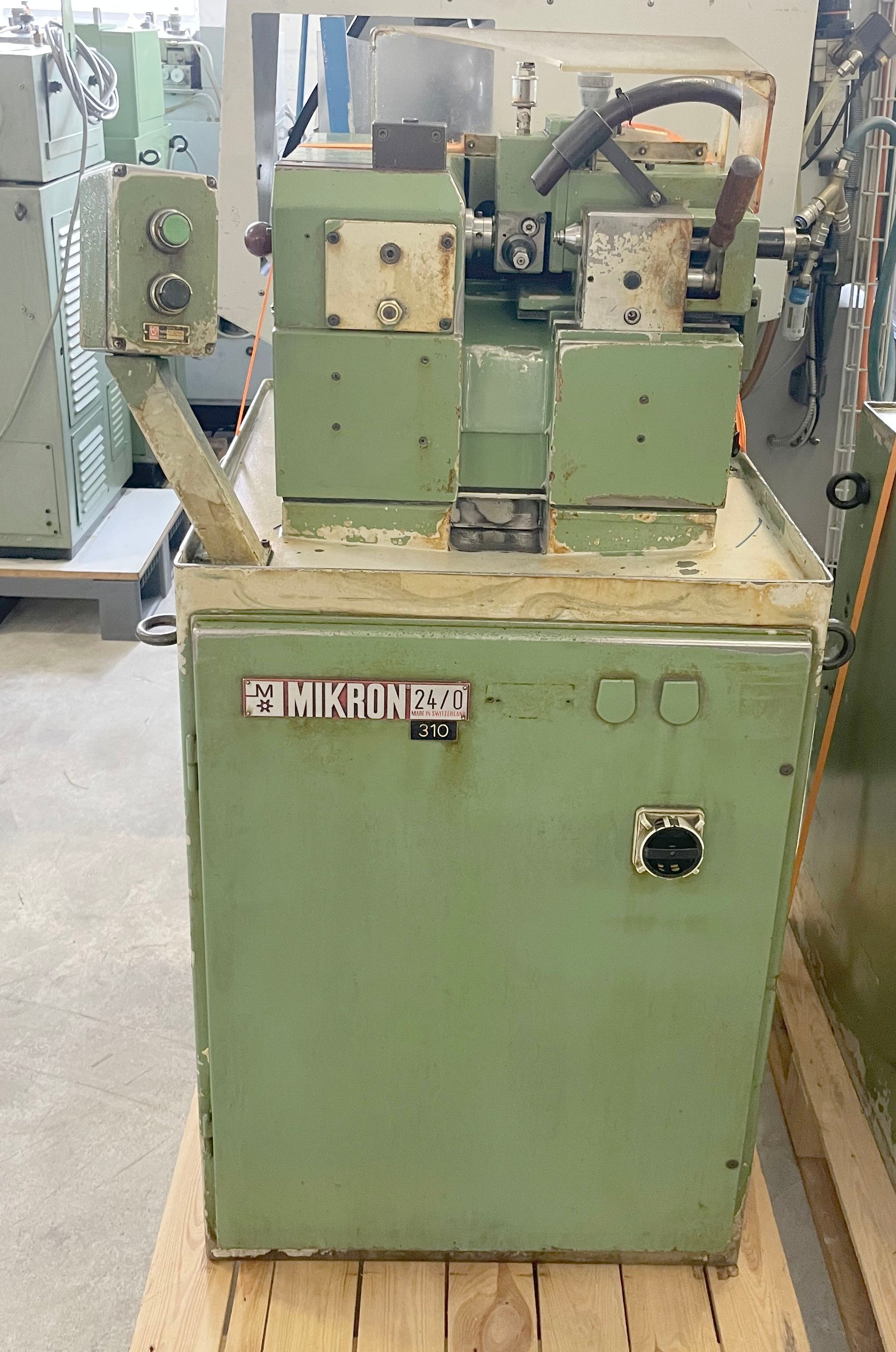

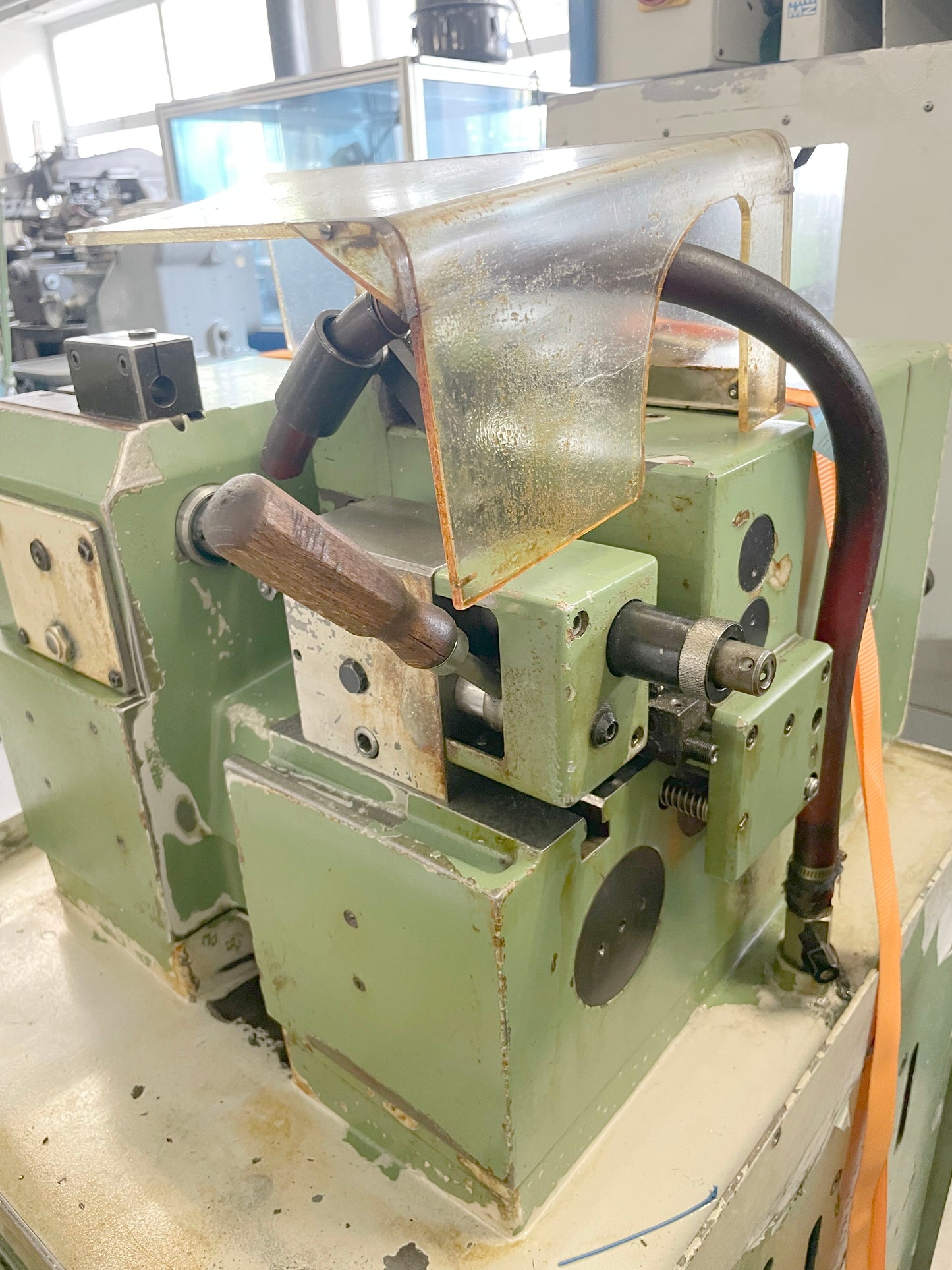

MIKRON A 24 is a Hobbing machine, engineered for precision, high accuracy and reliability. Work capacities: max diameter 40 mm; max milling length 45 mm; max module 1; max workpiece length 75 mm; max gear width 20 mm; teeth 5–399. Main specifications: cutter speeds 320–3200 t/min; feeds 0.05–0.65 mm/t; voltage 50 Hz 3x 380 V; power 0.75 CV; machine weight approx. 460 kg; overall dimensions L800×W600×H1400 mm. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Work capacity:max. diameter | 40 mm |
| Max. milling length | 45 mm |
| Max. module | 1 |
| Workpiece length max. | 75 mm |
| max. gear wheel width | 20 mm |
| Pitch min. | 5 |
| max. | 399 |
| Milling cutter speeds: | |
| from | 320 t/min |
| up to | 3200 t/min |
| Feeds: | |
| from | 0.05 mm/t |
| up to | 0.65 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 0.75 CV |
| Machine's weight about | 460 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 600 mm |
| Height | 1400 mm |
