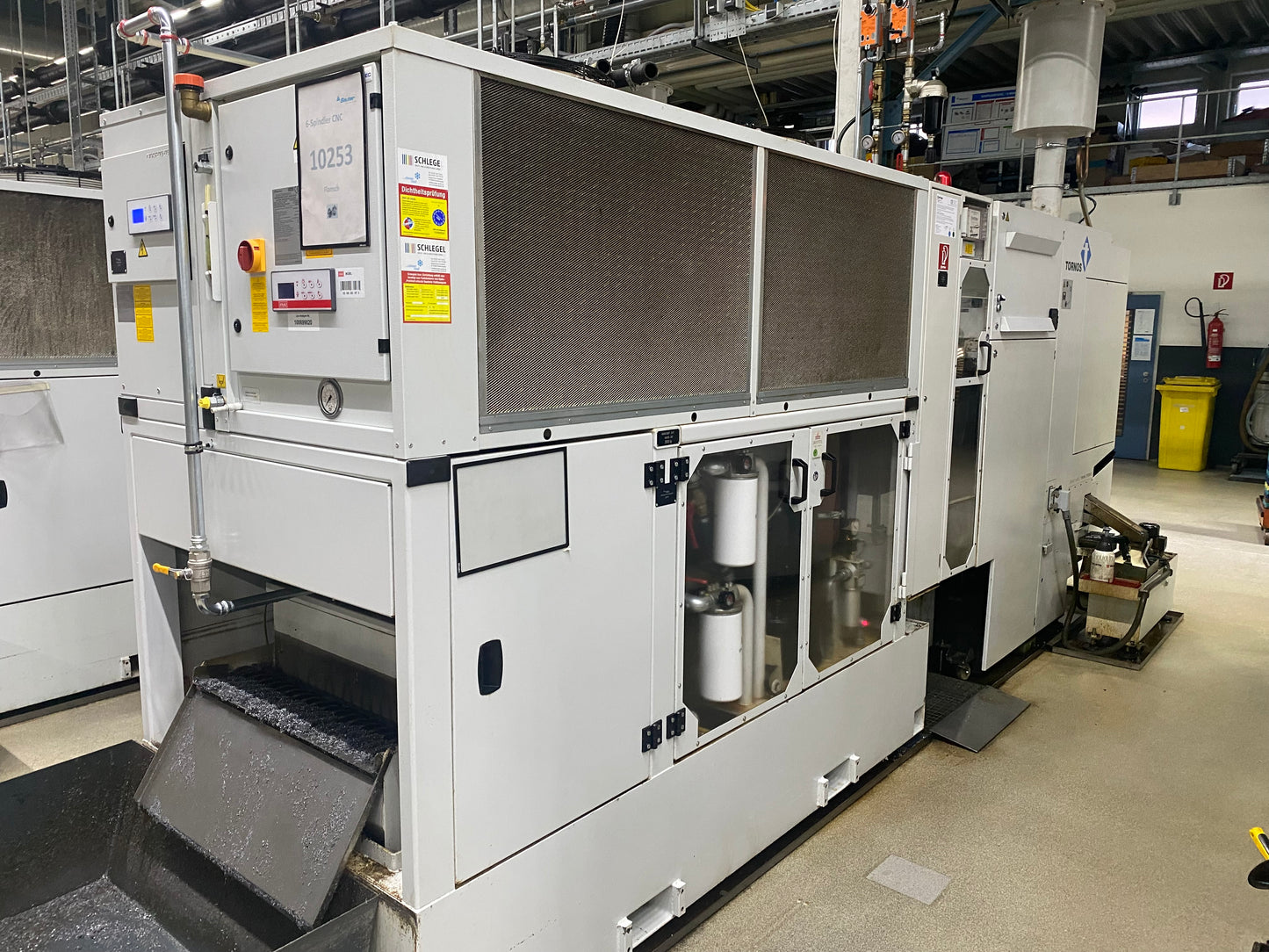

TORNOS MULTISWISS 6x14 MultiDelta
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TORNOS MULTISWISS 6x14 MultiDelta is a CNC multi-spindle turning lathe engineered for precision, high accuracy and reliability. Capacities: 6 spindles, 1 back spindle, 20 axes, 6 cross slides; bar capacity 4–14 mm; max workpiece length 40 mm; max outstanding length 70 mm; up to 18 tools (2 on back spindle). Specs: stepless spindle speeds 0–8000 rpm; spindle power 6 kW; voltage 3x 400 V 50 Hz; total power 70 kVA; weight ≈7000 kg; size L5920×W1440×H2120 mm. Accessories: coolant system, lamp, status light. Delivers tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors
| Number of axis total | 20 |
| Number of cross slides | 6 |
| Number of spindles | 6 |
| Number back spindle | 1 |
| Number of tools max. | 18 |
| Number of tools max. back spindle | 2 |
| Capacity round bar | 4 - 14 mm |
| Workpiece length max. | 40 mm |
| Outstanding length max. | 70 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 8000 t/min |
| Back spindle: | |
| Spindle speeds | 0 - 8000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 6 kW |
| Total power required | 70 kVA |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 5920 mm |
| Width | 1440 mm |
| Height | 2120 mm |
| Various accessories: | |
| Coolant system | |
| Lamp | |
| Status light |
