AGATHON 150 SL 2
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

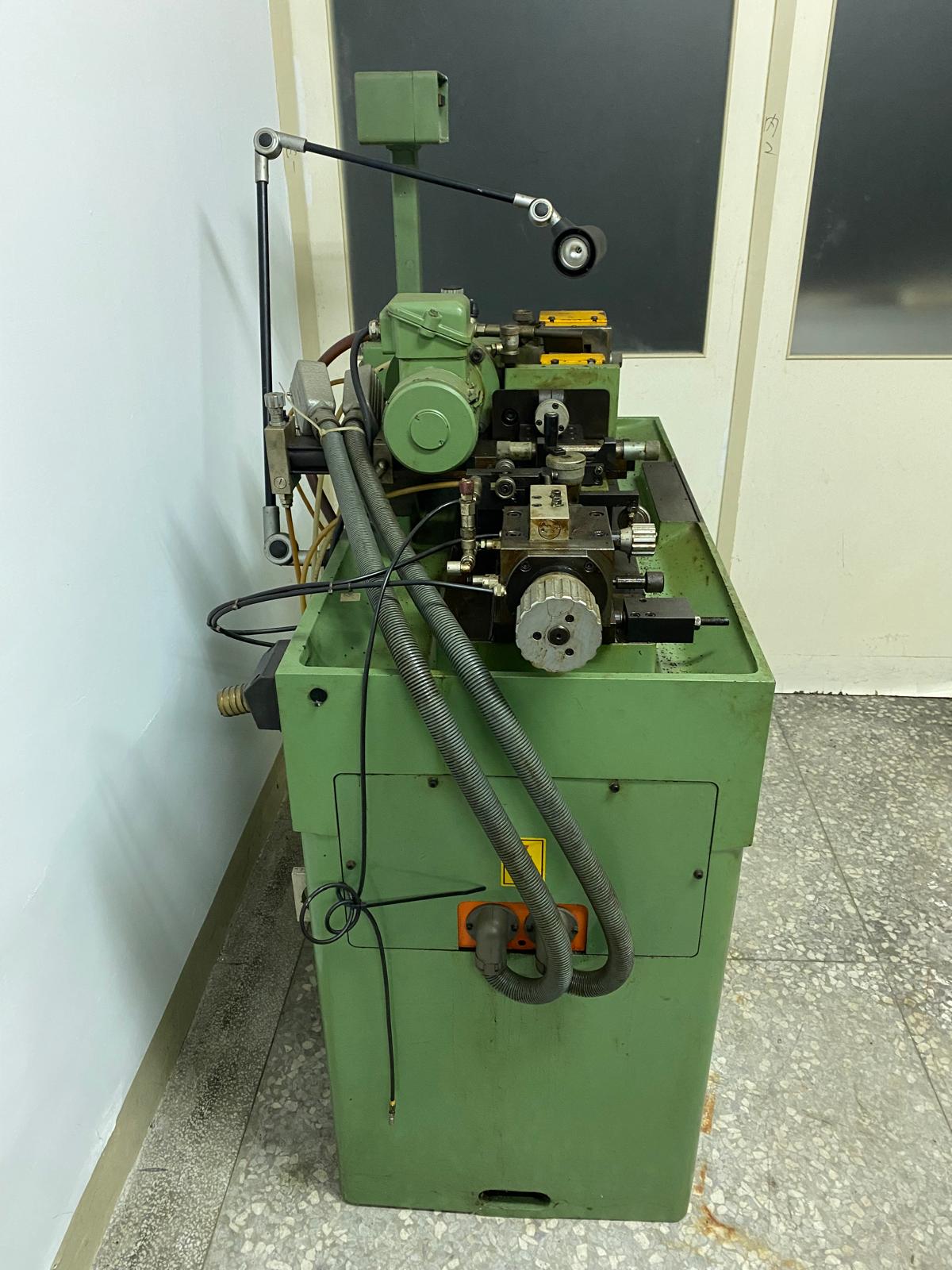

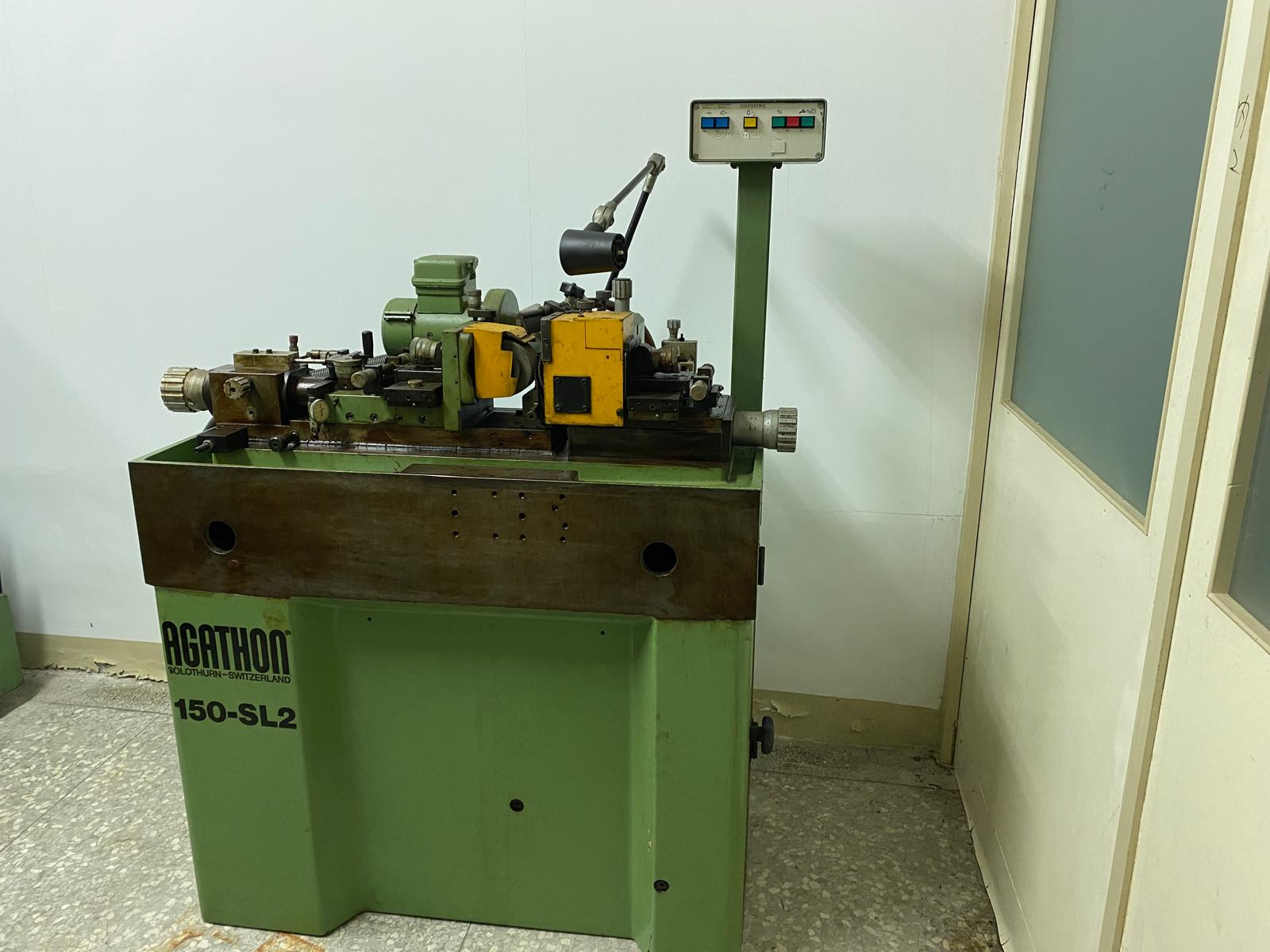

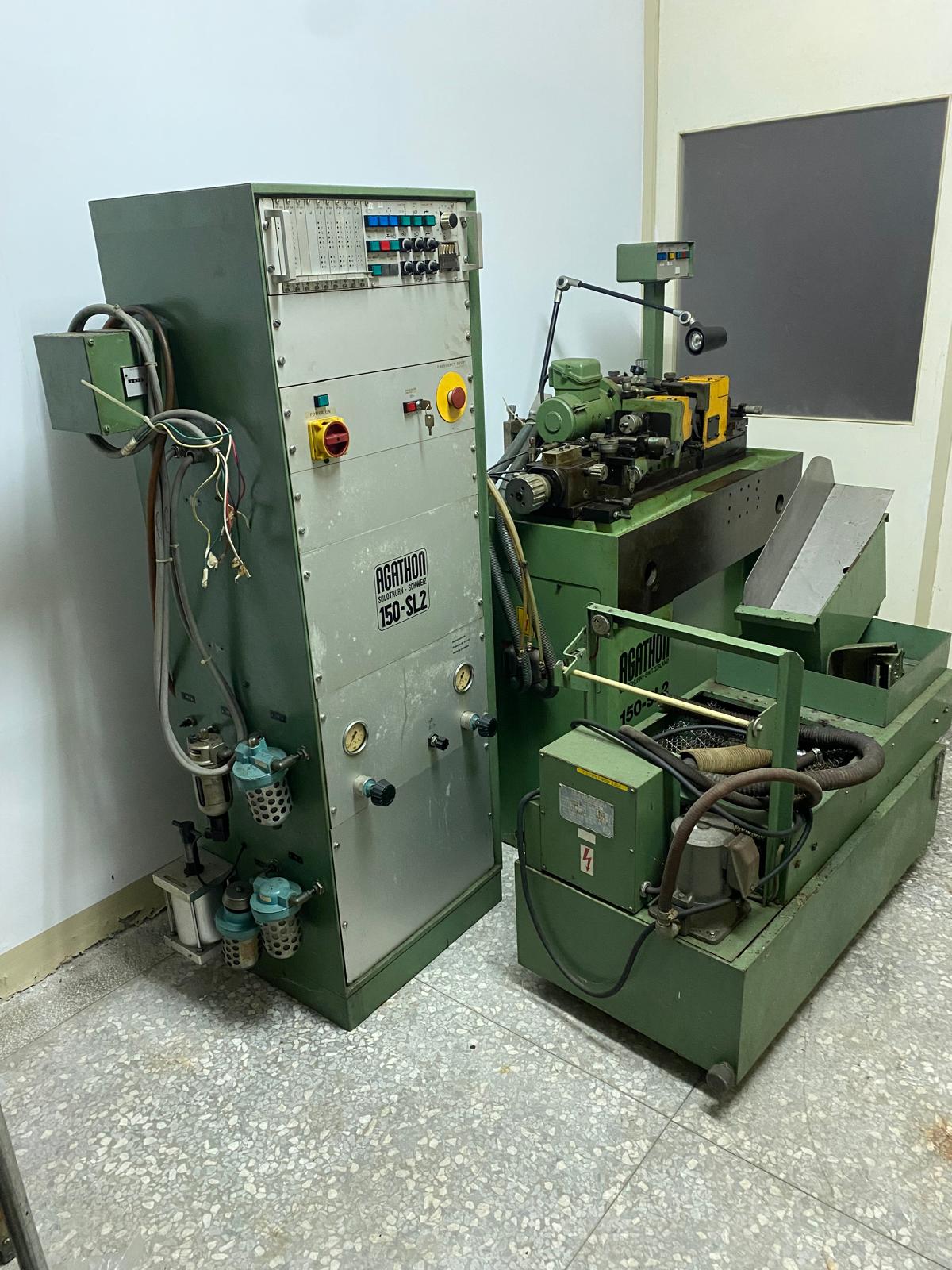

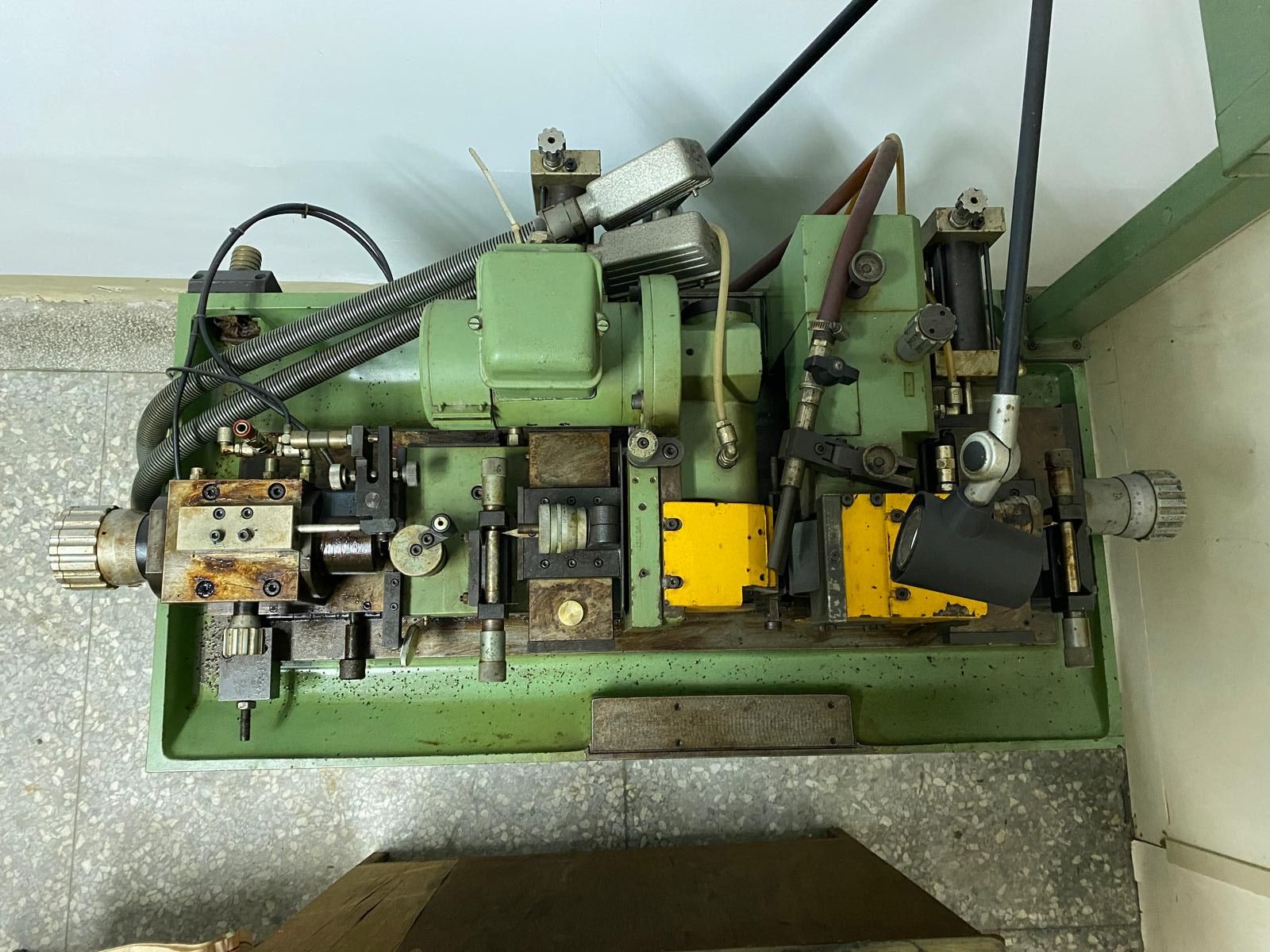

AGATHON 150 SL 2 is a centreless grinding machine of high precision, built to deliver superior accuracy and reliability. Working capacities: max grinding diameter 12 mm; grinding wheel width 50 mm; grinding wheel (new) Ø150 mm W50 mm bore 50 mm; regulating wheel (new) Ø100 mm W50 mm bore 40 mm; stepless speeds 15–150 t/min. Technical specs: 50 Hz 3x 380 V supply; main motor 2.0 CV; weight ≈650 kg; machine L1200×W800×H1200 mm; control L500×W400×H1800 mm. Accessories: paper filtration system, lamp. Enables tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace and medical.
| Max. grinding diameter | 12 mm |
| Width of the grinding wheel | 50 mm |
| Grinding wheel: | |
| diameter new wheel | 150 mm |
| Width | 50 mm |
| Bore | 50 mm |
| Speeds: | |
| Regulating spindle: | |
| diameter new wheel | 100 mm |
| Width | 50 mm |
| Bore | 40.0 mm |
| Speeds: | |
| stepless | |
| from | 15 t/min |
| up to | 150 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Main motor | 2.0 CV |
| Machine's weight about | 650 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 800 mm |
| Height | 1200 mm |

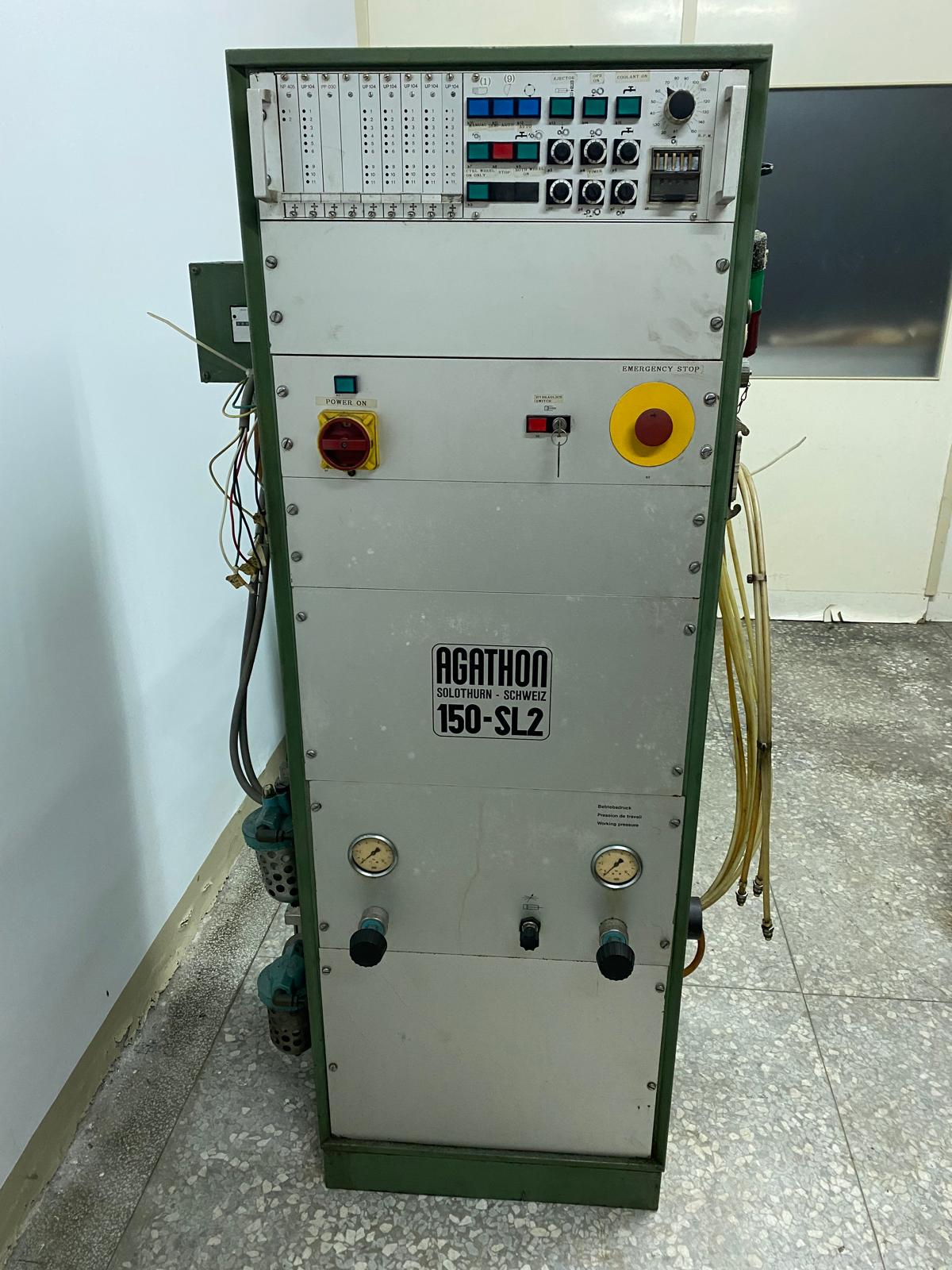

| Dimensions of the control: | |
| Length | 500 mm |
| Width | 400 mm |
| Height | 1800 mm |
| Various accessories: | |
| Paper filtration system | |
| Lamp |
