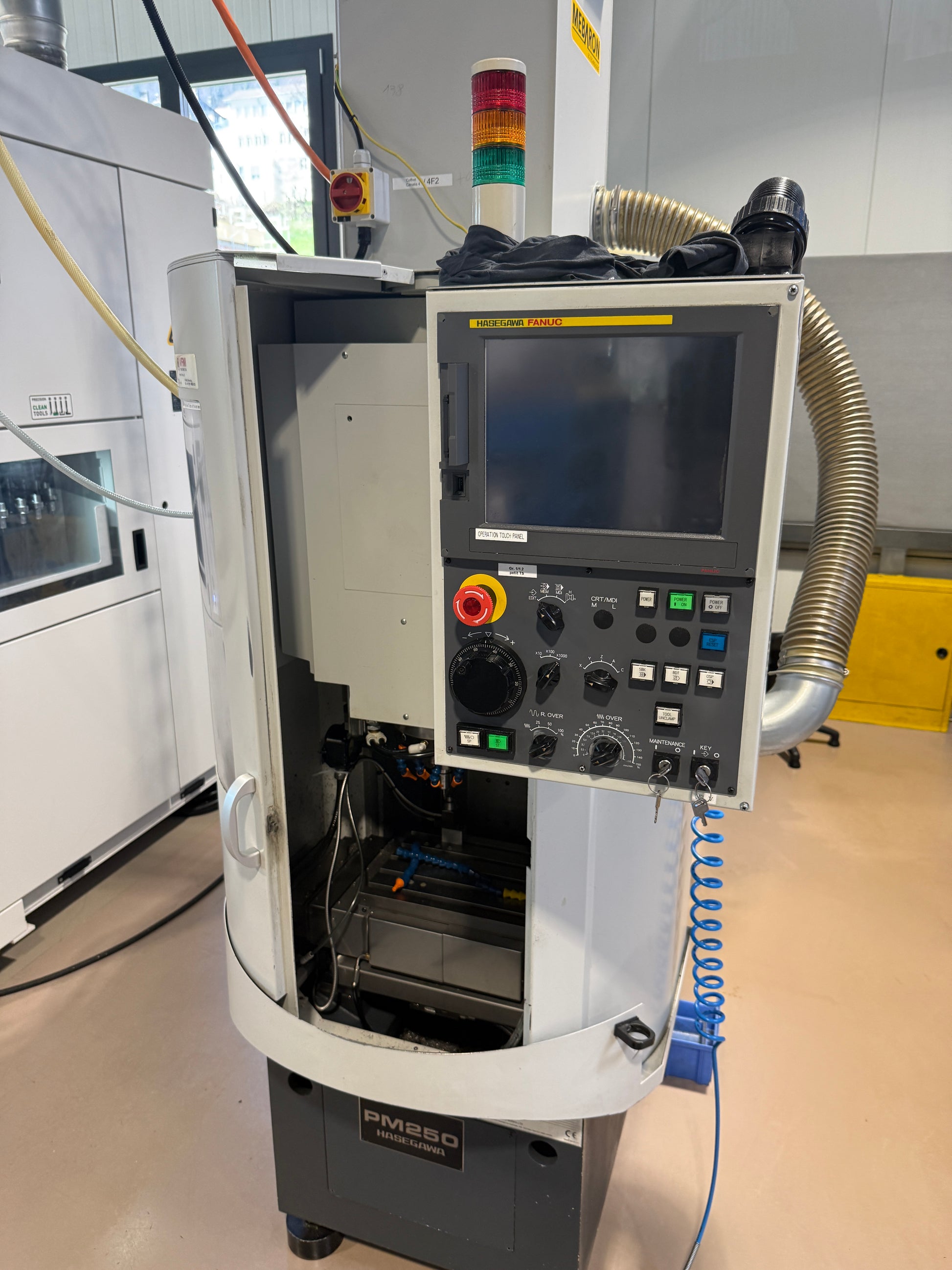

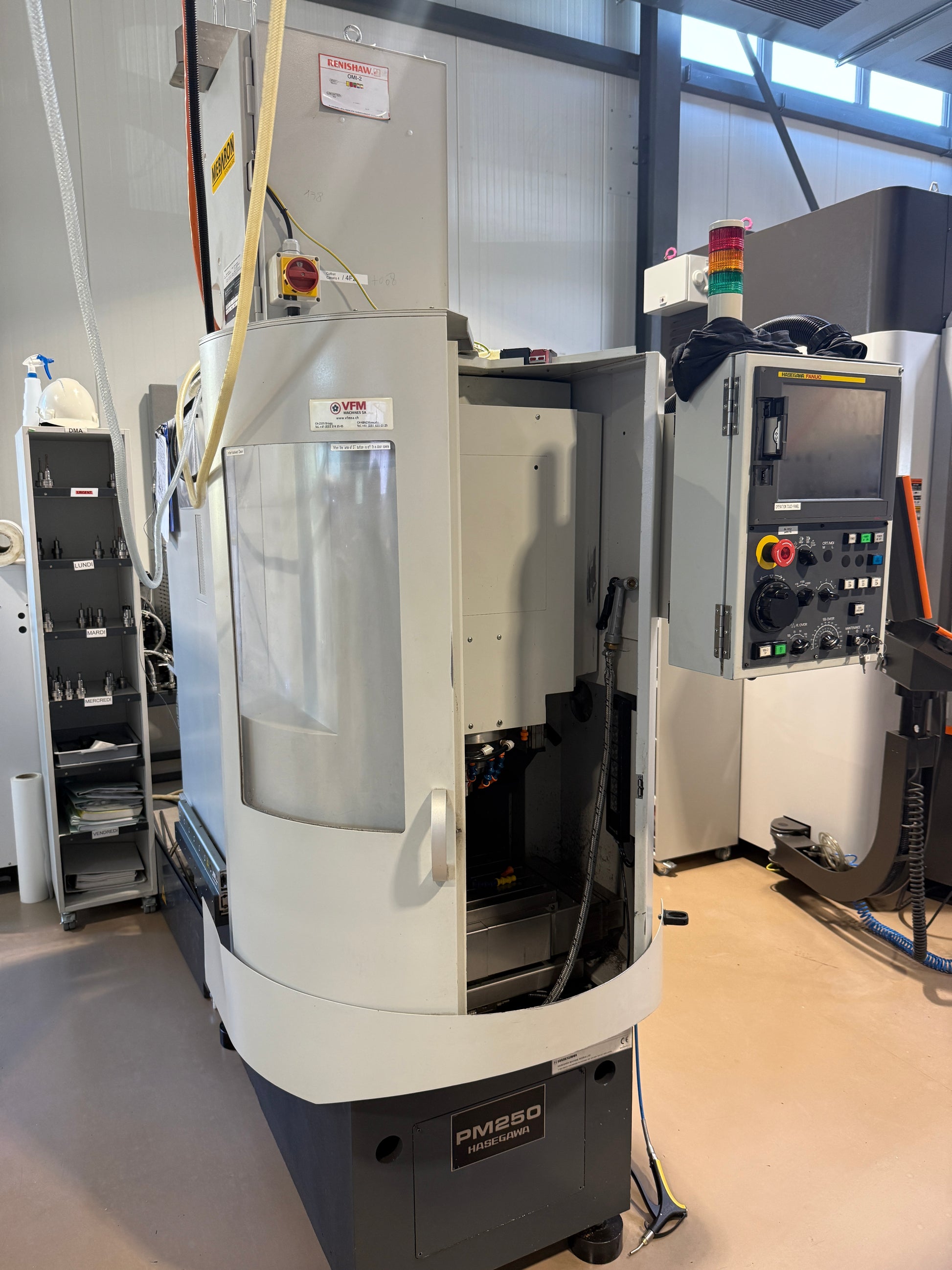

HASEGAWA PM 250 is a CNC‑High speed milling machine for precision machining with high accuracy and reliability. Capacities: table 300×260 mm; travels X100 Y225 Z200 mm; table load 80 kg; spindle‑to‑table 140–340 mm. Specs: 100–30000 t/min; spindle nose SK32; rapid traverse 30 m/min; spindle motor 3.0/4.5 kW; 3x400 V 50 Hz; 12 kVA; weight ~2000 kg; dims 1750×600×1800 mm. Accessories: Renishaw probe, set of toolholders, coolant 120 l, oil mist extractor Mebaron, tool break control, status light. Delivers tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 3 |
| Table length | 300 mm |
| Table width | 260 mm |
| Longitudinal travel (X-axis) | 100 mm |
| Transversal travel (y axis) | 225 mm |
| Vertical travel (z axis) | 200 mm |
| Table load max. | 80 kg |
| spindle to table | 140 ~ 340 mm |
| vertical from | 100 t/min |
| up to | 30000 t/min |
| Tool magazine number of tool places | 14 |
| Spindle nose SK | 32 |
| Rapid traverse: | 30 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 3.0 / 4.5 kW |
| Total power required | 12 kVA |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 1750 mm |
| Width | 600 mm |
| Height | 1800 mm |
| Various accessories: | |

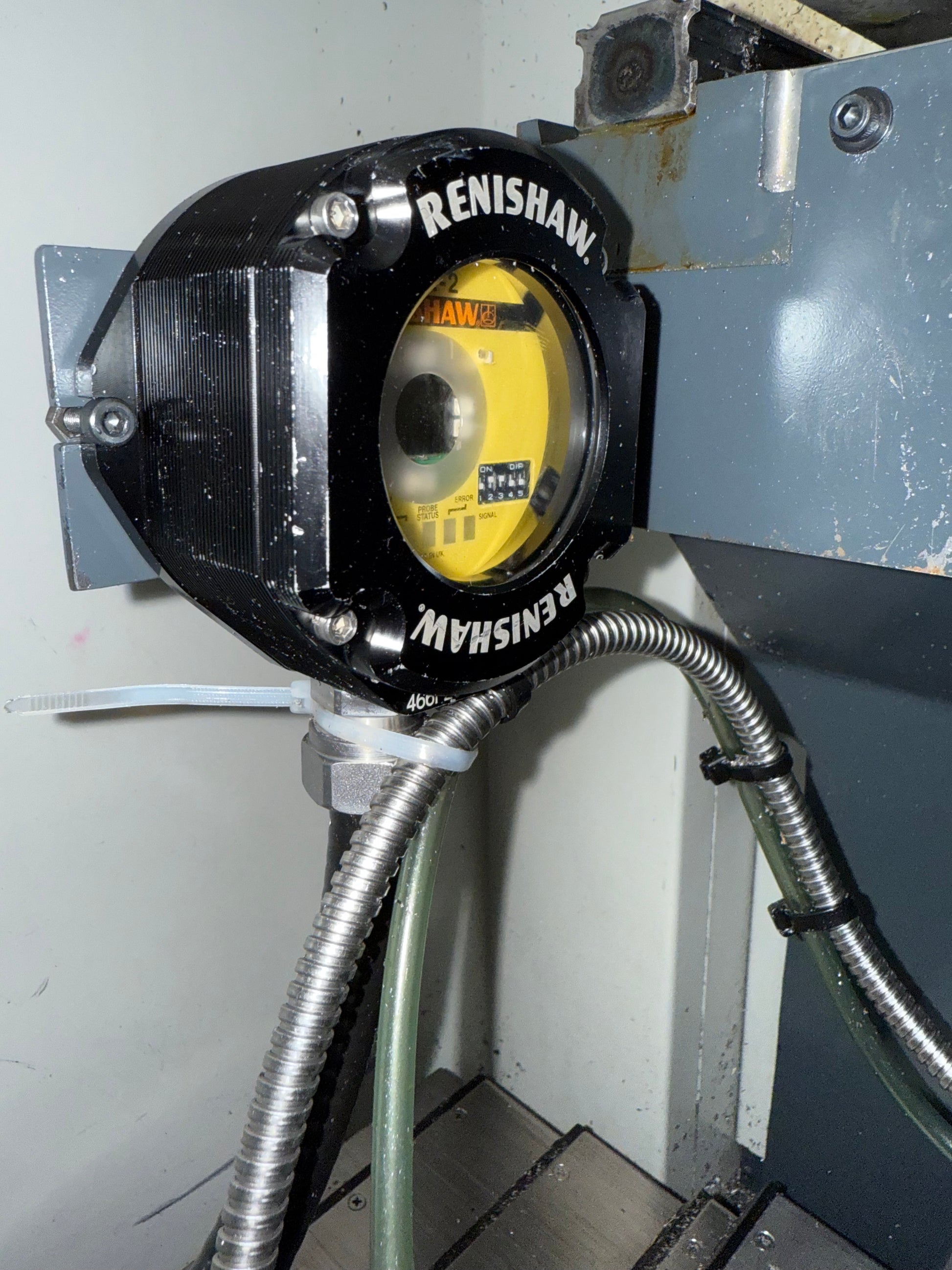

| Feeler Renishaw | |

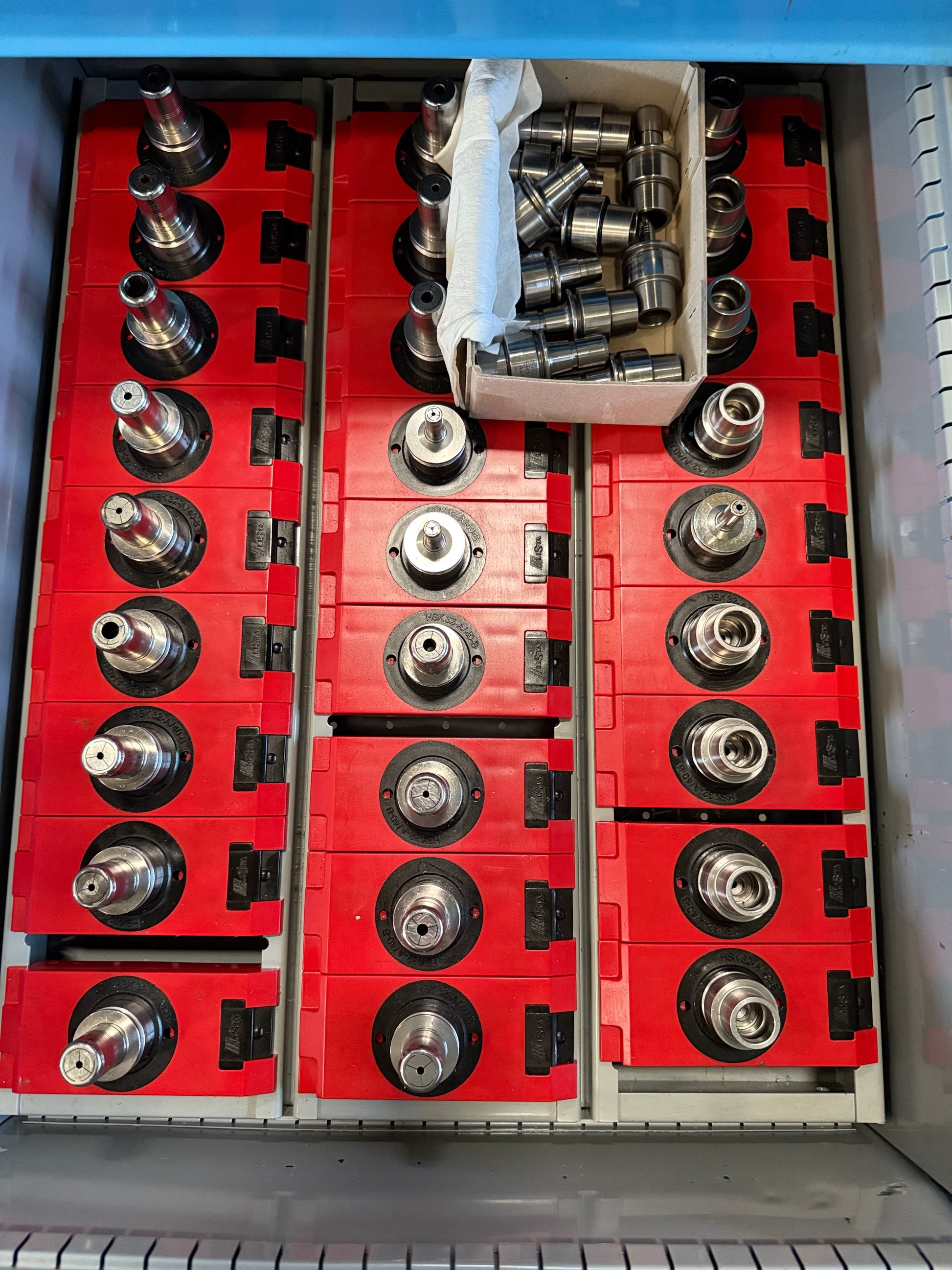

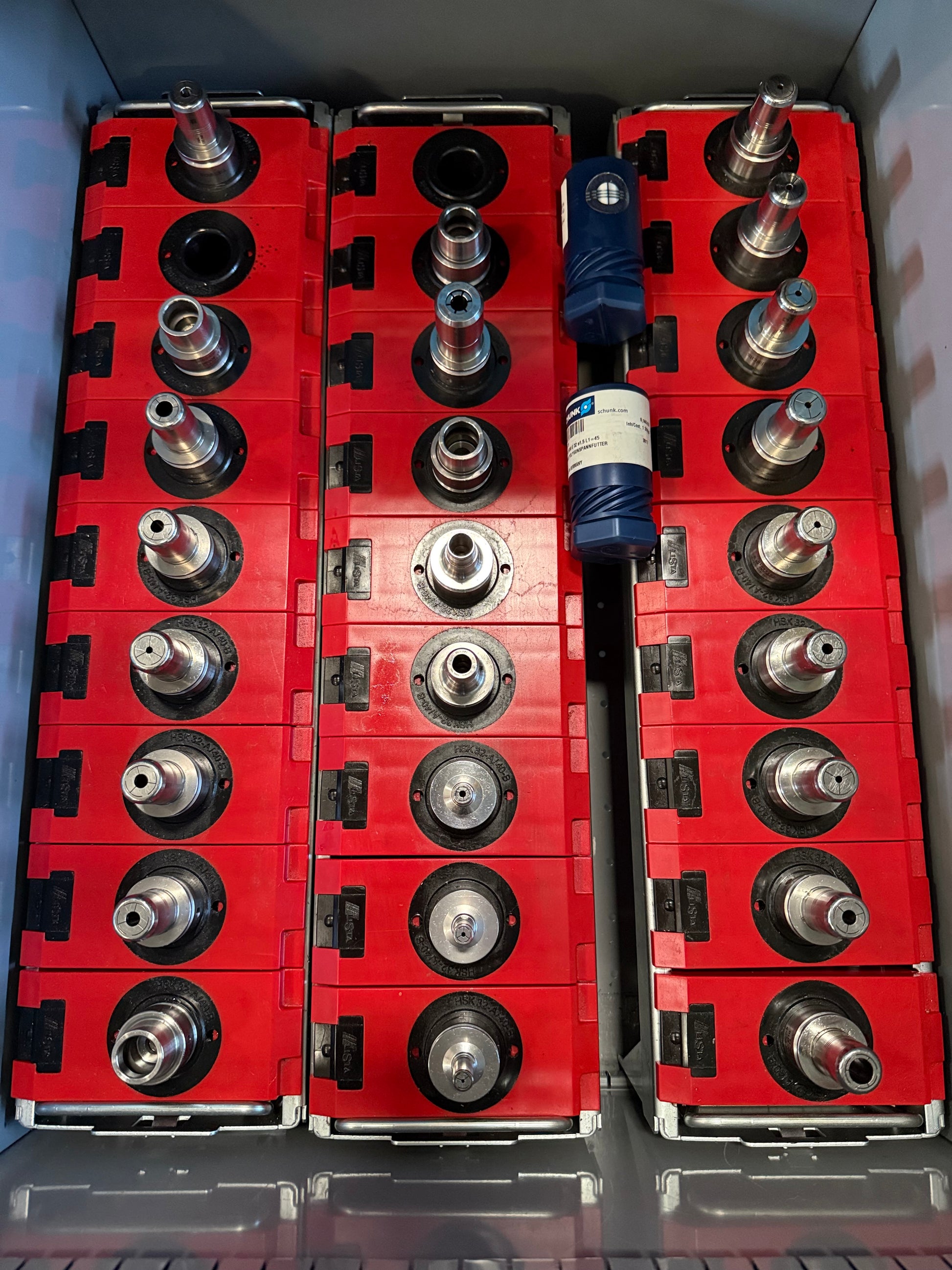

| Set of toolholders | |

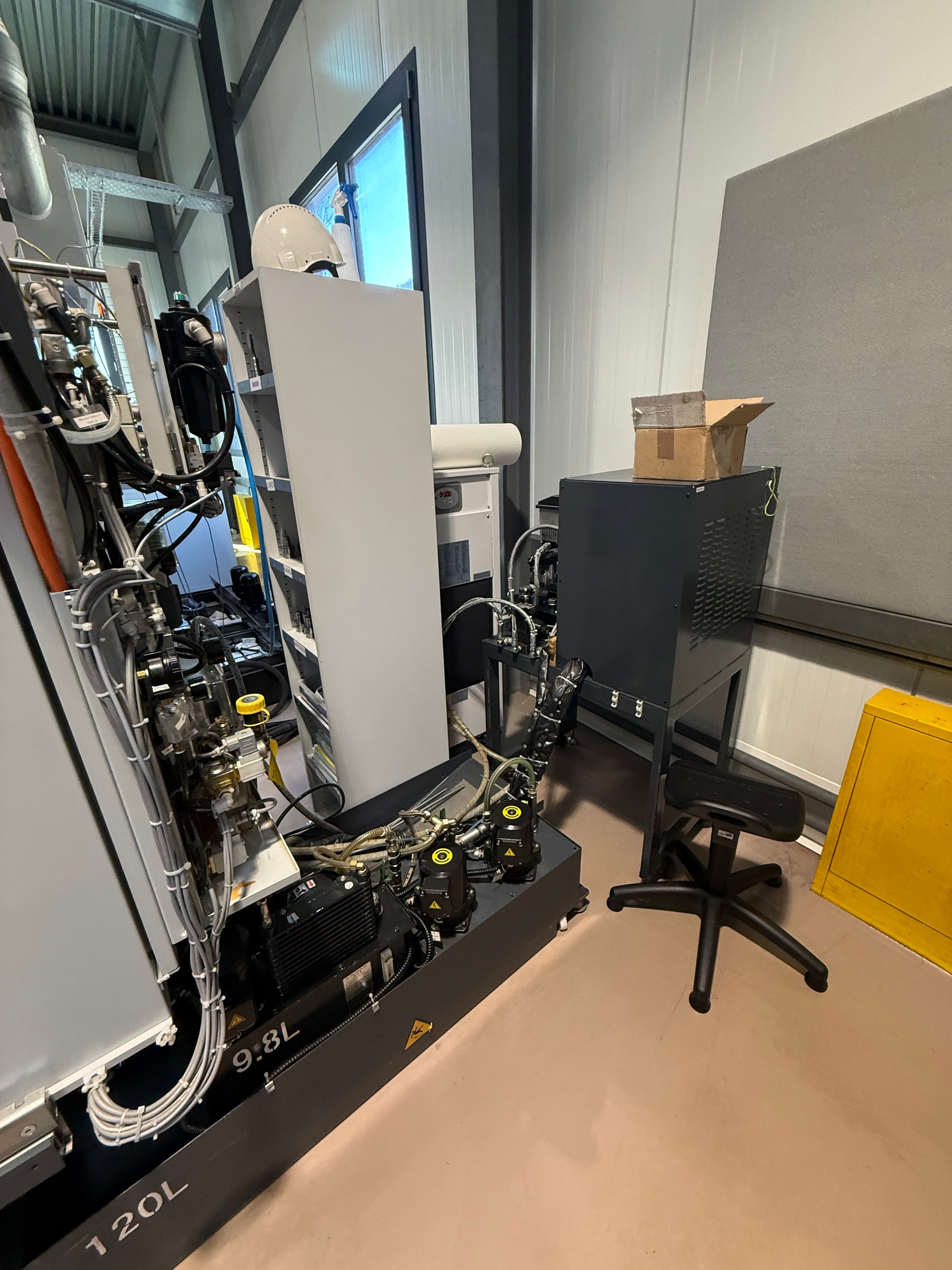

| Coolant system | 120 ltr. |

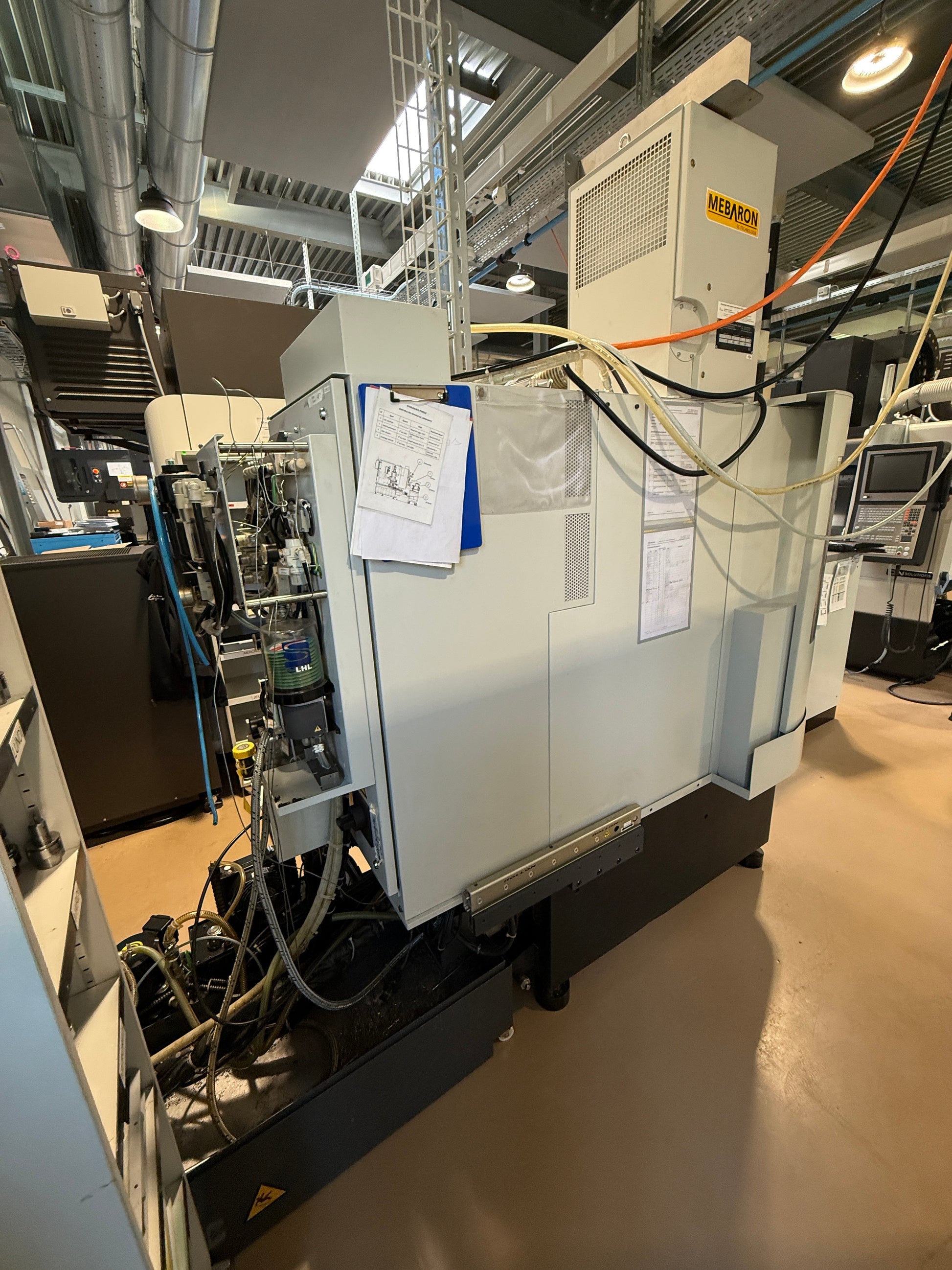

| Oil mist extractor | Mebaron |

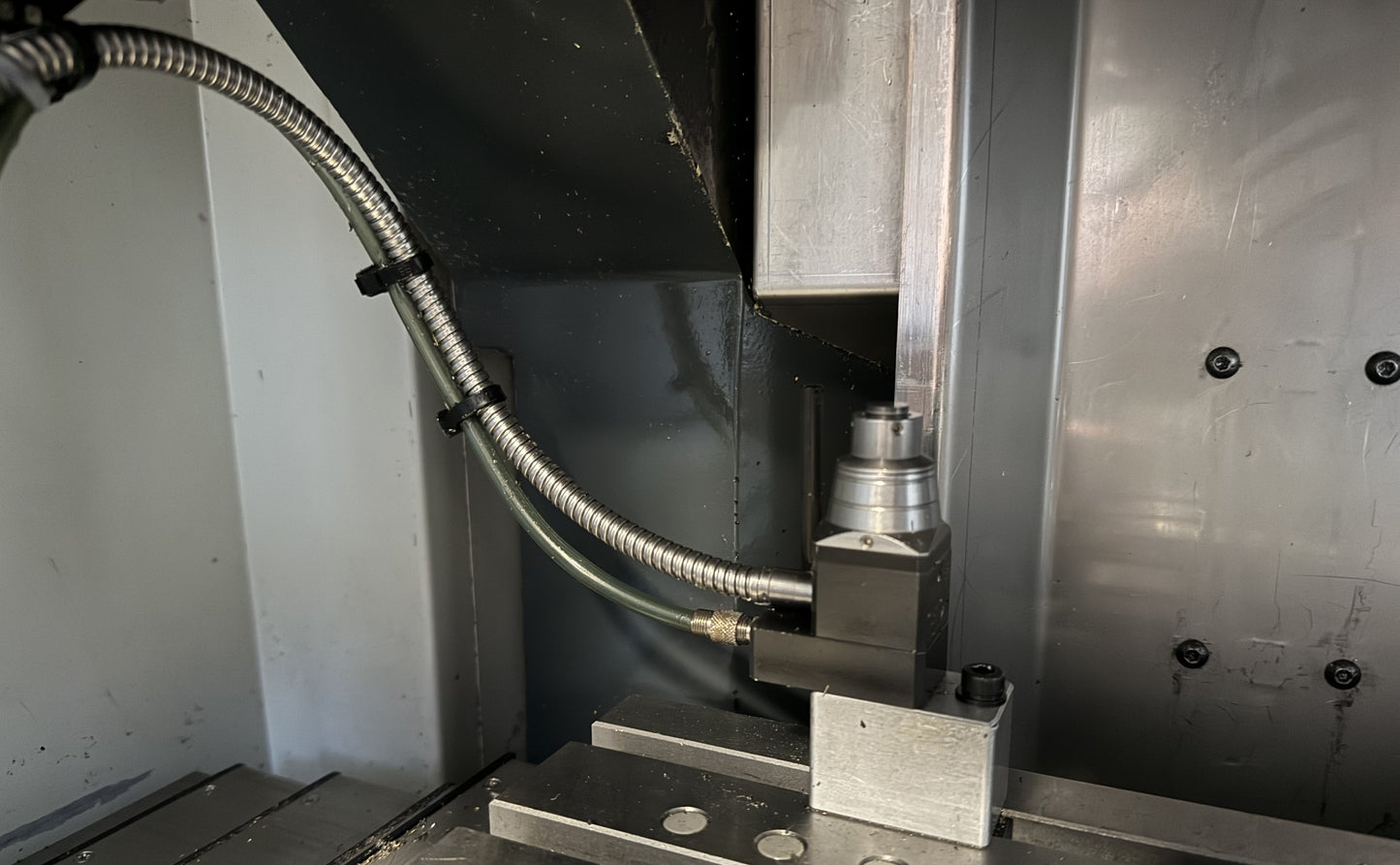

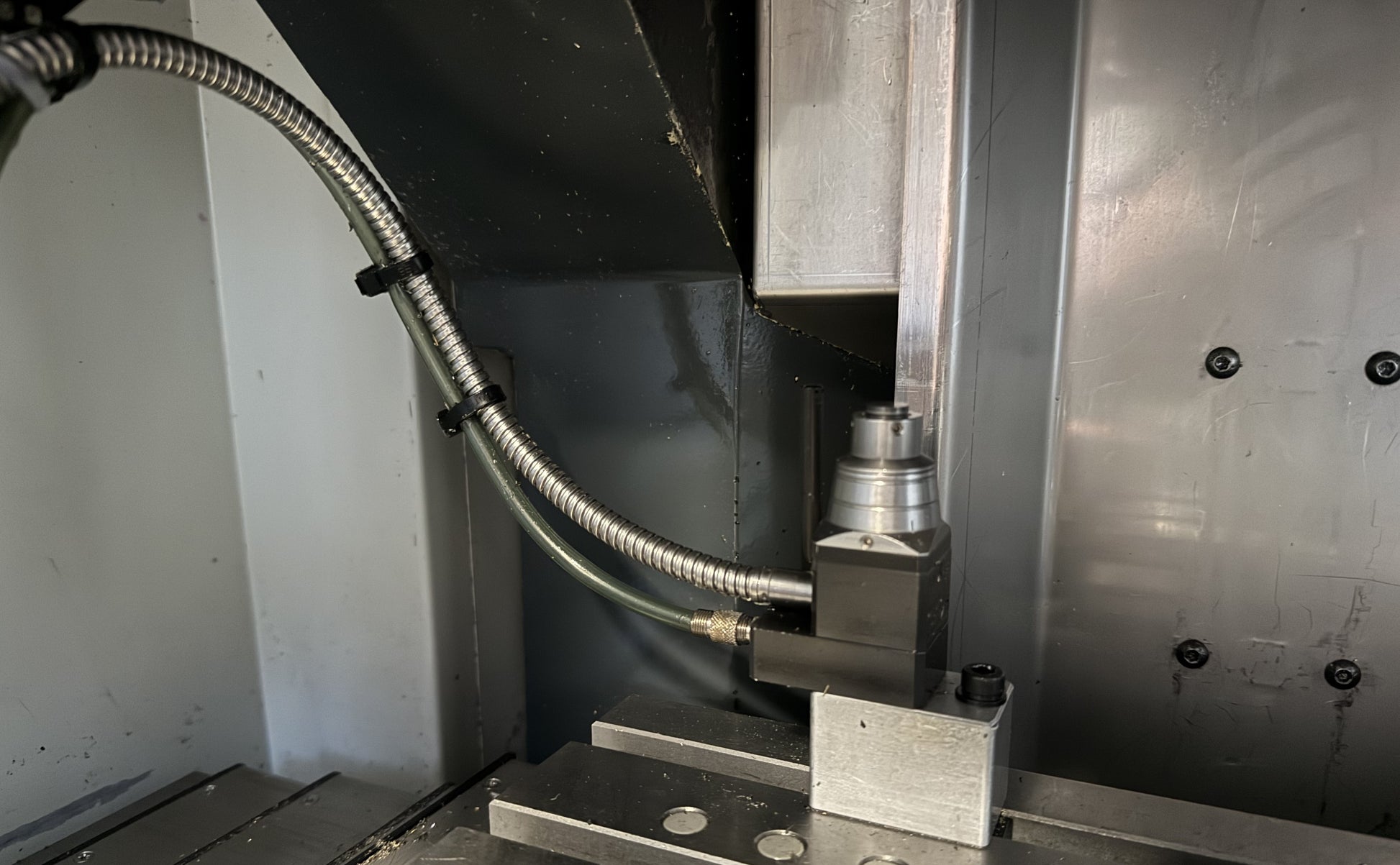

| Tool break control | |
| Status light |
