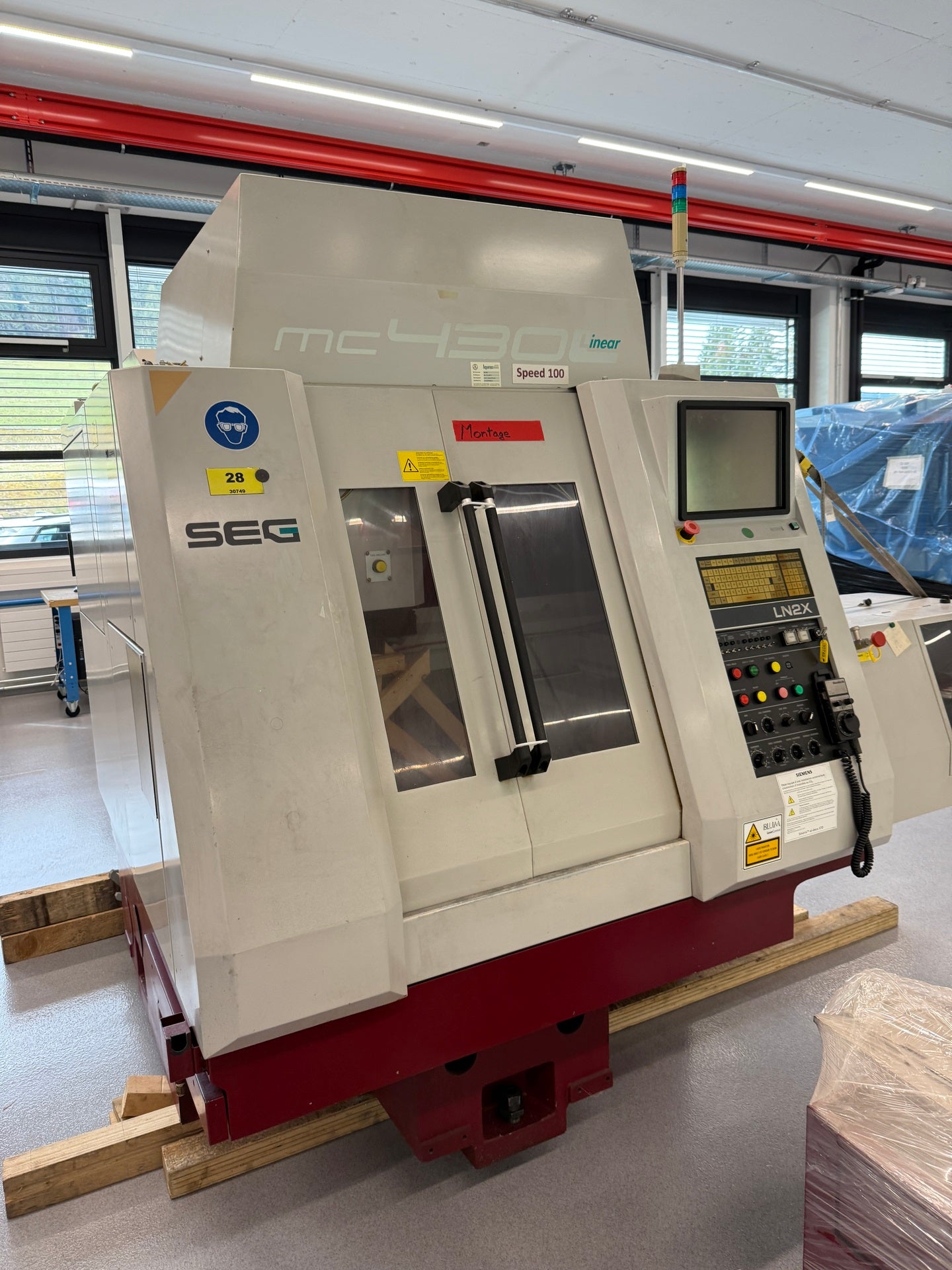

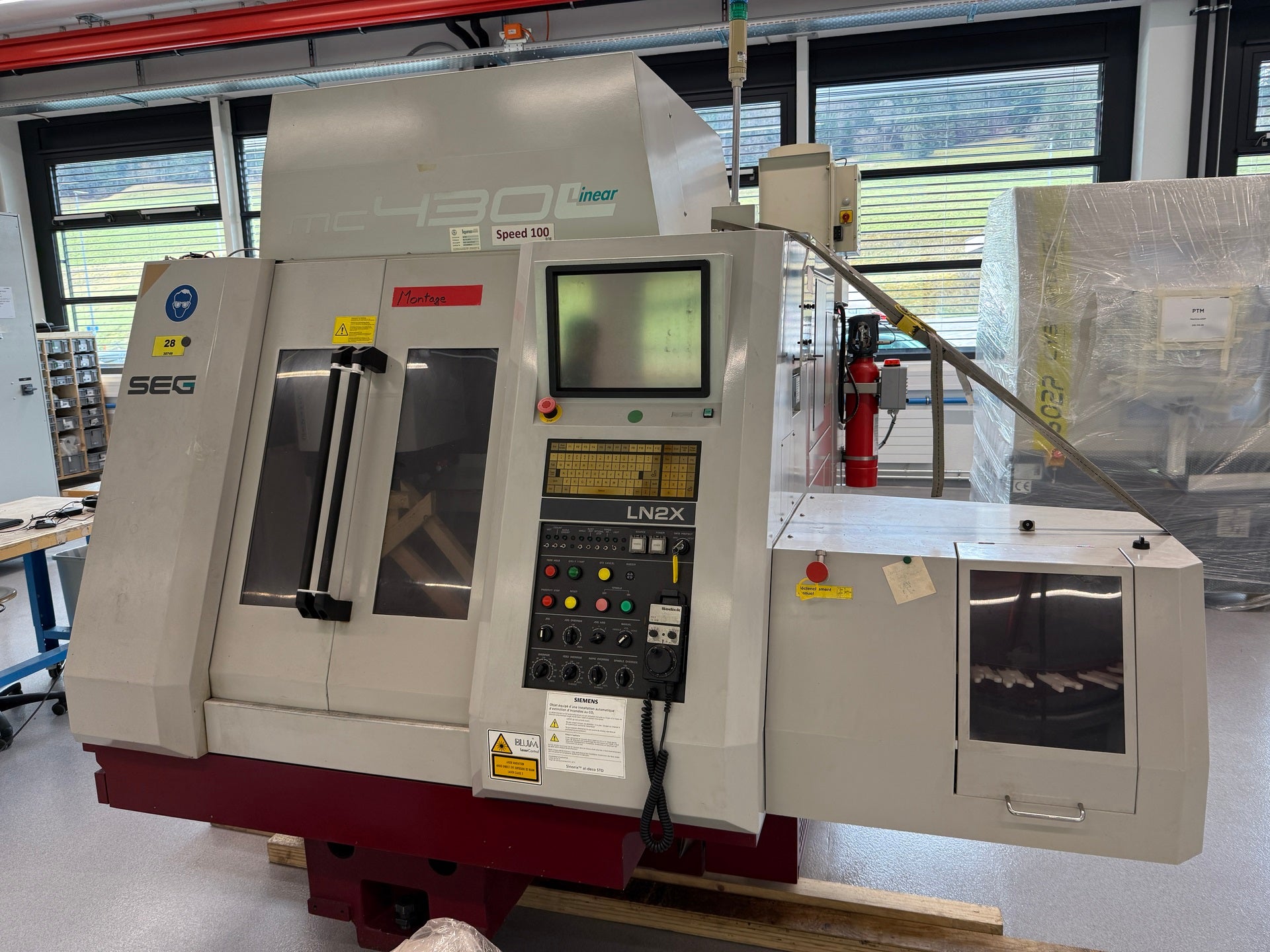

SODICK MC430L is a 3-axis machining center, built for precision, high accuracy and reliability. Table 600×400 mm with 5 T-slots (80 mm pitch, 14 mm width), table load 60 kg; travels X420, Y350, Z200 mm; workpiece diameter 6 mm; spindle nose to table 115–315 mm. Spindle nose HSK E25, stepless 6,000–40,000 rpm; feed 0–4,000 mm/min; rapid 36 m/min; supply 3x400 V 50 Hz; weight ~5,800 kg; overall L1625×W1500×H2105 mm. 45-position tool magazine. Delivers tight tolerances for automotive, watchmaking, machine tools, aerospace and medical industries.
| Number of axis total | 3 |
| Table length | 600 mm |
| Table width | 400 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 80 mm |
| T-channel width | 14 mm |
| Table load max. | 60 kg |
| Longitudinal travel (X-axis) | 420 mm |
| Transversal travel (y-axis) | 350 mm |
| Vertical travel (z axis) | 200 mm |
| Dimension of the workpice: | |
| Diameter | 6 mm |
| Tool changer: | |
| Number of tools | 45 |
| Spindle nose: HSK | E25 |
| Distance spindle nose to table | 115 - 315 mm |
| Spindle speeds: | |
| stepless | |
| from | 6000 t/min |
| up to | 40000 t/min |
| Feed range | 0 - 4000 mm/min |
| Rapid traverse: | 36 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 5800 kg |
| Overall dimensions machine: | |
| Length | 1625 mm |
| Width | 1500 mm |
| Height | 2105 mm |
