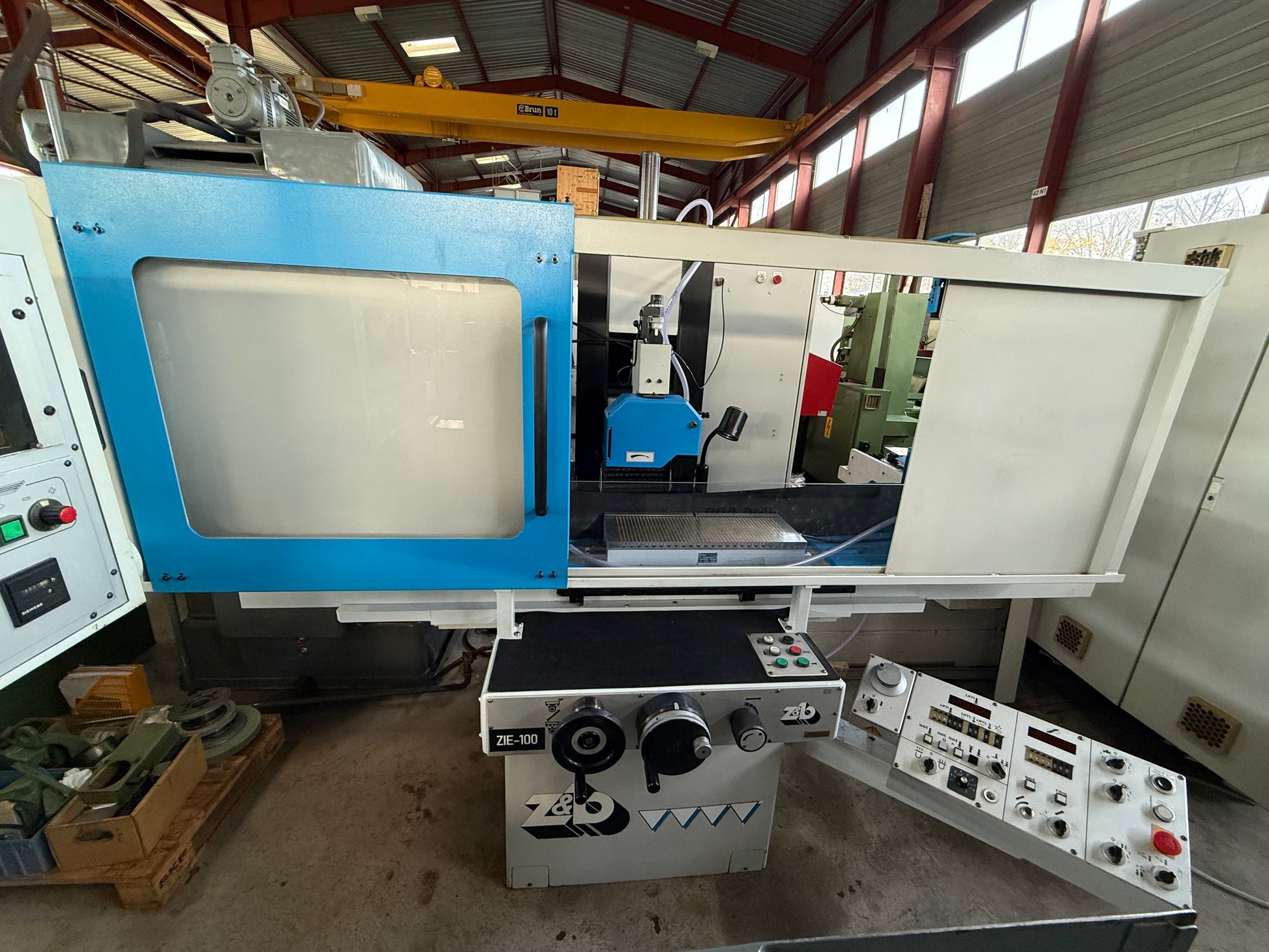

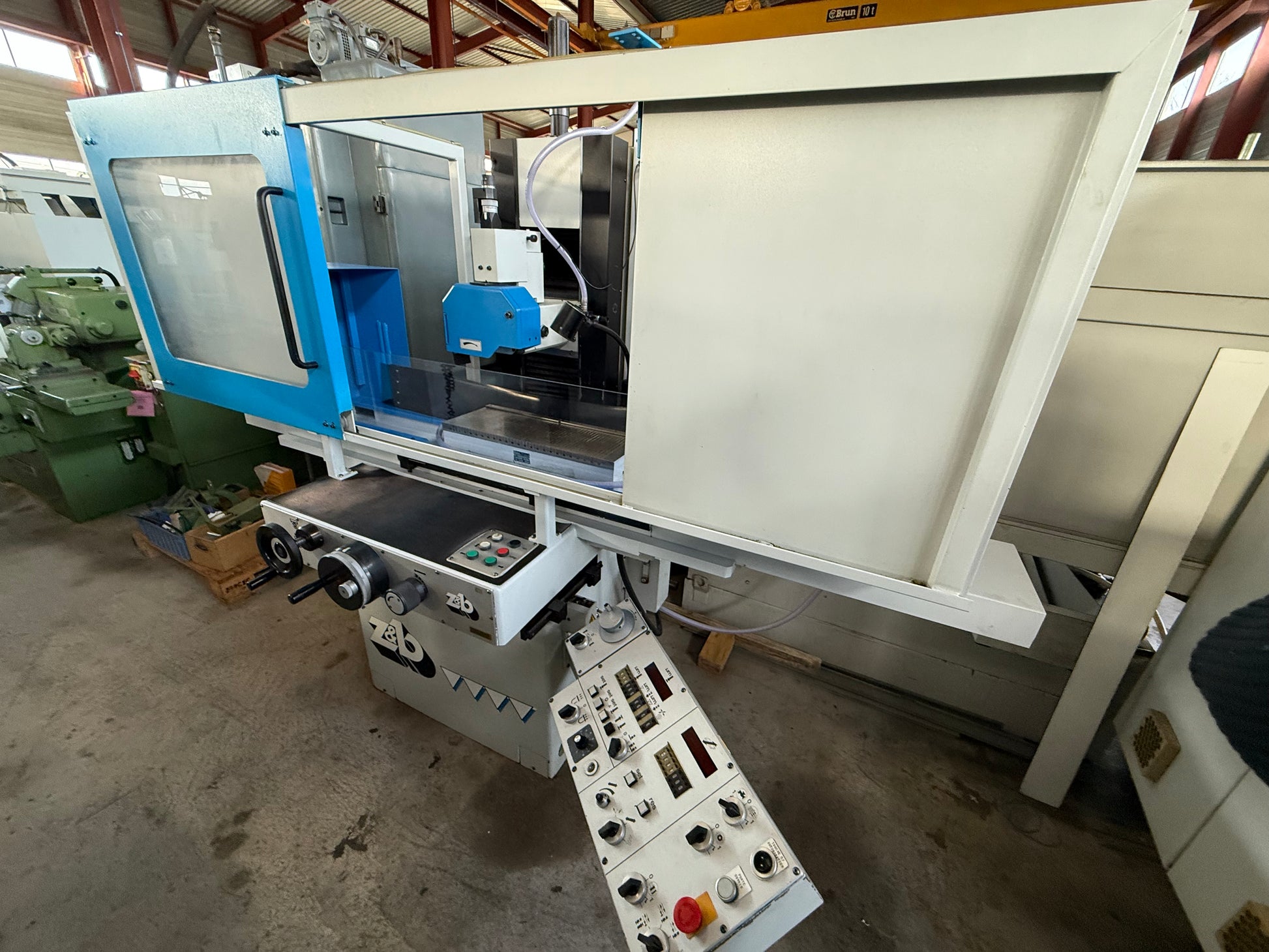

ZIERSCH + BALTRUSCH ZB 62
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Table length | 600 mm |
| Table width | 200 mm |
| Grinding length | 600 mm |
| Grinding width | 250 mm |
| Table load max. | 250 kg |
| Automatic cross-feed: | |
| from | 10 mm/min |
| up to | 1000 mm/min |
| Automatic Vertical feed: | |
| from | 0.001 mm/min |
| up to | 0.099 mm/min |
| Table speeds: | |
| from | 2 m/min |
| up to | 35 m/min |
| Vertical rapid traverse | 600 mm/min |
| Diameter of grinding wheel | 225 mm |
| Width of the grinding wheel | 25 mm |
| Wheel int. diameter | 50.8 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 6 kVA |
| Overall dimensions machine: | |
| Length | 2650 mm |
| Width | 1700 mm |
| Height | 2280 mm |
ZIERSCH + BALTRUSCH ZB 62 is a Surface grinder designed for precision machining, high accuracy and reliability. Capacities: table 600×200 mm, grinding length 600 mm, grinding width 250 mm, table load max. 250 kg. Key specs: automatic cross-feed 10–1000 mm/min, automatic vertical feed 0.001–0.099 mm/min; table speeds 2–35 m/min; vertical rapid 600 mm/min; grinding wheel Ø225×25 mm, bore 50.8 mm; supply 3x 400 V 50 Hz, total power 6 kVA; overall dimensions 2650×1700×2280 mm. Enables tight tolerances; typical sectors: automotive, toolmaking, aerospace, medical.
Technical specifications are subject to change without notice
