| Table length | 400 mm |
| Table width | 200 mm |
| Measuring range: | |
| longitudinal | 150 mm |
| transversal | 100 mm |
| Magnification: | |
| from | 20 x |
| Nonius turnable | 360 ° |
| Digital readout number of axis: | 2 |
| Longitudinal travel | 150 |
| transversal travel | 100 |
| Machine's weight about | 30 kg |
| Overall dimensions machine: | |
| Length | 700 mm |
| Width | 500 mm |
| Height | 700 mm |
| Various accessories: | |

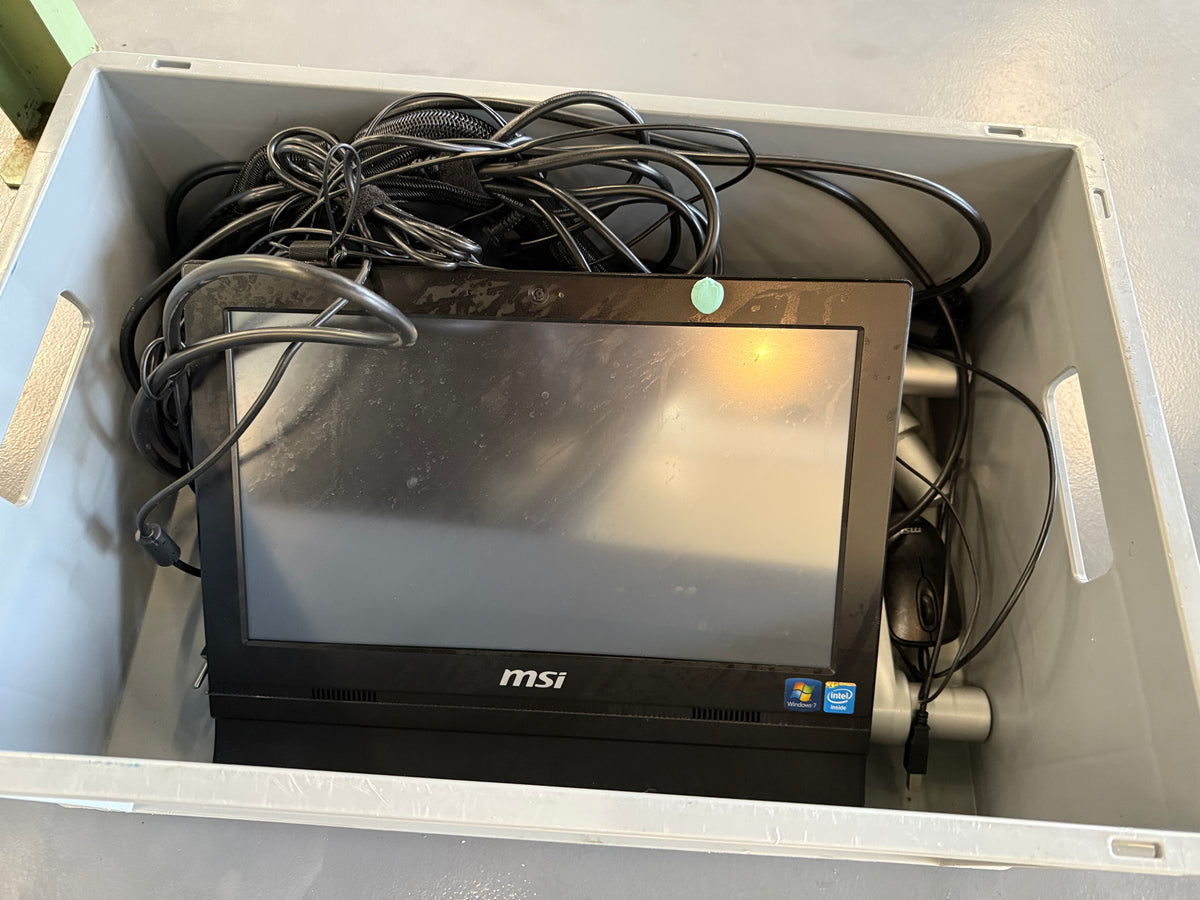

| Screen: | MSi |
| Lamp |
ISOMA M 215 is a measuring microscope delivering precision, high accuracy and reliable performance. Table 400×200 mm; travel longitudinal 150 mm, transversal 100 mm; magnification from 20×; turnable nonius 360°; digital readout 2 axes. Overall L700×W500×H700 mm, weight ≈30 kg. MSi screen. Suited to achieving tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
