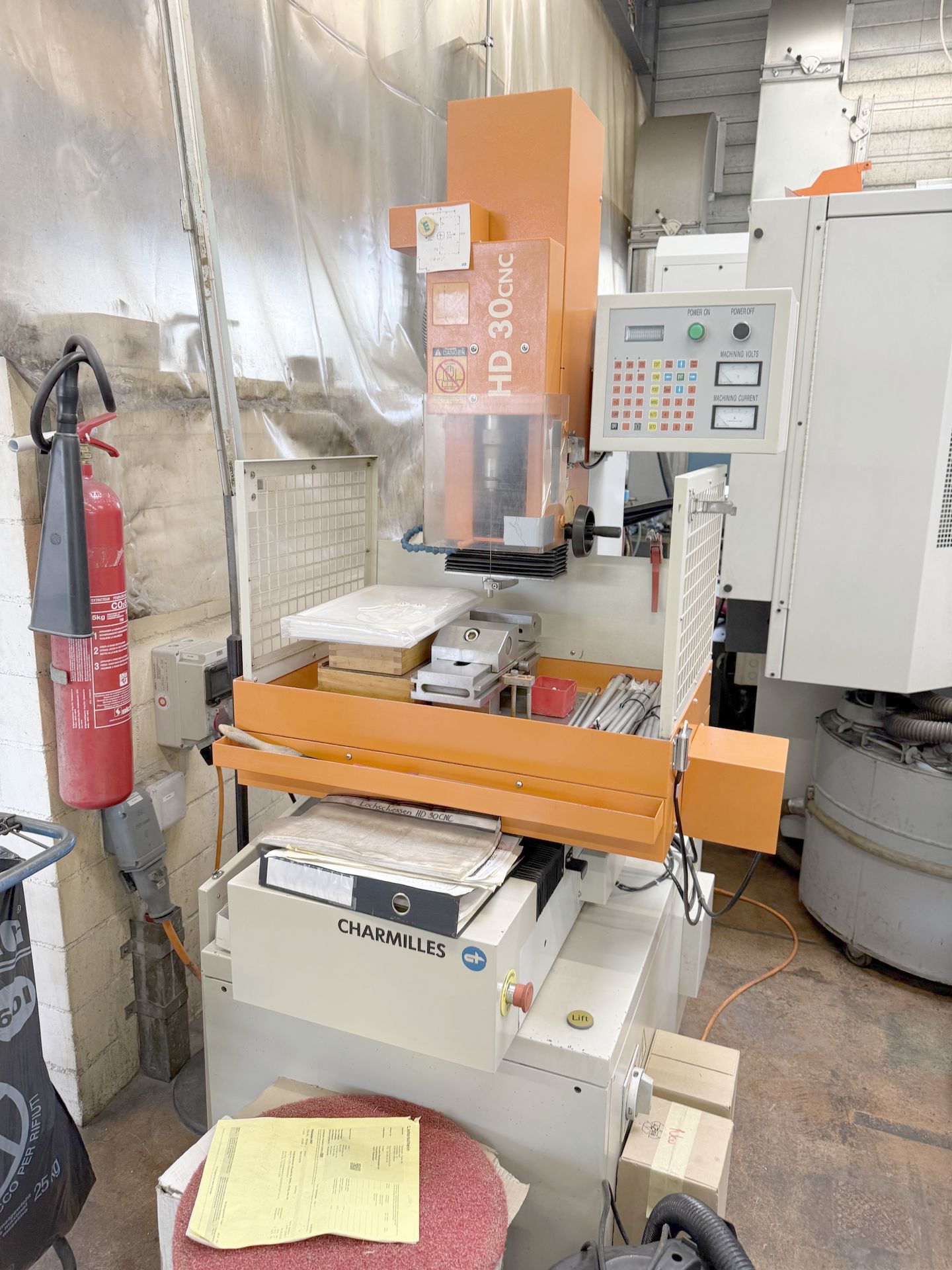

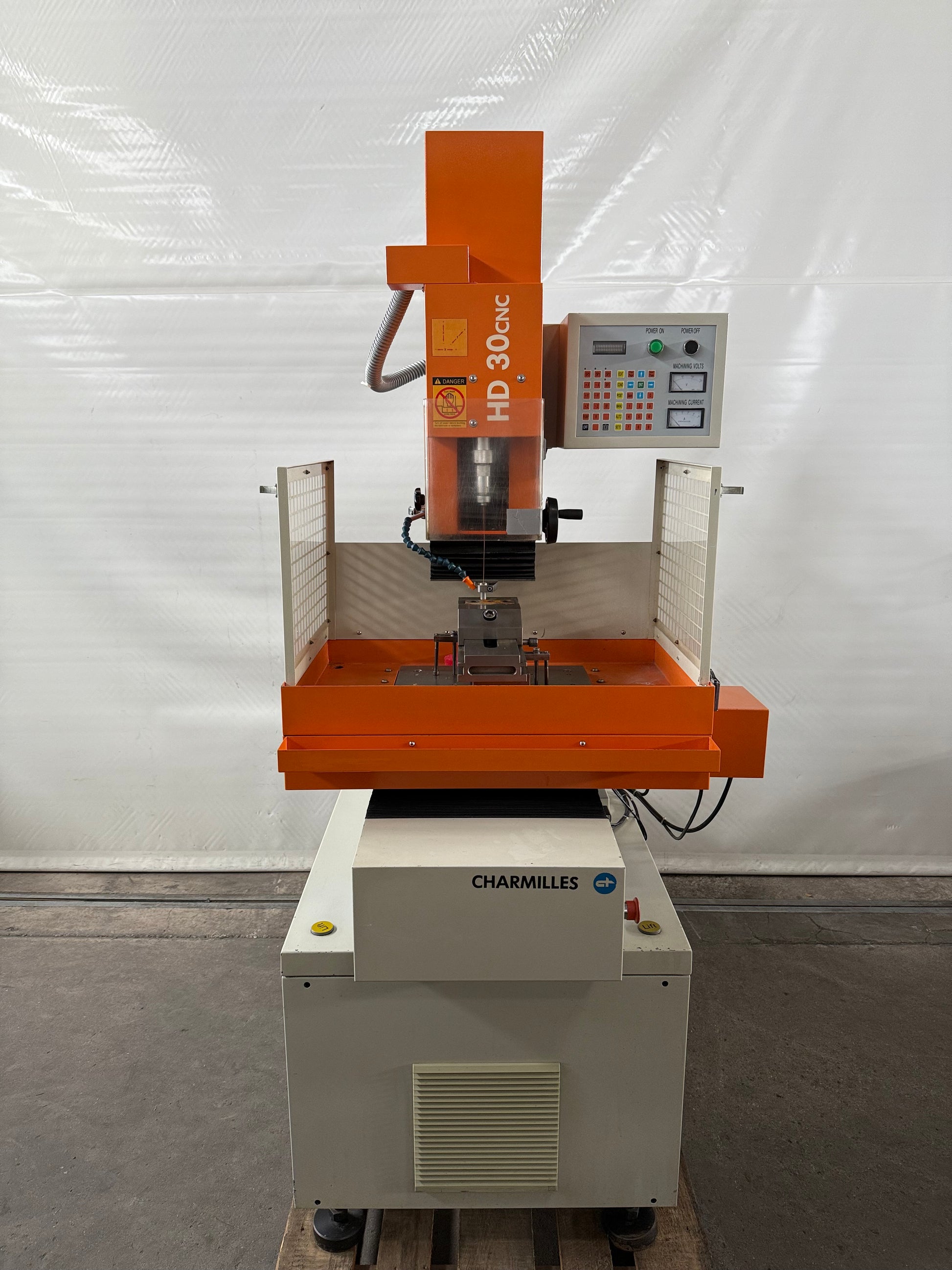

AGIE CHARMILLES HD 30 CNC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
AGIE CHARMILLES HD 30 CNC is a Start hole eroding machine engineered for precision, high accuracy and reliable performance. Working capacities (diameters, travel ranges, workpiece dimensions) are not specified in the provided information. Detailed technical specifications (spindle speeds, feed rates, power supply, machine dimensions, weight) were not provided. Capable of achieving tight tolerances; typical application sectors include automotive, watchmaking, machine tools, aerospace and medical.

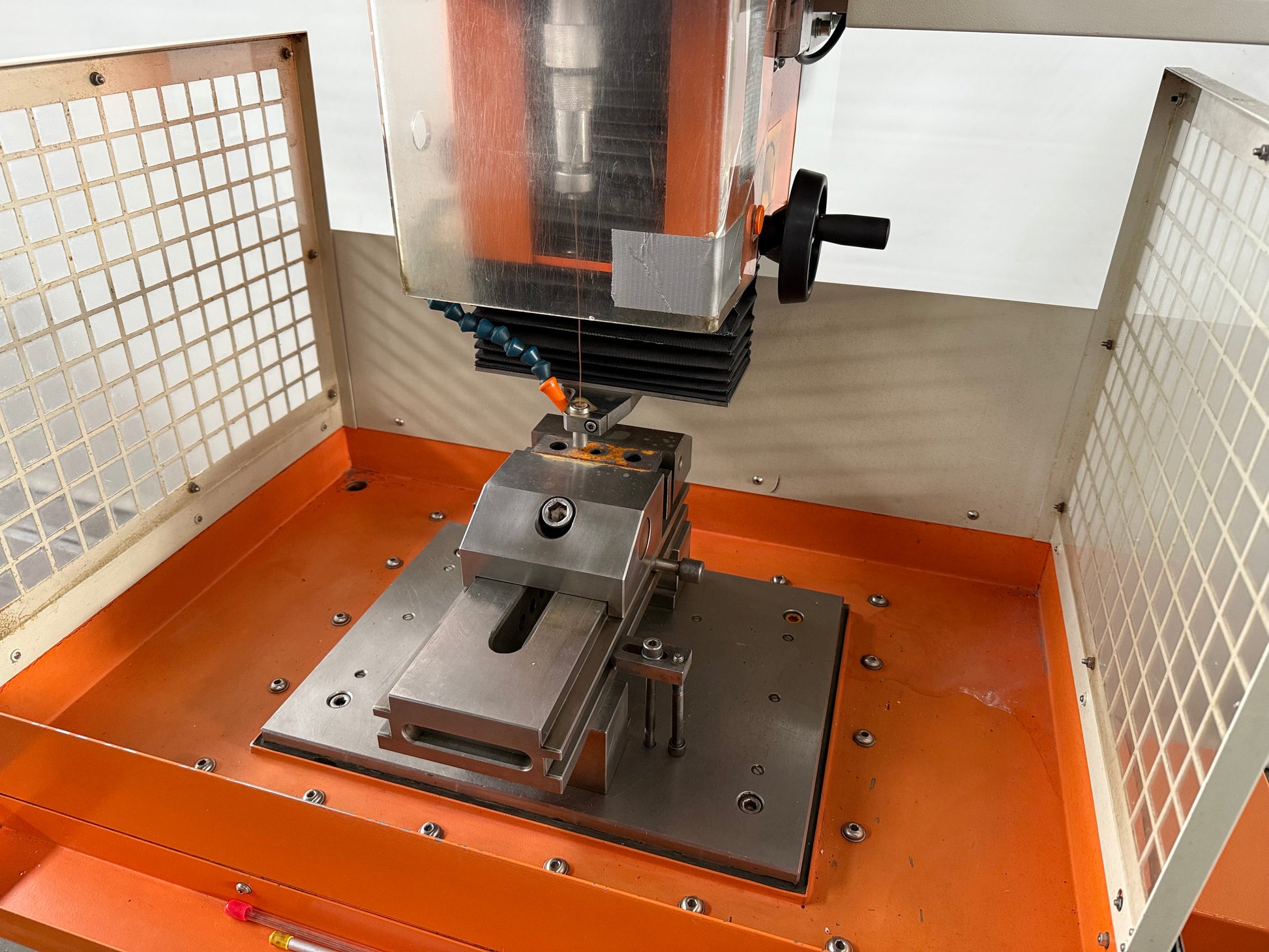

| Table length | 400 mm |
| Table width | 300 mm |
| Table load max. | 300 kg |
| Longitudinal traverse (X-axis) | 300 mm |
| Cross traverse (Y-axis) | 200 mm |
| Height adjustment (Z-axis) | 300 mm |
| Drill capacity: | |
| from | 0.3 mm |
| up to | 3 mm |
| Generator: | |
| Power | 30 A |
| Total power required | 4 kVA |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1200 kg |
| Overall dimensions machine: | |
| Length | 1340 mm |
| Width | 900 mm |
| Height | 1940 mm |
