023100 - SCHAUBLIN 102N-80 VM
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 102 mm |
| Distance between centres | 450 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Taper in spindle: | |
| Thread | |
| Spindle speeds: | |
| number (steps) | 24 |
| from | 45 t/min |
| up to | 3100 t/min |
| Pitch of leadscrew | 4 mm |
| Diameter of leadscrew | 40 mm |
| Taper in tailstock: | 2 CM |
| Feeds: | |
| number (steps) | 8 |
| length: | |
| from | 0.020 mm/t |
| up to | 0.3 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.50 CV |
| Machine's weight about | 550 kg |
| Overall dimensions machine: | |
| Length | 1375 mm |
| Width | 670 mm |
| Height | 1210 mm |
| Various accessories: | |
| 6-jaw chuck diameter | mm |
| Coolant system | |
| Driving plate | |
| Toolholders | |
| Set of collets | |
| Drilling tailstock | |
| Clutch and brake | |

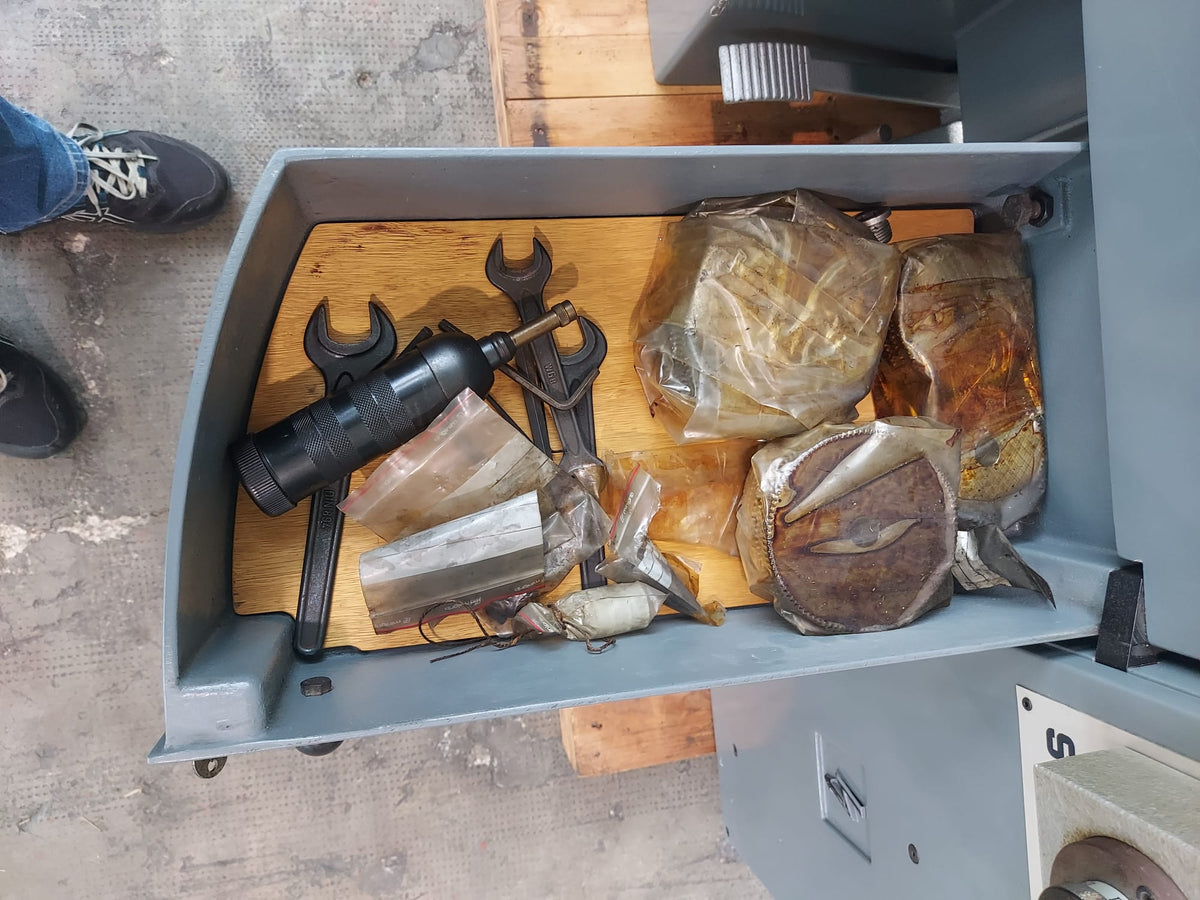

| 2 drawers |
