ABENE VHF 360 TI
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

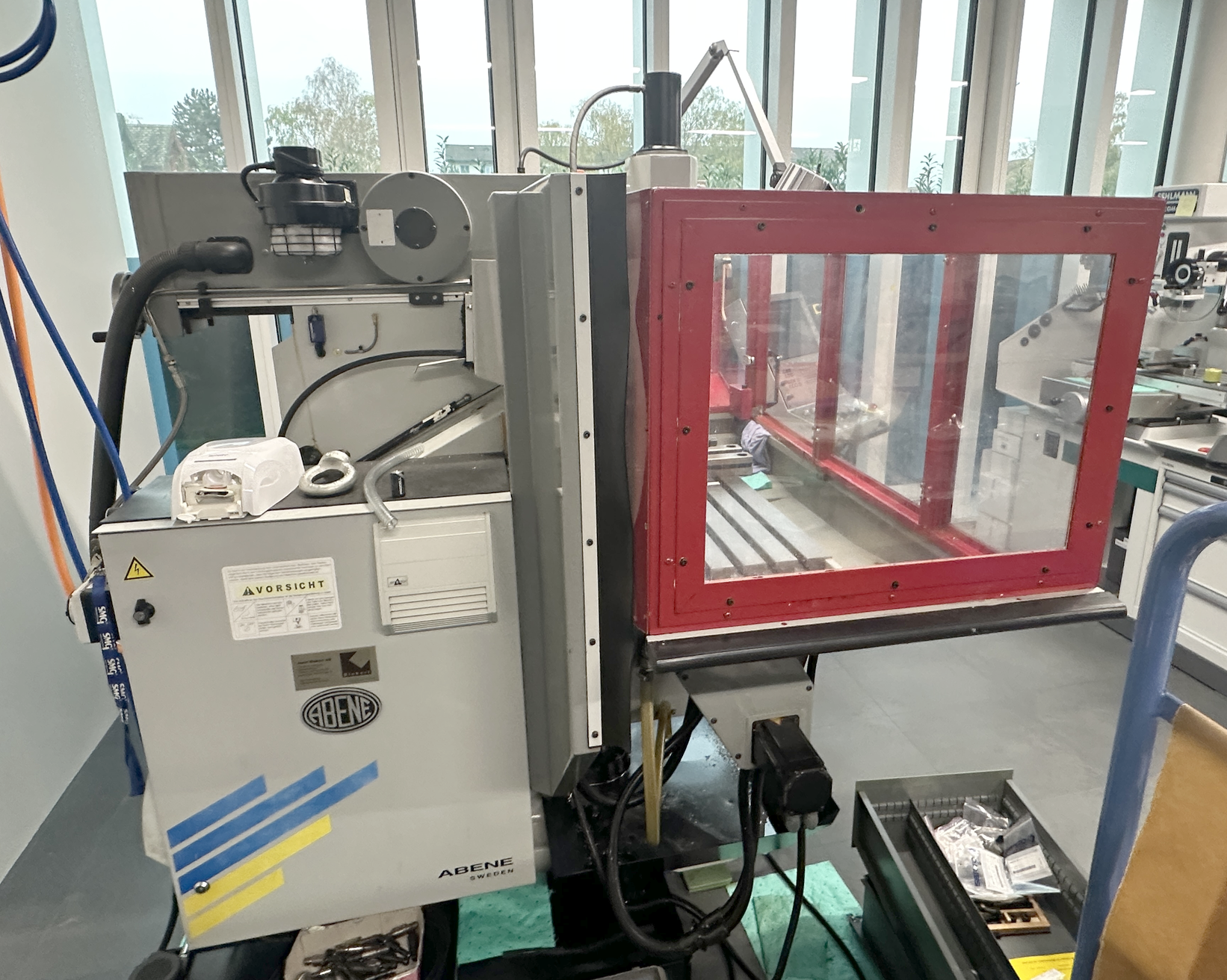

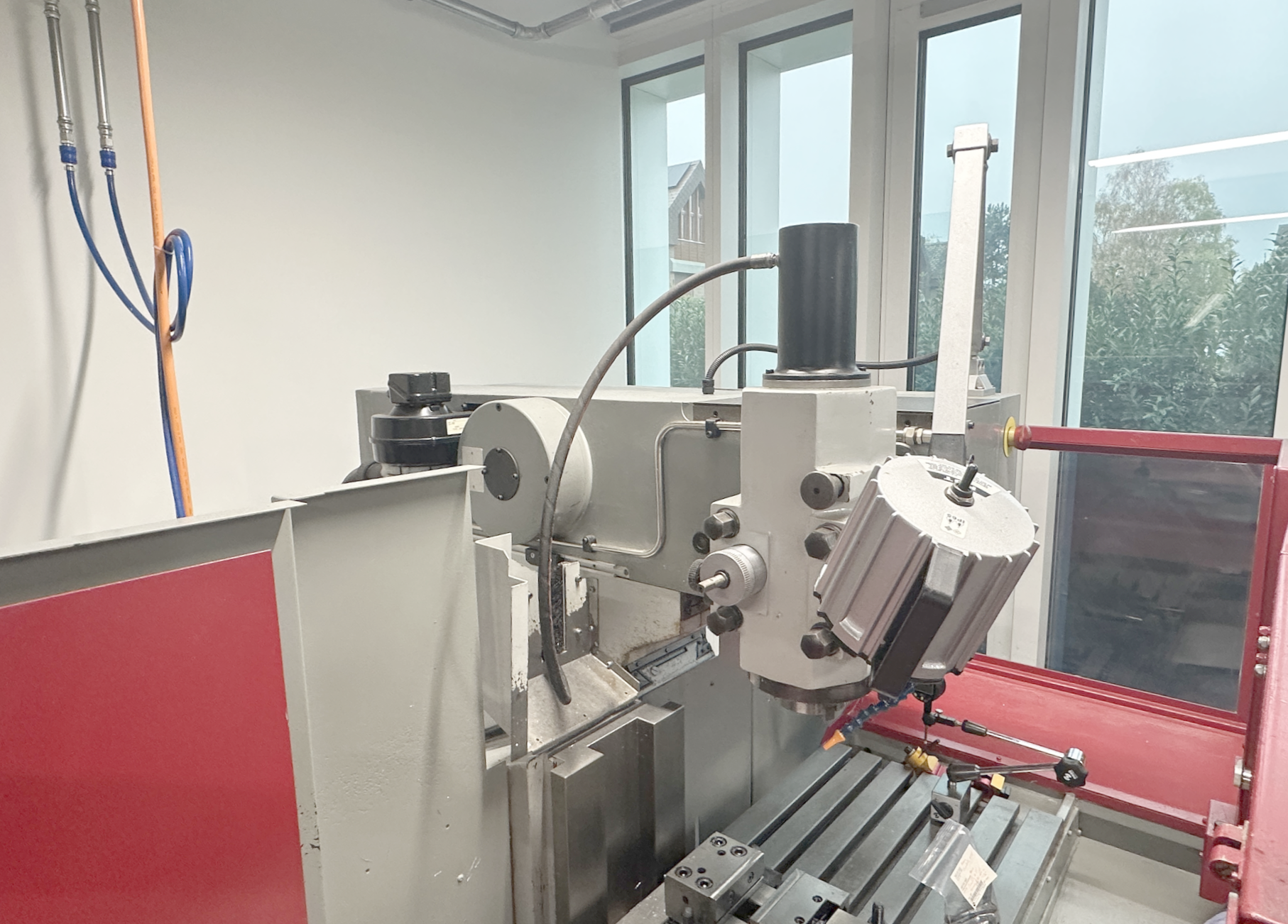

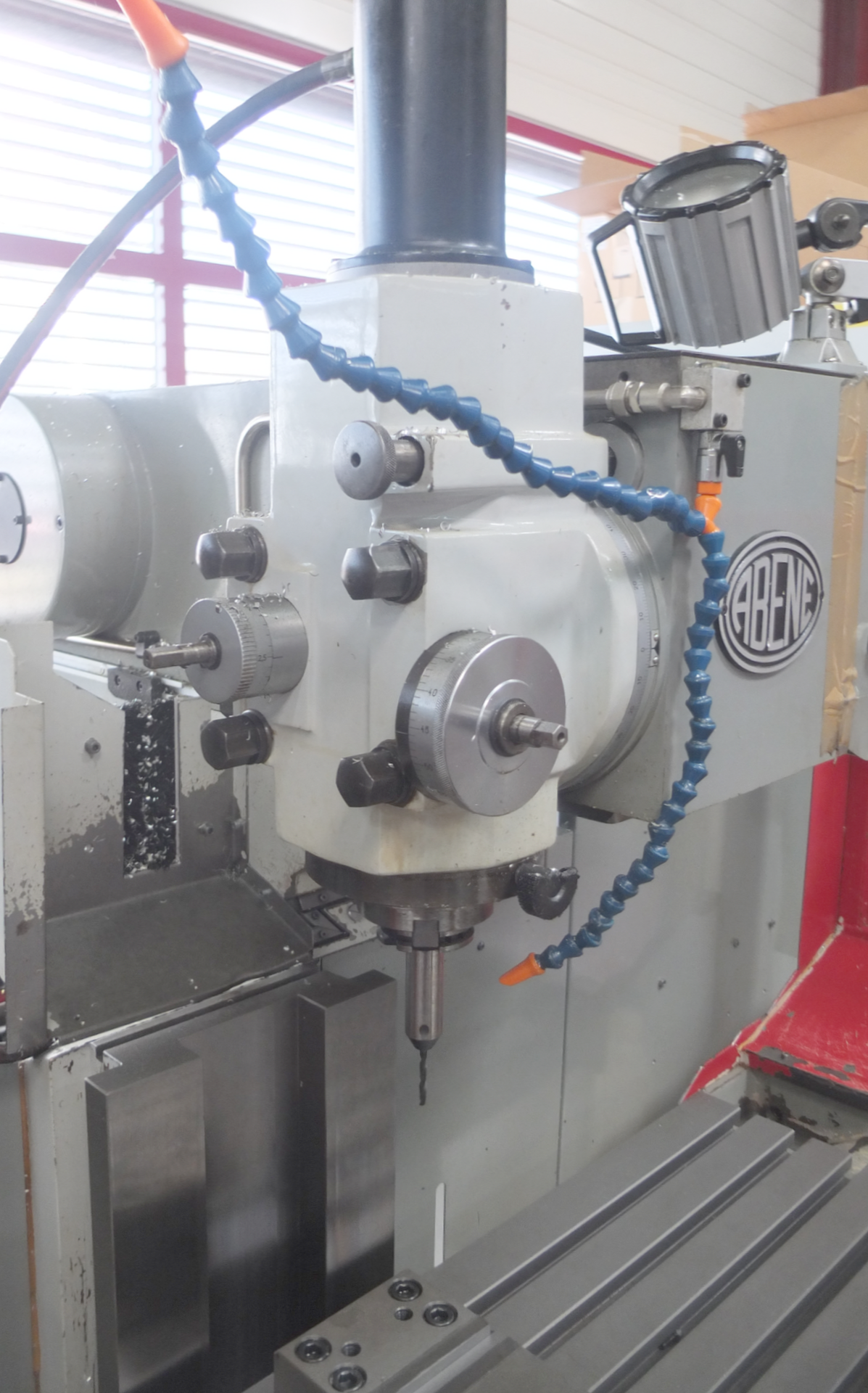

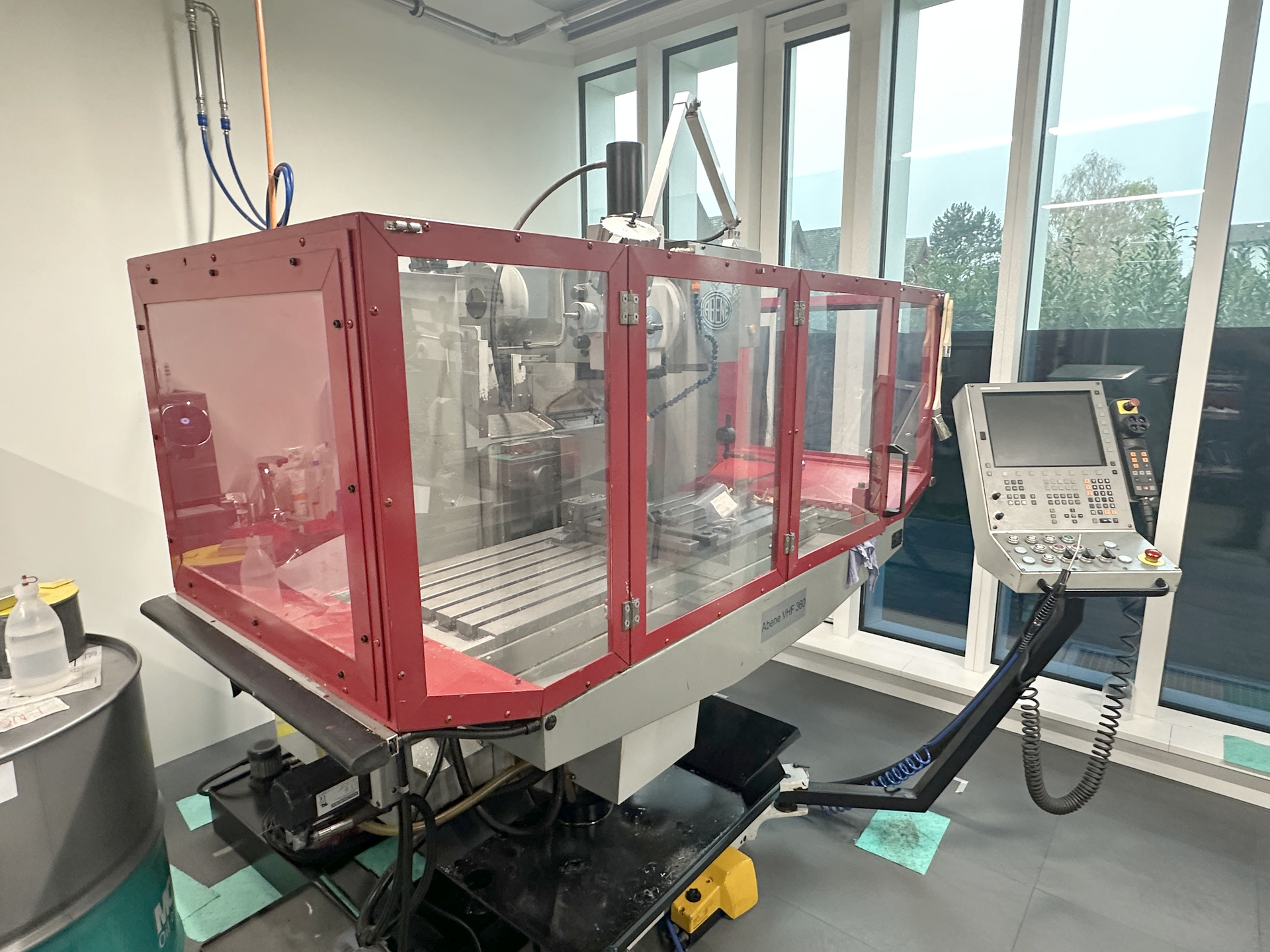

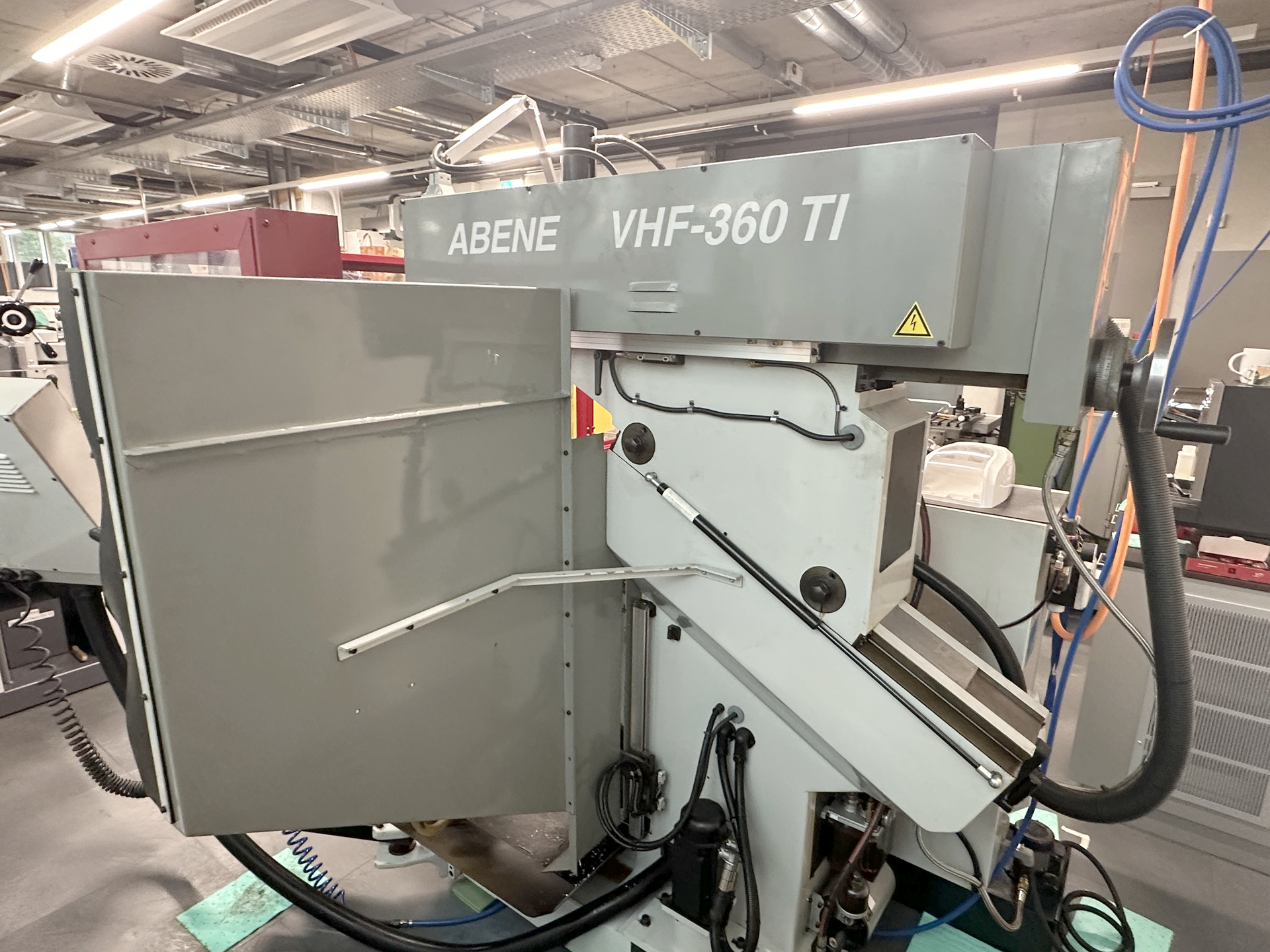

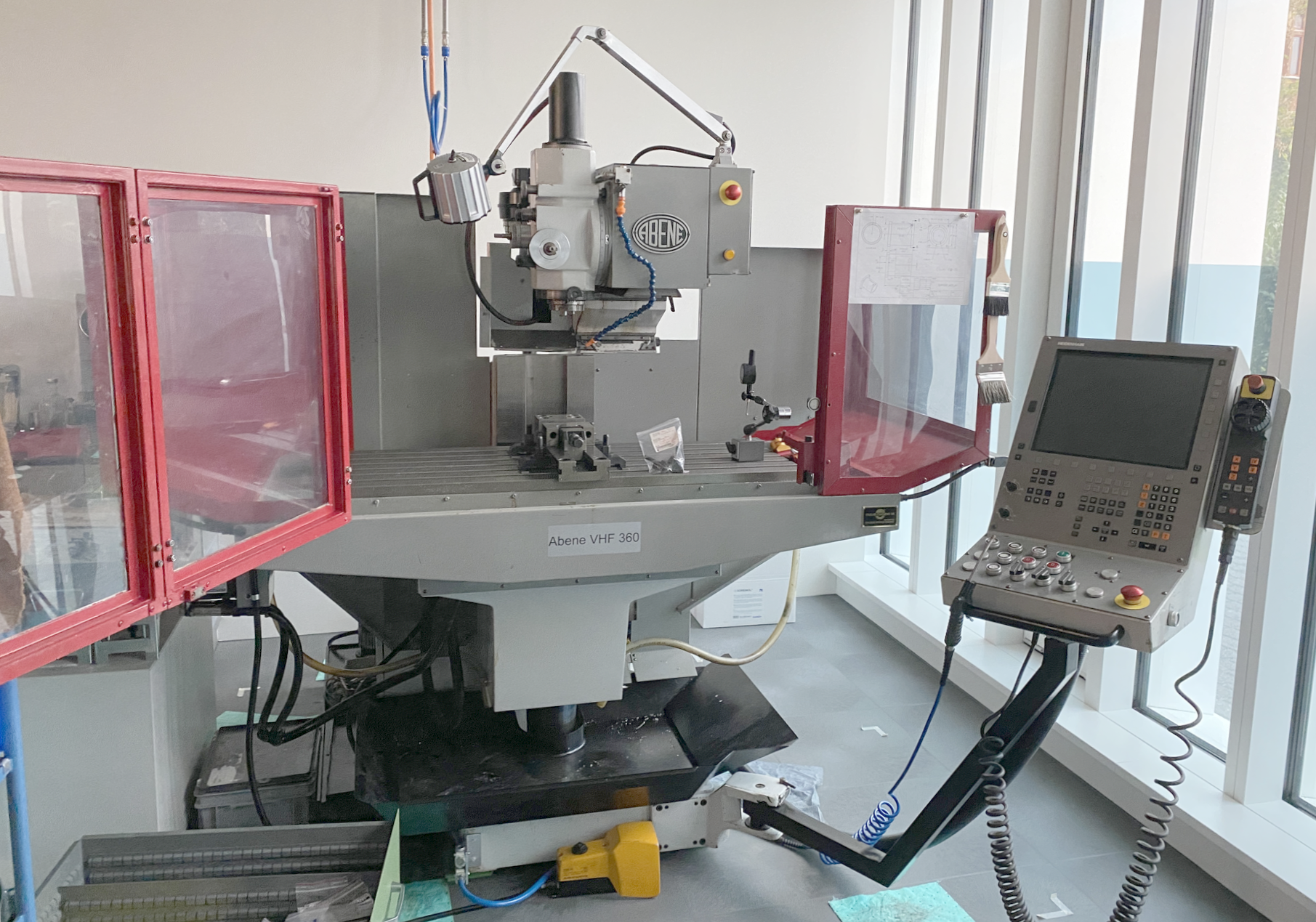

ABENE VHF 360 TI is a CNC milling machine engineered for precision, high accuracy and reliability. Table 1200×450 mm; travels X 650, Y 480, Z 475 mm. Spindle 55–3000 t/min (stepless); feeds up to 4000 mm/min; spindle motor 7.5 kW; voltage 3×400 V 50 Hz. Weight ~2200 kg; size 1800×2200×2000 mm. Accessories: electronic handwheel, coolant system, machine lamp. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 1200 mm |
| Table width | 450 mm |
| Longitudinal travel (X-axis) | 650 mm |
| Transversal travel (y axis) | 480 mm |
| Vertical travel (z axis) | 475 mm |
| Spindle speeds: | |
| stepless | |
| vertical from | 55 t/min |
| up to | 3000 t/min |
| Feeds: | |
| stepless | |
| longitudinal from | mm/min |
| up to | 4000 mm/min |
| transversal from | mm/min |
| up to | 4000 mm/min |
| vertical from | mm/min |
| up to | 4000 mm/min |
| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 7.5 kW |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 2200 mm |
| Height | 2000 mm |
| Various accessories: | |
| Handwheel electroinic | |
| Coolant system | |
| Machine lamp |
