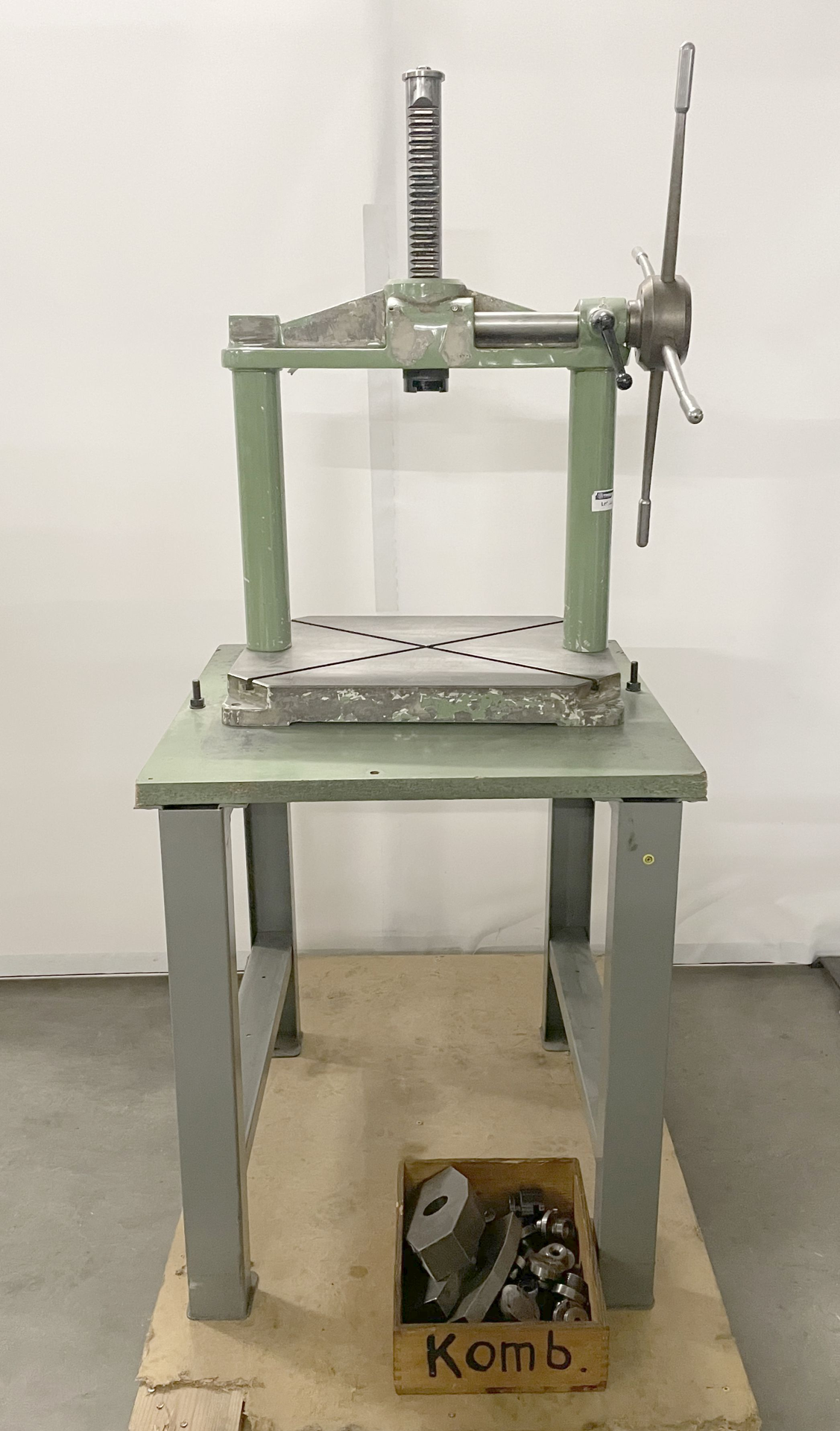

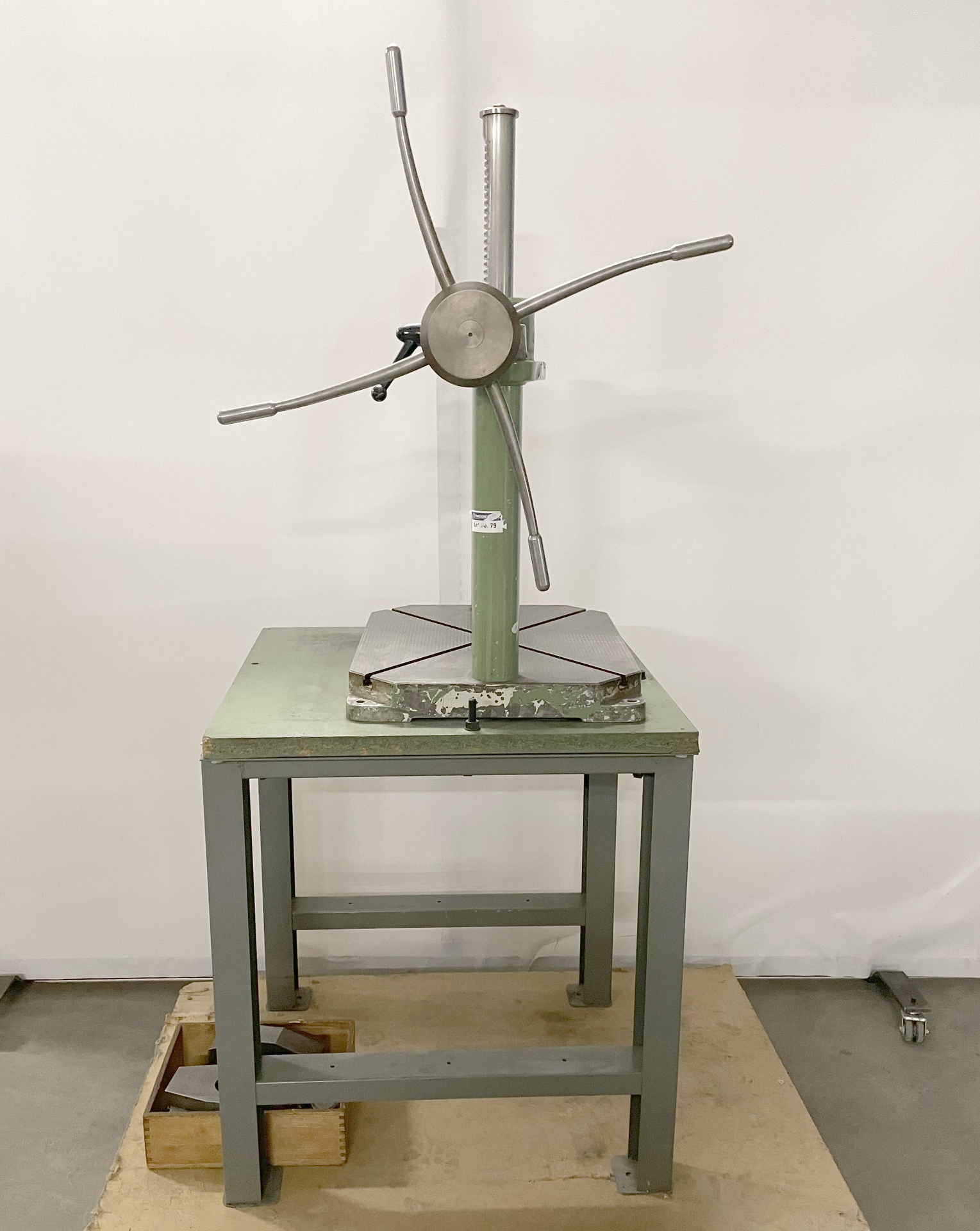

UNBEKANNT is a Hand-operated fly-press designed for precision, high accuracy and reliability. Working capacities: screw Ø 50 mm, slide Ø 65 mm with 350 mm stroke; table 570×440 mm; distance between columns 430 mm. Technical specs: double-column frame, overall dimensions 720×720×800 mm, machine weight approx. 200 kg. Accessories: cast-iron base. Enables tight tolerances and is suited to automotive, watchmaking, machine tools, aerospace and medical sectors.
| Screw diameter | 50 mm |
| Execution: | |
| Double column | |
| Table size: | |

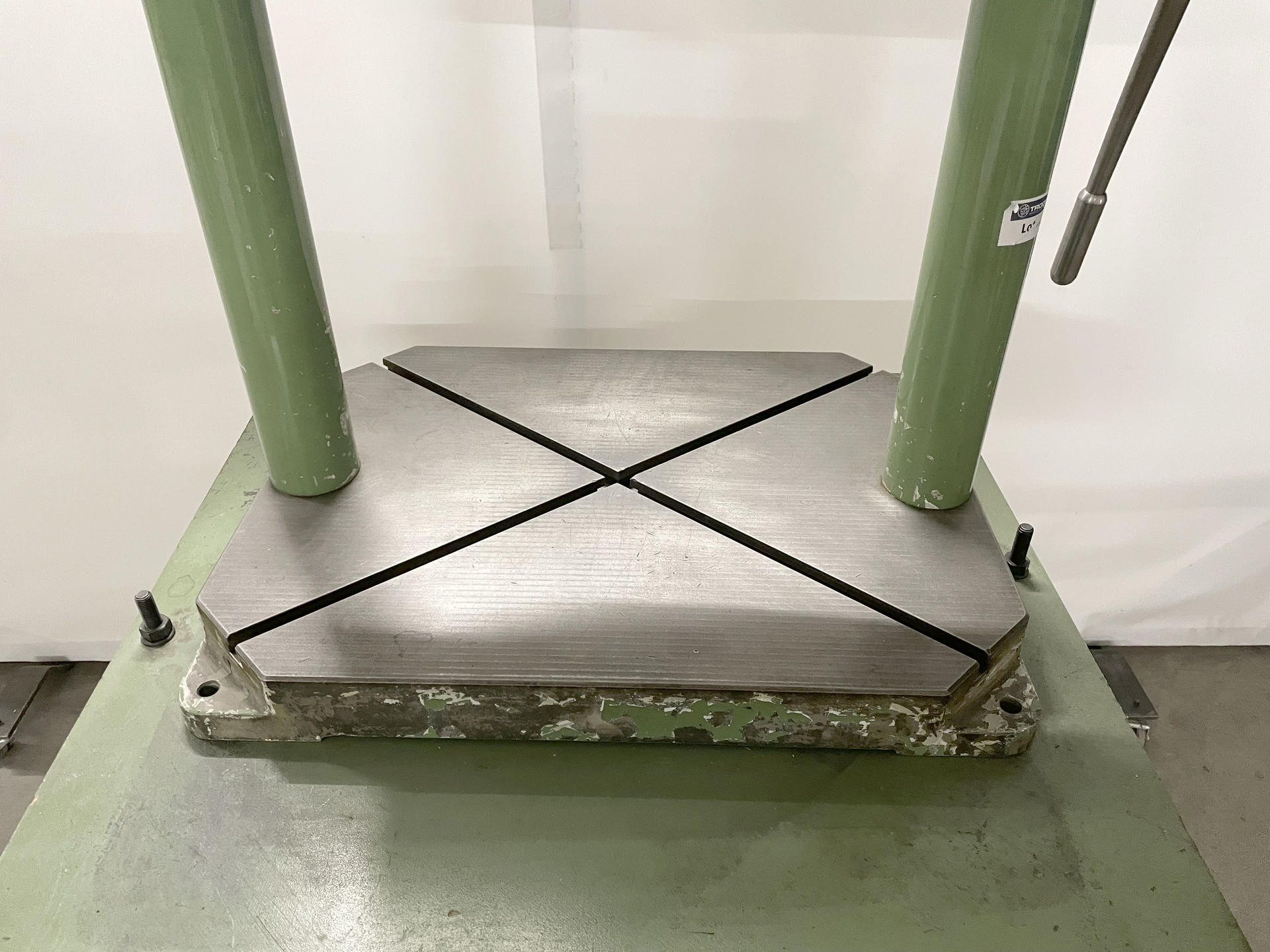

| Length | 570 mm |
| Width | 440 mm |
| Slide surface: | |
| Diameter | 65 mm |
| Slide stroke | 350 mm |
| Distances: | |
| between the columns | 430 mm |
| Machine's weight about | 200 kg |
| Overall dimensions machine: | |
| Length | 720 mm |
| Width | 720 mm |
| Height | 800 mm |
| Various accessories: | |
| Cast-iron base |
