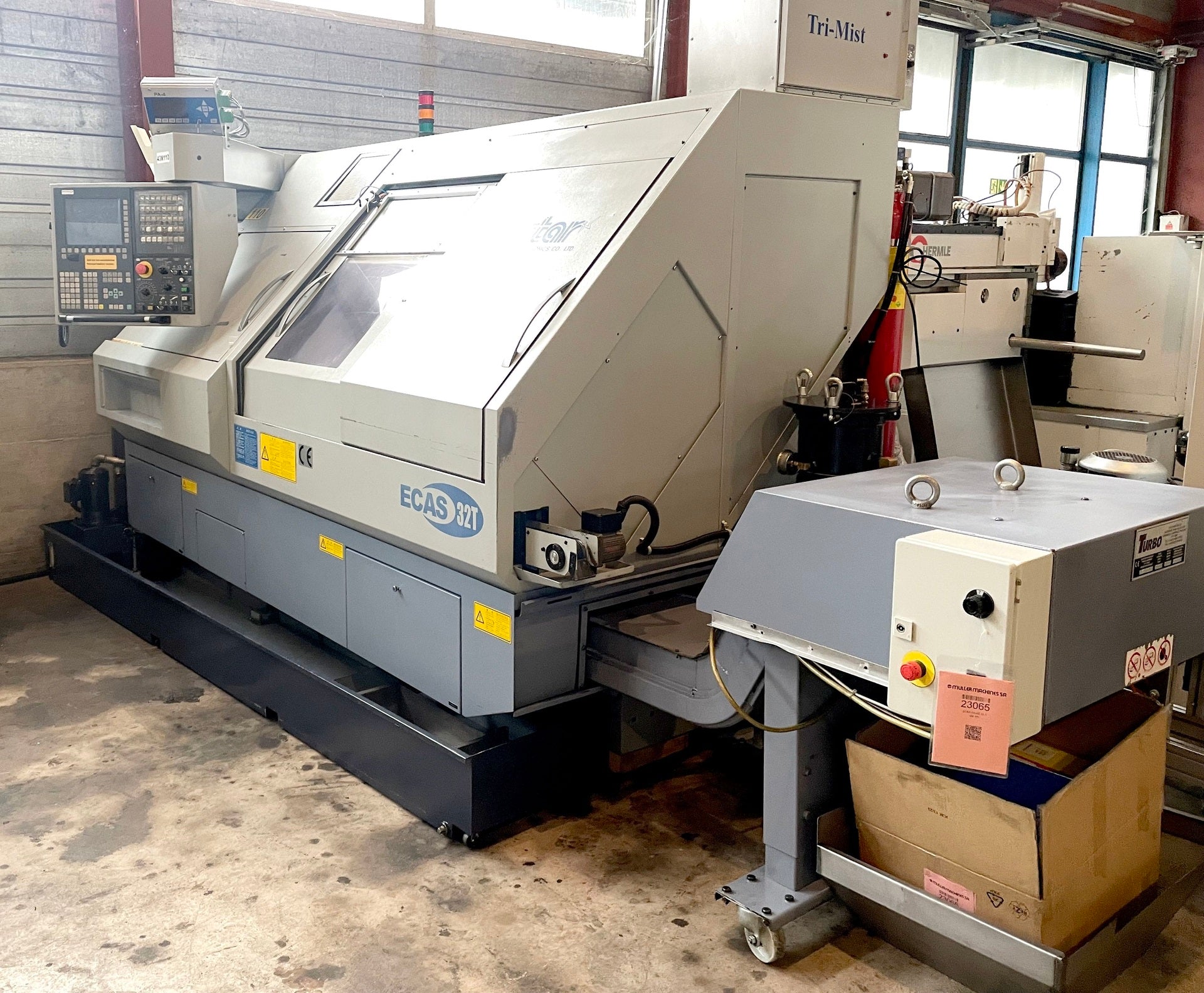

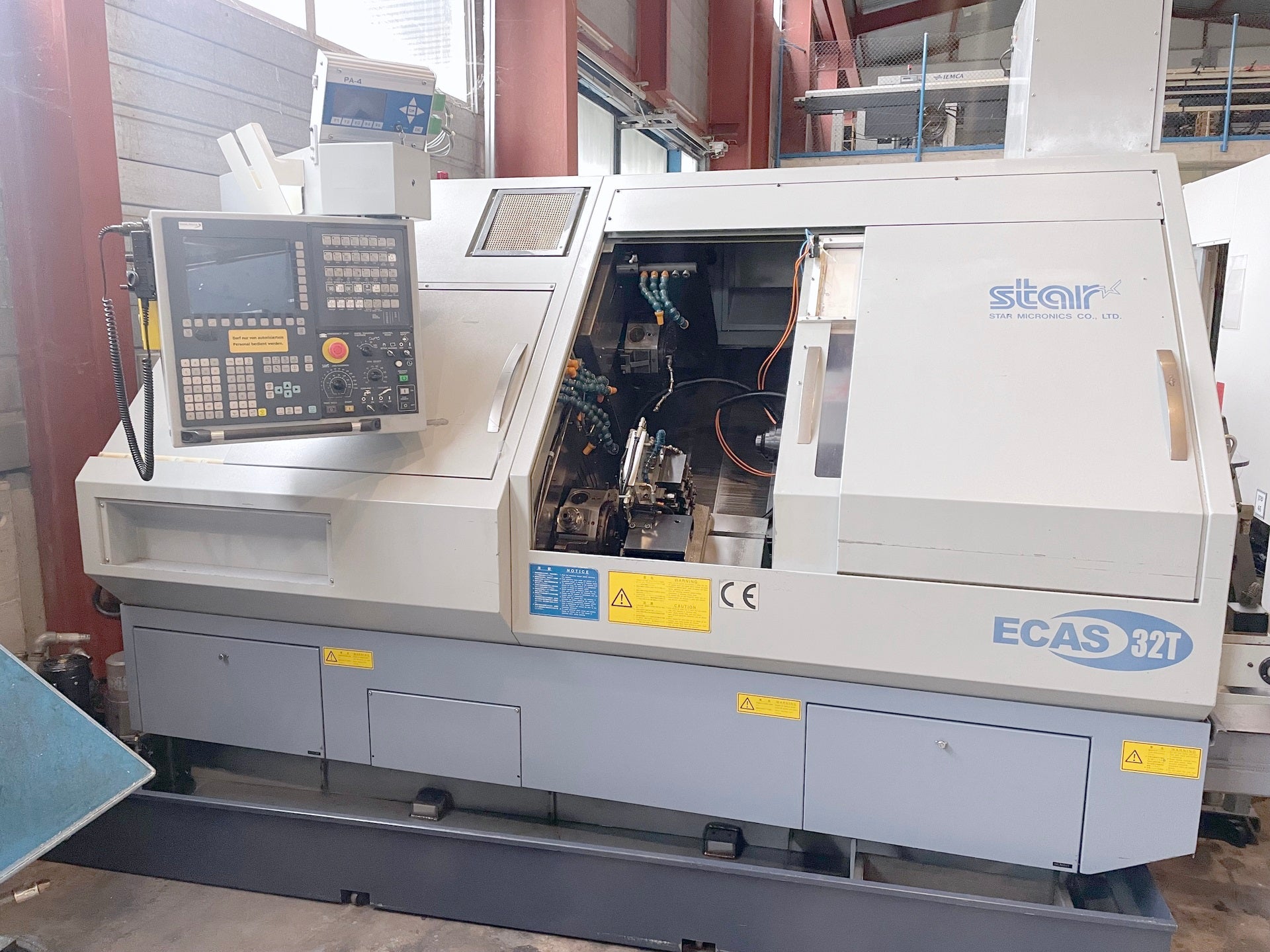

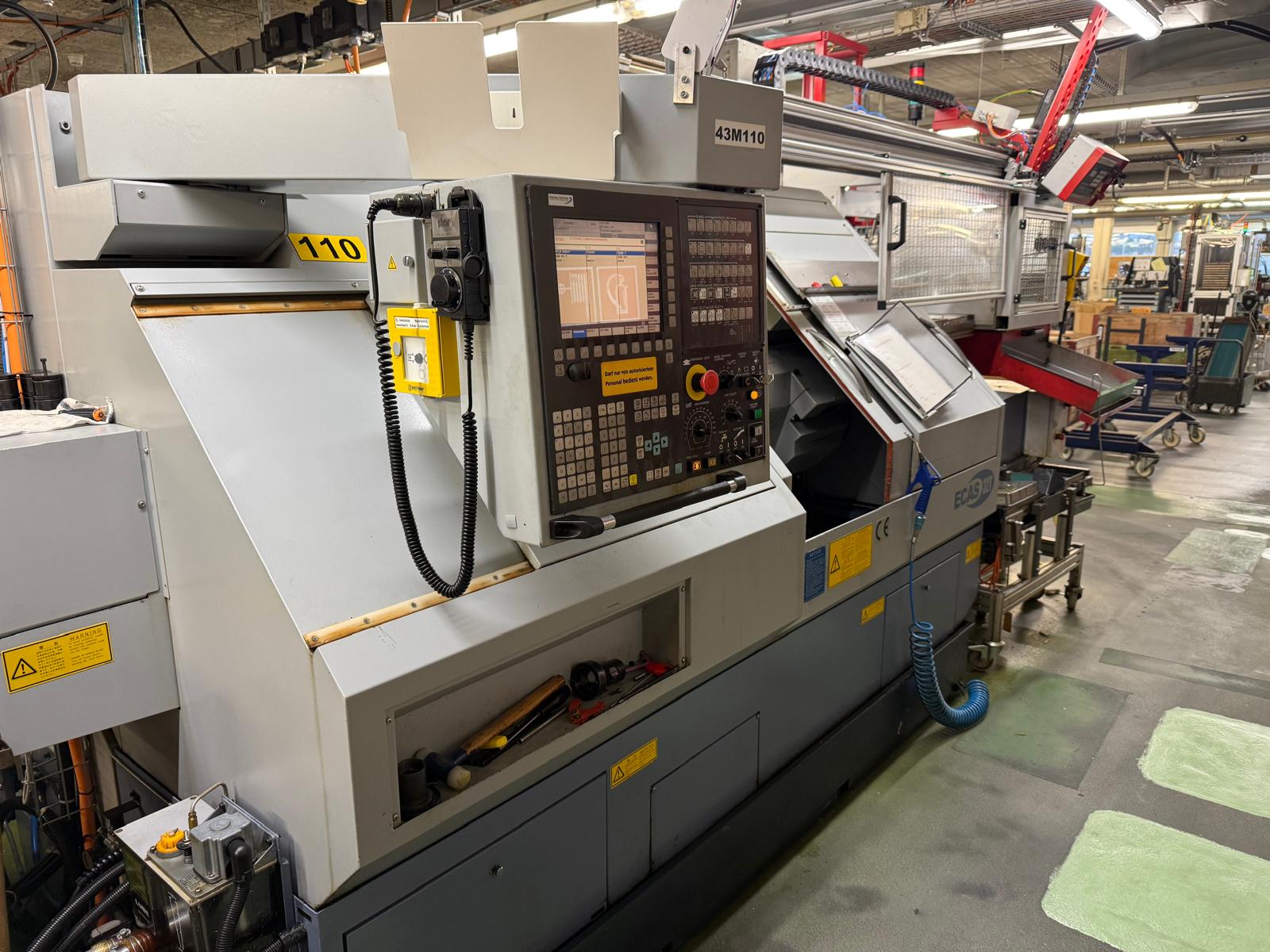

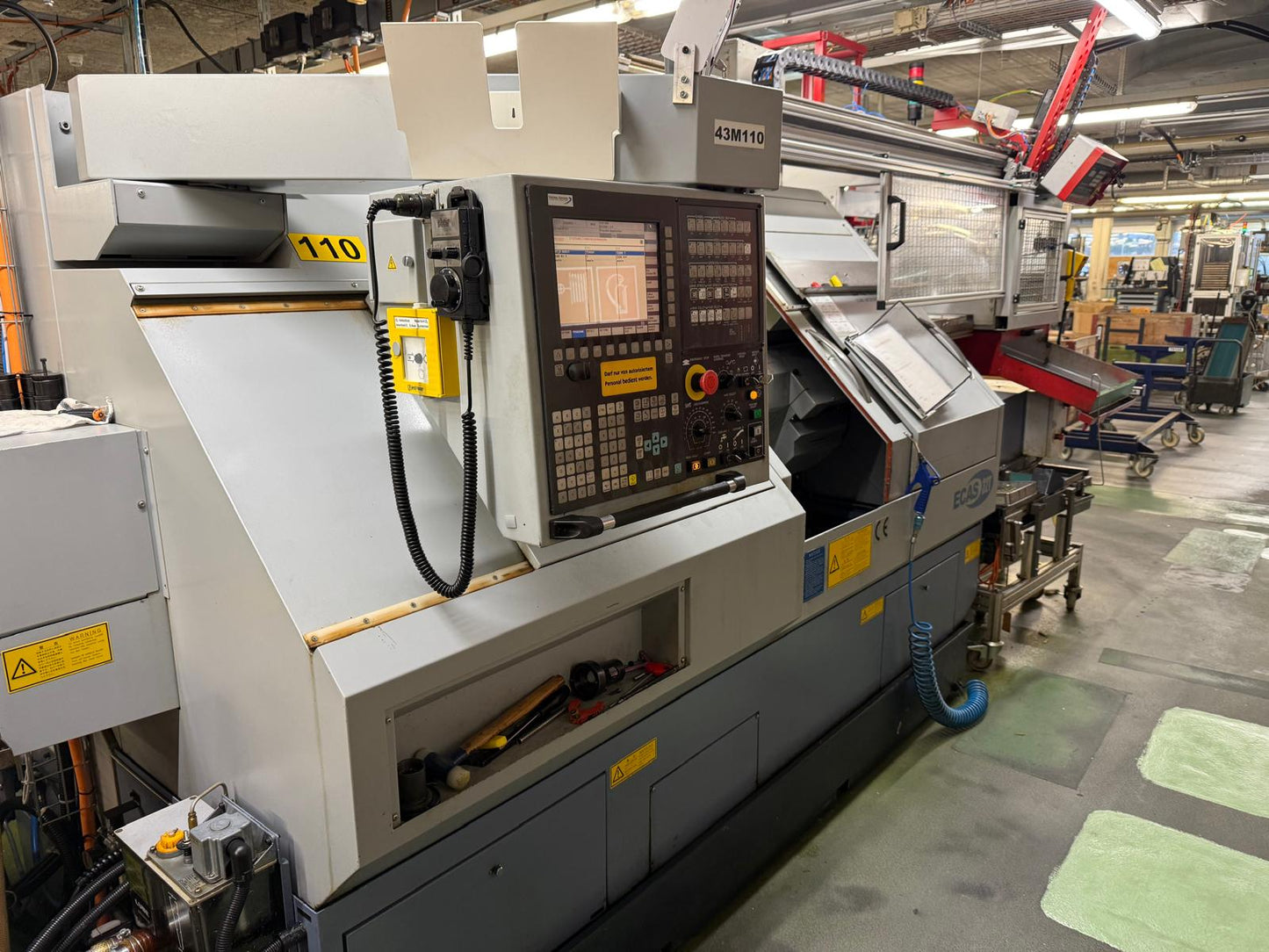

STAR ECAS 32 T is a CNC automatic lathe (CNC Swiss type) engineered for high-precision, high-accuracy and reliable production. Working capacities: 4 axes, 2 spindles, turning length 350 mm, max. bar diameter 32 mm, C-axis on spindle and back spindle, spindle speeds up to 7000 rpm; upper/lower turret 10 tools each, 2 driven tools each (5700 rpm). Technical specs: 50 Hz 3x400 V supply, spindle motor 7.5 kW, back spindle 3.7 kW, total power 8 kVA, machine weight ~5700 kg, dimensions L3175×W1745×H1860 mm. Accessories: LNS bar feeder Express 332 (max 4000 mm), workpiece loader, set of toolholders, chip conveyor, coolant system. Delivers tight tolerances; ideal for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 4 |
| Number of spindles | 2 |
| Turning length | 350 mm |
| Max. bar diameter | 32 mm |
| Spindle speeds: | |
| stepless | |
| up to | 7000 t/min |
| C axis (spindle,resolution) | ° |

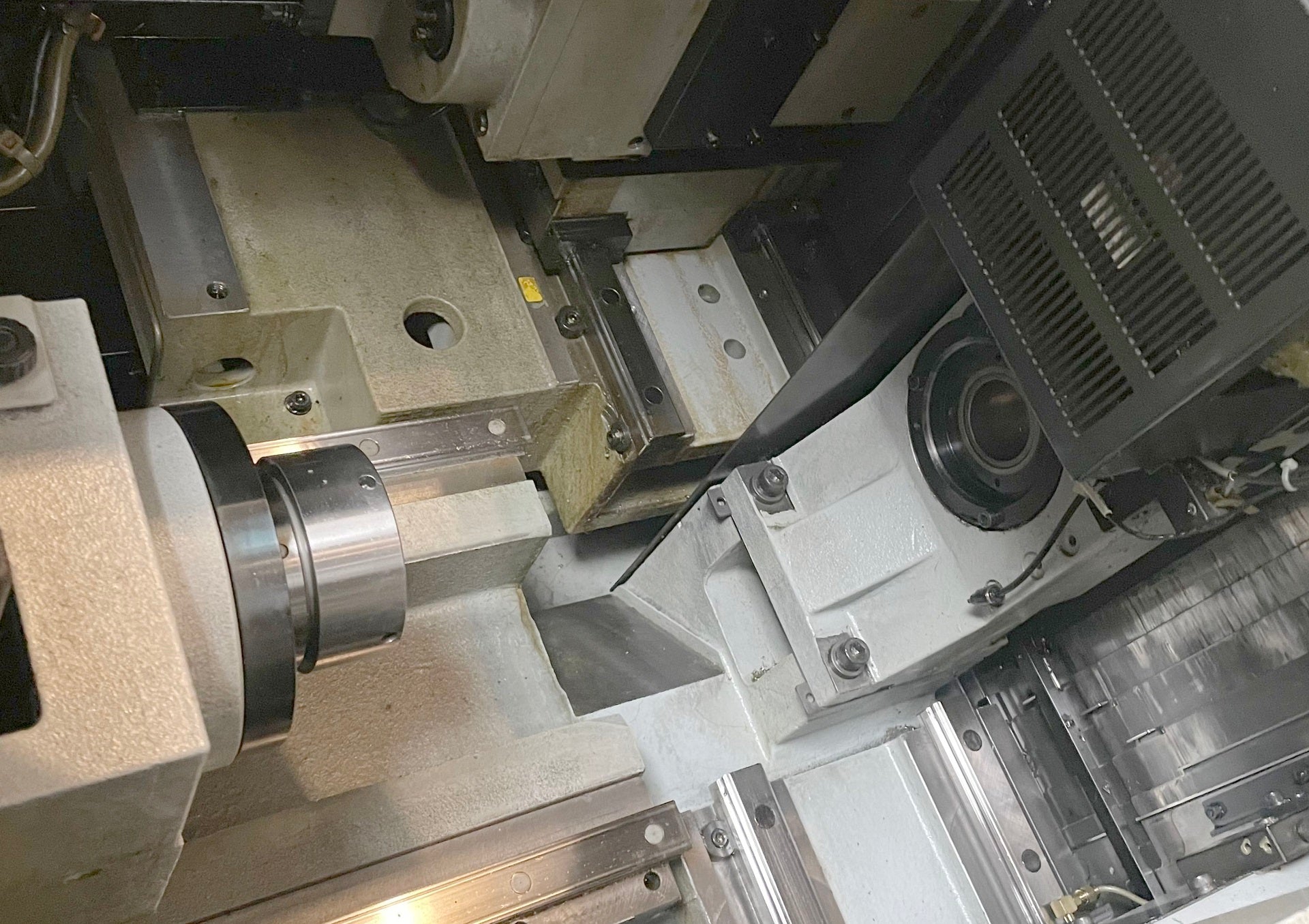

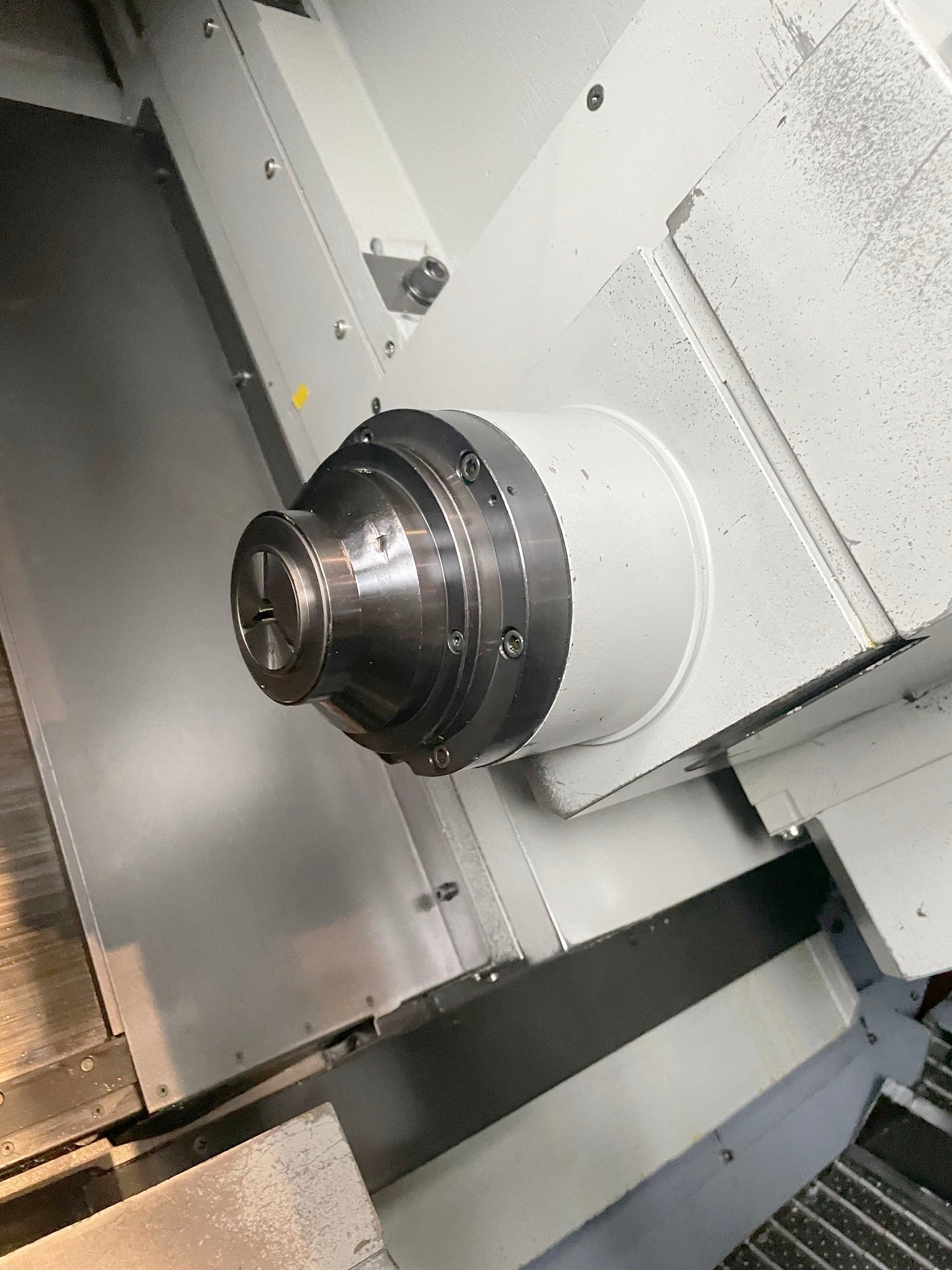

| Back spindle: | |
| speeds: | |
| up to | 7000 t/min |
| C axis (spindle,resolution) | ° |

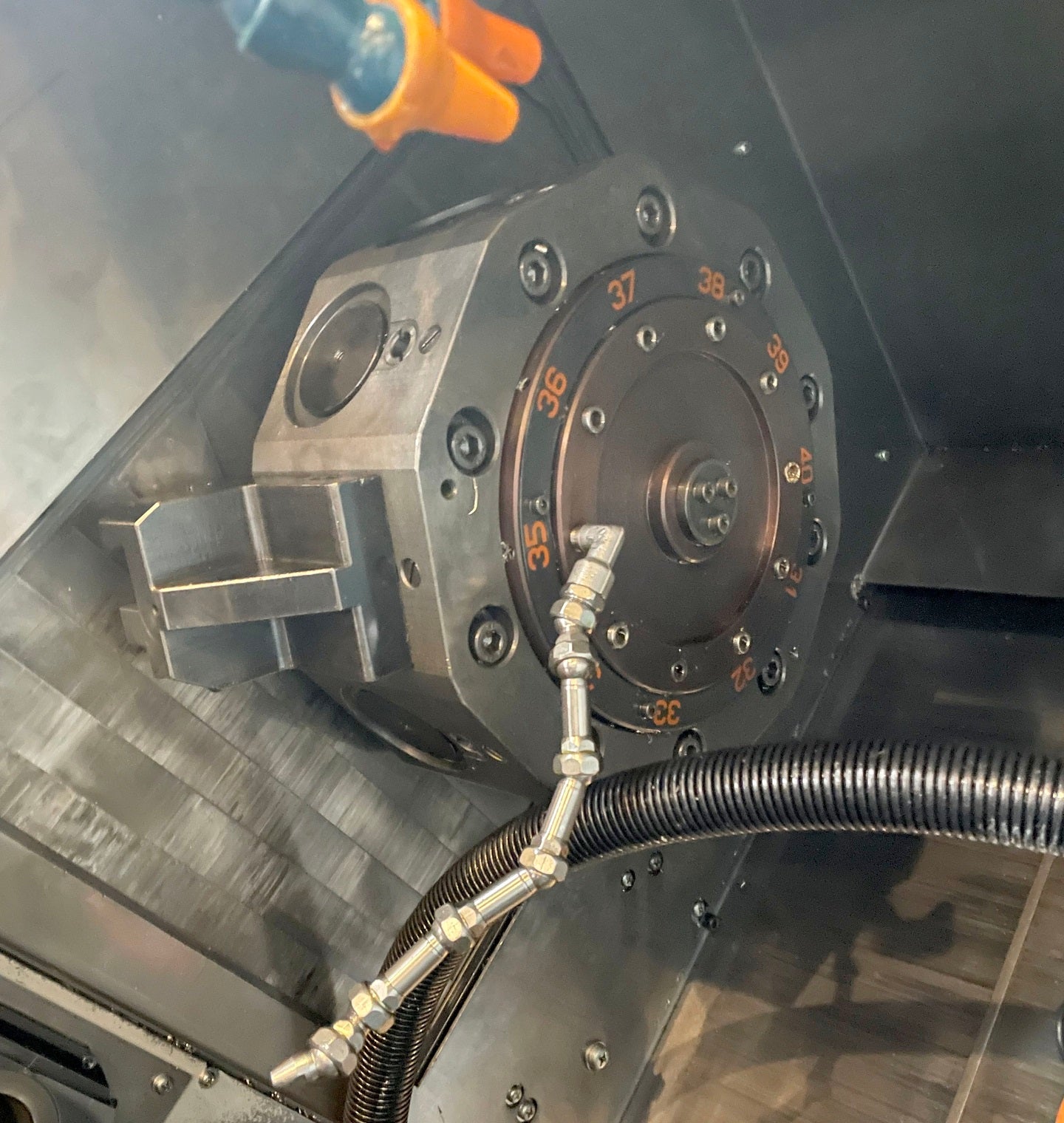

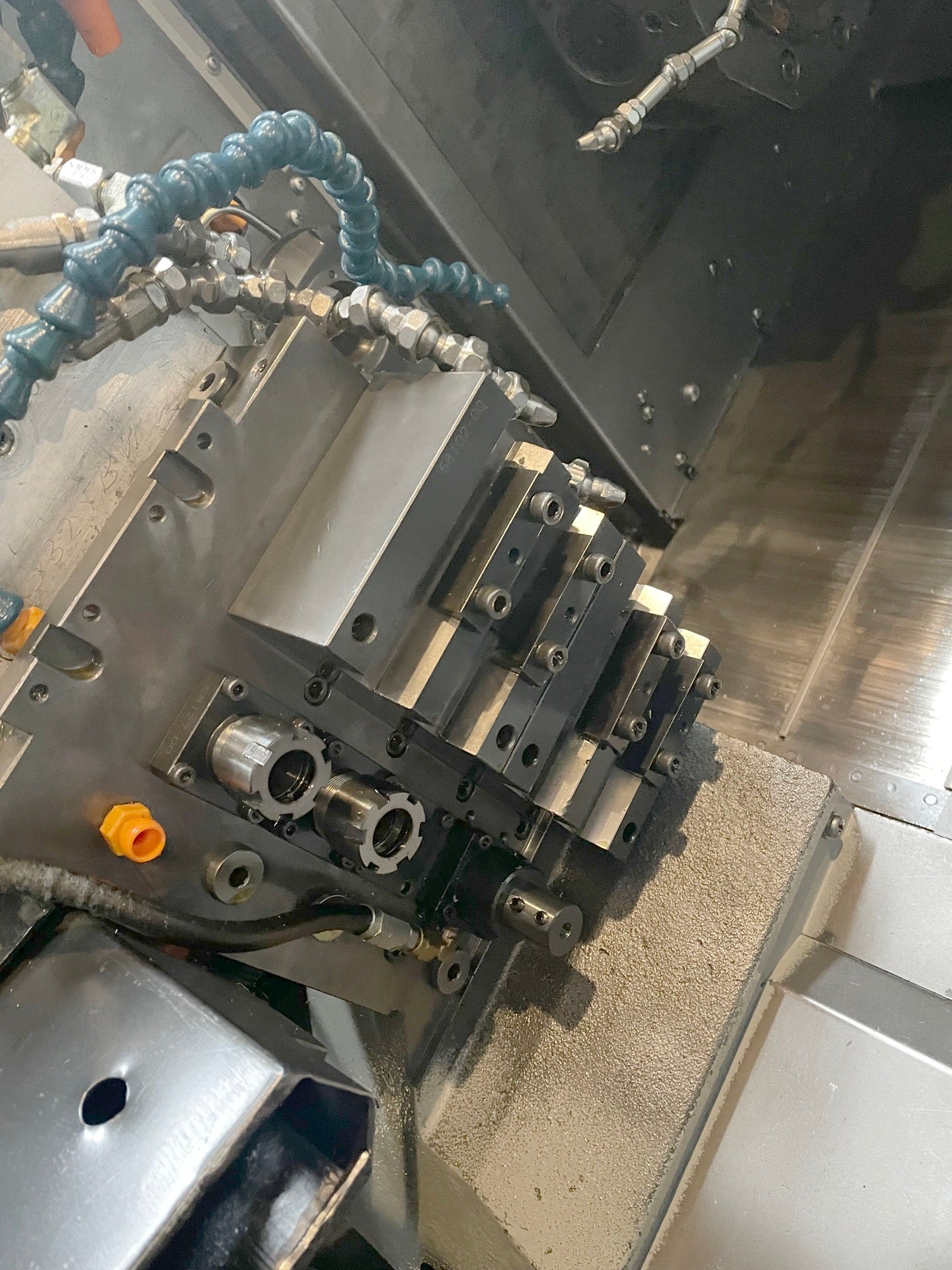

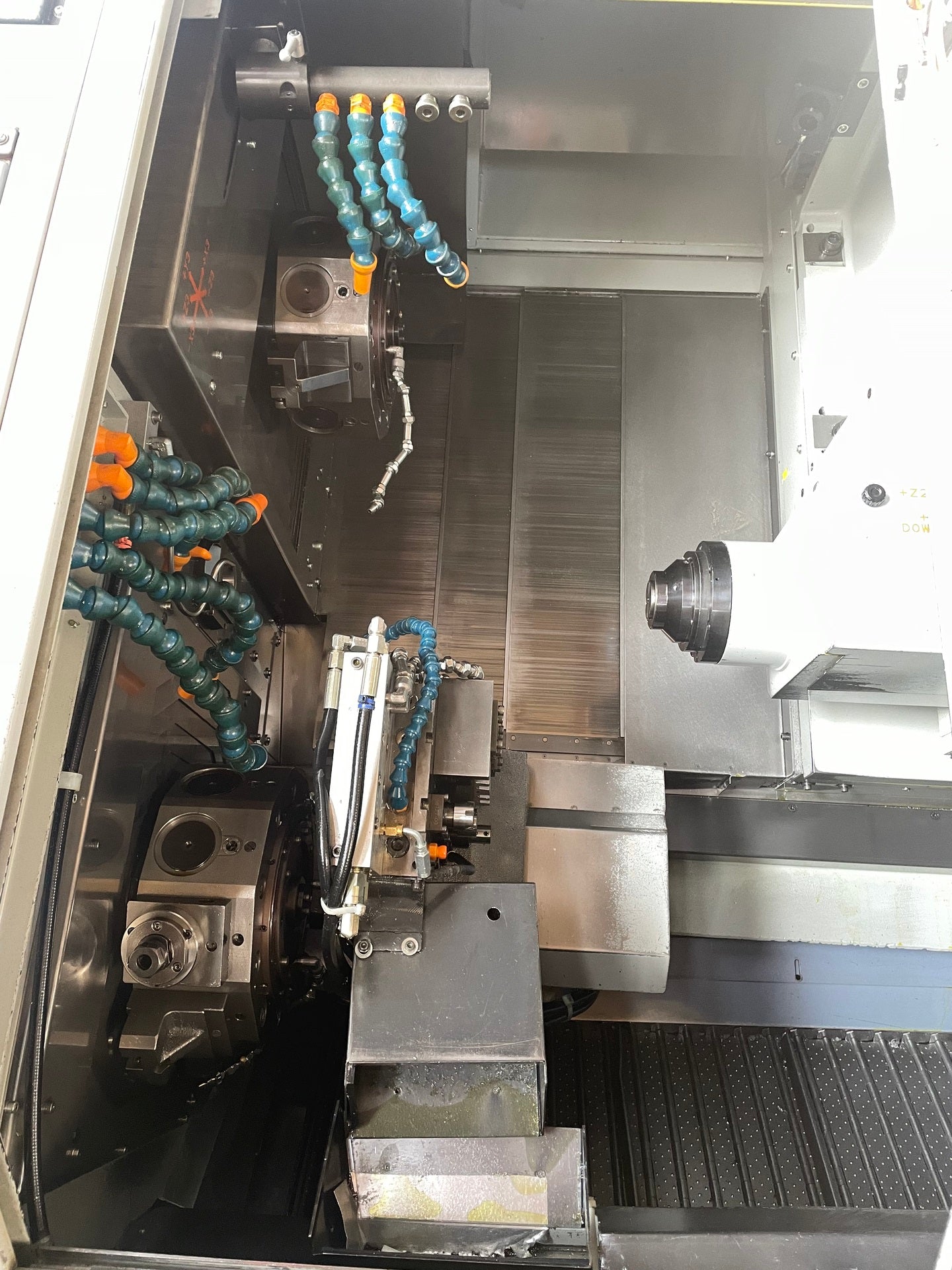

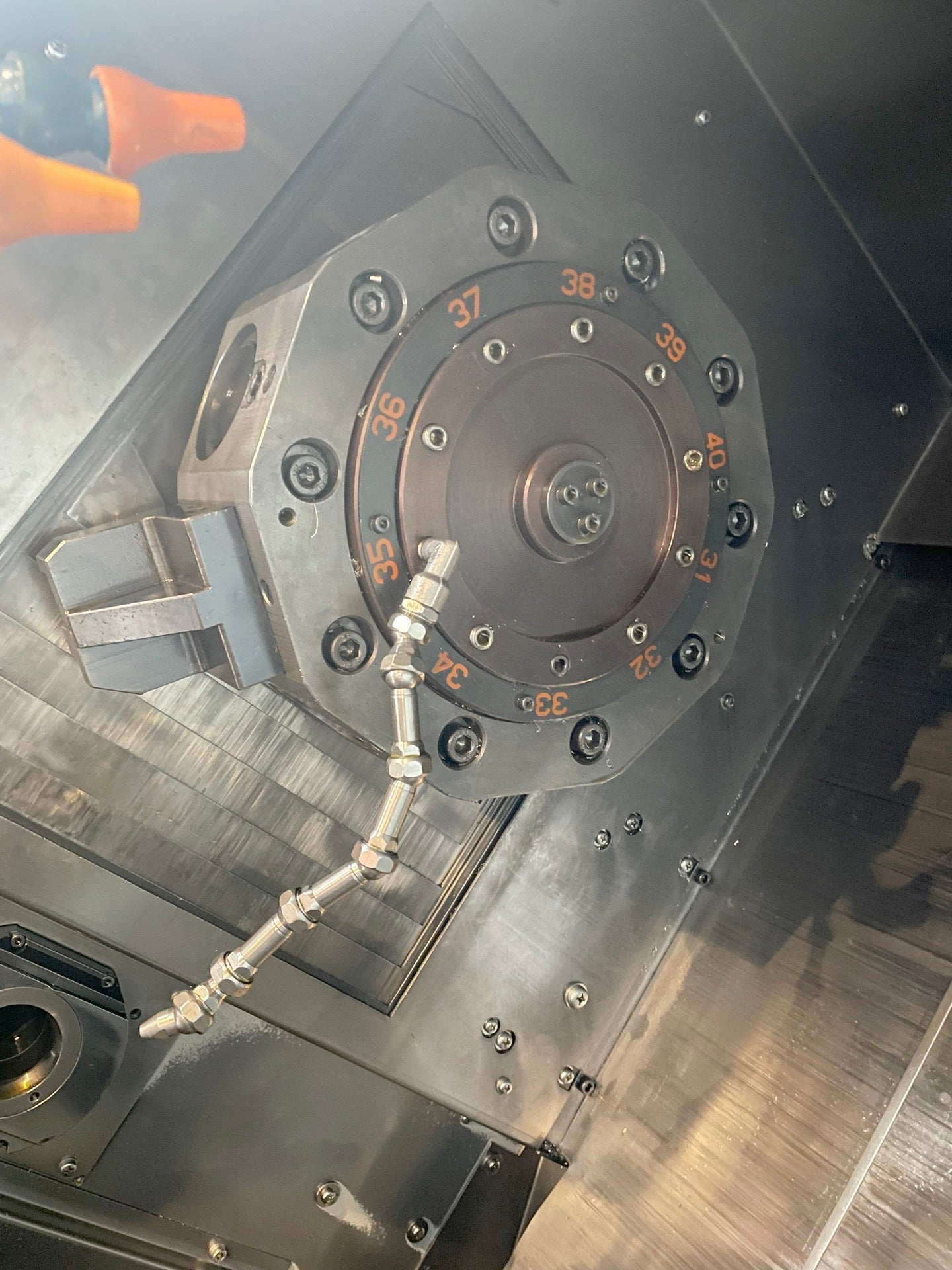

| Upper turret head: | |
| number of tools | 10 |
| number of driven tools | 2 |
| Spindle speeds (turning tools) | 5700 t/min |
| Lower turret head: | |
| number of tools | 10 |
| number of driven tools | 2 |
| Spindle speeds (turning tools) | 5700 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 7.5 kW |
| Power of back spindle | 3.7 kW |
| Total power required | 8 kVA |
| Machine's weight about | 5700 kg |
| Overall dimensions machine: | |
| Length | 3175 mm |
| Width | 1745 mm |
| Height | 1860 mm |
| Various accessories: | |

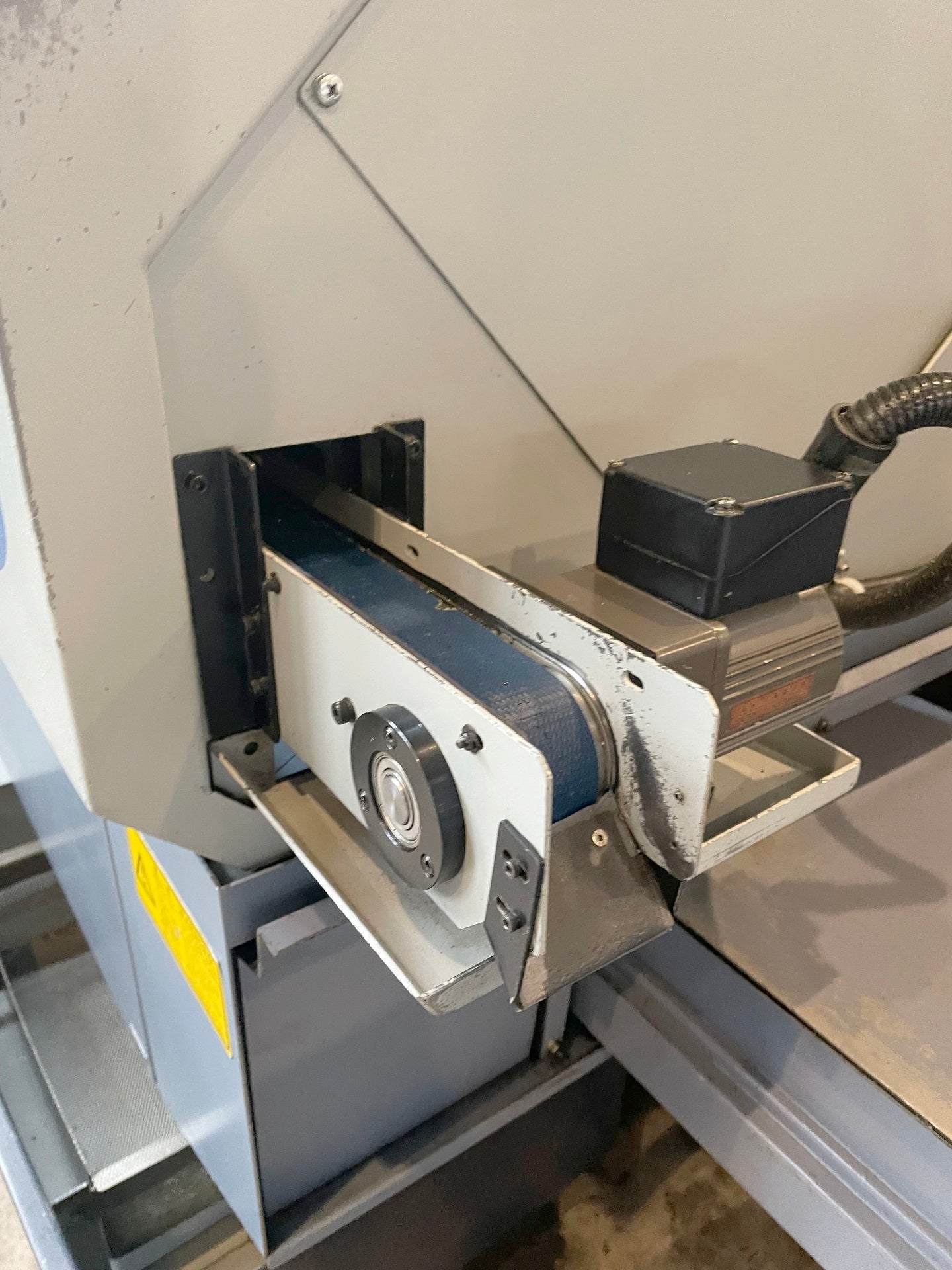

| Workpiece loader | |
| Bar loader number of bars | |

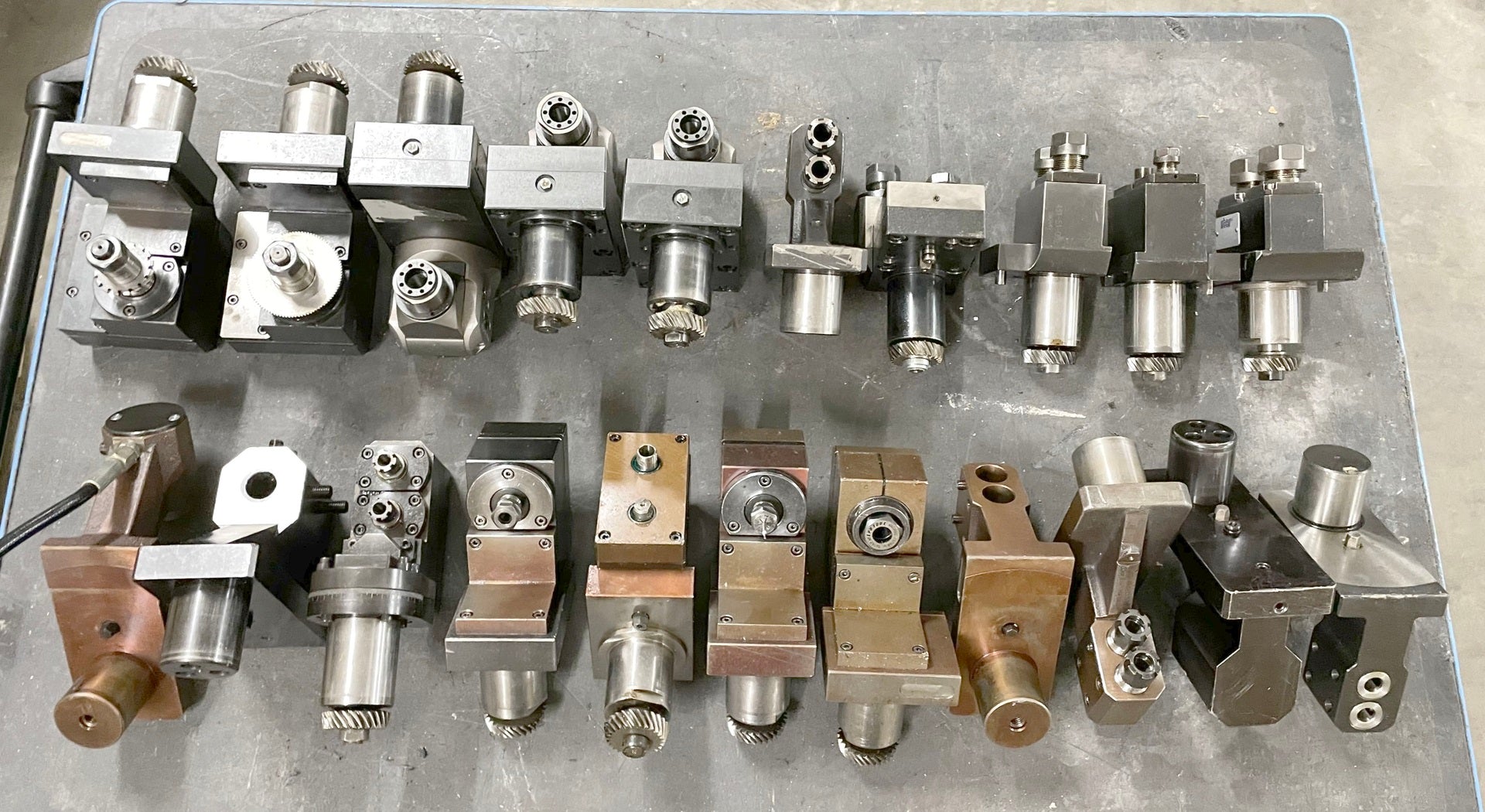

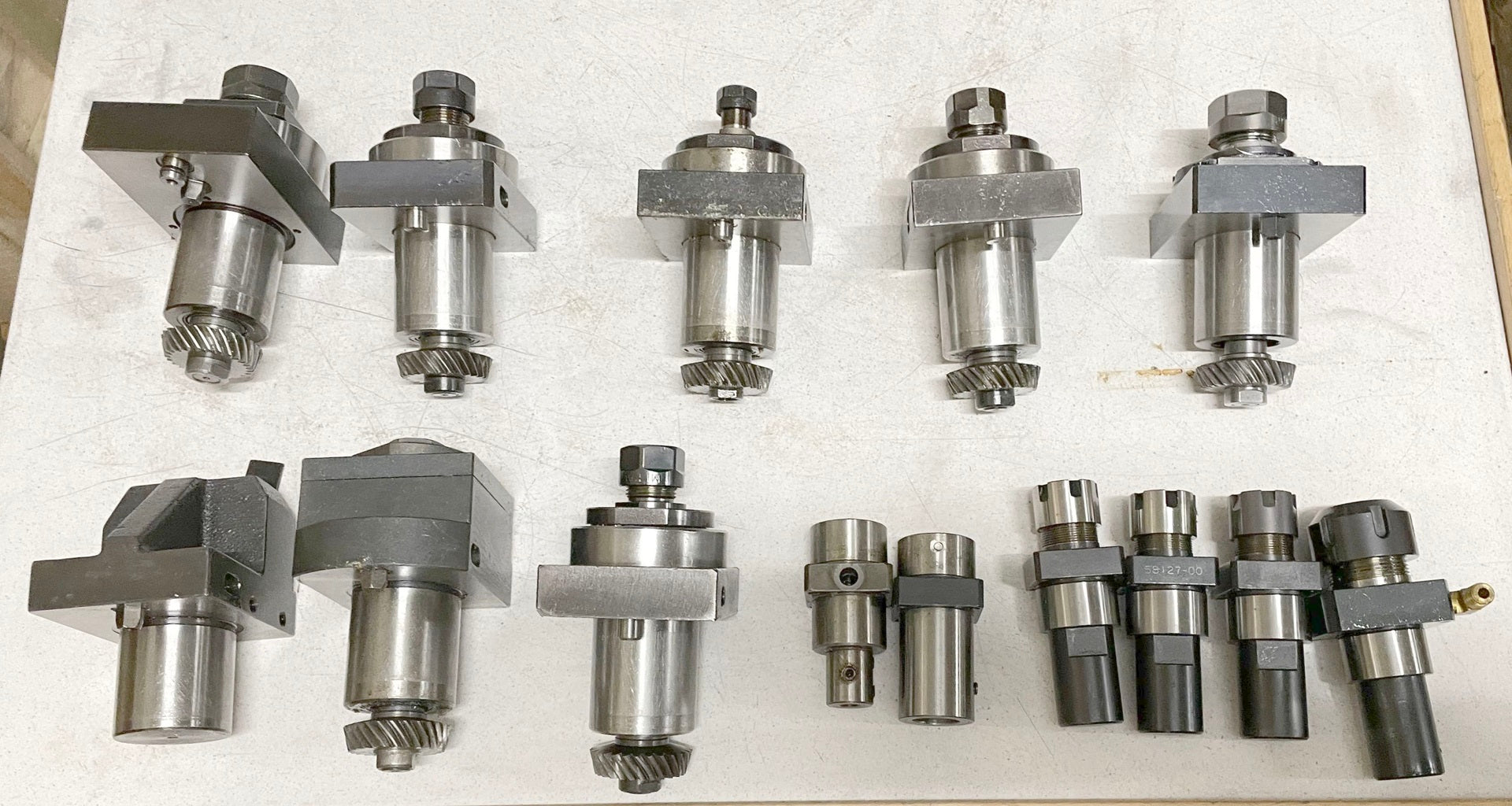

| Set of toolholders | |

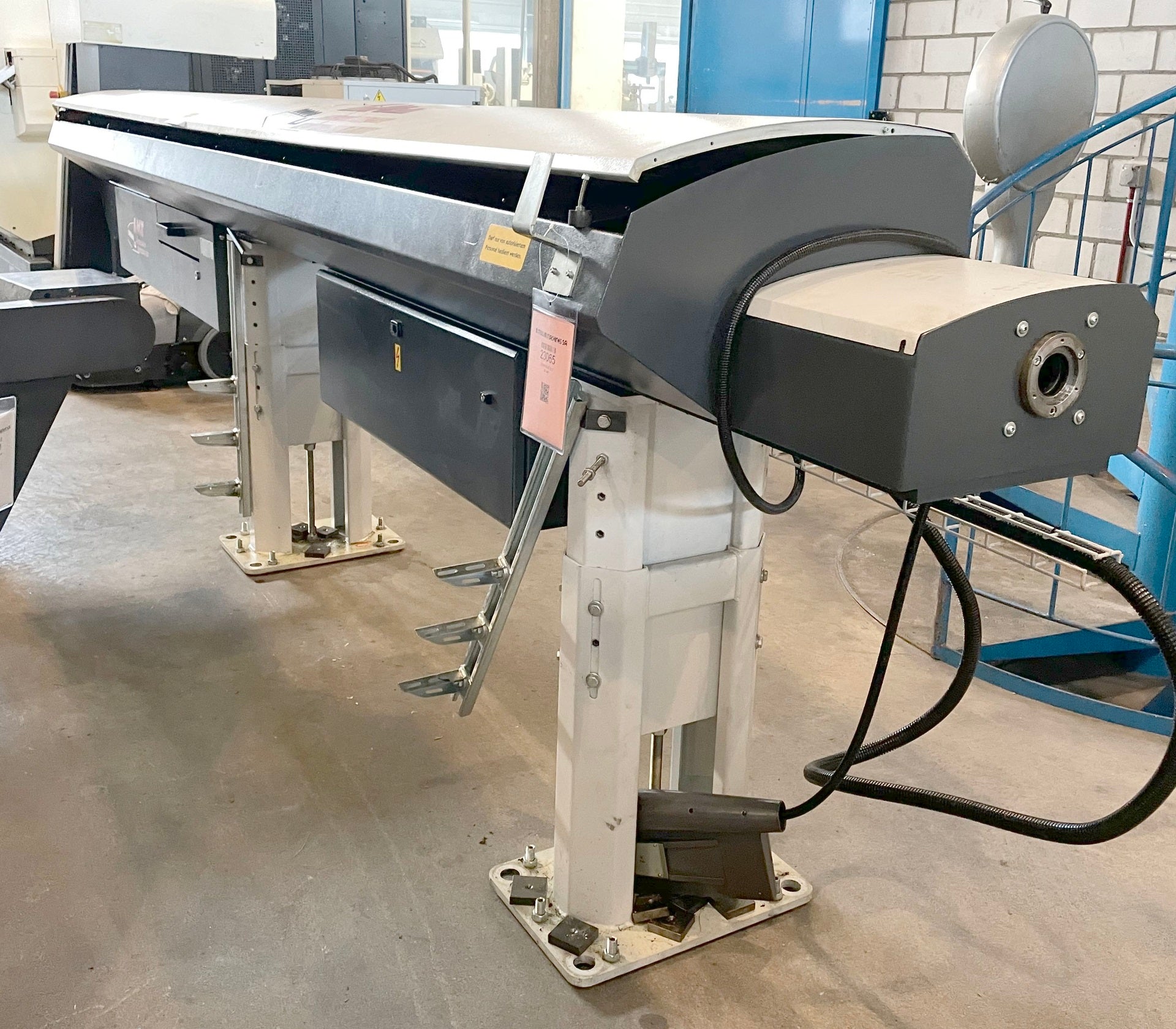

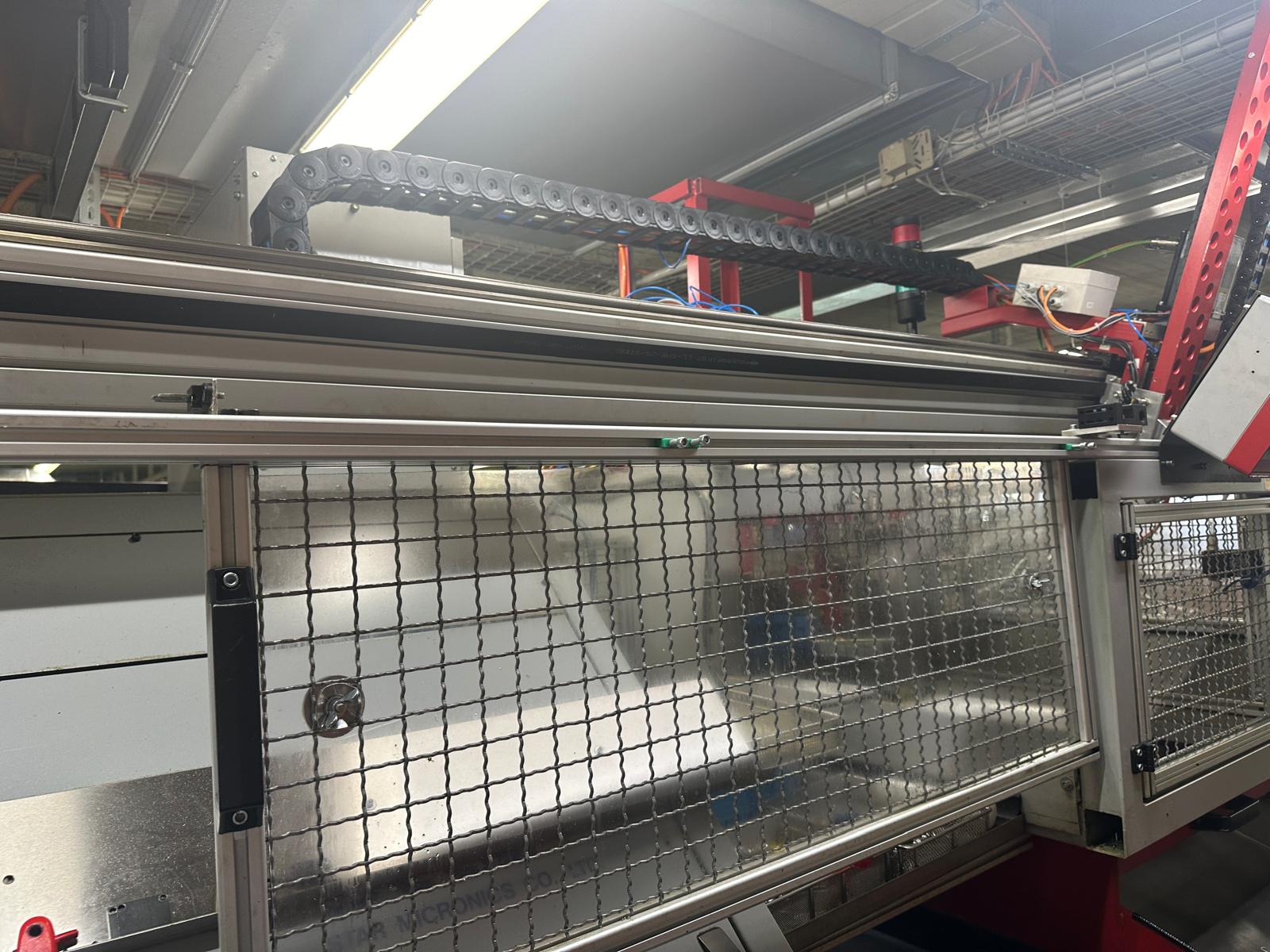

| Bar feeder | |
| Manufacturer | LNS |
| Type | Express 332 |
| Length of bars max. | 4000 mm |
| Chip conveyor | |
| Coolant system |
