SCHÜTTE SF 26 DNT
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

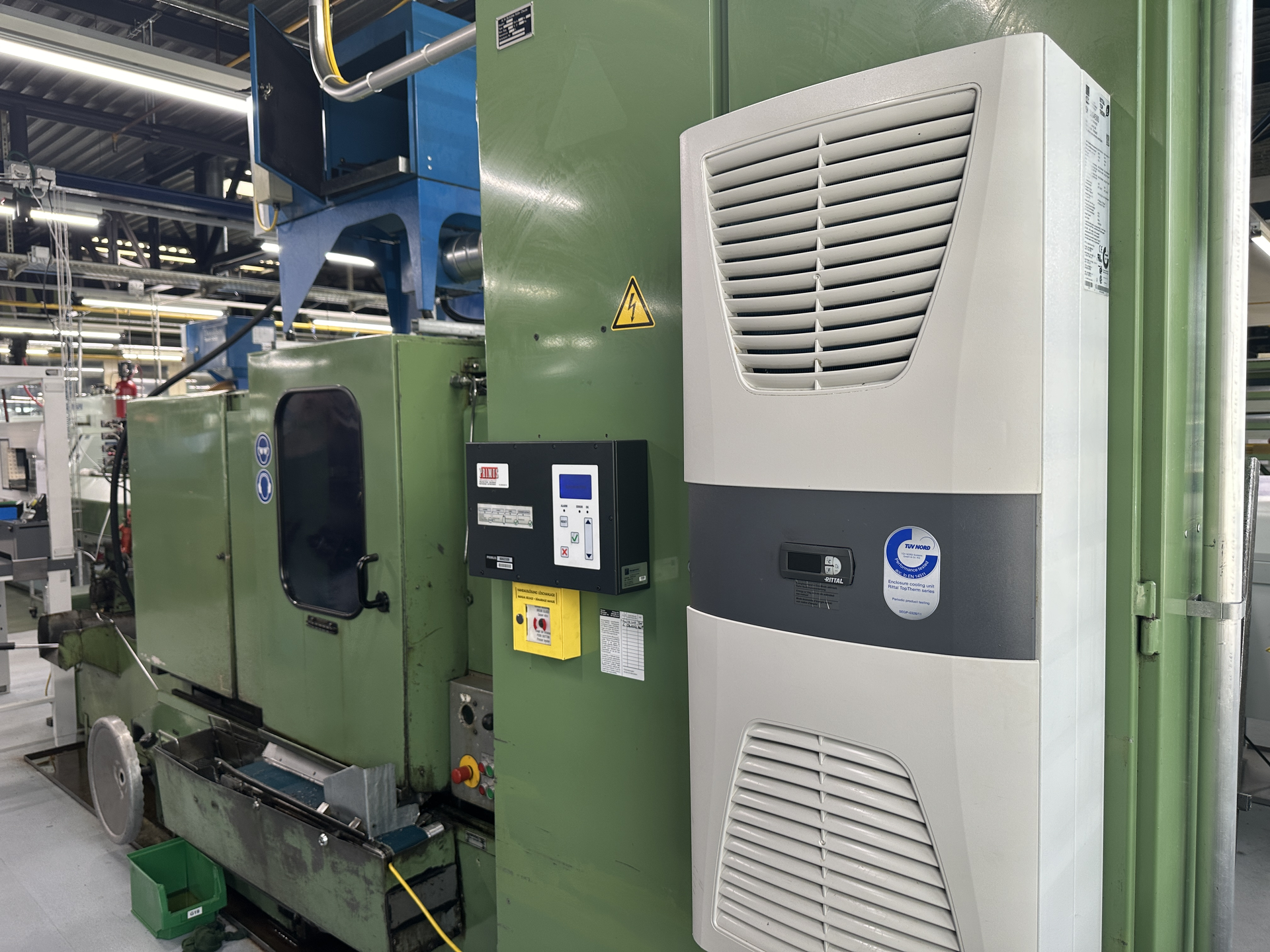

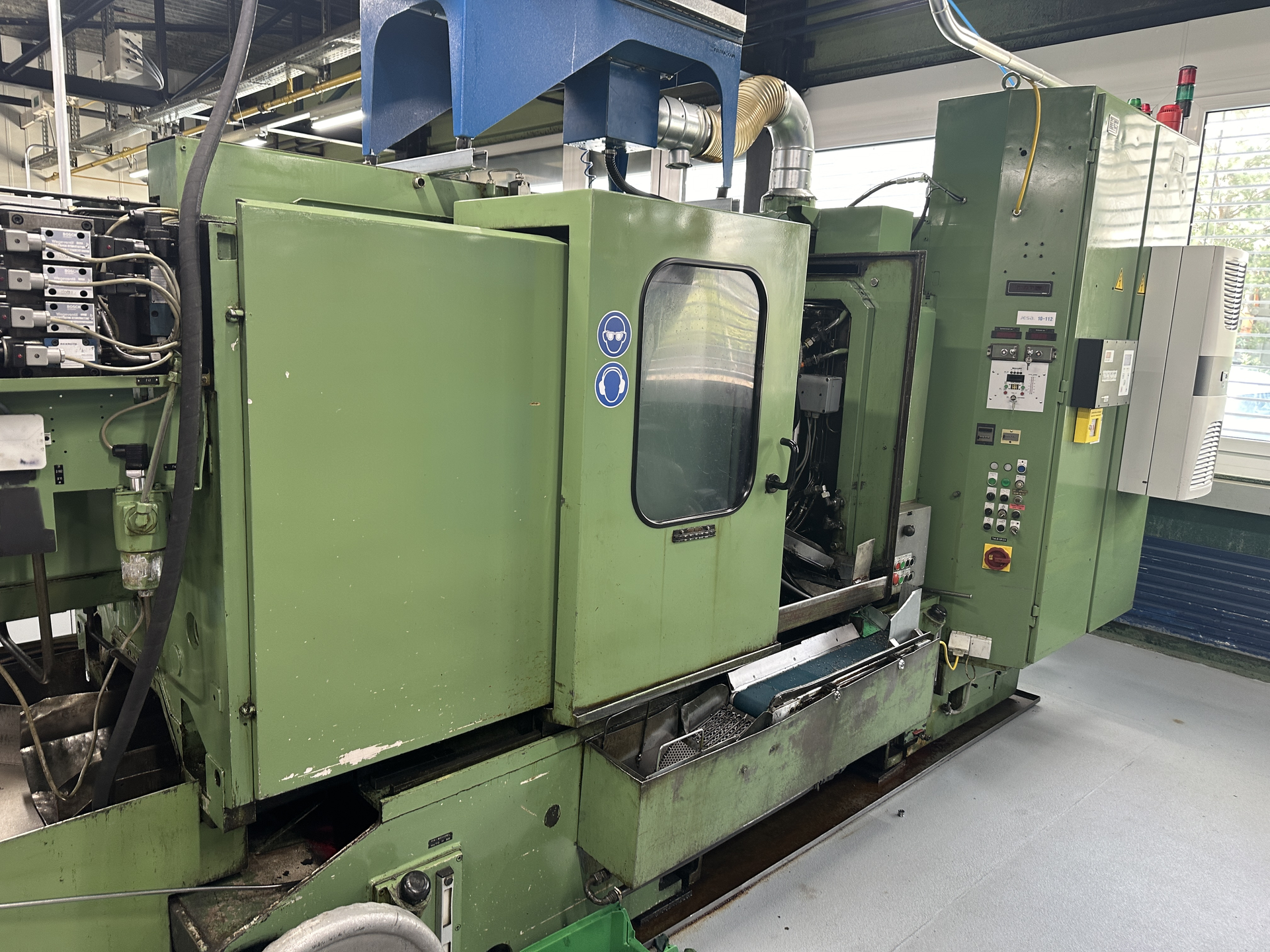

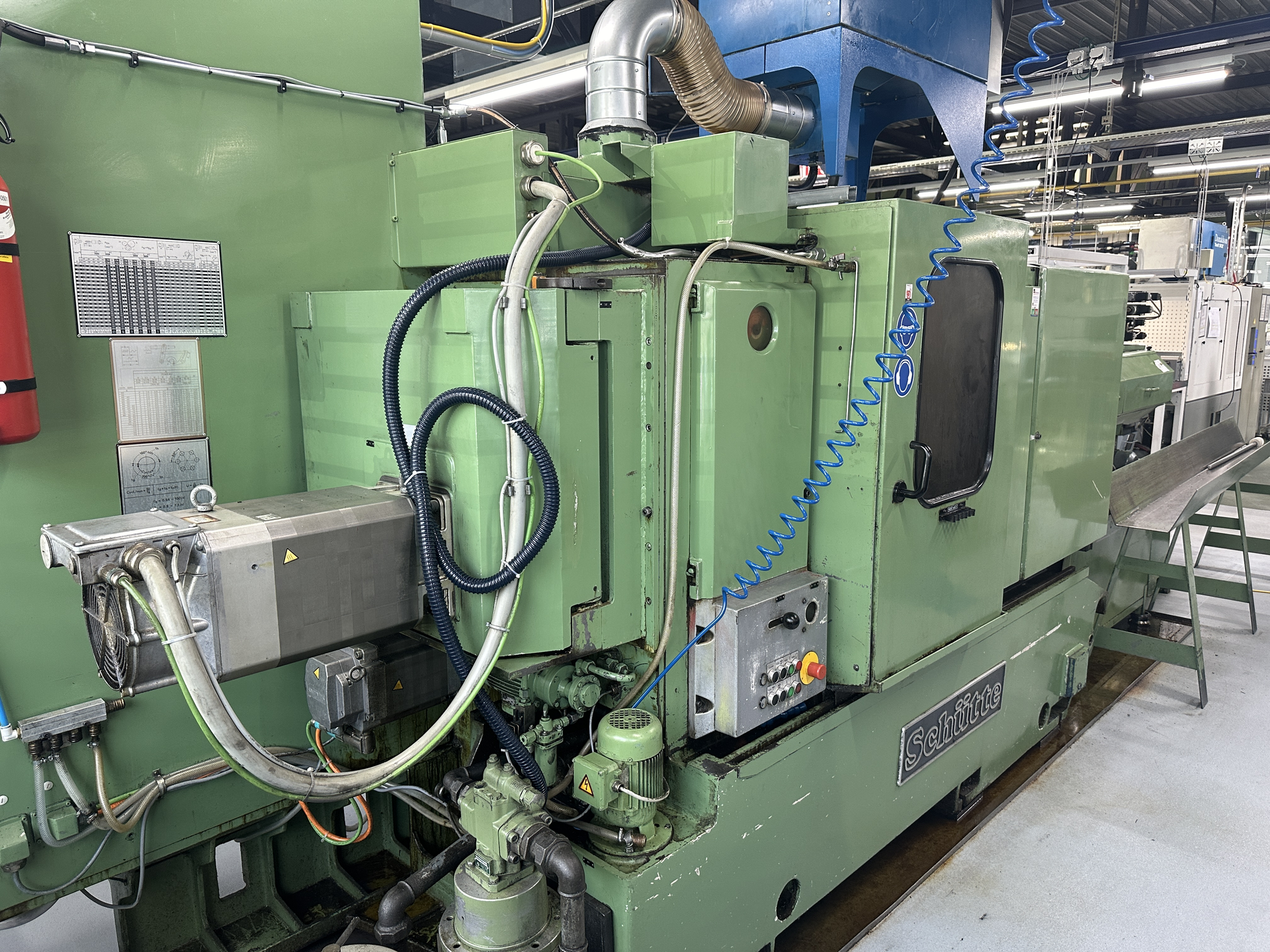

SCHÜTTE SF 26 DNT is a Multi-spindle turning lathe; precision, high accuracy and reliability. 6 spindles; bar Ø26 mm; max bar advance 80 mm; max turning length 40 mm; long slide stroke 63/39.6 mm; up to 31 pieces. 425–3000 rpm; machining time 1–125 s; 50 Hz 3×380 V; 15 kW; weight 4050 kg; L3125×W1030×H2150 mm. Accessories: bar loader, oil mist extractor, pick-up spindle. Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Number of spindles | 6 |
| Capacity round bar | 26 mm |
| Max. advance of bar | 80 mm |
| Max. turning length | 40 mm |
| Max. stroke of long slide | 63 / 39.6 mm |
| Number of possible pieces | 31 |
| Machining rate: | |
| from | s |
| up to | 95 s |
| Spindle speeds: | |
| from | 425 t/min |
| up to | 3000 t/min |
| Machining time: | |
| from | 1 s |
| up to | 125 s |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 15 kW |
| Machine's weight about | 4050 kg |
| Overall dimensions machine: | |
| Length | 3125 mm |
| Width | 1030 mm |
| Height | 2150 mm |
| Various accessories: | |

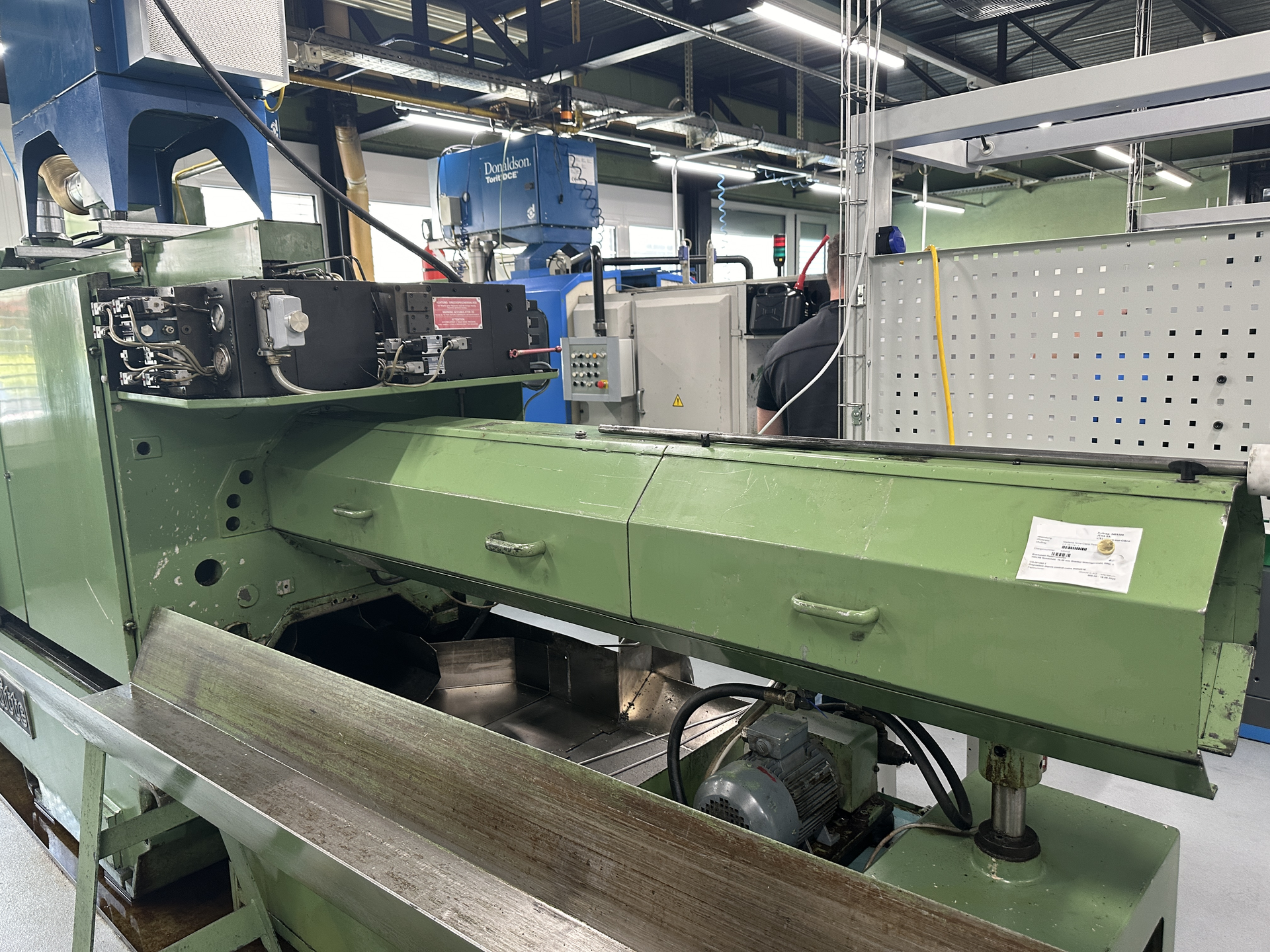

| Bar loader number of bars | |

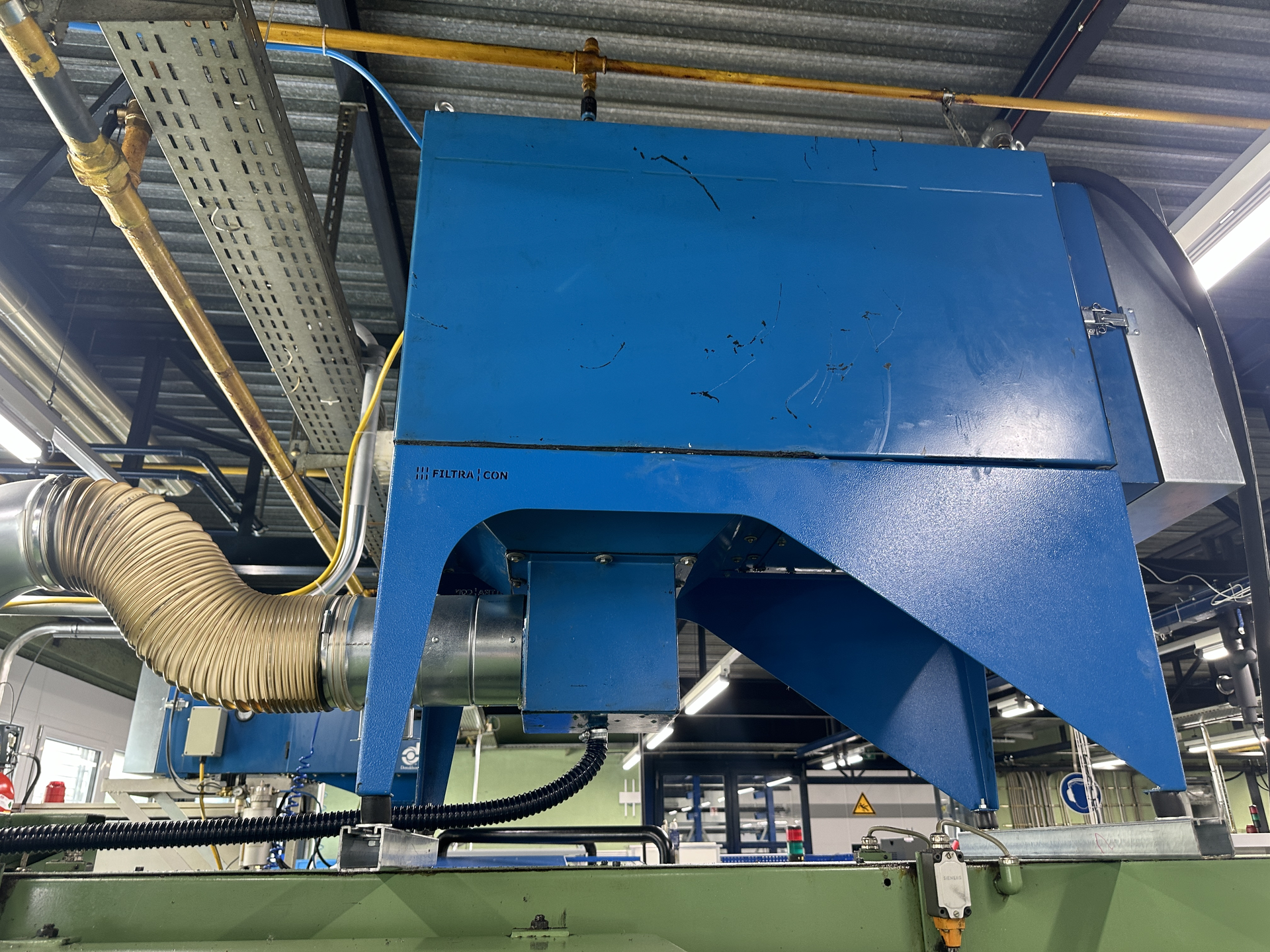

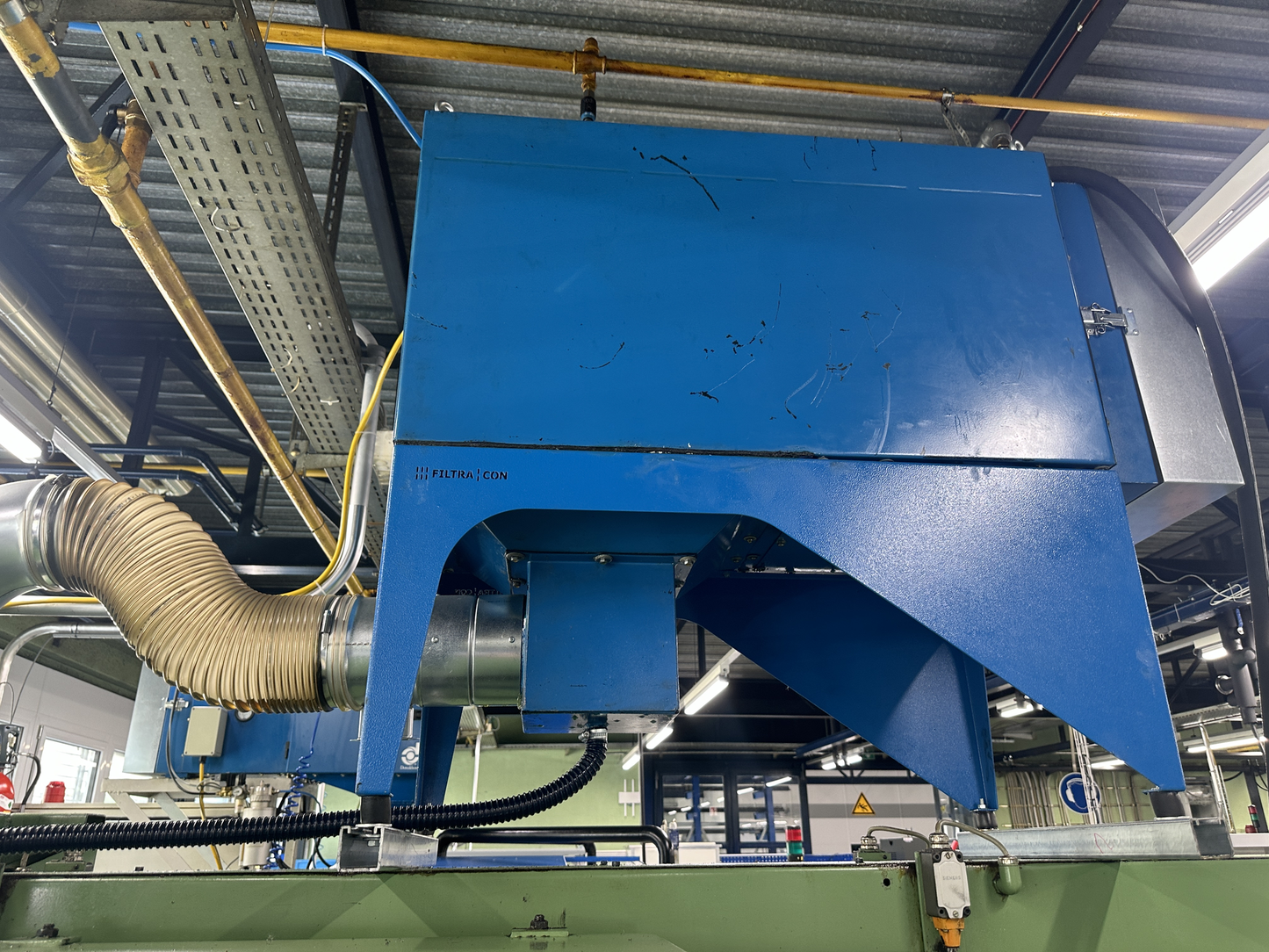

| Oil mist extractor | |
| Pick-up spindle_x000D_ |
