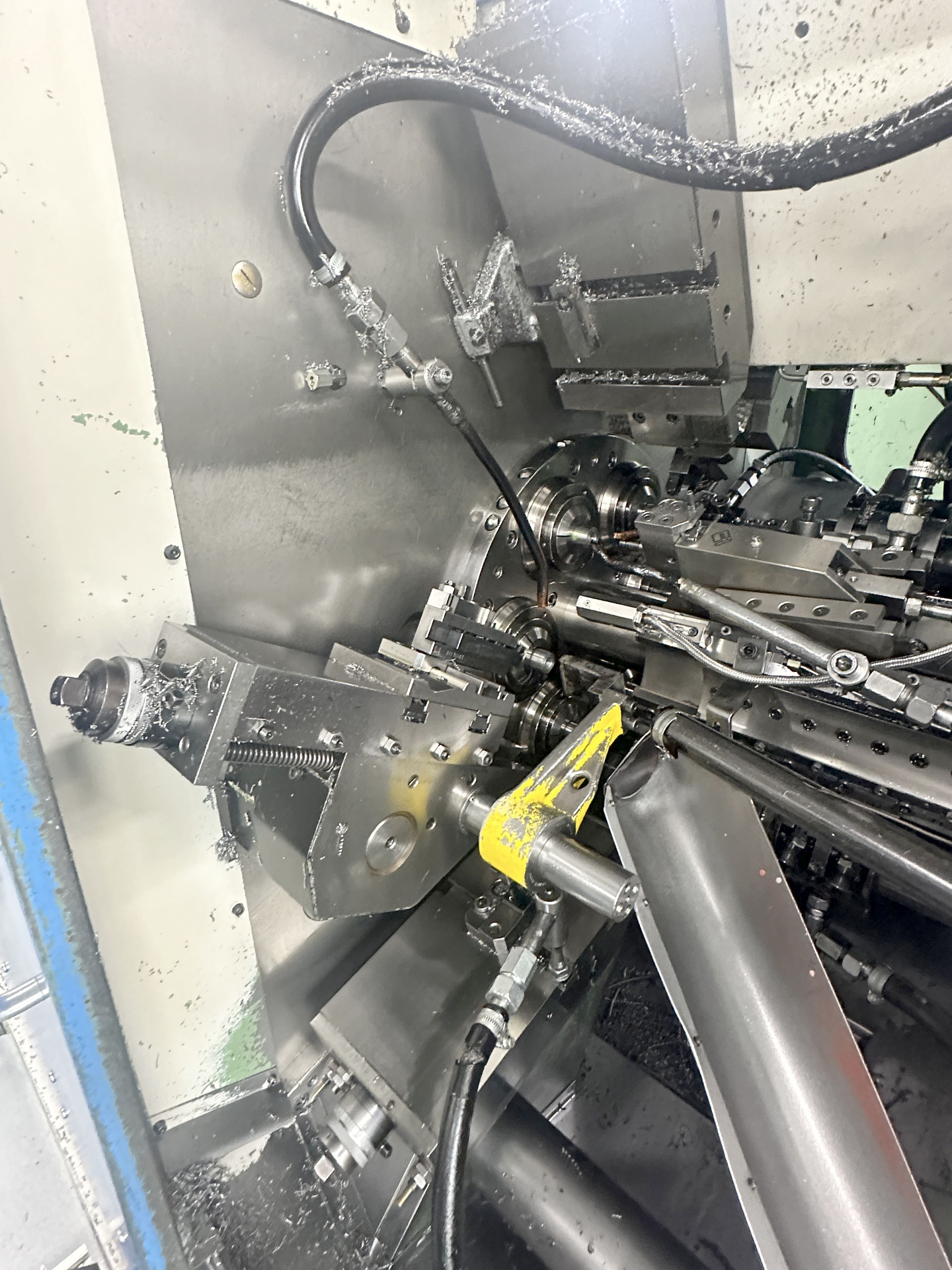

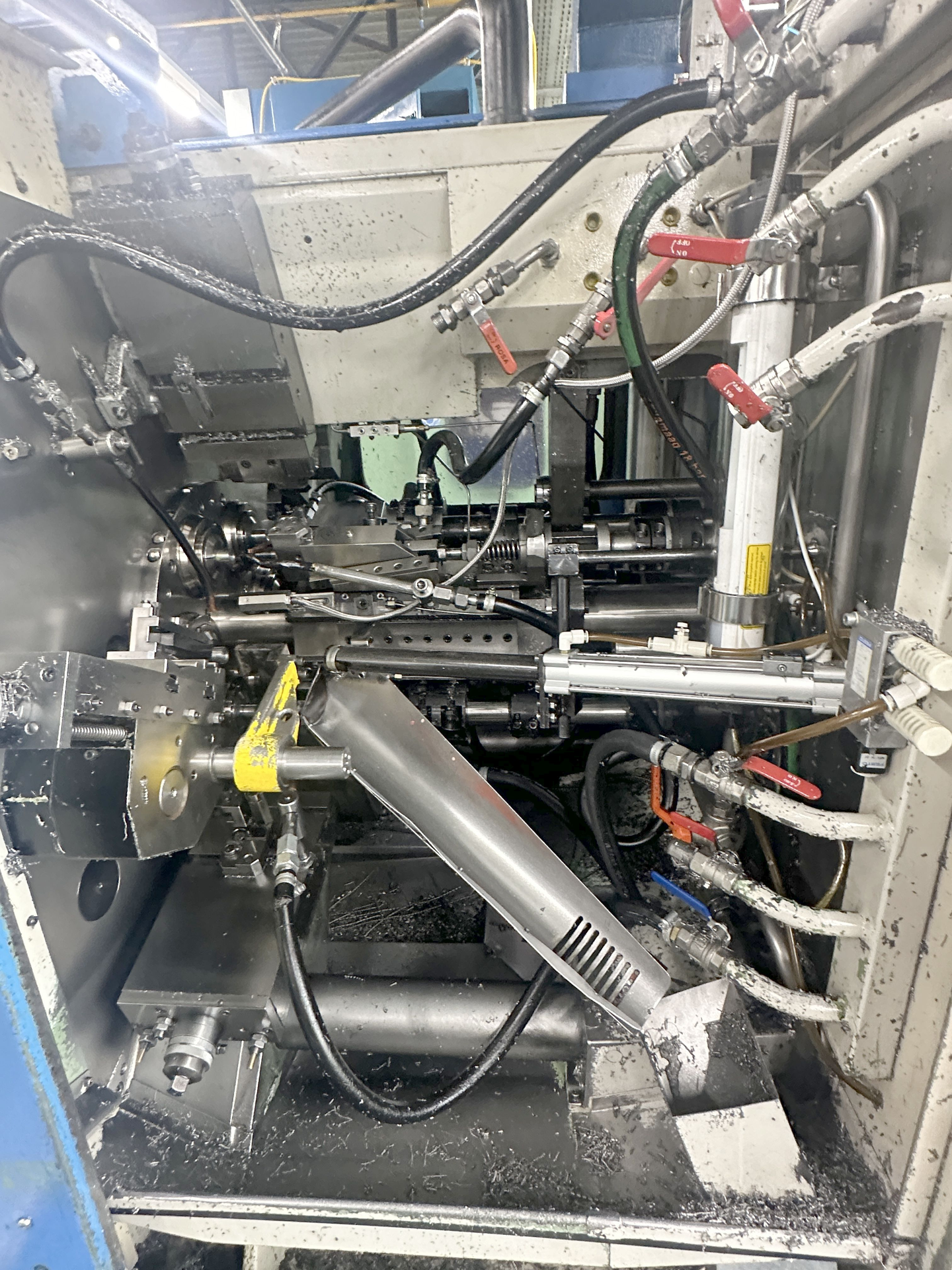

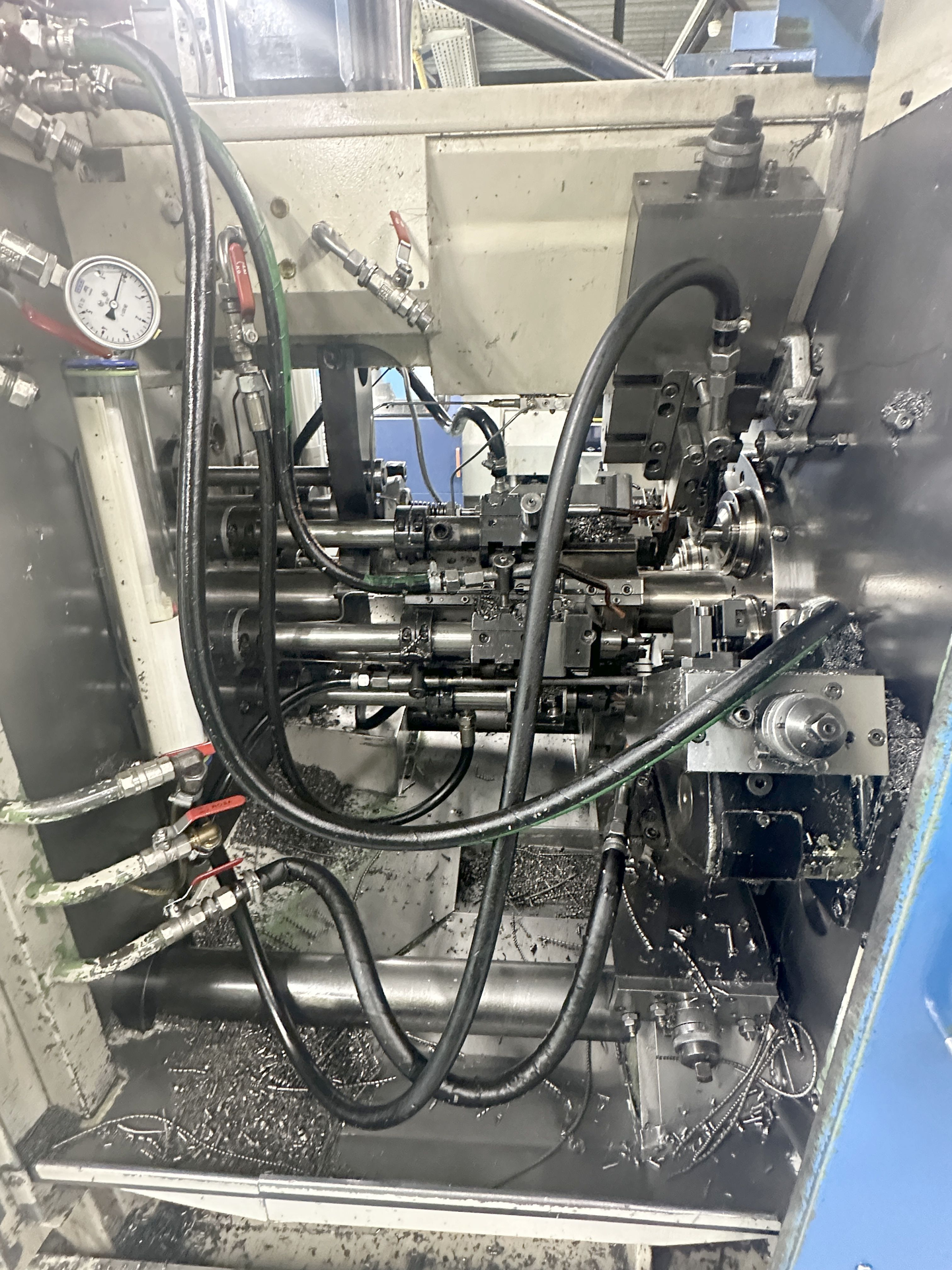

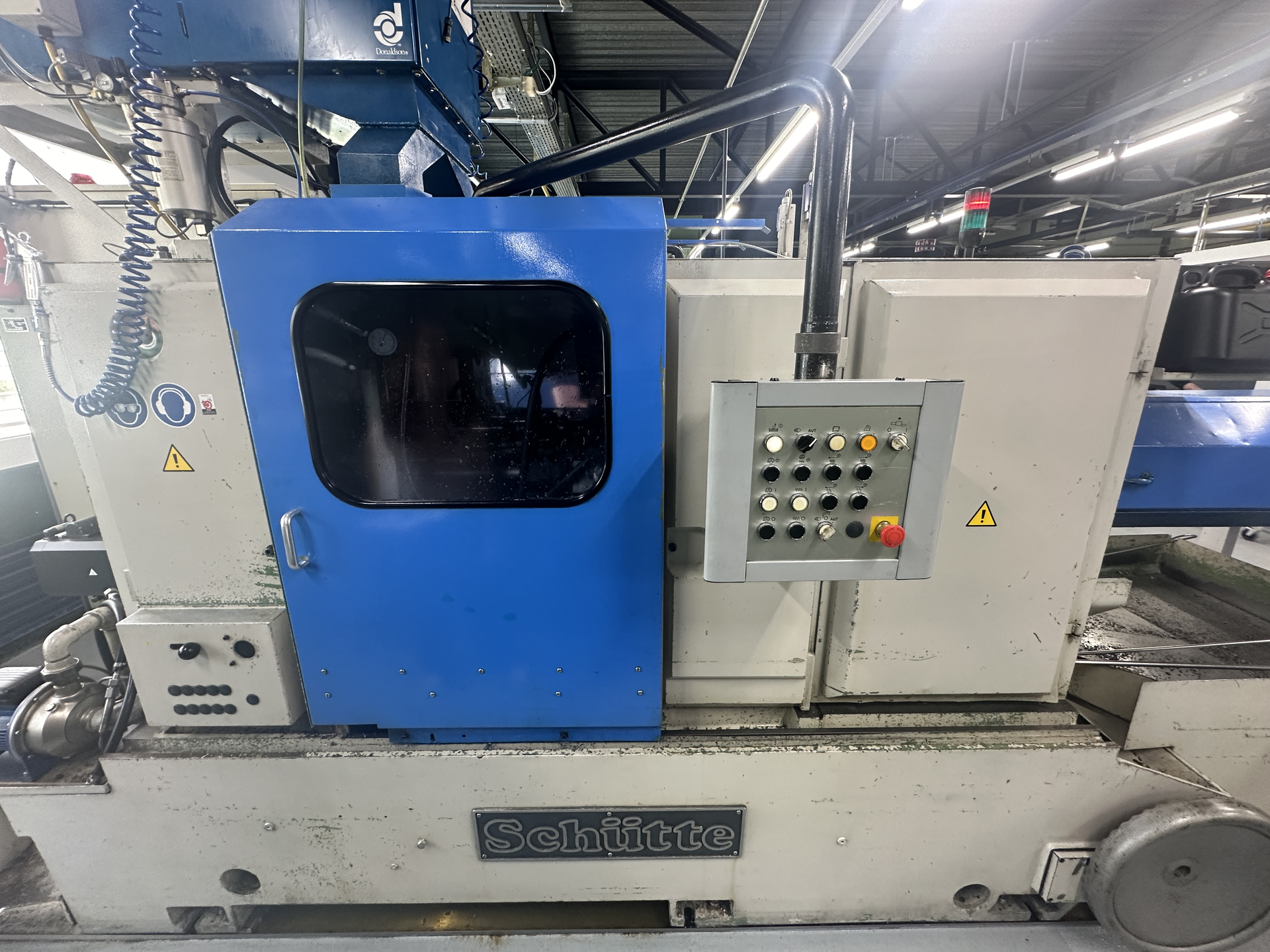

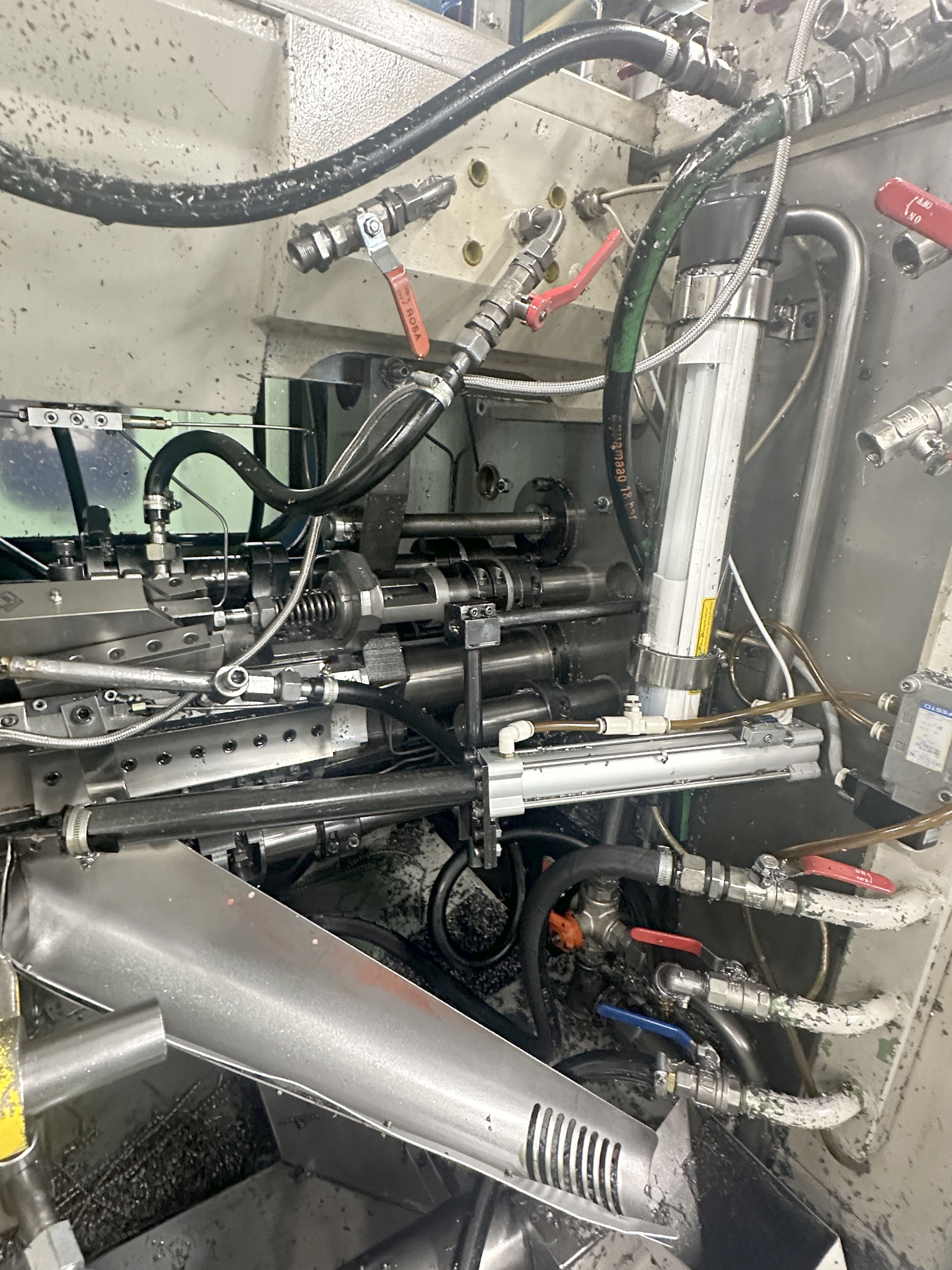

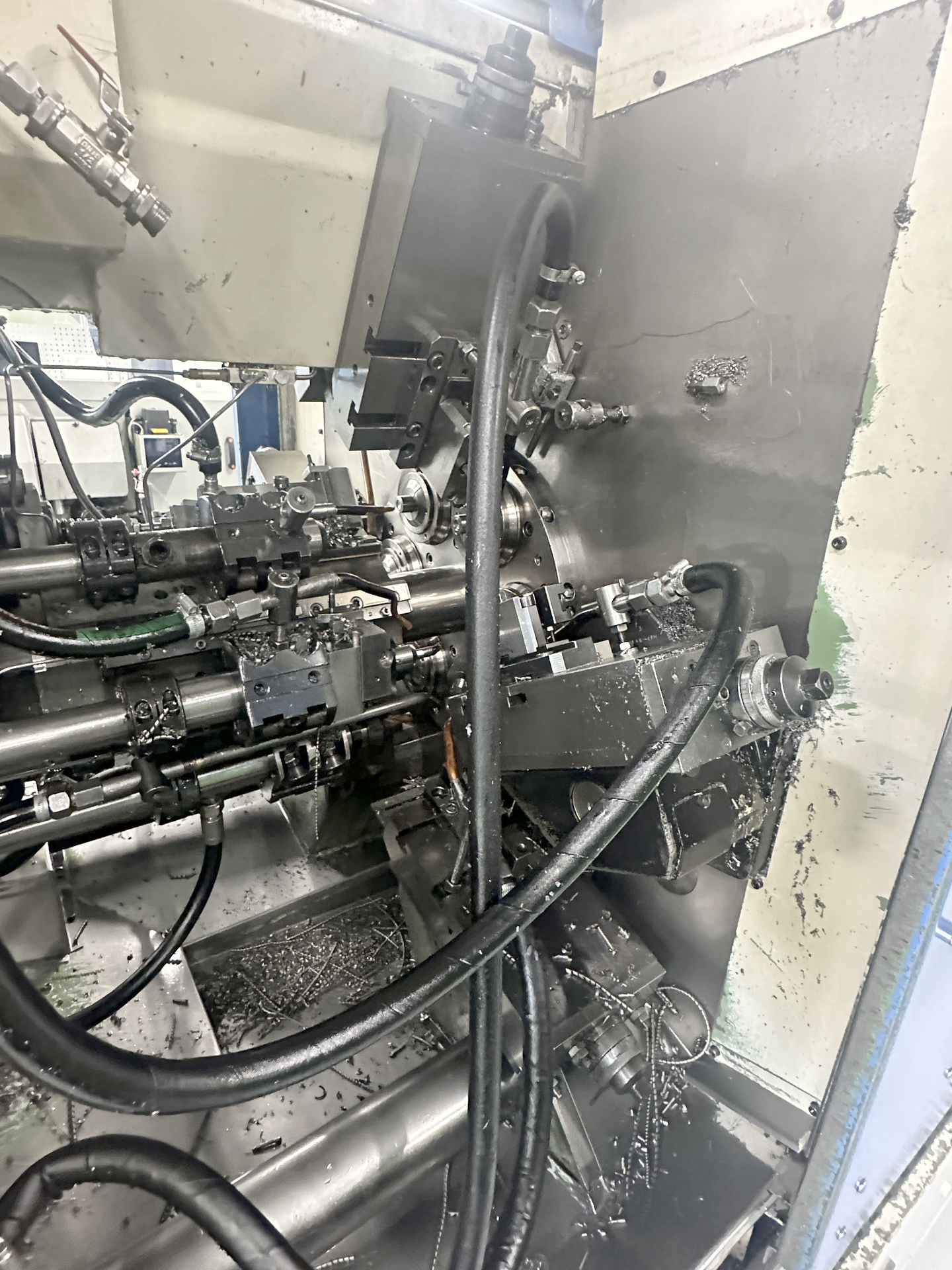

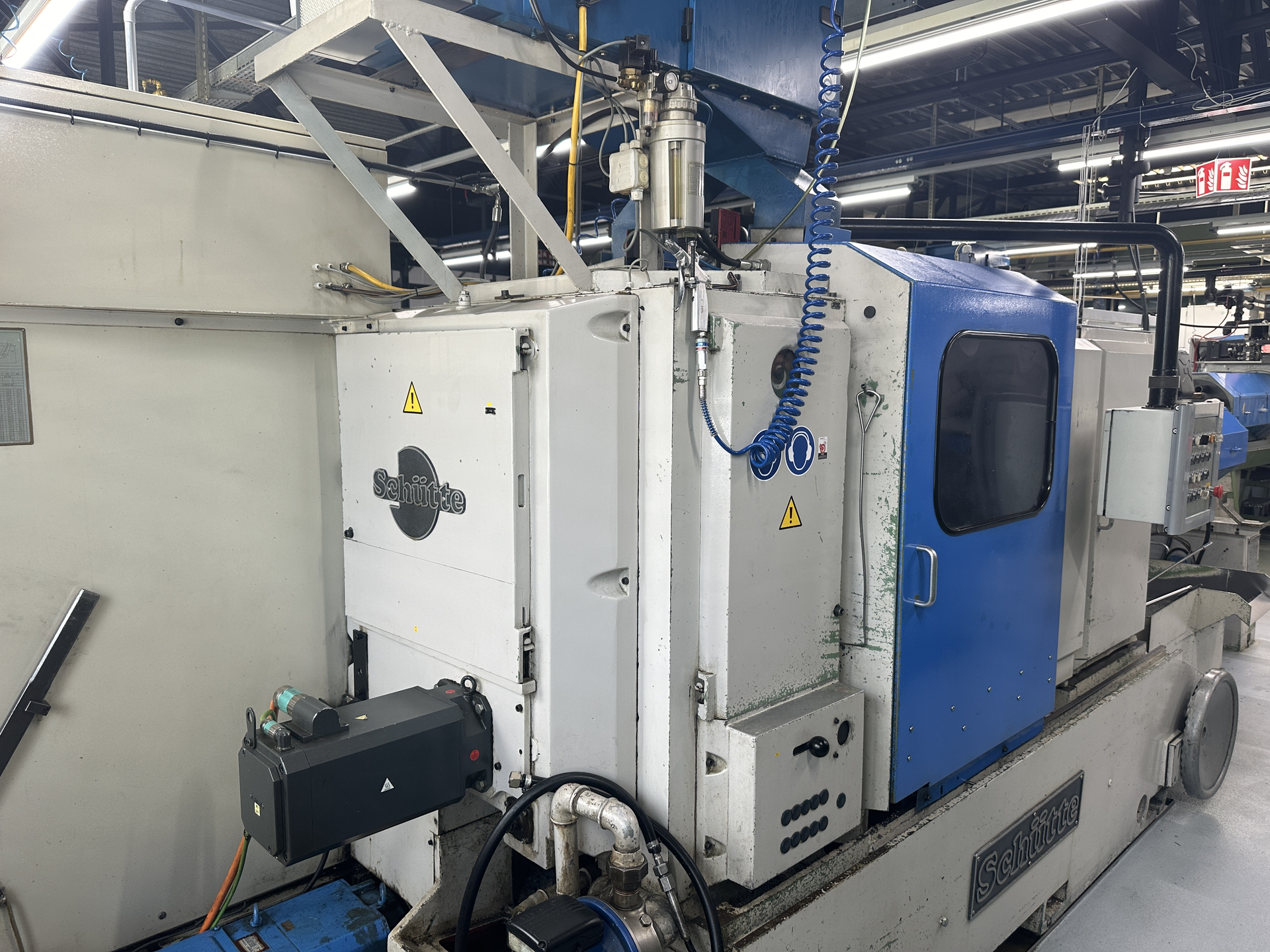

SCHÜTTE SF 32 is a Multi-spindle turning lathe designed for precision, high accuracy and reliability. Capacities: 6 spindles; round bar Ø32 mm, square 22 mm, hexagon 27 mm; max. bar advance 125 mm; max. long slide stroke 100 mm; up to 35 pieces; cycle time 1–125 s. Main specs: 49 spindle steps, 200–3150 t/min; 50 Hz 3x 380 V; 18.5 kW; weight ≈7800 kg; footprint L3850×W1510×H2100 mm; refurbished 2019. Achieves tight tolerances; typical applications: automotive, watchmaking, toolmaking, aerospace, medical.
| Number of spindles | 6 |
| Capacity round bar | 32 mm |
| Capacity square bar | 22 mm |
| Capacity hexagon bar | 27 mm |
| Max. advance of bar | 125 mm |
| Max. stroke of long slide | 100 mm |
| Number of possible pieces | 35 |
| Machining rate: | |
| from | 1 s |
| up to | 125 s |
| Spindle speeds: | |
| number (steps) | 49 |
| from | 200 t/min |
| up to | 3150 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 18.5 kW |
| Machine's weight about | 7800 kg |
| Overall dimensions machine: | |
| Length | 3850 mm |
| Width | 1510 mm |
| Height | 2100 mm |
| Various accessories: | |

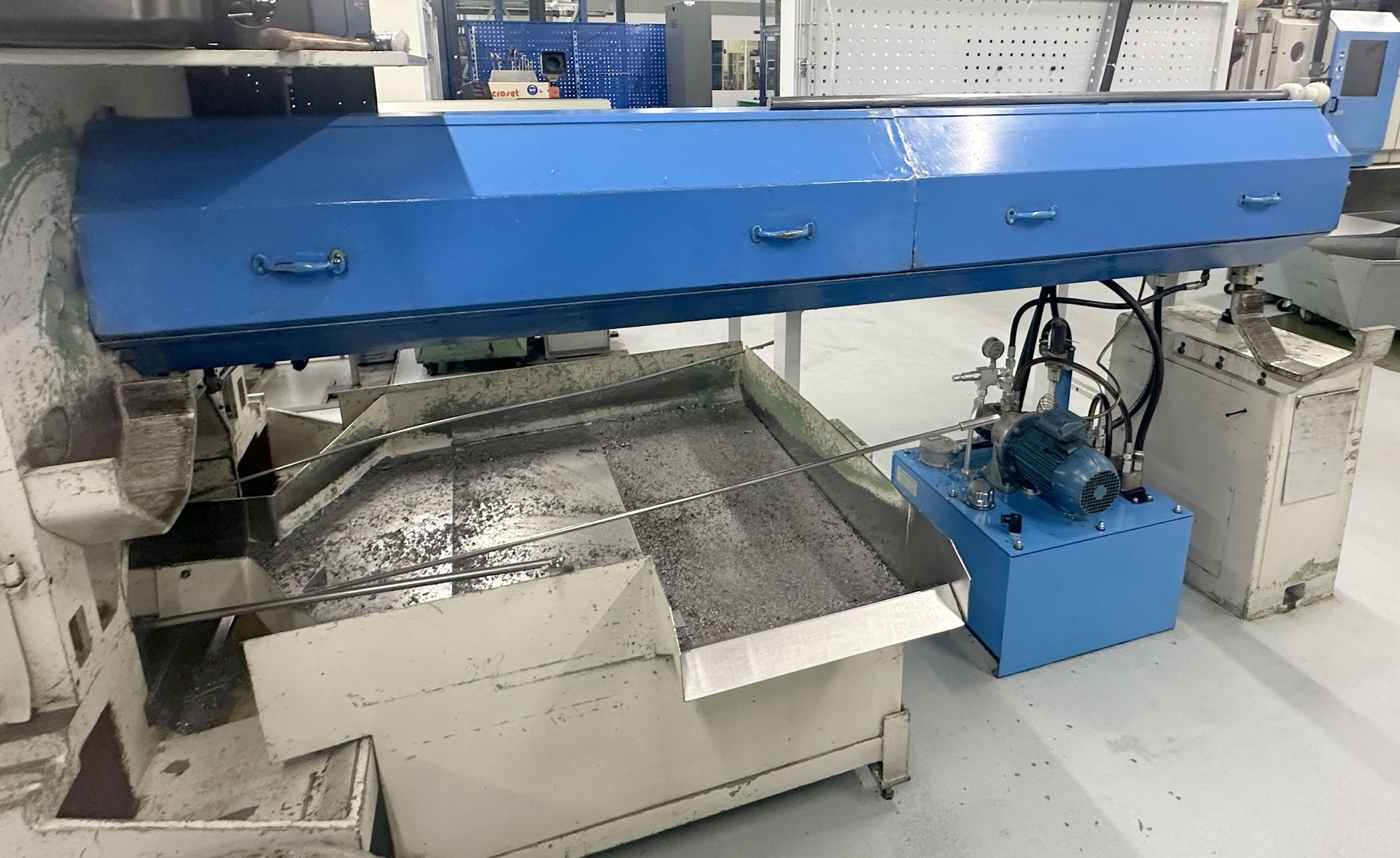

| Bar loader number of bars | |

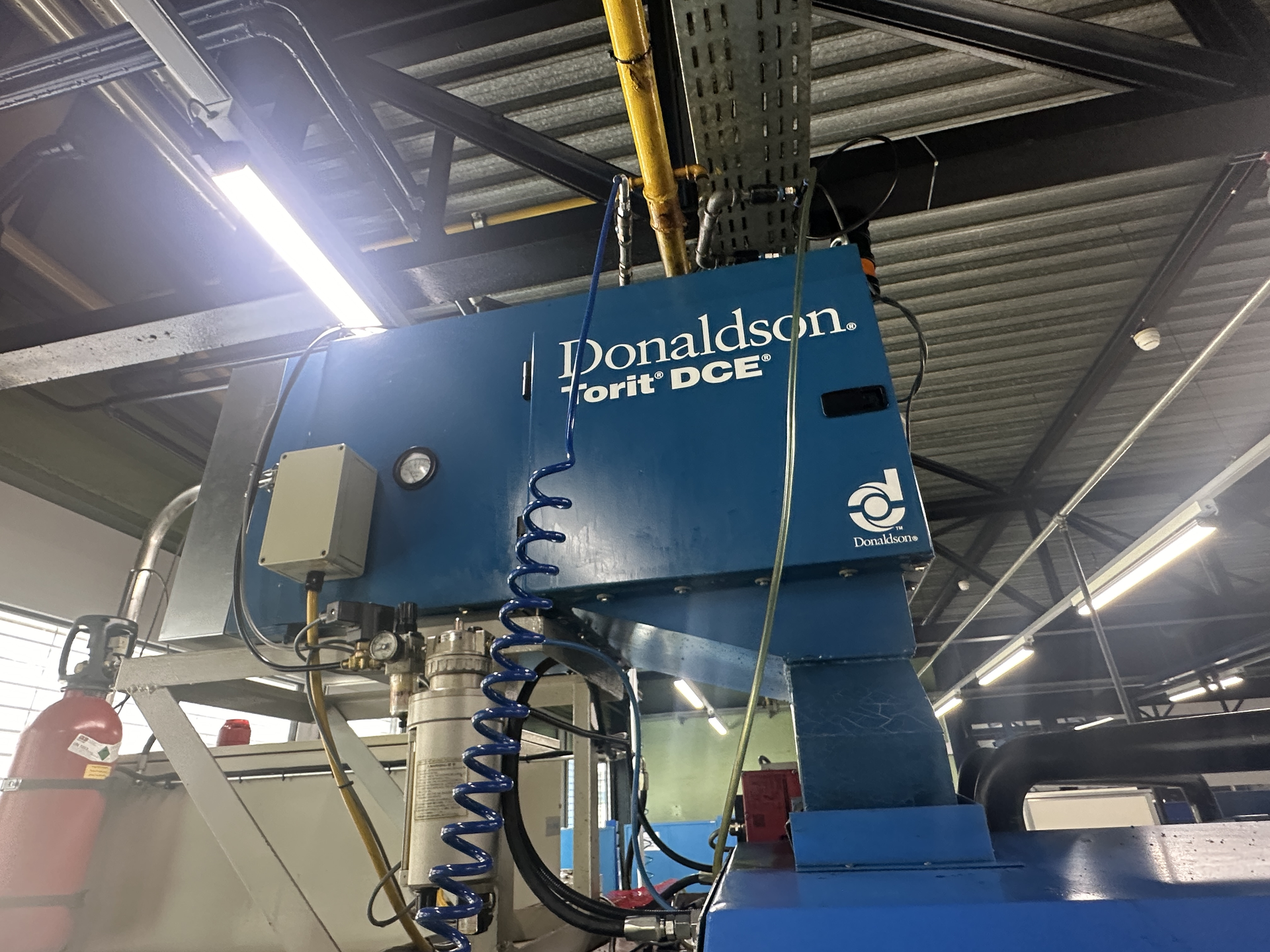

| Oil mist extractor | |
| Notes: | |
| Machine refurbished | 2019 |
