COLCHESTER Magnum L.B.800-4000
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

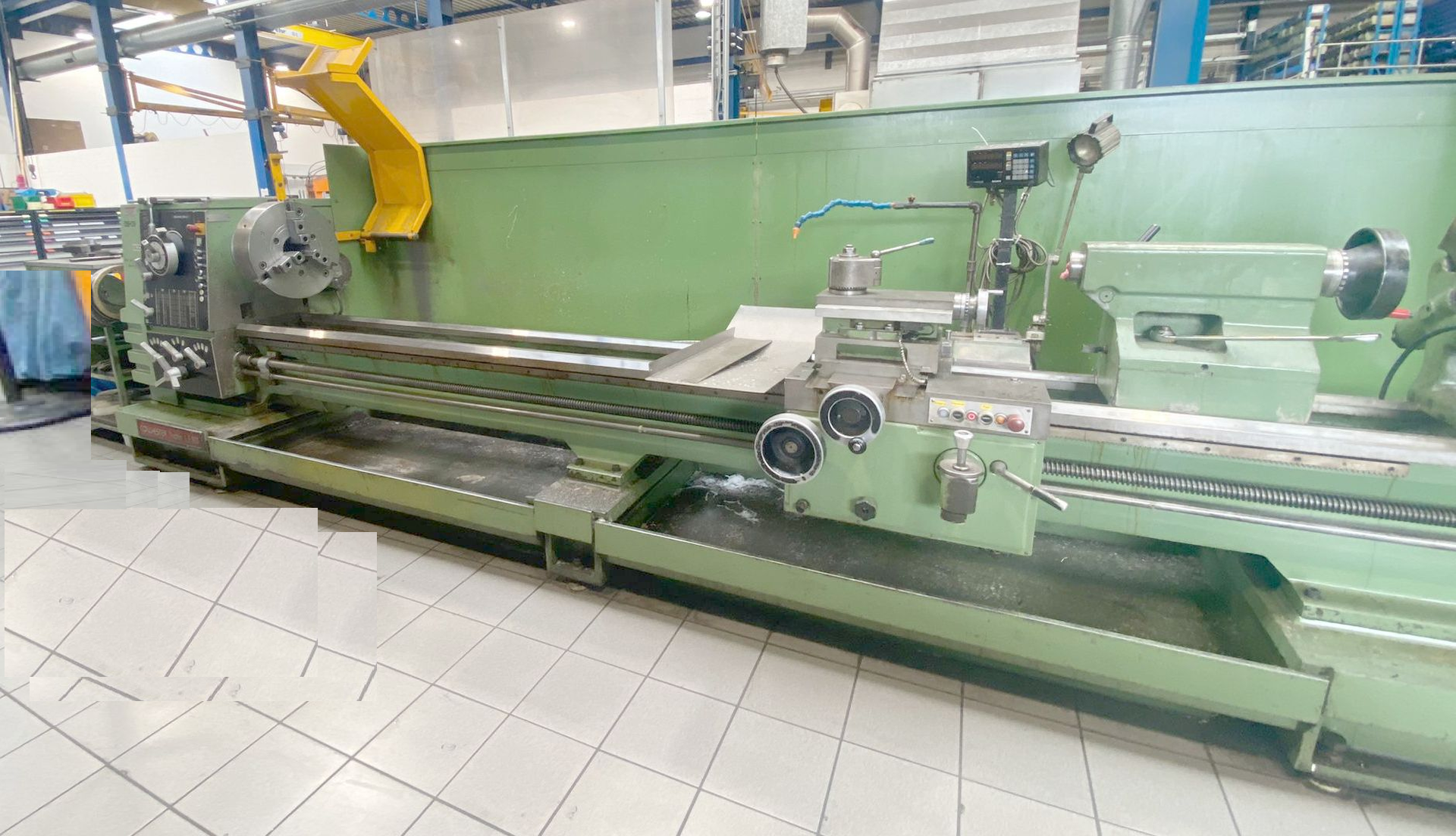

COLCHESTER Magnum L.B.800-4000 is a Centre lathe of high precision, for high accuracy and reliability. Capacities: centre height 380 mm; between centres 4000 mm; swing 520/740 mm; spindle hole 168 mm; spindle stroke 190 mm. Specs: spindle Ø95 mm; 20 steps 10–800 t/min; spindle motor 15 kW; weight ≈5200 kg; L5920×W1200×H1500 mm. Equipment: 2‑axis DRO; 3‑jaw chuck Ø500 mm; foldable three‑jaw steady; coolant; MULTIFIX quick‑change toolholder; lamp; drilling tailstock; chuck guard. Enables tight tolerances; typical sectors: automotive, aerospace, machine tools, medical, watchmaking
| Centre height | 380 mm |
| Distance between centres | 4000 mm |
| Swing over cross-slide | 520 mm |
| Swing over bed | 740 mm |
| Spindle hole | 168 mm |

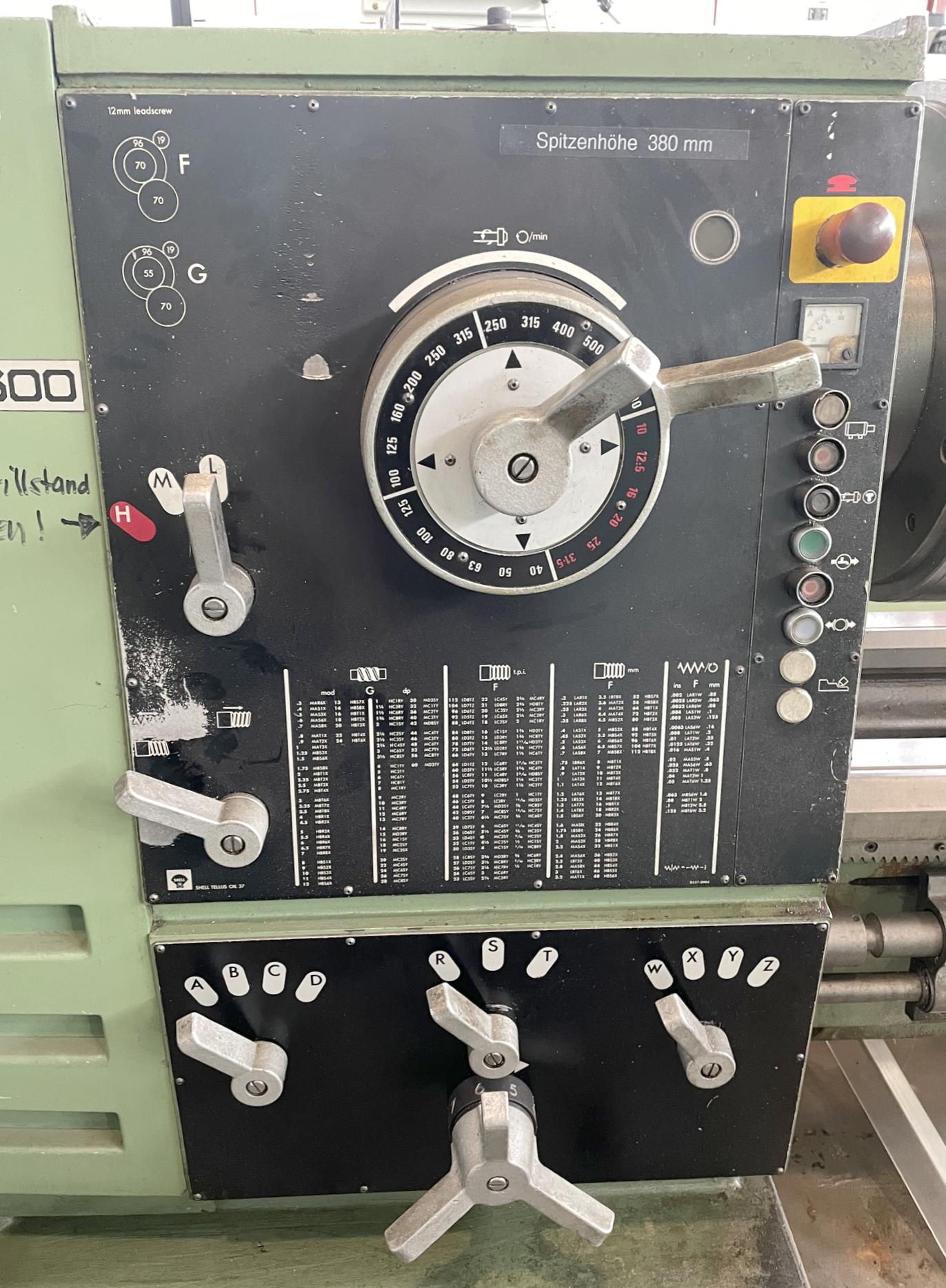

| Spindle speeds: | |
| number (steps) | 20 |
| from | 10 t/min |
| up to | 800 t/min |
| Taper in tailstock: | 6 CM |
| Spindle diameter | 95 mm |
| Spindle stroke | 190 mm |
| Spindle motor | 15 kW |
| Machine's weight about | 5200 kg |
| Overall dimensions machine: | |
| Length | 5920 mm |
| Width | 1200 mm |
| Height | 1500 mm |
| Various accessories: | |
| Digital readout number of axis: | 2 |

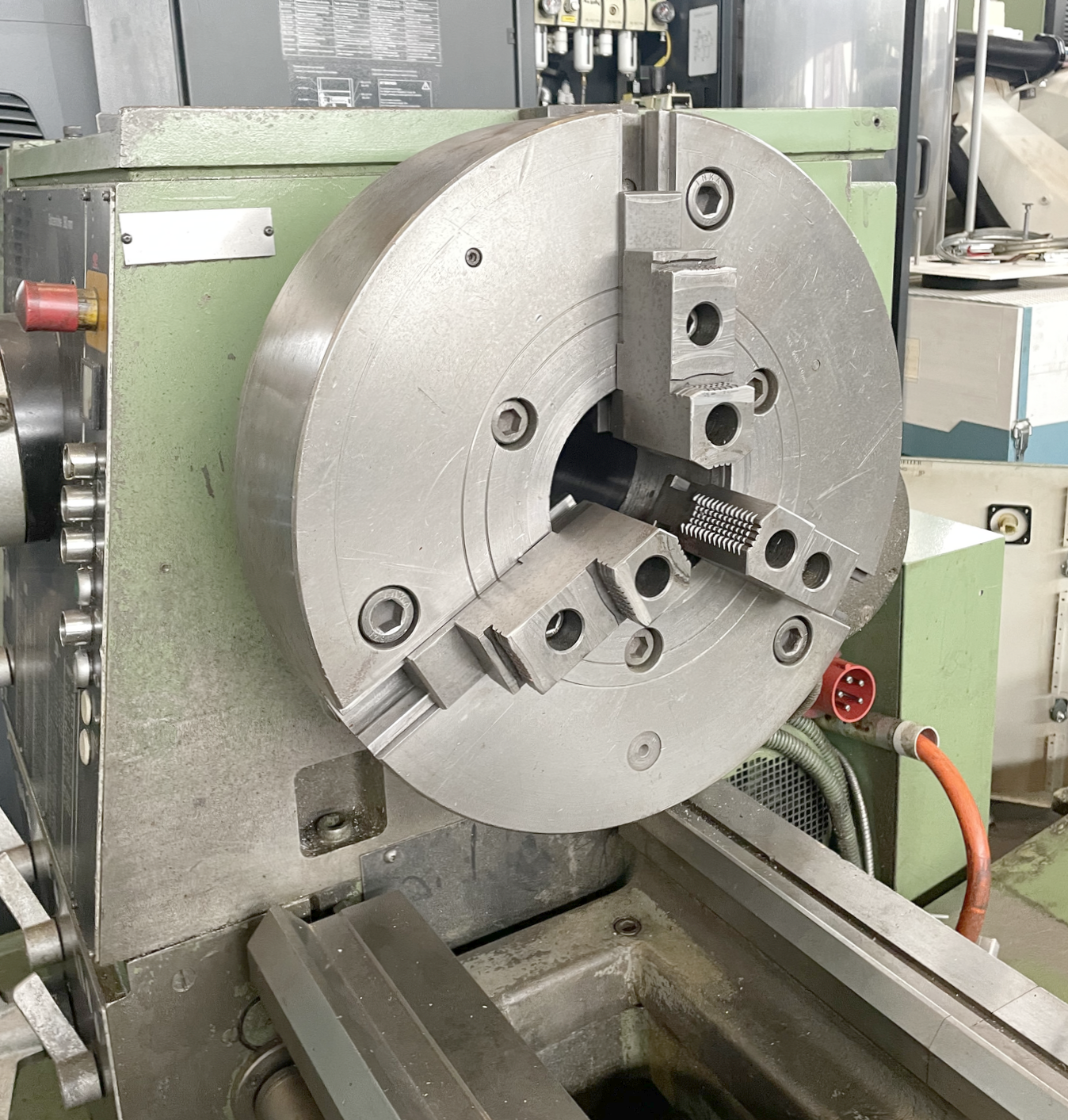

| 3-jaw chuck diameter | 500 mm |
| Set of hard jaws | |
| Set of soft jaws | |

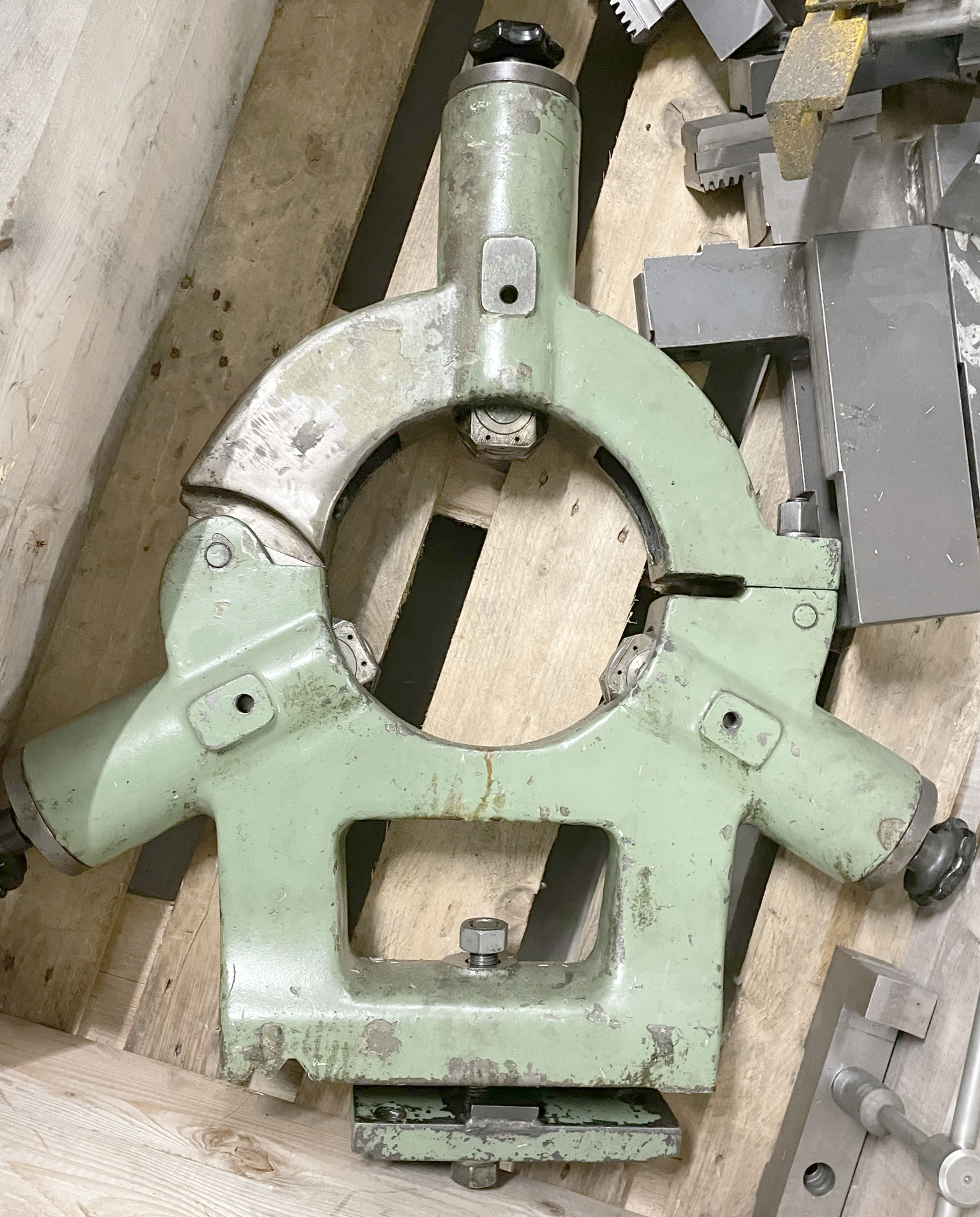

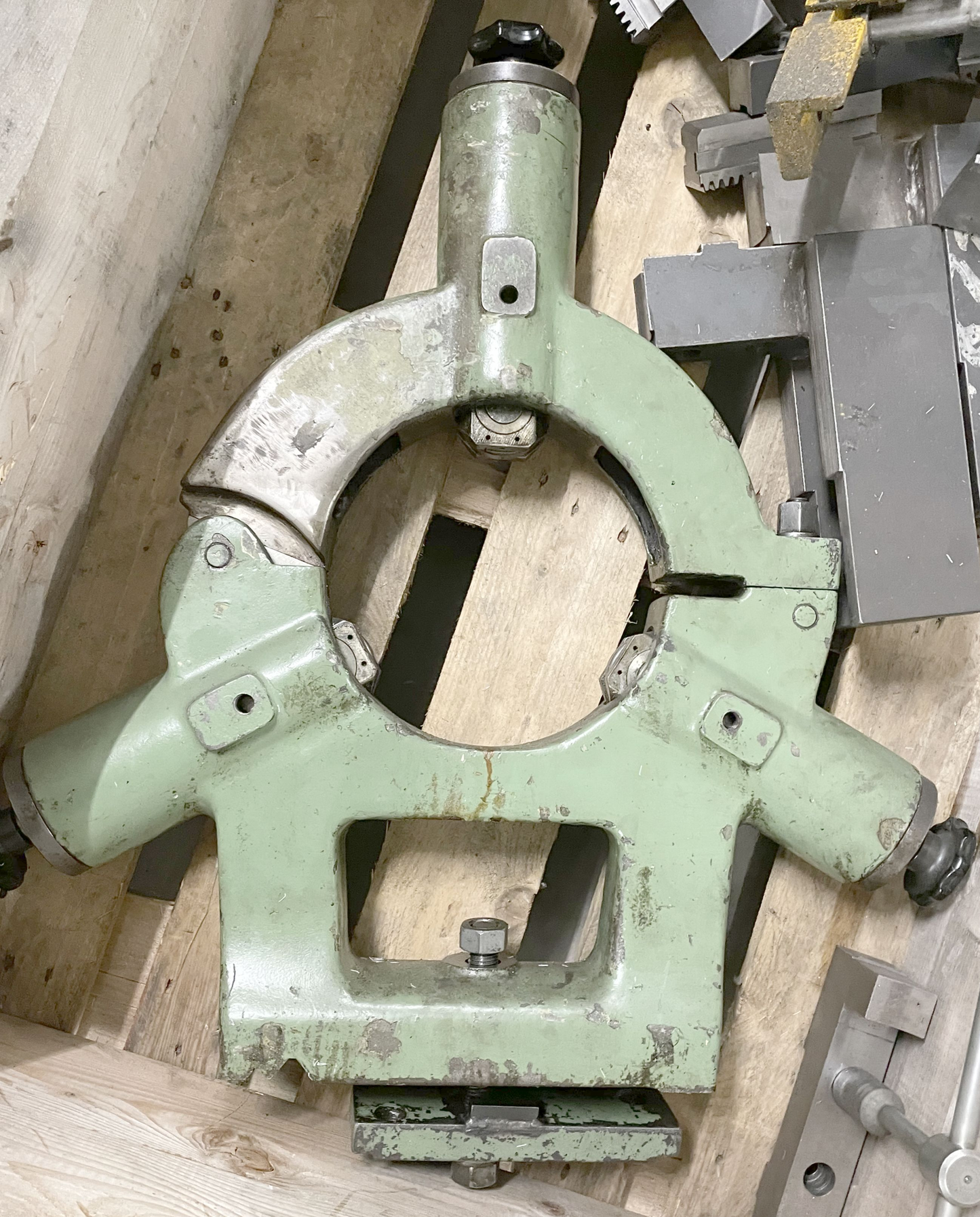

| Three-jaw bezel folds open | |
| Coolant system | |

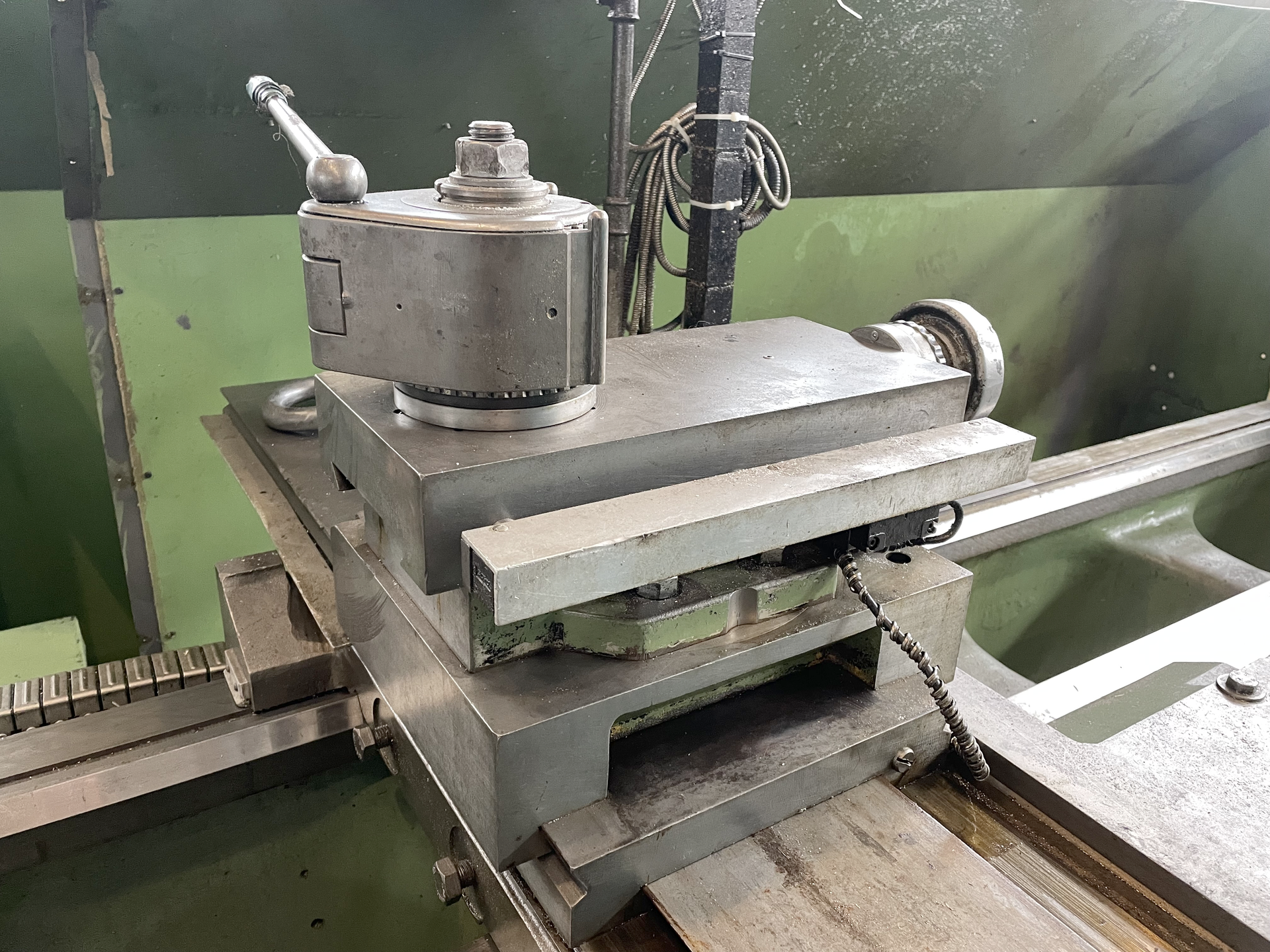

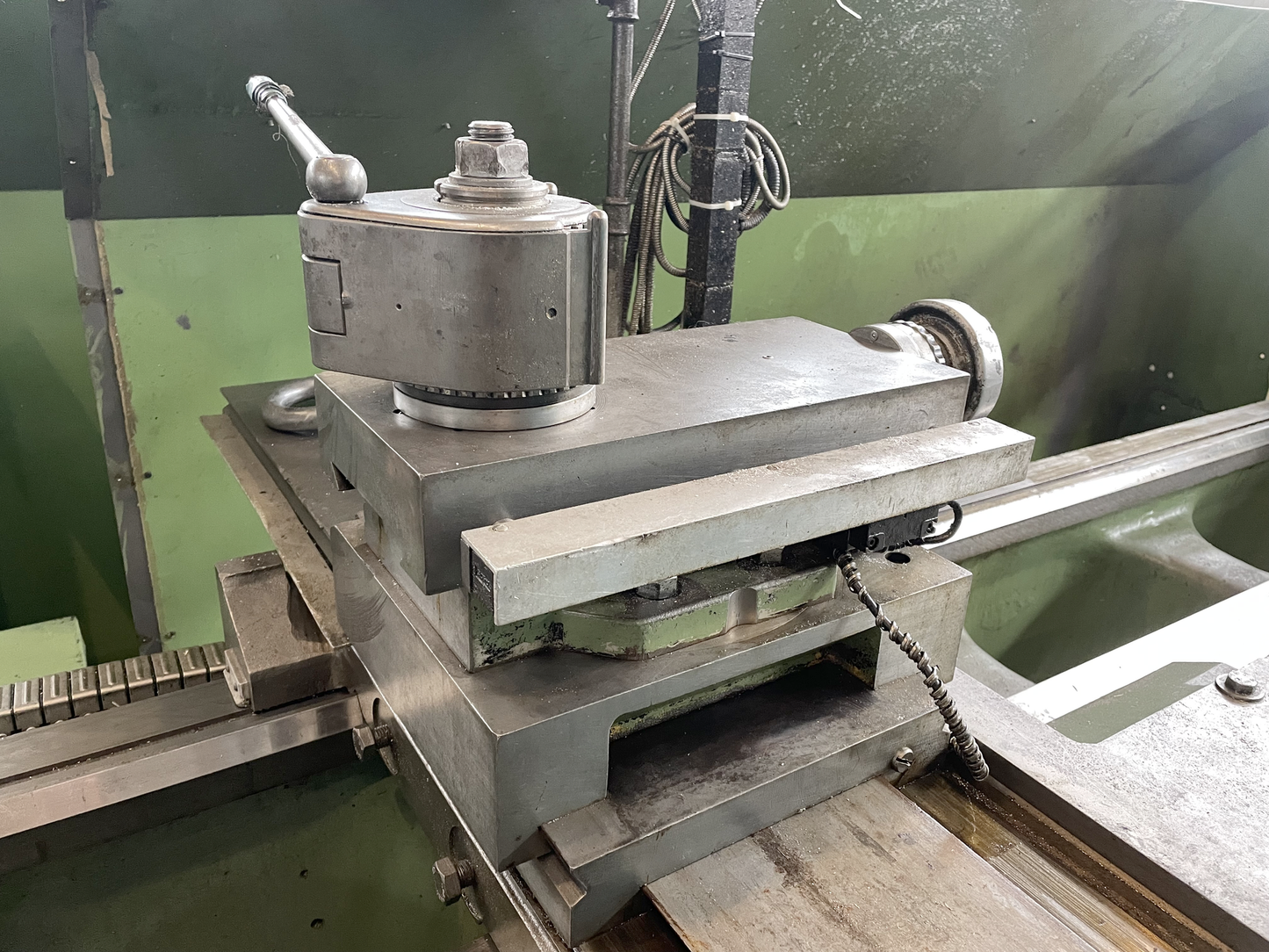

| Quick-change toolholder MULTIFIX | |
| Lamp | |

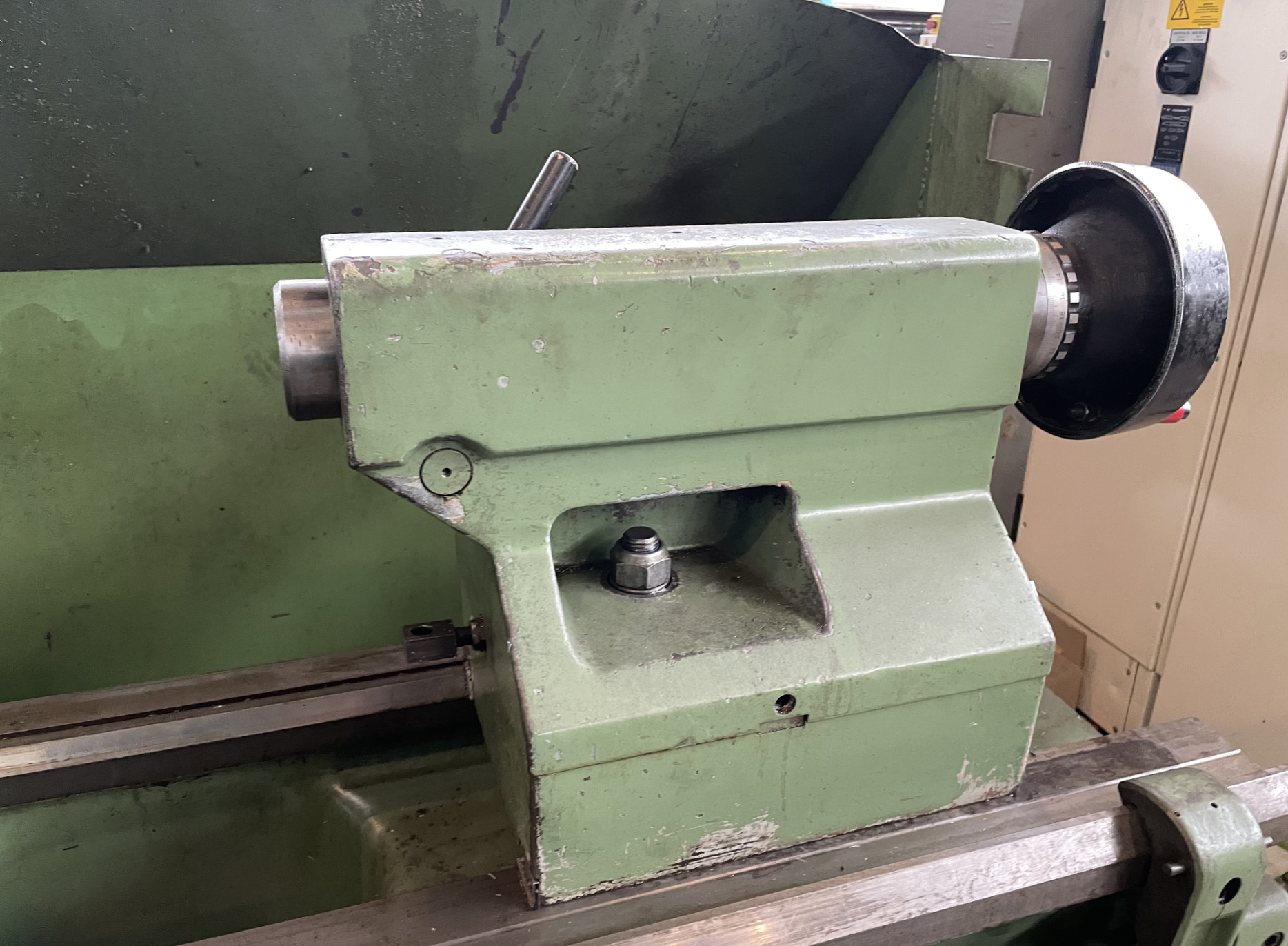

| Drilling tailstock | |
| Lathe chuck protection |
