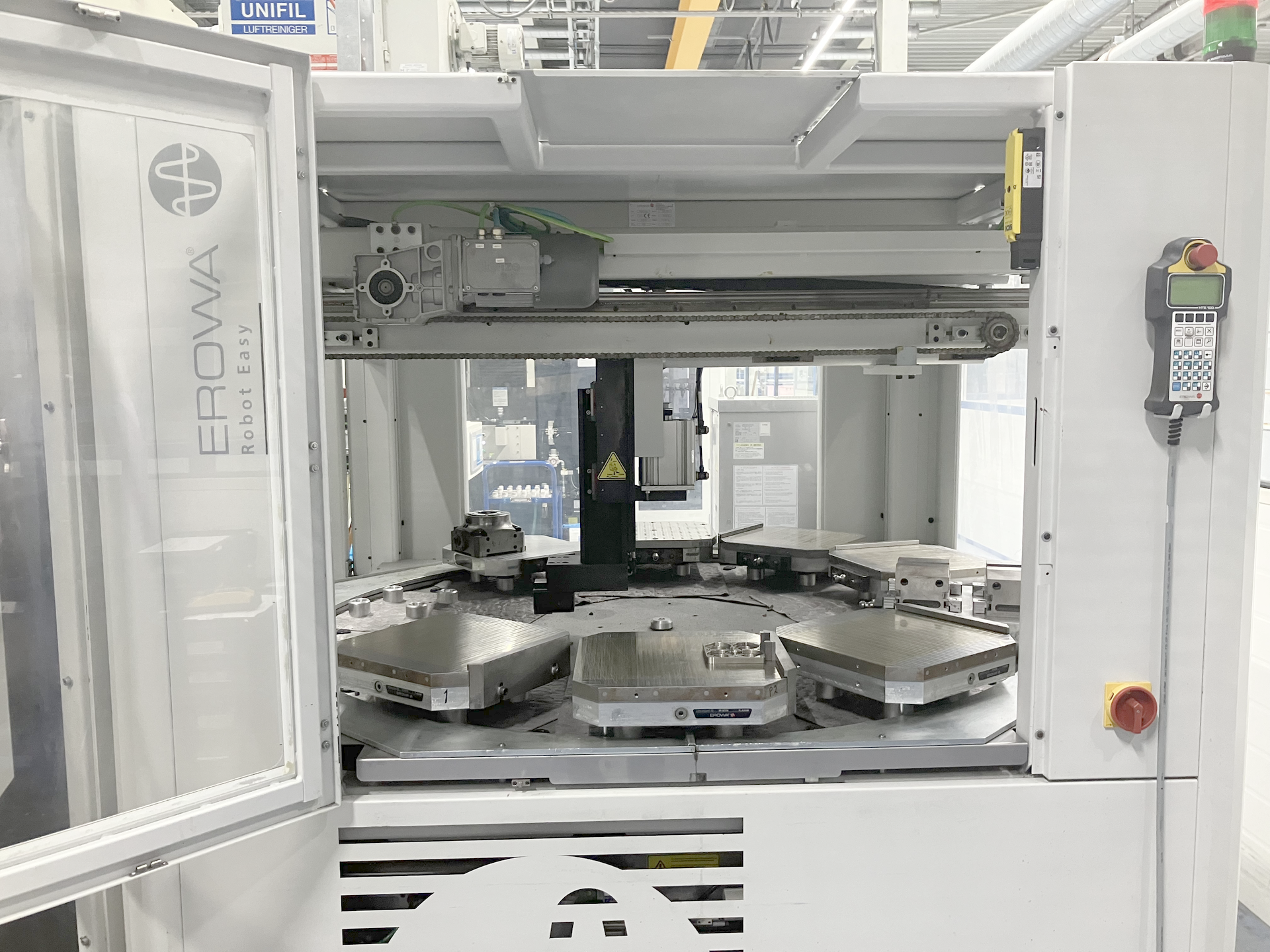

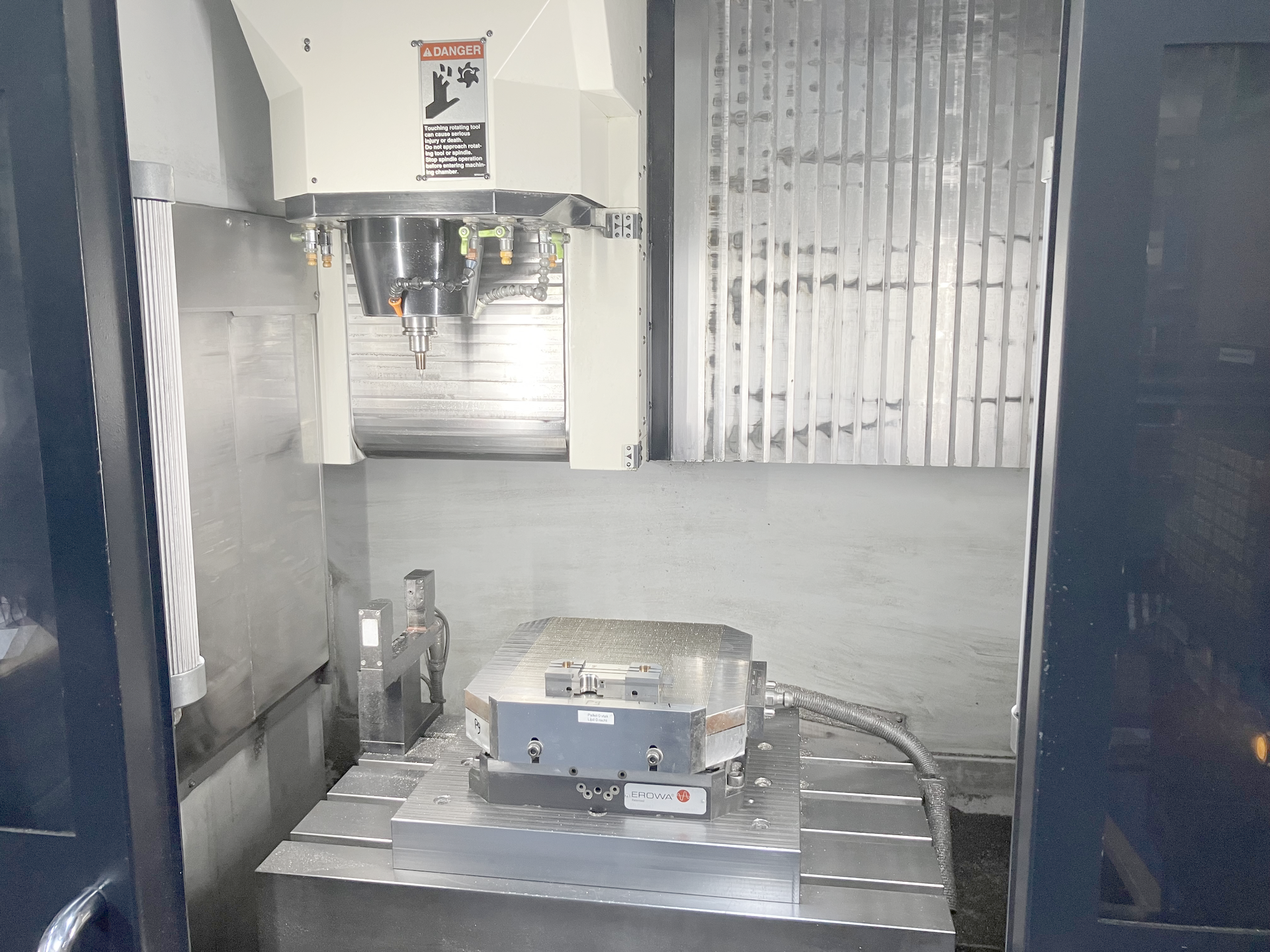

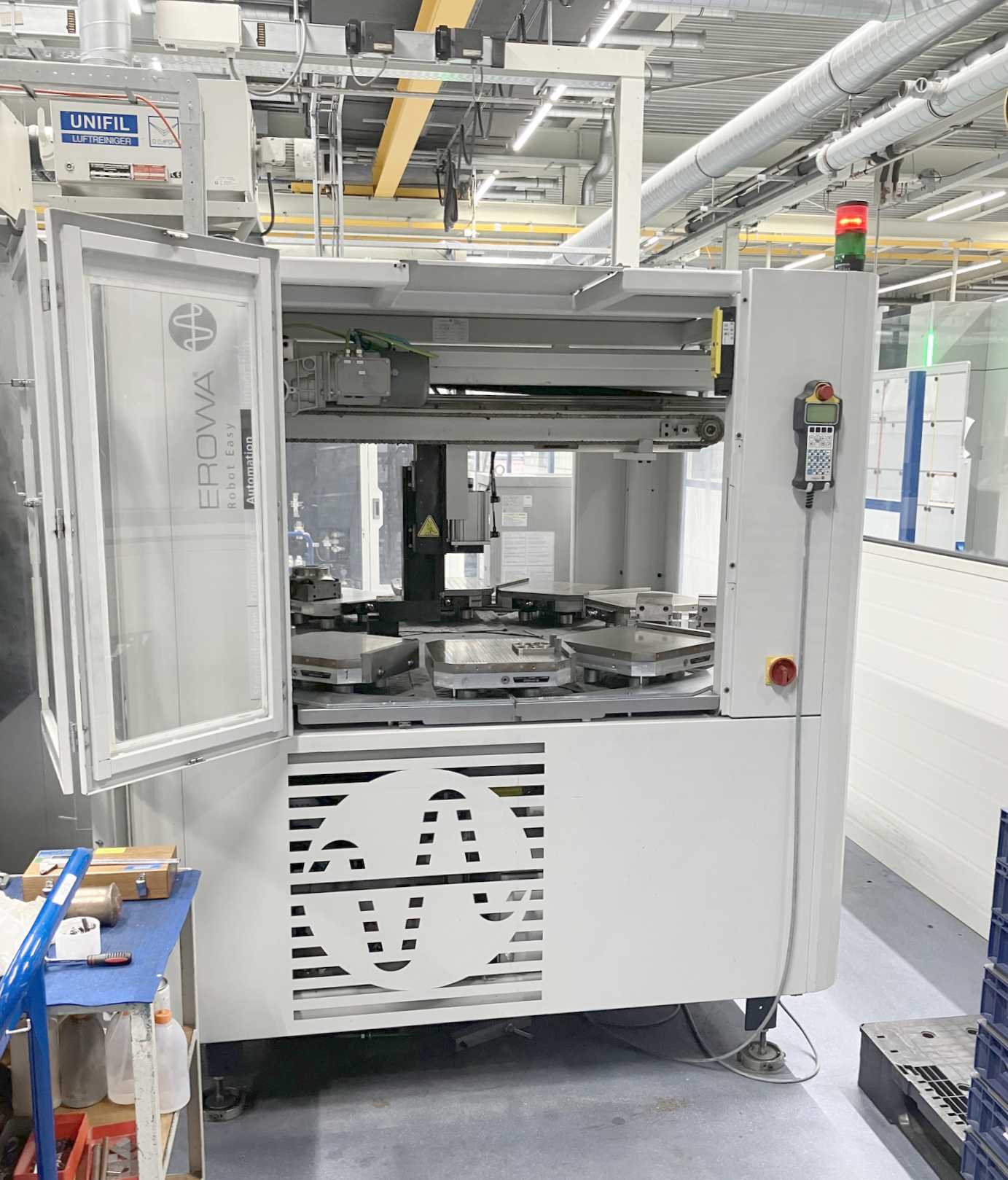

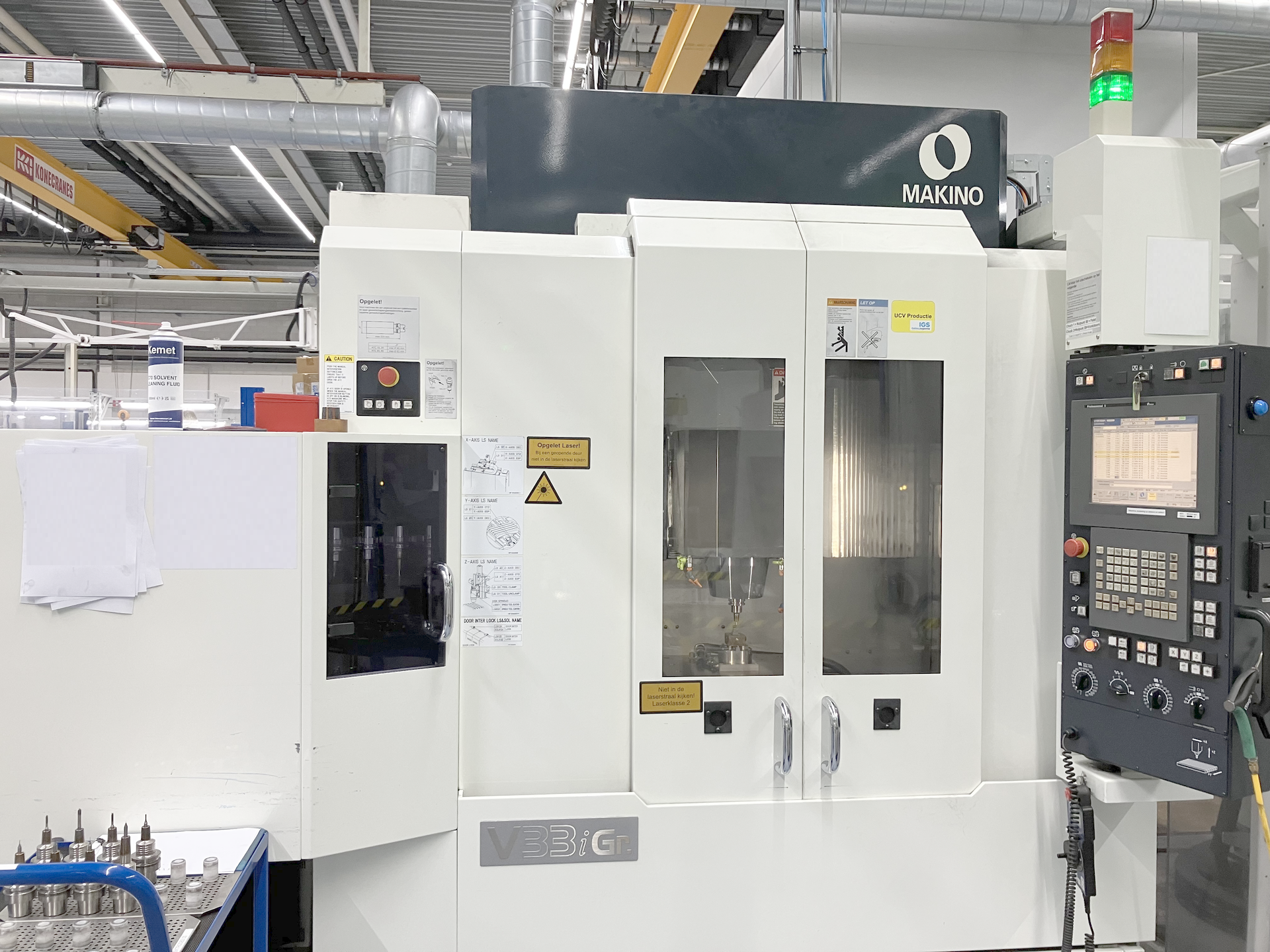

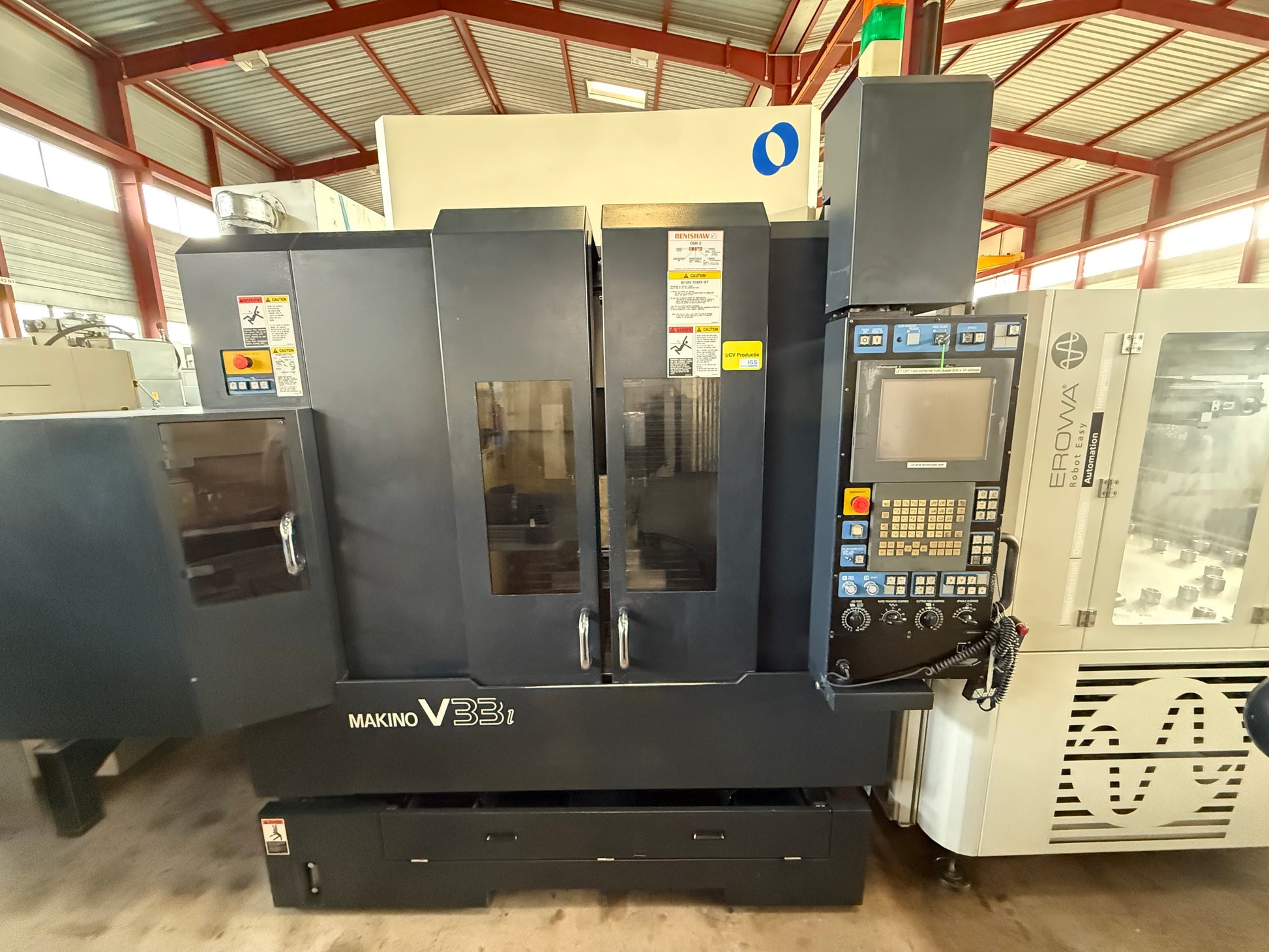

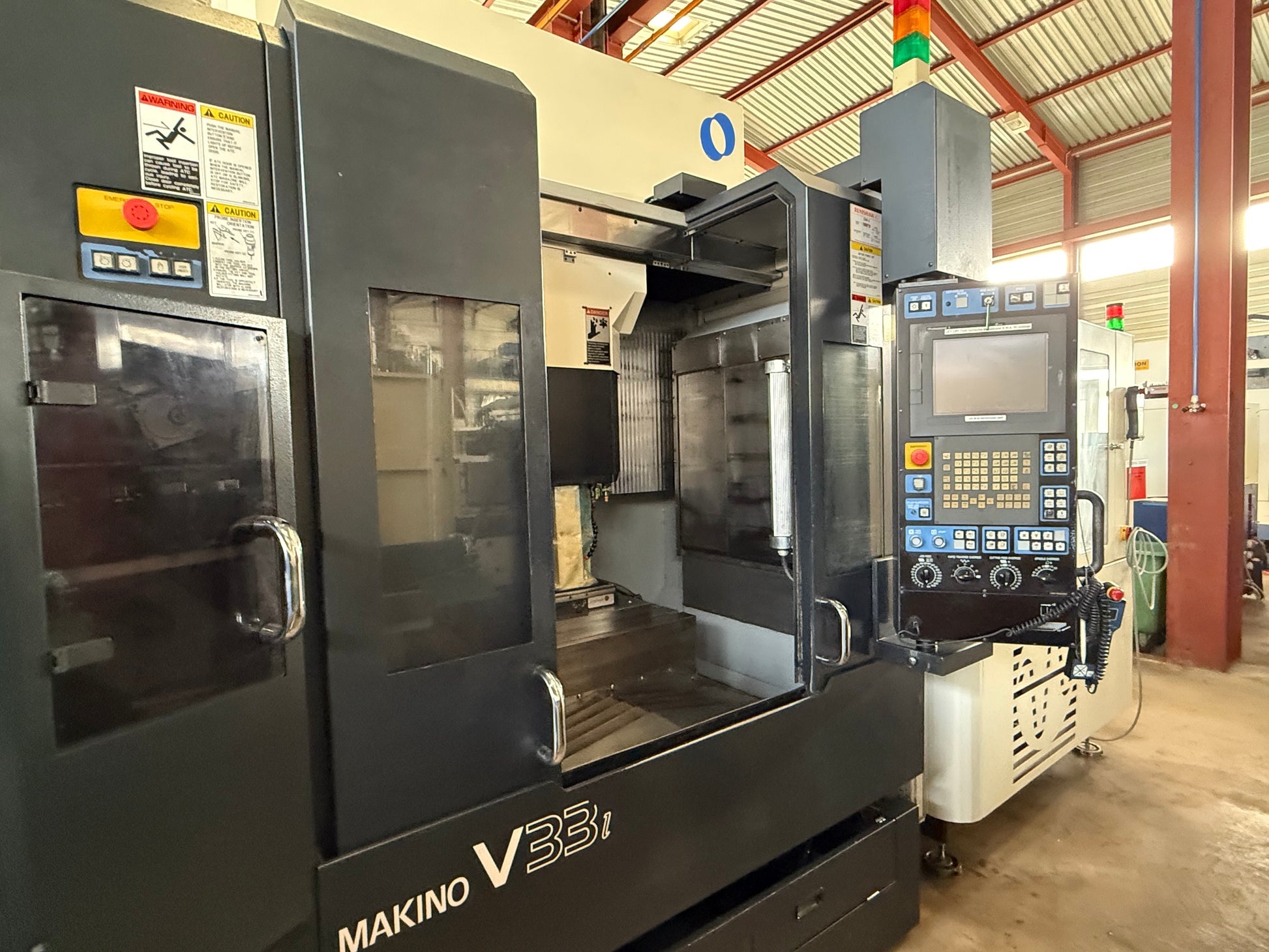

MAKINO V 33i Graphite is a 3‑axis machining center designed for precision, high accuracy and reliability. Capacities: table 750×450 mm with 4 T‑slots 18H8 at 100 mm, table load 300 kg; travels X650 Y450 Z350 mm; workpiece max L750 W635 H250 mm. Specs: spindle HSK E50 (nose–table 150–500 mm), stepless 300–30,000 t/min, torque 23.1 Nm; spindle power 17/13 kW; feed 1–20,000 mm/min, rapid 20 m/min; tool magazine 60 places, tool Ø max 80 mm, length 250 mm, tool change 4.8 s; 3×400 V 50 Hz, air 4–8 bar; machine ≈7700 kg, footprint 2330×2325×2600 mm, installed power 50 kVA. Accessories: lamp, oil‑mist extractor, spindle cooling, EROWA EASY ROBOT loader, status light. Achieves tight tolerances; suits automotive, watchmaking, tooling, aerospace and medical applications.

Technical specifications are subject to change without notice
