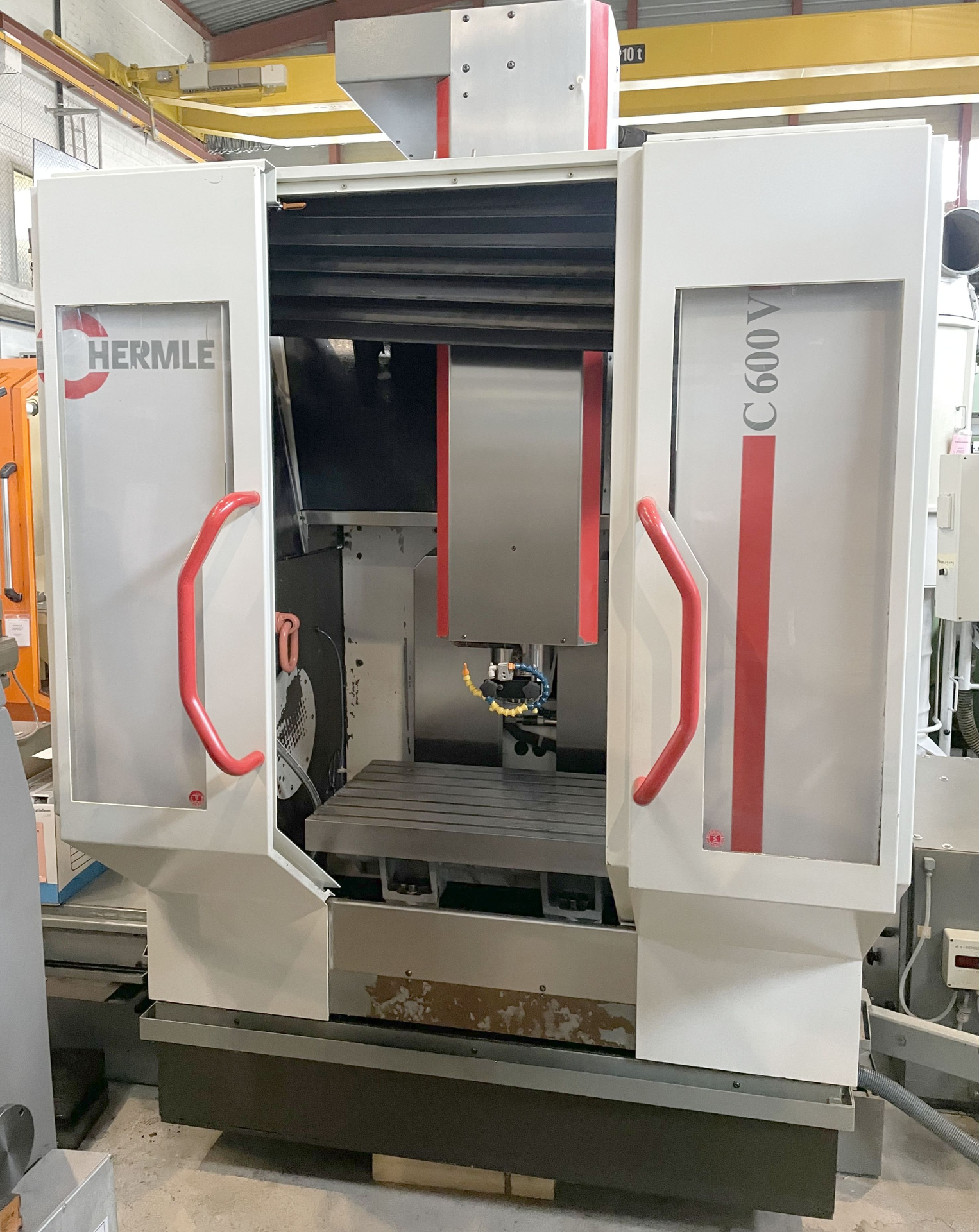

HERMLE C 600 V is a 3-axis machining center, engineered for precision, high accuracy and reliability. Table 800×465 mm, travels X 600 / Y 450 / Z 450 mm, table load max 200 kg; tool changer 30 stations, spindle taper HSK‑A63. Spindle 20–16,000 min⁻¹, spindle power 15 / 10 kW; feed 1–30,000 mm/min, rapid 35 m/min, max feed force 6000 N. Supply 3×400 V 50 Hz, total power 35 kVA, weight ≈6800 kg, size 2500×2020×2750 mm, noise 78 dB(A). Coolant through spindle 40 bar. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, tooling.
| Number of axis total | 3 |

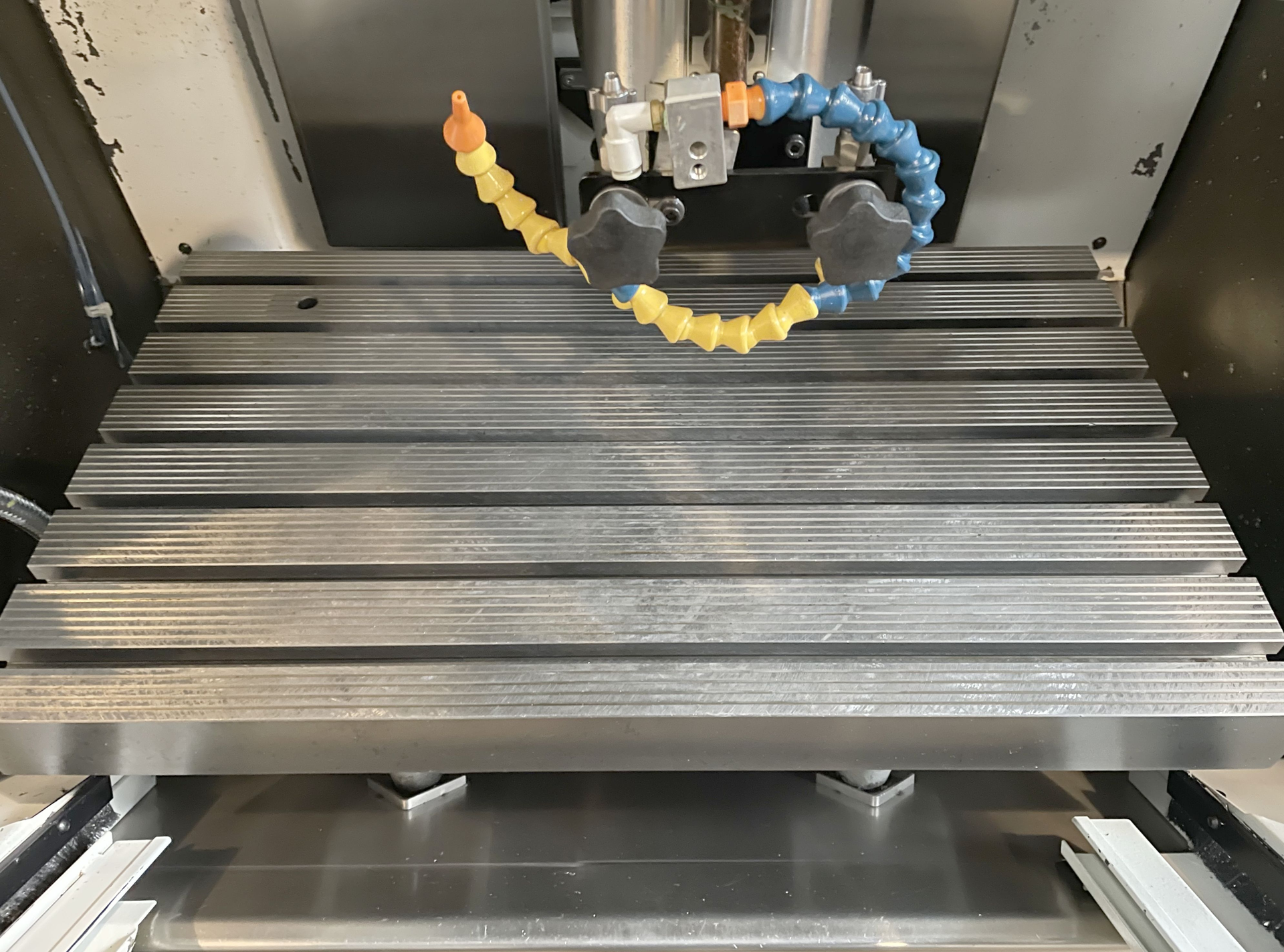

| Table length | 800 mm |
| Table width | 465 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 450 mm |
| Vertical travel (z axis) | 450 mm |
| Table load max. | 200 kg |
| C axis | |

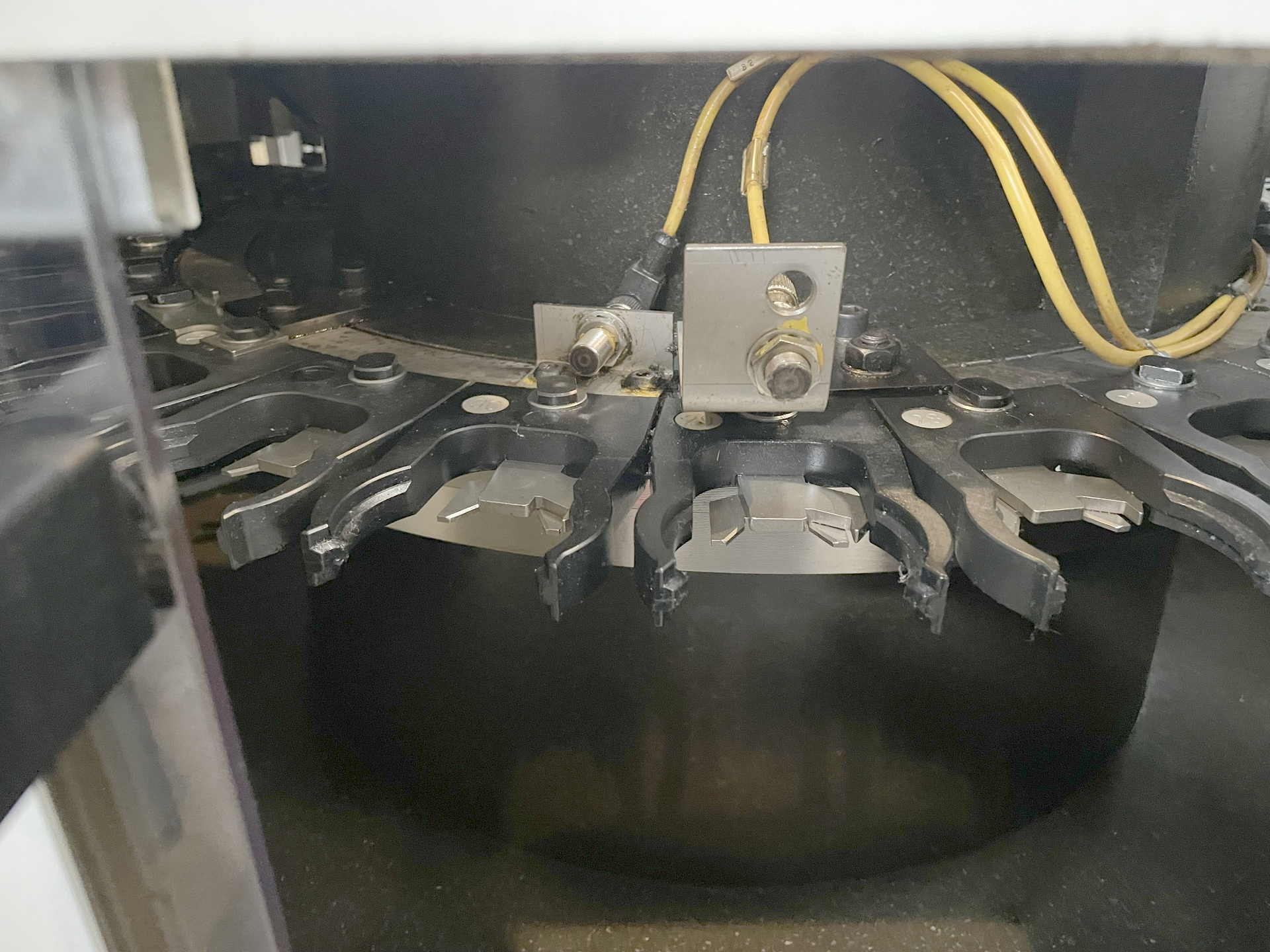

| Tool changer: | |
| Number of tools | 30 |
| Spindle nose: HSK-A | 63 |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 16000 t/min |
| Feed range | 1 -30000 mm/min |
| Rapid traverse: | 35 m/min |
| Max. Feed force | 6000 N |
| Measurement system: | |
| Resolution | µm |
| Input resolution | µm |
| Display step | µm |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 15 / 10 kW |
| Total power required | 35 kVA |
| Noise level | 78 dB (A) |
| Machine's weight about | 6800 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2020 mm |
| Height | 2750 mm |
| Various accessories: | |
| Coolant through spindle (cts) | 40 bar |
| Chip conveyor | |
| Lamp | |
| Oil mist extractor | |
| Interface serial port RS 232 | |
| Switch cabinet Air conditioner |
