KELLENBERGER 600 U
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

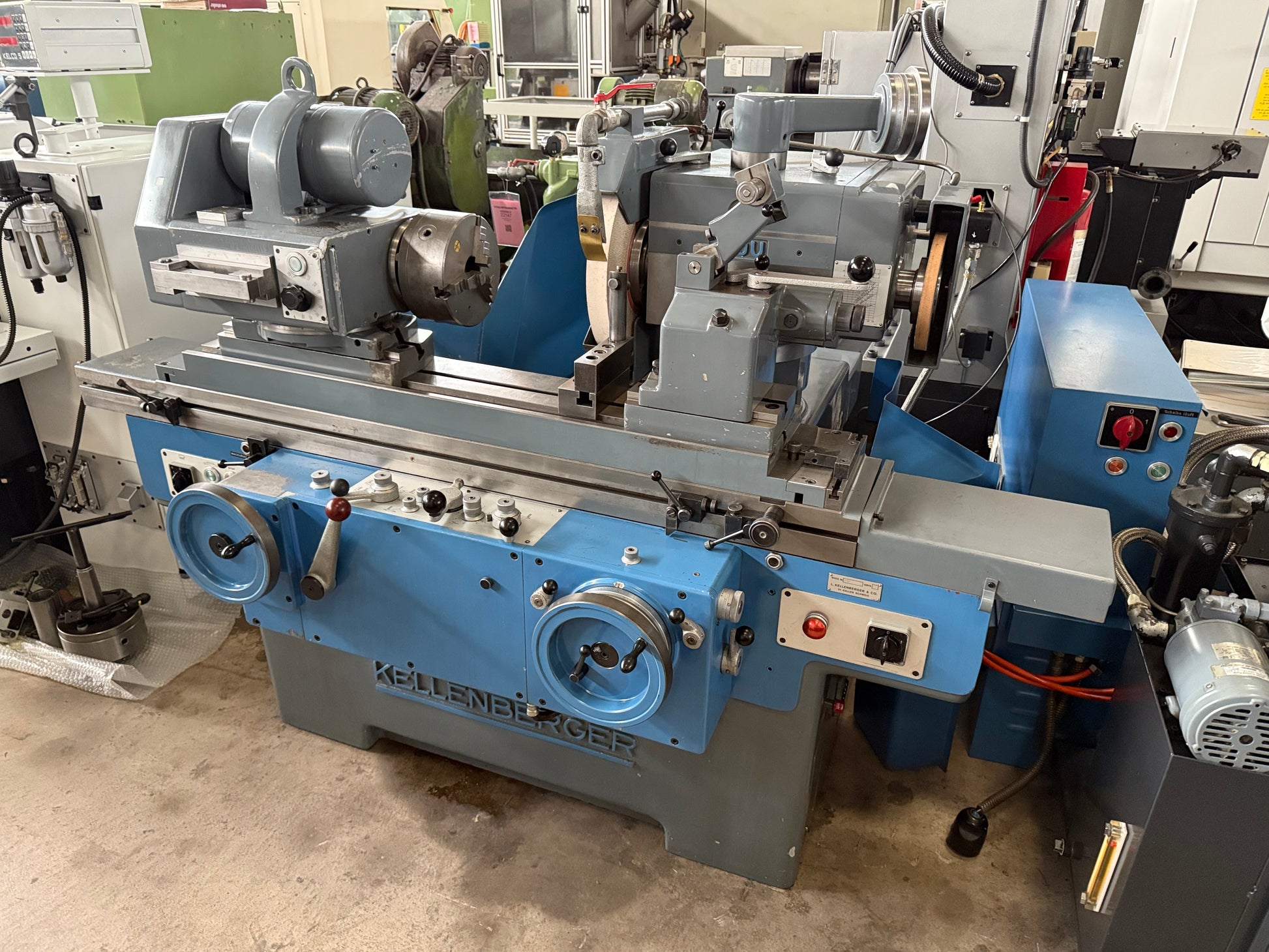

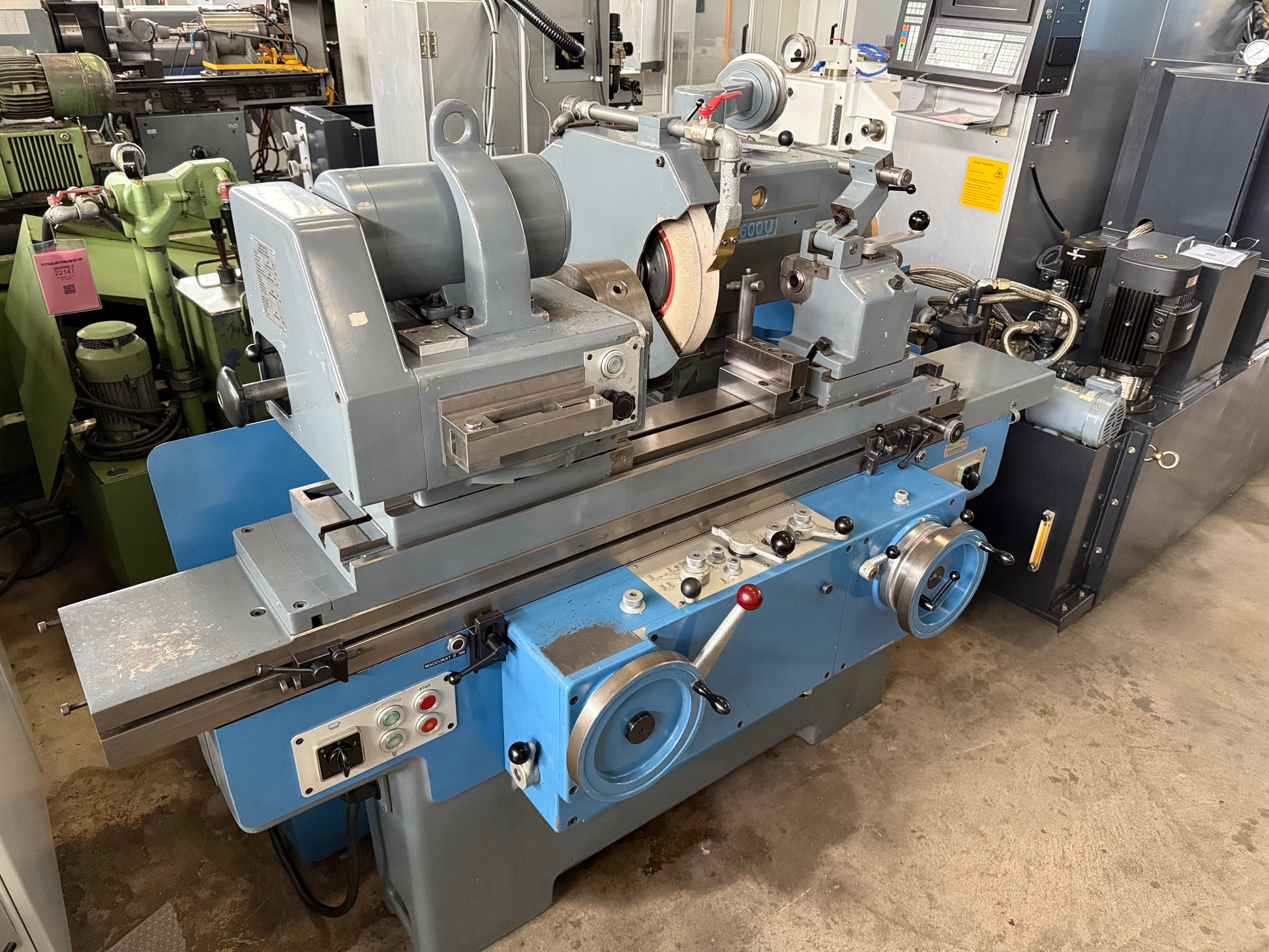

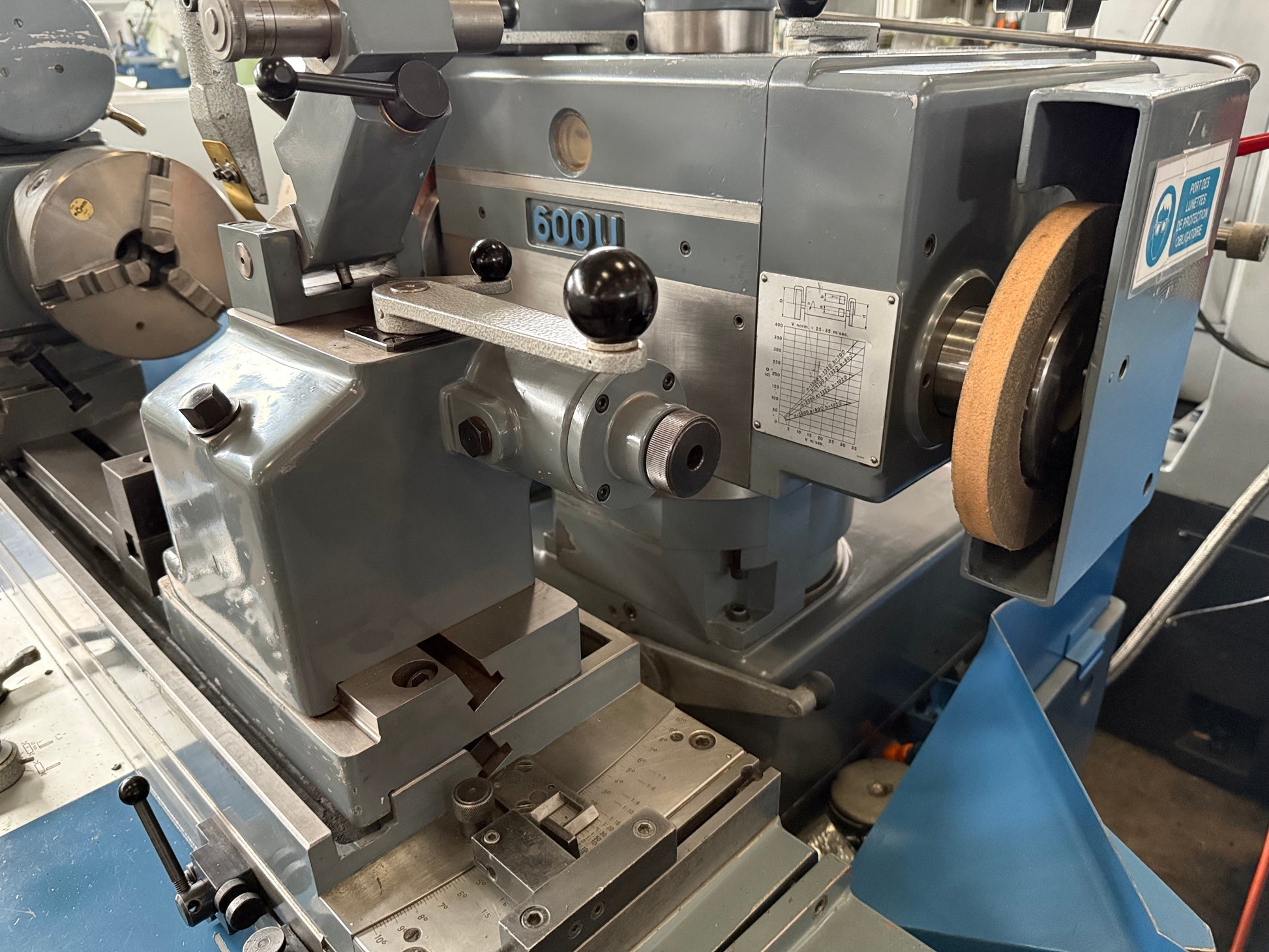

KELLENBERGER 600 U is a cylindrical grinder engineered for precision, high accuracy and reliable performance. Capacities: centre height 125 mm, distance between centres 600 mm; wheel Ø350×50 mm, bore 127 mm. Grinding head 270°; work spindle rotatable 360° with stepless 20–400 rpm; wheel speeds 4 steps 1500–3600 rpm; table tilt 10° and stepless table speed up to 6 m/min. Spindle/tailstock taper 3 CM. Power 3x380 V 50 Hz; external wheel motor 4 CV; weight ≈2200 kg; dimensions L2200×W1750×H1600 mm. Accessory: tool cabinet. Delivers tight tolerances; suited for automotive, aerospace, tooling and medical applications
| Centre height | 125 mm |
| Distance between centres | 600 mm |
| Grinding wheel: | |
| Diameter | 350 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| number (steps) | 4 |
| from | 1500 t/min |
| up to | 3600 t/min |
| Angular displacement | 270 ° |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 400 t/min |
| rotatable | 360 ° |
| Spindle taper | 3 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 10 ° |
| Table speed: | |
| stepless | |
| up to | 6 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 4 CV |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1750 mm |
| Height | 1600 mm |

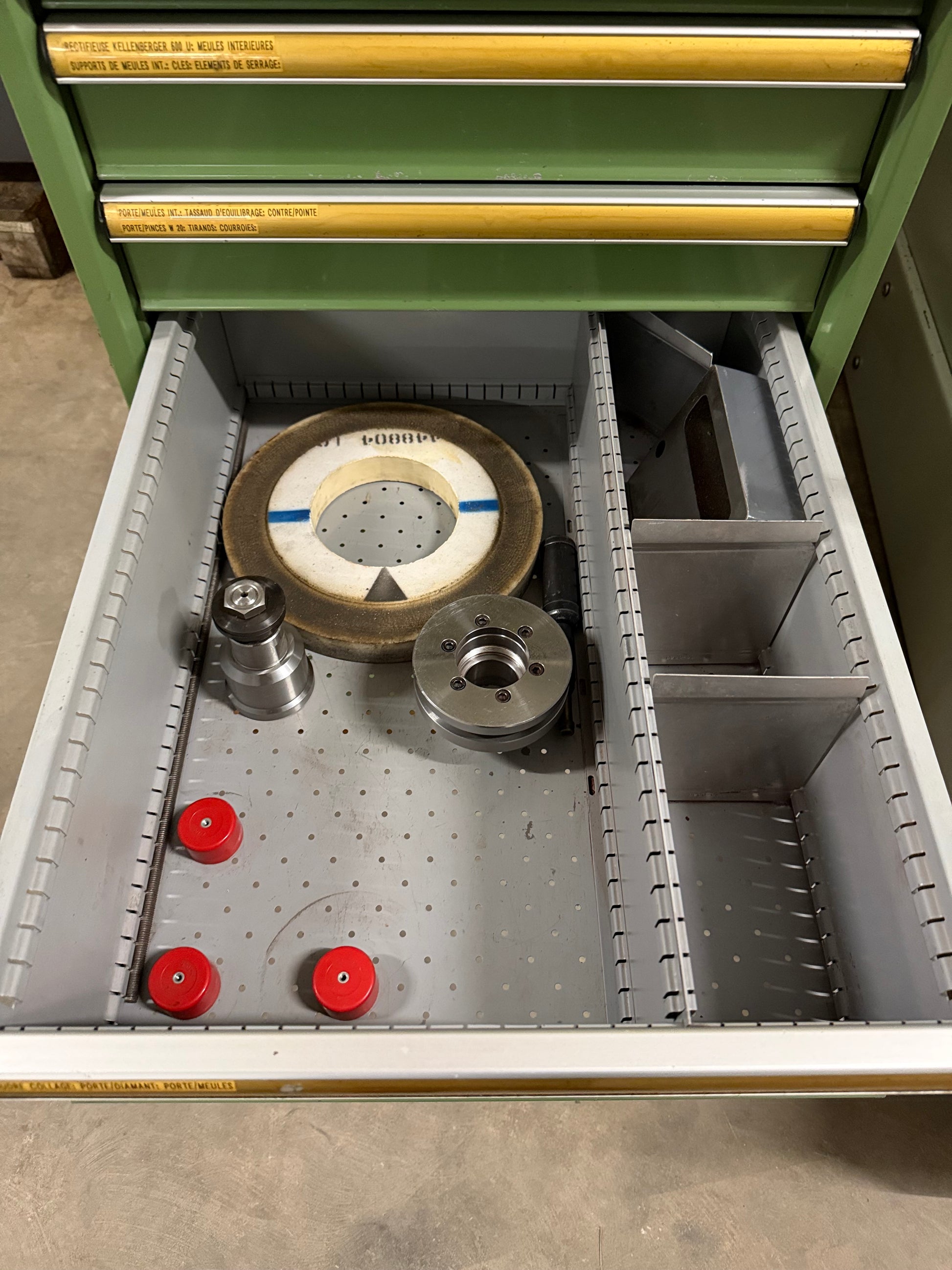

| Various accessories: | |

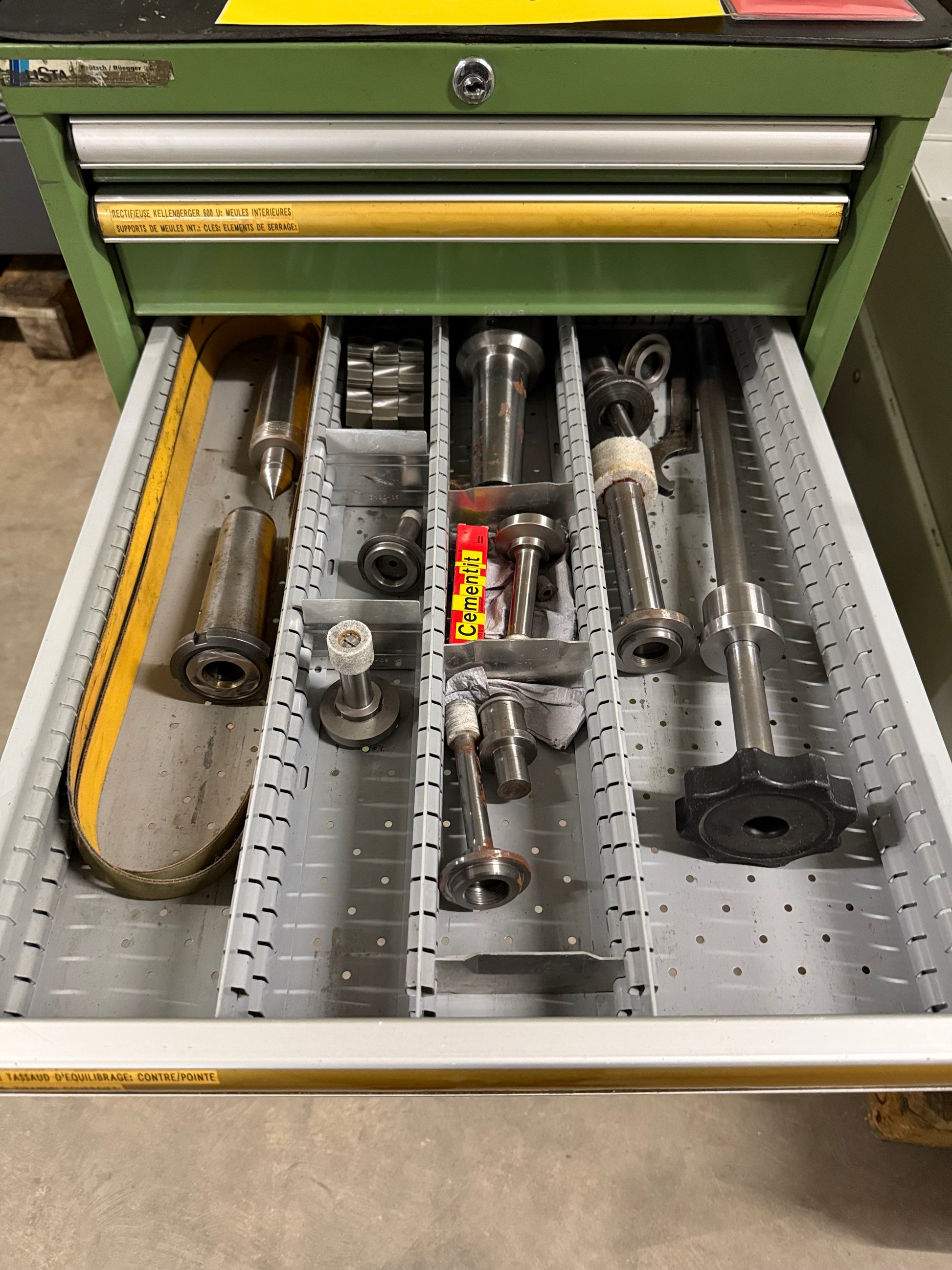

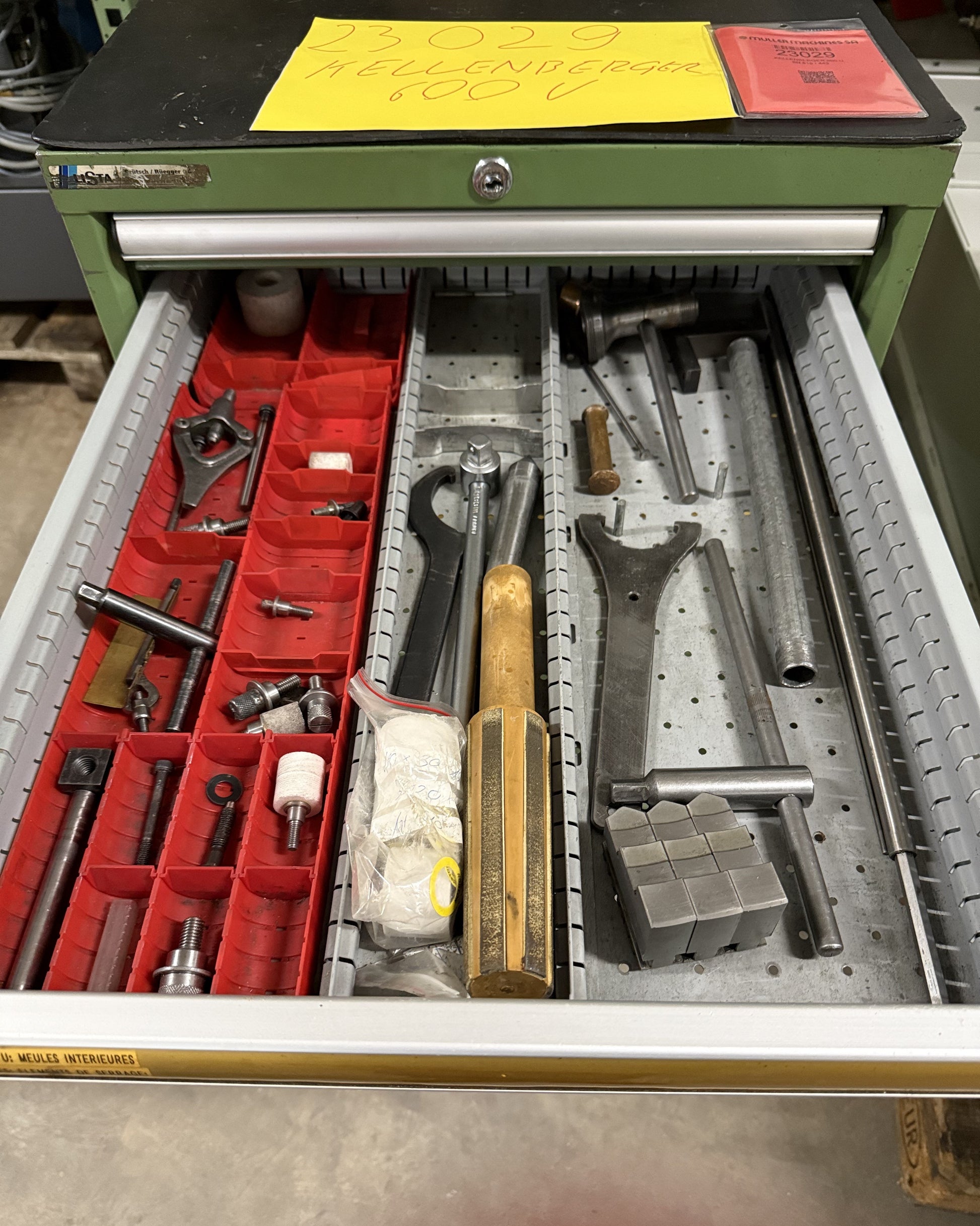

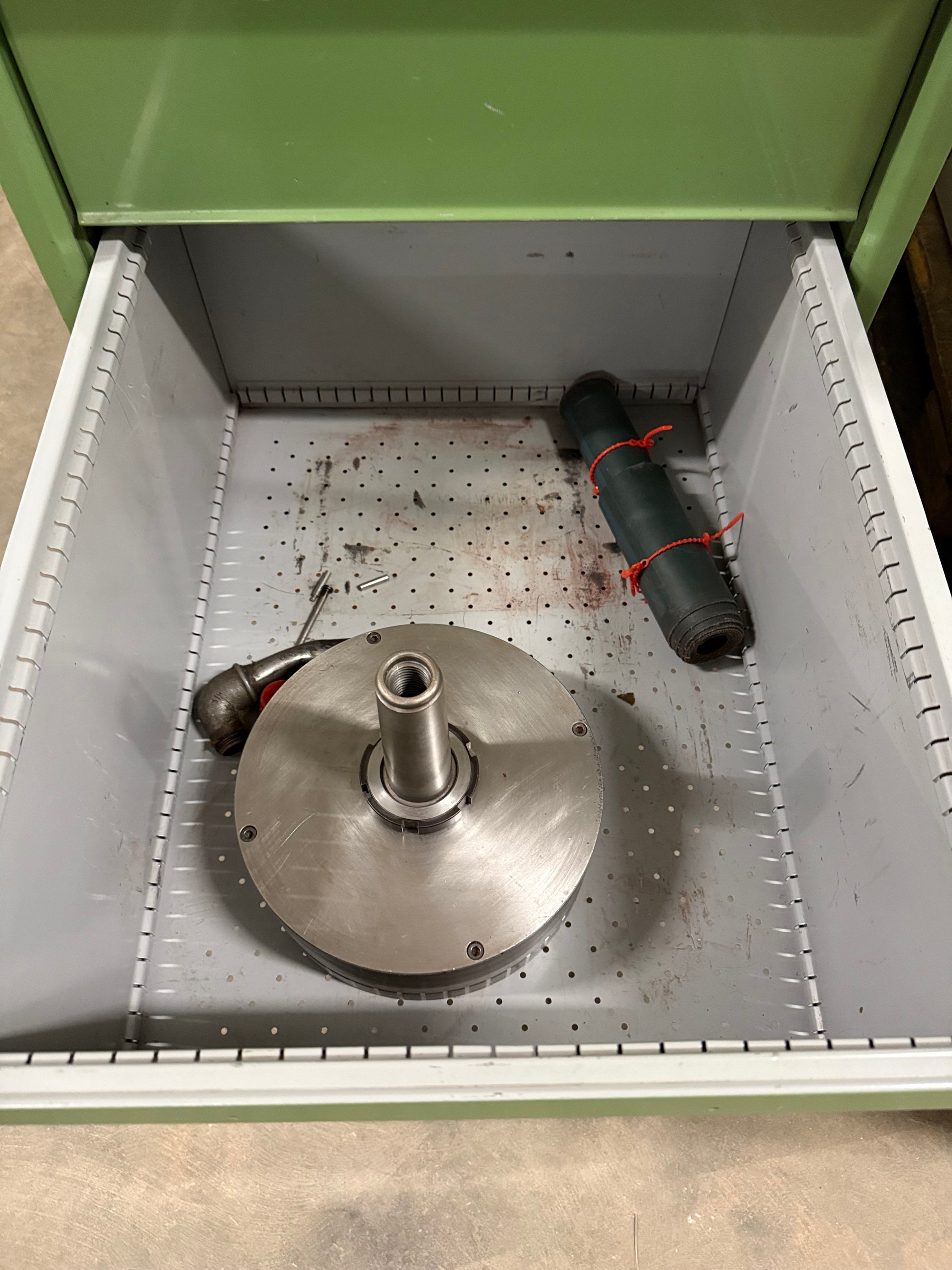

| Tool cabinet |
