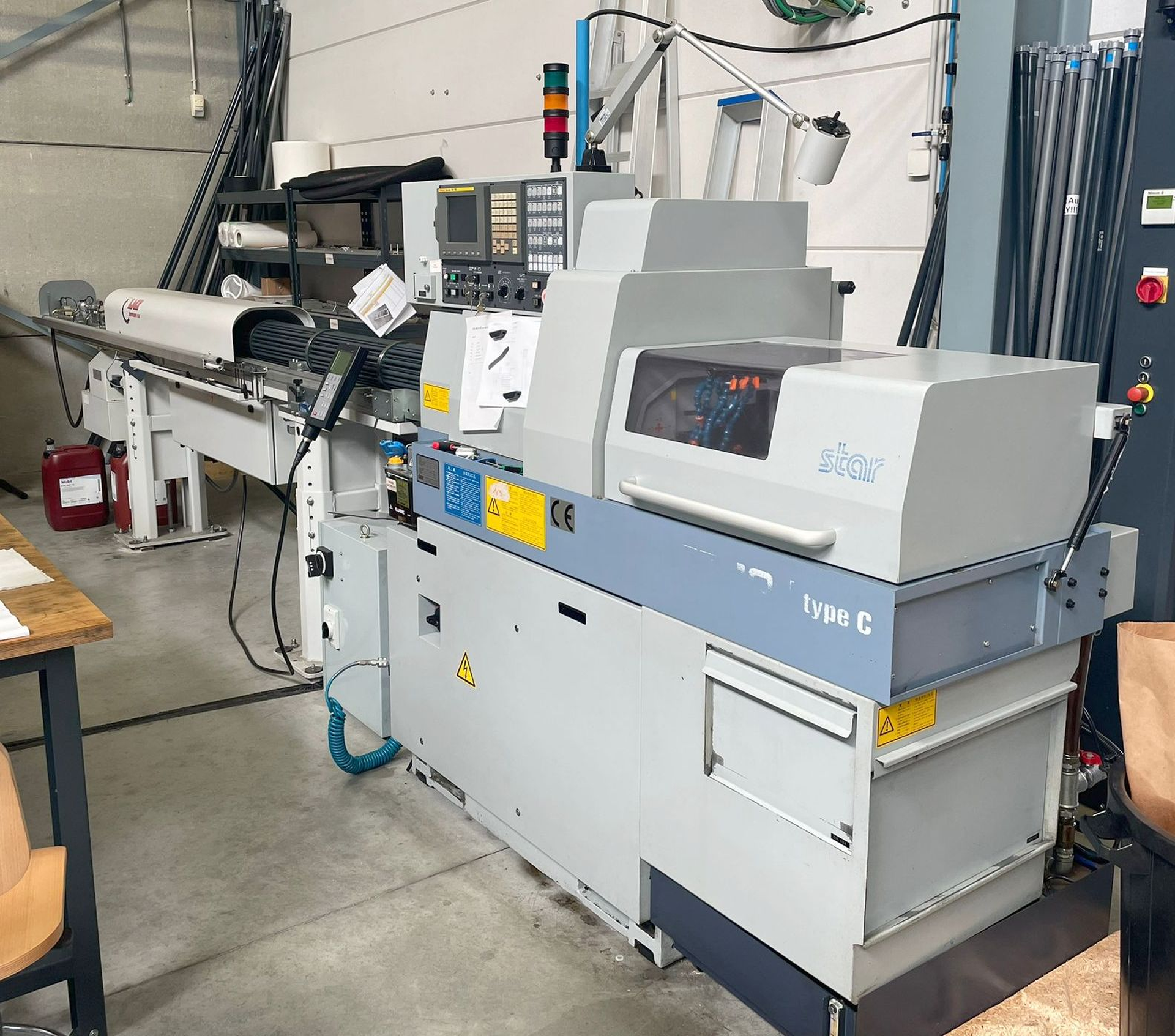

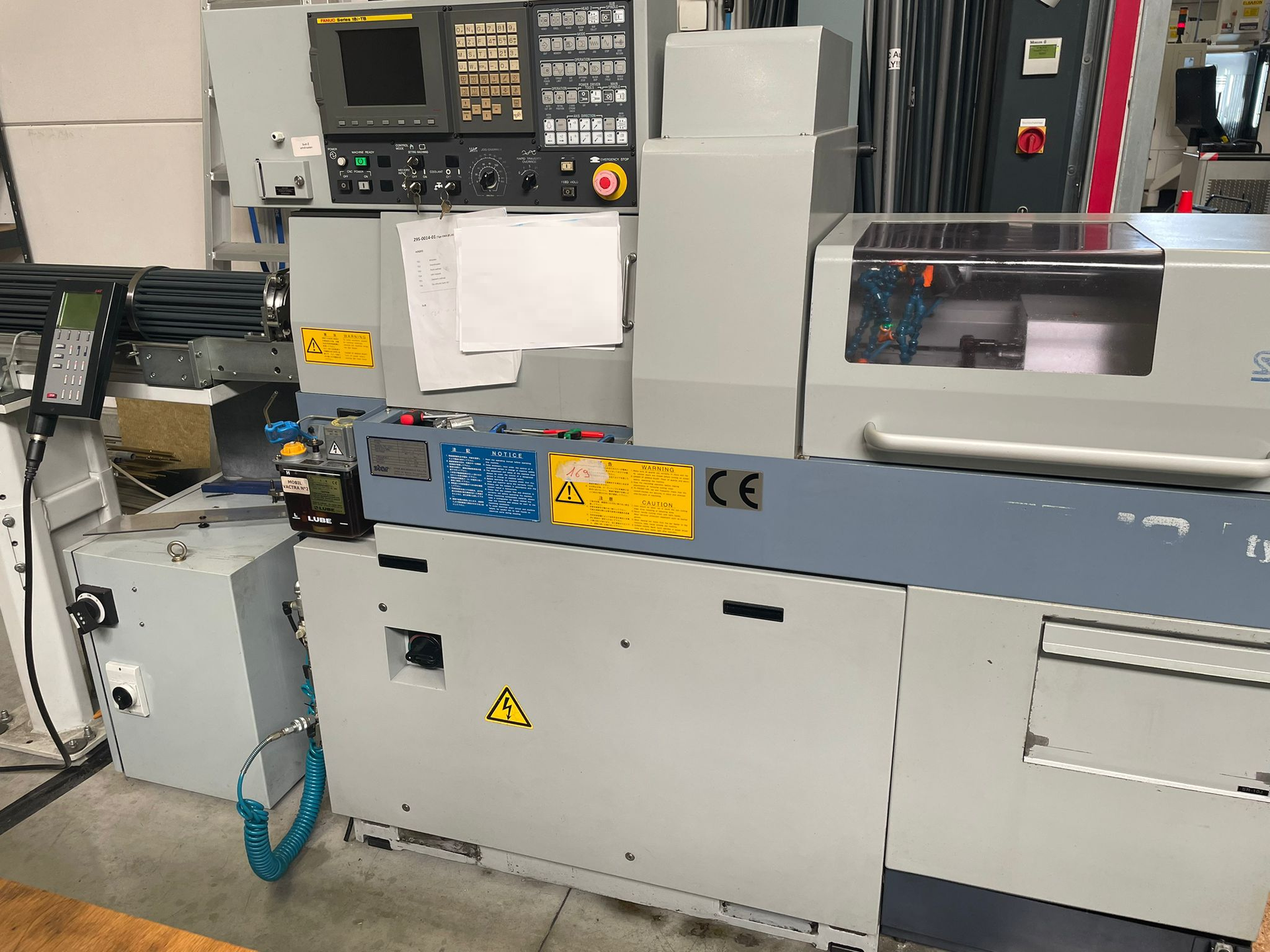

STAR SR-10 J type C is a CNC automatic lathe (CNC Swiss type lathe) built for high-precision, high-accuracy and reliable production. Capacities: 7 axes, 2 spindles, machining Ø max 10 mm, max turning length 135 mm, 13 tools (6 turning, 4 drilling, 3 transverse), counter-operation with 8 drilling tools. Specs: main spindle 1–15000 t/min, 3.7 kW; back spindle 1–10000 t/min, 1.1 kW; driven tools 250–8000 t/min; rapid traverse 35 m/min; 50 Hz 3x400 V; total power 3 kVA; weight ~1400 kg; footprint L2000×W820×H1800 mm. Accessories: LNS TRYTON 112 bar feeder, lamp and status light. Suited to tight tolerances in automotive, watchmaking, tooling, aerospace and medical sectors.
Technical specifications are subject to change without notice
| Number of axis total | 7 |
| Number of spindles | 2 |
| Machining diameter max. | 10 mm |
| Maximum turning length | 135 mm |
| Spindle speeds: | |
| stepless | |
| from | 1 t/min |
| up to | 15000 t/min |
| Spindle power | 3.7 kW |
| C axis (spindle,resolution) | ° |
| Back spindle: | |
| speeds: | |
| from | 1 t/min |
| up to | 10000 t/min |
| C axis (spindle,resolution) | ° |
| Tool-holder: | |
| number of tools | 13 |
| Turning tools | 6 pce |
| Drilling tools | 4 pce |
| Transverse processing tools | 3 pce |
| Spindle speeds (turning tools) | 250 - 8000 t/min |
| Counter-operation: | |
| Drilling tools | 8 pce |
| Rapid traverse: | 35 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power of back spindle | 1.1 kW |
| Total power required | 3 kVA |
| Machine's weight about | 1400 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 820 mm |
| Height | 1800 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | Turbo MH 500 |
| Lamp | |
| Coolant system | |
| Status light |
