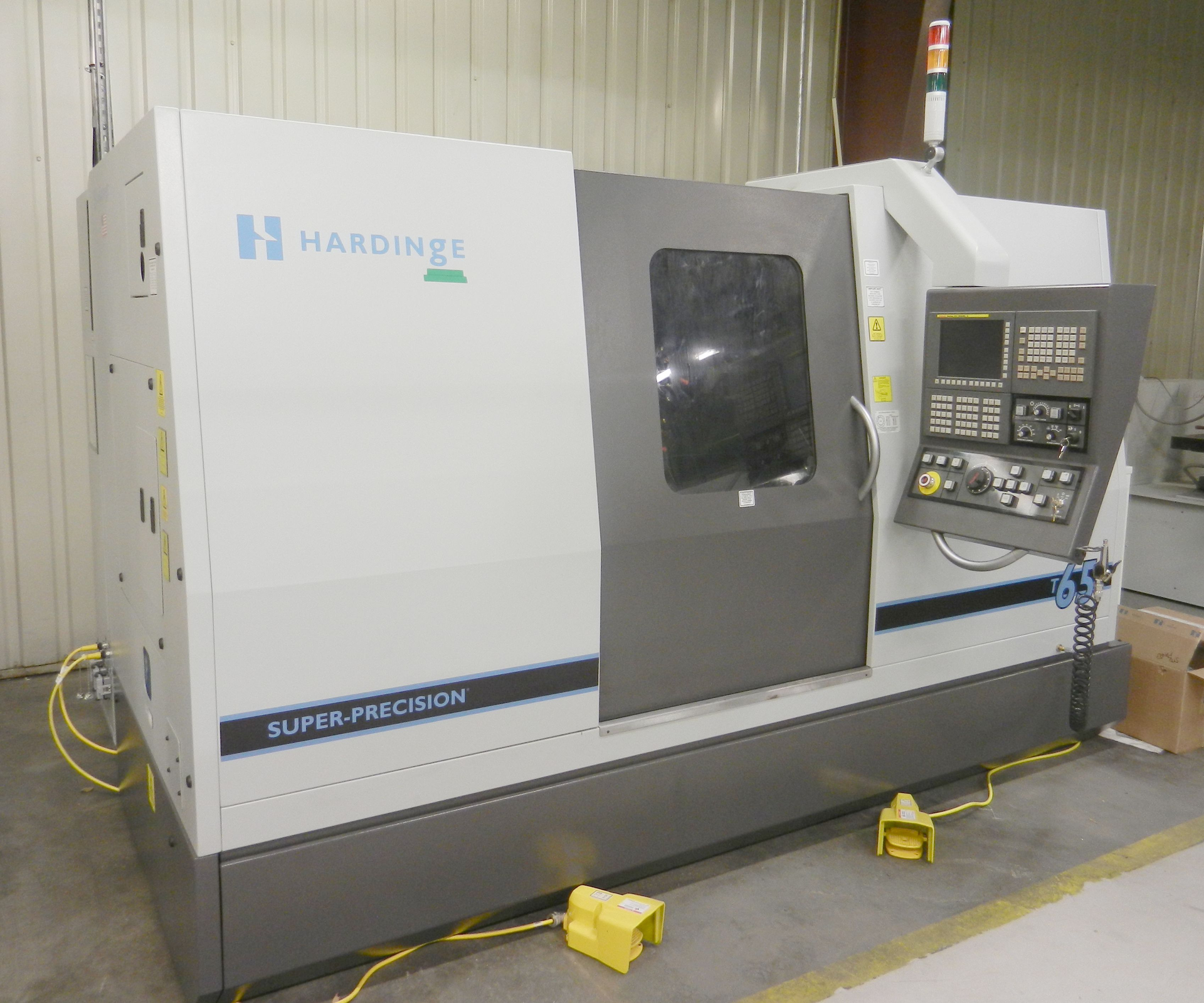

HARDINGE T65 is a CNC turning lathe engineered for high precision, high accuracy and reliable performance. Capacities: max turning Ø 313.7 mm; spindle hole 75 mm; bar passage 65 mm; 1 spindle, 1 turret 12 positions (spindle nose A2‑6, toolholder BMT55). Specs: 0–4000 rpm (stepless), spindle power 26 kW, weight ≈7800 kg, size 3257×2313×2123 mm. Accessories: 3‑jaw chuck, collet device, water cooler, coolant system, status light. Delivers tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools.
| Number of spindles | 1 |
| Number of revolvers | 1 |
| Spindle nose | A2-6 |

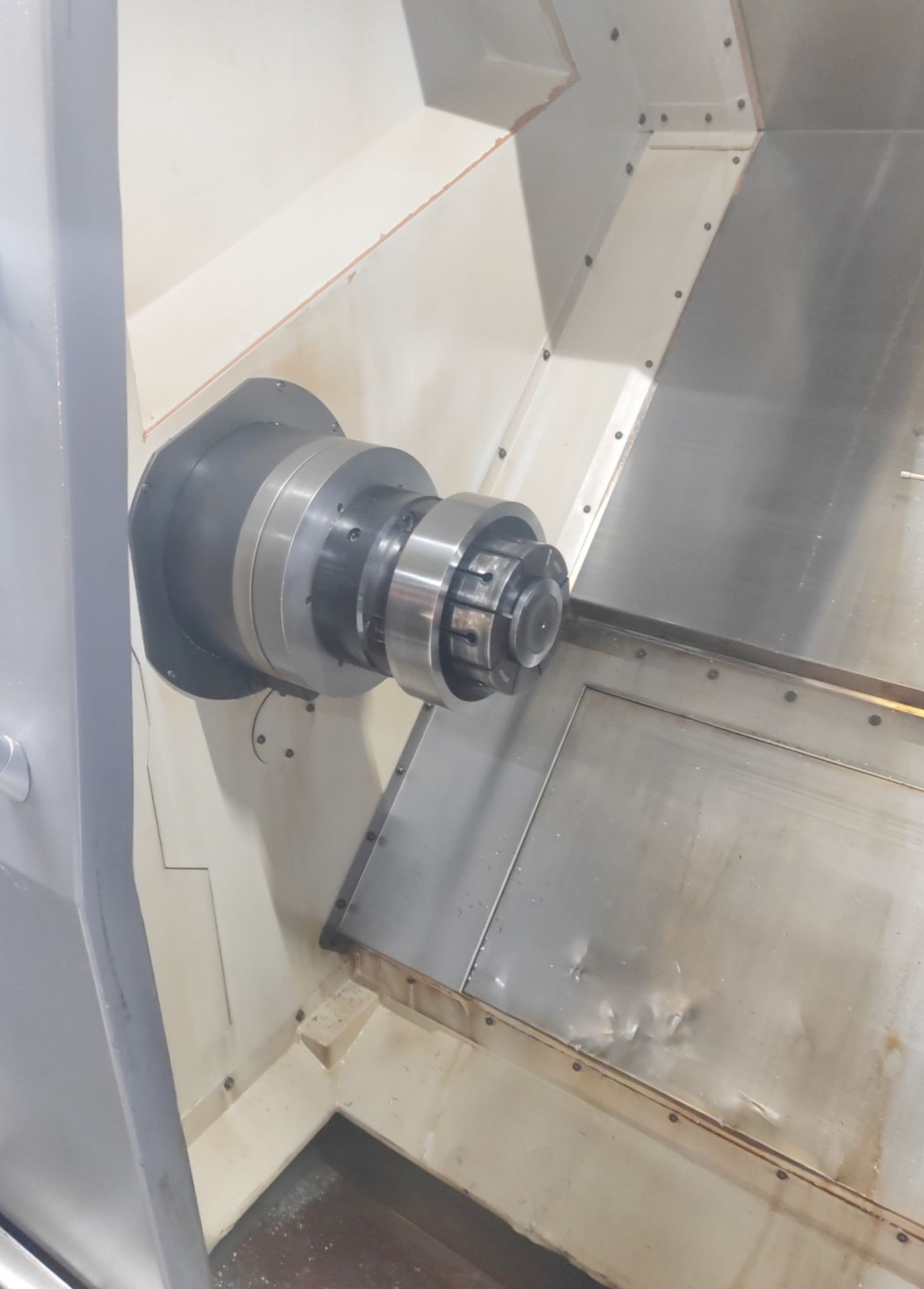

| Spindle hole | 75 mm |
| Max. turning diameter | 313.7 mm |
| Bar passage | 65 mm |

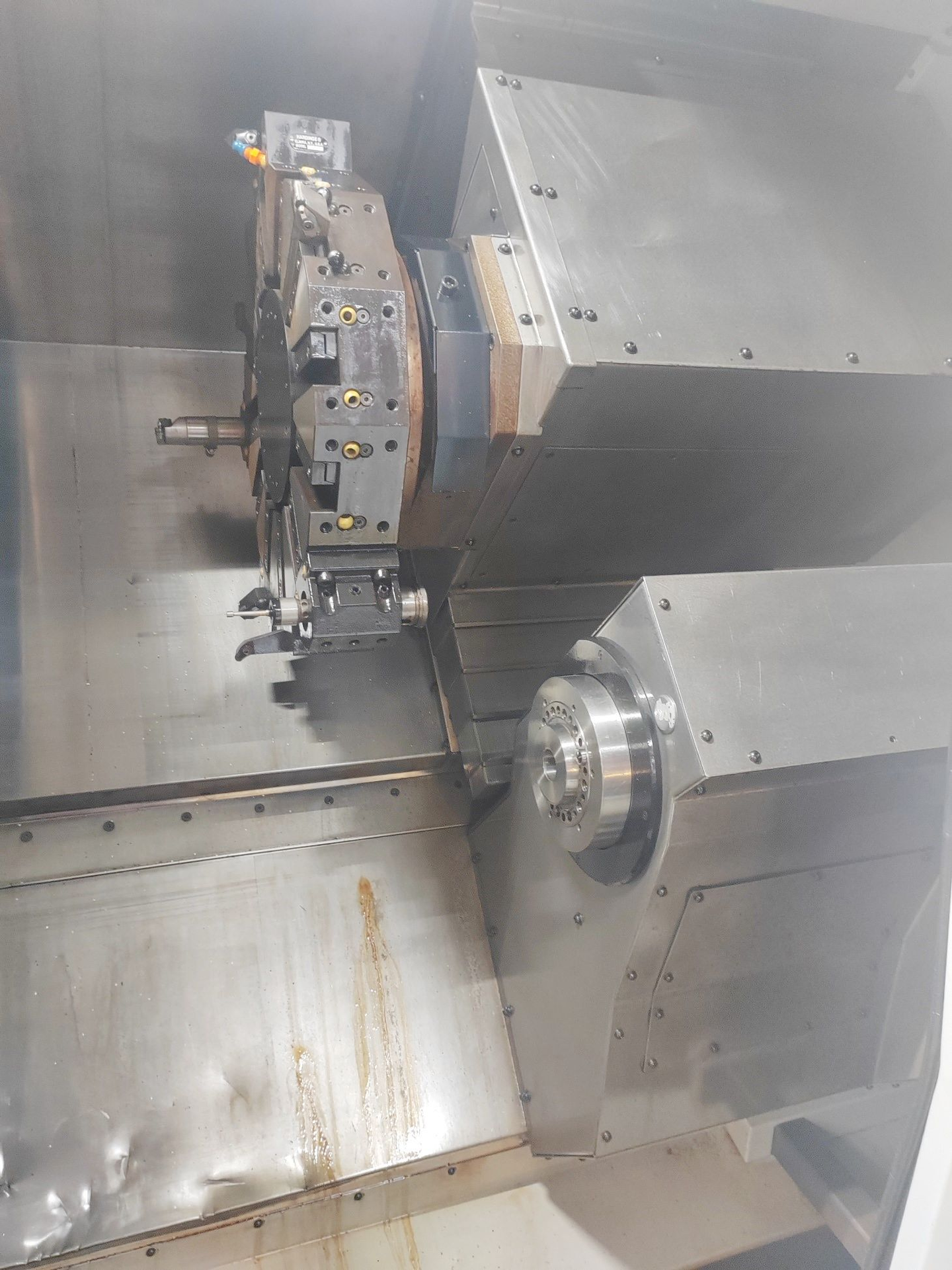

| Turret slide: | |
| Number of positions | 12 |
| Spindle nose: | BMT 55 |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 4000 t/min |
| Spindle power | 26 kW |
| Machine's weight about | 7800 kg |
| Overall dimensions machine: | |
| Length | 3257 mm |
| Width | 2313 mm |
| Height | 2123 mm |
| Various accessories: | |

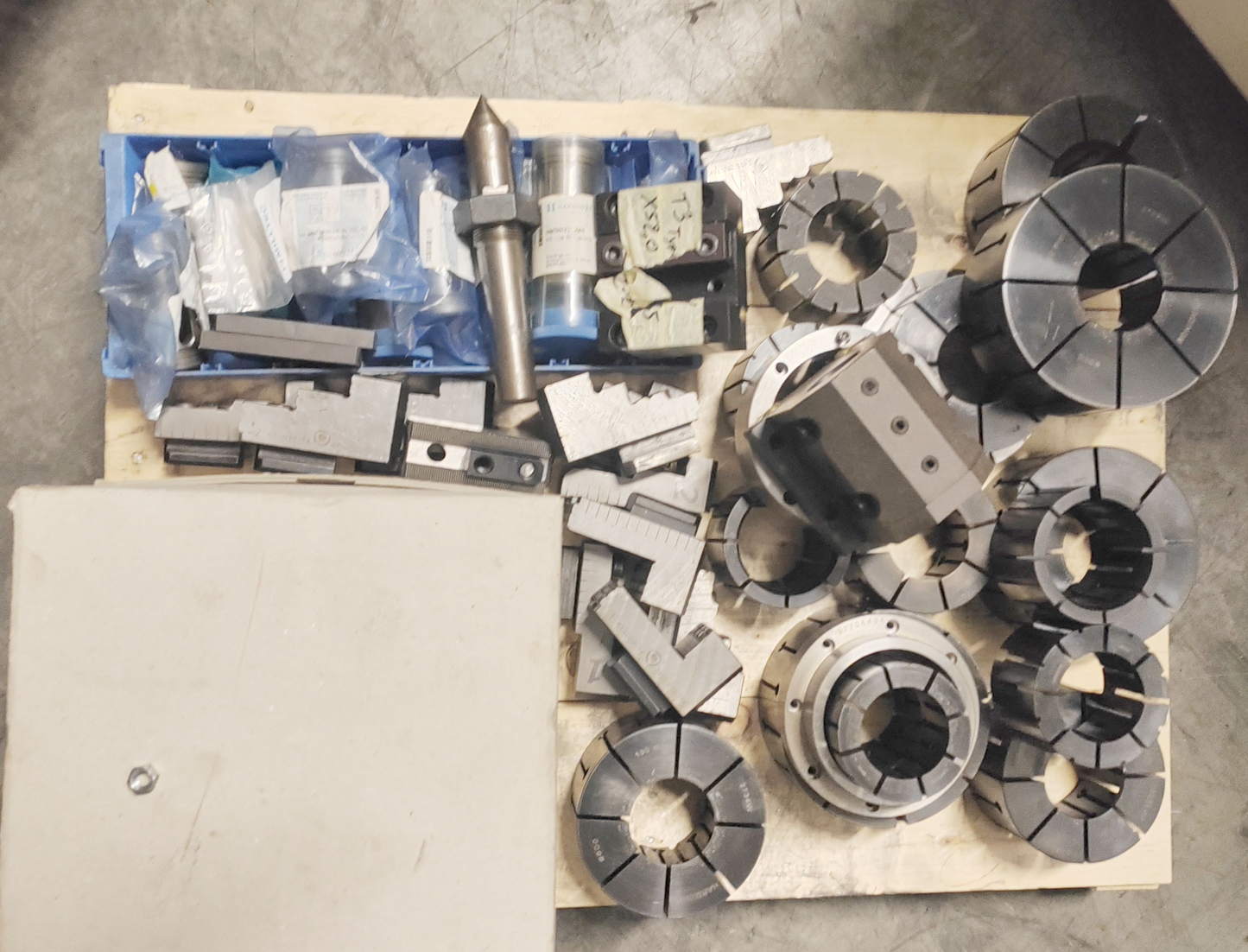

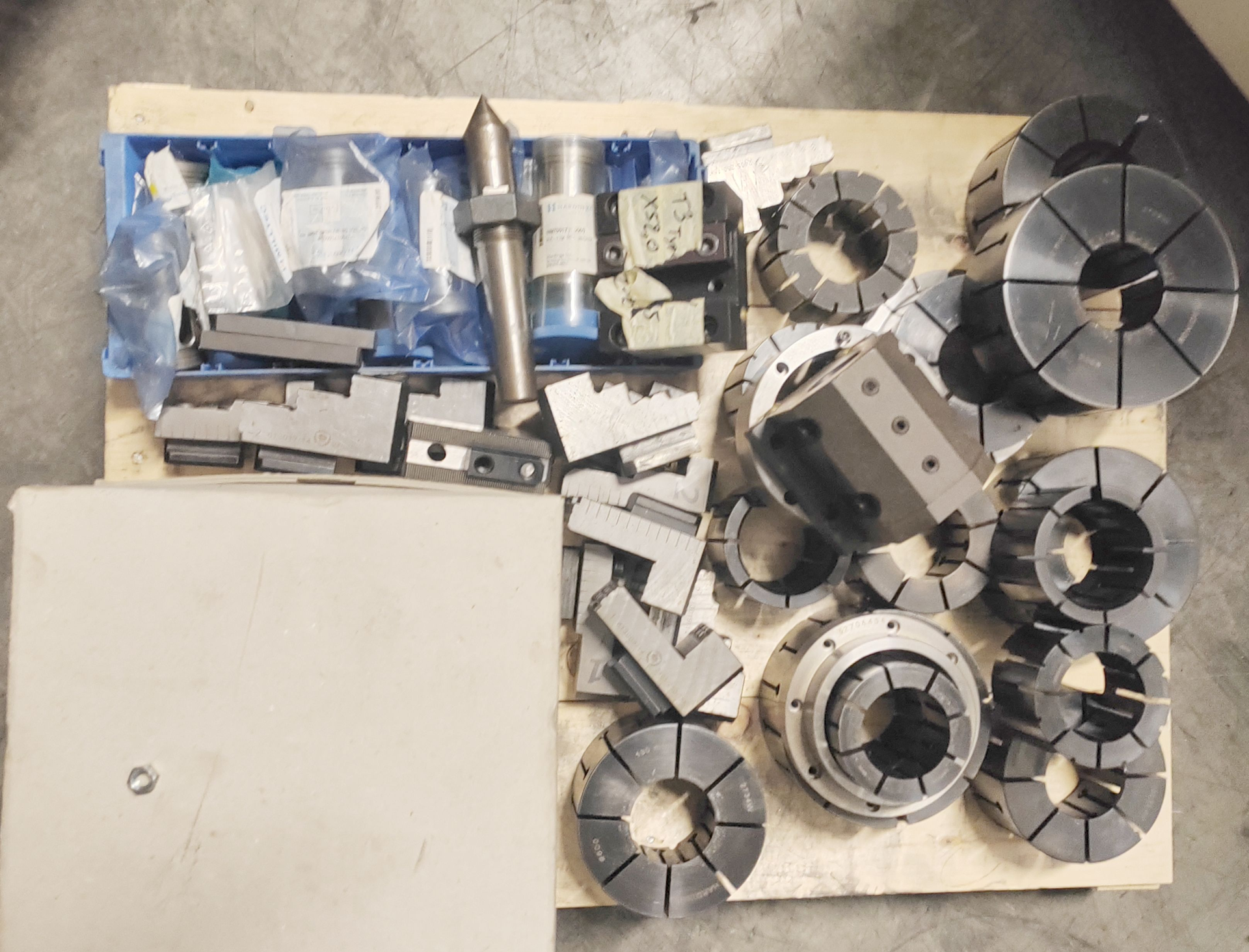

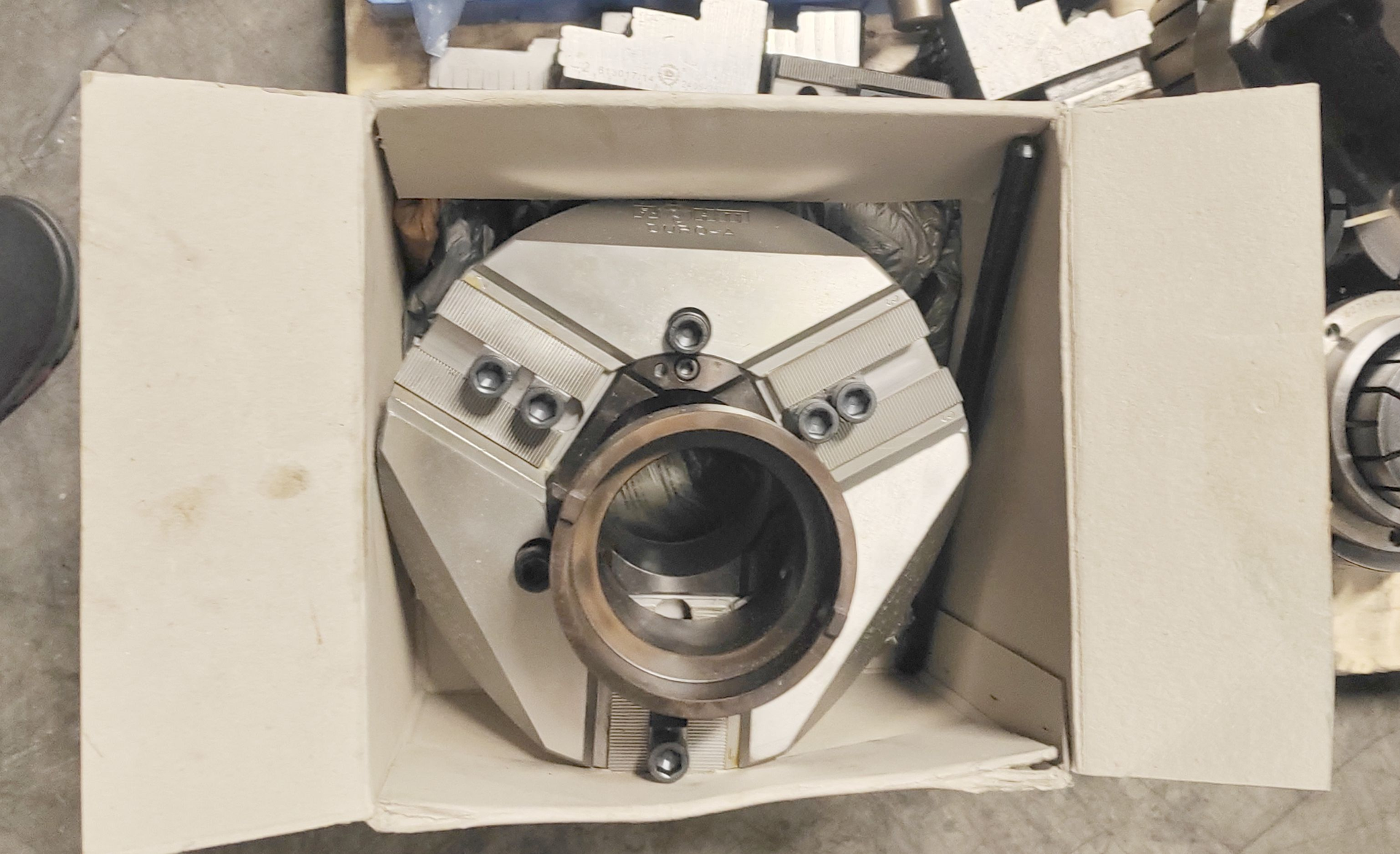

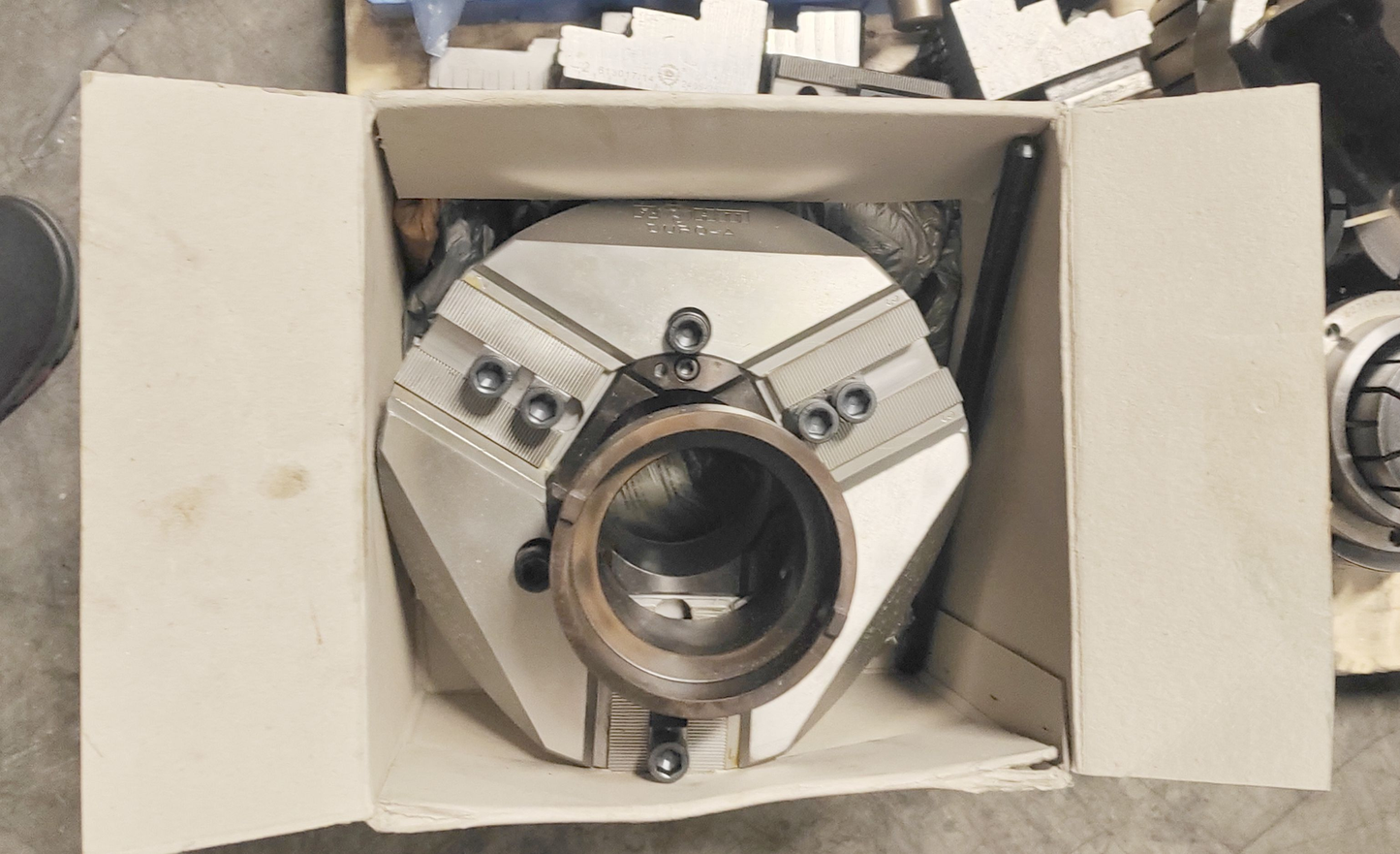

| 3-jaw chuck | |
| Collet device | |

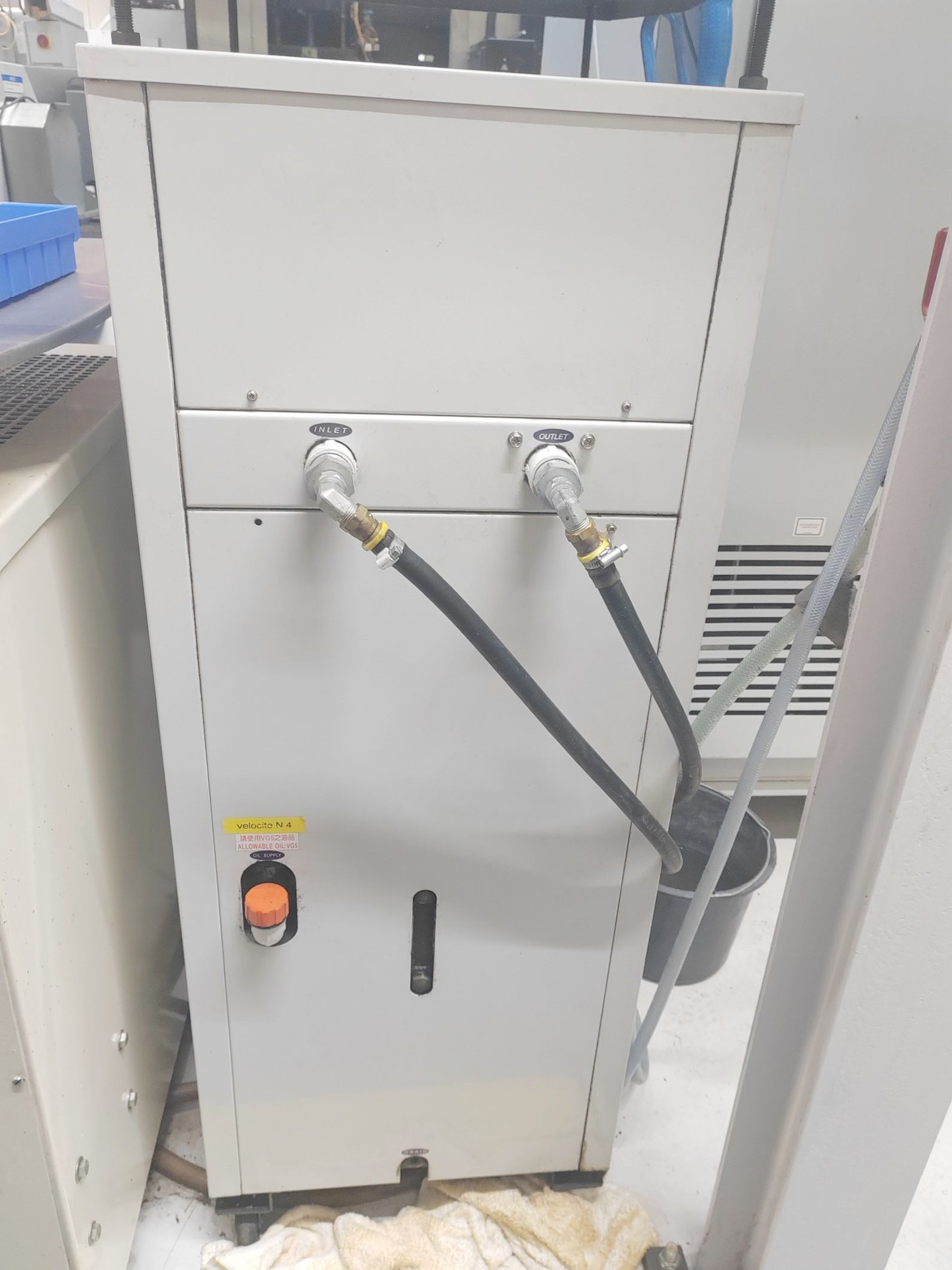

| Water cooler | |
| Coolant system | |
| Status light |
