MANDELLI THUNDER 630
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

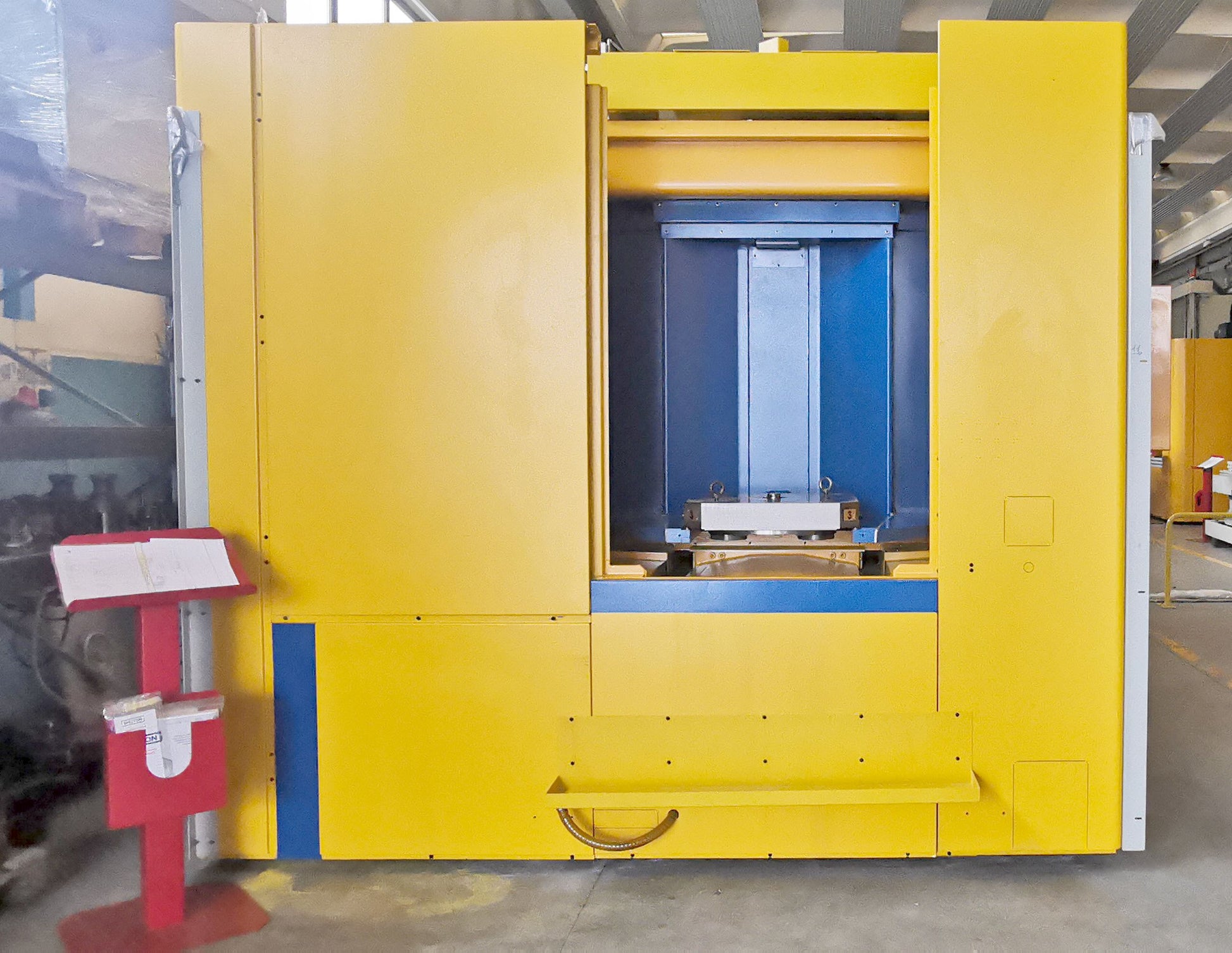

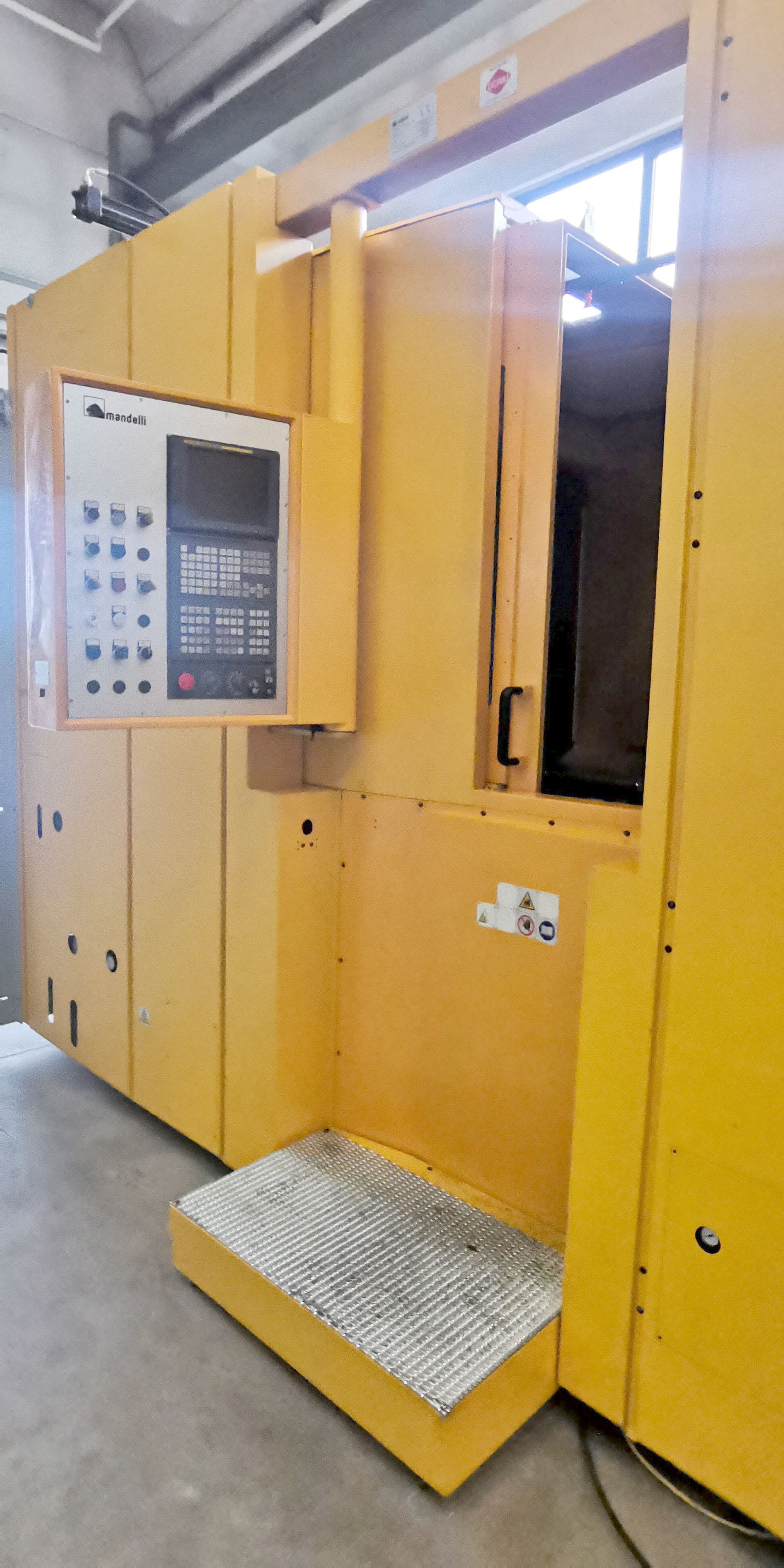

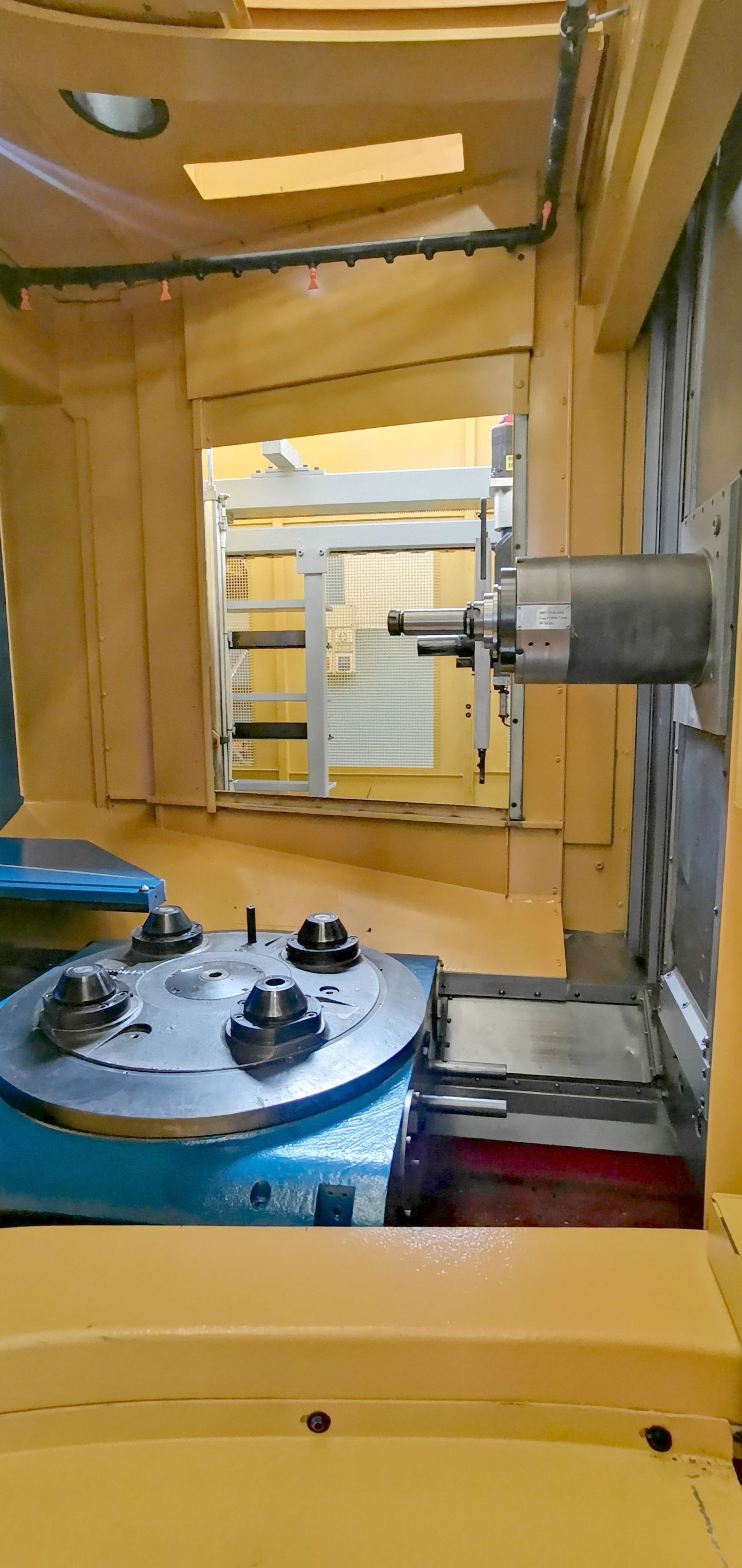

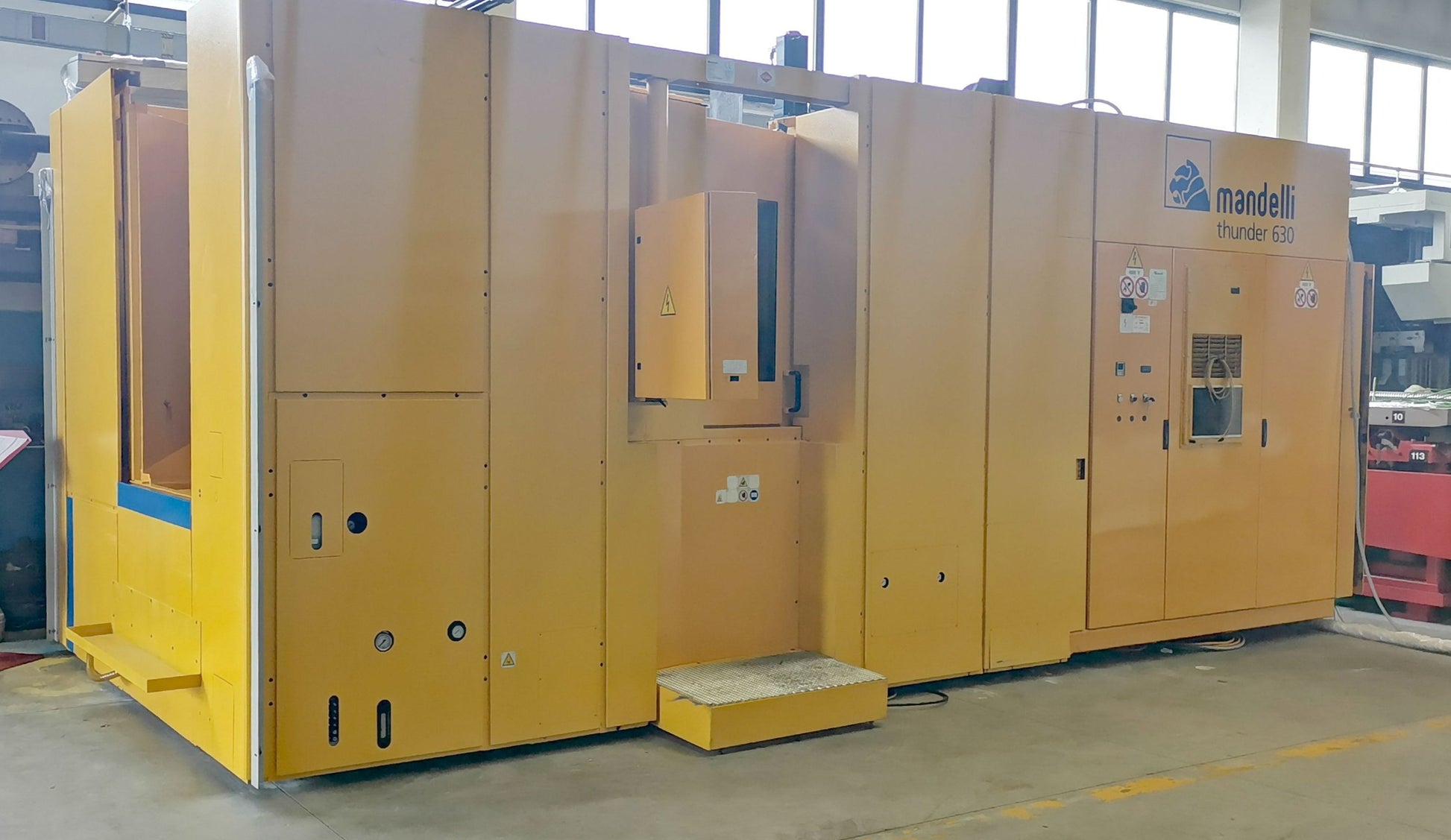

MANDELLI THUNDER 630 is a horizontal machining center delivering high precision, strong accuracy and reliability. Travels X1000 Y850 Z850; table load 800 kg; table division B 0.001°. 10 pallets 630×630 mm (change 12 s). Tool magazine 160 places; tools Ø150 L400 mm max, 20 kg; tool change 1.8/3.5 s. Spindle HSK 63 up to 12000 rpm; spindle motor 37.7 kW; feed 10–50000 mm/min; B axis 20 rpm. Overall 9643×5848×3824 mm. High‑pressure coolant 60 bar; chip conveyor. Built for tight tolerances; suitable for automotive, aerospace, medical, watchmaking and machine tool sectors.
| Longitudinal travel (X-axis) | 1000 mm |
| Transversal travel (y-axis) | 850 mm |
| Vertical travel (z axis) | 850 mm |
| Table load max. | 800 kg |
| Table divisions (B) | 0.001 ° |

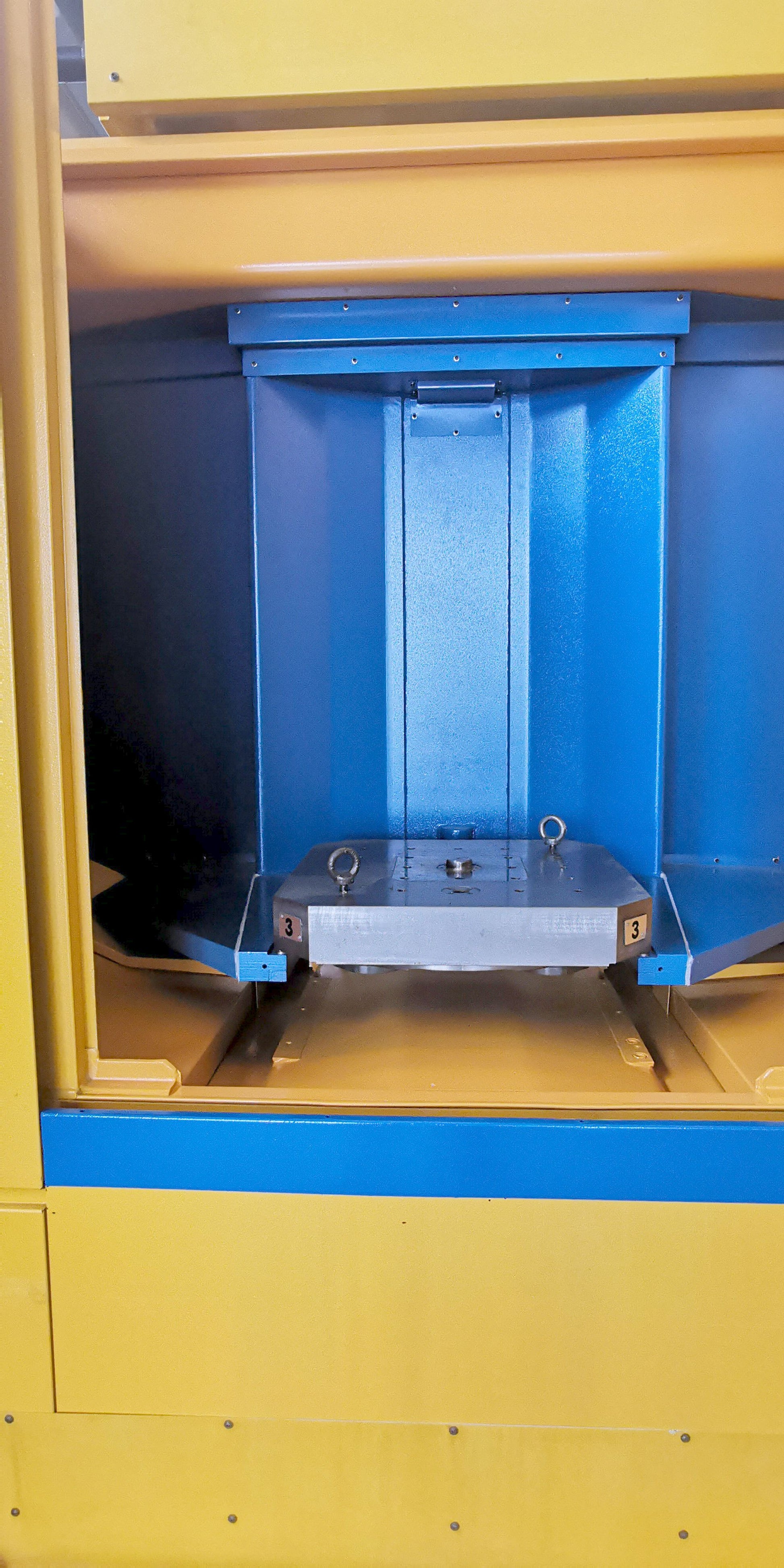

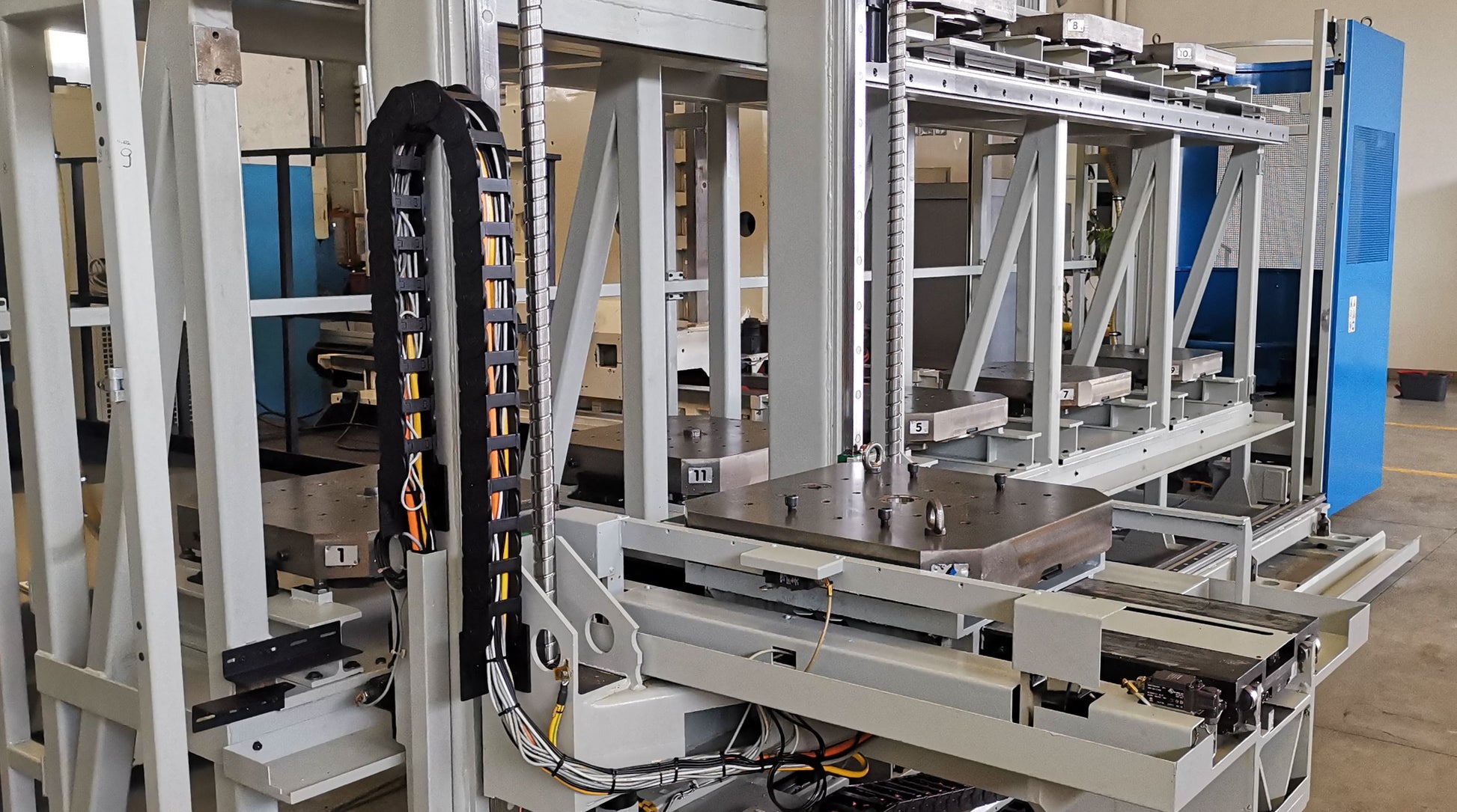

| Pallets chanching device: | |
| numbers | 10 |
| Length | 630 mm |
| Width | 630 mm |
| Time of changing palets | 12 s |
| Tool changer: | |

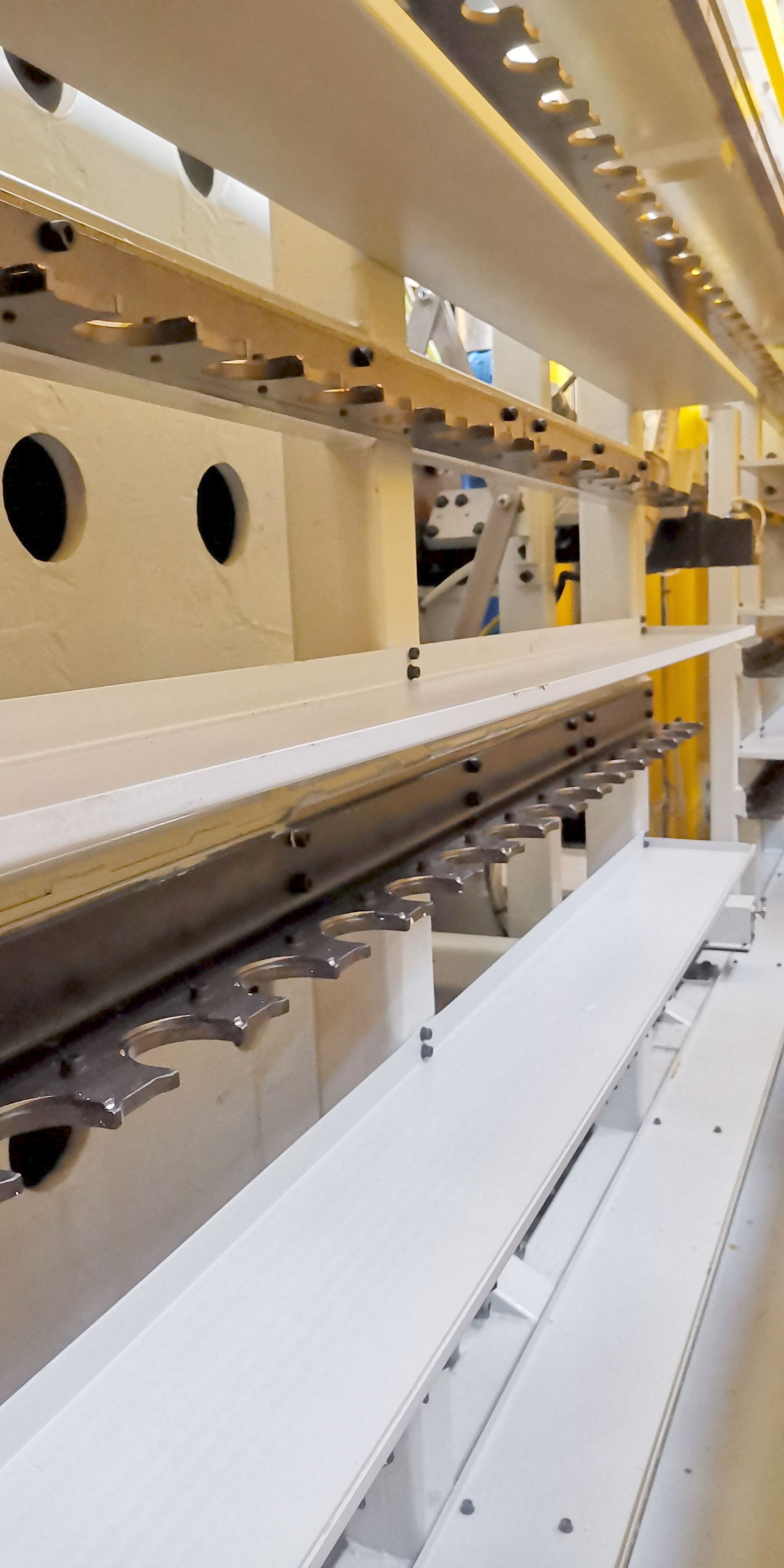

| Tool magazine number of tool places | 160 |
| Tool diameter | 150 mm |
| Tool lenght | 400 mm |
| Max. tool-weight | 20 kg |
| Time of tool changing | 1.8 / 3.5 s |
| Spindle nose: HSK | 63 |
| Horizontal spindle speeds: | |
| stepless | |
| up to | 12000 t/min |
| stepless | |
| Feed range | 10-50000 mm/min |
| B axis | 20 rpm |
| Spindle motor | 37.7 kW |
| Overall dimensions machine: | |
| Length | 9643 mm |
| Width | 5848 mm |
| Height | 3824 mm |
| Various accessories: | |
| High pression colant device | 60 bar |
| Chip conveyor |
