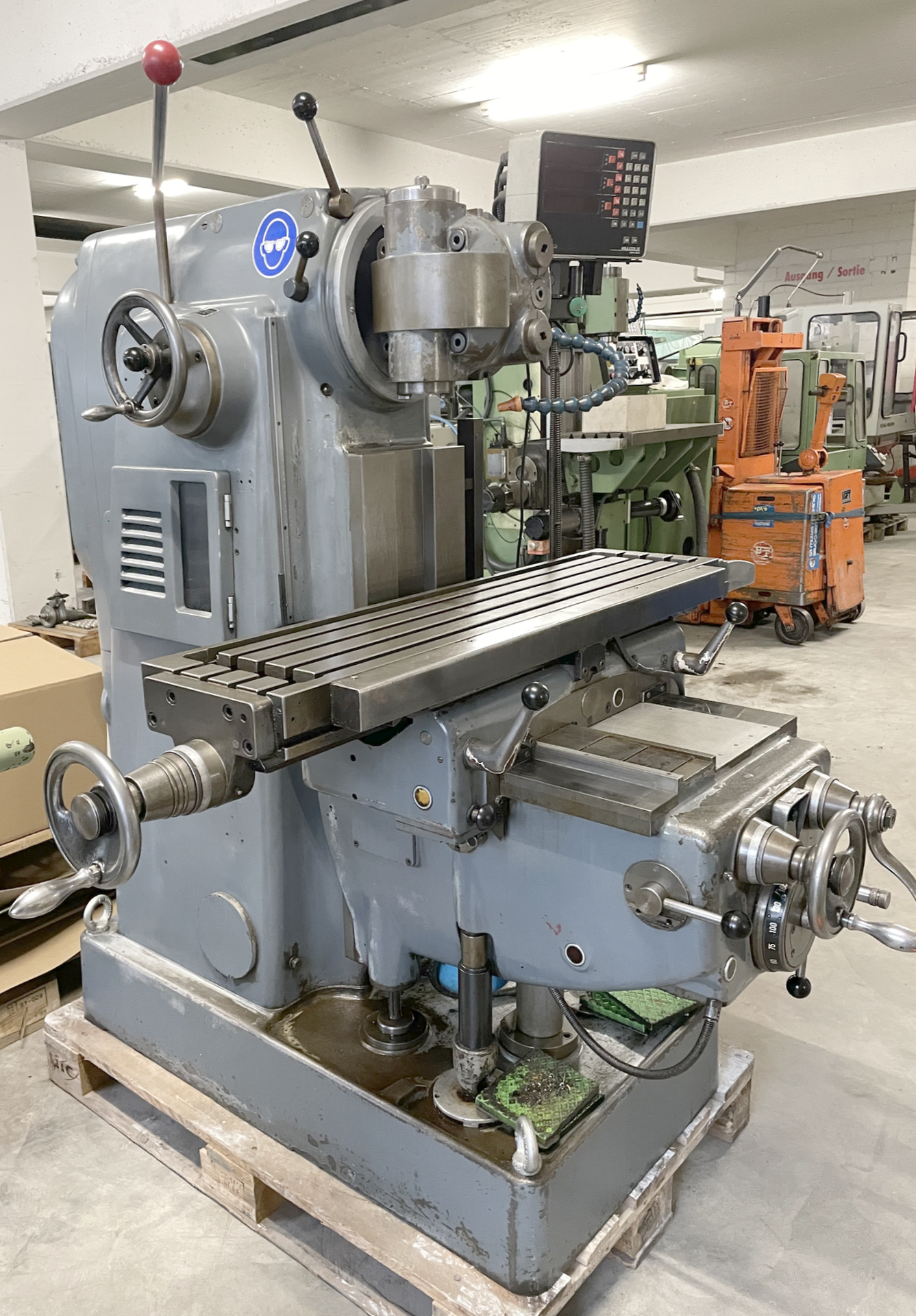

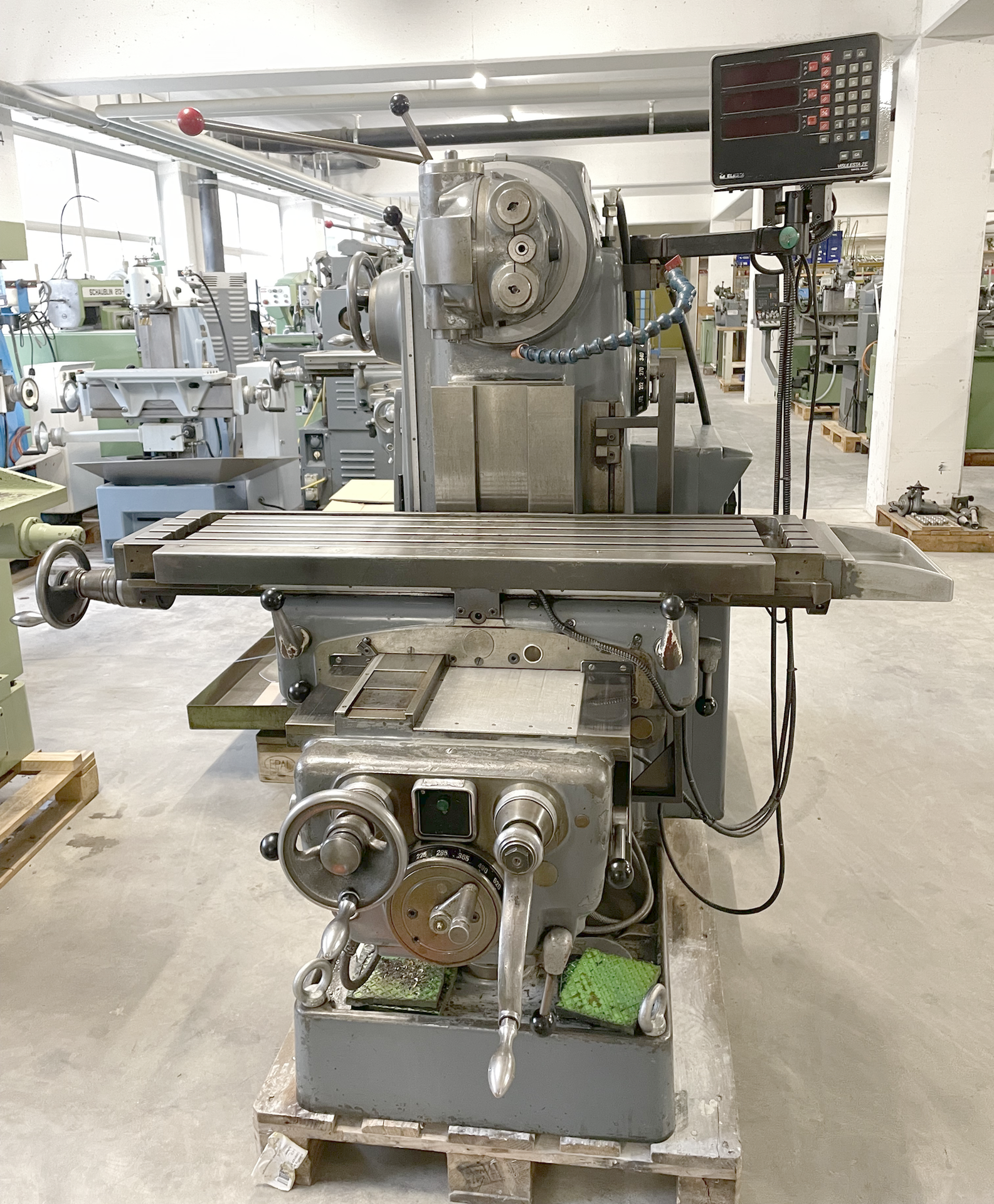

SCHAUBLIN 53 is a Universal milling machine engineered for precision, high accuracy and reliability. Working capacities: table 1100 x 305 mm; travels X 700 mm, Y 250 mm, Z 490 mm. Main technical specifications: spindle 18 steps 38–1510 t/min, taper 40 ISO; feeds 18 steps X/Y 12–1000 mm/min, Z 6–500 mm/min; rapid traverse X/Y 3.5 m/min, Z 1.8 m/min; voltage 50 Hz 3x380 V; motor output 4.0 CV; total power 5 CV; weight ~1900 kg; footprint 1800x1600x1900 mm. Accessories: digital readout, 3 axes. Delivers tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.

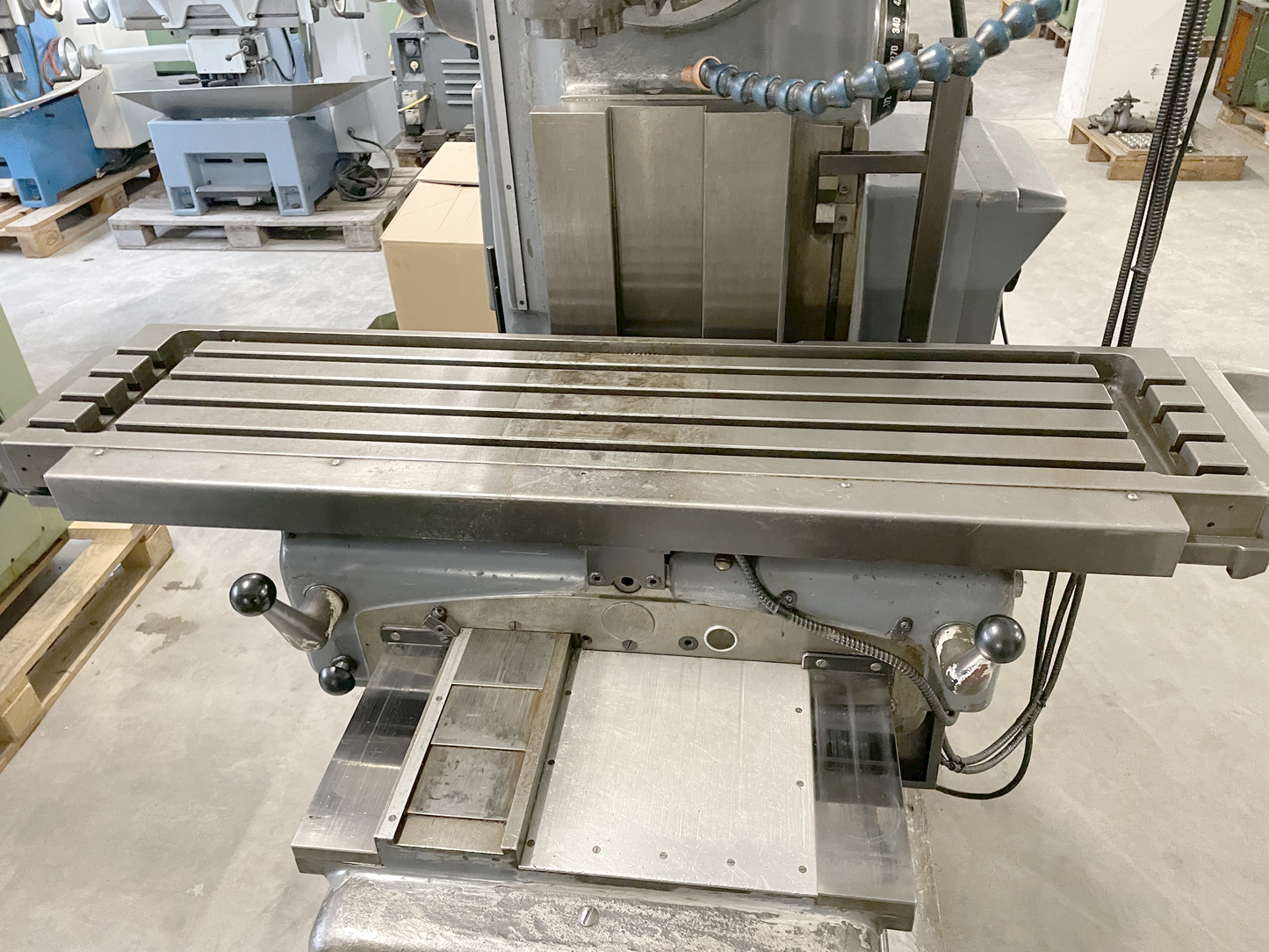

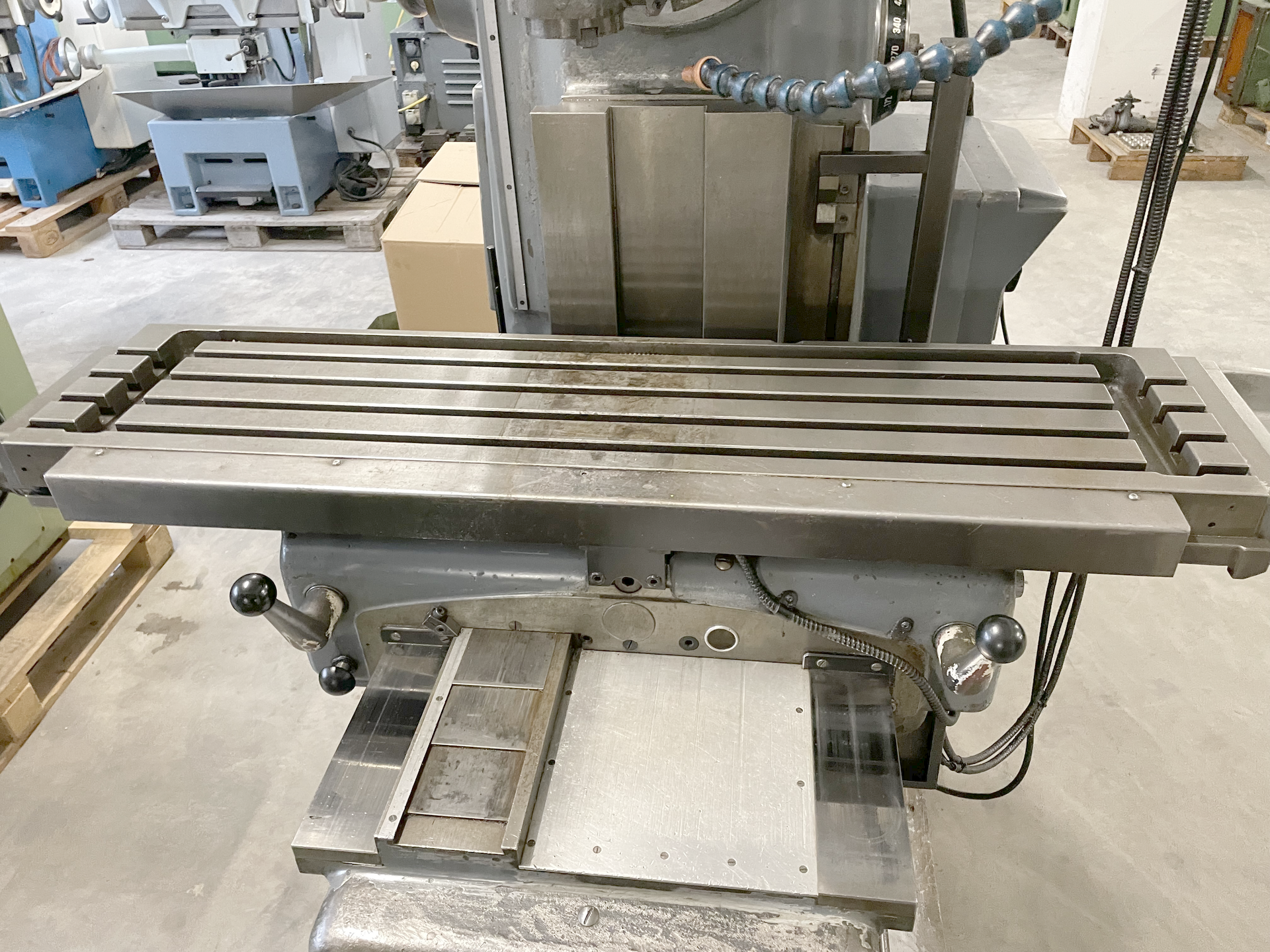

| Table length | 1100 mm |
| Table width | 305 mm |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 490 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 38 t/min |
| up to | 1510 t/min |

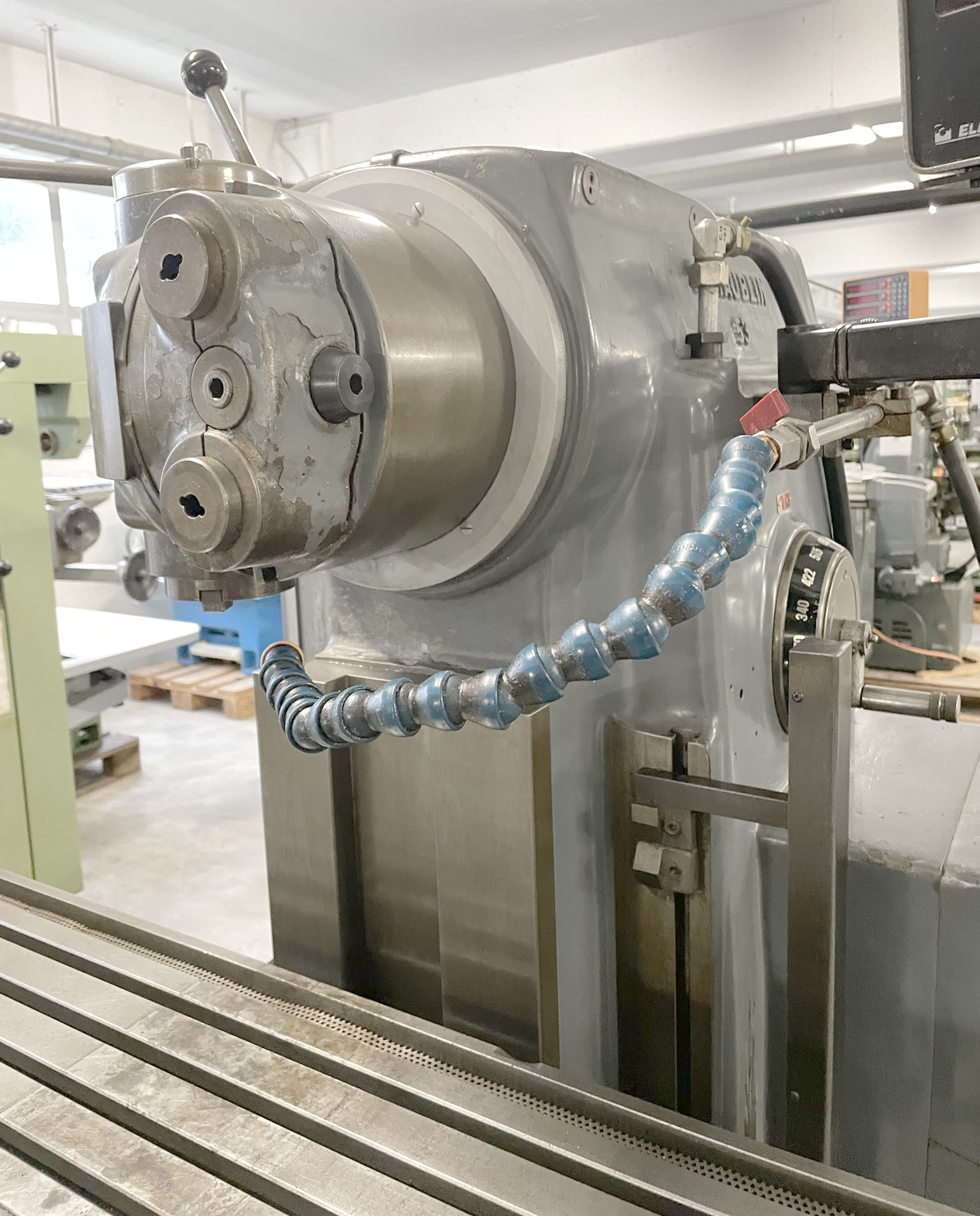

| Taper in spindle | 40 ISO |
| Feeds steps: | 18 |
| longitudinal from | 12.0 mm/min |
| up to | 1000 mm/min |
| transversal from | 12.0 mm/min |
| up to | 1000 mm/min |
| vertical from | 6.0 mm/min |
| up to | 500 mm/min |
| Rapid traverse: | |
| longitudinal | 3.5 m/min |
| transversal | 3.5 m/min |
| vertical | 1.8 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 4.0 CV |
| Total power required | 5 CV |
| Machine's weight about | 1900 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1600 mm |
| Height | 1900 mm |
| Various accessories: | |

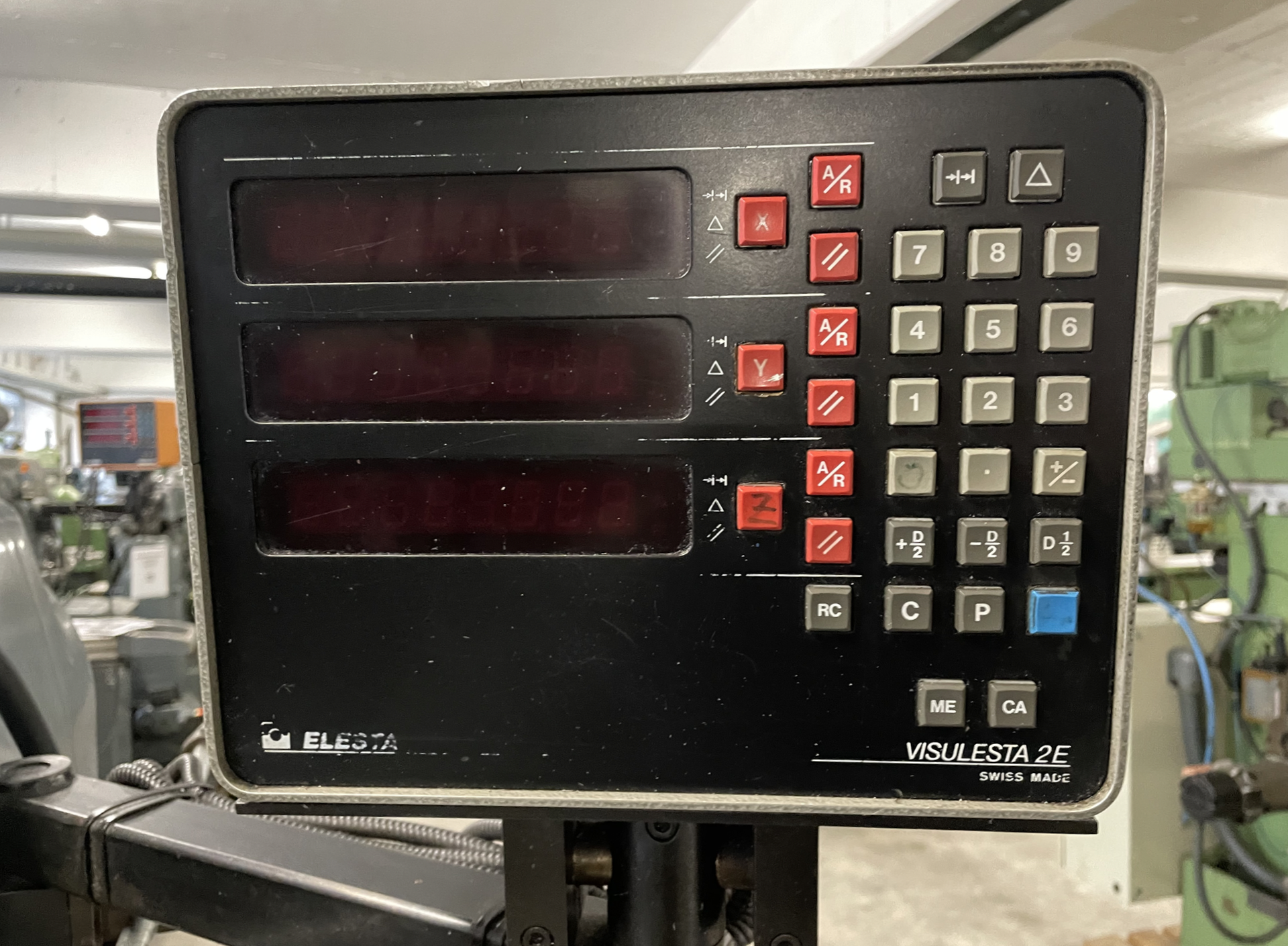

| Digital readout number of axis: | 3 |
