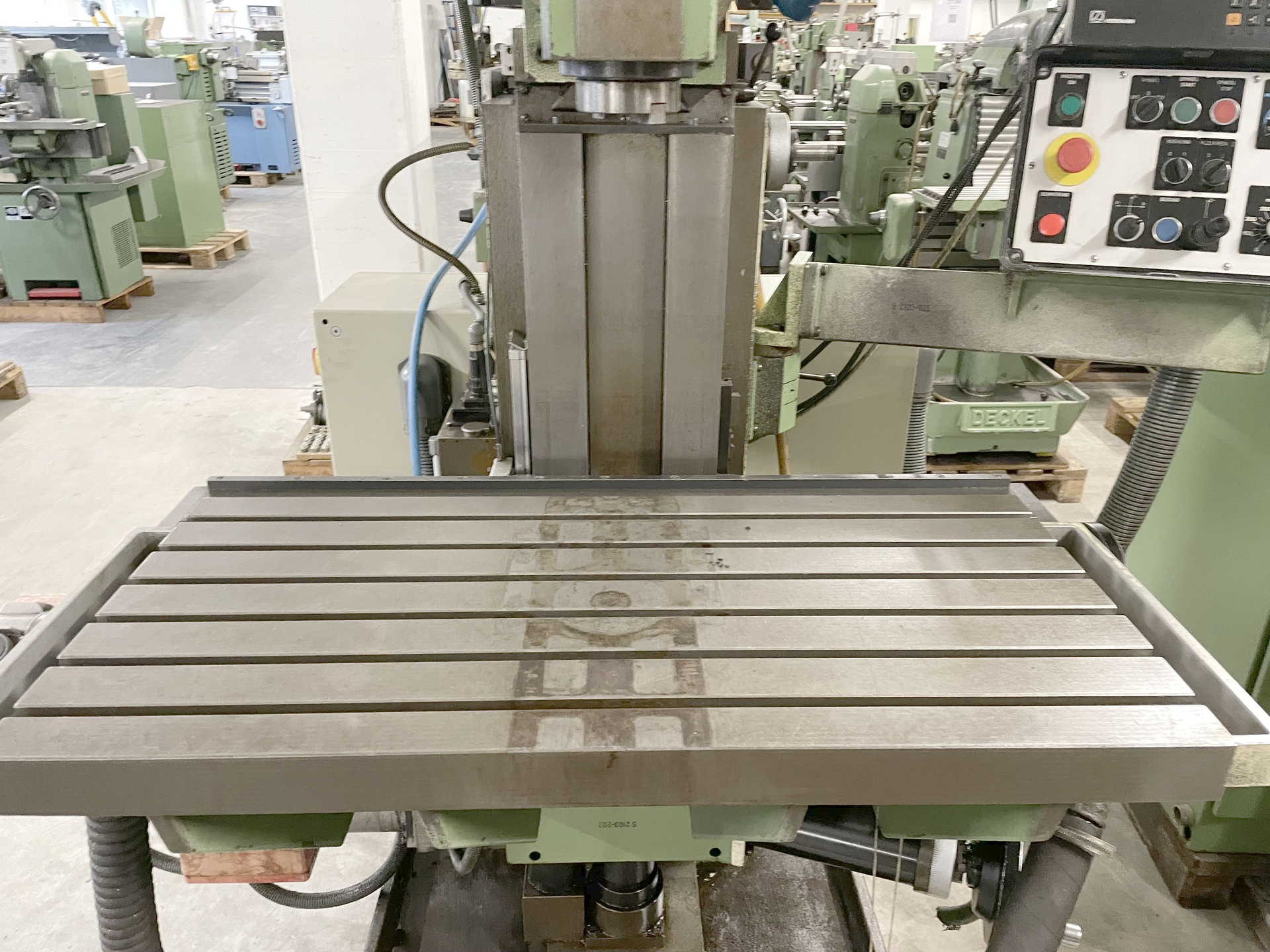

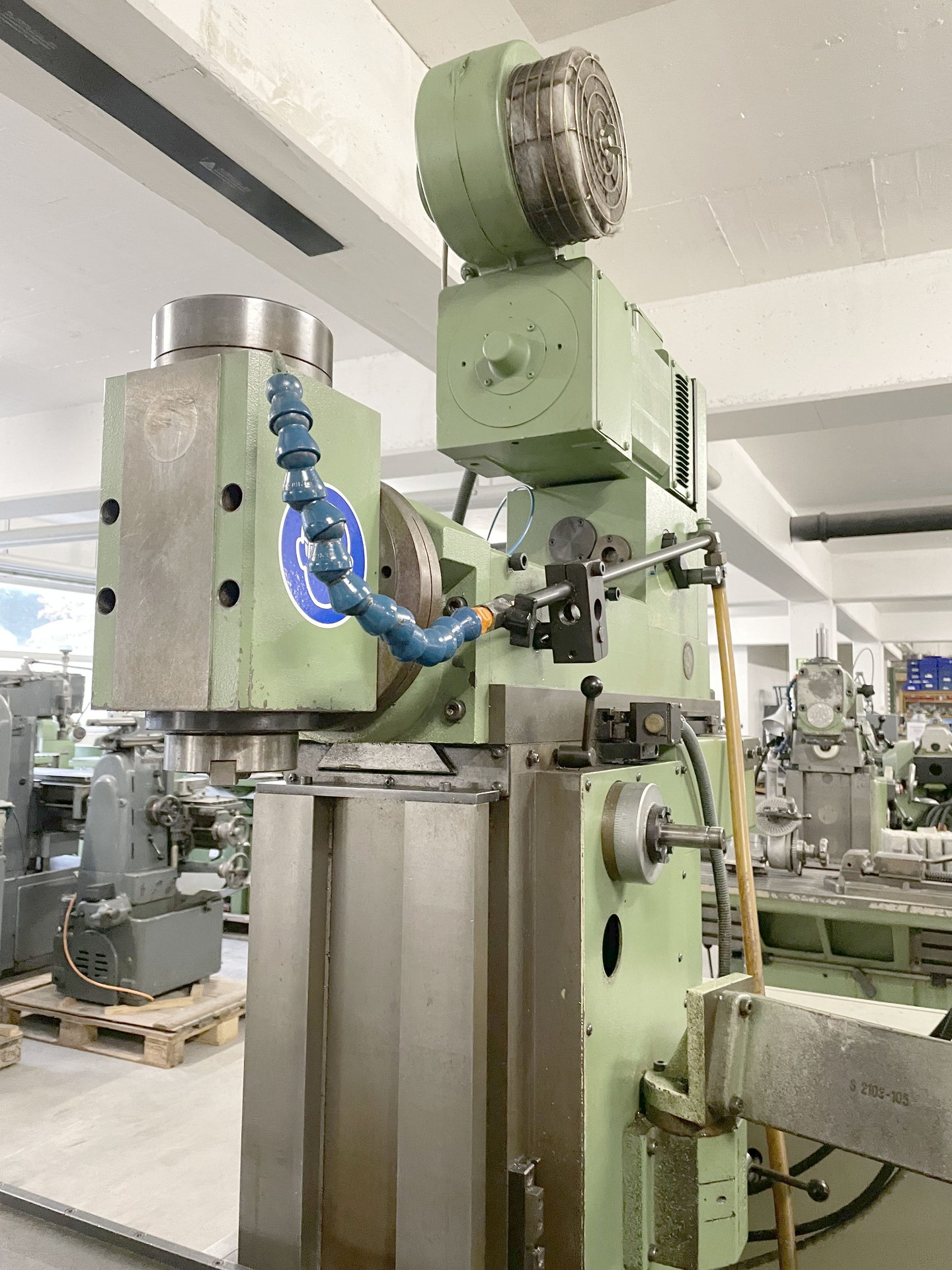

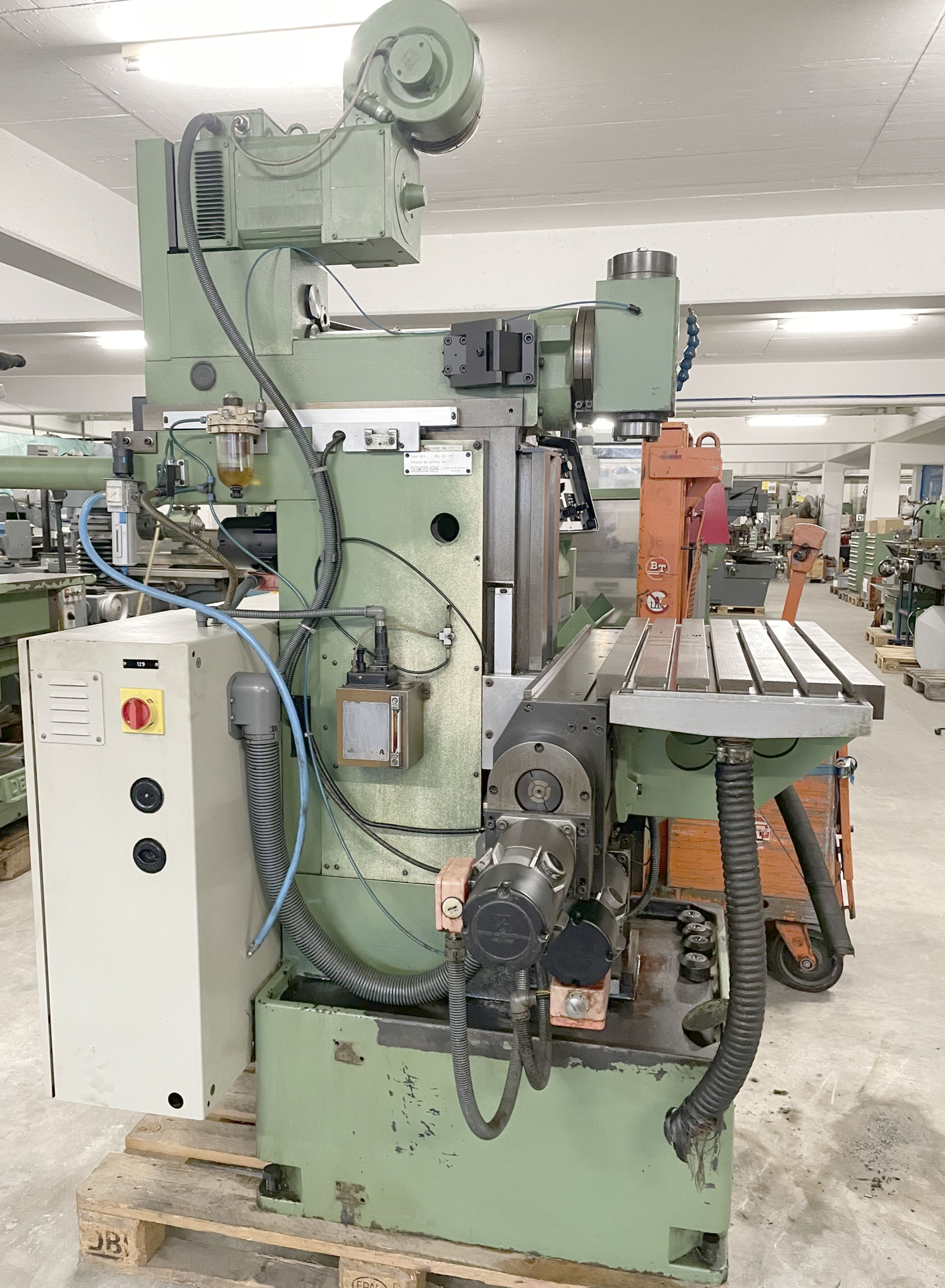

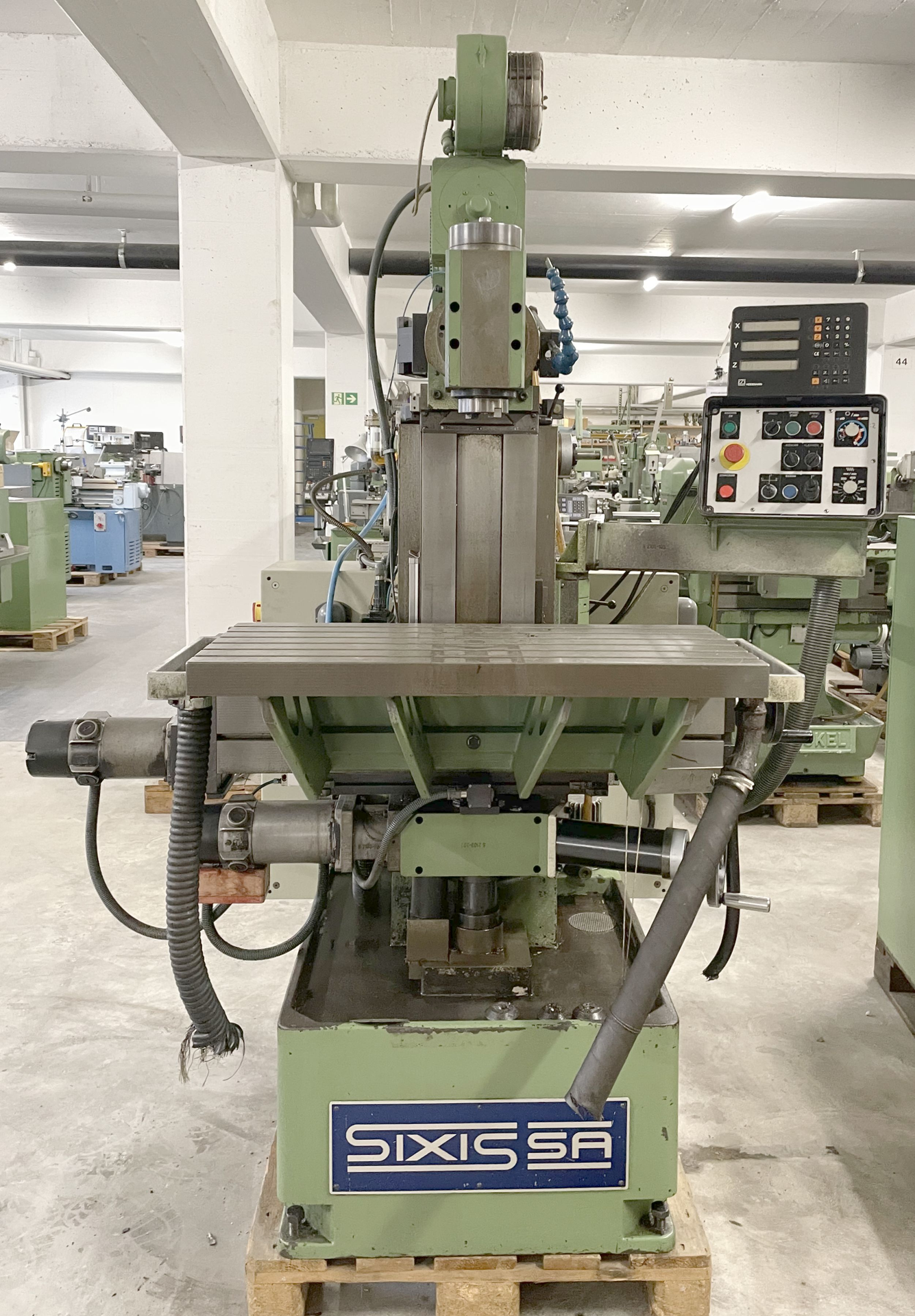

SIXIS S 2104 is a high-precision vertical milling machine designed for excellent accuracy and reliable performance in demanding machining tasks. Working capacities: table 850 x 400 mm; travels X 450 mm, Y 350 mm, Z 400 mm; vertical milling head swivel 360°. Main specs: ISO 40 spindle with stepless range from 50 t/min up to 4000 t/min; feeds 0–750 mm/min; rapid traverse 30 m/min; spindle motor 6.8 kW; supply 50 Hz 3x 380 V; machine weight approx. 1550 kg; dimensions L1700 x W1550 x H2250 mm. Equipment: digital readout, 3 axes. Enables tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical sectors
| Table length | 850 mm |
| Table width | 400 mm |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y axis) | 350 mm |
| Vertical travel (z axis) | 400 mm |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 4000 t/min |
| Taper in spindle | 40 ISO |
| Swivel range Vertical milling head | 360 ° |
| Feeds | 0 - 750 mm/min |
| Rapid traverse: | 30 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 6.8 kW |
| Machine's weight about | 1550 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 1550 mm |
| Height | 2250 mm |
| Various accessories: | |

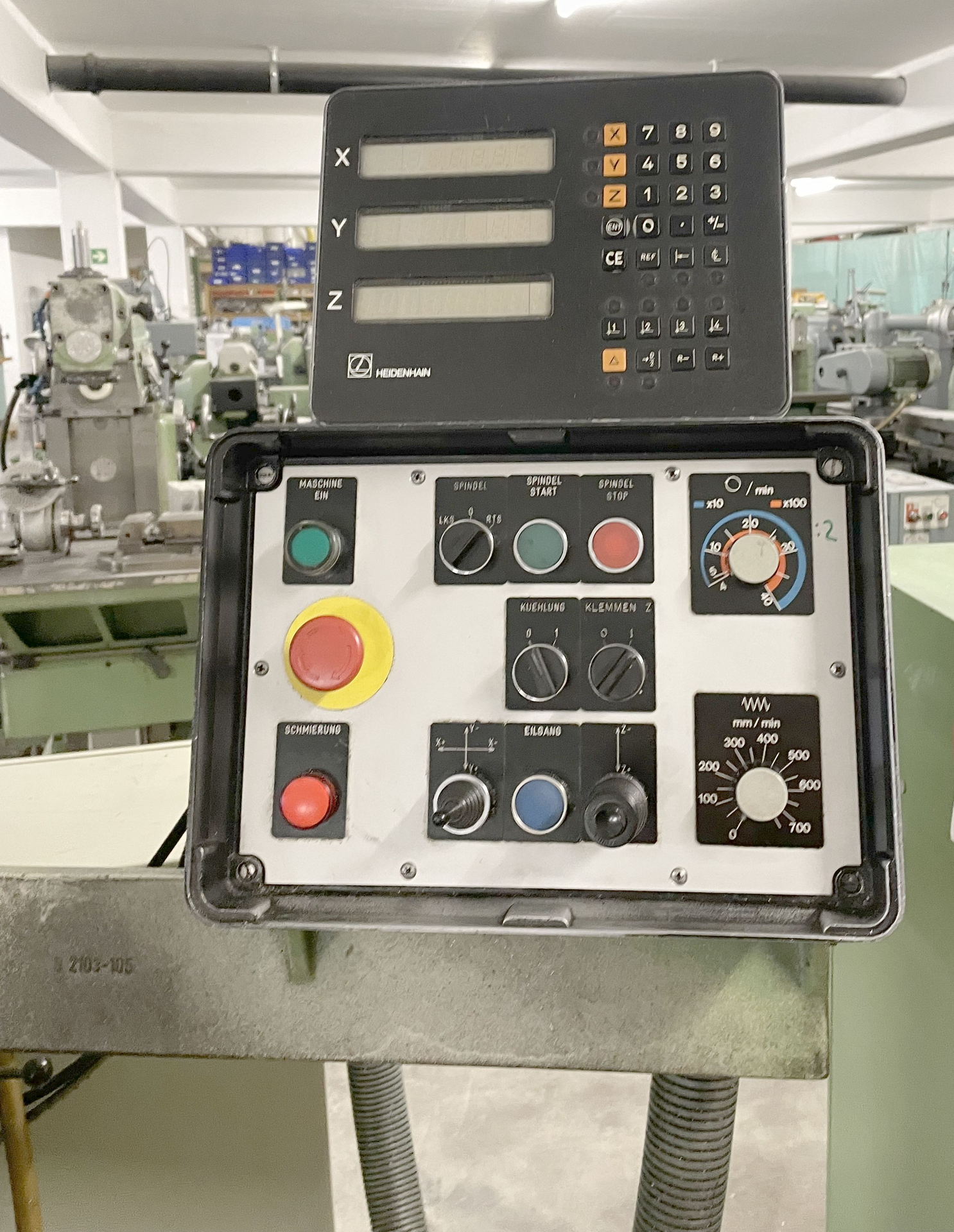

| Digital readout number of axis: | 3 |
