| Table length | 1200 mm |
| Table width | 600 mm |
| Axial motion: | |
| Longitudinal travel (X-axis) | 1320 mm |
| Cross travel (z-axis) | 730 mm |
| vertical travel (Y-axis) | 480 mm |
| Table load max. | 1400 kg |
| Grinding height over table | 520 mm |

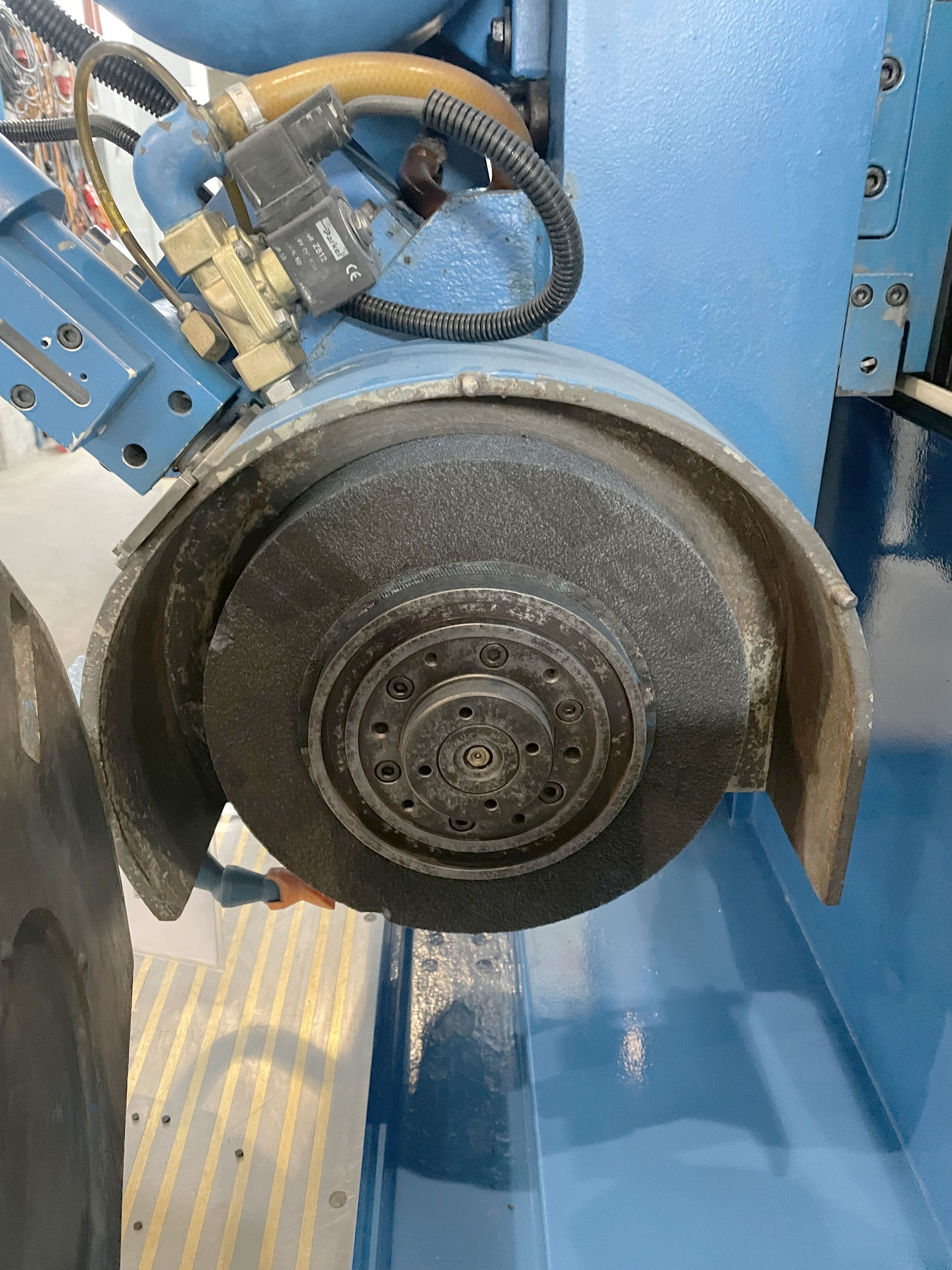

| Grinding wheel: | |
| Diameter | 350 mm |
| max. width | 50 mm |
| Bore | 127 mm |
| Automatic vertical feed: | |
| from | mm/min |
| up to | 10 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 9 kW |
| Machine's weight about | 4500 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 2000 mm |
| Height | 2300 mm |
| Various accessories: | |
| Paper filtration system | |
| Oil mist extractor | AIRTECH |

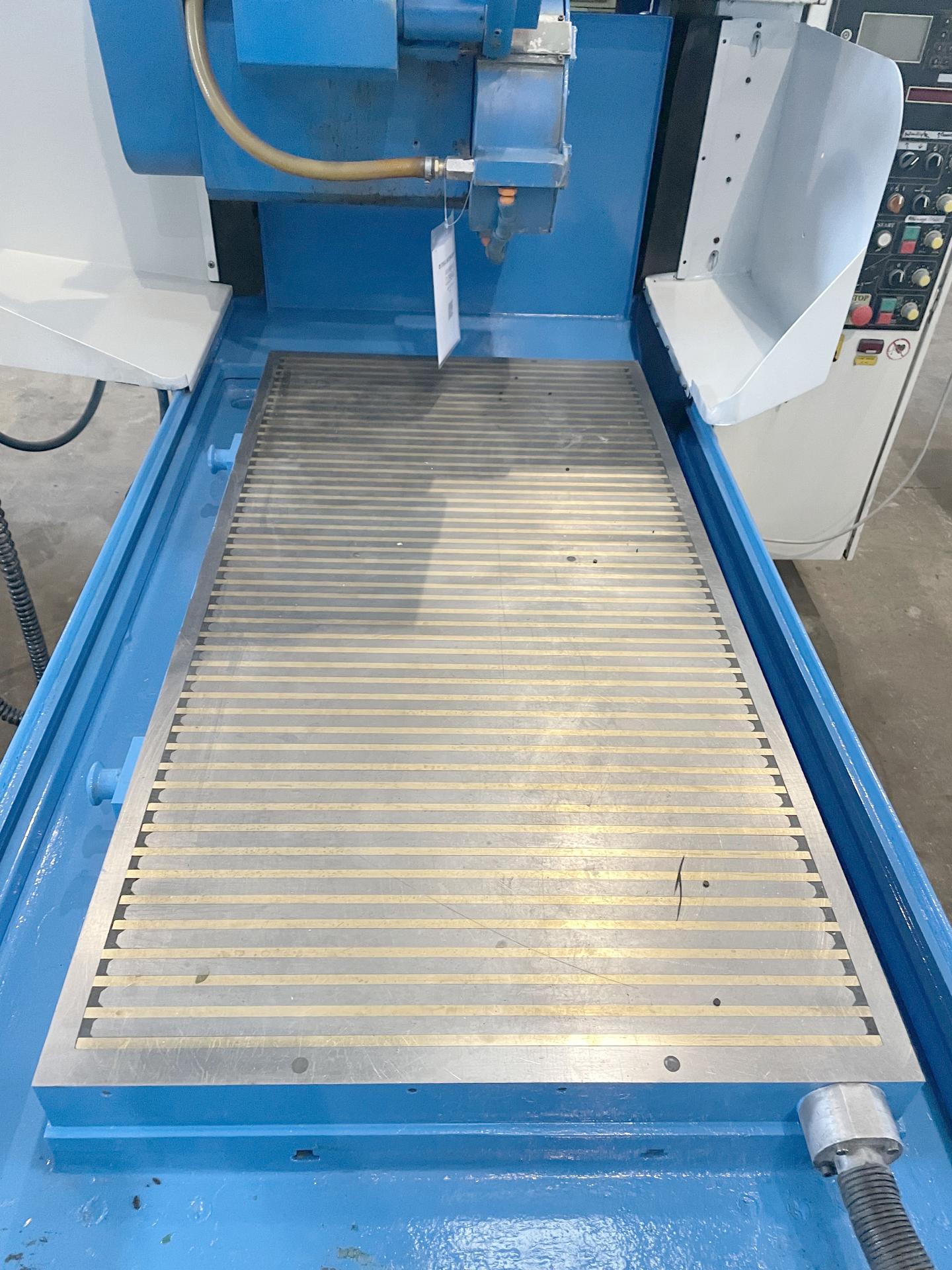

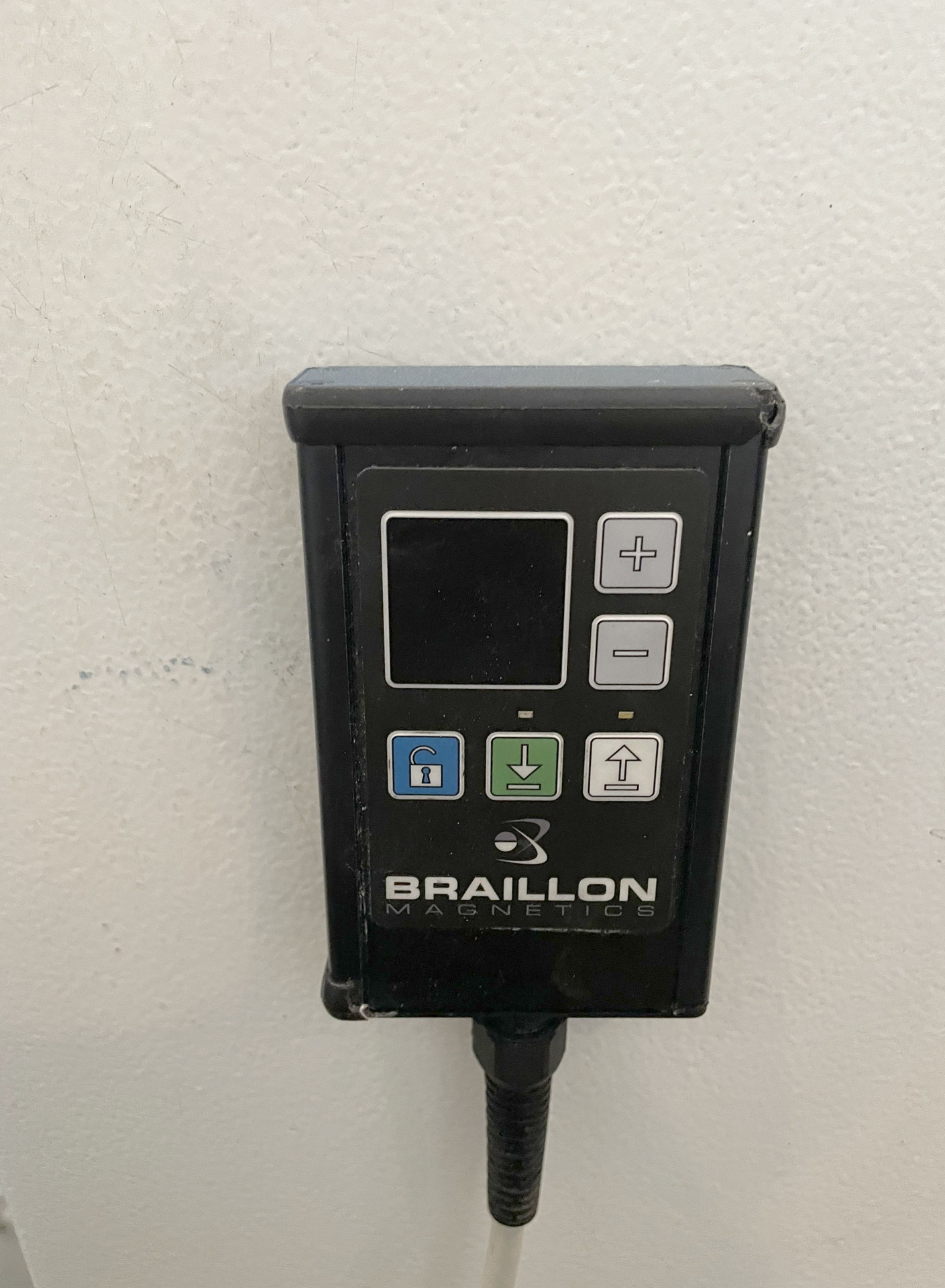

| Electrical magnetic chuck | |
| Length | 1180 mm |
| Width | 600 mm |

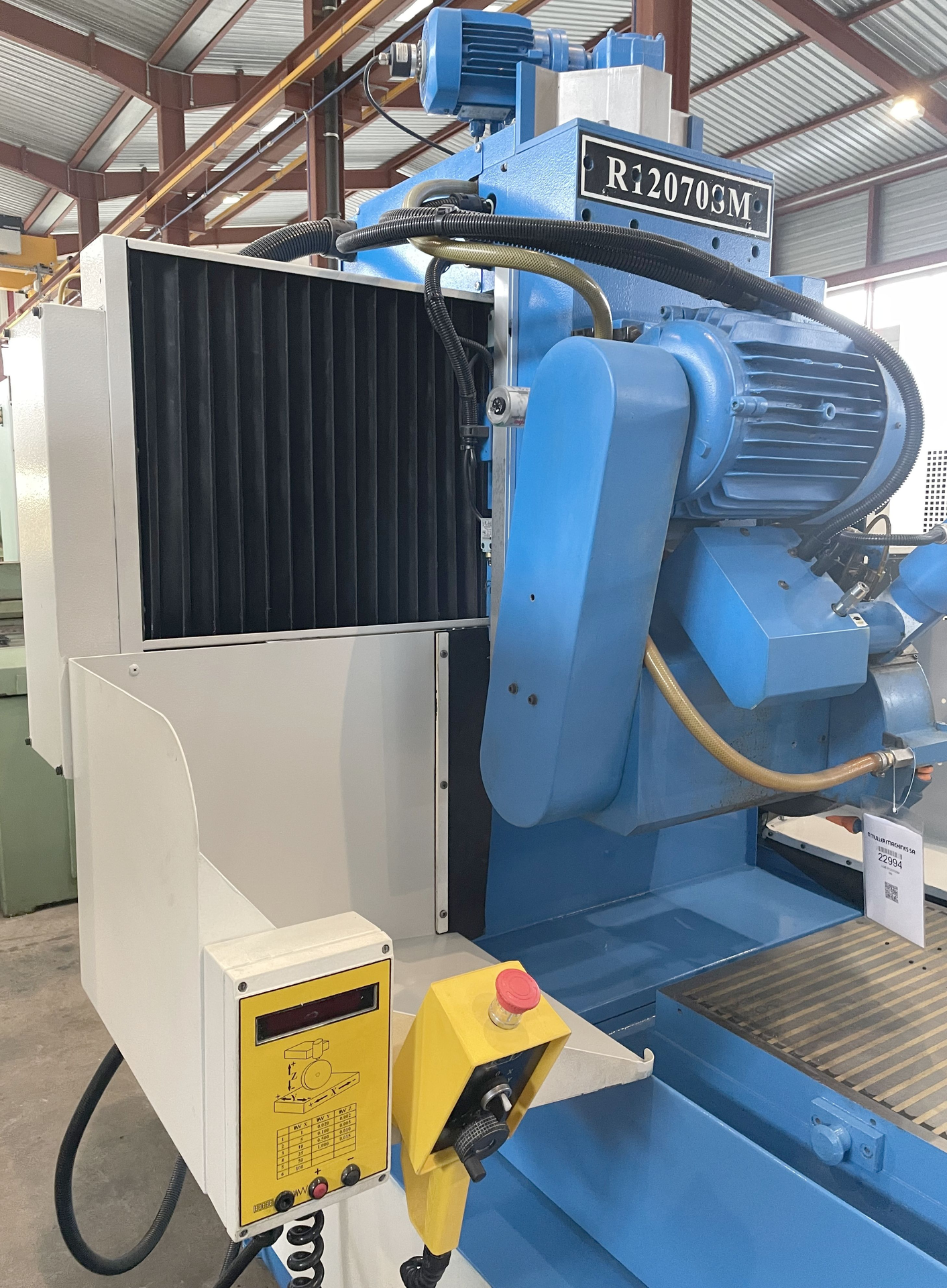

| Handwheel electroinic | |
| Redressing attachment hydraulic | |

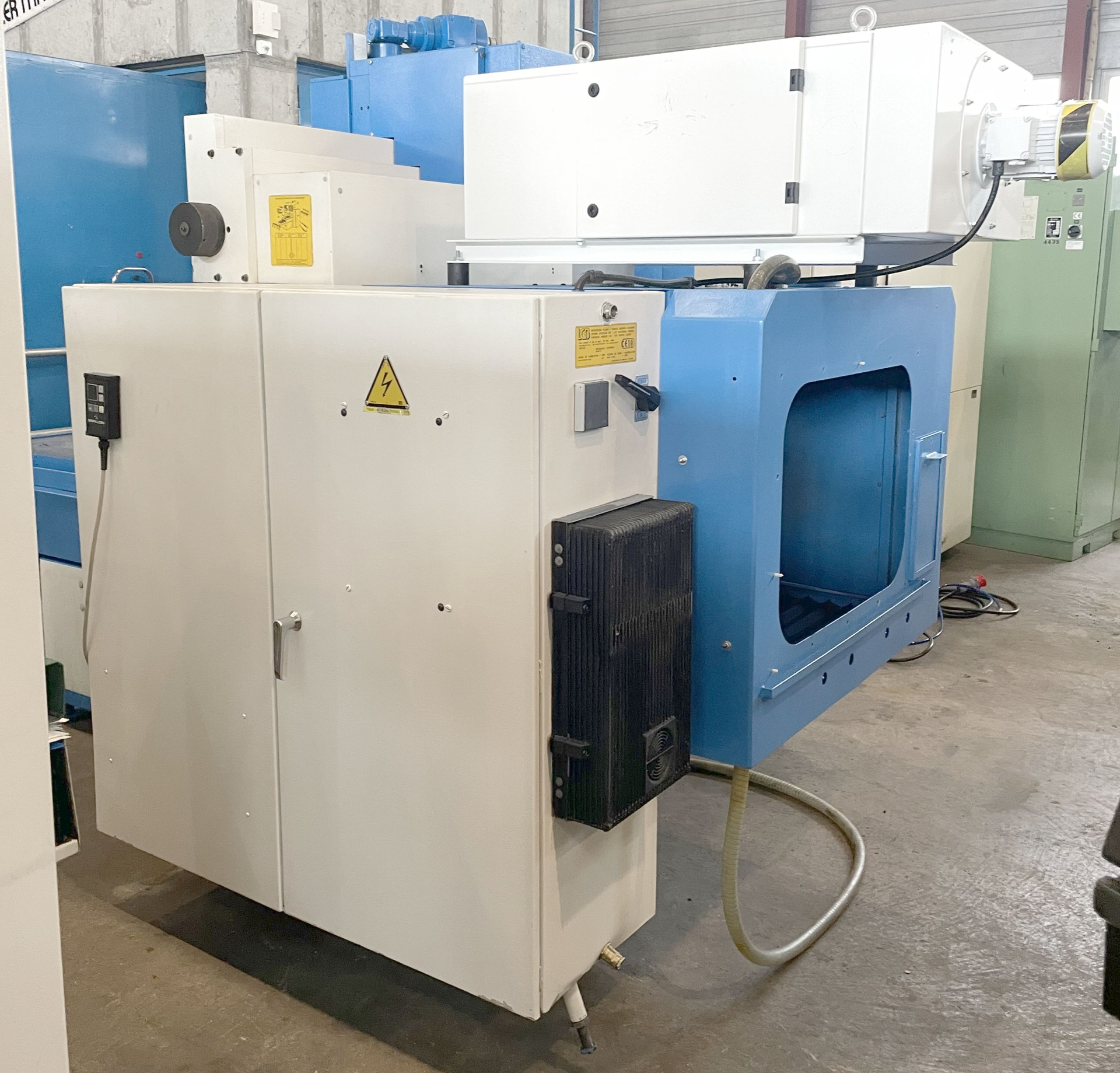

| Switch cabinet Air conditioner |

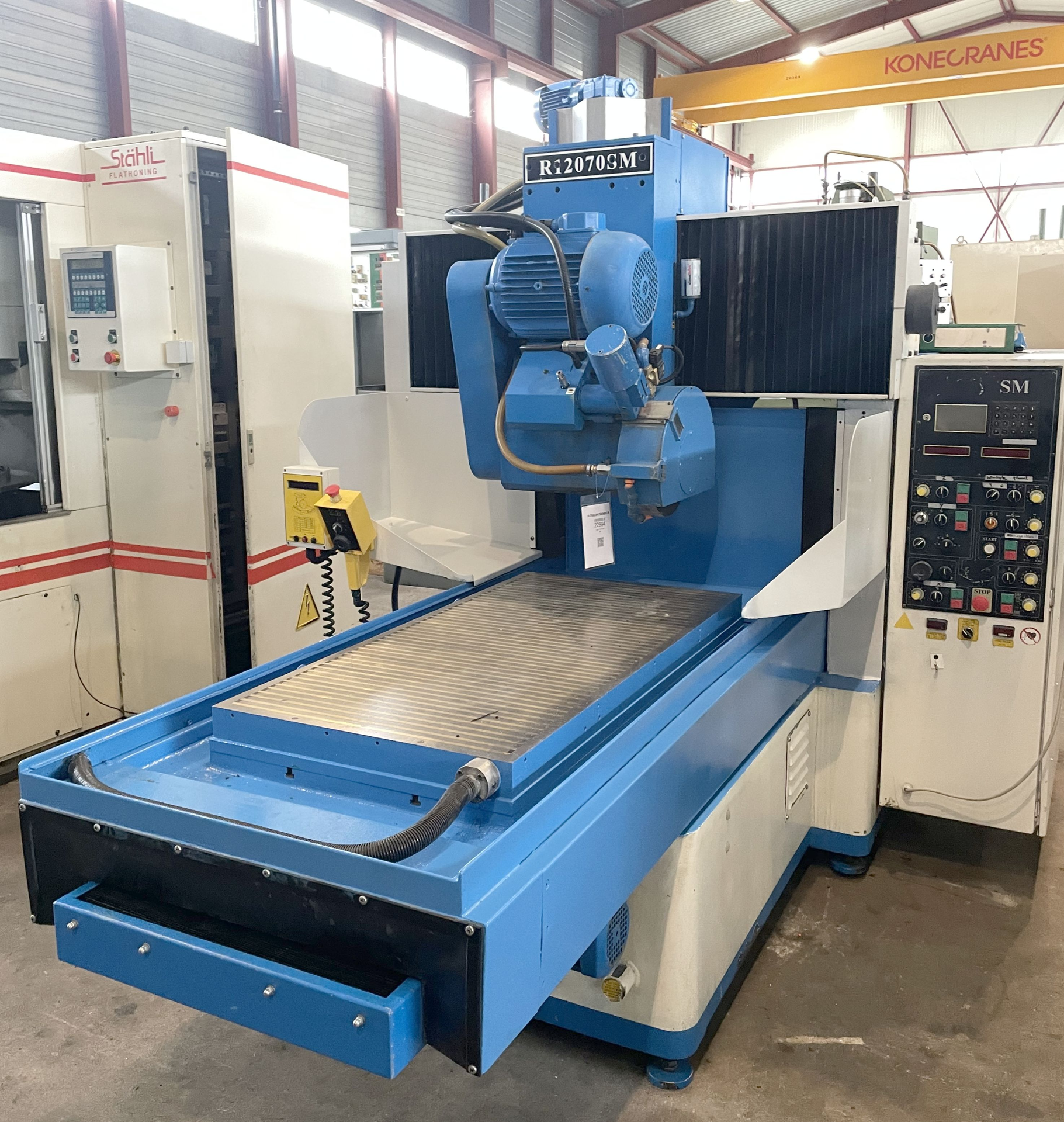

LGB R12070SM is an NC Surface grinder: precision, high accuracy and reliability. Table 1200×600 mm; travels X1320 Z730 Y480 mm; table load 1400 kg; grinding height 520 mm; wheel Ø350×50 mm, bore 127 mm. Spindle motor 9 kW, 3×380V 50Hz; vertical feed up to 10 mm/min; weight ~4500 kg. Accessories: paper filtration, oil mist extractor AIRTECH, electrical magnetic chuck 1180×600 mm. Enables tight tolerances; suitable for automotive, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
