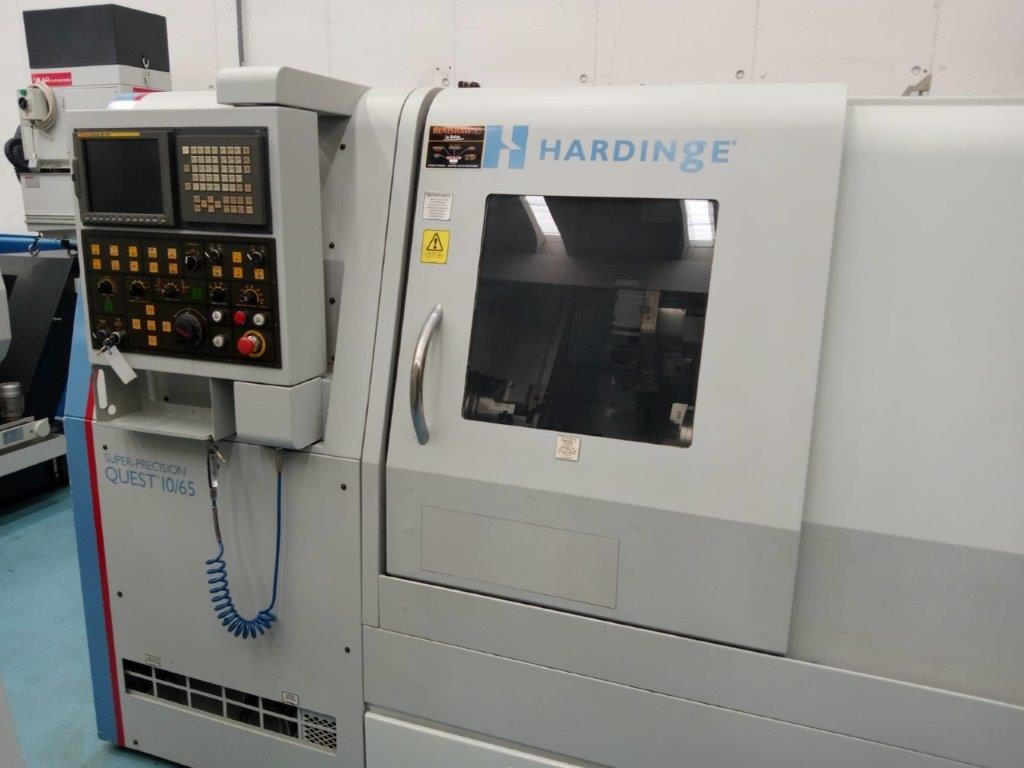

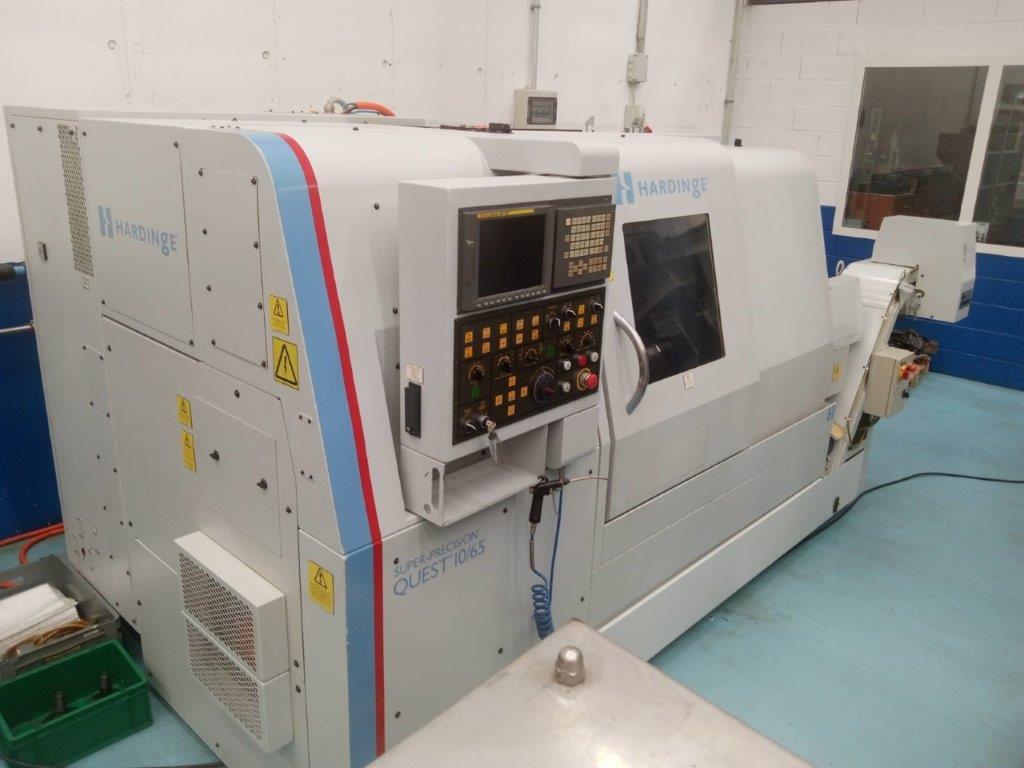

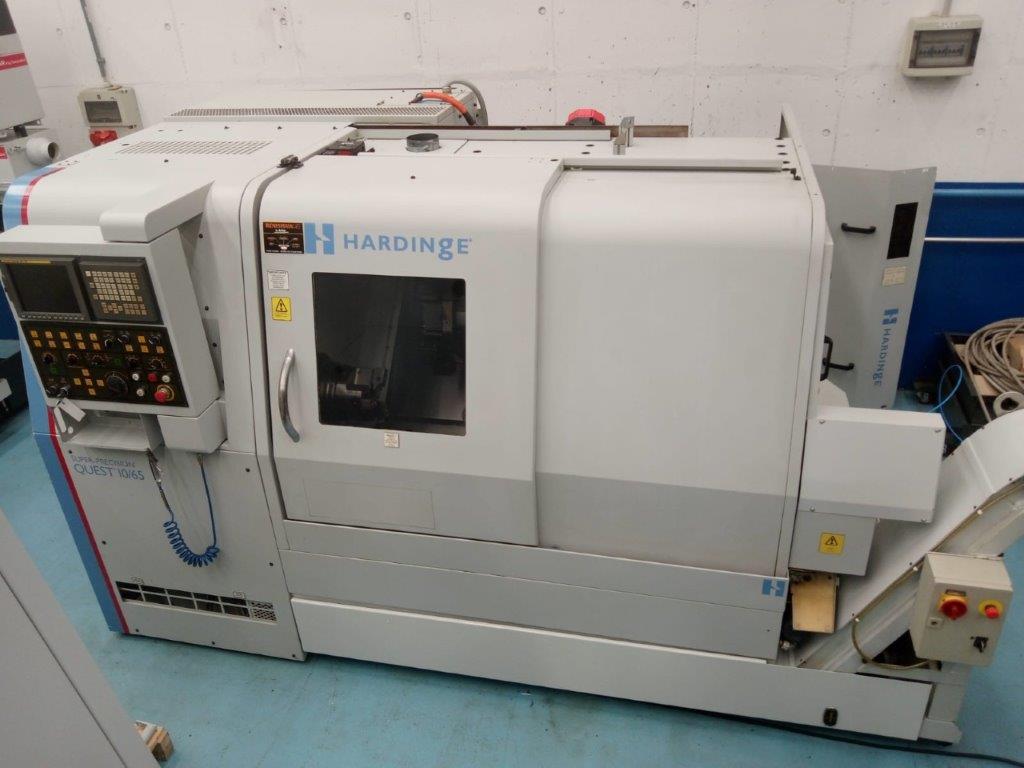

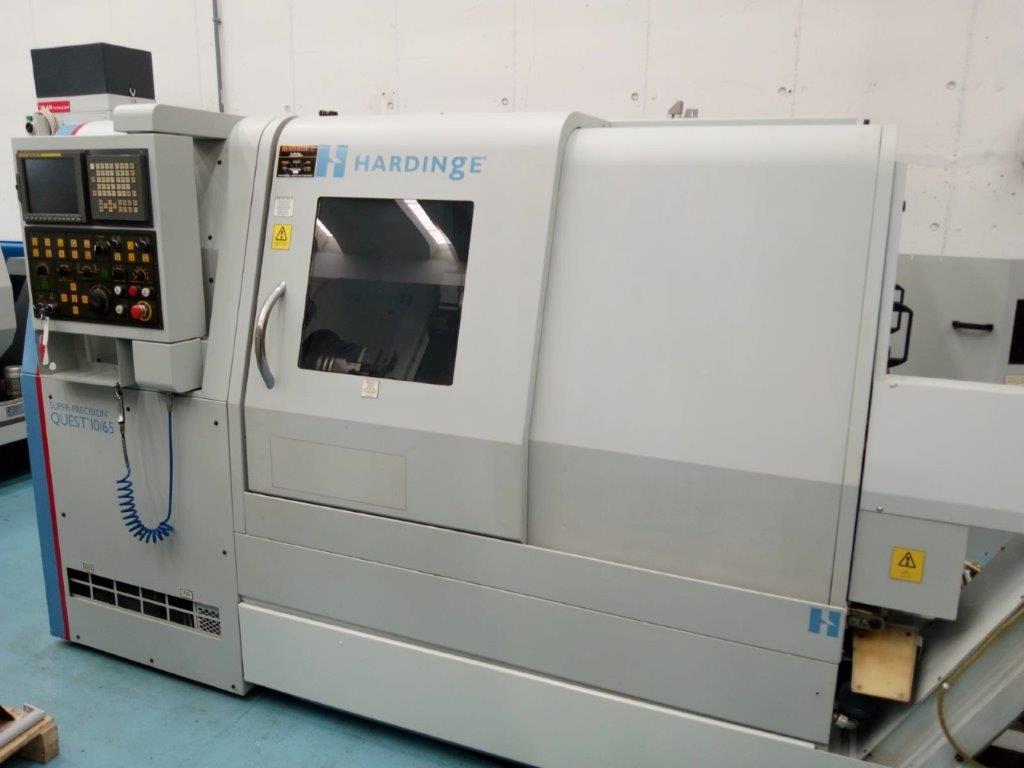

HARDINGE QUEST 10/65
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
HARDINGE QUEST 10/65 is a CNC turning lathe delivering precision, high accuracy and reliability. No specific working capacities (diameters, travel ranges, lengths) are provided. Detailed technical specifications (spindle speeds, feed rates, power, weight) are not listed. It enables tight tolerances and is suitable for typical applications in automotive, aerospace, medical and machine tool industries.
Technical specifications are subject to change without notice
| Swing diameter over carriage | 230 mm |
| Maximum turning length | 400 mm |
| Max. turning diameter | 350 mm |
| Bar passage | 52 mm |
| Clamping chuck diameter | 210 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 640 mm |
| Transversal strocke (X axis) | 190 mm |
| Rapid traverse Z | 38 m/min |
| Rapid traverse X | 28 m/min |
| Driven tools turret | |
| Spindle speeds | 8000 t/min |
| Main spindle: | A2-6 |
| Spindle speeds: | |
| stepless | |
| up to | 3500 t/min |
| Spindle power | 11 / 15 kW |
| Back spindle: | A2-5 |
| max. speed | 6000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 7200 kg |
| Overall dimensions machine: | |
| Length | 3800 mm |
| Width | 2000 mm |
| Height | 1900 mm |
| Various accessories: | |
| 3-jaw chuck | HMO 300 |
| 3-jaw chuck diameter (back spindle) | MH 306 mm |
| Chip conveyor | |
| Tool holder radial (nbr.) | |
| Tool holders axial (nbr.) | |
| Tool holder fix (nbr.) | 8 |
| Tool pre-setting device |
