022986 - PEMAMO MDR 140 NC
Download technical sheet (PDF)
Message us on WhatsApp

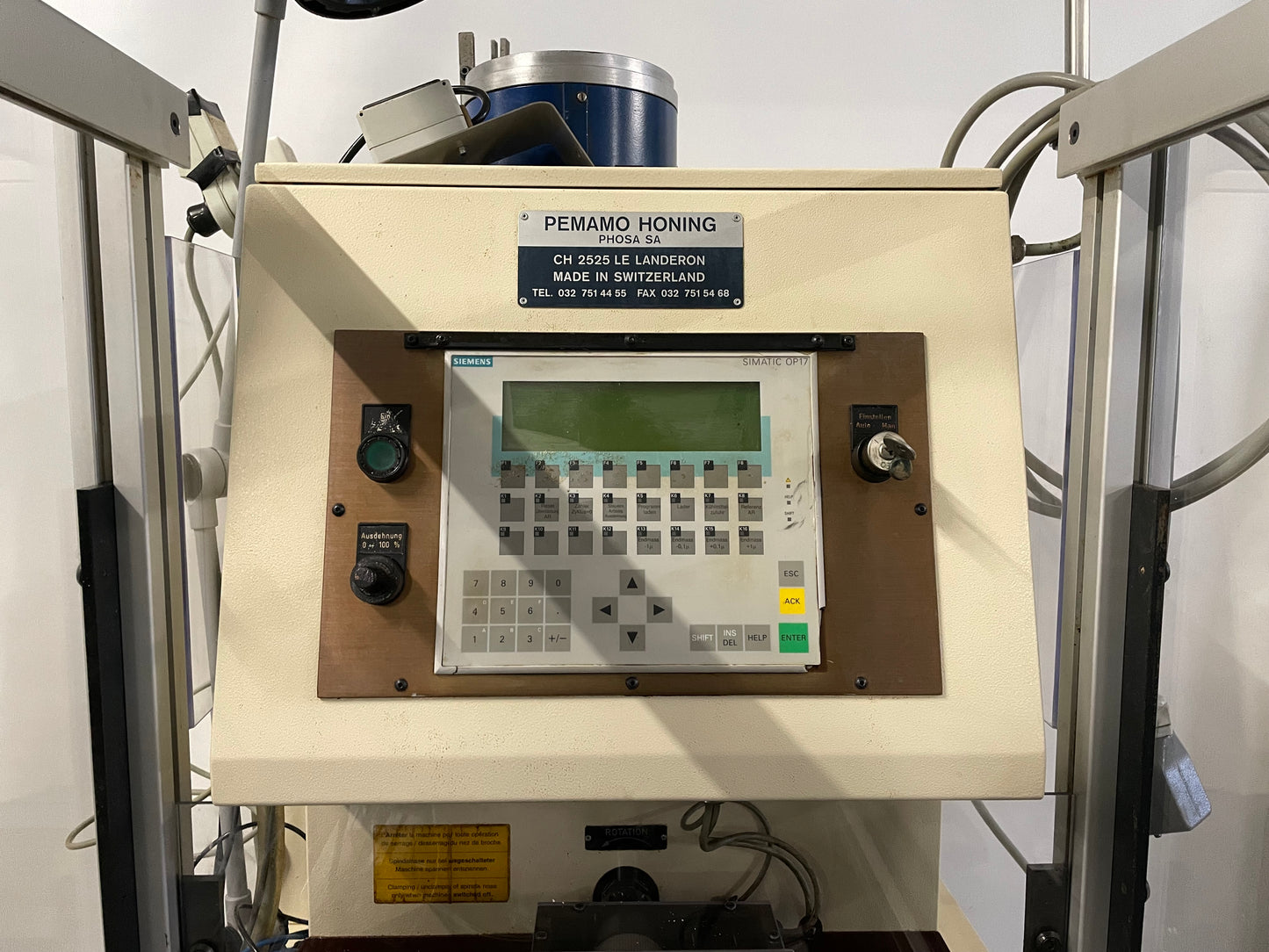

| Status light | |
| Vibrating / oscillating conveyor | |
| Min. diameter | 1.5 mm |
| Max. diameter | 50 mm |
| Max. honing length | 120 mm |
| Table load max. | 20 kg |
| Spindle speeds: | |
| stepless | |
| from | 150 t/min |
| up to | 2500 t/min |
| Total stroke | 0 - 100 mm |
| Stroke speed: | |
| from | 0 c/min |
| up to | 20 c/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 1.5 kW |
| Total power required | 4.6 kVA |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 900 mm |
| Height | 1600 mm |
| Various accessories: | |

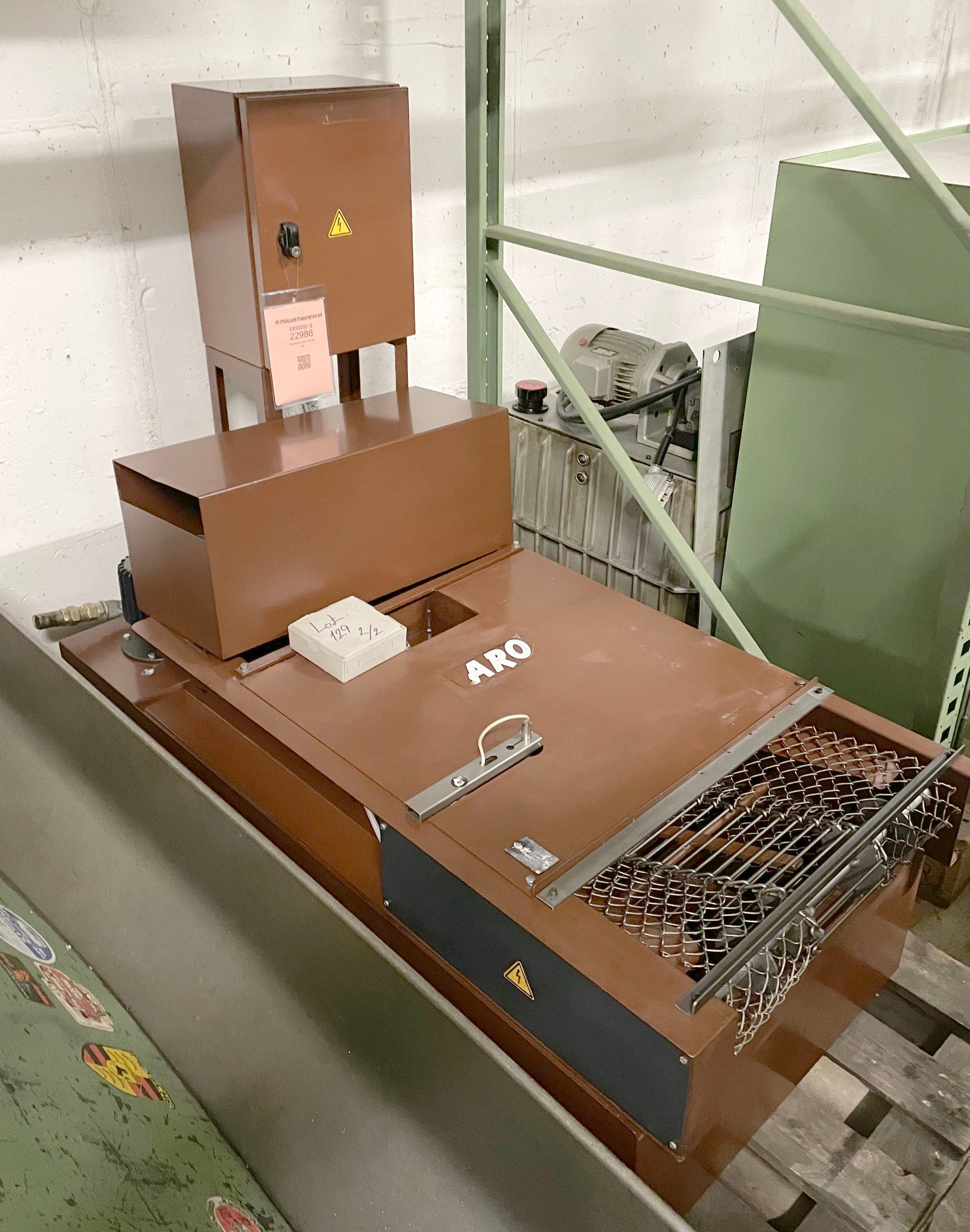

| Paper filtration system | |
| Lamp | |
| Foot pedal | |
| Full splash cabin |
