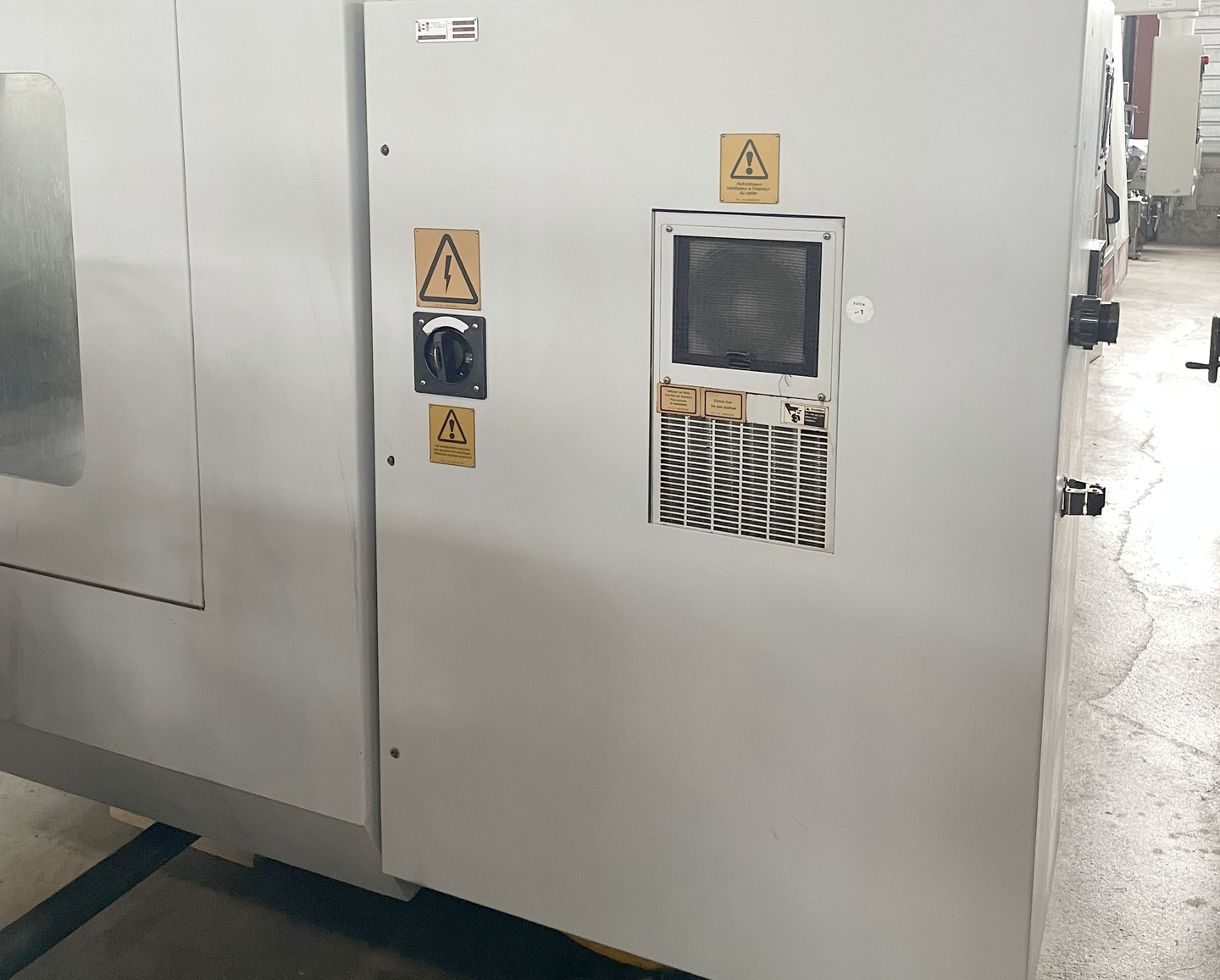

SCHAUBLIN 60HS CNC
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

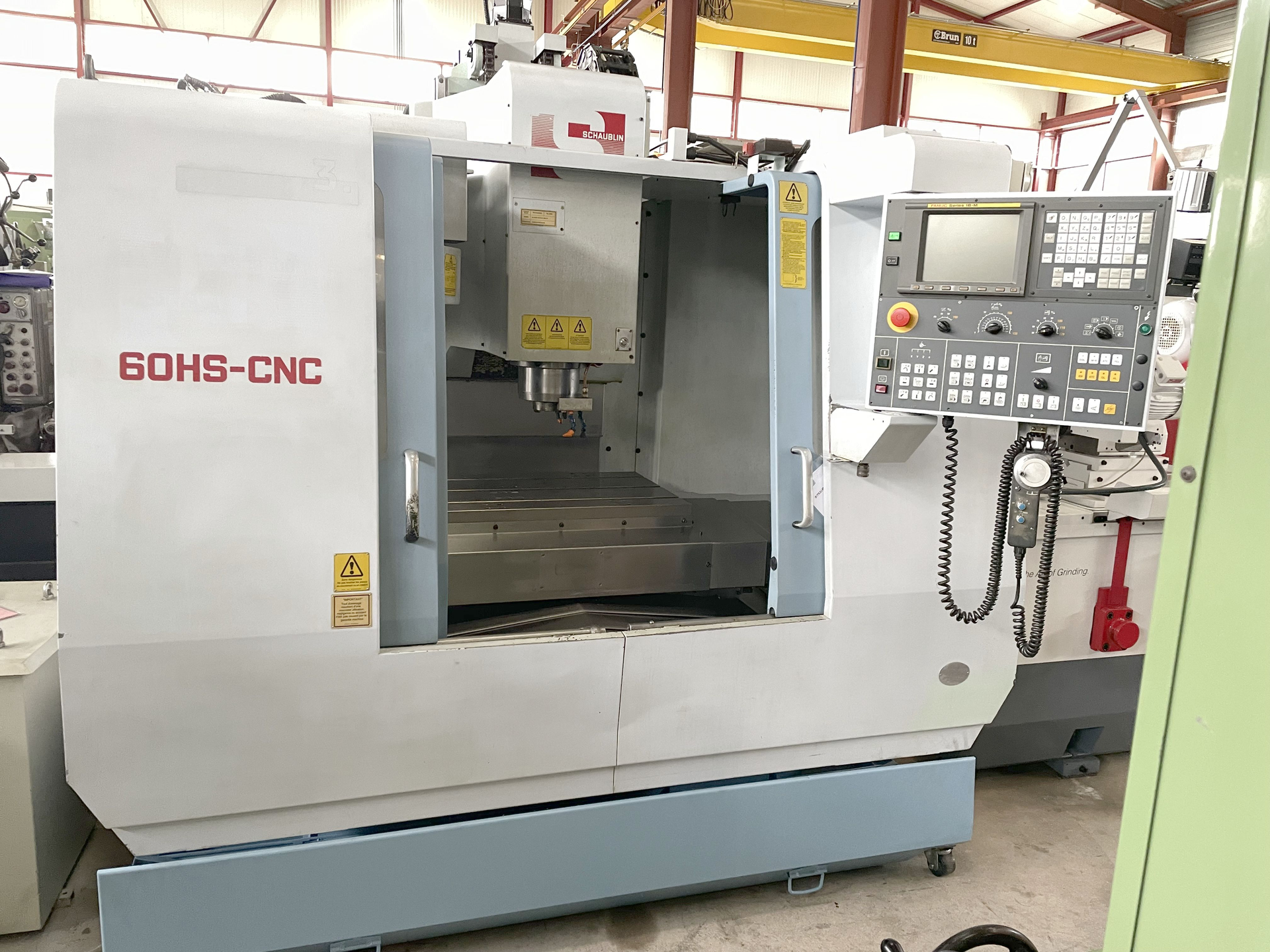

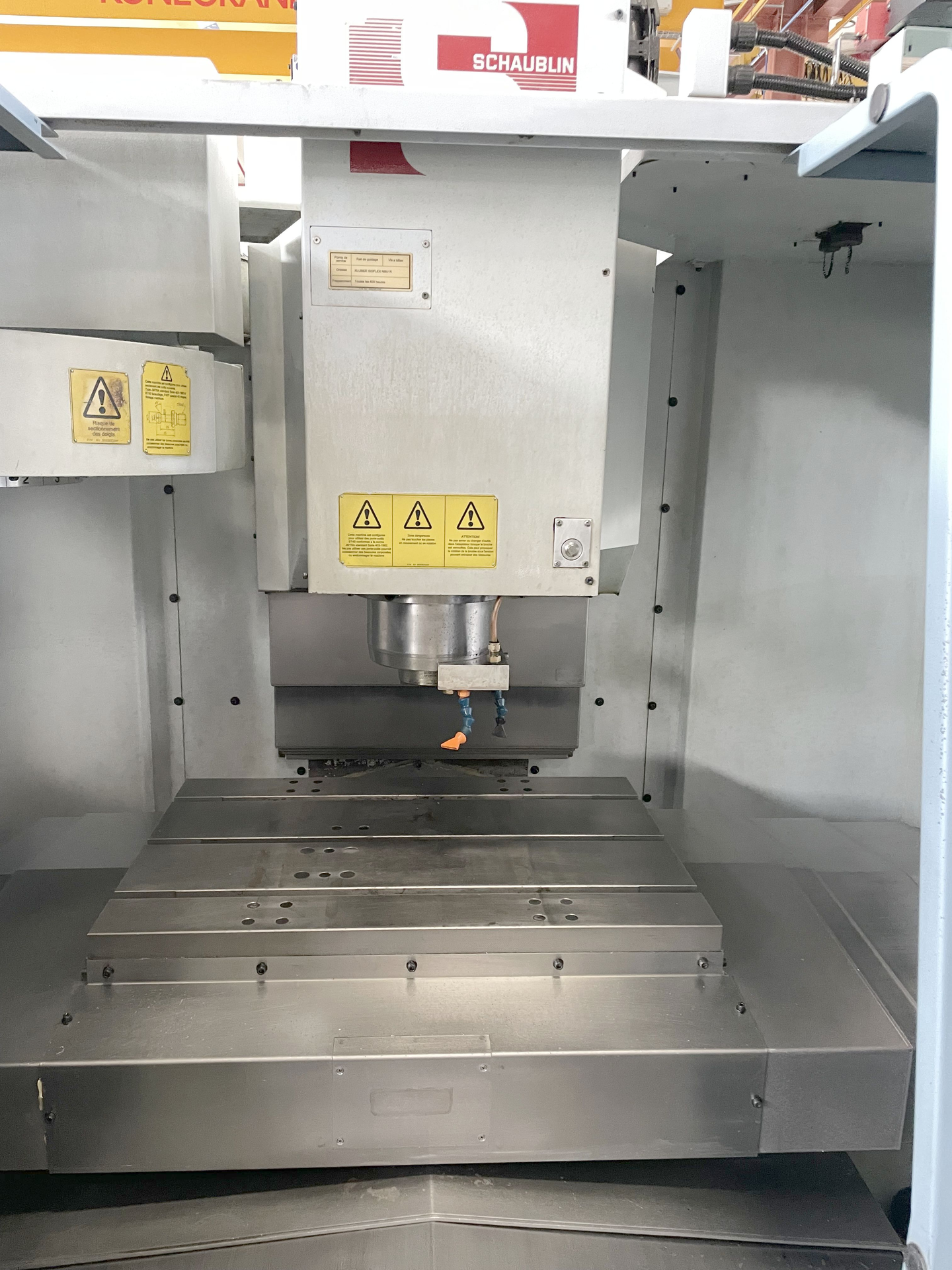

SCHAUBLIN 60HS CNC is a Vertical machining center for precision, high accuracy and reliability. Table 750×510 mm, table load 700 kg; travels X600 Y510 Z510 mm; spindle nose to table 155–665 mm. BT40, 0–15000 rpm; spindle motor 13 kW; feed 12000 mm/min, rapid 30 m/min; 3×400 V; weight ≈4500 kg; dims 2500×2200×2600 mm. 20-station tool changer, coolant system and electronic handwheel. Achieves tight tolerances; suited to automotive, aerospace, medical, watchmaking
| Number of axis total | 3 |

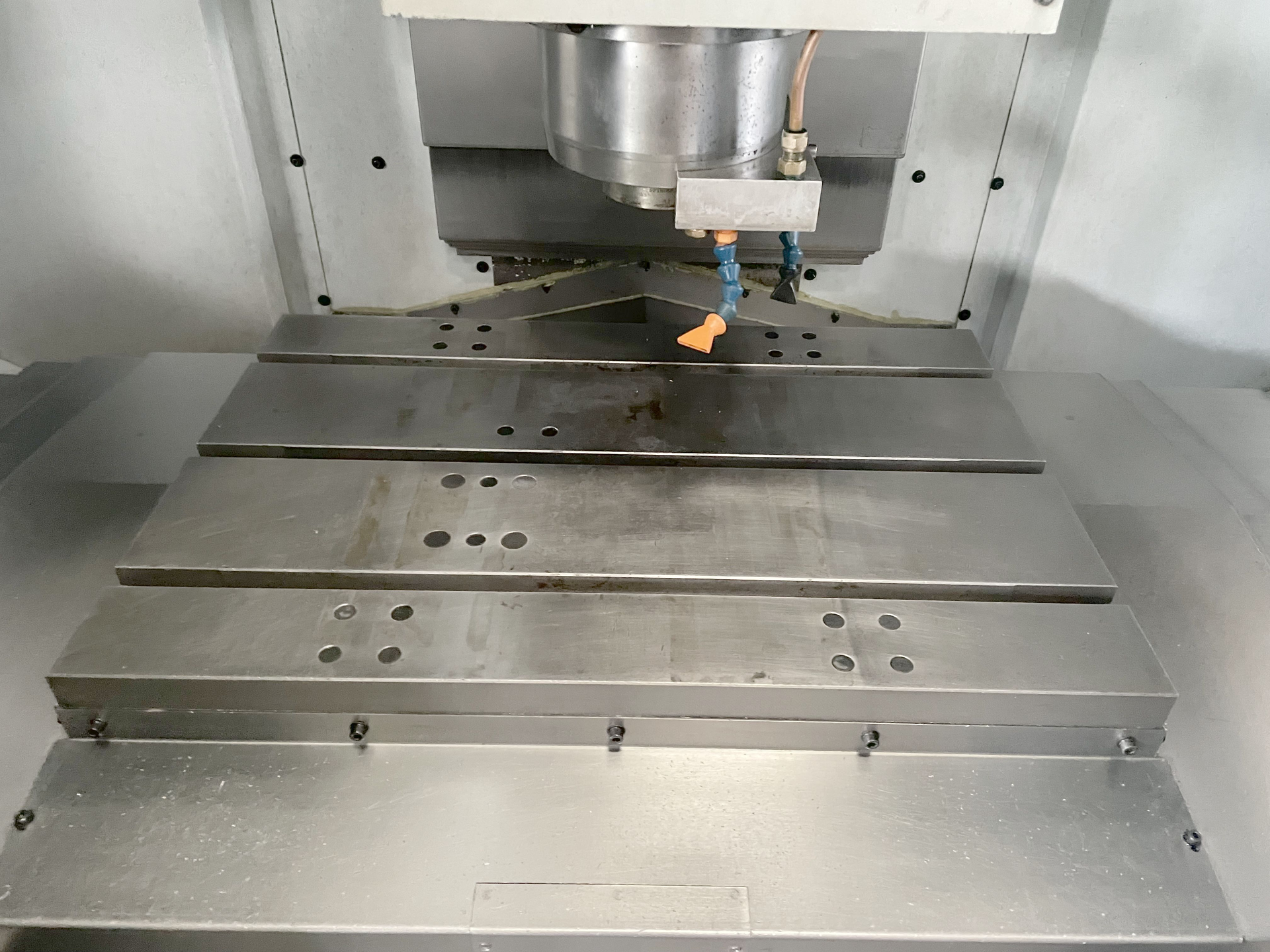

| Table length | 750 mm |
| Table width | 510 mm |
| Table load max. | 700 kg |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 510 mm |
| Vertical travel (z axis) | 510 mm |
| Table load max. | 700 kg |
| Length | mm |

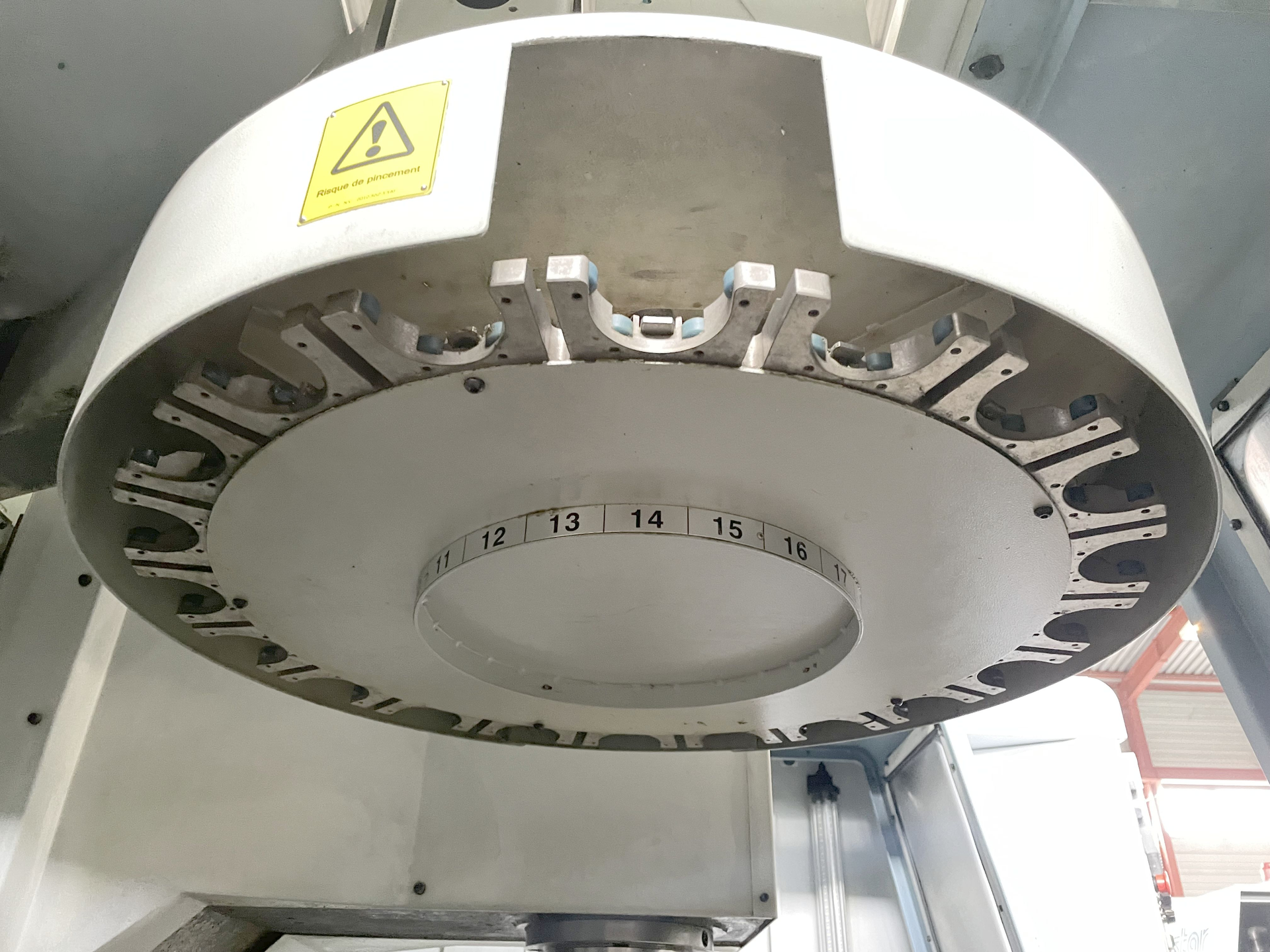

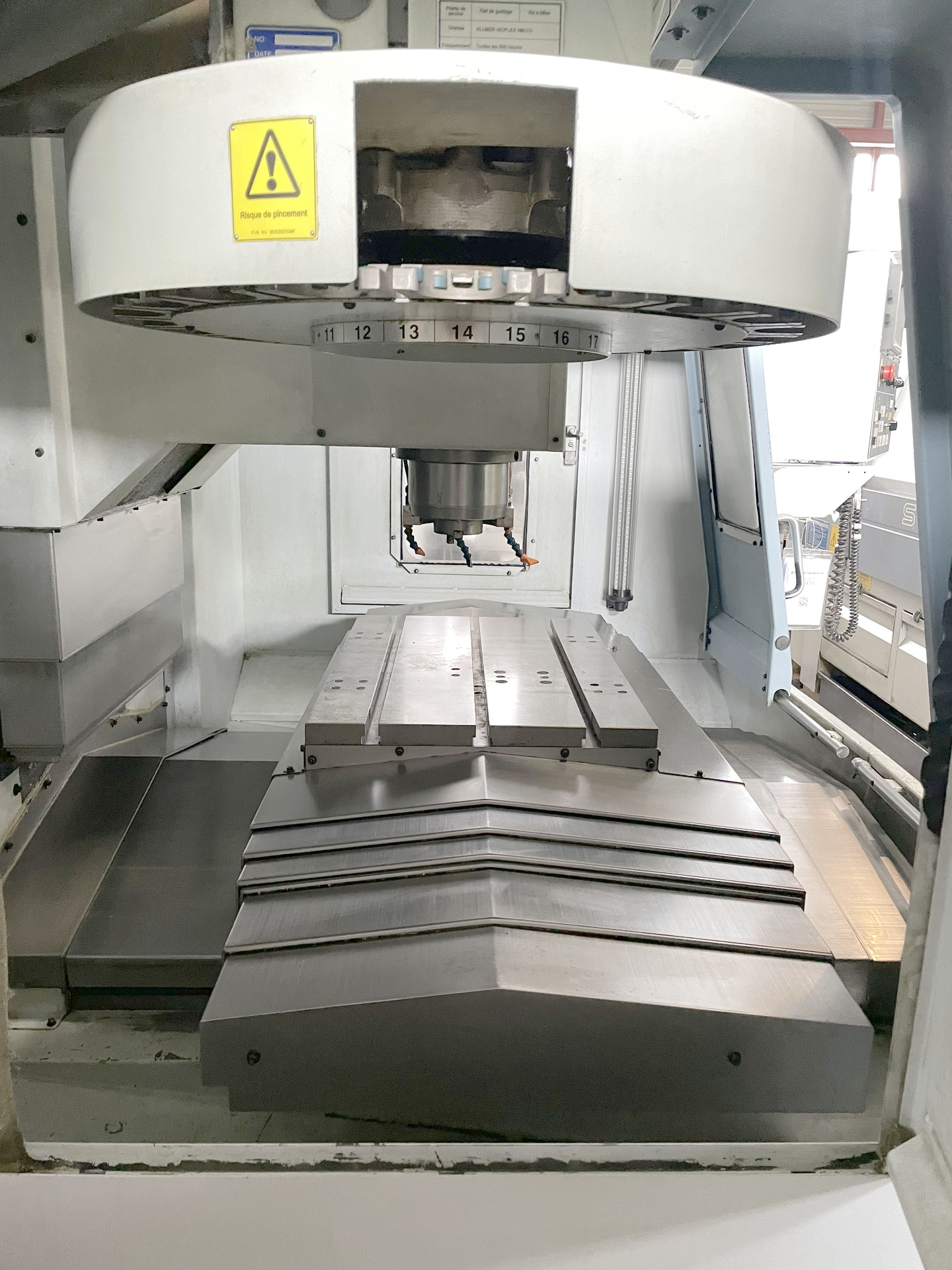

| Tool changer: | |
| Number of tools | 20 |

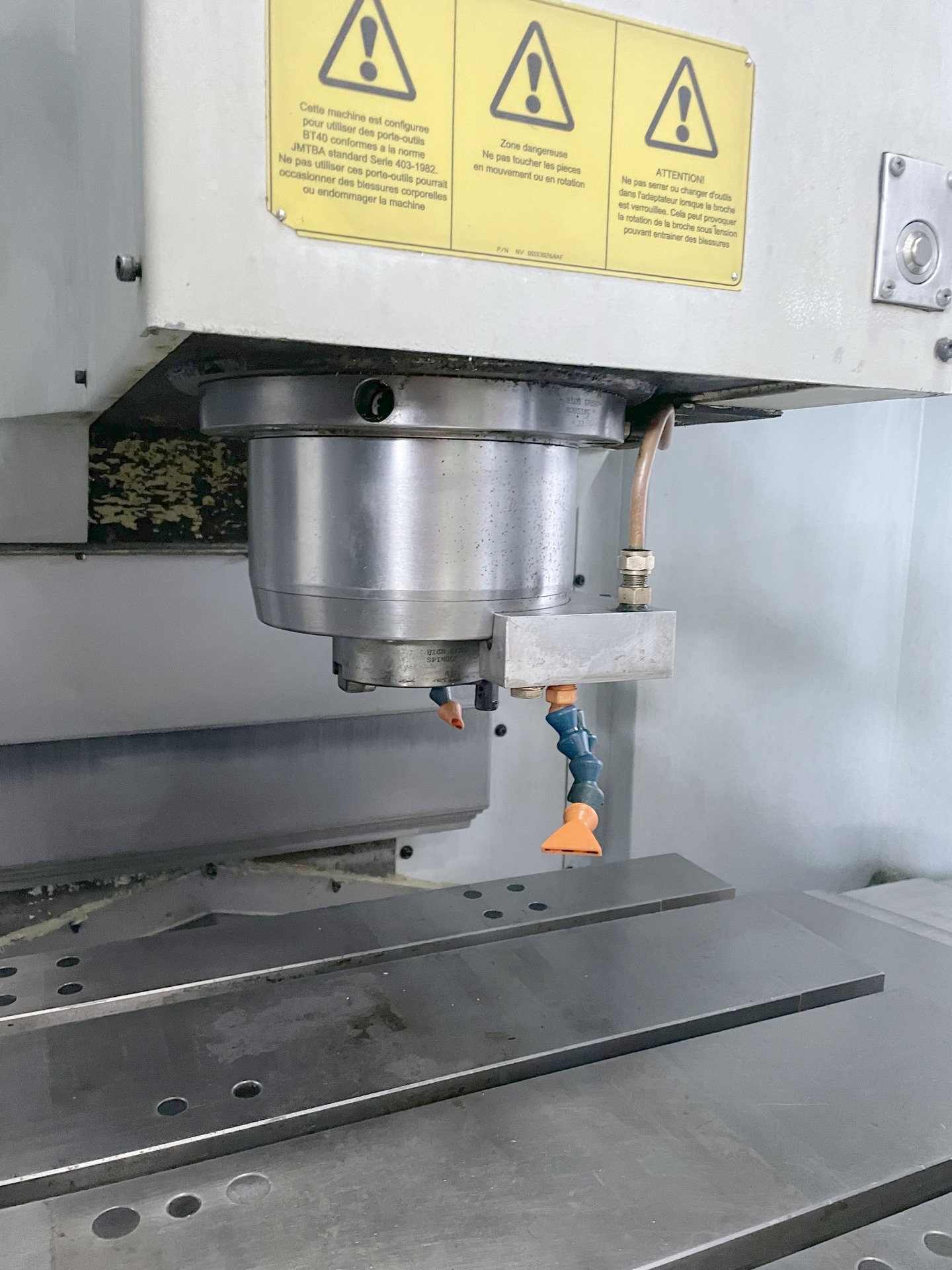

| Spindle nose: BT | 40 |
| Distance spindle nose to table | 155 - 665 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 15000 t/min |
| Feed range | 12000 mm/min |
| Rapid traverse: | 30 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 13 kW |
| Total power required | 19 kVA |
| Machine's weight about | 4500 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2200 mm |
| Height | 2600 mm |
| Various accessories: | |
| Coolant system | |

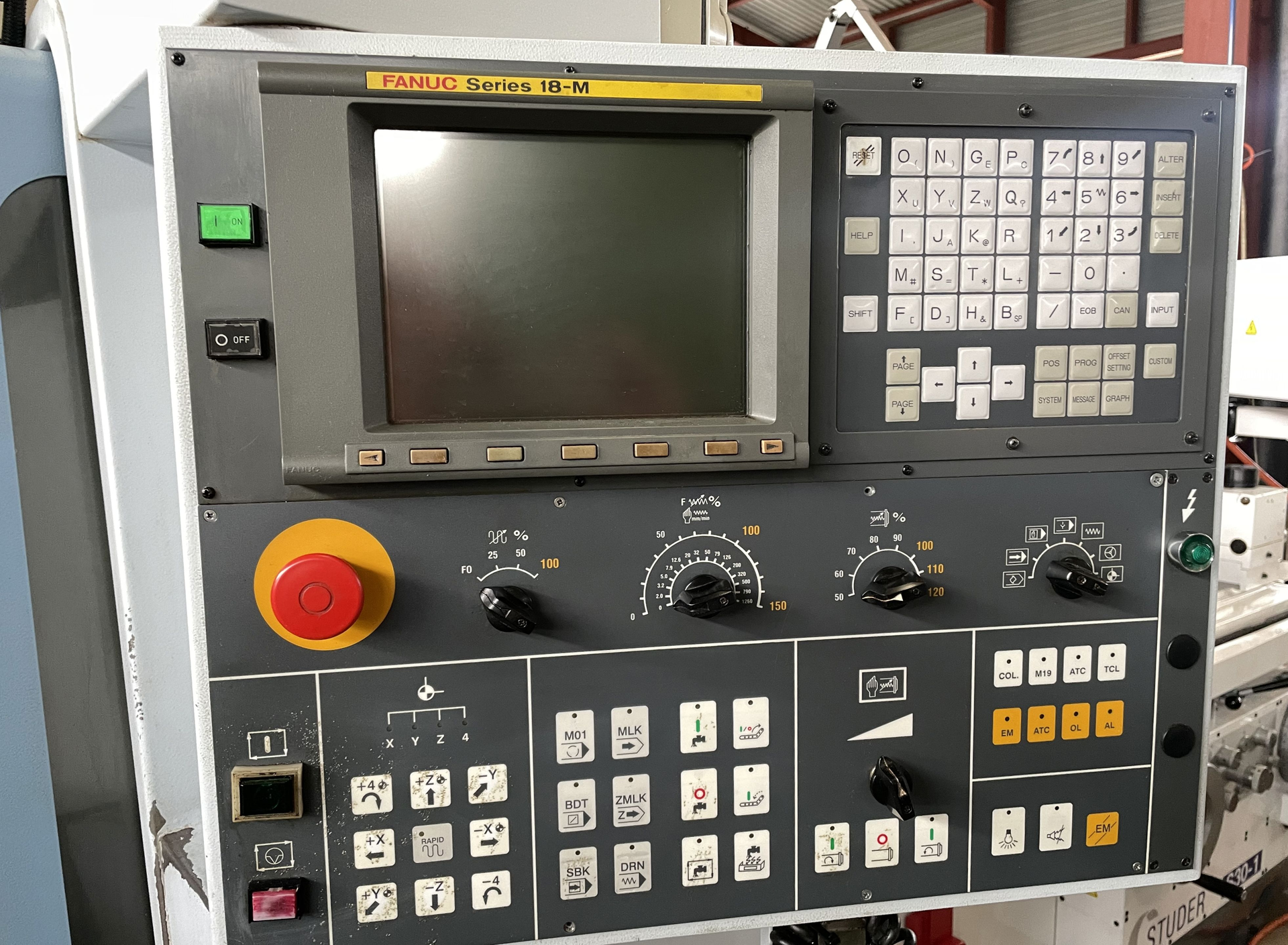

| Handwheel electroinic |
