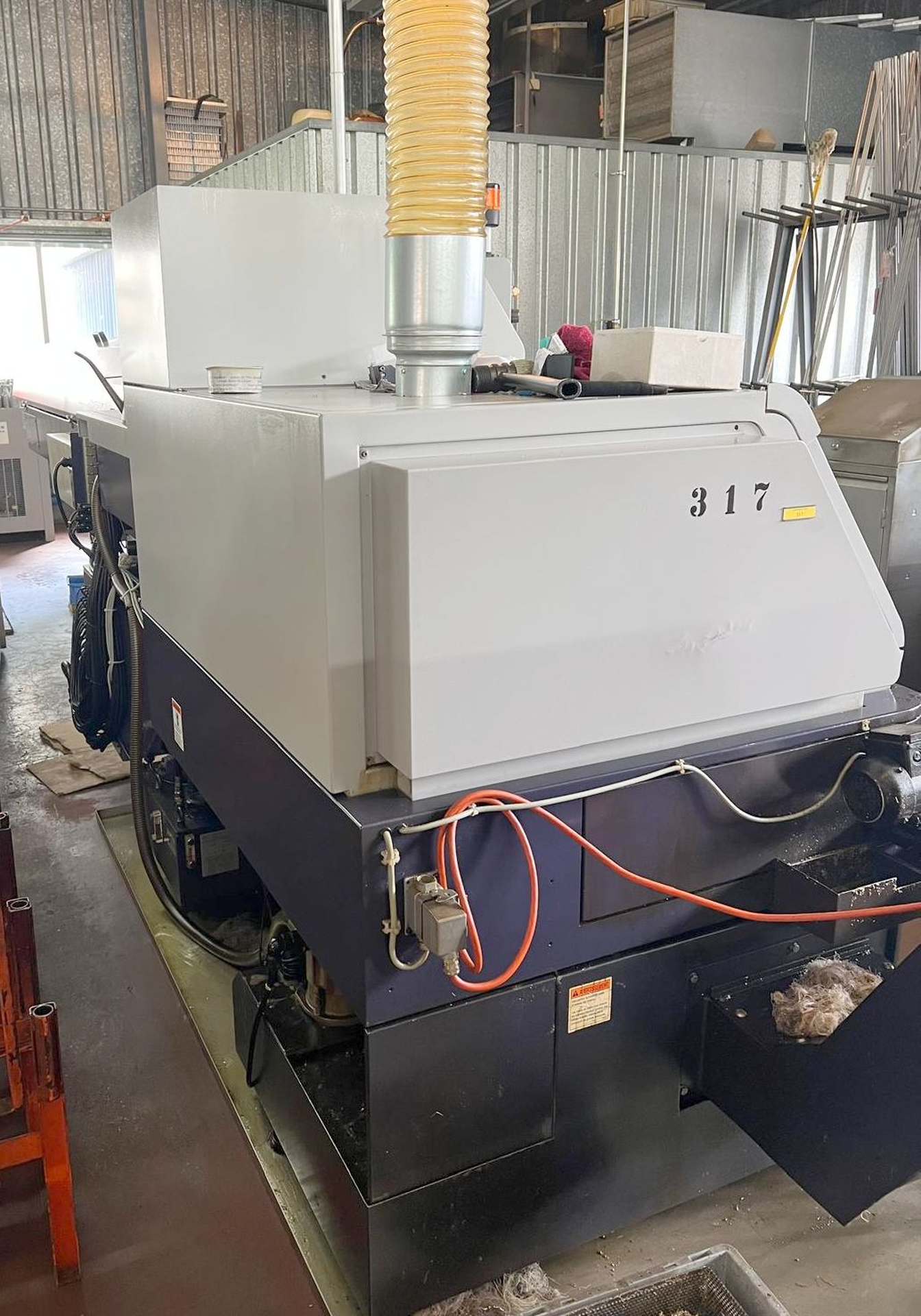

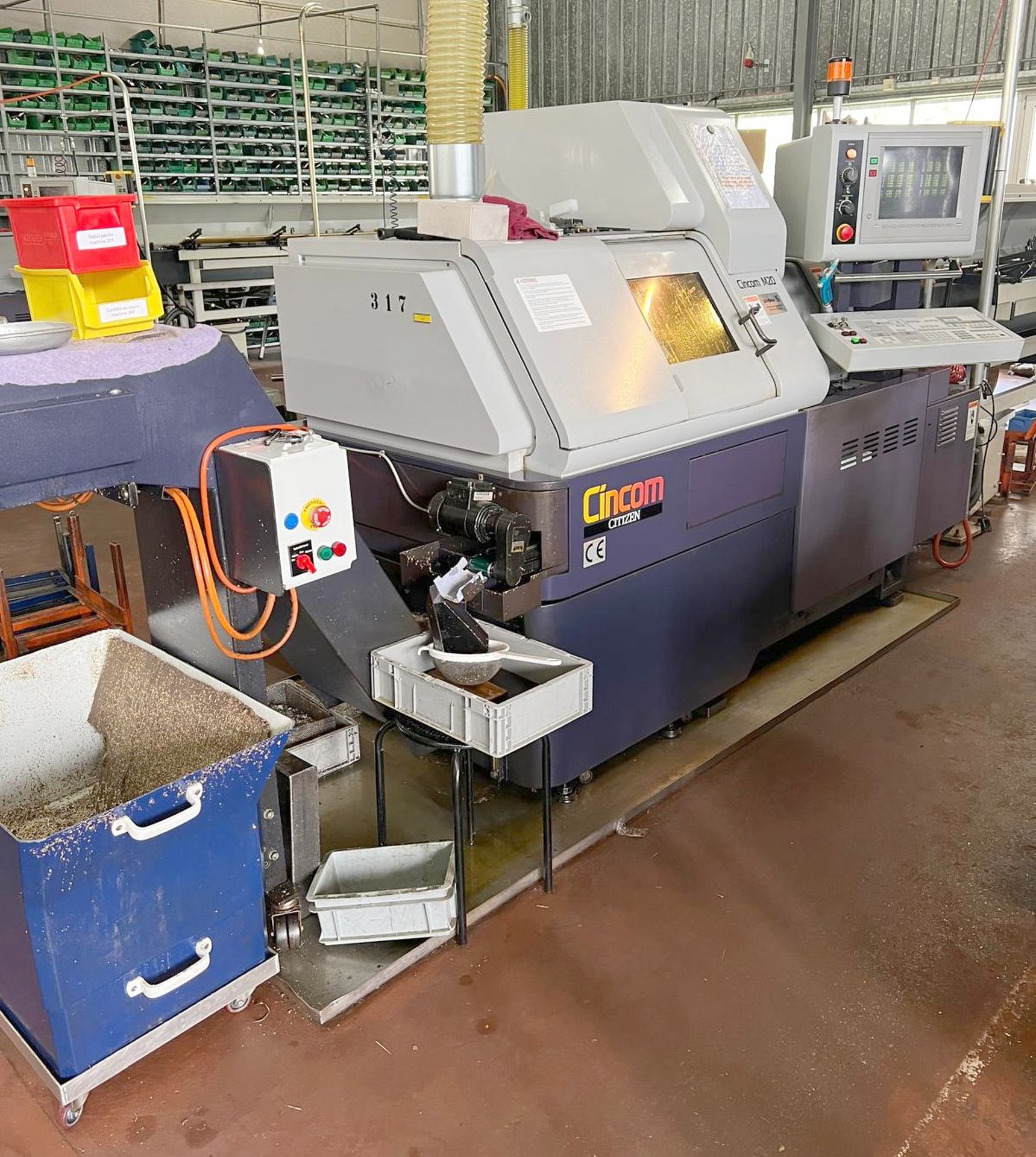

CITIZEN CINCOM M 20
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
CITIZEN CINCOM M 20 is a CNC automatic lathe designed for high-precision machining, excellent accuracy and reliability. Capabilities: max turning Ø 20 mm, turning length 320 mm, max drilling Ø 10 mm, max threading 8 M, spindle bore 24 mm. Specs: spindle stepless 200–10,000 rpm, back spindle 200–5,000 rpm; turret 10 positions; 2 tool-holders; 3 driven tools; 5 turning tools; rapid traverse X/Y 20 m/min. Power supply 3x400 V 50 Hz. Motors: spindle 3.7/7.5 kW; back spindle 1.5/3.7 kW; driven tools 1.5/2.2 kW; total 8 kVA. Weight ~2500 kg; dimensions L2800×W1370×H1800 mm. Accessories: LNS HYDROBAR MINI-SPRINT bar feeder, chip conveyor. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Max. turning diameter | 20 mm |
| Turning length | 320 mm |
| Max. drilling diameter | 10 mm |
| Max. threading diameter | 8 M |
| Internal spindle diameter | 24 mm |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 10000 t/min |
| Turret slide: | |
| Number of positions | 10 |
| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 5000 t/min |
| Tool-holder: | |
| numbers | 2 |
| number of driven tools | 3 |
| Turning tools | 5 pce |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 3.7 / 7.5 kW |
| Power of back spindle | 1.5 / 3.7 kW |
| Power of driven tools | 1.5 / 2.2 kW |
| Total power required | 8 kVA |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2800 mm |
| Width | 1370 mm |
| Height | 1800 mm |
| Various accessories: | |

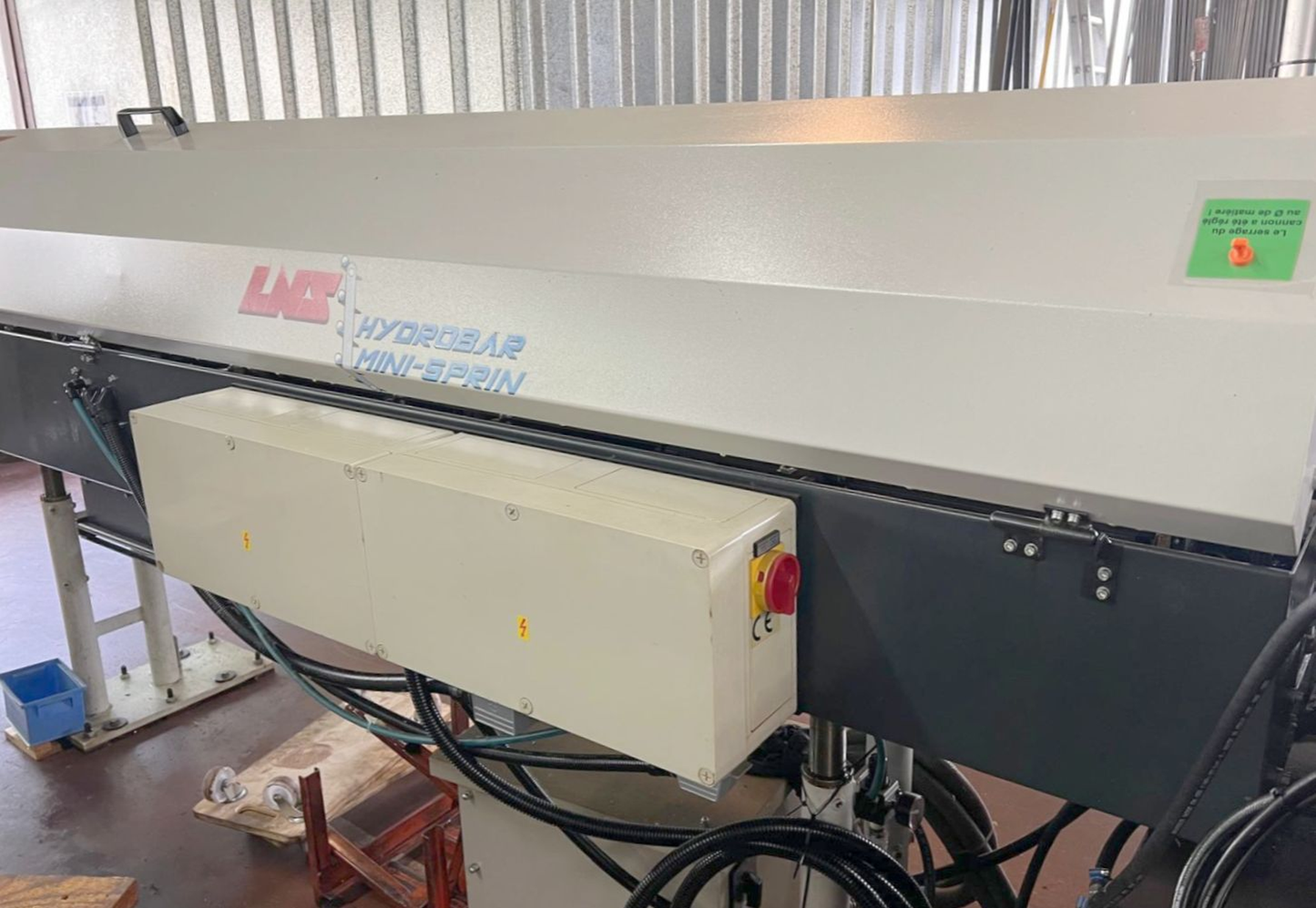

| Bar feeder | |
| Manufacturer | LNS |
| Type | HYDROBAR MINI-SPRINT |
| Chip conveyor |
