SCHAFFNER
Manufacturer: SCHAFFNER
Group: Foot press
Subgroup: Foot press
Stock: 022968
Download technical sheet (PDF)

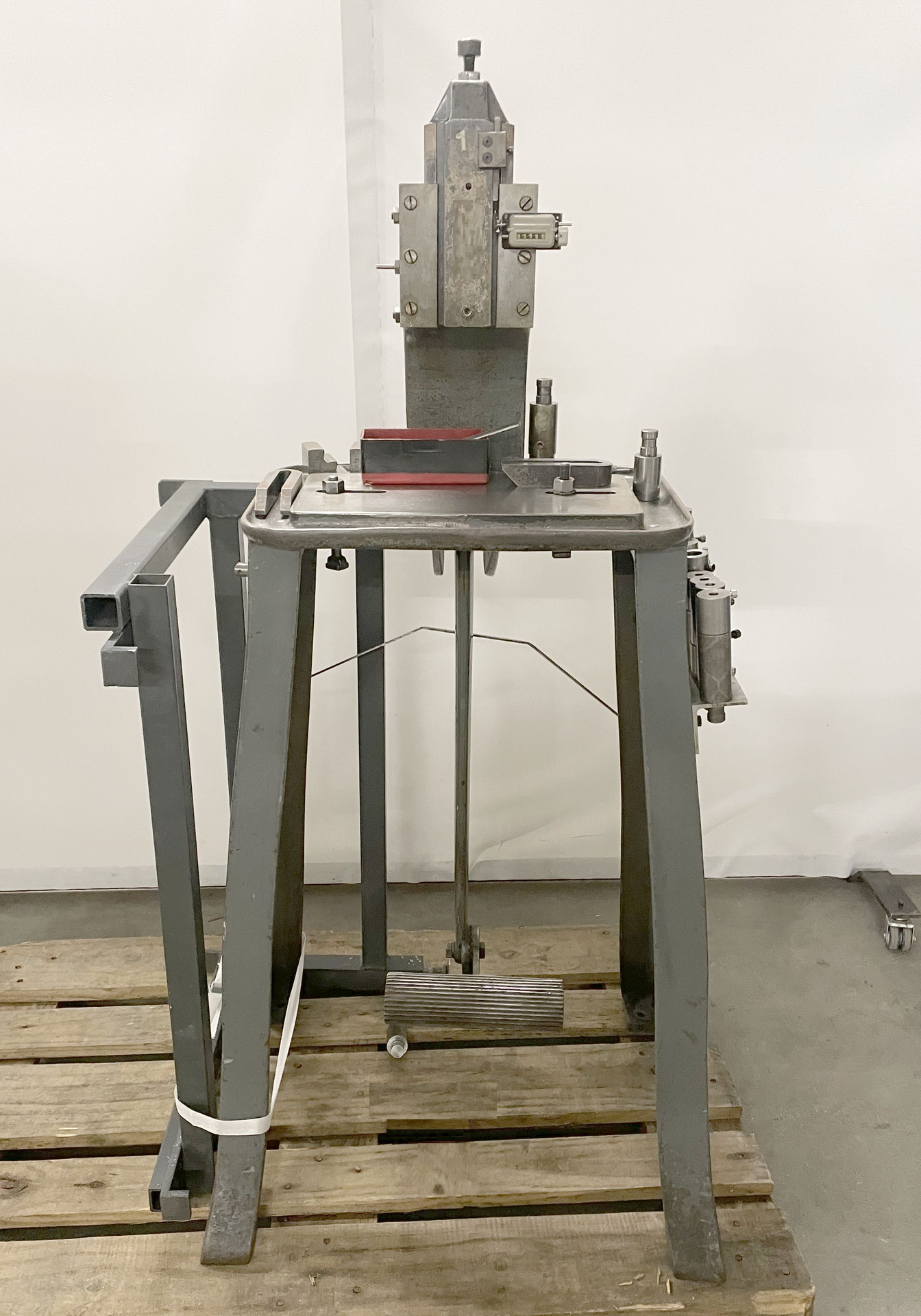

SCHAFFNER is a Foot press designed for precision, high accuracy and reliable operation. Key capacities: pressure max. 1 to, max. stroke 150 mm, table 380 mm × 200 mm, distance from table to slide 170 mm. Main specifications: machine weight about 100 kg; overall dimensions L 500 × W 400 × H 1400 mm. No specific accessories listed. Enables tight tolerances and is suitable for precision workshops, watchmaking, medical device assembly and small-scale automotive components.

Pressure max. 1 to
Max. stroke 150 mm

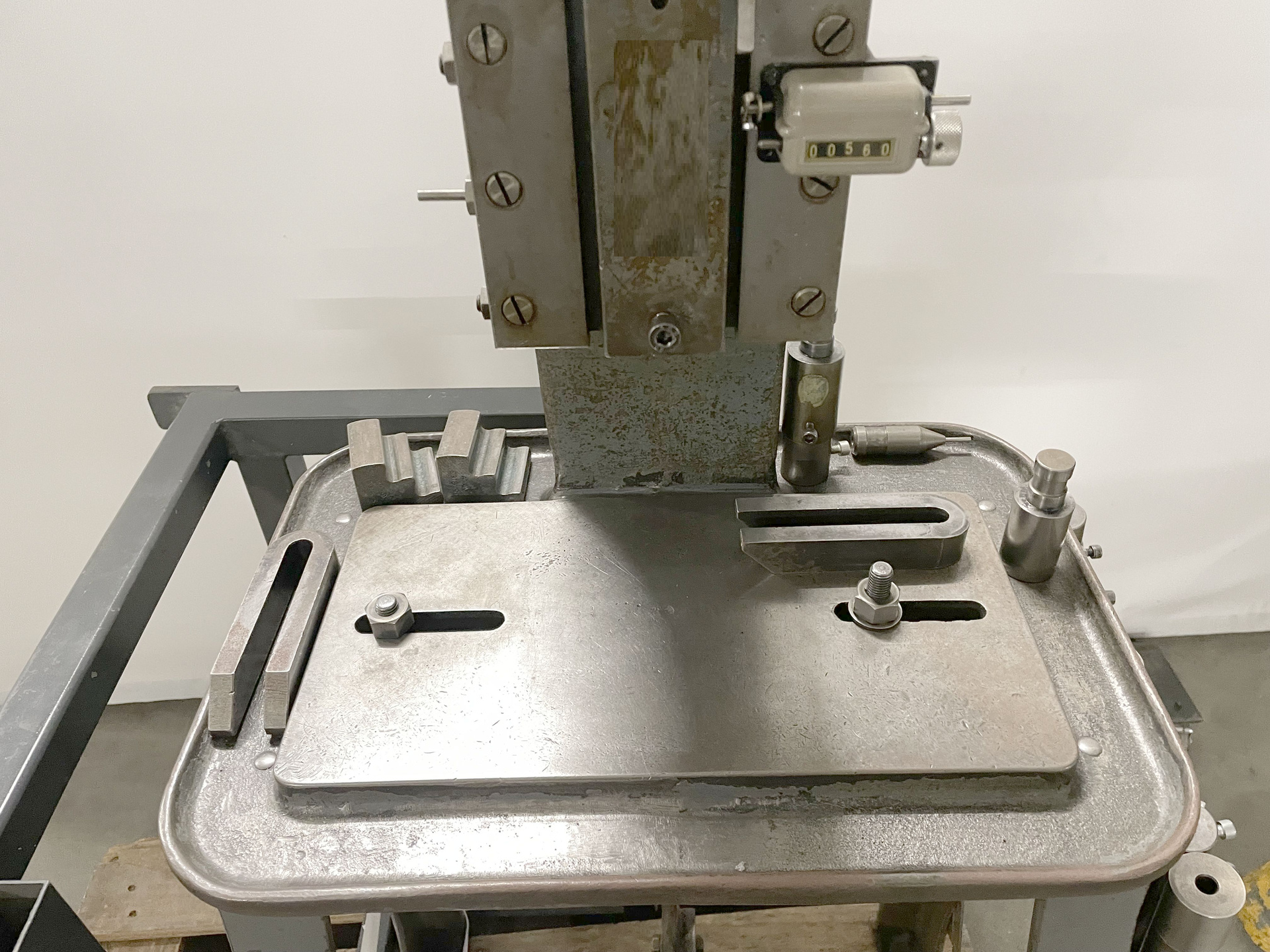

Table surface:
   Length 380 mm
   Width 200 mm
Distance from table to slide: 170
Machine's weight about 100 kg
Overall dimensions machine:
   Length 500 mm
   Width 400 mm
   Height 1400 mm

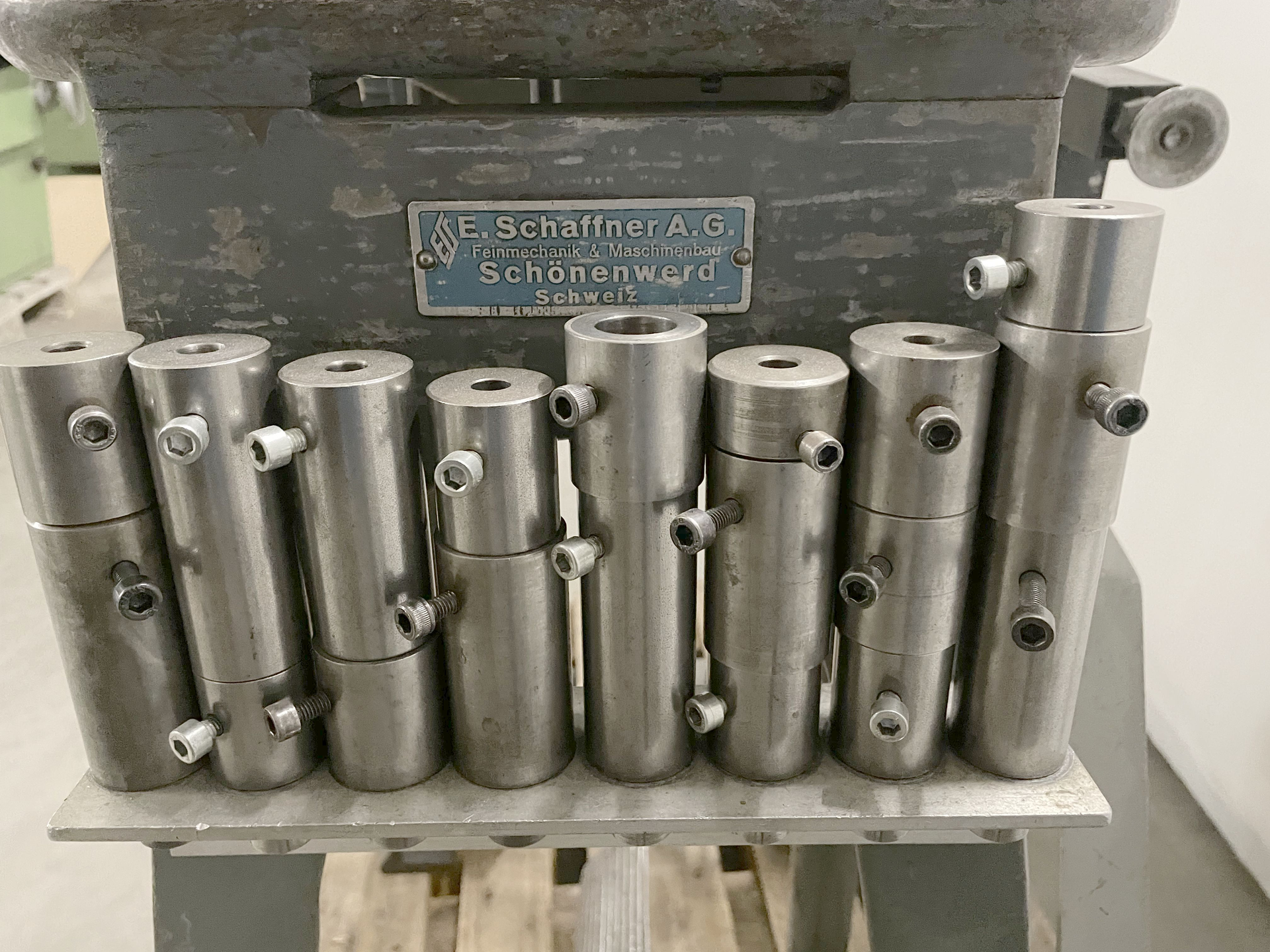

Various accessories:
Cast-iron base
