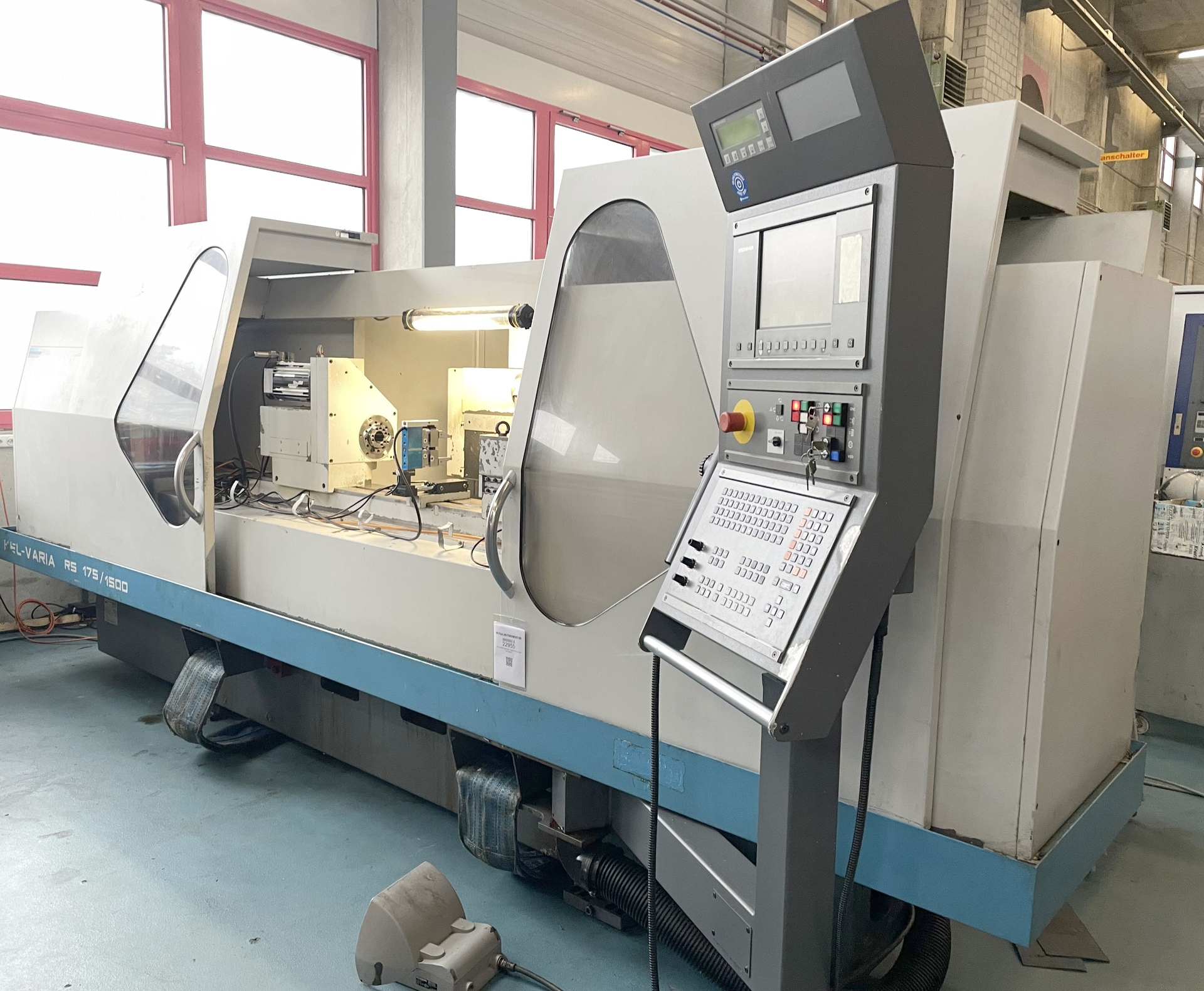

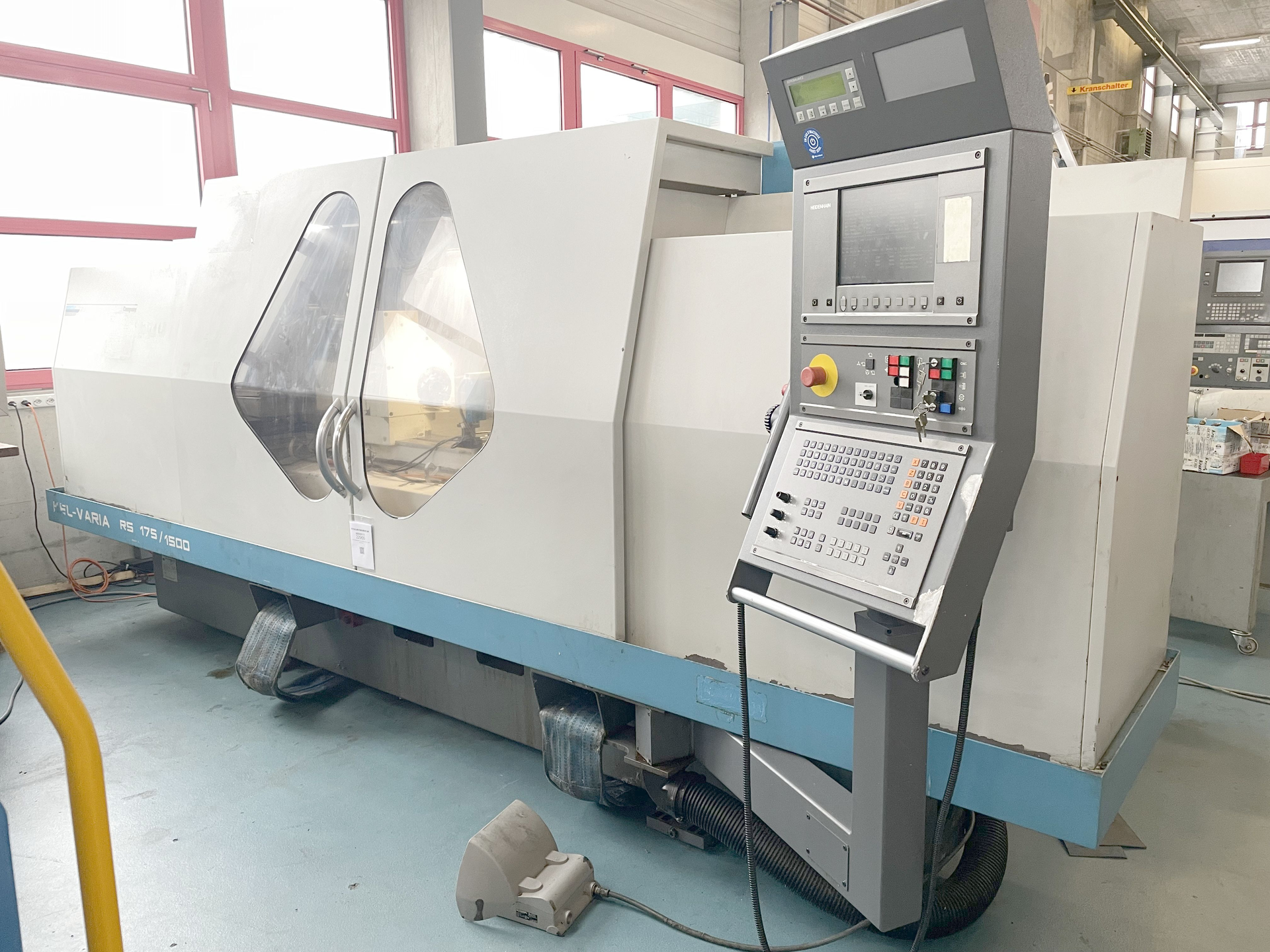

KELLENBERGER KEL‑VARIA R175 x 1500 is a CNC cylindrical grinder engineered for precision, high accuracy and reliable operation. Capacity: centre height 175 mm, distance between centres 1500 mm, Z 1650 mm, max 150 kg; wheels Ø500×80 mm (Ø400×63 mm option). Specs: wheel speeds 1000–2150 rpm, peripheral 45 m/s, max travel 320 mm, feed 7500 mm/min, motors 7.5/2 kW, rapid 15 m/min, 3×400 V, weight ≈6000 kg, dims 4700×2300×2000 mm. Equipment: paper/coolant filtration, MOVOMATIC, Renishaw LP2H probe, wheel flange extractor, remote hand control, MPM balancing. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical.
| Centre height | 175 mm |
| Distance between centres | 1500 mm |
| Travels: | |
| Z axis | 1650 mm |
| Workpiece weight on centres max. | 150 kg |

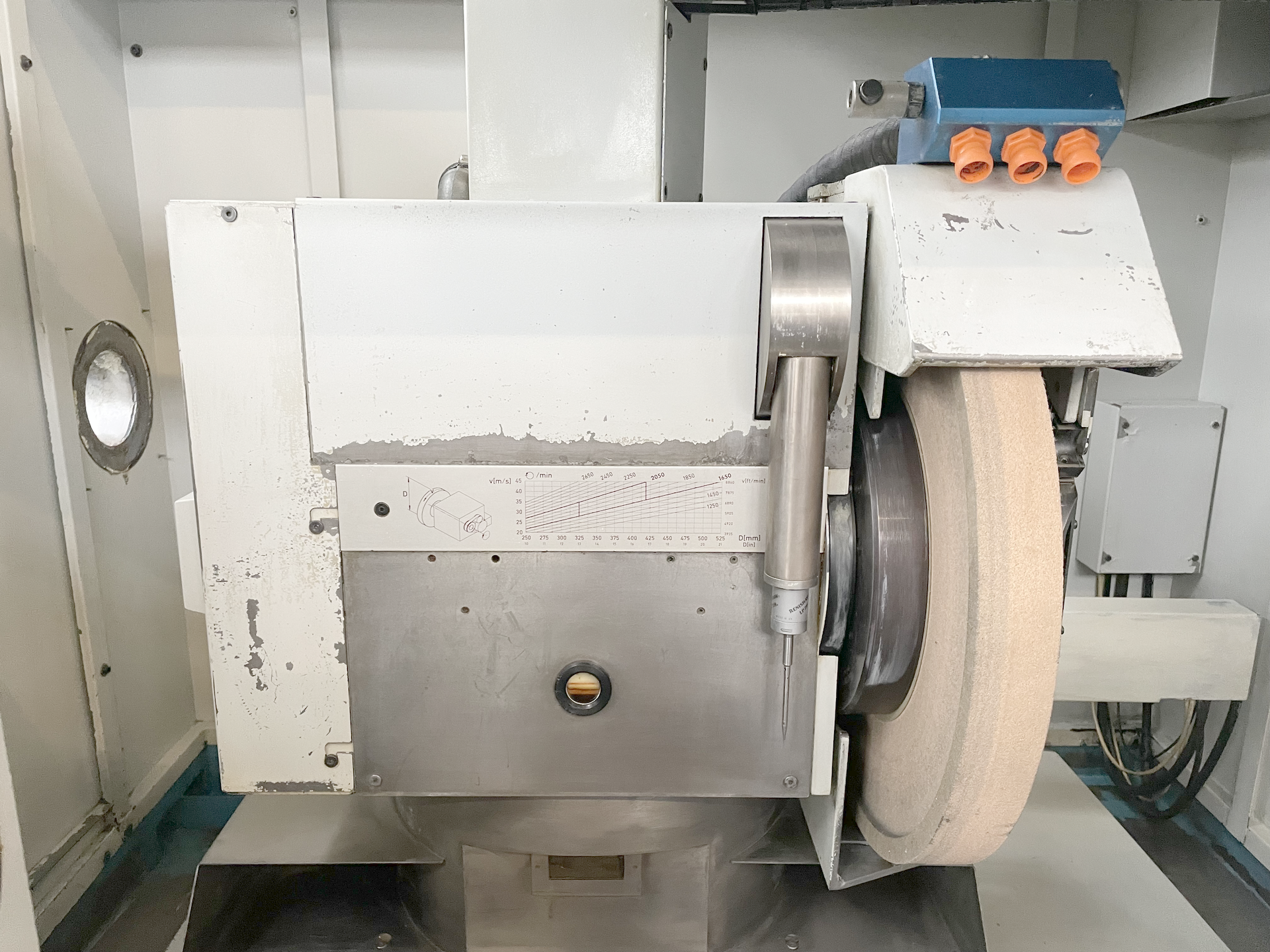

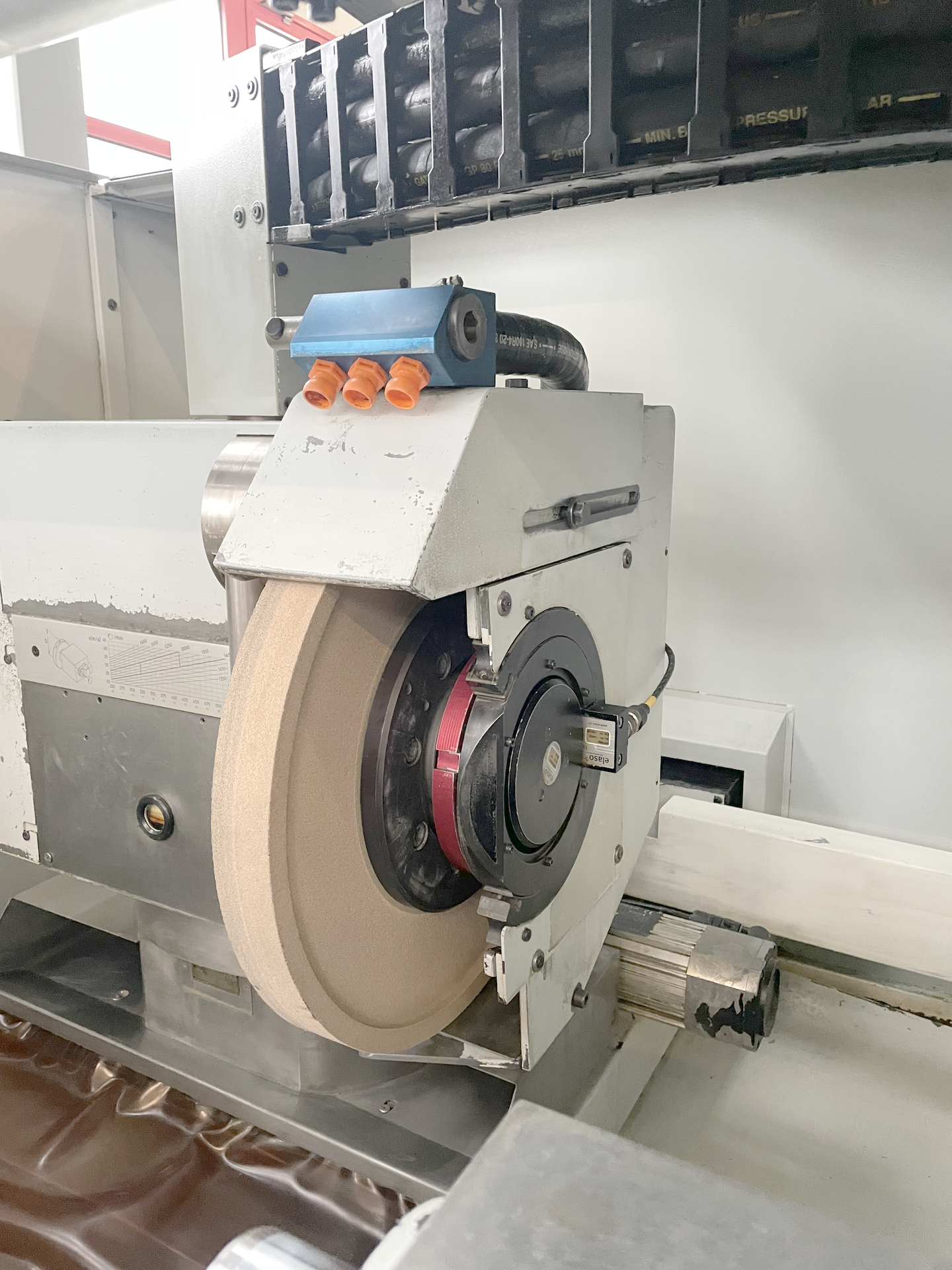

| Grinding wheel: | |
| Diameter | 500 mm |
| Width | 80 mm |
| Bore | 203 mm |
| Diameter | 400 mm |
| Width | 63 mm |
| Bore | 127 mm |
| B axis resolution max. | 2.5 ° |
| Grinding wheel speeds: | |
| stepless | |
| from | 1000 t/min |
| up to | 2150 t/min |
| Rotatable grinding spindle head (b-axis) | +30° / -210 ° |
| Peripheral speed | 45 m/s |
| Max. travel | 320 mm |
| Feed range | 7500 mm/min |

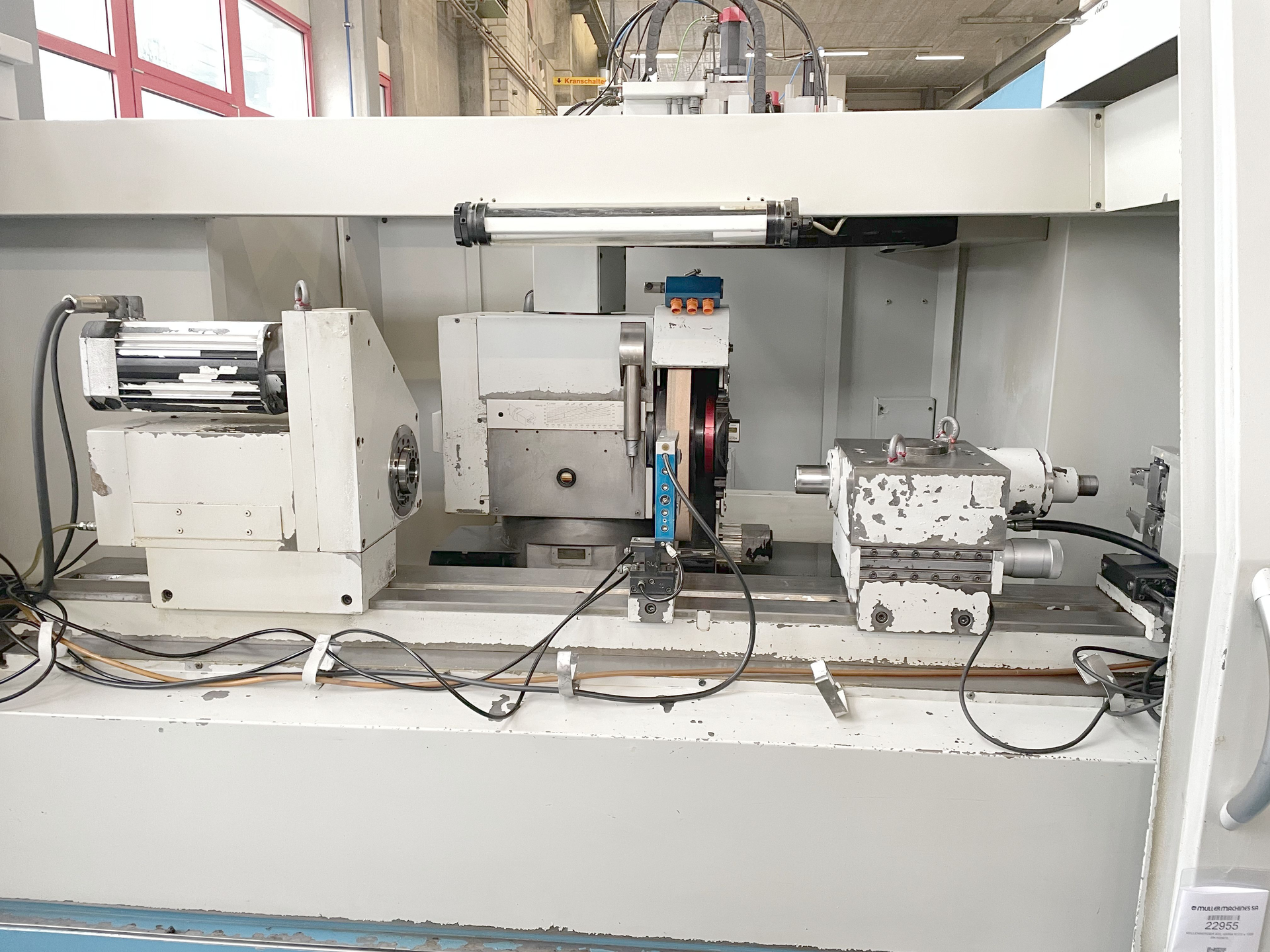

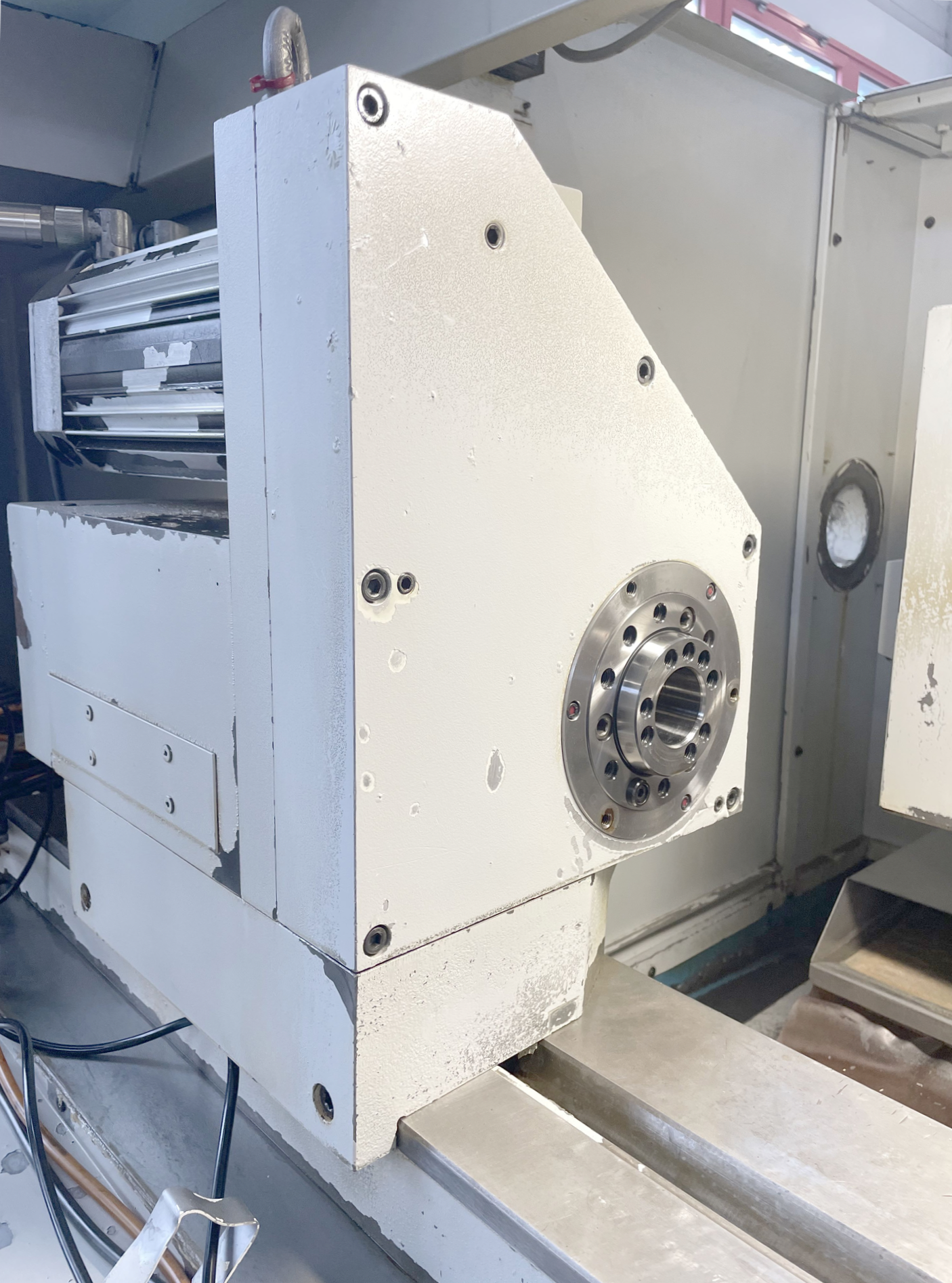

| Work piece spindle head: | |
| Swivelling range | -10 / +100 ° |
| speeds: | |
| stepless | |
| from | 8 t/min |
| up to | 800 t/min |
| Internal mounting cone | 5 CM |
| External short tapered mount | DIN 55026 Gr. 5 |
| Permitted load capacity | 160 Nm |
| Tailstock: | |
| Taper in tailstock: | 4 CM |
| Tailstock travel of barrel | 50 mm |
| Table speed: | |
| stepless | |
| Rapid motion | 15 m/min |
| Max. table angular displacement | 7 ° |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 7.5 kW |
| Workpiece spindle motor | 2 kW |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 4700 mm |
| Width | 2300 mm |
| Height | 2000 mm |
| Various accessories: | |

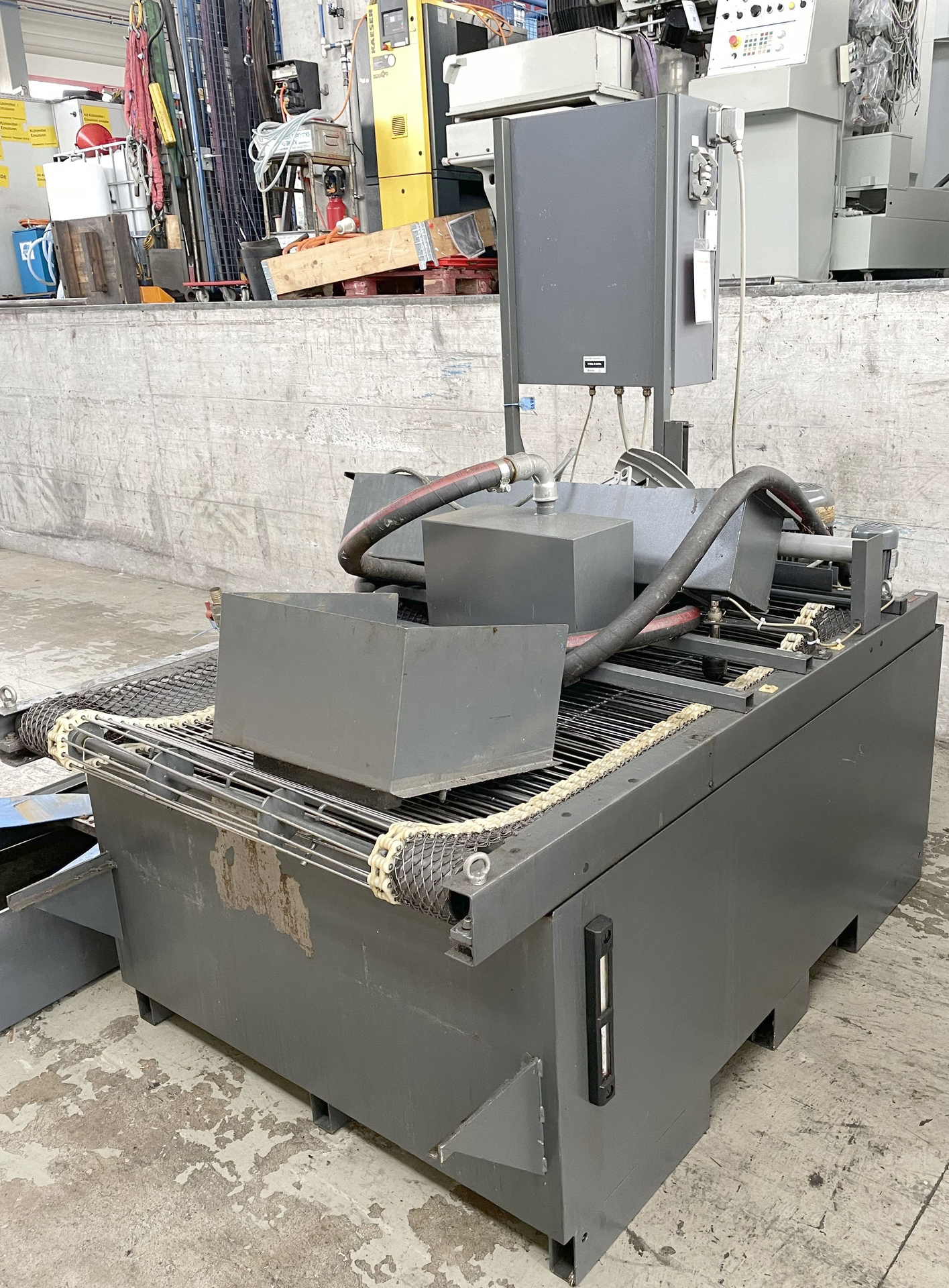

| Paper filtration system | |
| Coolant filter system | |
| C axis | |

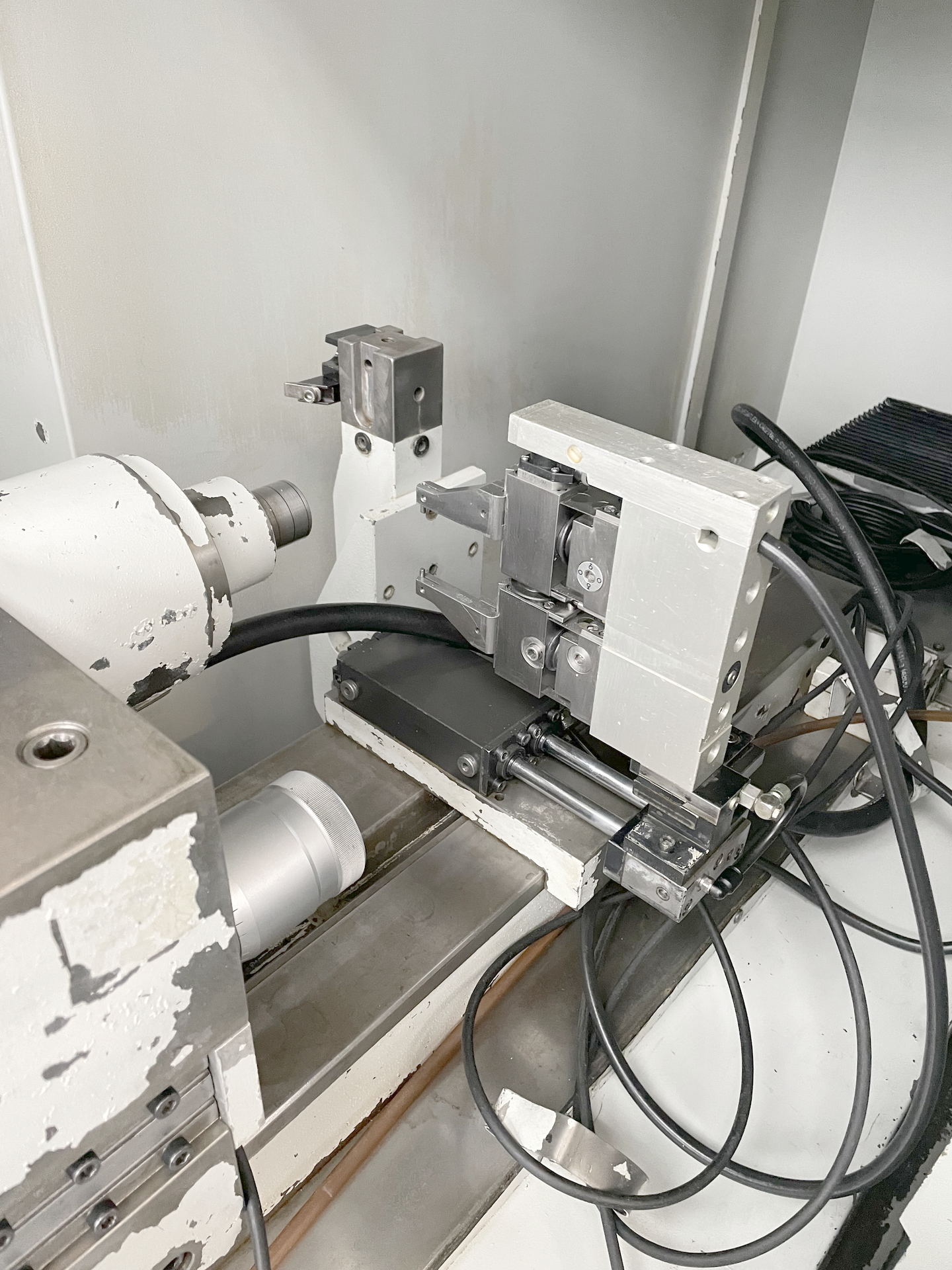

| Measuring device | MOVOMATIC |

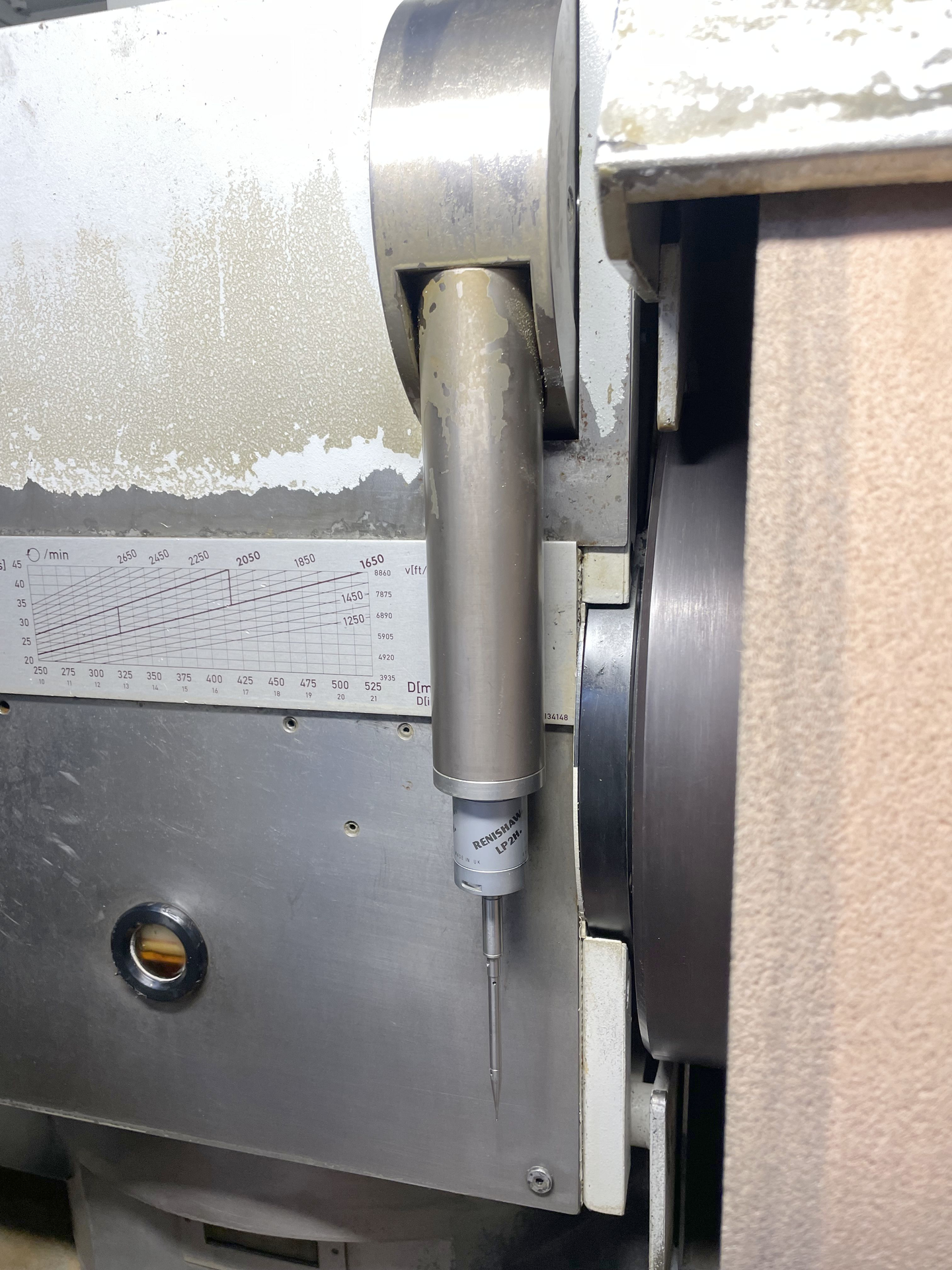

| Feeler Renishaw | LP2H |
| Lamp | |
| Status light | |
| Grinding-wheel flange extractor | |

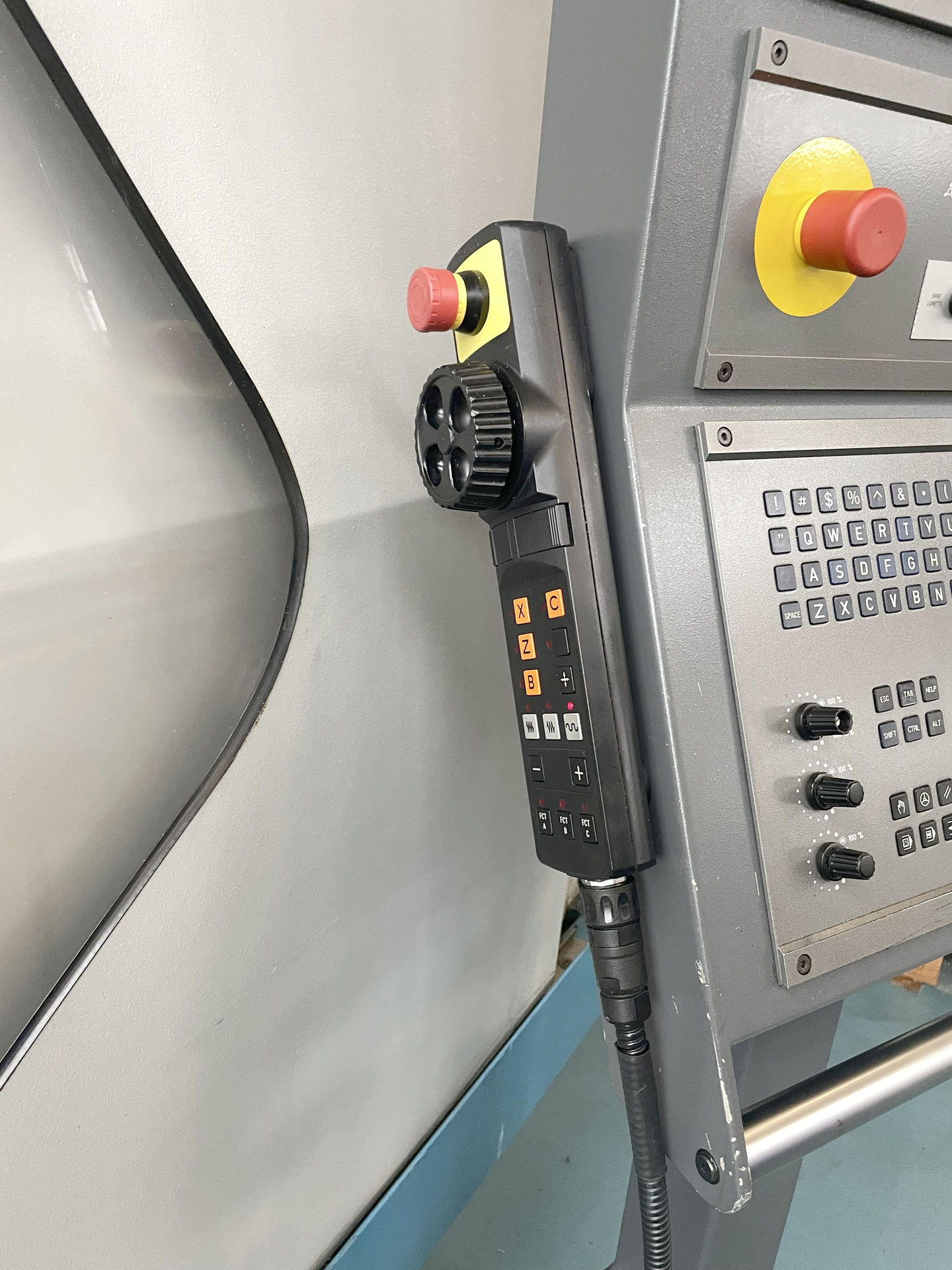

| Electronic hand held remote control | |

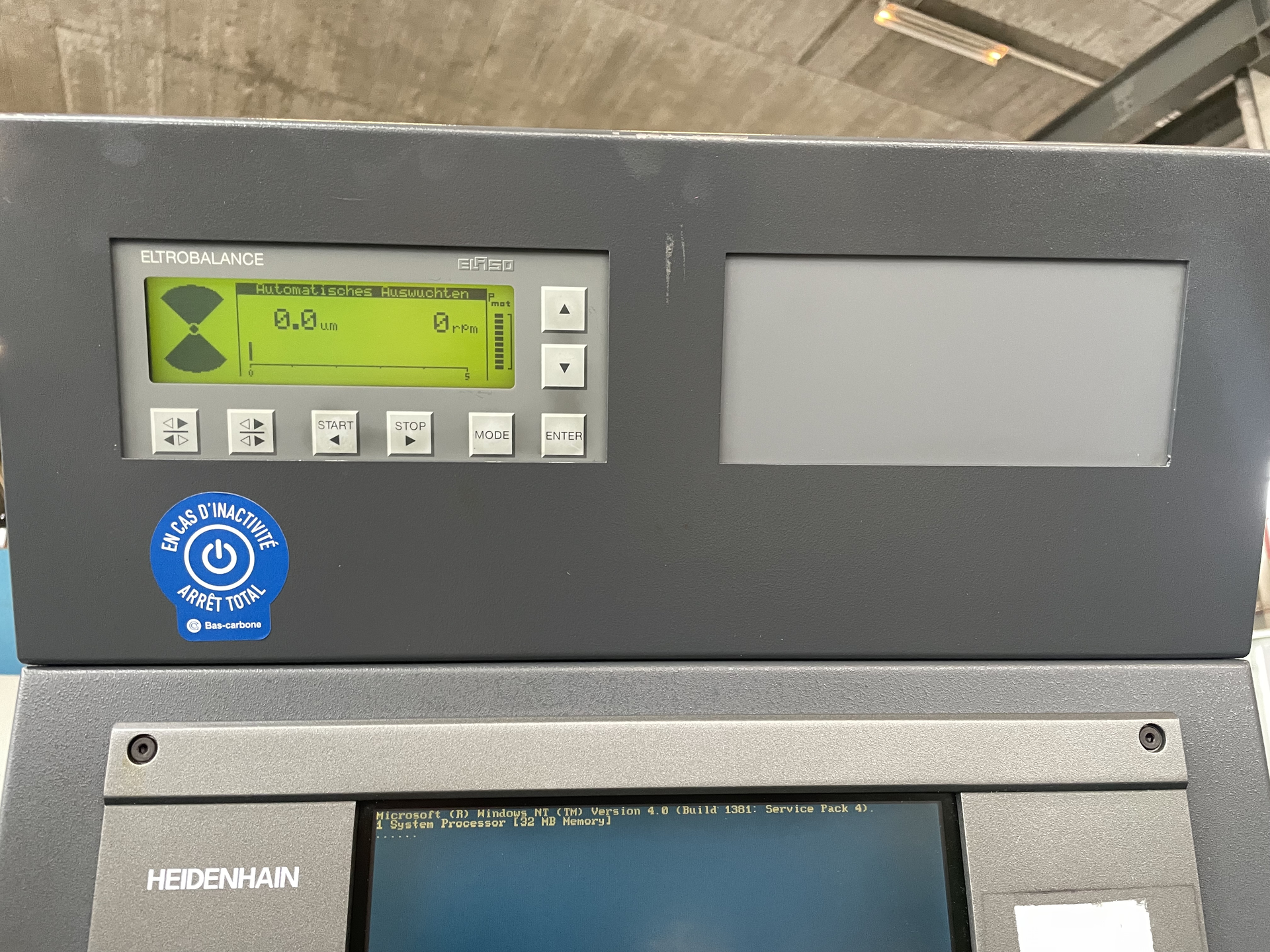

| MPM dynamic balancing system |
