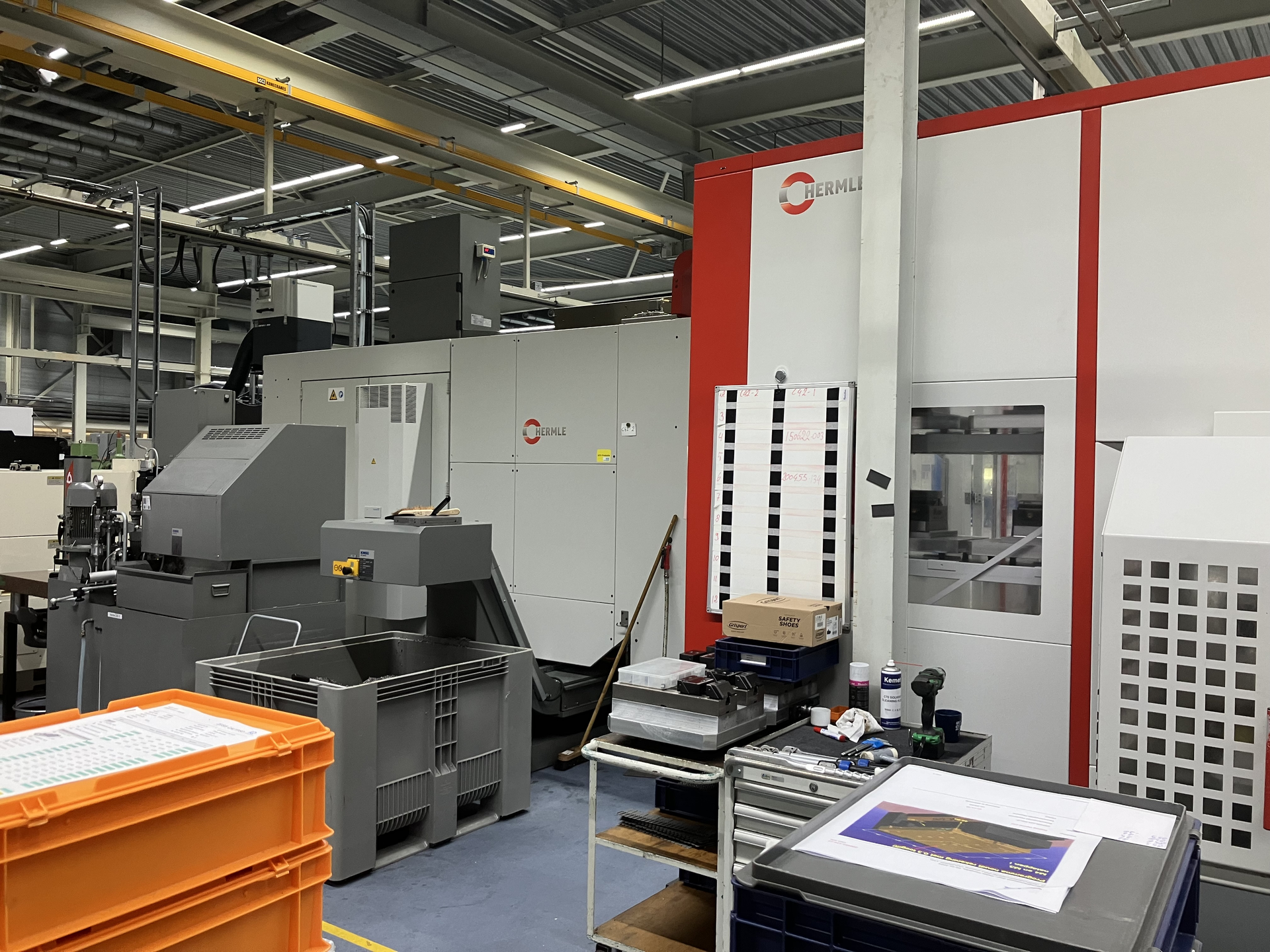

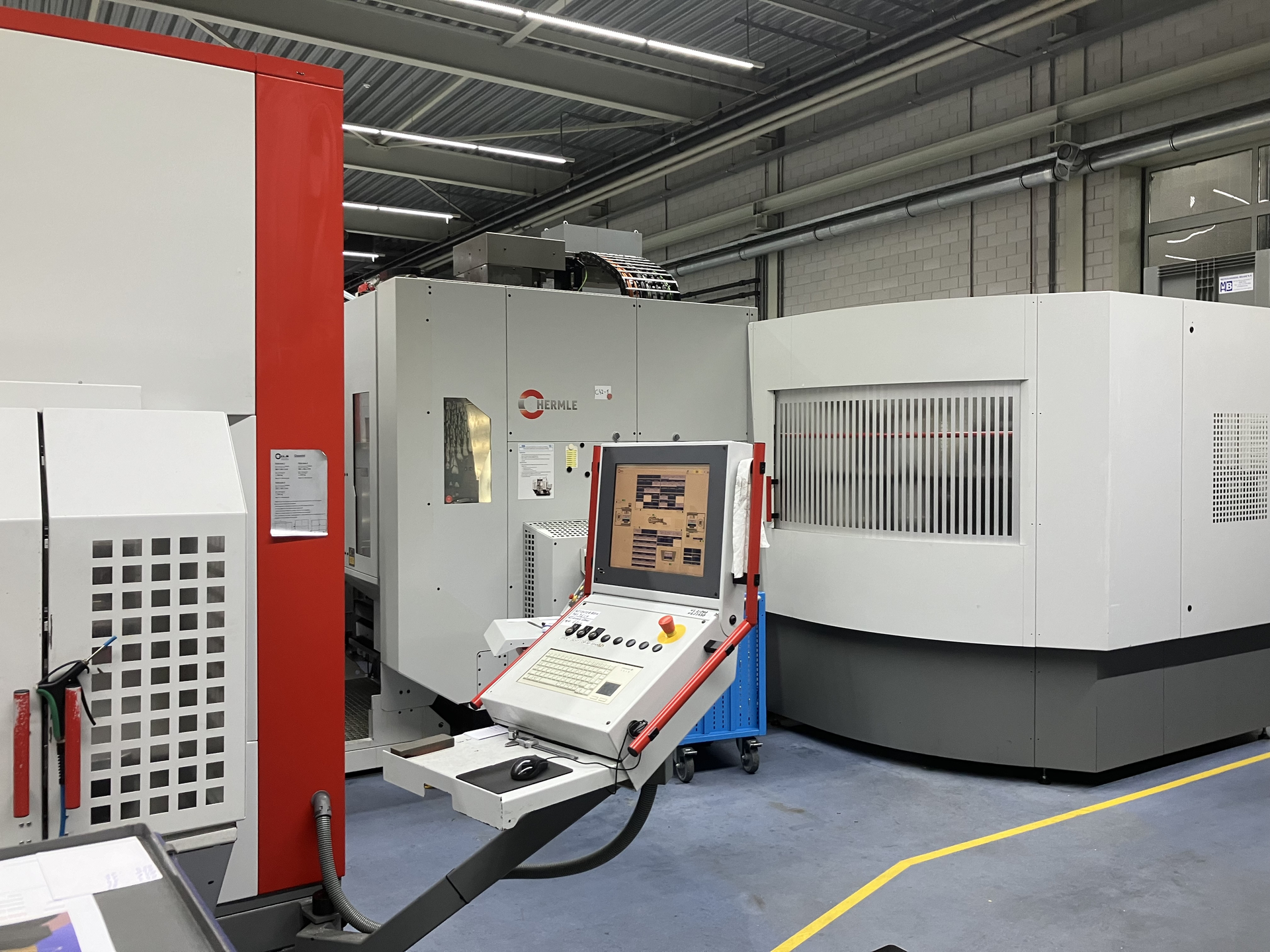

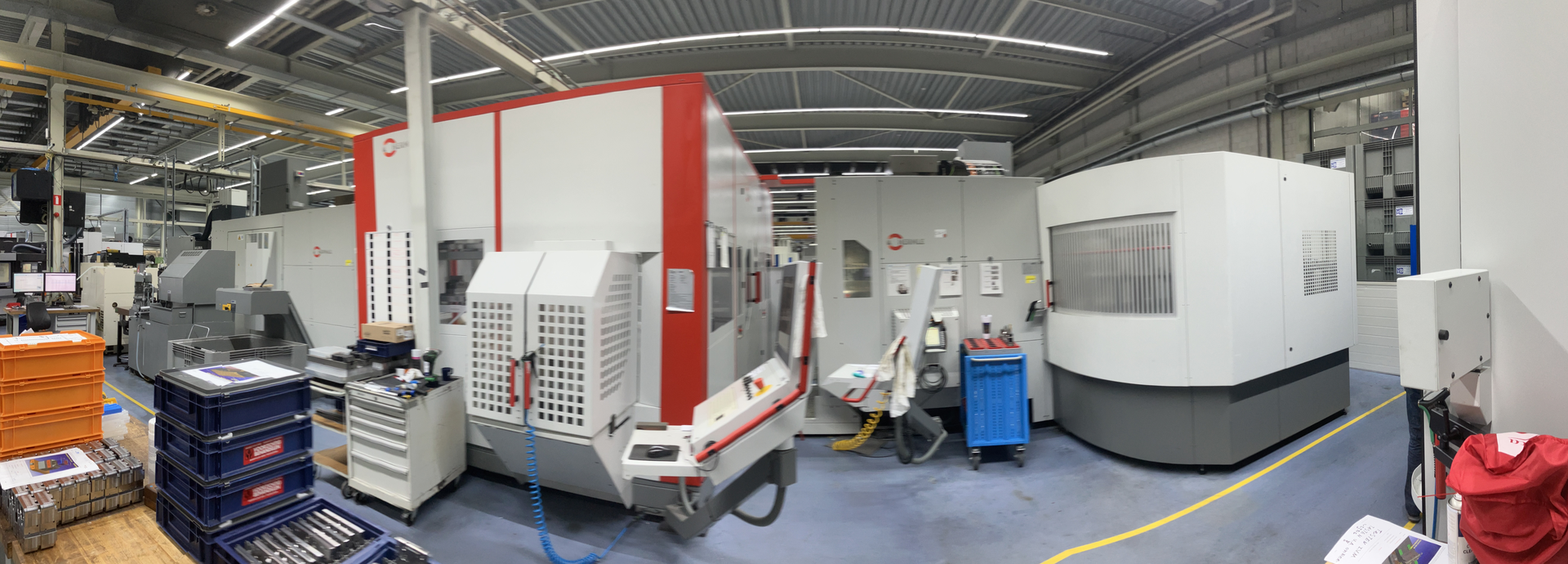

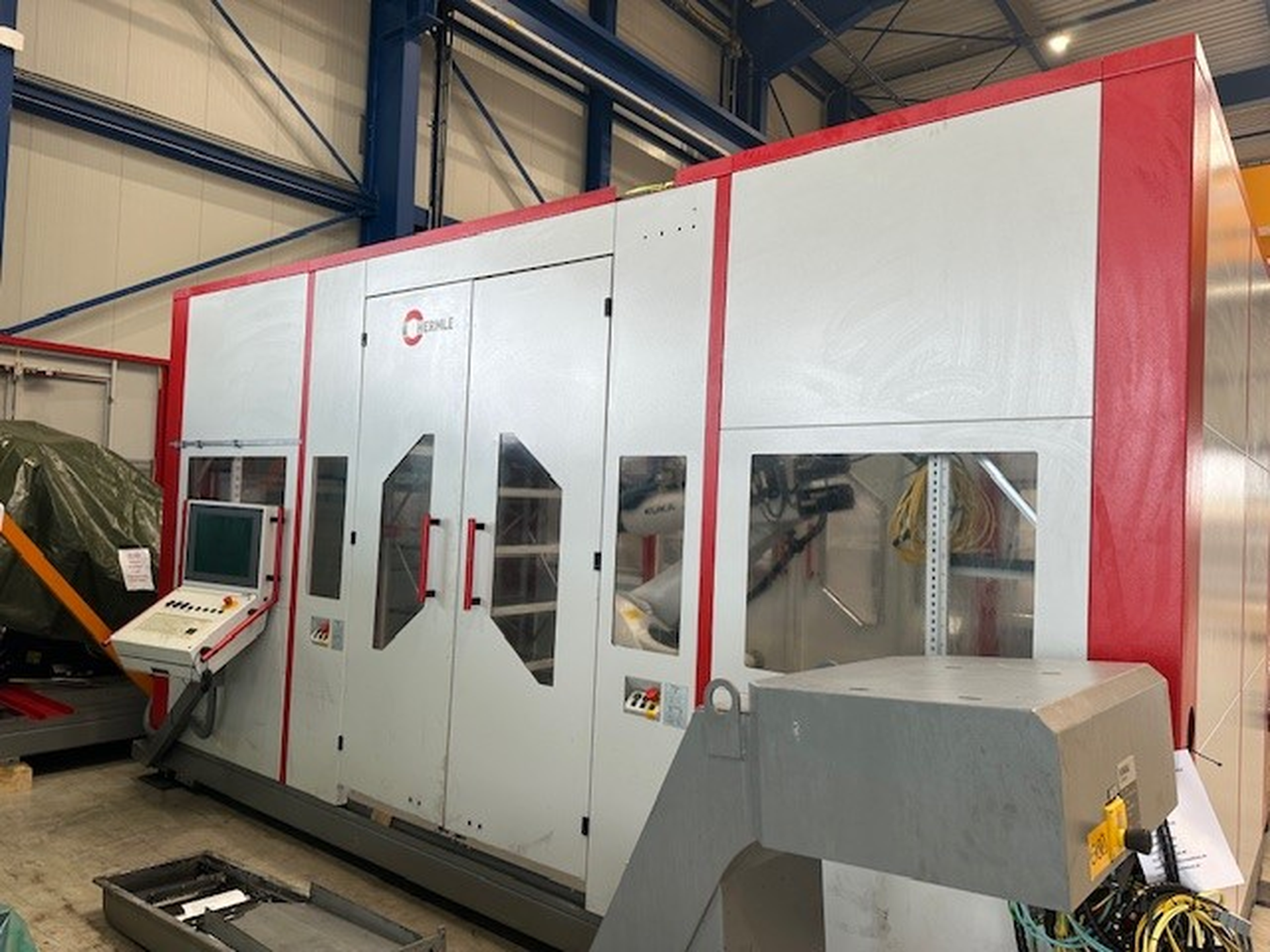

HERMLE C 42 U is a 2 x 5‑axis machining centres with loading robot, engineered for high precision and reliability. Table 400×400 mm, table load 450 kg, travels X800 Y800 Z550 mm, A ±130°. Spindle HSK‑A63 0–18,000 rpm, 42 kW, 148 Nm; rapid 45/45/40 m/min. Tool magazines 42+160, 54 pallets, KUKA robot, coolant 80 bar, Renishaw/BLUM. Suited for tight tolerances in automotive, aerospace, watchmaking, medical.
| Number of axis total | 5 |
| Table length | 400 mm |
| Table width | 400 mm |
| Number of T-channels | 5 |
| T-channel width | 14H7 mm |
| Table load max. | 450 kg |
| Maximum swing circle of up to | 990 mm |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 800 mm |
| Vertical travel (z axis) | 550 mm |
| Swivel angle (a-axis) | +/-130 ° |
| Table speed | 30 t/min |

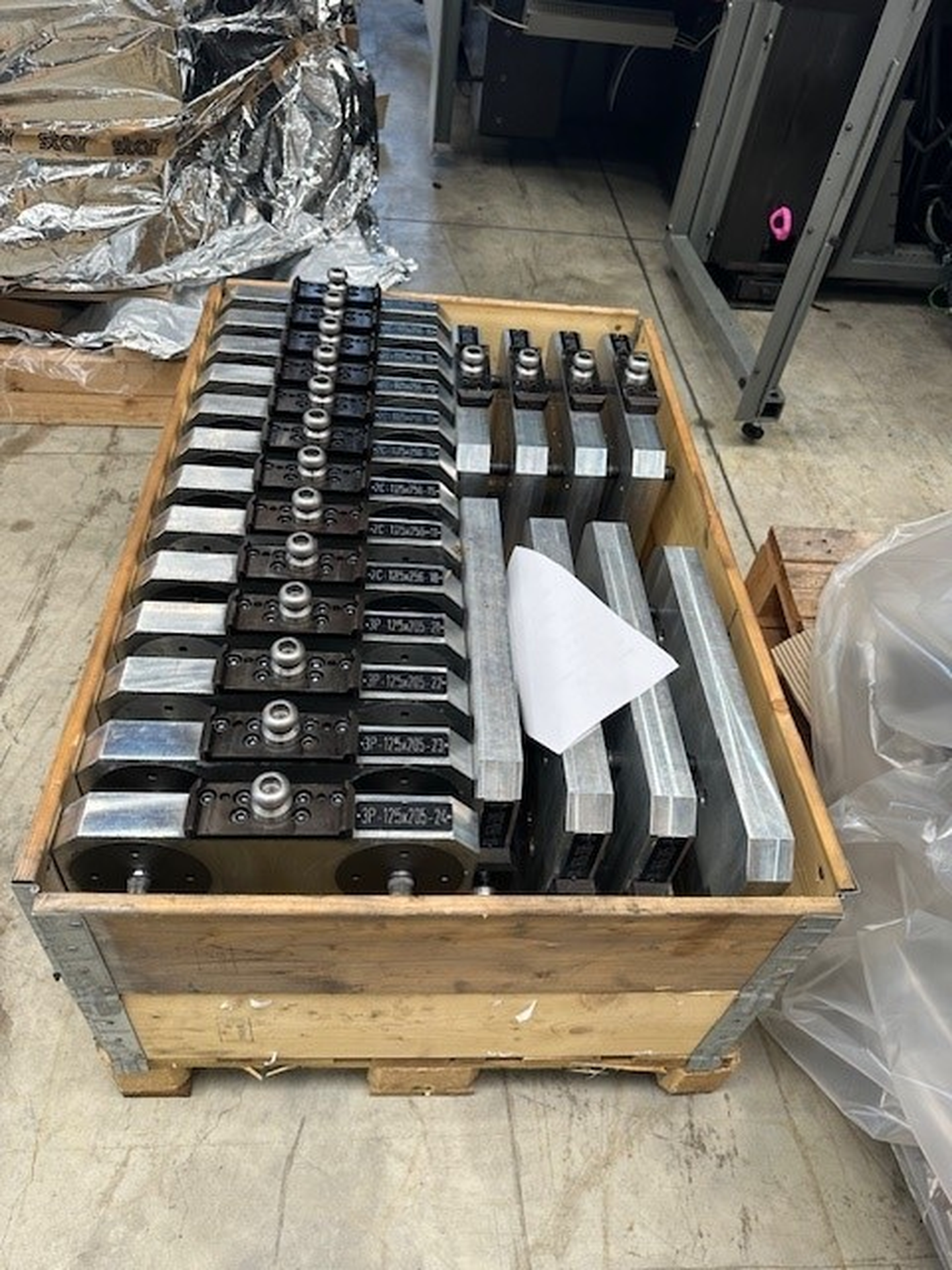

| Pallets chanching device: | |
| numbers | 30 |
| Length | 400 mm |
| Width | 400 mm |
| Tool changer: | |
| Tool magazine number of tool places | 42 |
| Addet tool-holder magazine | |
| Number of tools | 160 |
| Spindle nose: HSK-A | 63 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 18000 t/min |
| Rapid traverse: long. | 45 m/min |
| Rapid traverse: transversal | 45 m/min |
| Rapid traverse: vertical | 40 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 42 kW |
| Torque max. | 148 Nm |
| Total power required | 37 kVA |
| Machine's weight about | 12500 kg |

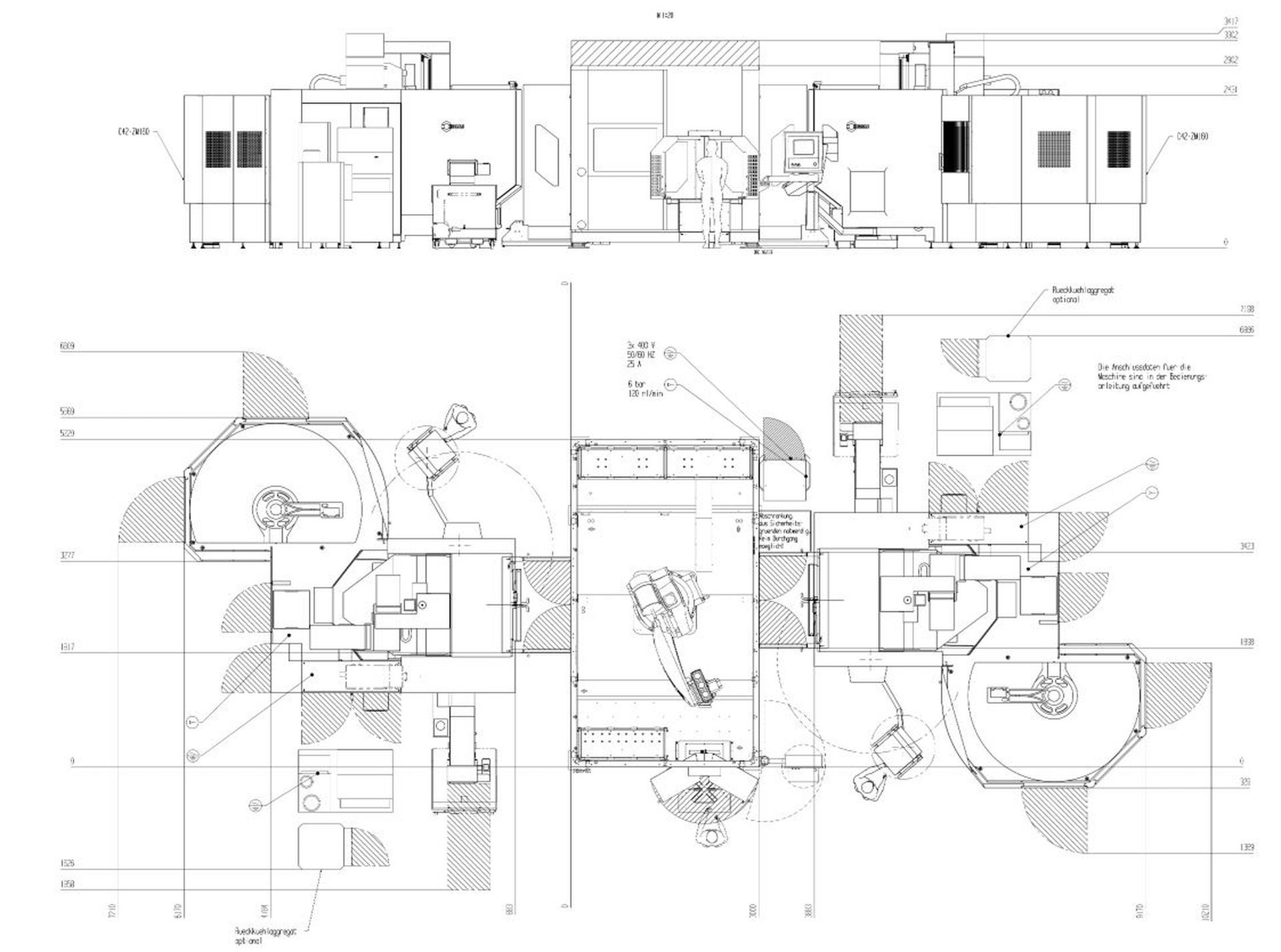

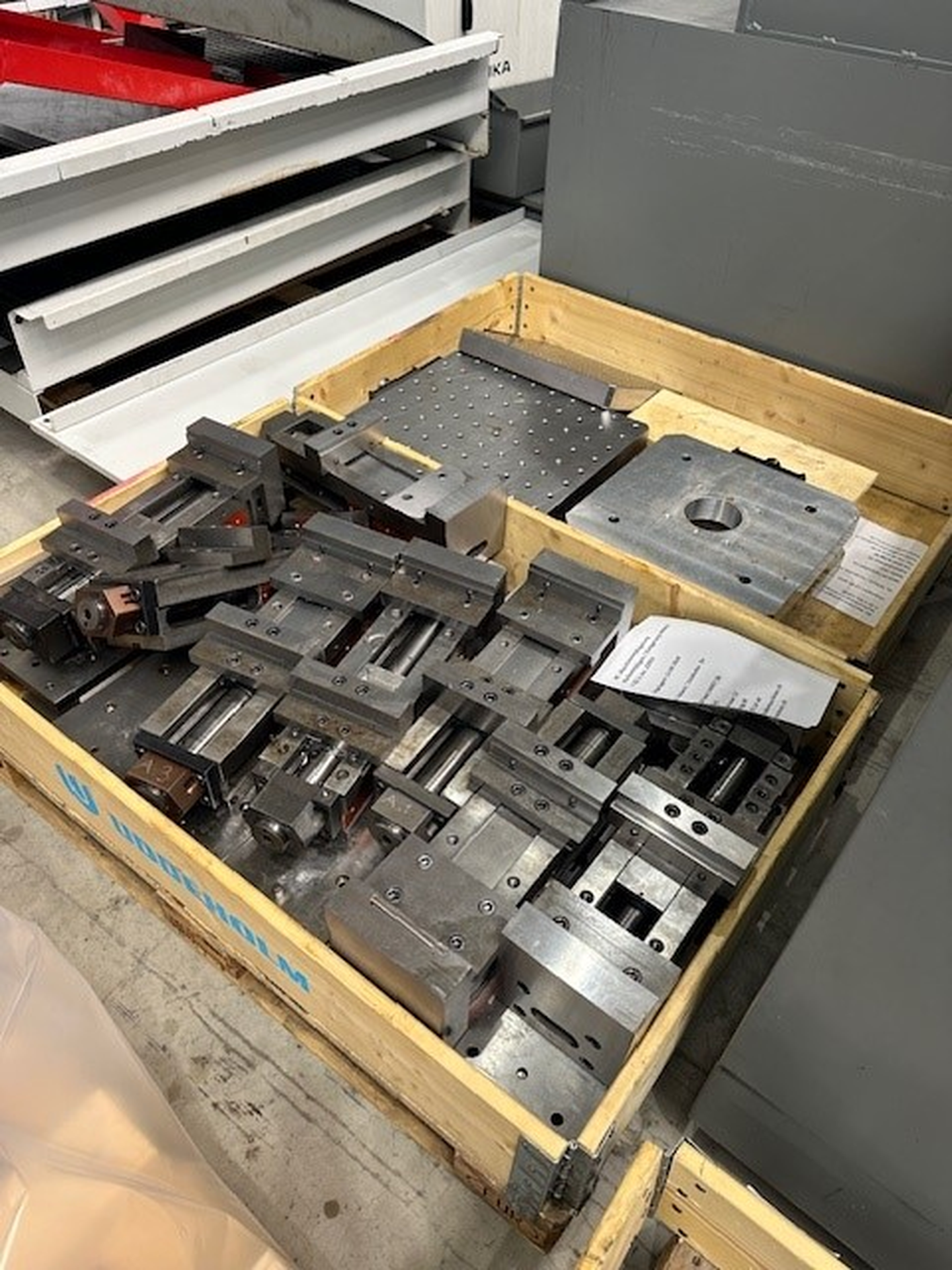

| Overall dimensions machine: | |
| Length | 16000 mm |
| Width | 7000 mm |
| Height | 3500 mm |
| Various accessories: | |

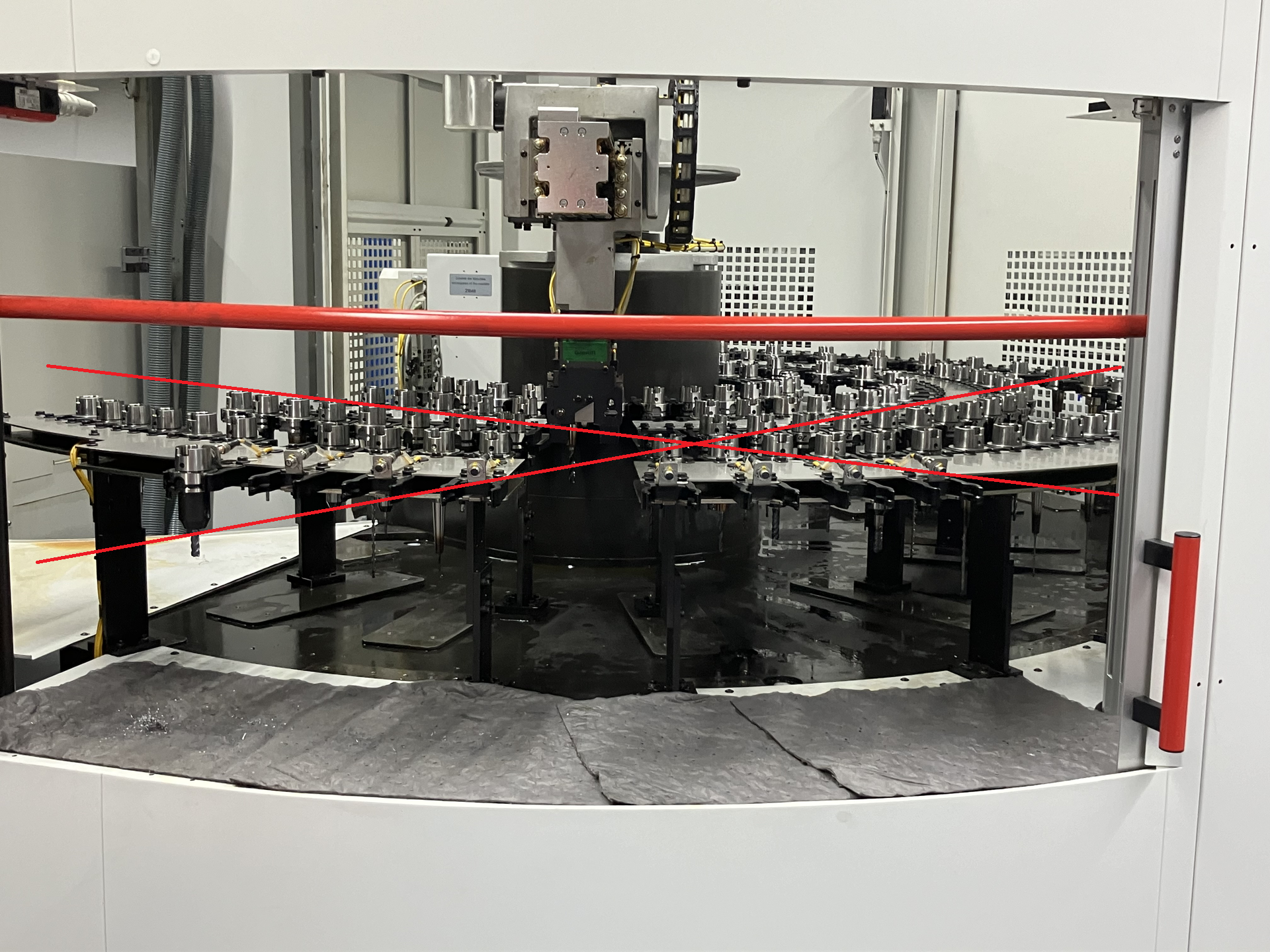

| Addet tool-holder magazine | |
| Number of tool places | 160 |

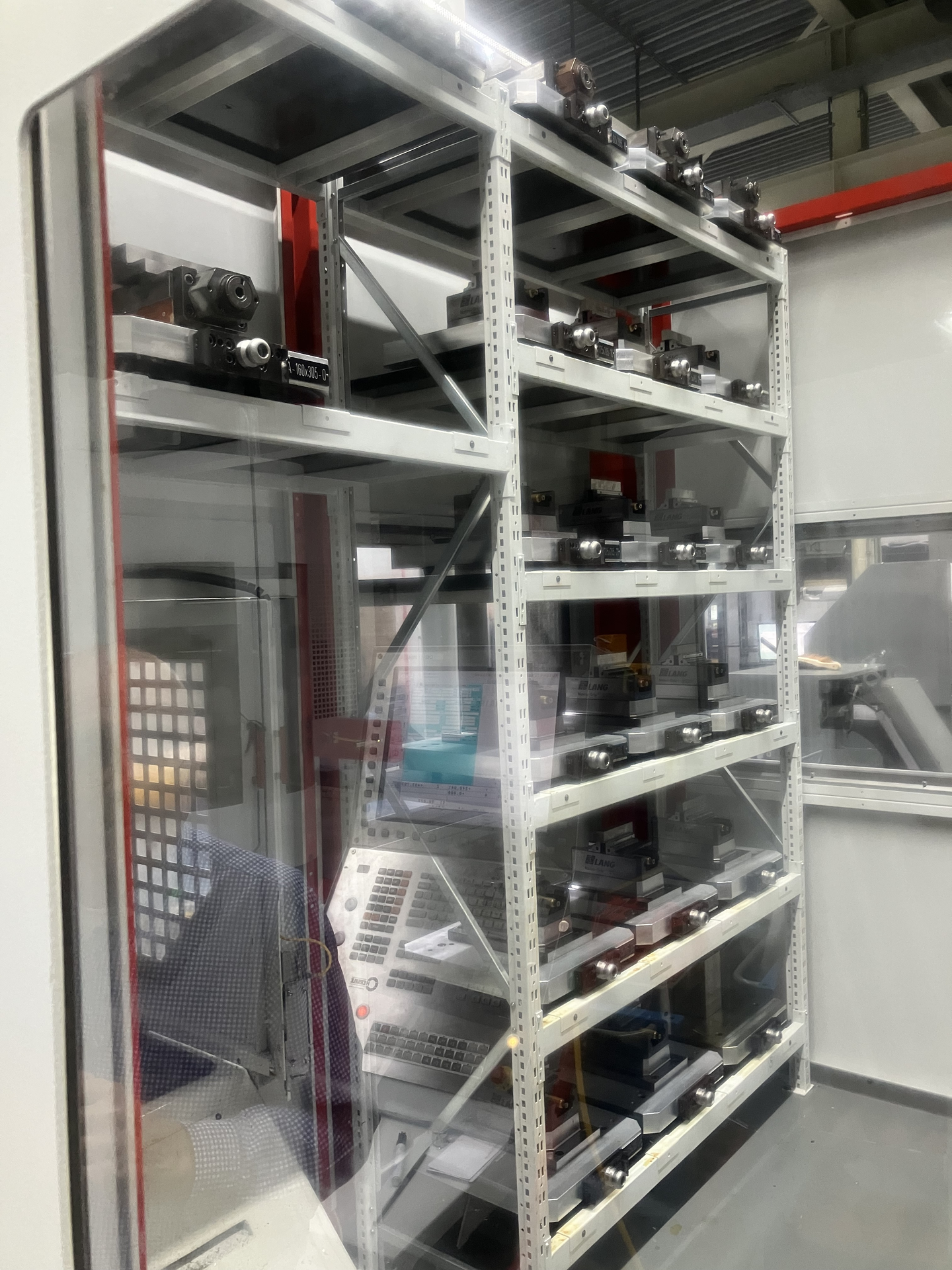

| Pallet station (number of spaces) | 54 |
| Loading roboter | KUKA |
| Coolant through spindle (cts) | 80 bar |
| Air blast through milling spindle | |
| Paper filtration system | |
| Measuring feeler gauge Renishaw | |
| Workpiece measurement | BLUM |
| Tool break control | BLUM |
| Chip conveyor | |

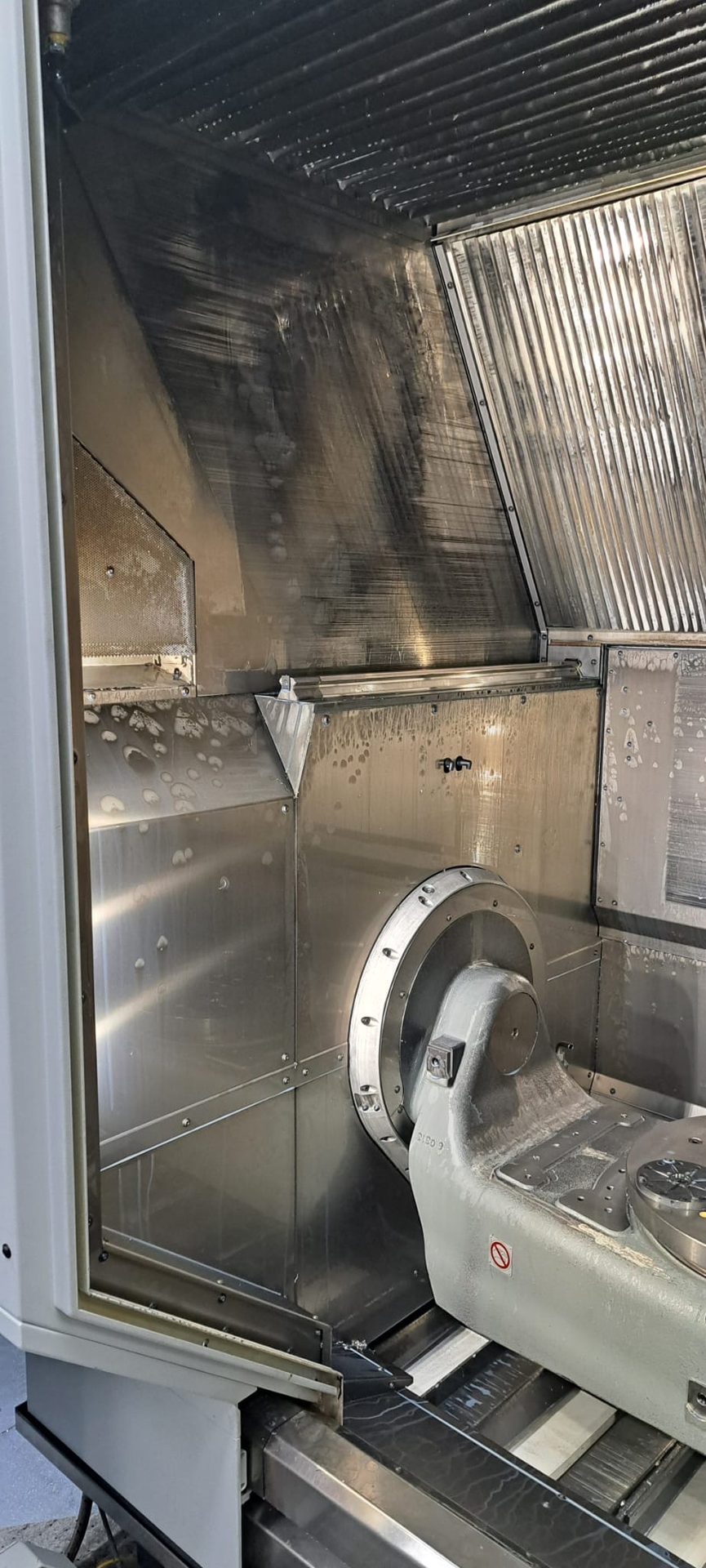

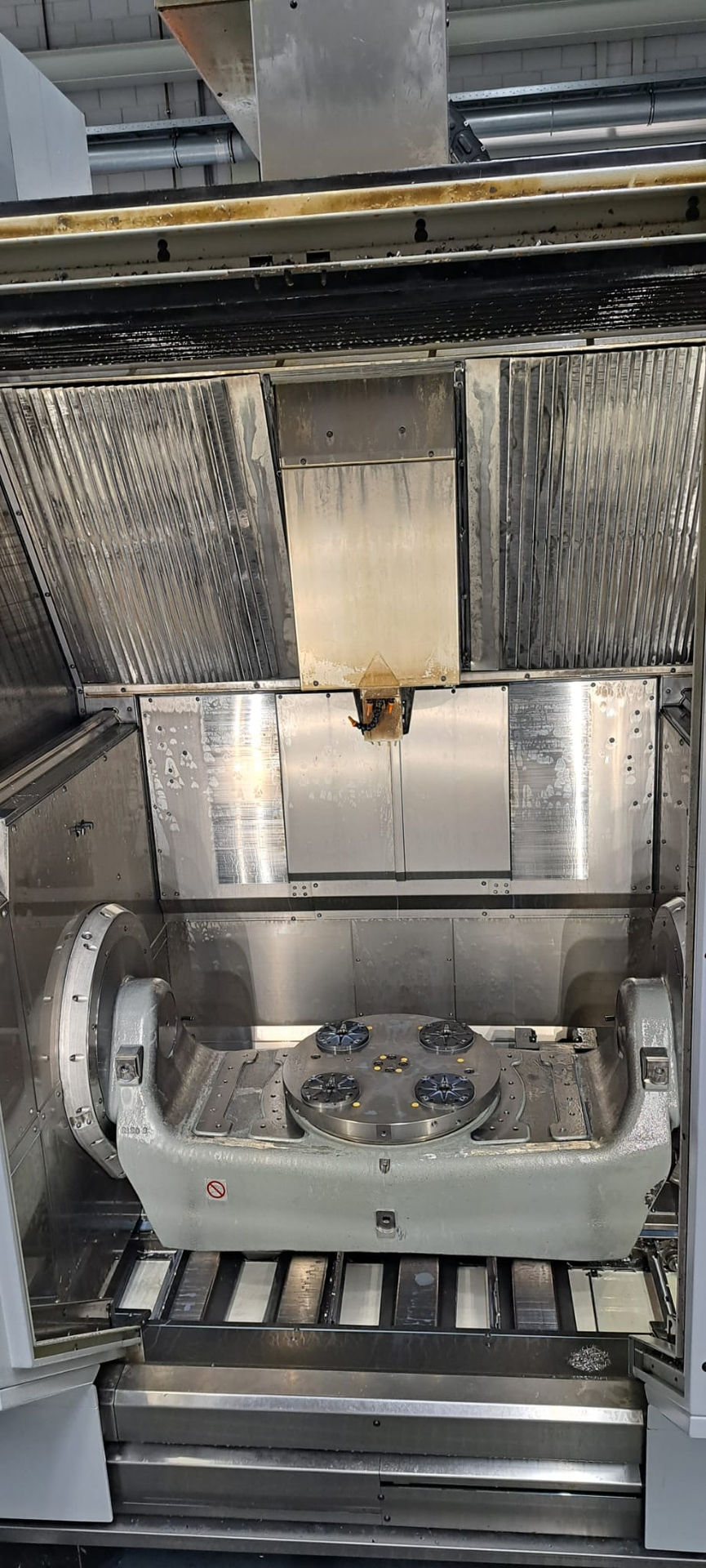

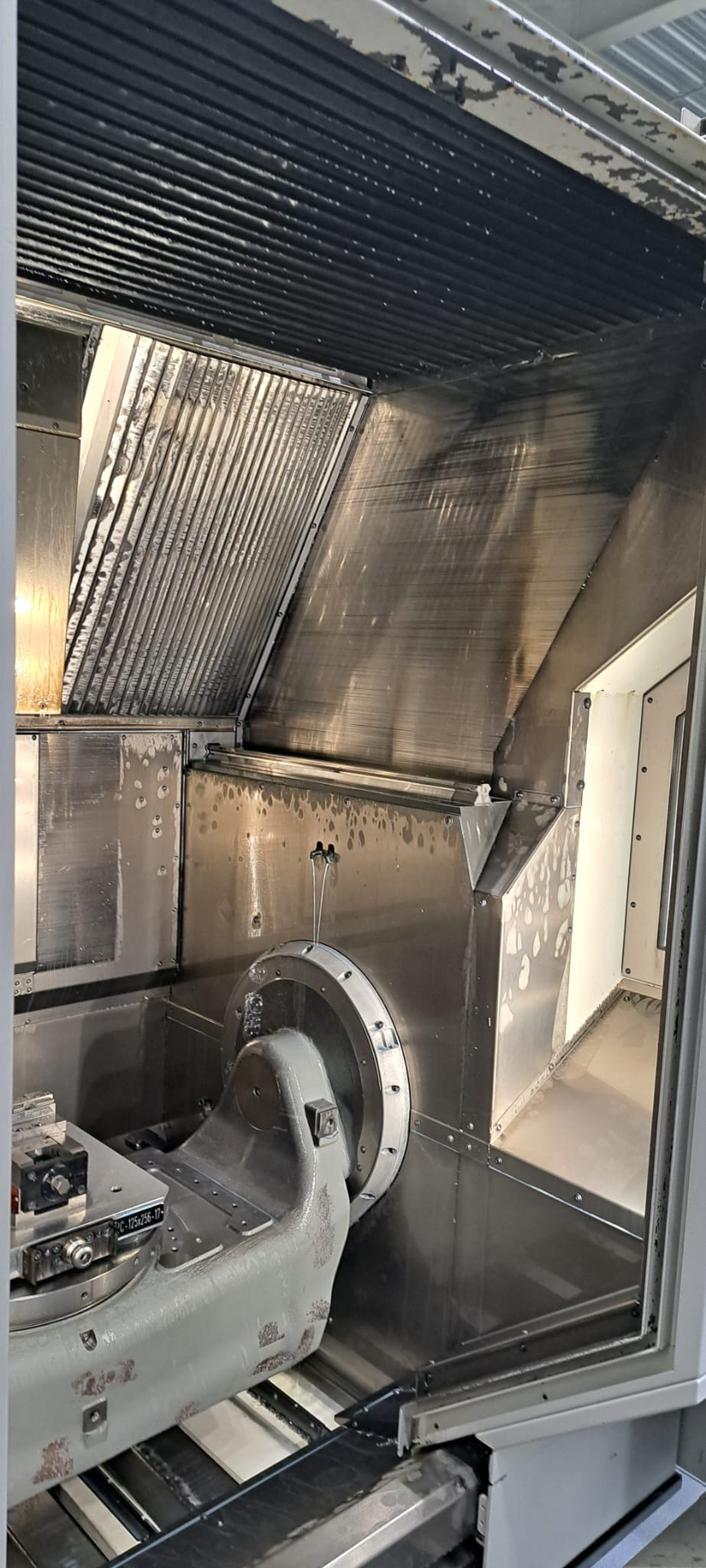

| NC Rotary and swiveling table | |
| Oil mist extractor | |
| Rotating viewing window | |
| Automatic sliding door | |
| Interface serial port RS 232 | |
| Interface Ethernet | |
| Interface USB | |
| Switch cabinet Air conditioner | |
| Notes: | |
| without tool holders |
